A thermochromic tissue-mimicking phantom model for verification of ablation plans in thermal ablation

Introduction

Thermal ablation, including radiofrequency ablation (RFA), microwave ablation (MWA) and laser ablation, was widely used for early hepatocellular carcinoma (HCC) (1,2). The principle of thermal ablation is that thermal energy produced by RFA or MWA causes coagulative necrosis of HCC to achieve the purpose of radical treatment (3). The necrosis area must cover the tumor completely during an ablation procedure. Once a residual tumor exists, it will cause the growth and invasion of HCC and hinder patients from a satisfactory prognosis (4).

It is easy for a small HCC to retrieve complete ablation because only one or a few ablation sites are needed to cover the whole tumor (5). However, for the large tumors, especially for the tumor with a size larger than 5 cm, the incomplete ablation rates increase markedly (6,7). With the increase of tumor size, the ablation volume and ablation points needed to retrieve complete ablation grow exponentially. Multiple overlap ablation with a mathematical ablation model was presented in clinical practice to improve the treatment outcome of thermal ablation for large HCC (8,9). However, this ablation protocol is, to some extent, experience-dependent. It is difficult for most beginners of image-guided thermal ablation, who may spend a long time passing the learning curve. We always hope the experience of thermal ablation was acquired from something else instead of patients.

The other advanced method to assist thermal ablation for the large tumor is ablation planning, in which the ablation points and puncture path can be programmed automatically with the preoperative 3D image of the tumor. Several commercial ablation planning systems are achievable in our daily work, including a 3D visualization ablation planning system, a 3D ultrasound image ablation planning system, and a CT based ablation planning system (10-13). More developing ablation systems are on the way. However, these ablation planning systems' accuracies can be difficult to evaluate since there is insufficient assessment.

A tissue-mimicking phantom model can address the issues mentioned above and plays a significant role in ablation procedures (14-16). The optimal tissue-mimicking phantom model may have the following characteristics. First, it is with the chemical and physical long-term stability. Second, some physical properties, including specific heat capacity and susceptibility to puncture, like those of human tissues. Third, accurate visualization of the coagulation lesion after thermal ablation. Fourth, a repeatable ablation size with the same ablation power and time. Fifth, a tumor model embedded in the parenchyma model can be distinguished by the US before ablation and distinguished on the gross specimen after thermal ablation. Hence, we aim to develop a tissue-mimicking phantom model with the characteristics above.

This study developed a thermochromic tissue-mimicking phantom model through a polyacrylamide gel and commercially available thermochromic ink, which can assess the ablation planning system's accuracy by displaying the ablation region and training the operators for ultrasound-guided thermal ablation. We present the following article in accordance with the MDAR reporting checklist (available at http://dx.doi.org/10.21037/atm-21-523).

Methods

Phantom fabrication

This phantom is formed of a polyacrylamide gel mixed with commercially available thermochromic ink (17,18). This ink permanently changes color from cream white to magenta as temperature increases. According to the ink manufacturer, the maximum color density is reached at around 60 °C (19). A cross-linking copolymerization makes the polyacrylamide gels of acrylamide and N, N'-methylene bisacrylamide (bis) in an aqueous solution.

The following protocol for phantom fabrication was used: (I) the acrylamide and N, N'-methylene bis with a 19:1 ratio added ultrapure water to get a mixture consisting of a 7% acrylamide:bis concentration. (II) These steps were then followed by the addition of thermochromic ink with 5% (v/v). (III) ammonium persulfate was added to initiate polymerization with 0.14% (w/v). (IV) N, N, N0, N0-tetramethylethylenediamine was added with 0.1% (v/v). The final solution was immediately transferred to a plastic container of the desired size and kept in a cold room (4 °C) overnight.

Two Phantom models were established according to our aims. One phantom model was without a spherical tumor model, and another phantom model included a spherical tumor model with a size of 3.0 cm. The spherical tumor model can be distinguished from the background model clearly by the US.

Model testing

The phantom was used to assess the MWA procedure. Three aims of this testing were included. First, to test the color change of phantom with the high temperature caused by MWA. Second, the phantoms were ablated by MWA at different power and time to assess if the ablation size was ablation power and time-dependent. Third, a repeat ablation procedure is performed to determine if a stabilized ablation size can be retrieved at the same power and time. If it can be retrieved, the ablation size is recorded for the next step.

Study grouping

The phantom model included a spherical tumor model with a 3.0 cm size to test complete or incomplete ablation procedure. The phantom models were randomly divided into two groups, including a complete ablation group in which the tumor model covered the ablative area and an incomplete ablation group in which the tumor model did not cover the ablative area.

Ablation planning

Before the ablation, 3D ultrasound volumes were acquired and reconstructed using the PercuNav feature of the Philips EPIQ 7 ultrasound system. First, three-dimensional ultrasound image data for the spherical tumor model were collected. Second, the spherical tumor model and background model were segmented. After that, the 3-D ultrasound images in an arbitrary scan view or a rendered volume to segment the spherical tumor model and background model can be reviewed. The computer-assisted tumor ablation planning for 3-D ultrasound was then performed before the ablation to complete the ablation. The mono-site ablation size used for ablation planning was on the results of the last step. JM performed the ablation planning procedure. D who had 10 y of experience with ultrasound-guided ablation for HCC.

MWA procedures

MWA procedures were carried out using an MTC-3 microwave therapy instrument (Forsea Microwave & Electronic Research Institute, Nanjing, China) with a frequency of 2,450 MHz and an output power of 50–100 W. The microwave (MW) antenna was a 14 G unipolar cooled-shaft needle 15 cm with a 1.5 cm active tip.

MWA was carried out under ultrasound guidance. MWA output power was 60W, 10 minutes per point. Multiple points ablation was performed according to preoperative planning. For research purposes, a complete ablation was performed exactly as planned. An incomplete ablation procedure was performed as planned, but one ablation site was retained to evaluate the residual spherical tumor model. All the ablation procedures were performed respectively by a senior operator (JM.D) who had 10 y of experience with ultrasound-guided ablation for HCC.

Evaluation of ablation margin

The phantom models were sliced imminently after thermal ablation to assess the ablation region. The result of the phantom model was compared with the ablation planning we expected.

Statistical analysis

Data were expressed as median ± standard deviation (SD) (range). All data were analyzed using SPSS version 22.0 software (SPSS, Chicago, IL, USA).

Results

Two conical phantom samples were prepared using the above process. One of these phantom samples was then equilibrated to ambient temperature and heated at 65 °C for 10 minutes using a hot water bath. Another phantom sample without a hot water bath was kept at room temperature. Photographs of both the heated and unheated samples were taken to illustrate the color differences. We can observe the color of the model changes from cream white to magenta (Figure 1).

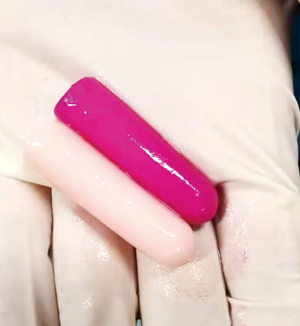

Figure 1 The color differences of phantom samples with (magenta one) and without (cream white one) hot water bath.

The cuboid parenchyma models with a size of (6×8×8) cm were abated by MWA at 60 W with different times, including 5, 10, 15 minutes. The ablation area is a spheroid, like the HCC ablated zone. The mono-point ablation size was time-dependent at the same output power (Table 1, Figure 2A).

Table 1 Mono-site ablation size at 60 W with different time
Full table

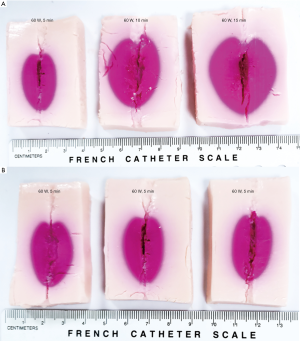

Figure 2 The gross specimen of the phantom model after MWA. (A) Phantom samples were ablated with 60 W at a different time; (B) phantom samples were ablated with the same power and time at 60 W, 5 minutes.

The ablation procedures were performed six times repeatedly at 60 W at different times (Table 2, Figure 2B). The mono-site ablation area is a spheroid after thermal ablation with a size of 3.0×1.8 cm at 60 W, 5 minutes, 3.5×2.5 cm at 60 W, 10 minutes, and 4.0×3.5 cm at 60 W, 15 minutes, respectively.

Table 2 Mono-site ablation size at 60 W with different time
Full table

When a 3.0 cm spherical tumor model is embedded in a cuboid parenchyma model, the US can detect the tumor model because the air gap between the tumor model and parenchymal model was hyper-echoic. Thus, 3D ultrasound volumes were acquired and reconstructed using the PercuNav system (Figure 3). Then ablation planning was performed. The mono-point ablation size used in the ablation planning system was 3.5×2.5 cm (60 W, 10 minutes). Four ablation sites were needed to achieve the complete ablation according to the ablation planning (Figure 4). According to our purpose, two ablation groups, the complete ablation group, and the incomplete ablation group, were developed. For the complete ablation group, the ablation producer was performed exactly as planned to achieve complete ablation. The sliced tumor and parenchyma model show that the ablation area (magenta) covered the tumor model completely, as we expected (Figure 5A,B). Only 3 ablation points were performed for the incomplete ablation group as planned during the procedure to achieve incomplete ablation. The sliced tumor and parenchyma model show that the ablation area (magenta) did not cover the tumor model completely, as we expected (Figure 5C,D).

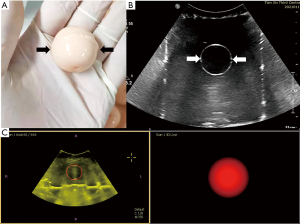

Figure 3 The US and 3D US images of the spherical tumor model. (A) Photo of a 3.0 cm spherical tumor model (↑); (B) the US illustrates the tumor model (↑); (C) 3D ultrasound image of the tumor model embedded in the parenchyma model.

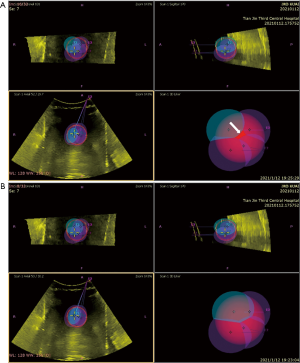

Figure 4 Ablation planning of the spherical tumor model. (A) An incomplete ablation (↑) can be displayed on 3-D ultrasound images during the ablation planning procedure; (B) a complete ablation can be achieved with 4 points ablation.

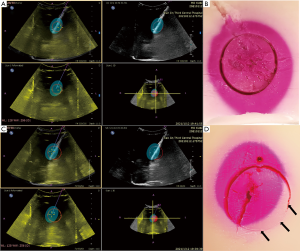

Figure 5 The expected results in ablation planning with the corresponding gross specimen of the phantom model. (A) Ablation producer was performed exactly as planned to retrieve complete ablation; (B) the complete ablation was verified on the phantom model; (C) only 3 ablation points were performed as planned to retrieve incomplete ablation; (D) the incomplete ablation was verified, and the residual tumor model (↑) was displayed on a phantom model.

Discussion

In this study, we developed a thermochromic tissue-mimicking phantom model to assess the ablation region after MWA. This phantom model was on a polyacrylamide gel and commercially available thermochromic ink, which endowed our models with several major characteristics for simulated liver tissue properties during an ablation procedure.

Our phantom model contains primarily polyacrylamide gel, which has physical properties like liver tissues (18). First, the mass density and flexibility of polyacrylamide gel is like soft tissues. When a phantom model is punctured, it has the real feeling of puncturing liver tissue. The phantom model is hypo-echoic on the US, and a puncture needle or ablation electrode can be displayed under ultrasound guidance. Thus, it contributes significantly to the accumulating of study experience for ultrasound-guided interventional puncture. Second, the specific heat capacity, thermal conductivity, and electrical conductivity of polyacrylamide gel are comparable to biological tissue, as proved by earlier studies (18,20), representing the phantom model as an ideal replacement of liver tissue for thermal ablation experiment investigations.

When the polyacrylamide gel model is used for thermal ablation, a critical issue that needs to be solved is how to visualize the ablation region of thermal ablation. Thermochromic materials may be used as indicators to address the problem (21,22). In this study, commercially available thermochromic ink, the other composition of the phantom model, was used. The most important thermochromic ink character is thermochromism, a phenomenon in which a substance changes its color because of a temperature change. According to the ink manufacturer, color changes from cream white to magenta when temperatures above 60 °C, reaching the maximum color density at around 60–65 °C (19). This phenomenon can describe the process of coagulative necrosis of tumor or liver tissue ablated by thermal ablation.

The color change for thermochromic ink used in our study is permanent. Even upon cooling, the color is irreversible, so we can analyze our results. The color difference of the background region and ablation region will not disappear.

The polyacrylamide gel mixed with thermochromic ink creates an appropriate phantom model used for thermal ablation investigation. As our results show, because of thermochromic ink’s color change, the ablation region can be displayed clearly in the phantom model. The ablation shape of MWA in the phantom model is a spheroid like that in liver tissue. With an increase of ablation time, the ablation area enlarged, reflecting the superior thermal conductivity and electrical conductivity of the polyacrylamide gel model and can be used to visualize the three-dimensional temperature distribution of thermal ablation. All these properties mentioned above make the phantom model an ideal training tool for thermal ablation.

In this study, we “planted a tumor” in our parenchymal model successfully, like an HCC lesion located in the liver. Although the tumor model and background model both are hypo-echoic in the US, the spherical tumor model can be distinguished from the background model because of the hyper-echoic of the tumor model margin. The air gap causes this hyper-echoic margin between the tumor model and the background model. Thus, the tumor model and background model can be segmented, and the tumor model’s 3D volume data can be detected. Then ablation planning and ultrasound-guided thermal ablation can be performed on a thermochromic tissue-mimicking phantom model. The other favorable feature of this phantom model is that different colors can distinguish the ablation region. The tumor model can also be separate from the background model on the gross specimen after thermal ablation because of the shrinking, enabling the phantom model to evaluate whether the tumor has been completely ablated.

We can achieve several goals through these thermochromic tissue-mimicking phantom models. First, it can be used to test the therapeutic characteristics of ablation devices. Second, accuracy verification of ablation plans can be achieved by evaluating the ablation region after RFA or MWA. Third, it is a teaching appliance in the thermal therapy study and can be used for personnel training.

Other phantom models were also developed in previous studies. Several studies have designed a phantom on a polyacrylamide gel mixed with BSA or egg white, a protein used as a temperature-sensitive indicator (17,20,23). Although the ablation area can be displayed on the phantom model, the ablation area's margin is obscure because the coagulated gel turns into ivory white after ablation, without a significant color difference between the colorless background. The protocol for phantom fabrication used in the study of Negussie et al. (18) is like our study. Several ablation devices, including laser ablation and MWA, have been tested, and thermal properties and color change have been clarified in their study. However, the evaluation of ablation plans cannot be achieved because no tumor model is embedded in the parenchyma model. Li et al. (11) constructed a phantom model with carrageenan and an oral ultrasonic contrast agent to evaluate the ablation margin through a US-CT/MRI fusion image. Although, a spherical tumor model and an ablation margin model were embedded in the parenchyma model. After ablation, the liver tumor model and the ablation margin model, and a portion of the parenchyma model were melted and then replaced by the red liquid of the ablation zone solidified for evaluation. The process is complex, and only mono-point ablation instead of multiple overlap ablation was investigated.

There are still some limitations in our study and phantom model. First, the model can be used to evaluate complete or incomplete ablation but not the safety margin. Second, although the tumor model and parenchyma model can be distinguished in the US, they show the same hypoechoic in the US. Third, the ablation area cannot be detected by the US.

Conclusions

A novel thermochromic tissue-mimicking phantom model with a spherical tumor model has been designed and developed in this study. The ablation area can be visualized on this phantom model by the permanent color change of the model when the temperature above 60 °C. Thus, it can be used to assess the ablation planning system’s accuracy and train operators in ultrasound-guided thermal ablation.
