Novel method for diagnosing lateral patellar compression syndrome using X-ray: a retrospective case-control study
Original Article

Novel method for diagnosing lateral patellar compression syndrome using X-ray: a retrospective case-control study

Yu-Ping Yang1,2#, Yu-Dong Ling3#, Chao-Nan Pang4, Nan Li5, Yi-Ning Gong3, Guo-Qing Cui1, Xi Gong1, Ying-Fang Ao1

1Department of Sports Medicine, Peking University Third Hospital. Institute of Sports Medicine of Peking University. Beijing Key Laboratory of Sports Injuries, Beijing, China; 2Peking University Third Hospital, Beijing, China; 3Peking University Health Science Center, Beijing, China; 4Department of Radiology, Peking University Third Hospital, Beijing, China; 5Research Center of Clinical Epidemiology, Peking University Third Hospital, Beijing, China

Contributions: (I) Conception and design: YP Yang, YD Ling; (II) Administrative support: YF Ao, GQ Cui, X Gong; (III) Provision of study materials or patients: YP Yang, YN Gong; (IV) Collection and assembly of data: YD Ling, CN Pang; (V) Data analysis and interpretation: YP Yang, YD Ling, N Li; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Ying-Fang Ao. Institute of Sports Medicine, Peking University Third Hospital; Beijing Key Laboratory of Sports Injuries, 49 North Garden Road, Haidian District, Beijing 100191, China. Email: yingfang.ao@vip.sina.com.

Background: A well-established reference is lacking for diagnosing lateral patellar compression syndrome (LPCS), and this diagnosis currently depends on clinicians’ subjective judgment and several examination results. X-rays are primarily used to diagnose LPCS, but they have low detection rates of patellar tilt using the congruence angle (CA) and patellar tilting angle (PTA).

Methods: We enrolled 87 patients (31 men and 56 women; mean age: 42.11±15.33 years) between 2016 and 2019 and divided them as per diagnosis into three groups of 29 each: LPCS, patellar dislocation (PD, control), and meniscus tear (MT, negative control) groups. A senior radiologist and the chief physician of sports medicine examined their patellar axial radiographs of the knee in 30° flexion using a computer imaging system, measuring LPCA, CA and PTA. Univariate analysis of variance and Kruskal-Wallis H test were used to compare measurement data with normal distribution and non-normal distribution, respectively. Bonferroni correction was used to analyze different indicators for different groups. The area under the curve (AUC) was calculated to verify the value of LPCA in the initial diagnosis of LPCS.

Results: LPCA (19.88±7.49) was significantly higher in LPCS group than in MT (13.68±4.69) and PD groups (10.16±4.43) (P<0.01) and was also significantly higher on affected side than on healthy side (16.44±5.00) (P=0.04). LPCA >13.9° had sensitivity and specificity of 89.66% and 68.97%, respectively, for LPCS diagnosis (AUC: 0.82, 95% confidence interval: 0.719–0.891, P<0.001).

Conclusions: We demonstrated that LPCA measured using an axial patellar radiograph of the knee in 30° flexion is high in patients with LPCS, and it may be used for diagnosing LPCS.

Keywords: Lateral patellar compression syndrome (LPCS); lateral patellar curvature angle; patellar axial radiographs; the area under the curve (AUC);


Submitted Sep 13, 2020. Accepted for publication Jan 03, 2021.

doi: 10.21037/atm-20-6410


Introduction

Lateral patellar compression syndrome (LPCS) covers a series of clinical symptoms and signs and is caused by an abnormal increase in lateral patellofemoral joint pressure. This occurs with the long-standing lateral inclination of the patella without dislocation, adaptive shortening of the lateral retinaculum, and chronic stress imbalance between the internal and external articular surfaces. Its pathogenesis mainly involves increasing lateral stress on the patella (1-5), with patellar cartilage injury and patellofemoral joint pain being the most important pathological change (6) and most common manifestation, respectively (5).

Because the etiology and pain mechanism of LPCS is complex and diverse, it is very difficult and controversial to accurately describe its clinical symptoms and establish definite diagnostic criteria. To date, no well-established reference for diagnosis exists. Currently, its diagnosis mainly depends on the subjective judgment of clinicians and several examination results (7-11).

Examination methods including X-ray, computed tomography (CT), magnetic resonance imaging (MRI), and arthroscopy are used in diagnosing LPCS. Although CT can measure the position of the patella, it is inadequate to evaluate the damage of the patellar joint surface in the early stage and is thus unable to evaluate the treatment effect. Moreover, the amount of radiation exposure to patients in CT is 10 times that of X-ray. Arthroscopy can precisely diagnose articular cartilage injury. However, it is an invasive procedure and is unable to detect early-stage articular cartilage lesions (12). MRI has the advantage of stereoscopic evaluation of the joint structure in high resolution. Compared with the other methods, it is the most advanced imaging method for diagnosing and monitoring LPCS (13). However, its sensitivity for patellofemoral joint lesions in LPCS is only 70% (14), and some new technologies such as gradient echo can achieve 90% sensitivity (15). Moreover, MRI is not suitable as the first choice of examination; thus, X-ray diagnosis and its derivatives are still the first choice (16).

Although knee joint X-rays are primarily used to diagnose LPCS, their detection rate of patellar tilt by measuring the congruence angle (CA) and patellar tilting angle (PTA) is low. Currently, its detection rate for patellar tilt by using PTA is approximately 70–80% (17). Some studies suggest that the narrow space of the lateral patellofemoral joint can be easily demonstrated on axial patellar radiographs along with the following features: bone volume on the medial joint surface, sclerosis of the subchondral bone on the lateral joint surface, and development of osteophytes on the lateral joint surface. These radiographs show unique advantages in detecting early patellofemoral arthropathy, patellar displacement, tilt, and dislocation (18-20).

We investigated whether the lateral patellar curvature angle (LPCA) measured on axial patellar radiograph of the knee in 30° flexion can be used as a new index for diagnosing LPCS. We enrolled patients with LPCS, meniscus tear (MT), and patellar dislocation (PD) because they show the clinically similar symptom of anterior knee pain. The differences in imaging parameters including CA, PTA, and LPCA were analyzed among these three groups using axial patellar radiography. We thus explored the significance of relevant indicators in the diagnosis of LPCS, and the study results may provide guidance and a reference for the clinical diagnosis of LPCS.

We present the following article in accordance with the STARD reporting checklist (available at http://dx.doi.org/10.21037/atm-20-6410).


Methods

Study participants

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The Ethics Committee of Hospital (IRB00006761-M2019464) approved our study, and the ethics committee exempted the study from requiring informed consent from study participants. We enrolled 87 eligible volunteers from the Institute of Sports Medicine between February 2016 and April 2019. They were divided into the following three groups of 29 each as per diagnosis: LPCS, PD, and MT groups. They were diagnosed after therapeutic surgery by doctors from the same department, with all surgeries being unilateral and with 87 knees in total.

LPCS diagnosis

LPCS was jointly diagnosed by the surgeon and the medical team leader after thoroughly examining symptoms, signs, and results of physical examination, imaging analyses, and intraoperative arthroscopy. For diagnosis, the following manifestations were examined: (I) persistent anterior knee pain aggravated by stress on the patellofemoral joint. (II) The lateral margin or lateral retinaculum showing limited tenderness points on physical examination along with positive patellar grinding and patella elution tests. (III) Imaging examination demonstrating lateral inclination of the patella; narrowed lateral patellofemoral joint space on X-ray, CT, and MRI; and MRI T1β showing contracture and tapering of the lateral retinaculum and degenerative changes in the patellofemoral articular cartilage (3,8,9).

Inclusion criteria of LPCS group

LPCS was confirmed based on the aforementioned examination and findings of arthroscopy, symptoms of knee joint pain, and unilateral knee joint lesions.

Exclusion criteria of LPCS group

The exclusion criteria were as follows: patients with meniscal injury, ligament injury, malunion of patella fracture, free bodies in the joint, surgical contraindications, and with both knees affected.

Inclusion criteria of MT group

MT was confirmed based on MRI and arthroscopic findings, symptoms of pain and swelling of the knee joint, and unilateral knee joint lesions.

Exclusion criteria of MT group

Patients with a history of knee surgery; severe osteoporosis (according to Chinese diagnostic criteria); severe heart, liver, kidney, and other organ dysfunction; and rheumatoid arthritis or knee osteoarthritis were excluded from the MT group.

Inclusion criteria of PD group

PD was confirmed by combining medical history, signs, and radiographic findings; lateral dislocation of patella; and unilateral knee joint lesions.

Exclusion criteria for PD group

Patients with previous knee surgery or collateral ligament injury and rheumatoid arthritis were excluded from this group.

Method of patellar axial radiography

Both the case group and control groups underwent patellar axial radiography for both knees in 30° flexion. The radiographs were taken by a radiologist in accordance with standard operating procedures as follows: the knee joint was placed on a frame and was flexed at 30°, the lower limb muscles were relaxed, and the ball tube passed through the patellofemoral joint at a tangent to the foot. The imaging indexes on from these axial films were analyzed.

Image analyses

A senior radiologist and the chief physician of sports medicine used the hospital imaging system to repeatedly measure the following imaging indexes on the images for 87 patients according to a unified procedure.

Main observation indicators

For measuring LPCA, two tangents were drawn at a tangent to the lateral articular surface of the patella from the lowest point O of the middle patellar ridge. A is the tangency from medial to lateral, and P is the tangency point. B is the tangency from lateral to medial, and its tangent point is Q (Figure 1). To measure PTA, we measured the angle between the line passing through the widest transverse axis of the patella and the line passing through the medial and lateral condyles of the femur. In the normal population, PTA is 11.0°±2.5° and should not be greater than 15° (21), which is an important index to diagnose PD (22) (Figure 2). To measure CA, we first drew the angle made by connecting the highest point of the medial and lateral condyles of femur with the lowest point of the trochlear groove of femur; we then divided the trochlear angle equally and drew the second line to connect the lowest point of the intermediate ridge of the patella to the lowest point of the trochlear groove of the femur. The angle between these two lines was the CA. CA is −8°±9° in healthy people and >16° in patients with lateral patella dislocation (23) (Figure 3).

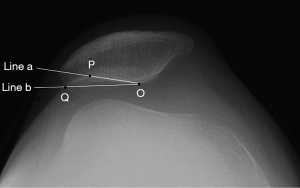

Figure 1 Schematic of measurement of the lateral patellar curvature angle. Point O is the lowest point of the middle patellar ridge, point P is the point of tangency of the lateral patellar articular surface at the medial side, point Q is the point of tangency of the lateral patellar articular surface at the lateral side, and ∠POQ is the lateral patellar curvature angle (LPCA).

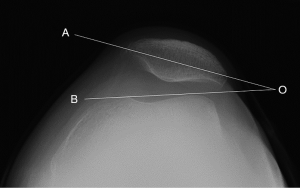

Figure 2 Schematic of measurement of the patellar tilting angle. AO is the line through the widest transverse axis of the patella, BO is the line between the medial and lateral condyles of the femur, and ∠AOB is the patellar tilting angle (PTA).

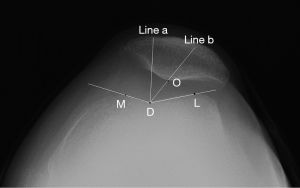

Figure 3 Schematic of measurement of congruence angle. M and L are the highest points of the medial and lateral condyles of the femur, respectively. D is the lowest point of the trochlear groove of the femur, O is the central ridge of the patella, and ∠MDL is the trochlear angle. Line A is the bisector of trochlear angle, and line B is the connection of D and O. The angle between lines A and B is the congruence angle (CA).

Sample estimation

We measured LPCA in 39 patients before the study and calculated the area under the curve (AUC). We then estimated the required sample size for the cases and controls to be 29 and 58, respectively.

Statistical analysis

Measurement data are summarized as mean ± standard deviation. Univariate analysis of variance was used for the comparison of measurement data with normal distribution. The Kruskal-Wallis H test was used for comparison of measurement data with non-normal distribution. Bonferroni correction was used to analyze different indicators for different groups, and the T-test was used for index comparison within the same group. The interference of sex can be eliminated by comparing the difference in the same index in different sexes. The counting data are described as rates (percentages) and were compared using the chi-square test. We used SPSS 21.0 for statistical analysis of the data and MedCalc v19.0.7 was used for calculating the area under the receiver operating characteristic (ROC) curve. Statistical significance was set at P<0.05.


Results

Basic information

Among the 87 patients (31 men and 56 women; mean age: 42.11±15.33 years; age range: 13–69 years), no differences were observed on the affected side between the three groups (P=0.955). The age in the LPCS group was significantly higher than that in the PD group (P<0.001). A significant difference in sex was observed between the LPCS and MT groups (P<0.001) (Table 1).

Table 1
Table 1 Basic information of the three groups of patients
Full table

Previous reports suggest that PD and LPCS are more common in adolescents (24) and older people, respectively (5,25). The sex of patients in the three groups was not completely matched. No significant sex difference in the indexes was observed in this study (P>0.05), which could eliminate sex as a confounding factor.

Comparison of imaging indexes on axial patellar radiographs between three groups

The Kruskal-Wallis H test showed significant differences among the three imaging indexes within the groups (P<0.001). No differences were observed in PTA between the LPCS and MT groups (P=0.576) or in CA between the LPCS and PD groups (P=0.451). Moreover, LPCA in the LPCS group was higher than that in the other two groups (P<0.01) (Table 2).

Table 2

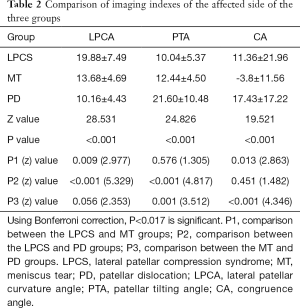

Table 2 Comparison of imaging indexes of the affected side of the three groups
Full table

Comparison of LPCA between healthy and affected sides in the three groups

No differences were observed in LPCA between the healthy and affected sides in the MT and PD groups (paired T-test, P>0.05), whereas the LPCS group showed significant differences between the sides (paired T-test, P=0.04; Table 3).

Table 3
Table 3 Comparison of LPCA between the affected and healthy sides in the three groups
Full table

Comparison of imaging indexes between healthy and affected sides of the LPCS group

The paired T-test showed no difference in PTA and CA between the healthy and affected sides in the LPCS group (P>0.05); however, LPCA on the affected side was higher than that on the healthy side in the LPCS group (P=0.04) (Table 4).

Table 4
Table 4 Comparison of imaging indexes between the affected and healthy sides in the LPCS group
Full table

ROC curve of LPCA

To confirm the value of LPCA in the diagnosis and differential diagnosis of LPCS, an ROC analysis of the three imaging indexes was performed. The patients in the LPCS group were classified as the positive group, and the patients in the MT and PD groups were the negative group.

The AUC of LPCA was the largest, as observed in Table 5. The analysis showed that an LPCA of >13.9° determined the presence of LPCS with sensitivity and specificity of 89.66% (26 of 29) and 68.97% (40 of 58), respectively (AUC: 0.82, 95% confidence interval: 0.719–0.891, P<0.001).

Table 5

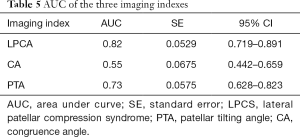

Table 5 AUC of the three imaging indexes
Full table

Discussion

The results of our study showed that LPCA in the LPCS group was significantly higher than that in the other two groups; the AUC of LPCA in the initial screening of LPCS was higher than that of PTA and CA.

PD is a common disease that needs to be differentiated from LPCS. It is characterized by blunt pain around the patellofemoral joint and has a higher incidence in women (24). Although its symptoms and X-ray manifestations are similar to those of LPCS, its pathogenesis is different. Therefore, it is typically used as a control group.

MT is also a common knee disease requiring surgery; however, it does not usually demonstrate a clear patellar abnormality. MTs without patellofemoral cartilage damage and patellar chondromalacia (26) are easily identified using MRI. Therefore, it is classified as a negative control group.

Although an X-ray of the knee joint is the most basic method for diagnosing LPCS, the detection rate of patellar tilt by calculating CA and PTA is low. We hoped that LPCS can be diagnosed more quickly and accurately through the axial patellar radiograph. Therefore, we examined the axial patellar radiographs of several patients with LPCS and found a unique imaging feature. The lateral articular surface of patella is deeper and more curved than that in normal people because of osteophyte formation and patellar malacia. Hence, we thought of using the new index LPCA to measure this rare characteristic, that is, the curvature of the affected lateral articular surface of the patella.

We think that LPCA can be used to evaluate the degree of deformity and osteophyte formation of the lateral patellar articular surface, thus aiding the diagnosis of LPCS. Our results showed that LPCA was significantly higher in the LPCS group than in the other two groups. This demonstrated a relatively obvious deformity of the lateral patellar articular surface consistent with the pathological characteristics of patellar malacia in LPCS (6).

The AUC of LPCA was the largest. Moreover, the positive value of LPCA was higher than its negative value when preliminary screening for LPCS was performed.

Limitations

This study has limitations. The patients’ age and sex are not matched, and the new index is lack of comparing the case group and normal population. Technical limitations may have led to errors with the manual measurement of data. The imaging indexes of our study require high-quality X-ray films, especially for axial X-ray films.


Conclusions

In our study, we demonstrated that LPCA measured using an axial patellar radiograph of the knee in 30° flexion is high in patients with LPCS, and it may be used for diagnosing LPCS.
