Homocysteine alters vasoreactivity of human internal mammary artery by affecting the K_Ca channel family

Introduction

Hyperhomocysteinemia resulting from disorders of homocysteine metabolism is an independent risk factor for atherosclerotic vascular disease and myocardial infarction (1). High concentration of homocysteine impairs vascular endothelial function by reducing nitric oxide (NO) bioavailability (2), in which downregulation of endothelial NO synthase (eNOS) expression and overproduction of reactive oxygen species play a significant role (3,4). Previous studies in hyperhomocysteinemic animal models also reported the unfavorable effect of homocysteine on endothelium-derived hyperpolarizing factor (EDHF) (5,6). EDHF-mediated vasodilatation was compromised in the renal artery of hyperhomocysteinemic rats (6) and mesenteric arteries of hyperhomocysteinemic mice (5). With electrophysiological measurements, we further demonstrated that homocysteine-induced loss of EDHF-response in porcine coronary arteries is attributed to the inactivation of intermediate- and small-conductance calcium-activated potassium (IK_Ca and SK_Ca) channels in the coronary endothelium (7). Whether homocysteine affects IK_Ca and SK_Ca channels in human vessels remains barely studied.

In addition to IK_Ca and SK_Ca, there is another K_Ca channel subtype called large-conductance K_Ca (BK_Ca), which is formed by a tetramer of the pore-forming α-subunit and the regulatory β-subunit (β1 isoform in vasculature) (8). BK_Ca channels are abundantly expressed in smooth muscle cells and play an important role in the regulation of vascular tone. Activation of BK_Ca channels causes membrane hyperpolarization. The consequent closure of voltage-dependent Ca²⁺ channels leads to reduced Ca²⁺ entry and subsequent relaxation of smooth muscle cells (9). BK_Ca channels are a target site of NO and EDHF (10-12). Electrophysiological experiments showed the inhibitory effect of homocysteine on BK_Ca channel activity in both animal and human vascular smooth muscle cells (13,14). Recent mechanistic studies from our group demonstrated that endoplasmic reticulum stress-mediated downregulation of BK_Caβ1 is involved in homocysteine-induced BK_Ca channel inhibition in porcine coronary arteries (15,16). There is a lack of studies regarding the effect of homocysteine on the functionality of BK_Ca channels in human vessels.

Internal mammary artery (IMA) is one of the most commonly used grafts for coronary artery bypass surgery (CABG). We previously reported the reduction of NO bioavailability and the impairment of endothelial dilator function of IMA caused by elevated level of homocysteine (17). Recently, we clarified the expression and distribution profile and the functionality of the K_Ca channel family in IMA. IMA expresses all three K_Ca subtypes and each subtype distributes in both endothelium and smooth muscle (18). In comparison with the BK_Ca subtype that significantly contributes to the dilatation of IMA, both IK_Ca and SK_Ca subtypes play a minor role in IMA dilatation under physiological conditions. Whether the function of K_Ca channel family alters in pathological states such as hyperhomocysteinemia needs to be further explored.

The present study investigated the effect of homocysteine on K_Ca channels in IMA. The role played by each K_Ca subtype in vasodilatation and vasoconstriction was studied, along with the determination of channel expression. This study for the first time revealed the impact of hyperhomocysteinemia on the K_Ca channel family in human vasculature.

We present the following article in accordance with the MDAR reporting checklist (available at http://dx.doi.org/10.21037/atm-20-6821).

Methods

Residual IMA segments (n=76) that would otherwise be discarded were collected with the consent of the patients undergoing CABG. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study protocol was approved by the Institutional Ethics Review Board of TEDA International Cardiovascular Hospital ([2018]-0626-2).

The residual IMA segment from each patient was divided into two ring segments (3 mm length) and randomly allocated to control group and homocysteine-treated group respectively. The homocysteine-treated segment was incubated with 100 µmol/L homocysteine (Sigma Aldrich, Cat#H4628) in fresh oxygenated Krebs solution at 37 °C in a 5% CO₂ incubator for 24 h and the control was incubated under the same condition in Krebs containing equal volume of vehicle (distilled H₂O). After 24 h, the vessels were collected for (I) vasoreactivity studies for the functional role of K_Ca channels, and (II) Western blot and immunohistochemistry staining for the expression of K_Ca channels.

Vasoreactivity study

The IMA segments were mounted in isolated chambers of a multi wire myograph system (Model 620M, J.P.Trading, Aarhus, Denmark). The ring segments were permitted to equilibrate for 30–60 min at 37 °C then normalized by setting them to an internal circumference equivalent to a 90% of the circumference at a passive transmural pressure of 100 mmHg, as in our previous studies (15-18).

Vasoconstriction

Following a 40-min equilibration period, cumulative increasing concentrations of the thromboxane A₂ (TXA₂) mimetic U46619 (−11–−4.5 LogM) (Cayman Chemical, Cat#16450) were added in the myograph chamber to generate a concentration-response curve. The role played by each K_Ca channel subtype in the regulation of IMA constriction was further characterized by comparing a first concentration-response curve constructed in control conditions with a second concentration-response curve constructed in the same ring segment after a selective inhibition of the subtype. The BK_Ca subtype blocker iberiotoxin (100 nmol/L) (Alomone labs, Cat#STI-400) (group Ia), the IK_Ca subtype blocker TRAM-34 (1 µmol/L) (Alomone labs, Cat#T-105) (group Ib), or the SK_Ca subtype blocker apamin (100 nmol/L) (Alomone labs, Cat#STA-200) (group Ic) were added individually or in combination (group Id: TRAM-34 + apamin, group Ie: iberiotoxin + TRAM-34 + apamin) 30 min prior to contraction with U46619. For vessels pretreated with TRAM-34 + apamin, or iberiotoxin + TRAM-34 + apamin, the drugs were added in a randomized order.

Vasorelaxation

To assess the role of K_Ca channel subtypes in relaxation, the IMA ring segments were preconstricted with U46619. Cumulative dose-response curves were then established for (I) BK_Ca channel activator NS1619 (−9–−4.5 LogM) (MedChemExpress, Cat#HY-12496), or (II) IK_Ca/SK_Ca channel activator NS309 (−9–−4.5 LogM) (MedChemExpress, Cat#HY-15416), or (III) acetylcholine (−10–−4.5LogM) (Sigma Aldrich, Cat#A6625) when the contraction reached a plateau.

For studies using acetylcholine, five sets of experiments (group IIa-IIe) were performed. In each set, two consecutive concentration-response curves for acetylcholine were constructed in the same ring segment: a first one in control conditions and a second one after pharmacological blockade of different K_Ca subtypes. Iberiotoxin (100 nmol/L) (group IIa), TRAM-34 (1 µmol/L) (group IIb), or apamin (100 nmol/L) (group IIc) were used alone or in combination to pretreat the vessels for 30 min before U46619-preconstriction. For vessels pretreated with TRAM-34 + apamin (group IId) or iberiotoxin + TRAM-34 + apamin (group IIe), the drugs were added in a randomized order.

To ensure the comparability of the relaxant response in the two consecutive relaxation studies and between control and homocysteine-treated groups, similar extent of precontraction was achieved by using varied concentration of U46619 ranging from −8.5 to −7 LogM.

Western blot analysis

The IMA segment from each patient was divided into two groups and treated without (control) or with homocysteine (100 µmol/L) for 24 h. Details of the western blot procedures were published elsewhere (7,15,16,18). In brief, whole cell protein was extracted using RIPA buffer (Solarbio, China) supplemented with protease and phosphatase inhibitors (Thermo Fisher Scientific, USA). After determination of protein concentration, the samples were aliquoted and fractionated by sodium dodecyl sulfate polyacrylamide gel electrophoresis (30 µg/lane) for 90 min at 100 V, followed by electro-transferred to polyvinylidene difluoride (PVDF) membrane (Thermo Fisher Scientific, USA) for 90 min at 100 V. The PVDF membrane was then blocked with 3% BSA/TBS for 1 h at room temperature and probed overnight at 4 °C in 1× TBS containing 3% BSA with primary antibodies (Abcam, USA) against the protein of interest, including BK_Caα (1:1,000, Abcam, ab3586, AB_2131256), BK_Caβ1 (1:200, Abcam, ab3587, AB_303932), K_Ca3.1 (IK_Ca) (1:500, Abcam, ab75956, AB_1952001), and K_Ca2.3 (SK_Ca) (1:500, GeneTex, GTX47693, AB_11173990). The membrane was washed and incubated with horseradish peroxidase (HRP)-conjugated goat anti-rabbit IgG or horse anti-mouse IgG secondary antibodies (1:3,000, Cell signaling technology, USA, 7074, AB_2099233; 7076, AB_330924) for 1h at room temperature under gentle agitation. β-actin (1:2,000, Absin, China, abs137975) was used as internal loading control. Color development was performed with electrochemiluminescence kit (Beyotime, China), followed by imaging using G:BOX gel doc system (Syngene, UK). The intensity of the bands was analyzed by Quantity One imaging system (Version 4.6.6, Bio-Rad).

Histology and immunohistochemistry staining

The IMA segment from each patient was divided into control and homocysteine-treated (100 µmol/L) groups. After incubation for 24 h, the vessels were fixed in 4% paraformaldehyde, decalcified, dehydrated, and embedded in paraffin. The embedded tissue samples were sliced into 4–5 µm sections and stained with haematoxylin and eosin after deparaffination. For immunohistochemistry staining, slides were heated at 100 °C in 10 mmol/L tannic acid/1 mmol/L EDTA solution (ZSGB-BIO, China) to retrieve antigens and treated with 3% H₂O₂ (ZSGB-BIO, China) to inactive endogenous peroxidase. Sections were incubated for 60 min at 37 °C with primary antibodies against BK_Caα (1:4,000), BK_Caβ1 (1:500), K_Ca3.1 (1:800), or K_Ca2.3 (1:800), followed by 30-min incubation with goat anti-rabbit IgG HRP-conjugated secondary antibody at room temperature for signal detection of K_Ca subtypes. Afterwards, the specimens were washed in PBS and stained with 3,3'-diaminobenzidine (DAB, ZSGB-BIO, China). Counterstaining was performed with Mayer’s haematoxylin (ZSGB-BIO, China). Negative controls were immunostained without the primary antibody. The immunostained images were captured using a microscope (Olympus BX43, Japan).

Immunostaining was evaluated by two independent pathologists using a blind protocol design. For each specimen, the histoscore (H-score) of each K_Ca channel subtype was calculated as the sum of staining intensity as previously described (18) (0–3, negative staining: 0; weak staining: 1; moderate staining: 2; and strong staining: 3) multiplied by the percentage of stained cells (0–100%).

Statistical analysis

Protein expression of targets of interest was normalized to the expression of β-actin. Relaxation was expressed as the percentage decrease in isometric force induced by U46619. The effective concentration of vasodilator/vasoconstrictor that caused 50% of maximal relaxation/constriction was defined as EC₅₀. The EC₅₀ was determined from each concentration-relaxation/constriction curve by a logistic, curve-fitting equation: E = MA^P/(A^P + K^P), where E is response, M is maximal relaxation/constriction, A is concentration, K is EC₅₀ concentration, and P is the slope parameter. A two-sided significance level of 0.05 and a power of 80% were used to determine the sample size to show a 20% difference for comparison, based on the variance seen in our previous studies of vasoreactivity of the human IMA.

Data were expressed as mean ± SEM. Student’s t-test, one-way ANOVA (Scheffe F test), and two-way repeated measures ANOVA (SPSS, version 20) were used for statistical analysis when appropriate. P<0.05 was considered statistically significant.

Results

Effect of homocysteine on the role of K_Ca subtypes in the regulation of IMA contractility

Blockade of the BK_Ca subtype with iberiotoxin significantly enhanced U46619-induced vasoconstriction (P=0.047, two-way repeated measures ANOVA) (Rmax: 71.3±12.7 vs. 50.1±4.9 mN in control, P=0.152; contraction at −7.5LogM: 66.3±11.9 vs. 37.6±5.9 mN in control, P=0.048). The sensitivity to U46619 tended to increase (EC₅₀: −9.01±0.27 vs. −8.34±0.25 LogM in control, P=0.096) (Figure 1A & Table 1). In comparison, inhibition of the IK_Ca or the SK_Ca subtype by TRAM-34 or apamin respectively or jointly barely affected the contractile response and sensitivity of IMA to U46619 (Figure 1B,C,D & Table 1). Interestingly, although iberiotoxin caused a marked enhancement of U46619-induced vasoconstriction, co-treatment with iberiotoxin, TRAM-34, and apamin did not significantly increase the maximal contractile response though the contraction seemed to be enhanced at low doses of U46619 (Figure 1E).

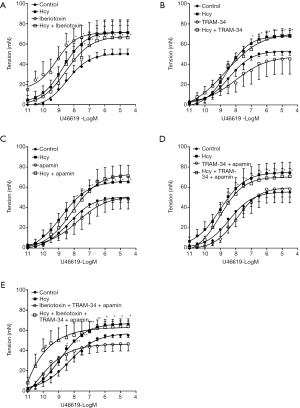

Figure 1 Effect of homocysteine (Hcy) on the role of K_Ca subtypes in the regulation of internal mammary artery (IMA) contractility. Hcy enhances the contractile response of IMA to U46619 and compromises the activity of the BK_Ca channel subtype in opposing vasoconstriction (A). Neither IK_Ca nor SK_Ca channel subtype is involved in U46619-induced contraction in IMAs exposed or not exposed to homocysteine (B,C,D). The K_Ca channel family is barely involved in the regulation of IMA contractility in hyperhomocysteinemic condition (E). n=6. *P<0.05, **P<0.01 vs. control; ^#P<0.05 vs. Hcy. Iberiotoxin: BK_Ca channel blocker; TRAM-34: IK_Ca channel blocker; apamin: SK_Ca channel blocker.

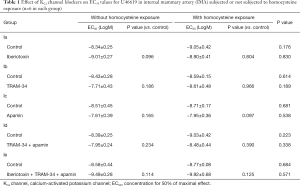

Table 1 Effect of K_Ca channel blockers on EC₅₀ values for U46619 in internal mammary artery (IMA) subjected or not subjected to homocysteine exposure (n=6 in each group)
Full table

Homocysteine exposure augmented the contractile response of IMA to U46619 (P=0.033, two-way repeated measures ANOVA) (Rmax: 71.3±7.0 vs. 50.1±4.9 mN in control, P=0.032) (Figure 1A). The enhancement effect of iberiotoxin on the vasoconstriction was blunted after homocysteine exposure (P=0.596, homocysteine vs. homocysteine + iberiotoxin, two-way repeated measures ANOVA, Rmax: 66.4±16.3 vs. 71.3±7.0 mN, P=0.786) (Figure 1A & Table 1). Application of TRAM-34 and apamin, either individually (Figure 1B,C) or jointly (Figure 1D), showed no effect on U46619-induced constriction in homocysteine-exposed IMA. Further triple blockade of BK_Ca, IK_Ca, and SK_Ca subtypes also insignificantly affected the contractile response (Figure 1E). In addition, in homocysteine-exposed IMA, the EC₅₀ values for U46619 remained unshifted after pretreatment with K_Ca blockers (Table 1).

Effect of homocysteine on the relaxant response of IMA to K_Ca channel activators

Both the BK_Ca channel activator NS1619 and the IK_Ca/SK_Ca channel activator NS309 elicited dose-dependent relaxation in IMA. Homocysteine exposure significantly suppressed NS1619-induced relaxation (Rmax: 31.8%±1.7% vs. 51.0%±3.1% in control, P<0.001) (Figure 2A) whereas showed no influence on NS309-induced relaxation (Rmax: 81.5%±5.2% vs. 79.0%±6.7% in control, P=0.760) (Figure 2B).

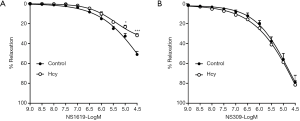

Figure 2 Effect of homocysteine (Hcy) on the relaxant response of internal mammary artery (IMA) to K_Ca channel activators. Hcy exposure significantly suppressed the BK_Ca channel activator NS1619-induced relaxation (A) whereas showed no influence on the IK_Ca/SK_Ca channel activator NS309-induced response (B). n=6. *P<0.05, ***P<0.001 vs. control.

Effect of homocysteine on the role of K_Ca subtypes in endothelium-dependent relaxation in IMA

Blockade of BK_Ca channels with iberiotoxin significantly inhibited acetylcholine-induced relaxation (P<0.0001, two-way repeated measures ANOVA; Rmax: 41.9%±5.5% vs. 72.6%±3.4%, P<0.001) (Figure 3A). Application of the IK_Ca channel blocker TRAM-34 and the SK_Ca channel blocker apamin, individually (Figure 3B,C) or jointly (Figure 3D), barely suppressed the relaxant response of IMA to acetylcholine. Combination of TRAM-34, apamin, and iberiotoxin showed similar inhibition on acetylcholine-induced relaxation (36.9%±6.1% vs. 79.9%±4.7%, P<0.001) as compared to iberiotoxin alone, which further suggests the dominant contribution of the BK_Ca subtype to IMA dilatation (Figure 3E).

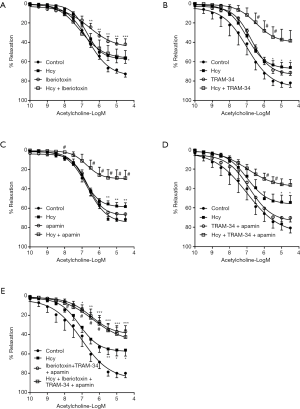

Figure 3 Effect of homocysteine (Hcy) on the role of K_Ca subtypes in endothelium-dependent relaxation in internal mammary artery (IMA). Hcy impairs acetylcholine-induced relaxation in internal mammary artery (IMA) with a significant suppression on BK_Ca-mediated response, suggested by the diminished inhibitory effect of the BK_Ca channel blocker iberiotoxin (A). Both IK_Ca and SK_Ca subtypes play a minor role in IMA dilatation whereas their contribution increases after homocysteine exposure, shown by the increased efficacy of IK_Ca and SK_Ca channel blockers TRAM-34 and apamin in inhibiting acetylcholine-induced relaxation (B,C,D). In homocysteine-exposed IMA, triple blockade of K_Ca channels shows no further inhibition on the relaxation as compared to double blockade of IK_Ca and SK_Ca channels, further suggesting the loss of BK_Ca-mediation caused by homocysteine (E). n=6. *P<0.05, **P<0.01, ***P<0.001 vs. control; ^#P<0.05 vs. Hcy.

Homocysteine exposure suppressed the relaxant response of IMA to acetylcholine (P=0.028, two-way repeated measures ANOVA) with the maximal relaxation decreasing from 72.6%±3.4% to 56.5%±5.3% (P=0.029) (Figure 3A). The EC₅₀ remained unchanged after homocysteine exposure (Table 2). Iberiotoxin showed no inhibition on acetylcholine-induced relaxation in homocysteine-exposed IMA (56.2%±7.7%) (Figure 3A). The diminished inhibitory effect of iberiotoxin suggested that the role of BK_Ca subtype in IMA dilatation was compromised by homocysteine. In contrast, after homocysteine exposure, acetylcholine-induced relaxation was significantly inhibited by TRAM-34 (P<0.0001, two-way repeated measures ANOVA; Rmax: 38.3%±10.6% vs. 65.9%±4.9%, P=0.056; relaxation at −5.5LogM: 34.6%±10.6% vs. 63.3%±4.3%, P=0.046) (Figure 3B) and apamin (P=0.018, two-way repeated measures ANOVA; Rmax: 28.9%±8.1% vs. 58.2±3.7%, P=0.013) (Figure 3C). Combined application of TRAM-34 and apamin (Rmax: 36.3%±5.5% vs. 54.4%±7.0%), even in conjunction with iberiotoxin (Rmax: 42.5%±7.6% vs. 56.1%±6.2%), did not show further inhibition on the relaxation in homocysteine-exposed IMA (Figure 3D,E), as compared to TRAM-34 or apamin alone. The significant inhibitory effect of TRAM-34 and apamin suggested that contribution of IK_Ca and SK_Ca subtypes to IMA dilatation increases under hyperhomocysteinemic conditions.

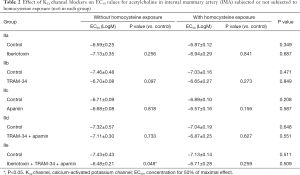

Table 2 Effect of K_Ca channel blockers on EC₅₀ values for acetylcholine in internal mammary artery (IMA) subjected or not subjected to homocysteine exposure (n=6 in each group)
Full table

Application of different K_Ca blockers did not shift the EC₅₀ of acetylcholine. Only in IMA treated with blockers of all three K_Ca subtypes, the EC₅₀ was right-shifted, which however was reverted by homocysteine exposure (Table 2).

Table 3 showed the resting force and U46619-induced preconstriction in each set of the experiments. No significant differences were observed in the resting force and precontraction between the groups incubated with or without homocysteine or between pre- and post-treatment with K_Ca blockers (P>0.05 in all sets of experiments). This ensured the reliability and accuracy of the comparison between control and homocysteine-treated IMAs concerning the role of K_Ca channels in relaxation.

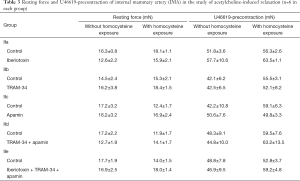

Table 3 Resting force and U46619-precontraction of internal mammary artery (IMA) in the study of acetylcholine-induced relaxation (n=6 in each group)
Full table

Effect of homocysteine on the expression of K_Ca subtypes in IMA

Western blot results showed that homocysteine exposure significantly lowered the protein level of BK_Caβ1 whereas without influencing the level of BK_Caα in IMA. The protein level of IK_Ca and SK_Ca subtypes was unaltered by homocysteine exposure (Figure 4A,B). Downregulation of the BK_Ca β1-subunit by homocysteine was further shown by immunohistochemistry staining (Figure 4C,D). H-score calculated from seven independent experiments suggested that the BK_Ca β1-subunit was significantly less in homocysteine-exposed IMA as compared to the vessels without homocysteine exposure (P=0.038). The H-score of IK_Ca or SK_Ca subtypes did not differ between control and homocysteine-exposed IMAs, which was consistent with the western blot results showing the unaltered protein level of IK_Ca and SK_Ca subtypes after homocysteine exposure.

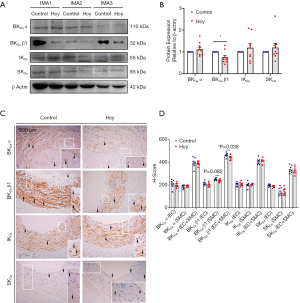

Figure 4 Effect of homocysteine (Hcy) on the expression of K_Ca channels in internal mammary artery (IMA). Immunoblotting of cell lysate prepared from IMA samples using the indicated antibodies (A). Protein levels of K_Ca subtypes in homocysteine-exposed IMAs compared with those without homocysteine exposure (B, n=9). Immunohistochemistry images (magnification 400×) showing the distribution and expression of K_Ca subtypes in IMA. The IMA sections were incubated with the indicated antibodies before stained with 3,3'-diaminobenzidine and counterstained with Mayer’s haematoxylin (C). Comparison of the histoscore (H-score) of each K_Ca subtype in the endothelial cell (EC) and the smooth muscle cell (SMC) layer respectively as well as the overall H-score of each K_Ca subtype in both cell layers (EC + SMC) (D, n=7) between IMAs with or without homocysteine exposure. *P<0.05, Hcy vs. control.

Discussion

IMA subjected to homocysteine exposure showed significantly suppressed response to acetylcholine. Such suppression could be attributed, at least partially, to the inhibition of BK_Ca channels, which was suggested by the diminished efficacy of iberiotoxin in inhibiting acetylcholine-induced relaxation in homocysteine-exposed IMA. The blunted relaxant response of IMA to the BK_Ca channel activator NS1619 after homocysteine exposure also supported the notion that homocysteine inhibits the vasodilatory activity of the BK_Ca subtype in IMA. Previously we reported that decrease of eNOS-NO bioavailability is involved in homocysteine-induced endothelial dysfunction of IMA (17). Taking into account that BK_Ca channels are an effector of NO (11,19), we suggested that compromised BK_Ca channel activity may also be partially responsible for the impaired NO-mediated relaxation in IMA in hyperhomocysteinemic states.

The significant vasodilatory role of the BK_Ca subtype in IMA and the inhibition by homocysteine was further demonstrated in the study of vasoconstriction. Previous studies in hyperhomocysteinemic animal models revealed simultaneously increased TXA₂ activity both in vessels and platelets (20). We therefore used U46619, a TXA₂ analog, as the vasoconstrictor to study the contractility changes of IMA and the regulatory role of K_Ca channels under hyperhomocysteinemic condition. Pretreatment of IMA with iberiotoxin significantly enhanced U46619-induced constriction. Homocysteine exposure enhanced the response of IMA to U46619 whereas the enhancement effect of iberiotoxin on the vasoconstriction became ignorable, suggesting that homocysteine inhibited the activity of BK_Ca channels in opposing vasoconstriction in IMA. Previous studies in human coronary arterial myocytes found that TXA₂ prostanoid receptor (TP) physically associates with BK_Ca α-subunit, resulting in channel inhibition after agonist stimulation. Such TP-induced trans-inhibition of BK_Ca channel activity promotes vasoconstriction induced by U46619 (21). Further study demonstrated that the β1-subunit of BK_Ca can by itself interact with TP meanwhile can assemble in a tripartite complex with BK_Caα and TP. β1 is able to reduce TP agonist TXA₂-induced BK_Caα inhibition and thus vasoconstriction. It was observed that U46619-induced contractile response of aortic rings was increased in β1^−/− mice compared with those from β1^+/+ animals (22). In our study, we found that homocysteine decreased the expression of BK_Ca β1-subunit in IMA, which may explain the enhancement of U46619-induced IMA constriction after homocysteine exposure. Previously we demonstrated that homocysteine induces ER stress in porcine coronary arteries and PERK-dependent activation of forkhead box O3a (FoxO3a) mediates BK_Ca β1 degradation via upregulating the E3 ubiquitin ligase atrogin-1. This mechanism might also be involved in homocysteine-induced loss of BK_Ca β1 in IMA, though further studies are warranted to validate this.

In comparison with the BK_Ca subtype that is of importance in mediating relaxation of IMA, IK_Ca and SK_Ca subtypes play a minor role in the tone regulation of IMA under physiological condition despite their expression abundance. Blockade of the IK_Ca and SK_Ca subtypes individually or jointly barely suppressed the relaxant response of IMA to acetylcholine, which was consistent with the finding in a previous study from our group (18). Moreover, inhibition of IK_Ca and SK_Ca subtypes had no impact on U46619-induced vasoconstriction. However, after homocysteine exposure, IK_Ca and SK_Ca subtypes became involved in endothelium-dependent relaxation, evidenced by the significant inhibitory effect of TRAM-34 and apamin on the relaxation. The “unmasking” of the role of IK_Ca and SK_Ca channels in mediating endothelium-dependent relaxation may be explained by the inhibition of NO pathway under hyperhomocysteinemic condition. The loss of NO-mediated relaxation may augment the vasodilating activity of EDHF whose action is mediated by endothelial IK_Ca and SK_Ca channels (23). The augmentation of IK_Ca and SK_Ca channel involvement may be a mechanism to compensate for homocysteine-induced loss of BK_Ca channel function. It is unclear how homocysteine augmented the role of IK_Ca and SK_Ca channels in IMA relaxation. Both western blot and immunohistochemistry staining experiments showed unaltered protein levels of IK_Ca and SK_Ca. It might be possible that although homocysteine does not alter the overall expression of these channels, it may affect cell surface density of IK_Ca and SK_Ca channels and/or modulate the activity of single channels in the endothelial cells of IMA. Further experiments including cell surface protein analysis and patch clamp recording will be required to test this speculation. In addition, homocysteine did not affect the “no involvement” status of IK_Ca and SK_Ca subtypes in the constriction of IMA, indicating that although IK_Ca and SK_Ca channels are abundantly expressed in the smooth muscle of IMA, the function of smooth muscle IK_Ca and SK_Ca remains elusive, at least they are unessential to smooth muscle tone regulation in IMA. Whether these subtypes are involved in inflammatory responses of endothelial and smooth muscle cells and take part in the process of atherosclerosis in IMA in hyperhomocysteinemia is a topic worthy of investigation.

Study limitations

The present study investigated the effect of hyperhomocysteinemia on K_Ca channels in IMA by using an in vitro tissue culture model. The IMA samples were collected from 76 CABG patients who were free from diabetes. Hypertension (68.42%) and dyslipidemia (32.89%) are common comorbidities in these patients and current smokers account for 35.53%. Preoperative medications including anti-hypertensive, lipid-lowering, anti-thrombotic, and coronary dilating drugs were quite common (Table S1). Considering that these cardiovascular risk factors and drug therapies may affect vascular reactivity, we used “paired sample” design in this study to avoid misinterpretation of the results. In each experiment, the IMA sample taken from each patient was divided and treated with or without homocysteine. In this way, although we could not rule out the influence posed by the risk factors and pharmacotherapies on the vascular reactivity, we were able to clarify the effect of homocysteine on IMA vasoreactivity and K_Ca channels. Future studies with stratification shall help further clarify the influence of the risk factors on the effect of homocysteine. Besides, there are several limitations of this study that need to be addressed. First, the concentration of homocysteine was 100 µmol/L, which is higher than the plasma homocysteine level in most hyperhomocysteinemic patients (20–30 µmol/L). Although it is not unusual to use high dose of exposure for in vitro studies and 100 µmol/L even millimolar concentrations were often used in in vitro investigation of the effect of homocysteine (7,18,24,25), studies using homocysteine at concentrations more commonly seen in hyperhomocysteinemic patients for prolonged exposure period may be further considered.

Second, it has to be mentioned that the plasma homocysteine concentration of these IMA donors was unknown since CABG patients are not routinely checked for homocysteine level in our hospital. Considering the incidence of hyperhomocysteinemia in patients with coronary artery disease, it is possible that some of the IMAs had already been subjected to high concentration of homocysteine in vivo before the in vitro exposure. However, in this study, the IMA used in every single experiment was divided from a same patient. In comparison to random assignment of IMAs from different individuals to control and treatment groups, this design helped rule out the influence of clinical characteristics of different patients on the K_Ca channels and at the same time minimized the impact of plasma homocysteine status on the data interpretation. Nevertheless, further strengthening the study with comparison of K_Ca channels in IMAs between hyperhomocysteinemic and non-hyperhomocysteinemic patients will be the direction for future studies.

Another limitation is that although we demonstrated that homocysteine inhibits the BK_Ca channel activity and augments the activity of IK_Ca and SK_Ca channels in IMA dilatation, direct electrophysiological measurements of the channel activities were not performed despite our experience in the patch-clamp recording of K_Ca channels in vascular cells (7,15,16,26). Due to the limited amount of residual IMA graft obtained from each patient, we were unable to enzymatically disassociate enough endothelial and smooth muscle cells for satisfactory primary culture for the subsequent patch-clamp recording. Optimization of tissue preparation procedures and cell disassociation and culture conditions etc. needs to be implemented to help realize electrophysiological measurements in future studies.

Conclusions

Homocysteine compromises the vasodilating activity of BK_Ca channels in IMA, which is associated with a loss of the BK_Ca β1-subunit. Unlike BK_Ca, IK_Ca and SK_Ca channels are unessential for the regulation of vasoreactivity in IMA, while the loss of BK_Ca channel functionality in hyperhomocysteinemia enhances the role of IK_Ca and SK_Ca channels in mediating endothelial dilator function. These findings provided new mechanistic insights into the dysregulation of vascular tone in patients with hyperhomocysteinemia. Moreover, we suggest that targeting BK_Ca channels may form a strategy to improve the postoperative graft performance in CABG patients with hyperhomocysteinemia who receive IMA grafting.

Acknowledgments

We thank Ms. Jing Zhang from Yuebin Medical Research Laboratory for technical support in immunohistochemistry experiments.

Funding: This study was supported by National Natural Science Foundation of China 81870227, Tianjin Municipal Science and Technology Commission 18PTZWHZ00060 & 20JCZDJC00510, Key Medical Program of Tianjin Binhai New Area Health Bureau 2018BWKZ005, Research Fund of TEDA International Cardiovascular Hospital 2018-TD-001, and the Non-profit Central Research Institute Fund of Chinese Academy of Medical Sciences 2019XK310001.

Footnote

Reporting Checklist: The authors have completed the MDAR reporting checklist. Available at http://dx.doi.org/10.21037/atm-20-6821

Data Sharing Statement: Available at http://dx.doi.org/10.21037/atm-20-6821

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-6821). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Institutional Ethics Review Board of TEDA International Cardiovascular Hospital ([2018]-0626-2). Written informed consent was obtained from all patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
