A review of the application of machine learning in molecular imaging

Section 1: Introduction

The term of molecular imaging (MI) first came into use in the late 1990s, which applied various imaging techniques to display the changes of specific molecules in vivo and to conduct qualitative and quantitative studies on their biological behaviors at the level of tissue, cell and sub-cell (1). Compared with traditional medical imaging equipment, MI can effectively use specific molecular probes to monitor the process of tumor development at the molecular level in real time, laying a technical foundation for early detection, accurate diagnosis and effective treatment of diseases (2-4).

MI integrates molecular biochemistry, data processing, nanotechnology, image processing and other technologies to pursue high imaging specificity, sensitivity and resolution (5). Thus, MI is not a single or isolated technological innovation, but an integration and evolution of multidisciplinary technologies. MI modalities can be roughly categorized into three groups: classical anatomical imaging modalities [such as magnetic resonance imaging (MRI), X-ray computed tomography (CT), ultrasound imaging (USI), etc.], optical molecular imaging (OMI) modalities (such as bioluminescence imaging, fluorescence imaging, photoacoustic imaging, etc.), and nuclear medical imaging modalities [such as positron emission tomography (PET) and single photon emission computed tomography (SPECT)] (6,7). The classical anatomical imaging modalities have the longest history in equipment development, image processing and analysis, as well as biological and medical applications. A large number of literatures have reviewed the progress of these modalities in the field of MI (8-11). Therefore, the content of this paper mainly focuses on OMI and nuclear medical imaging technologies.

OMI becomes a new hot spot in medical imaging studies in recent years and has been widely applied in preclinical and clinical research. It uses molecular probes to label the target organism. Under certain external conditions, molecular probes emit fluorescence in the visible or near infrared spectrum, which can be detected by highly sensitive optical cameras. Then, the position and intensity of the fluorescent light source can be acquired to visualize the physiological activity information at the molecular and/or cellular level of the organism. Owing to the high sensitivity, no radiation, low cost, dynamic observation, and intuitive imaging, OMI has been widely used in tumor detection, drug development, surgical navigation, and many other fields (12-15). Furthermore, in order to obtain the three-dimensional (3D) information of the observed object, a variety of modern tomography techniques have been developed, such as the optical scattering tomography (OST) and photoacoustic tomography (PAT) (16-19). The corresponding imaging methods and hardware systems of OMI have also developed significantly.

Imaging diagnosis is an important part of clinical medicine, and nuclear medicine is playing an increasingly important role in imaging diagnosis. Nuclear medicine relies on radionuclides for imaging, including PET and SPECT. PET relies on positron-emitting nuclides for imaging, mainly including ¹⁸F, ⁶⁸Ga, etc., while SPECT relies on single-photon-emitting nuclides and ^99mTc is mainly used in clinical applications. Since PET and SPECT are important functional imaging methods with high sensitivity and specificity, they have been applied to tumors, central nervous system (CNS) and cardiovascular system (20-25). With the continuous development and progress of MI, PET and SPECT as important parts of MI have also made considerable progress in recent years.

Because of the rapid development of medical imaging technologies and the continuous expansion of medical data, the demand of accurate, automated and quantitative approaches for image processing and analysis becomes more and more urgent. Eventually, artificial intelligence (AI) has been widely applied in the field of MI. AI is a computer science that depends on the biological or physical coding. Furthermore, through human interventions, AI endows computer with a new respond in a similar way to human intelligence (26). Machine learning (ML) technology based on deep neural network (DNN), also known as deep learning (DL) method, is an important embodiment of AI (26). In recent years, benefiting from the rapid development of computer technology, the DL method is widely used to process large-scale and high-dimensional data. Owing to the powerful feature extraction and data processing performance, AI has been widely used in pattern recognition (27-31), natural language processing (32,33), network information security (34,35) and many other fields.

At present, the major applications of ML in MI can be divided into three parts: ML based imaging reconstruction (36-38), ML aided disease diagnosis (39,40), and intelligent target delineation (41,42). In the remainder of this article, we will introduce the relevant application of ML algorithms. Section 2 and 3 present the application of ML in OMI and nuclear medical imaging, respectively. In the section 4, we discuss some critical challenges and perspectives.

Section 2: Application of ML in OMI

In this section, we mainly introduce the recent applications of ML in fluorescence image-guided surgery (FIGS), OST, and PAT, which includes preclinical studies and clinical practices.

FIGS

As a highly sensitive and real-time intraoperative imaging technique, FIGS can assist operators to accurately and effectively locate and remove the malignant lesions in various kinds of clinical practices (Figure 1) (43-46). FIGS relies on fluorescence light produced by near-infrared (NIR) fluorescent contrast agents, which is strongly scattered and adsorbed by soft tissues, leading to limited but useful imaging depth. Because the optical scattering and absorption significantly affect imaging quality in FIGS, how to achieve better quality imaging of complex tissues in real-time remains a huge challenge (46-49). In recent years, many groups have been working on this issue. In terms of hardware, various imaging systems have been developed for intraoperative FIGS, including systems designed for open and endoscopic surgeries, as well as systems utilizing NIR-II signals (optical spectrum: 1,000–1,700 nm) (46,50-53). Besides those effects, the improvement of software with new imaging algorithms can further mitigate the physical limitations in hardware systems. One of the representative methods is the ML-based strategy, which has proven to be capable of enhancing the overall imaging quality frame-by-frame in intraoperative FIGS.

Figure 1 Intraoperative fluorescence imaging of a patient with melanoma (43). (A,B) The colour and NIR fluorescence imaging, respectively. The arrows refer to the sentinel lymph nodes. (C) The merged image of the two (NIR fluorescence in lime green).

To improve imaging quality, ML is mainly used in image enhancement and image registration. Zhang et al. (47) proposed an image post-processing method by employing the generative adversarial network (GAN) to achieve image enhancement as shown in Figure 2A. In their study, a total gradient loss was presented for network training and a finetuning training procedure was applied into the network architecture. Therefore, the problem of fake texture caused by traditional neural networks was overcome and further enhancing the image resolution (Figure 2B). Ravì et al. (54) developed a synthetic data generation method conquer the lack of ground-truth data. This synthetic data was applied to train exemplar-based DNNs and obtained convincing super-resolution fluorescence image. Unger et al. (55) proposed a hybrid histological registration method to achieve accurate registration of autofluorescence imaging data with ex vivo histological images, which is meaning for evaluation of tumor margin.

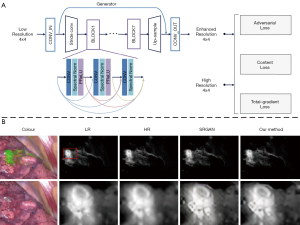

Figure 2 Image enhancement based on ML method (47). (A) The improved GAN-based network. (B) Enhanced resolution results at the ICG injection site in the pulmonary lymph node.

It is significant to determine the type and boundary of lesions accurately and quickly during the surgery, however, this is limited by the subjective consciousness of the operator and the delay of conventional surgical pathology. Therefore, in recent years, ML technology has been widely applied to intraoperative lesion analysis, which is expected to overcome the judgment errors caused by individuals and speed up the surgical pathology process by relying on automated technical analysis. Various groups performed quantitative analysis of fluorescence imaging of surgical specimens to determine tumor boundaries based on some traditional ML classifiers (SVM, random forest and so on) (56-58) (Figure 3A). These studies have achieved high accuracy, specificity and sensitivity (>90%), therefore holding potential for clinical surgery. In addition, there are also many researchers working on in vivo lesion analysis during the surgery. Using confocal laser endomicroscopy (CLE) imaging, Kamen et al. (59) proposed a ML-based algorithm to distinguish two types of brain tumors: glioblastoma and meningioma. They extracted the features of CLE images and using encoding schemes. Then SVM was used as a classifier and achieved an accuracy of more than 83% (Figure 3B). Li et al. (60) then proposed a video classification framework based on DL to classify glioblastoma and meningioma (Figure 3C). Under this framework, CNN was used to extract the features of each frame in the probe-based confocal laser endomicroscopy (pCLE) video, and then the RNN was used to fuse all the features. The results demonstrated that the proposed method improved the classification performance and achieved accuracy equal to 99.49%.

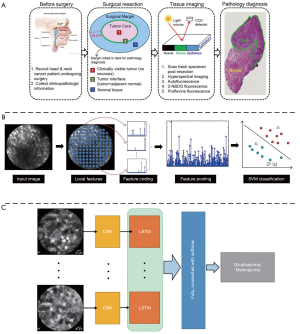

Figure 3 The applications of ML-algorithm in image classification of lesions. (A) Clinical research design of surgical specimen imaging (57). (B) A SVM method was used to perform classification of CLE images in (59). (C) A CNN-RNN framework was utilized to perform classification of pCLE images in (60,61).

OST

As a multimodal imaging technology, OST combines two-dimensional (2D) body surface fluorescence information with high-resolution structural imaging technology (MRI or CT). With the help of mathematical models, OST can accurately reconstruct the three-dimensional (3D) distribution of the internal light source from the fluorescence distribution on the surface (Figure 4), such as bioluminescence tomography (BLT) and fluorescence molecular tomography (FMT) (15,61,63). Compared with 2D fluorescence imaging, OST provides tomographic information and can quantify the 3D distribution of light source in the bodies, which is of great significance in preclinical research.

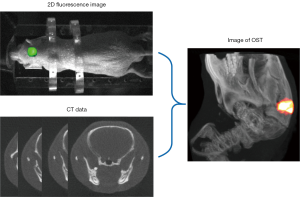

Figure 4 Optical scattering tomography. The 3D distribution of internal light source was obtained by combining 2D surface fluorescence information with 3D CT data© [2020] IEEE. Reprinted, with permission, from (62).

Most of conventional OST reconstruction algorithms are based on a photon propagation model of radiation transfer equation (RTE). Owing to the high complexity of RTE, a simplified low-order approximation model diffusion approximation equation (DE) is used to describe the photon propagation in biological tissues (64-66). Based on the finite element method, the distribution of fluorescence on the surface and internal light source is modeled as a linear relationship: AX = b. The reverse problem is to solve the light distribution X. However, OST suffers from the ill-posedness owing to the scattering effect, which influences the reconstruction accuracy (15,66,67). Therefore, various reconstruction strategies have been proposed to improve the reconstruction accuracy, such as regularization methods (L₂, L₁, L_P) (17,68,69), Bayesian sparse based methods (62), matching pursuit algorithms (70,71), and guided methods utilizing the prior information of tumor segmentation (16,72). Nevertheless, the reconstruction performance of these model-based methods are still limited by ill-posedness and the model error caused by the simplified photon propagation model (37,73).

In recent years, many ML-based methods have been proposed to address the limitations of conventional model-based reconstruction algorithms. Gao et al. (37) developed a data-driven strategy based on the multi-layer perceptron (MLP) to achieve accurate location reconstruction in BLT as shown in Figure 5A. They utilized a Monte Carlo simulating method to collect training data. The error between the reconstructed light source and the real light source was used to train the network. As an extension, Meng et al. (73) connected a local connection sub-network based on the K-nearest neighbor (KNN-LC) over the fully connected network (FCN) and further improved the morphology reconstruction in FMT (Figure 5B). Further, owing to the large number of parameters required and the large amount of redundant information extracted for FCN, many researchers hope to apply convolutional neural network (CNN) to OST reconstruction. However, owing to the spatial topological structure of 3D mesh, CNN cannot be directly used for OST reconstruction. To address this problem, Li et al. (74) utilized graph convolution networks (GCN) in FMT reconstruction, which reduced the training parameters and achieved relatively rapid reconstruction. Moreover, Guo et al. (36) proposed a 3D deep encoder–decoder network to obtain the distribution of internal light source directly from 2D fluorescence image (Figure 5C). They collected 24 regular phantom surface 2D projection images from 0 to 360 degrees. Every image was resized to 64×64, thereby, the input format of the network was 64×64×24. And the output was 64×64×16. This strategy achieved FMT reconstruction directly from 2D fluorescence images that the limitations caused by finite element mesh could be avoided.

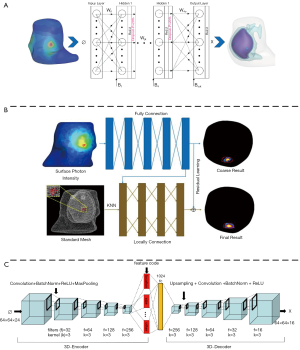

Figure 5 ML-based approaches applied in OST reconstruction. (A) The MLP network used in BLT reconstruction (37). (B) The KNN-LC network applied in FMT reconstruction (73). (C) The 3D deep encoder-decoder network used in FMT reconstruction. [Reprinted/Adapted] with permission from (36). The Optical Society.

These ML-based methods address the model error caused by the photon propagation model and the ill-posedness caused by the inverse problem. However, there are still many limitations to be overcome in the practical application. One major limitation is that there is no unified public database for OST reconstruction. The training data are generated by simulations with individual differences, so it is lack of credibility. Furthermore, there is a lack of in vivo data. Thereby, a public database or a standard and effective data collection framework is urgently needed.

PAT

PAT is an emerging and noninvasive hybrid biomedical imaging technology that can be used to reveal the optical absorption characteristics of tissues (75-77). In PAT, pulsed laser is used to illuminate the biological tissues. Some of the absorbed light energy will be converted into thermal energy, causing nearby tissues to expand thermally, resulting in ultrasonic waves. The ultrasonic waves are measured by ultrasonic transducers and used for image reconstruction (78,79). The principle of PAT is shown in Figure 6. Since the optical absorption characteristics of biological tissues can reflect the hemoglobin concentration and molecular structure, PAT has great application potential in preclinical and clinical researches (80-82).

Figure 6 Imaging principle of photoacoustic tomography (79).

In the past decade, many researchers have made extensive efforts to improve the image reconstruction quality of PAT. In the field of conventional reconstruction algorithm, linear reconstruction algorithm is a simple and direct method which achieves the reconstruction from signal to image by solving a linear transformation. Furthermore, filtered back-projection (FBP) and time reversal method are two major types in linear reconstruction algorithms (83-87). Owing to their easy implementation and rapid reconstruction, they are widely applied in PAT reconstruction. However, the linear reconstruction algorithm will lead to many reconstructed artifacts in downsampled and limited-view data reconstruction (88,89). Another widely used conventional algorithm is model-based method, which relies on the photoacoustic forward propagation model (18,88,90-92). Model-based method is based on an iterative optimization framework with regularization prior. However, these methods are greatly affected by the noise caused by the photoacoustic signal acquisition, especially under the condition of downsampling, thereby the reconstruction results of these methods are limited (61,93).

In recent years, the ML-based methods have been proposed in PAT reconstruction to address the limitations of conventional reconstruction algorithms. The ML-based method can be divided into two parts, one of which relies on the conventional reconstruction algorithm and the other does not. For the first class, there are two main implementations: firstly, a U-Net network is used as a post-processing network to improve the coarse PAT images that are reconstructed by conventional reconstruction algorithms (79,94) (Figure 7A). Owing to the strong denoising ability of U-Net, this kind of algorithm is effective in eliminating image artifacts and denoising. Secondly, a neural network is utilized to simulate each iteration of conventional iterative algorithms. This strategy was first proposed by Hauptmann et al. (19). They designed a DNN to represent the iteration framework and introduced the gradient information of the photoacoustic data (Figure 7B). Boink et al. designed a CNN network based on partially learned algorithm to simultaneously achieve image reconstruction and segmentation of PAT (96). Compared with the strategy of using U-Net for post-processing network, the reconstruction results are further improved by the iterative network. These methods rely on conventional linear reconstruction algorithms to provide an initial value, and therefore, the reconstruction results are not stable enough. To address this limitation, it is necessary to achieve the direct reconstruction independent of conventional reconstruction methods. Waibel et al. first attempted to use CNN network to achieve this direct reconstruction, however, the results were not as good as the above strategies (97). Recently, Tong et al. proposed a DL network to improve the image quality directly from signal to image (95). They designed a Feature Projection Network (FPnet) to achieve domain transformation, and then a U-Net was used to further improve the image quality (Figure 7C). Their method is superior to some of the cutting-edge methods available.

Figure 7 Different ML-based methods for PAT reconstruction. A is the U-Net-based method, which is reproduced from (79). B is the CNN-based method used to simulate the conventional iteration process (19). C is the network structure of domain transform (95).

Although the performance of the ML-based approach is superior to that of conventional algorithms, there are also limitations needed to be addressed. At present, most ML-based algorithms rely on conventional algorithms to provide an initial value, which makes this method not a real end-to-end DL algorithm. Besides, in the case of full view and dense sampling, the ML-based method does not have great advantages over the conventional method.

Section 3: Application of ML in nuclear medical imaging

In the past five years, the application of ML in clinical medicine, especially in nuclear medicine, has received increasing attention (98). With the rapid development in nuclear medicine and ML, the connection between ML and medical imaging is getting closer and closer (99,100). Image diagnosis is an important part of clinical work in nuclear medicine. During the diagnosis process, radiologist need to read a large number of image data and ML has made great progress in the reconstruction of CT, SPECT and PET (101,102). At the same time, ML is very helpful in assisting radiologists to diagnose and treat diseases (103-105).

Application of ML in PET

PET is an important part of nuclear medicine. The development of PET/CT has significantly improved the sensitivity and specificity of imaging diagnose and it is also of great significance in disease treatment and prognosis.

The combination of ML and imaging has been widely used in the detection and diagnosis of tumors (103). The diagnosis of lung nodules is an important part of the daily work of radiologists and how to diagnose the lung nodules is a tedious and complicated process. To date ML demonstrates remarkable and significant progress in pulmonary nodules detection and diagnosis (106-109). Nuclear medicine imaging needs to rely on radionuclides. ¹⁸F-FDG is the most commonly used radionuclide, but its imaging in the brain has limitations because of high background in normal brain. A variety of imaging agents based on the nervous system have been developed especially for CNS tumors. ¹⁸F-FET, a specific brain tumor imaging agent, significantly reduced the background of the normal brain, and improved the contrast of tumor. The combined application of CNN and ¹⁸F-FET PET/CT for the diagnosis of gliomas has obviously increased the sensitivity, specificity, positive predictive value and negative predictive value (110) (Figure 8). ¹¹C-Choline PET/MRI has been shown to improve the diagnostic accuracy of primary prostate cancer. The application of PET/MR with ML algorithm has been tried to diagnose local prostate cancer (111). With the development of ML and new molecular probes, DNN has been used in ⁶⁸Ga-PSMA imaging and made a better performance in the diagnosis of bone metastasis and lymph node metastasis from prostate cancer (112,113). Automated PET/CT segmentation trained with CNN was also used in the prostate cancer lesion uptake which was in association with overall survival (114,115). While PET/CT performs a whole body scan at one time, it can accurately detect systemic diseases, such as leukemia, lymphoma, multiple myeloma, etc. and then provide precision medicine (115-117). Nuclear alteration is a distinguished feature of many types of cancers and it is also an important evidence for pathological diagnosis. Recent studies based on ML approaches could automatically analyze data related to nuclear changes to assist diagnosis decision (118,119).

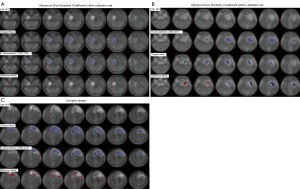

Figure 8 Segmentation examples with for each example: Original resized slices ¹⁸F-FET (A), original mask (B), predicted mask + threshold (C) and difference between the predicted and original mask (bottom, with false negative in red and false positive in blue) (110).

With the continuous research and development of molecular probes, PET combined with ML which plays an important role in the diagnosis of CNS tumor as mentioned above can also be applied to many other aspects of the nervous system. Alzheimer’s disease (AD) is the most prevalent form of age-related dementia that poses challenges to global health care systems (120). Many different types of molecular probes and different ML algorithms have been applied to the diagnosis of AD, cognitive impairment (MCI) and brain amyloid burden (121-128). Recently a ML model trained only by normal brain PET data was established and it could assist experts to identify and locate the abnormal patterns of PET images (129).

¹⁸F-FDG PET is also a common used mean of cardiac examination and it plays a fundamental role in diagnosis of cardiac sarcoidosis (CS) (25,130). A method based on deep convolutional neural network (DCNN) was proposed for CS classification (131).

The effective treatment and prognosis of the disease are the most concerned issues for patients, and ML can be used to guide the treatment plan, evaluate the tumor stage and predict the prognosis of the disease.

Radiotherapy and chemotherapy are important means of tumor treatment. PET/CT and other imaging modality can assist in the delineation of the target areas of radiotherapy and effectively monitor the tumor objective response rate (ORR) and metastasis (104,105,132,133). Stereotactic body radiation therapy (SBRT) which can precisely locate the tumor position and deliver a high dose to a tumor per fraction rather than to the surrounding normal tissue, is a promising technique for the treatment of cancer (134). Usually gross tumor volumes (GTVs) regions are manually delineated by radiation oncologist before the treatment and ML can be employed to help radiation oncologists to delineate GTV regions (135,136) (Figure 9). Lymph node metastasis and distant metastasis are the significant prognostic factor for cancer patients and the ability to predict them precisely is necessary for treatment optimization. With the assist of ML, PET/CT can accurately predict the staging and grading of tumors (137,138).

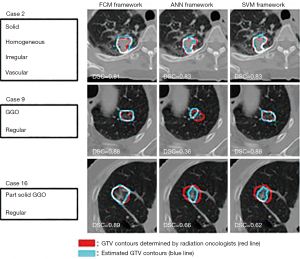

Figure 9 A comparison of results of the three pixel-based ML framework in terms of tumor CT imaging characteristics (136). FCM,fuzzy-c-means clustering method; ANN, artificial neural network; SVM, support vector machine; GGO, ground glass opacity; DSC, Dice similarity coefficient.

With the development of ML, some models have been established that can successfully predict and assess the response of chemoradiotherapy treatment in oncological patients (139-142). Although the diagnosis and treatment of the disease are critical to the patient, the survival rate of the tumor is the patient’s utmost concern. ML using in vivo, ex vivo, and patient features has made progress in predicting survival in ¹¹C-MET-positive glioma patients (143) (Figure 10).

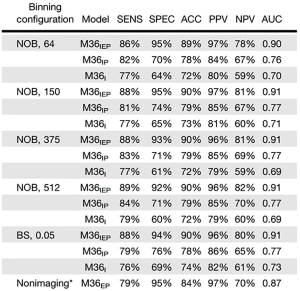

Figure 10 Performance Values of Predictive Models Evaluated in MC Cross-Validation. (*M36EP is presented separately, as it is independent from image binning configurations) (143). SEN, sensitivity; SPEC, specificity; ACC, accuracy; PPV, positive predictive value; NPV, negative predictive value; M36IEP, model based on a combination of in vivo, ex vivo, and clinical patient information; M36IP, model based on in vivo and patient information only; M36I, model based on in vivo information only.

Recently, treatment strategies for AD are focusing on slowing cognitive decline. For the purpose of effective treatment of AD, it is important to identify subjects who are most likely to exhibit rapid cognitive decline (144,145). By applying CNN to FDG and AV-45 PET, a CNN-based method that could successfully predict cognitive decline was proposed (146). Several other in-depth learning algorithms combined with PET imaging were developed to predict cognitive performance and AD and it was very beneficial to the early treatment of patients (147-149).

Application of ML in SPECT

SPECT is one of the earliest nuclear medicine imaging equipment used in clinical applications. With the help of ML, SPECT has made great progress in the application of CNS and cardiovascular system.

Parkinson disease (PD) is the most common neurological disorder disease with characteristic movement difficulty like tremor, stiffness and slowness. Dopamine transporter SPECT/CT has been proven to improve the diagnostic accuracy of Parkinson disease (150). The application of ML in SPECT makes PD’s diagnosis faster and helps physicians further improve the accuracy of diagnosis (151-153). For example, Prashanth et al. proposed that the support vector machine (SVM) classifier was applied to the recognition of PD. As shown in Figure 11, the accuracy could reach 97.29% (151).

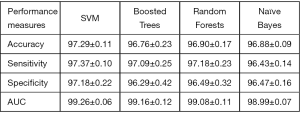

Figure 11 Performance measures obtained for the classifier used in the text (151).

Radionuclide myocardial perfusion imaging (MPI) which usually uses ^99mTc-labeled tracers to map the relative distribution of myocardial blood flow (MBF) both at rest and with stress is the most commonly used detection method for heart disease (154,155). MPI has been used in the diagnosis of coronary artery disease (CAD) which is the leading cause of mortality worldwide and the artificial neural network (ANN) can help experts to detect myocardial perfusion defects and ischemia (156-159). Usually manual adjustment is required to accurately locate the position of mitral valve plane (VP) in the left ventricle of heart and Betancur et al. developed a ML method for fully automatic VP positioning in MPI without the need for expert intervention (160). One thousand patients underwent rest/stress SPECT MPI and the diagnostic performance of AI reporting system that generated a structured natural language report was comparable to the experts (161).

Heart-related diseases are one of the diseases with the highest fatality rate in China, and accurate prediction of related diseases and their risks is of great significance to treatment and prognosis. ML in combination with myocardial perfusion SPECT (MPS) has been developing rapidly and this approach is also applied to the prediction of cardiovascular diseases. Arsanjani et al. established a ML algorithm to predict early revascularization which was comparable to or better than the experienced experts (162). Trained with 1,638 patients (67% males) without known CAD, DL with MPI made better performance in the prediction of per-patient and per-vessel CAD compared with current clinical methods in 2018 (163). By integrating clinical and imaging data, ML could predict adverse cardiac events (MACE) risk in patients underwent SPECT MPI (164). With the aid of AI, the situation is changing that disease can be judged only by experts’ clinical experience.

Section 4: Challenges and perspectives

Although ML has achieved a significant breakthrough in clinical and preclinical applications, it still faces great challenges in theoretical research and clinical trials. Firstly, as we all know, ML-based algorithm as data-driven technology is greatly influenced by the amount of data. Compared with natural images, it is difficult for medical images to obtain enough data to build ML models. To overcome the limitation of clinical application data, building virtual or simulated data sets may be a practical and feasible solution in the short term. Future studies should focus on constantly improving the data volume, or developing ML technology based on small data sets. Secondly, although the application of ML can increase the reconstruction quality of OST, PAT, PET, etc., there are many concerns that ML will introduce more artifacts, which will affect the interpretation of images. What specific artifacts will be introduced into ML, and there is still a lack of research in this area. Thirdly, owing to the uninterpretability of neural networks, it is difficult to describe the imaging mechanisms of various imaging techniques, which is urgently needed to be overcome of neural networks. Further attempts should be made to explain the working principle of ML in different application scenarios through the visualization of model features and other methods. Lastly, the clinical diagnosis and other applications of ML assisted nuclear medical imaging are mostly retrospective data, lacking the validation of prospective multicentric clinical trials. This will need to be supplemented in the future.

Under the background of AI industrial revolution, imaging physicians should face the opportunity more objectively and positively. At present, AI technology is still in the initial stage, and it is more about a single image task to propose a solution, which is far away from the clinical work scene. The development of AI cannot be separated from doctors, and the work of doctors in the future cannot be separated from AI. Medical services assisted by machines will be the optimal solution in the path of diagnosis and treatment in the future.

Acknowledgments

Funding: The study was approved by the Ministry of Science and Technology of China under Grant No. 2017YFA0205200, 2017YFA0700401, and 2016YFC0103803; the National Natural Science Foundation of China under Grants No. 61671449, 81227901, and 81527805; and the Chinese Academy of Sciences under Grant No. GJJSTD20170004, KFJ-STS-ZDTP-059, YJKYYQ20180048, QYZDJ-SSW-JSC005, and XDBS01030200.

Footnote

Provenance and Peer Review: This article was commissioned by the Guest Editor (Dr. Steven P. Rowe) for the series “Artificial Intelligence in Molecular Imaging” published in Annals of Translational Medicine. The article has undergone external peer review.

Peer Review File: Available at http://dx.doi.org/10.21037/atm-20-5877

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-5877). The series “Artificial Intelligence in Molecular Imaging” was commissioned by the editorial office without any funding or sponsorship. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
