Robot-assisted mandibular angle osteotomy using electromagnetic navigation

Introduction

According to the oriental aesthetic standards, a square face is viewed as coarse and masculine (1). Mandibular angle osteotomy is a common cosmetic surgery in Asia used to improve facial contour. In such type of aesthetic surgery dealing with the face, surgical accuracy and symmetry are very important in postoperative evaluation. The incision is made intraorally, so inevitably, the operation space is limited, and the surgeon has a poor operation field. Complications such as vascular injury, nerve damage, facial paralysis, mandible fracture, and bilateral asymmetry can easily occur due to the confined intraoperative space. A preoperative plan is made to avoid these situations; however, surgeons may have trouble determining the osteotomy line and performing the surgery as planned as they cannot see the mandible clearly and completely.

Surgical navigation technology, which is an effective solution, was first introduced in neurosurgery in 1908 by Horsley and Clarke, who put the intraoperative application of surgical planning into practice (2). Electromagnetic (EM) navigation is an upcoming tool in craniomaxillofacial surgery (3). The magnetic field force is used as a non-contact cross-space action mode, and the use of a magnetic field for establishing location is flexible and convenient and does not require bulky equipment. It is also not limited by blocking issues. Field sensors fixed on the targets pick up its real-time position information in the magnetic field so as to achieve the tracking and navigation of the surgical object and instrument. The point of surgical navigation is to carry out spatial registration of preoperative plan, actual field, and surgical instruments. Precise registration is crucial because it can directly affect the precision of all subsequent navigation tasks (4). Robotic aids are naturally suited for this alignment and stabilization task, thus reducing the surgeon’s manual error and potentially minimizing complication rates (5). Currently, there is no well-developed system in craniomaxillofacial surgery that combines EM navigation with robot assistance. Therefore, we set up a maxillofacial surgical robotic system (MSRS) guided by an EM navigation tool so as to help the surgeons accurately perform surgery according to the preoperative plan.

After establishing the system and workflow on the mandible model in the laboratory, animal experiments were conducted in a real operating environment, implementing post-operation CT to evaluate the accuracy of the system. Beagles were chosen because of their stable strain and strong vitality. By comparing outcomes with traditional methods, we intended to verify the feasibility of this procedure.

We present the following article in accordance with the ARRIVE reporting checklist (available at http://dx.doi.org/10.21037/atm-20-6305).

Methods

System

Our MSRS consisted of two major parts: the robot and the navigation equipment. The former included an industrial robotic arm UR5 (Universal Robots) with a self-designed template clamped on the end, a base station equipped with a computer for surgical planning and robotic control. The latter consisted of the Aurora V3 (Northern Digital Inc.) EM tracking system, which included a system control unit, a field generator, and sensors, as well as the navigation splint assembled by a customized dental splint and a standard navigation part.

Model and animal experiments were implemented to validate the precision of the system (Figure 1). Animal experimental workflow was provided in supplementary files (Video 1). Model experiment with 5 mandible models was carried out in the following order: navigation splint making, preoperative CT, surgical planning, navigation registration, template positioning, and measuring. Animal experiment was carried out in two groups with 4 mandibular angle osteotomies (experimental unit) each. The experimental group underwent: navigation splint making, preoperative CT, surgical planning, navigation registration, template positioning, osteotomy, postoperative CT, postoperative measurements. The control group: preoperative CT, surgical planning, traditional osteotomy, postoperative CT, postoperative measurements.

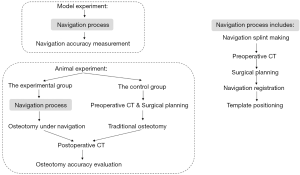

Figure 1 Overall experiment workflow diagram.

Subjects

Five mandible models were 3d-printed (ProJet 660, 3D system, USA) based on patient data from the digital laboratory in Shanghai 9th People’s Hospital (Philips, Amsterdam, The Netherlands).

Four 1-year-old test naïve beagles, 2 males, and 2 females, weighing 8 to 10 kg, were selected as animal experiment subjects, and randomly divided into two groups. All animals were provided by the hospital animal house with an animal use permit (NO. SYXK2015-0002, General grade). The room temperature was maintained in the range of 22–23 °C, and the relative humidity was in the range of 40–45%.

Ethical statement

Experiments were performed under a project license (No.: SH9HIEC-2017-319-T239) granted by Independent Ethics Committee of Shanghai Ninth People’s Hospital affiliated with the Shanghai Jiao Tong University, School of Medicine, in compliance with institutional relevant guidelines and regulations for the care and use of animals.

Navigation splint making

A customized dental splint was made based on the patient’s dental mold, then assembled with a standard navigation part, which was fixed with four steel spheres with a diameter of 2 mm as the magnetic field tracking targets for navigation (Figure 2). Preoperative CT scans (Philips Brilliance 64 CT scanner, 284 mA, 120 kV, matrix 512×512, 0.625 mm layer 3D reconstruction) were carried out with the splint mounted on teeth.

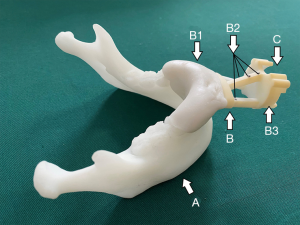

Figure 2 Navigation splint mounted on teeth of the mandible model. (A: mandible model; B: navigation splint; B1: customized dental splint; B2: steel spheres; B3: navigation standard part; C: dent to install EM sensor).

Surgical planning

In the three-dimensional reconstruction software (Mimics19.0, Materialise, Belgium), the patient’s DICOM data was imported, and by segmenting the proper threshold value of CT, the mandible was reconstructed, and the osteotomy line was designed so as to avoid the inferior alveolar nerve running inside the mandible (Figure 3). The mandibular angle osteotomy surgical plan was saved in STL form and then imported to the robot with relative location information of four steel spheres.

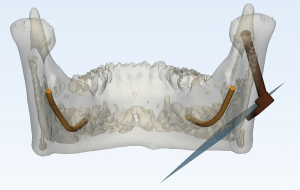

Figure 3 Surgical plan of mandibular angle osteotomy. (Grey: mandible; yellow: inferior alveolar nerve; blue: osteotomy plane; brown: template).

Registration and navigation

After fixation of the mandible model and magnetic generator, the splint was mounted on the mandible model’s teeth to reflect the position of the mandible. Magnetic field receptors were connected to the robot and the navigation splint for tracking the robot and mandible movement intraoperatively via the magnetic navigation system. The registration between virtual data and the actual space was automatically completed by the software via matrix transformation using four steel spheres as registration points. The positions of the robot, the mandible model, and the osteotomy surgical plan were all aligned after registration. It was ensured that the robot base and operation table made no movement after confirming the relative position between the robot and the mandible in the magnetic field. The registration process of our MSRS can be visualized in the navigation software interface.

To guide the position and angle of the osteotomy intraoperatively, we designed and 3d-printed a template, which was clamped on the end of the robot. The robot moved the template to the target location according to the pre-imported surgical plan (Figure 4).

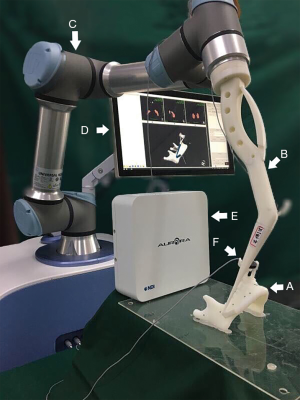

Figure 4 Model experiment of our maxillofacial surgical robotic system (MSRS). (A: mandible model mounted with navigation splint; B: template; C: robot; D: computer; E: EM generator; F: EM sensor).

Navigation accuracy measurement

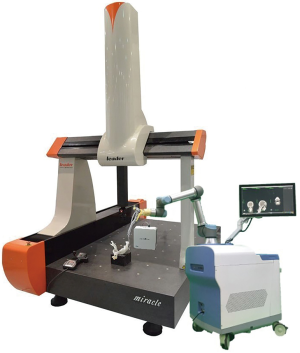

Coordinate Measuring Machine (Miracle NCT685) was used to measure the accuracy of navigation positioning (Figure 5). By tapping the probe stylus on the edge and osteotomy plane of the template, we acquired the navigation position and angle values. The same operation was performed on registration points of the mandible model, and the expected position and angle of osteotomy could be obtained by matrix conversion. Then, the actual three-dimensional coordinate value was compared with the expected value to calculate the magnetic navigation accuracy.

Figure 5 Schematic diagram of navigation accuracy measurement.

Animal experiment

In order to verify the feasibility of this system in a real operation environment, animal experiments were conducted (Video 1). The sample size was calculated using the formula

n=[Zα/2+Zβδ/σ]2(Q1+Q2)

n=[1.96+1.2820.5/0.19]2(0.5−1+0.5−1)≈6.1

Four robot-assisted surgeries and four traditional manual surgeries were alternately performed by the same surgical team between August and December 2019. The surgeon performing the osteotomy was an attending who had been practicing plastic surgery for ten years. Before surgery, all animals underwent fasting for 12 hours, and then received an intramuscular injection of 0.6–0.8 mL of Lumianning (Xylazine 20 mg/mL) to calm them down and to ease the follow-up intravenous injection. For anesthesia, 3% Pentobarbital with a dose of 1 mL/kg was administered intravenously without intraoperative intubation. All these were done by the animal laboratory technician, so experimenters did not know the animal's number until the operation began and the blinding of the surgeons could be achieved.

After anesthesia, the dog’s mandible was dissected and exposed intraorally. Then the mandible was fixed to the operation table using a bedside fixator (BERCHTOLD OZ1251900) and the splint was mounted on the teeth. The next steps were the same as the model experiment.

After navigation, the osteotomy operation was carried out by the surgeon moving the saw along the template (Figure 6). During the osteotomy, EM system equipment could be removed to make more room as long as the mandible did not move. Each of the four beagles had both mandible angles removed, while only half was robot-assisted and the other half was done traditionally (surgeon looked at the preoperative plan to figure out an approximate position on the mandible and made the osteotomy empirically).

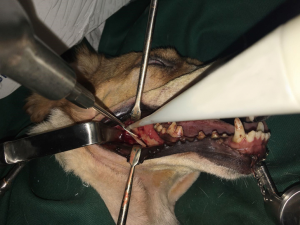

Figure 6 Robot-assisted mandibular angle osteotomy by moving the saw along the navigated template.

Osteotomy accuracy evaluation

The animals were kept in single cages and were allowed free access to food and water for two weeks postoperatively to observe the corresponding complications. Postoperative CT was used to measure the robot-assisted surgery accuracy. Imaging DICOM data was imported to Mimics software to reconstruct the mandible and later imported in STL form to Geomagic Control (3D Systems) along with the preoperative plan for accuracy evaluation (Figures 7,8). This step was done by another researcher to prevent bias. Osteotomy accuracy was used as the primary outcome: 10 points were measured along both lateral and interior osteotomy line. In addition, three secondary outcomes were evaluated: operation time, osteotomy angle deviation, and postoperative complications.

Figure 7 Ten points were measured along both the lateral and interior osteotomy line to calculate the deviation of position.

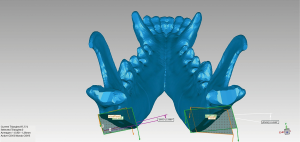

Figure 8 The osteotomy plane of postoperative CT was compared with the preoperative plan to calculate the deviation of angle.

Statistical analysis

An independent sample t-test was performed to compare the differences between the two groups. Each group of animals was an experimental unit. If P<0.05, the data were considered as meeting the assumption that robot-assisted surgery had better outcomes than the traditional control group.

Results

The model experiment was carried out successfully in all 5 mandible models (Table 1). Equipment installation and navigation process took 15 minutes on average. The mean error of osteotomy position and angle compared with preoperative plan was 0.44±0.19 mm and 3.5°±2.1°, respectively.

Table 1 Results of model experiment
Full table

In the animal experiment, all beagles were healthy and test naive before surgery. The result of the experiment is shown in Table 2. According to postoperative CT: analysis of all osteotomies (4/4) in robot-assisted group revealed that the average error along lateral osteotomy line was 0.83±0.62 mm, interior line error was 1.06±1.03 mm, and the angle between actual cutting plane and preoperative planning plane was 5.9°±4.7°; As for osteotomies (4/4) in the traditional control group, the error of the lateral osteotomy line was 1.77±1.36 mm, and the error of the interior osteotomy line was 1.48±1.09 mm, angle between two planes was 8.2°±4.4°.

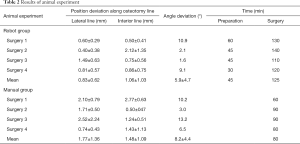

Table 2 Results of animal experiment
Full table

Our results revealed a great difference in accuracy along the lateral osteotomy line, with P<0.0001, while the interior osteotomy line showed well enough result, with P<0.05. Osteotomy angle deviation had no significant difference, with P<0.5. The comparison of accuracy on the osteotomy line between the robot group and the manual group is shown in Figure 9. Preoperative equipment installation and preparation took 45 minutes. The robot-assisted surgery took 125 minutes on average, while the traditional approach in the control group took 80 minutes on average. Thus, the proposed approach could save 45 minutes of operation time. No postoperative complication was found in any of the experimental animals.

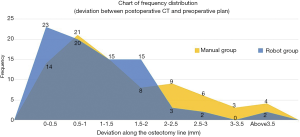

Figure 9 Compare osteotomy accuracy of the manual group and the robot group, measurement results distributed in different deviation ranges with different frequencies.

Discussion

Robot-assisted surgery is characterized by high accuracy and high stability; however, confined surgical areas have restrained utilization. Since the first robot-assisted surgery approved by the Federal Drug Administration (FDA) in 1994 (6), robotic and computer-guided systems have significantly improved operating practice by reducing tremors, increasing manual dexterity, and expanding the vision field. Following progressive changes, medical robotics has been identified to have high potential and the ability to bring patients real benefits due to its high accuracy positioning capability (7). With the growing demands on health systems, it is inevitable that the future of healthcare will be linked to robotics (8). Thus far, robotic systems, which have been widely adopted for urological, gynecological, rectal surgery and so on, have been considered as particularly favorable for deep and narrow spaces (9). Despite numerous technical advancements in surgical robotics over recent years, only a small proportion of surgical specialties have notably benefited from these innovations. The field of plastic and reconstructive surgery has seen little utilization of surgical robotics and computer-assisted systems in the operating theatre (10). We previously developed a robot system for automatic drilling procedures in craniofacial surgery, which achieved position error within 2mm in the laboratory environment and 3 mm in animal experiments (11). However, before the robot-assisted procedure, the registration process requires the selection of anatomical landmarks under the condition of no interference like soft tissues. Considering the subsequent clinical application, navigation technology is necessary to complete the registration quickly and accurately. In fact, as a crucial part of robot-assisted surgery, intraoperative navigation is required in most surgical robotic systems.

Most existing navigation systems are based on optical tracking techniques. An optical tracking system using infrared light is the most developed and widely practiced; however, it has some apparent limitations. Optical navigation solutions using infrared stereoscopic camera systems presuppose a clear line of (camera) sight (12), and they cannot track flexible instruments (13). In addition, the relatively large and heavy tracking tools are difficult to use in delicate surgical environments. One main barrier preventing us from adopting optical navigation for our robot system is that it’s too bulky, and confined surgical areas in craniomaxillofacial surgery cannot accommodate much robotic surgical auxiliary equipment. Thus, optical navigation systems are not suitable. On the other hand, EM tracking has been successfully used in navigation completely inside the human body like in neurosurgeries and cardiovascular surgeries, such as ventricular catheter placement (14,15), catheter ablation (16-18), thoracic aortic stent-graft deployment (19). This technique, which has no line-of-sight problem and is easy to handle, might supersede the widespread optical systems (12). Therefore, we combined EM navigation with robot technology for the first time and applied it to maxillofacial surgery.

To the best of our knowledge, EM systems are usually less accurate compared with optical tracking systems, and it is not as widely used in clinical practice. However, EM system accuracy has increased over the last few years, and with reductions in sensor sizes, this technology has become attractive for narrow field navigation (20). Several studies have been able to show the great potential of the EM navigation technology in craniomaxillofacial surgery. In awake craniotomy, EM navigation without head pin fixation offers the same accuracy as optical navigation (21). During orthognathic surgery, it can accurately reposition the mandibular proximal segment into its original position (22-24) or replace the maxilla after Le Fort I osteotomy without the use of intermaxillary splints (12,25,26), thus reaching the accuracy of optical trackers (27). For applications within the proper working volume, EM tracking tool can help accurately transfer the preoperative plan to the intraoperative procedure.

The splint was used to perform automatic EM navigation registration through a self-developed software algorithm (28). The splint can be repeatedly and conveniently mounted and removed during the preoperative CT and the operation. The four registration steel spheres on the splint were automatically detected to align coordinate systems between the operative area and the preoperative plan. Most existing EM systems fix their tracking devices rigidly in the bone, which can result in intraoperative bleeding and tissue-damaging. The hole on the bone surface left by the screws may interfere with healing, while extended operation time may increase the chance of complications after the operation. By contrast, our method is non-invasive and time-saving, providing convenience for both doctors and patients.

To the concerns of many researchers, the accuracy of robot-assisted surgery using EM navigation cannot be guaranteed in non-laboratory environments due to its instability. Also, various instruments and devices in surgical scenarios are a potential source of interference. During our application, we found that interference of ferromagnetic material in the magnetic field was mostly preventable. The surgical instruments used in our operations were not specially made; just like most instruments used in other common operating rooms, they were made of 300 series stainless steel, which works well with the Aurora System according to the Aurora user guide. Navigation is only a part of the surgical process. During registration, most of the interference caused by ferromagnetic material can be avoided by temporarily removing these materials away from the surgical field. As for the unavoidable materials, such as the surgical bed frame and mandibular fixing frame, we reduced the interference as much as possible by changing the position of the magnetic field generator. Manipulation of the emitter of an EM navigation system helps to prevent interference caused by metal surgical instruments (29). The aim of our system was to solve the problem of surgeons’ inability to carry out the osteotomy precisely as the preoperative plan. As a result, our robotic system successfully assisted surgeons in performing the robot-assisted surgery with a deviation of less than 2 mm between surgical plan and post-operation CT outcome. For our mandibular angle osteotomy, such an error was completely acceptable.

Our system using EM tracking resulted feasible both in terms of precision and process flow. Preparation of this robot system was completed before the operation, including splint construction, preoperative CT, surgical planning, and robot path generation. Procedures that increased surgical time were the magnetic navigation registration and the robot positioning of the template, which took less than an hour in total. Process duration could be further reduced by increasing the proficiency of surgical personnel.

Currently, our proposed robot system was only applied to mandibular angle osteotomy, which was chosen as a representative surgery as it has a confined surgical field and requires high accuracy. Nonetheless, other operations with similar navigation range may be potential applications, while the technology of splint based automatic registration can also be used in other maxillary and mandibular surgeries. Animal experiment results were satisfactory; however, whether these outcomes can be reproduced in clinical patients still remains unclear and needs to be further explored. Without a doubt, robot-assisted surgery is a trend, while the intellectualization of medical equipment is a promising direction. Under constant development in terms of surgical simulation (30), mechatronics, and surgeon-robot interfaces, the utility of robotic assistance is likely to become preferred and even the first choice for clinical cranial maxillofacial surgery in the near future.

Conclusions

All animals survived and healed well; post-operation CT validated the system’s precision, confirming more satisfying outcomes of robot-assisted mandibular angle osteotomy compared to the traditional procedure. This experiment’s results show that EM navigation is feasible in the real operating environment; the procedure we developed and proposed was safe and easy on animals. The proposed procedure has the potential to be applied to clinical practice in the near future.

The main obstacle that may prevent applying this robot system in clinic is the equipment that takes up a large amount of operating room space. Also, from an economic perspective, the use of robotic systems and professionals’ operation can add about $100 to the cost of surgery.

With the development of EM navigation technology and human-robot interaction, robot-assisted surgery can be used to complete the procedures more accurately and safely, thus providing further support for high-precision surgical interventions.
