The macrosphere model—an embolic stroke model for studying the pathophysiology of focal cerebral ischemia in a translational approach

Introduction

In the past years, stroke research has encountered one major problem: numerous therapeutic agents that proved quite effective in experimental animal models failed to show any efficacy in human clinical trials. Thus, the recanalization of the occluded vessel within a limited time frame remains the only effective treatment, since—due to negative clinical trials—not one substance out of the plethora of neuroprotective drugs identified in pre-clinical studies has later achieved regulatory approval for this indication. To overcome this problem known as the ‘translational road block in stroke research’, leading researchers in the field have provided several suggestions (1-4).

One key issue identified to hinder the translation of pre-clinical research into the clinic is the use of experimental stroke models that do not sufficiently resemble the clinical reality of cerebral ischemia (2). Pathophysiological events occurring in the days and weeks after stroke, such as neuroinflammation, cortical spreading depolarizations (CSD), and stem cell-mediated regeneration, need to be taken into account when evaluating the usefulness of an experimental animal model, and should ideally model the human situation (2,5).

Moreover, in a translational approach, preclinical studies should be designed in the same manner as clinical trials, and ideally use the same assays to monitor therapeutic efficacy. Non-invasive in vivo imaging using Magnetic-Resonance-Imaging (MRI) and Positron-Emission-Tomography (PET) plays an important role in this regard. Those imaging tools allow monitoring key pathophysiological processes longitudinally and intraindividually over time, such as cerebral blood flow (6), brain edema (7,8), neuroinflammation (9,10), and stem cell-mediated regeneration (11,12).

Along these lines, we here elaborate on the macrosphere model of focal cerebral ischemia, and compare it to other established experimental stroke models.

Overview over frequently used animal stroke models

For the induction of focal cerebral ischemia in the rats, many different surgical techniques can be used. Basically, endovascular and non-endovascular procedures can be distinguished. In the following, the most frequently used animal stroke models are summarized. Table 1 gives an overview over the typical characteristics of each model compared to the macrosphere model and to human stroke.

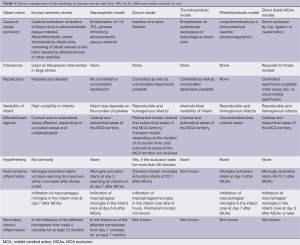

Table 1 Direct comparison of the findings in human stroke and after MCAo by different stroke models in rats
Full table

Endovascular models

Suture model

The suture model described first in 1986 by Koizumi et al. (13) is the most widely used experimental stroke model to study the pathophysiology of focal cerebral ischemia and to evaluate novel therapies. This model can be used to induce both a permanent as well as a transient occlusion of the middle cerebral artery (MCA). Since its first publication, the suture model has been modified by many working groups to optimize its success rates (14-21). To achieve MCA occlusion (MCAo), a nylon filament is inserted through an arteriotomy of the common carotid artery (CCA), anterograde behind the origin of the MCA. Blocking the blood flow to the MCA results in reproducible infarcts within the MCA territory (13-21). If reperfusion is to be achieved, the thread is withdrawn at latest 90 minutes after MCAo (17,18,20). This animal model is easy to use, relatively little invasive, and produces reproducible infarcts.

Thromboembolic model

Kudo et al. were the first to describe a thromboembolic model for the induction of focal cerebral ischemia (22). In the meanwhile, many variations of this model for optimizing the technique as well as its success rates are reported (23-28). The thromboembolic model closely resembles a common etiology of human stroke, since thrombi are generated and then used for the occlusion of the cerebral artery. Consequently, this model is most suitable for the preclinical evaluation of thrombolytic agents, such as rt-PA (23).

The preparation and structure of thrombi vary widely in the literature. In most cases, autologous (less frequently heterologous) blood is used, which is clotted by the addition of thrombin or other methods. Many authors use clots derived from blood, while others make use of blood components. The prepared thrombi (one single larger or several small ones) are injected in the internal carotid artery (ICA) via an arteriotomy of the CCA, or via a stump created of the external carotid artery (ECA) (22,24).

Non-endovascular models

Photothrombosis model

This model was first described by Watson et al. in 1985 (29) and makes use of a photosensitive dye to occlude small cortical vessels. First, Rose Bengal solution is injected into the femoral vein, followed by illumination of the cortical surface through the intact skull bone for about 20 minutes, using a fiber optic cold light source with an intensity of 560 nm. This irradiation causes a photochemical reaction of the intravascular Rose Bengal, leading to local thrombosis and vascular occlusion, generating reproducible infarcts that are limited to the cortex (29). Many modifications of this model are reported, e.g., use of laser beams instead of a cold light source (30-34).

Direct distal MCAo models

In all these models, a subtemporal craniotomy has to be first performed in order to expose the MCA. Depending on the specific method, the MCA will be occluded directly by a clip (35), a ligation (36-38) or cauterization (37,39) under visual control. In the clip model, a reperfusion of the MCA can be induced by removing the clip (35).

The macrosphere model of focal cerebral ischemia

Surgical method

The macrosphere model is an endovascular embolic stroke model resembling cardiogenic and arterio-arterial embolism as the main etiology of human stroke. In this model described first by Gerriets et al. (40), permanent occlusion of the MCA in rats is induced by TiO₂-spheres (Figure 1A). Therefore, the macrosphere model mimics arterio-arterial embolism of “hard” atherosclerotic plaque material as the most frequent cause of human stroke (41,42).

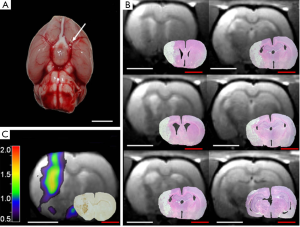

Figure 1 Exemplary findings 3 weeks after induction of focal cerebral ischemia by the macrosphere model. (A) Basal view of the rat brain displaying the intracerebral arteries following MCAo by macrosphere-injection. One macrosphere (white arrow) is located in the origin of the MCA. (White bar: 5,000 µm). (B) Representative images of T2-weighted MRI from rostral (left column, upper image) to caudal direction delineating the typical ischemic territory 3 weeks after induction of ischemia. (White bar: 5,000 µm). Insets: respective corresponding histological slides stained with hematoxylin and eosin verified the ischemic damage after 3 weeks. (Red bar: 5,000 µm). (C) In vivo imaging of neuroinflammation using [¹¹C]PK11195-PET fused on T2-weighted MRI at 3 weeks after macrosphere embolization. (Scale: PK-binding potential; white bar: 5,000 µm). Accumulation of [¹¹C]PK11195 can be clearly identified within the peri-infarct zone. Inset: in the corresponding immunhistological slide, microglia activation is visualized by staining for MHC class II (right column, lower image). (Red bar: 5,000 µm). MCA, middle cerebral artery; MCAo, MCA occlusion.

In more detail, first a PE-50 tubing is filled with saline, and a defined number of TiO₂ “macrospheres” of 0.315 to 0.355 mm in diameter (BRACE^® GmbH) are prepared. Depending on the experiment, between one and six macrospheres may be used. After the dissection of extracranial arteries and transection of the ECA, the PE-50 catheter is inserted into the stump of the ECA via an arteriotomy, forwarded to the carotid bifurcation, and fixed in place. The macrospheres are injected one-by-one with only a small amount of saline (~0.05 mL), so the spheres move passively into the ICA and are transported by the blood flow through the circle of Willis, blocking the main stem of the MCA. Afterwards, the tubing is removed, and the stump of the ECA is ligated (40).

The failure rates indicating an insufficient occlusion of the MCA by the macrospheres varied dependent on the used numbers of spheres (60-80%) (8,40,43,44).

Characteristics of the macrosphere model

The macrosphere model can be operated as a remote occlusion model, i.e., occlusion of the MCA can be postponed to a defined time point after the actual surgery, and then be achieved from a spatial distance. This specifically allows for the timed occlusion of the vessel while the rat is lying in the MRI-scanner (8,45), the PET-scanner (6), or the Laser-speckle setup (44), and thus for multimodal imaging of the hyperacute phase of stroke (5). In studies utilizing the macrosphere model with remote occlusion, a slight modification of the surgical setup is suggested in order to minimize the risk of a dislocation of the tubing when manipulating the animal (e.g., placement in the restrainer or animal holder) (8). In this modified model, the ECA and the pterygopalatine branch of the ICA are ligated. The filled catheter is inserted through an arteriotomy of the CCA into the ICA until the tip of the tubing is located distal to the origin of the pterygopalatine artery. The macrospheres are then inserted in the ICA by a slow injection of 0.2 mL of saline blocking the blood flow to the MCA (32). Using other experimental stroke models, only few studies performing remote MCAo and monitoring the hyperacute phase of stroke in rodents have been published to date (46-54). In all those studies, remote occlusion of the MCA was performed using the permanent or temporal suture model, making the macrosphere model the first embolic stroke model to allow for remote occlusion. Several modifications for optimizing this technique regarding an improvement of the success rate have been reported (46-54). However, compared to the macrosphere model, remote occlusion in the suture model is technically more difficult, thus requiring more training for the surgeon.

In contrast to various models of permanent MCAo achieved by clipping (36), ligation (36-48) or cauterization (37,39) of the vessel, no craniotomy is required for the macrosphere model. This constitutes a major benefit in pre-clinical studies, since craniotomy itself has neuroprotective effects (7,55-59), and is performed in large (“malignant”) human stroke if the increased intracranial pressure by brain edema cannot be sufficiently reduced by conservative therapeutic strategies (60). Moreover, craniotomy interferes with distinct processes of interest following cerebral ischemia, since it mechanically induces CSD, and elicits neuroinflammation. Furthermore, craniotomy may cause several effects such as subarachnoid hemorrhage, cerebral infection, and cerebrospinal fluid leakage (61), as well as potential injury risk of brain tissue (62). Thus, distal MCAo models with craniotomy represent a non-physiological insult (63), and should be avoided to serve the translational aspect.

The macrosphere model evokes infarcts that are homogenous in extent and localization, and closely resemble human stroke by affecting cortical as well as subcortical areas (Figure 1B) (9,40,43). In contrast, the photothrombosis model of stroke affects exclusively the cortex (64). The homogeneity of infarcts produced in the macrosphere model is comparable to the permanent suture model if 4-6 spheres are used, as the origin of the MCA is then completely occluded (9,40,43). If only fewer spheres (1,2) are used, the induced damage is quite heterogeneous, depending on the branches of the vessel that are occluded (10,44). This interindividual variability of infarcts might actually be desired in some context, with the resulting infarct pattern resembling human stroke caused by a partially disintegrated thrombus, such as after a partially successful thrombolysis. This situation could also be mimicked with other (thrombo-)embolic stroke models, but with the risk of an unwanted premature reperfusion at an unknown time-point by spontaneous lysis of the thrombi (65). A similar complication can occur in the suture model due to an insufficient fixation of the thread within the vessel, or due to its physical characteristics (66,67). Other complications of the suture model that can be avoided using the macrosphere model include (I) vessel perforation and subarachnoid/intracerebral hemorrhage caused by too deep insertion of the suture; or (II) failure to induce stroke if the suture is not inserted deep enough (50). In order to reduce the risk of any inappropriate suture insertion to a minimum, Laser-Doppler flowmetry is used frequently, but requires a small craniotomy with the disadvantages discussed above (66). In contrast, the macrospheres will lodge in the same place every time (68).

In the macrosphere model using 6 spheres or less, blood flow to the hypothalamic artery is not blocked, so hypothalamic injury with subsequent hyperthermia is avoided. This represents a stark contrast to the suture model of permanent ischemia (40,43,69-72). Since hyperthermia increases infarct volume, results in clinical deterioration, and influences post-ischemic neuroinflammation, the avoidance of hypothalamic injury is preferred when testing the effects of potential therapeutic agents in preclinical studies (73-77). In a former study, we investigated the neuroprotective effects of the NMDA-antagonist MK-801 in focal cerebral ischemia, when ischemia was induced either by the macrosphere model, or by the permanent suture model. The data showed that neuroprotection occurred only under normothermic conditions using the macrosphere model, while it was not observed in the permanent suture model due to hyperthermia (43).

Due to the nature of the macrospheres, this stroke model cannot be used in a reperfusion paradigm, constituting the main limitation of this model.

Cerebral blood flow and metabolism

In the macrosphere model, the spheres lead to a complete tight and reliable occlusion of the MCA, blocking the entire blood flow within this vessel as revealed by nano-computed tomography (nano-CT) (68). However, due to a certain amount of remaining perfusion via various collateral pathways, parts of the tissue within the MCA territory may still be perfused for a certain time. Within the first 30 minutes after MCAo, the regional cerebral blood flow (rCBF) decreases to 38-65% of baseline rCBF (6). Juenemann et al. have shown that the cerebral blood flow of the total ischemic hemisphere is reduced by 82% (78). For the suture model of permanent ischemia, those numbers have been found to be comparable, with a reduction of rCBF by 70-90% in the ischemic hemisphere (66,78). Of note is that this remaining perfusion observed in the suture model is caused not only by collateral pathways but by an inadvertent bypass-perfusion along the filament (68).

We evaluated the early spatio-temporal development of rCBF and metabolism in the macrosphere model using PET and the radiotracers [¹⁵O]H₂O, directly measuring blood flow, and [¹⁸F]-2-fluoro-2-deoxy-D-glucose (FDG), as surrogate marker for glucose metabolism (6). We observed functionally relevant alterations in rCBF only within the first 30 minutes after macrosphere injection, supporting the development of an ischemic core within the same short time-frame as in other rat models of permanent cerebral ischemia (79-84). Interestingly, [¹⁸F]FDG-PET with kinetic modelling (net FDG-influx rate constant Ki, FDG-transport rate constant K1) predicted the exact later fate of each voxel of tissue as early as 60 minutes after induction of ischemia (6). This multimodal imaging method allows to distinguish immediately damaged tissue, representing the early infarct core, from the ischemic penumbra, defined by primarily affected but still viable tissue (6). This is of immense interest in the development of novel treatments for stroke, since the ischemic penumbra as the “tissue-at-risk” is still accessible to appropriate therapeutic interventions.

Brain edema

The remote occlusion technique allows studying the evolving ischemia in the macrosphere model within the MRI-scanner. Using this in vivo imaging method, the development of cytotoxic and vasogenic brain edema in the hyperacute phase of stroke were accurately defined (32). The cytotoxic edema measured as apparent diffusion coefficient (ADC) by MRI appears as early as 5 minutes after MCAo, and reaches its final extent after 45 minutes (8), being in accordance with other models of focal and global cerebral ischemia in different animal species (54,85-87). This immediate occurrence of the cytotoxic edema after injection of macrospheres again indicates that this technique provides a prompt and reliable occlusion of the MCA without procedural delay. The formation of the vasogenic edema indicating the breakdown of the blood brain barrier (BBB) is detected as early as 20-35 minutes after MCAo by an increase of T2-relaxation time determined by T2-weighted MRI (8). Imaging data on the disintegration of the BBB in the macrosphere model were confirmed by the measurements of the midline shift on T2-weighted MRI and histologically using Evans Blue extravasation (45). This early BBB breakdown distinguishes the macrosphere model from other stroke models that observe the vasogenic edema only after 90 minutes (88,89).

Cortical spreading depolarizations (CSD)

Lesions to the cortical surface such as an ischemic focus elicit CSD that occur in well-characterized temporo-spatial patterns, and are associated with local changes in blood flow (90-92). In human hemispheric stroke, CSD contribute to lesion progression (93), and therefore constitute a relevant therapeutic target. In the macrosphere model, we investigated the changes in blood flow (rCBF) evoked by the CSD during and after MCAo by Laser Speckle Contrast Imaging (44). Immediately after injection of the macrospheres, there is a fast and gradual drop of rCBF, followed by the propagation of the first CSD concentrically from the border of the ischemic territory outwards into unaffected tissue, crossing almost the whole hemisphere. Multiple, subsequent secondary waves later travel circumferentially around the lesion for several hours (44).

These results are similar to those from CSD induction by direct application of potassium to the cortex of rats and cats (94-96). In a model of direct occlusion of the distal branch of the MCA requiring craniotomy, the CSD waves show a similar circumferential propagation around the ischemic core (97). To our knowledge, in the suture model of stroke, immediate monitoring of CSD propagation has not yet been performed, most likely due to technical difficulties. Later imaging, however, showed similar findings (98,99).

Post-ischemic inflammation

Focal cerebral ischemia elicits characteristic neuroinflammatory responses involving both resident and blood-derived immune cells as well as a cascade of humoral factors. The temporo-spatial characteristics of neuroinflammation have been meticulously described for various animal models of stroke (100-106). Likewise, neuroinflammation occurs after human stroke, and has been characterized using MRI- and PET-imaging (107-112). Neuroinflammation plays an important role in the post-ischemic cascade following cerebral ischemia, having an impact on infarct volume and demarcation as well as on tissue repair und functional outcome (113,114).

Interestingly, in commonly used experimental stroke models, the temporo-spatial patterns of neuroinflammation differ relevantly from those in humans. In human stroke, microglia activation as a surrogate marker of neuroinflammation starts not earlier than 3 days after onset of the infarct, reaching its maximum within one week (108-110). In experimental ischemia involving reperfusion, both microglia activation as well as invasion of blood-borne cells is typically accelerated, starting as early as 22 hours after ischemia (100,115-118). Moreover, the up-regulation of cytokines released by glia cells occurs quite early in commonly used stroke models (119-124). Thus, in order to develop novel treatment strategies for stroke, an experimental stroke model should be chosen to closely resemble the dynamics of post-ischemic inflammation according to the human situation (5). We investigated post-ischemic neuroinflammation after focal cerebral ischemia induced by the macrosphere model based on the key features microglia activation, macrophages infiltration throughout the infarct and phagocytic accumulation (124). Furthermore, we analyzed pro- and anti-inflammatory cytokines (125) as potential biomarkers in human stroke from cerebrospinal fluid or blood (126). Interestingly, macrosphere-induced focal cerebral ischemia very closely resembled the characteristic dynamics of human neuroinflammation, particularly the slow time course in the post-ischemic cascade (125). It is of note that some other models of permanent MCAo including photothrombosis show a similar delayed timeline of post-ischemic neuroinflammation, starting as late as 48-72 hours after induction of infarct (100-106).

In order to initiate clinical studies on the modulation of post-ischemic neuroinflammation, reliable imaging protocols need to be established that allow for both stratifying patients according to inflammation patterns, as well for monitoring the therapeutic efficacy of any treatment strategy. Thus, animal stroke models should allow for in vivo imaging (I) with the same imaging modality used in humans to facilitate translation; (II) in a non-invasive fashion to allow longitudinal monitoring in an intraindividual fashion; and (III) in long-term investigations over several months to better mimic the clinical situation.

We investigated neuroinflammation in the macrosphere model using a multimodal imaging protocol including T2-weighted MRI as well as PET with the radiotracers [¹¹C]PK11195 and [¹⁸F]FDG (9). Similar study protocols are performed in human clinical studies (112), allowing the translational evaluation of the macrosphere model. Seven days after stroke onset, kinetic modelling of [¹⁸F]FDG PET-data defines 3 infarct zones: infarct core (low rCBF and a decreased [¹⁸F]FDG metabolic rate), infarct margin (reduced rCBF with a regular [¹⁸F]FDG metabolic rate) and peri-infarct zone (normoperfused tissue with an increased [¹⁸F]FDG metabolic rate) (9). Restricted to the peri-infarct zone, [¹¹C]PK11195 uptake as surrogate parameter for cellular neuroinflammation was observed in all animals independent of the location and size of the ischemic infarct (9). Interestingly, neuroinflammatory processes detected by PET were accompanied by a massively increased energy demand, posing the peri-infarct zone at risk of secondary tissue damage, and suggesting that it should be considered for therapeutic interventions.

In order to fully characterize the whole extent of neuroinflammation in the macrosphere model, we performed long-term investigations of neuroinflammation, repeatedly imaging animals from the acute until the chronic phase of stroke for up to 7-month after embolization of macrospheres (10,115). We observed the maximum of post-ischemic neuroinflammation at day 7—in the border zone of the ischemic core—that disappears around six weeks after MCAo (Figure 1C) (10). However, inflammation persists in remote locations such as the thalamus of the affected hemisphere, representing secondary inflammation, for at least 7 months after stroke onset (10). This phenomenon observed in the thalamus using in vivo imaging was confirmed histologically, and characterized by activated microglia co-localizing with iron deposits around plaque-like amyloid deposits, as well as with neuronal loss. Similar observations on inflammation-associated neurodegeneration have been made in the late phase of human stroke (126,127). Thus, the macrosphere model mimics even the very late chronic phase of human stroke, while—to our knowledge—similar studies do not yet exist in other stroke models in rats.

The temporo-spatial characteristics of cell-mediated neuroinflammation in the macrosphere model were characterized in even further detail in an immunohistopathological study. Up to 56 days after MCAo, four infarct zones were characterized by their specific patterns of neuroinflammation (infarct core, infarct margin, demarcation zone, peri-infarct zone) (128). Interestingly, infarct demarcation was characterized by the expression and secretion of the proteoglycan NG2 as an active process separating between necrotic and unaffected tissue, suggesting that this process has crucial impact on secondary neurodegeneration after focal cerebral ischemia and should thus be of interest regarding functional outcome (128).

Regeneration

Cerebral ischemia elicits an endogenous regenerative response marked by the proliferation of neural stem cells (NSC) in the brain and their mobilization and migration from their niches towards the ischemic lesion (64,129,130). Enhancing the mobilization of endogenous NSC after stroke by e.g., pharmacological means results in an enhanced functional recovery of experimental animals (131-133). Thus, mobilizing the endogenous NSC niche constitutes a promising future target in stroke therapy. In order to establish such experimental paradigms, non-invasive imaging needs to span the bridge between bench and bedside. Using the macrosphere model of stroke, we established an imaging assay using PET with the radiotracer 3’-deoxy-3’-[¹⁸F]fluoro-l-thymidine ([¹⁸F]FLT) to monitor the mobilization of endogenous NSC in the live rat brain (11). This assay has since facilitated the identification of several promising therapeutic agents that increase NSC survival and/or proliferation (12,134-136).

Conclusions

The macrosphere model of embolic stroke mimics the pathophysiological aspects of human stroke most accurately, both in the acute as well in the chronic phase of stroke. Since this model easily allows for the remote vessel occlusion within the MRI- or PET-scanner, it allows for the non-invasive in vivo monitoring of various post-ischemic processes longitudinally over time in individual animals. Thus, the macrosphere model is extremely well characterized with regards to the temporo-spatial dynamics of cerebral blood flow, metabolism, neuroinflammation, cortical spreading depressions, and stem cell-mediated regeneration, constituting it an adept model to conduct pre-clinical research in. We propose to consider this stroke model for experimental stroke studies in an intraindividual and longitudinal approach in order to facilitate a successful translation of pre-clinical findings into the clinical situation.

Acknowledgements

Funding: This work was supported by the ‘Marga und Walter Boll-Stiftung’ (#210-12-12).

Disclosure: The authors declare no conflict of interest.
