Cost-utility analysis of imrecoxib compared with celecoxib for patients with osteoarthritis
Introduction
Arthritis is listed as a type of ‘immortal cancer’ by the World Health Organization (WHO), and osteoarthritis (OA) is the most common arthritic disease (1,2). OA is a chronic degenerative disease characterized by joint pain throughout the body, which may be caused by fibrosis, chap, ulcers, and loss of articular cartilage (3). The prevalence of OA in China warrants close attention, as it reached 25.03%, 21.51%, 20.46%, and 8.99% for the lumbar, knee, cervical, and hand joints, respectively (4). In addition, as a chronic joint disease, it is especially harmful to the health of the elderly, and the prevalence of OA increases with age (5). China entered into an aging society in 1999 (6). Given the age-related prevalence of OA and the growing number of elderly people in China, the number of patients with OA in China will increase year by year. Furthermore, OA is a disease with a high disability rate, and can increase the incidence of cardiovascular diseases (CV) and all-cause mortality. For example, symptomatic OA of the knee can increase all-cause mortality by nearly 100% (3). According to the Chinese Guidelines for Diagnosis and Treatment of Osteoarthritis, there are six main types of drugs for managing osteoarthritis: Nonsteroidal anti-inflammatory drugs (NSAIDs), analgesics, intraarticular injection of drugs, disease-modifying antirheumatic drugs (DMARDs), Chinese patent medicine and antidepressants (3). Among the six types, NSAIDs are first-line used drugs, and widely prescribed to patients with OA. The anti-inflammatory mechanism of NSAIDs is to inhibit cyclooxygenase (COX), which is required for prostaglandin synthesis (7). COX exists in 2 isoforms: COX-1 is a ubiquitous constitutive isozyme producing prostaglandins, and is responsible for homeostatic functions, while COX-2 is largely a cytokine-induced isozyme producing prostaglandins that mediates pain and inflammation. There is a known link between NSAID therapy and gastrointestinal (GI) bleeding, with a reported 3,200 deaths in the US a year as a result of complications from GI bleeding using NSAIDs (8). Because COX-1 exists in the stomach, intestine, kidneys and platelets, and COX-2 is expressed during inflammation, the therapeutic effects of NSAIDs are mainly the result of inhibition of COX-2, whereas the toxic effects (e.g., gastrointestinal) are mainly due to the inhibition of COX-1 (9). Therefore, an ideal NSAID should selectively inhibit COX-2 without inhibiting COX-1 (7). COX-2 inhibitors include: etodolac, meloxicam, celecoxib, rofecoxib, etoricoxib, valdecoxib and lumiracoxib, among which celecoxib is a common COX-2 inhibitor for managing OA and widely prescribed for managing OA (1). Imrecoxib, approved by the Chinese Food and Drug Administration (CFDA) in 2011, is a novel and moderately selective COX-2 inhibitor that possesses anti-inflammatory effects by inhibiting COX-2 (10,11).
Several studies have reported similar efficacy between celecoxib and imrecoxib, though with different prices and incidences of adverse events (AEs) (12-14). A review of the literature showed that there is a lack of cost-effectiveness analyses on imrecoxib and celecoxib, causing great confusion for patients, hospitals, medical insurance departments, and policy makers. Meanwhile, the National Institute for Health and Care Excellence (NICE) developed an economic model for the cost-effectiveness analysis of drugs treatments for OA in 2008, which has been adopted in different countries (8,15,16). The OA model was built based on the adverse events occurred due to the drugs used for osteoarthritis, which were also common adverse events in Chinese population. Therefore, the objective of this study is to compare the cost-effectiveness of imrecoxib and celecoxib for the treatment of OA based on the NICE OA model, with an update including Chinese real-world data from the perspective of the Chinese healthcare system. It is hoped that these results can be a reference for both related stakeholders in China and international experts who may be interested in the cost-effectiveness of different treatments for OA.
We present the following article in accordance with the CHEERS reporting checklist (available at http://dx.doi.org/10.21037/atm-21-290).
Methods
The model built in this study was an economic model for OA from the NICE, which was first built in the 2008 OA guidelines (guideline code: CG59), and was updated with data from the CONDOR trial in 2012 (16,17). In the present study, the perspective was from the Chinese healthcare system, and the comparators were imrecoxib and celecoxib.
Model structure
The model was a combination of a Markov model and a decision tree model, with the aim to explore the cost-effectiveness of 2 drug treatments for OA. The health states in this model were divided by the most frequent AEs caused by different drug treatments. There were 15 health states in this model: (I) 7 initial health states according to the main AEs caused by most NSAIDs, including OA without any AEs, GI discomfort (dyspepsia), symptomatic ulcer, complicated GI events, myocardial infarction (MI), stroke, and heart failure (HF); (II) 5 post-AE health states (as GI discomfort was assumed to be a mild AE which could be cured without any post-treatment), including post symptomatic ulcer, post complicated GI events, post MI, post stroke, and post HF; (III) 1 post-treatment state, where after treatment, patients without any AEs and with GI events transitioned to the post-treatment state; (IV) 1 withdraw state, where patients withdrew due to GI events; (V) 1 absorbed state, and the dead state was applied as the absorbed state.
To start with, it was supposed that all patients were in the state of “OA without any AEs”, and in each cycle, patients transitioned to the 6 AE health states, then from the AE health states to the post-AE states. Patients in the state of “GI discomforts” were seen as not stopping the drug treatment, therefore, there was a possibility for patients to transition from “GI discomforts” to another AE state. After treatment, patients transitioned to the post state and would stay in the post state until death (patients without any AEs and GI discomforts transitioned to the post treatment state, and patients with AEs transitioned to the corresponding post-AE states). There was a possibility for all patients to die in each state in each cycle. For patients taking the medications, there was possibility for them to withdraw due to GI events. When patients stopped taking imrecoxib or celecoxib, the topical diclofenac solution was assumed to be adopted as a medication to manage OA.
Model running parameters
The time horizon of this model was a lifetime, and the model was terminated when patients reached 80 years old or death. In the base case analysis, the age of patients was set to 55 years old. The simulation was carried out initially for 100 cycles with 3 months in each cycle. Cohort simulation with 10,000 patients per cycle was performed. The annual discount rate of 5% was applied according to the Chinese Guidelines for Pharmacoeconomics Evaluations (18). Scenario analyses were adopted for different start-ages (65 years old) and different treatment durations (6, 12, 24 months treatment).
Inputs

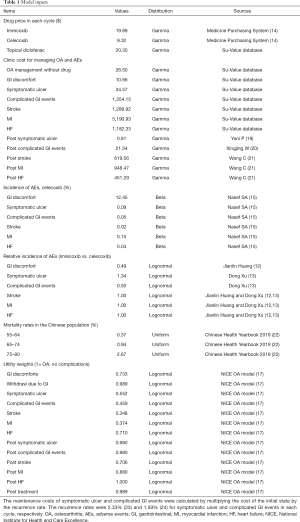

The model had 3 key parameters, which were also the inputs: cost, utility, and transition probability (Table 1). Both qualitative and quantitative analyses were applied to collect the input data. Half-cycle corrections were applied when it came to cost and utility.
Full table
Utility values
Quality-adjusted life years (QALYs) were adopted as the utility values. Utility values for the health states were extracted from the NICE OA model (17). According to the guidelines, for OA without any AEs, the utility values depend on the utility of OA itself and the efficacy of different treatment strategies. The Western Ontario and McMaster Universities Osteoarthritis Index (WOMAC) is widely used to assess the severity level of disease, and can also reflect the efficacy of drugs indirectly, which can be converted to EQ-5D scores using the transfer to utility (TTU) technique. After reviewing, the NICE OA model supposed that the difference in efficacy between the NSAIDs/COX-2 drugs was not significant, therefore, the efficacies of imrecoxib and celecoxib included in this study were equal (17). Considering the suggestions from the guideline development group, after 3 months, the patients with HF were reverted to the no-complications utility score (8,17).
Update with Chinese costs
Cost data in the NICE OA model was based on UK medical expenses, and in this study, cost was updated with Chinese costs after collecting real-world data and relevant literature. The real-world data was extracted from the Su-Value database (Shanghai Su-Value Health Scientific Ltd., Shanghai, China) (21). The Su-Value database encompasses information from the hospital information systems (HIS) of 170 hospitals in 20 provinces across China. Based on the ICD-10 categories, patients with OA, GI discomfort, symptomatic ulcer, complicated GI events, stroke, MI, and HF were recognized, and diagnostic information, medical expenses, and basic social characteristics were extracted from 2016 to 2018. For the state of “OA patients without any AEs”, cost was calculated by drug cost and other outpatient expenses extracted from the Su-Value database, and drug cost was extracted from the Beijing Medicine Sunshine Purchasing system (14) and adjusted by the recommended dosage in each cycle by the doctors. For the state of patients with 6 initial AEs, the costs were calculated directly from the Su-Value database. There was no maintenance cost, however, there was a higher risk of suffering from GI events for patients in the post complicated GI events state and the post symptomatic ulcer state according to the NICE OA model. Therefore, costs for post complicated GI events and post symptomatic ulcer were obtained by combining the recurrence rates and the cost of corresponding initial AE states (17). Maintenance costs were considered for post CV states, and the cost of post CV was extracted from the literature which reported the cost of Chinese patients. For patients taking topical diclofenac to manage OA due to AEs, the cost of topical diclofenac was considered. The RMB exchange rate against the USD was 100:689.85 in 2019 (25), and all costs were adjusted to 2019 based on the exchange rate.
Update with Chinese transition probabilities
The incidence of AEs with celecoxib was extracted from the NICE OA model. Because imrecoxib is a new drug which was not included in the guidelines, the relative incidences of AEs with imrecoxib and celecoxib were extracted from the literature. The doses for celecoxib and imrecoxib were reported to be 200 mg once a day (200 mg QD) and 100 mg two times a day (100 mg BID) (14), respectively. The incidence rates of AEs of the drugs were adjusted, and it was assumed that the AE rate reduction had a relative incidence of half the dose reduction (16). The mortality rates were updated with data from the Chinese population. The observation period of the rate in the literature might not have been completely consistent with the period divided in the model, therefore, the probability was obtained by adjusting the instantaneous rate, and the formula was as follows: r=−[In(1−P1)]/t1, P2=1−exp(−rt2), where r represents the instantaneous rate, P1 represents the rate observed in the literature during the specific period, P2 is the probability needed in the model, t1 is the time of observation in the literature, and t2 is the time of each cycle set in the study (t2=3 months in this study) (26).
Statistical analysis
In the base-case analysis, the simulation was carried out for 100 cycles with 3 months in each cycle. Cohort simulation with 10,000 patients per cycle was performed. In the sensitivity analysis, both deterministic sensitivity analysis (DSA) and probability sensitivity analysis (PSA) were performed to validate the robustness of the model. In the DSA, discount rate was performed according to its preset range: 0–8% (18). Cost, utility, and transition probabilities were set up ±50% for sensitivity analysis. In order to study the robustness of model outputs when multiple research variables changed simultaneously according to their corresponding distributions, PSA was carried out using a Monte Carlo approach with 10,000 iterations (16). Beta distribution was applied for utilities and transition probabilities, gamma distribution was applied for costs, lognormal distribution was applied for relative risk, and uniform distribution was applied for mortality rate. Estimates for which distributional information was unavailable were assumed to have lower and upper bounds of 95% confidence intervals equal to 50–150% of base case values (27) (Table S1).
TreeAge Pro Healthcare software was used to build and analysis the simulation model.
The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was approved by the institutional review board of Zhejiang University School of Public Health (No. 20180923). Participants were given informed consent before taking part. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013).
Results
Incremental cost-effectiveness ratio (ICER)
In the base case analysis, a 6-month treatment duration and patients aged 55 years old and above were applied. A lifetime time horizon was adopted, and it was demonstrated that treatment with imrecoxib resulted in costs of $1,169.40 and benefits of 5.62 QALYs, while celecoxib resulted in costs of $1,116.34 and benefits of 5.60 QALYs. Compared to treatment with celecoxib, treatment with imrecoxib was associated with an increase in costs of $53.06 and an increase in benefits of 0.02 QALYs, resulting in an ICER of $3,041.14 (Table 2).
Full table
Parameters influencing the ICER

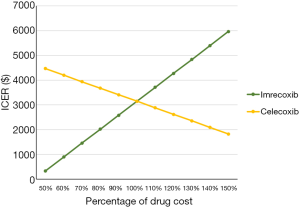

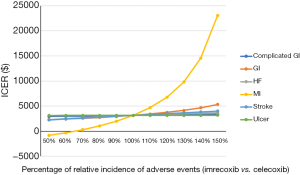

After performing DSA, the results showed that the relative risk of MI, the cost of imrecoxib, and the utility of OA patients without any AEs were the main factors influencing the ICER of imrecoxib compared with celecoxib (Figure S1). All ICERs of imrecoxib vs. celecoxib were below $25,000, and most of them were below $10,000 (Figure S1). A further one-way sensitivity analysis was carried out, varying drug costs and relative incidence rates of AEs with imrecoxib and celecoxib (Figures 1,2). Different scenarios were carried out by varying the start age from 55 to 65 years old, and treatment duration from 6 to 24 months. It was found that ICERs were similar to the base case results, and the ICERs of imrecoxib vs. celecoxib varied from $2,814.97 to $3,918.35 (Table 3).
Full table
Probabilistic representation of uncertainty

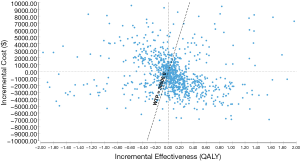

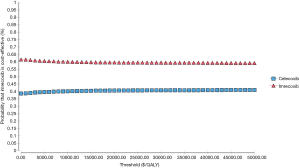

PSA showed that there were more plots to the right of the threshold of $30,000 (Figure 3). The cost-effectiveness acceptability curve also demonstrated the dominance of imrecoxib, as there was a 59.87% and 59.02% probability of imrecoxib as the more cost-effective drug, at a willingness-to-pay (WTP) of $10,000 and $30,000 per QALY, respectively (Figure 4).
Discussion
This analysis assessed the cost-effectiveness of imrecoxib and celecoxib based on the OA model built by the NICE, and an update with Chinese real-world data. Although there was a higher cost of treatment with imrecoxib, a gain in benefit was found when compared to treatment with celecoxib. Treatment with imrecoxib was supposed to be a more cost-effective option compared with celecoxib with the ICER of imrecoxib compared with celecoxib far lower than 1.0 GDP. The relative risk of MI, the cost of imrecoxib, and the utility of OA patients without any AEs were the main drivers of the results of the ICER, which was similar to Brereton et al.’s findings (8), while the main driver in the NICE model was the risk of stroke (16). The increased cost of imrecoxib drives the advantage of treatment with celecoxib, and vice versa. After varying the costs of the 2 drugs, the result was unchanged in that imrecoxib was the more cost-effective drug. In regards to the relative incidence of AEs with imrecoxib and celecoxib, the relative incidence of complicated GI events, ulcer, GI discomfort, stroke, and HF did not affect the results significantly, while the relative incidence of MI did affect the results significantly. In most cases, the results stayed robust, and all the ICERs were below $30,000. The decrease in the relative incidence of MI favored treatment with imrecoxib. In addition to DSA, PSA was also performed to validate the robustness of the model, which is part of the reference case for technology submissions to the NICE (26,28). The results of PSA also showed that imrecoxib was the more cost-effective drug when the parameters varied according to preset distributions, with the threshold of $10,000. This was lower than the WHO-recommended ICER acceptability threshold of 1-time per capita GDP (which was $10,276.44 in 2019) (25). The results of PSA validate the conclusions of this study, and should be paid attention to when adopting the conclusions.
Imrecoxib was first developed in 1997, and during development, the withdrawal of rofecoxib reminded developers that the value of IC50 COX-1/IC50 COX-2 should remain under control (10). Because a higher risk would have been brought by over-inhibition, moderate inhibition was advised, and the value of IC50 COX-1/IC50 COX-2 was limited to 2–30 (10). In addition to safety, similar efficacy to celecoxib was also required when developing the new COX-2 inhibitor. From the perspectives of both safety and efficacy, imrecoxib was finally selected among several choices. The value of IC50 COX-1/IC50 COX-2 of imrecoxib was 6.39, which was 77% of that of celecoxib, demonstrating that imrecoxib was more likely to have a lower incidence of AEs compared with celecoxib (11,29), which could have also accounted for the lower relative incidence of several AEs adopted in this study. Nowadays, according to the list of national basic insurance drugs, imrecoxib is a second-line drug for managing OA (30), which challenges its wider application. Although there were uncertainties in the results of this study, considering the long-term cost-effectiveness of imrecoxib as a definite possibility, relevant departments can also take imrecoxib into consideration.
As with other economic models, as well as the original NICE OA model, there are some limitations. First, the relative incidences of several AEs of different treatments were extracted from randomized controlled trials (RCTs), and there was a lack of pooling of observational data, which was also a limitation in the original model. Given this uncertainty, sensitivity analysis varying the relative incidence of AEs was performed in this study to validate the robustness of the model. Second, utility data was extracted from the original model due to a lack of utility data in the Chinese population. There is uncertainty regarding whether the values represent the Chinese population entirely, which also suggests that the Chinese local utilities system of these diseases can be built into further studies, and this can be useful for the development of pharmacoeconomic in China. Lastly, as in the original model, there were also some assumptions in the model which might have increased uncertainties in this study. In order to decrease the potential uncertainties caused by these assumptions, both DSA and PSA were carried out.
Conclusions
Our results showed that, over a lifetime time horizon, although there were uncertainties in this model, treatment with imrecoxib was more cost-effective compared to celecoxib. The key drivers of the model were the relative risk of MI, the cost of imrecoxib, and the utility of OA patients without any AEs. To our knowledge, this study was the first analysis based on real-world data to assess the cost-effectiveness of imrecoxib and celecoxib. These results provide a good reference for relevant stakeholders when managing OA.
Acknowledgments
We would like to thank Shanghai Su-Value Health Scientific Ltd., Shanghai, China, for their great support with the Su-Value Database. We gratefully acknowledge the significant efforts of Shiming Sun and Shaofeng Xue. We also thank Shuyan Gu, Can Zhao, Qilong Gao, and Kaijie Liu for their great help.
Funding: None.
Footnote
Reporting Checklist: The authors have completed the CHEERS reporting checklist. Available at http://dx.doi.org/10.21037/atm-21-290
Data Sharing Statement: Available at http://dx.doi.org/10.21037/atm-21-290
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-21-290). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was approved by the institutional review board of Zhejiang University School of Public Health (No. 20180923). Participants were given informed consent before taking part. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013).
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
