Retinal degeneration in mice and humans with neuronal ceroid lipofuscinosis type 8

Introduction

The International Mouse Phenotyping Consortium (IMPC) is a cooperative association that employs high throughput mouse mutagenesis and comprehensive phenotyping with the goal of creating the first functional encyclopedia of the mammalian genome (1,2). Additionally, CRISPR/Cas9 genome editing through the IMPC facilitates production and identification of murine models for human disease, such as the recent creation of a bio-engineered neuronal ceroid lipofuscinosis type 8 (CLN8) murine model with ocular manifestation. Neuronal ceroid lipofuscinosis (NCL) is a heterogenous group of progressive, life-threatening, neurodegenerative disorders characterized by lysosomal accumulation in multiple tissues of the central nervous system (3). Progressive epilepsy with mental retardation was recognized as a NCL subtype (CLN8) (4,5). CLN8 is an endoplasmic reticulum (ER) associated membrane protein required for transfer of lysosomal enzymes from the ER to the Golgi complex; deficiency leads to depletion of soluble enzymes in the lysosome, thus impairing lysosome biogenesis and lysosomal enzyme transport (6). Metabolic radiolabeling has highlighted delayed lysosomal enzyme maturation with CLN8 deficiency, which was rescued by CLN8 re-expression in CLN8-deficient cells obtained by CRISPR/Cas9 genome editing (6).

Ocular symptoms such as retinal degeneration can be the first sign of NCL disease and facilitate an early diagnosis (7). Ocular manifestations of NCL are most commonly noted with CLN3 (8,9), though retinopathy and visual deficits associated with CLN8 have also been reported (10).

All NCL subtypes are unique inherited metabolic disorders, limiting specific pharmacologic treatments to single genetic forms, or groups of disorders that share an underlying metabolic pathway defect (11). Development of improved therapeutics is needed for the majority of NCL subtypes, with effective pharmacologic therapy limited to a single clinically approved drug, Cerliponase alfa (Brineura™, BioMarin Pharmaceutical Inc., Novato, CA, USA), for treatment of CLN2 (12,13).

Murine models of human disease are an important component in therapeutic development due to the relative ease of genetic manipulation and short generational interval. These models contribute to therapeutic development through facilitating investigation of disease pathophysiology, aiding in identification of therapeutic targets, and facilitating initial assessment of efficacy of therapeutic approaches. To date, murine models have been identified for CLN1 (14-17), CLN2 (18), CLN3 (17,19-28), CLN5 (29), CLN6 (30), CLN8 (31-35), and CLN10 (36,37). Reports of retinopathy characterization in murine models of NCL predominantly describe findings in CLN3 (19,28), CNL5 (38), CNL6 (39), and CLN8 (32-35), though the available descriptions of ocular disease associated with CLN8 are limited to homozygous motor neuron degeneration (mnd) murine models. Neural degeneration in the mnd model results from spontaneous defect in the murine orthologue of CLN8 and exhibits pathology similar to human NCLs (32,40).

Spontaneous mutations in CLN8 have also been identified in canines (41-43)

To the authors’ knowledge, phenotypic characterization of retinopathy in CLN8 murine models is limited to a report of indirect ophthalmoscopic and electroretinographic findings, and limited reports of histopathological changes in mnd mice (33-35,40). The aim of this study was therefore to define the clinical, electrophysiologic, and anatomic retinal changes in a novel mouse model with targeted deletion of Cln8. Complete characterization will better inform the use of Cln8^−/− mice as animal models for development of improved therapeutics and management of CLN8 retinopathy in humans.

We present the following article in accordance with the ARRIVE reporting checklist (available at https://dx.doi.org/10.21037/atm-20-4739).

Methods

Study design

The study included one experimental group with Cln8^−/− mice, and one control group with C57BL/6N wildtype. All mice underwent an ophthalmic examination, ocular imaging, electroretinography, and necropsy at 16 weeks of age. Investigators were blinded to genetic profiles when performing ophthalmic examinations, analysis of ocular images, analysis of electroretinograms, and necropsies. This report also reviews two cases of CLN8 in humans, to highlight similarities with the murine model in this study.

Animals

Experiments were performed under a project license (No. IACUC # 21824) granted by the Institutional Animal Care and Use Committee at UC Davis, in compliance with the National Institutes of Health (NIH) Guide for the Care and Use of Laboratory Animals and the guidelines of the Association for Research in Vision and Ophthalmology Statement for the Use of Animals in Ophthalmic and Vision Research.

All mice were housed and cared for in accordance with the recommendations provided in the Guide for the Care and Use of Laboratory Animals Eighth Edition. Mice were cohoused by gender groups of 4–5 animals per cage in individually ventilated cages (optimice IVC, Animal Care Systems, Centenniel, CO) on a 12:12 hour (06:00–18:00) light cycle. Temperature ranges in the room are maintained between 68–79 °F and mice are maintained on standard laboratory rodent chow (Rodent chow, Envigo 2918).

To study the in vivo function of Cln8, gene-specific knockout mice (Cln8^−/−) were generated using CRISPR/Cas9 genome editing. Briefly, one-cell state C57BL/6N zygotes were harvested from super ovulated female mice and electroporated using standard protocols with a ribonucleoprotein (RNP) consisting of Cas9 protein and two synthetic guide RNAs (gRNA) internal to the coding region of exon 1 (CGGCCAAAGAGAAGGTCTTC & GGCGTCCAGAGCACAACTGC). The deletion causes a frameshifted transcript of all known isoforms, effectively resulting in a null allele by nonsense protein/early termination and potential for nonsense mediated decay (NMD) of the transcript. Embryos were surgically transferred into the oviducts of pseudopregnant CD1 female mice. After gestation and littering, pre-weaned mouse pups were sampled and genetically tested by end-point PCR and sequencing to definitively identify founder mice harboring the desired internal frameshift deletion. Subsequent germline transmission mice (N1) were further sequenced to confirm the desired deletion which consists of a 53 bp deletion (GGTCTTCTGGAACCTGGCGGCGACGCGTGCTGTCTTCGGCGTCCAGAGCACAA) of the 183^rd to 235^th coding nucleotides which creates an early stop signal within exon 1, preceded by 28 amino acid nonsensical sequence. After weaning, sexually mature mice with confirmed germline transmission of the desired deletion allele were backcrossed two generations before intercrossing heterozygous mice to generate homozygous knockouts. Sex (male and female) and Mendelian (zygosity) ratios were normal as expected. In total, five heterozygous breeding trios produced a total of 133 pups with normal male and female distribution. The zygosity distribution was reported to be 45.9% heterozygous, 29.3% homozygous and 24.8% wildtype. Overall, breeding and animal health were within normal expectations for this mouse line and no observable abnormalities were observed during production or while maintaining these mice. For this study, 3 Cln8^−/− mice were available for analysis, and 2 wildtype, and 1 Cln8^+/− mouse were chosen as age-matched controls.

Ophthalmic examination

Complete ophthalmic examinations were performed on both eyes of 3 Cln8^−/−, 1 Cln8^+/−, and C57BL/6N wildtype mice at 16 weeks of age. A standardized operating protocol for evaluation of ocular and adnexal structures was followed at the UCDavis study site (https://www.mousephenotype.org/impress/protocol/267/7) and were carried out by experienced technical support staff trained to identify and differentiate background lesions common in the C57BL/6N strain (44). Examiners were overseen by lead site scientists who subsequently reviewed all phenotypes. Pupillary light reflexes were evaluated, the eyelids, third eyelid, conjunctiva, sclera, cornea, iris, and anterior chamber were examined using broad beam illumination at the highest intensity setting (Kowa SL-15, Kowa, Tokyo, Japan, or equivalent) with magnification set at 16X. The irides of all mice were then pharmacologically dilated with a solution of 1:7 10% phenylephrine HCl (Akorn Inc., Lake Forest, IL, USA, or equivalent): 1% tropicamide (Bausch & Lomb Inc., Tampa, FL, USA, or equivalent). A 0.1 mm slit beam at the highest intensity setting was used to evaluate the anterior segment (cornea, anterior chamber, and lens), followed by evaluation of the retrolental region of the vitreous.

Fundus examinations were performed via indirect ophthalmoscopy using a 60 Diopter double aspheric handheld lens (Volk Optical Inc, Mentor, OH, USA or equivalent) and a portable indirect headset (Keeler AllPupil II LED Vantage Plus Wireless Headset, Keeler Instruments Inc., Broomall, PA, USA).

Ocular imaging

A cocktail of ketamine/medetomidine (100/0.3 mg/kg) was administered intraperitoneally to induce anesthesia in all mice undergoing ocular imaging. Fundus photographs were acquired with the Micron III (Phoenix Research Laboratories, Pleasanton, CA, USA).

OCT imaging was performed with an Envisu R2200 SD-OCT (spectral-domain OCT; Bioptigen-Leica, Wetzlar, Germany), after dilatation with both tropicamide 1% and phenylephrine 2.5%. Thickness of the total retina, nerve fiber layer, retinal ganglion cell layer, inner plexiform layer, inner nuclear layer, outer plexiform layer, outer nuclear layer, combined inner and outer photoreceptor segments, retinal pigmented epithelium, and choriocapillaris were manually measured at a distance of ~0.2 mm from each side of the optic nerve using calipers in ImageJ software according to established guidelines (45). Measurements from both sides of the optic nerve head and between left and right eyes were averaged for each animal.

Electroretinography

Following a 12-hour dark adaptation period, the mice received a cocktail of ketamine/medetomidine (100/0.3 mg/kg) intraperitoneally to induce anesthesia. A single drop of both tropicamide 1% and phenylephrine 2.5% was used for dilation, and the ocular surface was lubricated with methylcellulose-containing artificial tears. Standard full field scotopic and photopic electroretinography (ERG) was performed on both eyes with LKC Big Shot with a Ganzfeld dome (LKC Technologies Inc., Gaithersburg, MD, USA). For quantitative comparisons, measurements were averaged between the two eyes of each animal.

Histology

Eyes were removed and immediately fixed in 2.5% glutaraldehyde and 2% paraformaldehyde in 0.1 M sodium phosphate buffer. Parasagittal sections of eyes were processed routinely for histopathology, embedded in paraffin, sectioned at 5 µm, and stained with hematoxylin-eosin (H&E). Retinal layer measurements were taken of total retina, nerve fiber layer, retinal ganglion cell layer, inner plexiform layer, inner nuclear layer, outer plexiform layer, outer nuclear layer, inner photoreceptor segment, outer photoreceptor segment, retinal pigmented epithelium, and choriocapillaris on imaged H&E sections as described above for OCT images.

Immunohistochemistry

Sections were deparaffinized using three changes of xylenes for 5 minutes each. The tissue sections were then stepwise hydrated by submersion in 100% ethanol (twice), 95% ethanol, 75% ethanol, and distilled water—5 minutes per step. Heat-induced epitope retrieval was then performed with 1mM EDTA, pH 8.0. The tissue sections were then blocked for 30min in blocking solution (4% BSA and 0.5% Triton X-100 in PBS) at ambient temperature. Primary antibodies (rabbit anti-cleaved PARP-94885S Cell Signaling @ 1:100, mouse anti-rhodopsin-MABN15 Sigma-Aldrich @ 1:1,000) were then incubated overnight at 4C. The slides were washed three times in with PBS for five minutes each. Alexa Fluor conjugated secondary antibodies (A32723 and A32740- ThermoFisher Scientific) were incubated for an hour followed by a 5-minute incubation in DAPI (1 µg/mL). The tissue sections were washed with PBS three times for five minutes each. Finally, the slides were cover slipped with FluorSave Reagent (Millipore, 345789).

TUNEL

Detection of apoptotic cells was conducted using ApopTag^® Fluorescein In Situ Apoptosis Detection Kit (S7110, Sigma-Aldrich). Sections were deparaffinized and hydrated like the immunohistochemistry method and then treated with proteinase K (20 µg/mL) at ambient temperature. The tissue sections were then washed twice with PBS for 2 minutes each. The tissue sections were equilibrated and the TdT enzyme was applied for an hour at 37 °C. The reaction was then stopped with the stop buffer and the sections were washed three times in PBS for 1 minute each. The anti-digoxigenin conjugate was then applied for 30 minutes at ambient temperature followed by a 5-minute incubation with DAPI (1 µg/mL). The sections were washed 4 time in PBS for 2 minutes each. Finally, the slides were cover slipped with FluorSave Reagent (Millipore, 345789). TdT enzyme, equilibration buffer, stop buffer and anti-digoxigenin conjugate were provided with the kit.

Necropsy

Routine necropsy was performed at the UC Davis IMPC location on all Cln8^−/−, Cln8^+/−, and wildtype mice immediately following CO₂ euthanasia at 16 weeks of age. Samples were taken from all major internal organs, processed routinely for histopathology, and stained with H&E.

Clinical cases

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Institutional Review Board of Emory University (No. MODCR001-IRB00024817). Both patients provided written permission to contribute clinical data to this research article.

Descriptions of the ophthalmic findings from routine ophthalmologic examination are provided for the sibling pair of CLN8 patients. Retinal imaging was acquired, including ultrawide field color fundus imaging (Optos, United Kingdom) and spectral domain OCT (Zeiss Cirrus instrument, Germany).

Statistical analysis

For comparisons of retinal layer thicknesses between Cln8^−/− and control (Cln8^+/− and/or wildtype) mice on OCT images and H&E sections, a 2-tailed Student’s t-test was performed. A P value <0.05 was considered statistically significant.

Results

Ophthalmic examination

On ophthalmic examination of the anterior segment, standard background lesions previously described for C57BL/6N rd8 mice were noted in both eyes of all Cln8^−/−, Cln8^+/−, and wildtype mice (44). These lesions included: mild mucoid ocular discharge, subtle incipient nuclear cataracts, and small vitreous accumulations of crystalline appearing material and pigment.

On fundus examination, retinal pathology in the eyes of wildtype (Figure 1A) and Cln8^+/− (Figure 1B) mice was limited to mild to moderate retinal dysplasia, as previously described amongst background lesions for the C57BL/6N strain (44). By comparison, diffuse retinal degeneration was noted in all homozygous knockout eyes, characterized by retinal pigment epithelium mottling in all retinal quadrants, and retinal vascular attenuation (Figure 1C).

Figure 1 Fundus images of wildtype, Cln8^+/−, and Cln8^−/− mice. (A) Fundus of wildtype C57BL/6N rd8 mouse and (B) Cln8^+/− mouse with mild retinal dysplasia and normal retinal vasculature. (C) Fundus of Cln8^−/− mouse with optic nerve pallor, retinal vascular attenuation, and diffuse retinal pigment epithelium mottling.

Optical coherence tomography (OCT)

Retinal measurements and their associated P values collected from Cln8^−/− and control mice using OCT are represented in Table 1. Distinct inner and outer photoreceptor segments could not be distinguished in images from any eye of Cln8^−/− mice, whereas a clear IS/OS junction (aka ellipsoid zone) distinction was notable between segments in images from control eyes. Whole retinal thickness in Cln8^−/− was significantly thinner than controls (P=1e^-9, SE =10.4), with significant differences noted in outer nuclear layer (P=1e^-9, SE =0.1.2), and combined photoreceptor inner and outer segments (P=1e^-9, SE =0.8). There was no significant difference noted in retinal nerve fiber layer (P=0.3, SE =0.9), inner plexiform layer (P=0.2, SE =4.5), inner nuclear layer (P=0.2, SE =1.1), outer plexiform layer (P=0.2, SE =0.6), or retinal pigmented epithelium (P=0.06, SE =0.3) thickness between groups. Comparative OCT b-scans from Cln8^−/−, Cln8^+/−, and wildtype mice with a bar graph illustrating mean retinal layer measurements are represented in Figure 2.

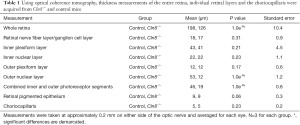

Table 1 Using optical coherence tomography, thickness measurements of the entire retina, individual retinal layers and the choriocapillaris were acquired from Cln8^−/− and control mice
Full table

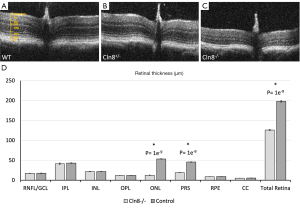

Figure 2 Comparison of OCT between wildtype, Cln8^+/−, and Cln8^−/− mice. (A) Retinal architecture in a wildtype C57BL/6N rd8 mouse, and (B) in a Cln8^+/− mouse. (C) OCT of a Cln8^−/− mouse retina demonstrating marked outer nuclear layer thinning, a loss of definition in the inner and outer segments of the photoreceptors, and diffuse retinal thinning. (D) Bar graph showing mean retinal layer thickness measurements in Cln8^−/− and control mice on OCT images. *, statistical significance, P<0.05 two-tailed student’s t-test. RNFL/GCL, retinal nerve fiber layer/ganglion cell layer; IPL, inner plexiform layer; INL, inner nuclear layer; OPL, outer plexiform layer; ONL, outer nuclear layer; PRS, photoreceptor segments; RPE, retinal pigmented epithelium; CC, choriocapillaris.

Electroretinography

A globally reduced ERG waveform, with severely reduced a- and b-waves, was noted in all Cln8^−/− mice compared to those of wildtype and Cln8^+/− mice. Representative ERG waveforms from Cln8^−/−, Cln8^+/−, and wildtype mice are shown in Figure 3A-3C.

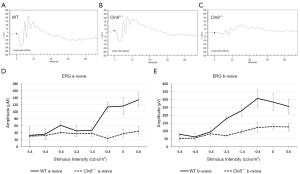

Figure 3 Comparison of electroretinography tracings in wildtype, Cln8^+/−, and Cln8^−/−mice. With scotopic bright flash (0 dB), normal tracings are present in a (A) wildtype C57BL/6N rd8 mouse and (B) Cln8^+/− mouse, with reduced a- and b-wave amplitudes in a Cln8^−/− mouse (C). Line graphs denote mean a-wave (D), and b-wave (E) amplitudes at varying stimulus intensities in Cln8^−/− (n=3) and wildtype (n=4) mice; note the severely reduced a- and b- wave amplitudes in Cln8^−/− (dashed lines) compared to wildtype (solid lines) mice. Error bars represent SEM.

Quantitative comparisons of the stimulus-response curve illustrating mean a- and b-wave amplitudes are represented in Figure 3D,3E.

Histopathology

Retinal measurements and their associated P values collected from histologic sections of Cln8^−/− and control mice are presented in Table 2. Whole retinal thickness in Cln8^−/− was significantly thinner than controls (P=0.03, SE =14.0), with statistically significant thinning of the outer nuclear layer (P=0.01, SE =2.3), and photoreceptor outer segments (P=0.001, SE =2.8) in Cln8^−/− mice. Slight increases in thickness were noted in the inner plexiform layer (P=0.02, SE =3.0) and inner nuclear layer (P=0.004, SE =1.5) of Cln8^−/− mice. There was no significant difference noted in retinal nerve fiber layer (P=0.5 SE =2.6), outer plexiform layer (P=0.1 SE =0.8), photoreceptor inner segments (P=0.5, SE =1.4), or retinal pigmented epithelium (P=0.17, SE =0.3) thickness measurements between groups. Comparative values obtained from H&E sections from Cln8^−/− and control mice are represented in Figure 4.

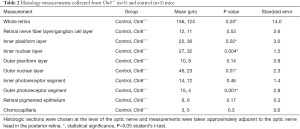

Table 2 Histology measurements collected from Cln8^−/− (n=3) and control (n=3) mice
Full table

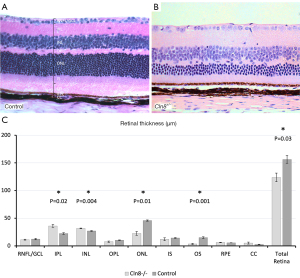

Figure 4 Comparison of histologic retinal sections between Cln8^−/− and control mice. (A) Retinal architecture in control C57BL/6N rd8 mouse. (B) H&E of a Cln8^−/− mouse retina demonstrating mild thickening of the inner plexiform and inner nuclear layer, with marked outer nuclear layer thinning and whole retinal thinning. (C) Bar graph showing mean retinal layer thickness measurements in histologic sections of Cln8^−/− (n=3) and control (n=4) mice. *, statistical significance, P<0.05 two-tailed student’s t-test). Histology images taken at ×40. RNFL/GCL, retinal nerve fiber layer/ganglion cell layer; IPL, inner plexiform layer; INL, inner nuclear layer; OPL, outer plexiform layer; ONL, outer nuclear layer; IS, inner photoreceptor segment; OS, outer photoreceptor segment; RPE, retinal pigmented epithelium; CC, choriocapillaris.

To determine the retinal neurons most susceptible to cell death in the absence of Cln8, TUNEL labeling and cPARP immunohistochemistry were used to identify apoptotic cells. TUNEL labeling was found in the outer nuclear layers in Cln8^−/− mice but not in controls. Many rhodopsin positive rod photoreceptors were positive for cPARP in Cln8^−/− mice, but not in controls (Figure 5). These findings suggest rod photoreceptors are the most vulnerable in the absence of Cln8 and undergo profound apoptosis. Furthermore, their outer segments, marked by rhodopsin, are shortened, suggesting a role for Cln8 in outer segment elaboration and morphology.

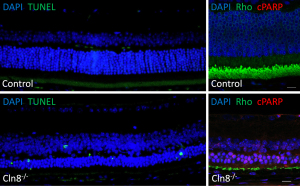

Figure 5 Photoreceptors undergo apoptosis in the absence of Cln8. Control retinal sections (top row) show no TUNEL-positive nuclei and no cPARP-positive cells in the rhodopsin labeled outer nuclear layer. Cln8^−/− mice (bottom row) have numerous TUNEL-positive cells in the outer nuclear layer. Many rhodopsin-positive rod photoreceptors are also cPARP-positive in Cln8 knockouts. Furthermore, rhodopsin positive outer segments are much shorter in Cln8^−/− mice than controls. Scale bar in right column represents 10 microns.

Necropsy

All organ systems were unremarkable on gross examination in Cln8^−/− mice, however on histologic examination scattered lipid vacuoles were noted in splenic red pulp of all knockout mice. Observations in control mice was limited to identifying an enlarged heart in 1/3 control mice.

Clinical correlation

The abnormalities seen on retinal imaging of Cln8^−/− mice were compared with humans with confirmed CLN8-asociated retinopathy. We include follow up clinical evaluation and fundus features of the individuals described by Sanchez et al. (10).

Case 1 is a now 20-year-old Hispanic female who presented with decreased central vision at around age 13 years and well controlled generalized tonic clonic seizures (GTC) since age 7 years of age as reported by Sanchez et al. (10). She has a diagnosis of CLN8 based on a likely pathogenic deletion encompassing the entire CLN8 gene and a c.200C>T (p.A67V) variant of unknown significance on this gene confirmed in trans, and electron microscopy of lymphocytes showing intracytoplasmic inclusions. She was noted to have cystoid macular edema (CME) bilaterally, with visual acuity of 20/40 OU at time of initial report and more recently OD 20/80 +2 and OS 20/100. On follow up ophthalmologic evaluation she had attenuated vasculature with cystoid macular edema and diffuse retinal pigment epithelium mottling (Figure 6) as well as trace posterior subcapsular cataract (PSC). Spectral domain OCT had demonstrated macular cystic change and diffuse macular schisis involving the outer nuclear and the outer plexiform layers. In the past year, OCT showed the retinal CME persists but has had mild improvement. Goldmann visual field (GVF) revealed large central scotomas bilaterally which have been stable on follow up. She has had one breakthrough seizure described as GTC after original report that lasted 5 minutes and post-ictal state of 10 minutes with sleepiness. She has been well controlled with Keppra since this episode. No repeat brain imaging has been done. Following the original report, she had formal psychological evaluation showing anxiety and depression but normal cognitive function.

Figure 6 Bilateral fundus images showing attenuated vasculature and diffuse retinal pigment epithelium mottling. OCT of the right eye showing cystoid macular edema.

She has had a prior diagnosis of ADHD but is currently not treated for this.

Case 2 is now a 28-year-old Hispanic male sibling of Case 1, with history of decrease in night vision starting at age 5 years old and seizures starting at age 16 years as previously reported. Molecular testing revealed the same variants as his affected sibling on the CLN8 gene. At age 22 years his visual acuity was OD 20/25 and OS 20/30 which remained unchanged at age 28 years. Fundus exam originally revealed pallor of optic nerves, attenuated vasculature, peripheral bone spicules and diffuse retinal pigment epithelial mottling. On recent follow up, fundus examination and ultrawide field color fundus imaging showed mid-peripheral bone spicules and mild attenuation of vasculature (Figure 7). OCT showed no CME and fundus autofluorescence showed scattered macular areas of decreased and increased intensity. Since the initial report he has had one witnessed generalized tonic clonic seizure lasting less than one minute in the setting of weaning of his anti-epileptic medication which has since been adjusted.

Figure 7 Fundus images showing pallor of optic nerves, attenuated vasculature, mid-peripheral bone spicules and diffuse retinal pigment epithelial mottling. The nasal and temporal sides of the macular OCT show outer retinal thinning and loss of the IS/OS junction similar to that seen in mice

He has not had any recent brain imaging and has not had a formal psychoeducational evaluation, but he has a master’s degree in engineering and continues to work full-time job living independently.

Discussion

This study details the phenotypic attributes of retinal degeneration in Cln8^−/− mice using several testing modalities at 16 weeks postnatal age, providing a promising murine model for CLN8 ophthalmic disease in humans.

The single previous report with indirect ophthalmoscopic findings in mnd mice reports similar retinal pathology to that noted in this study: severe retinal vessel attenuation, focal and diffuse loss of pigment epithelium, and patches of pigment deposits (33). These lesions were not appreciable until approximately 5 months of age in the aforementioned study, while similar abnormalities were detected in this study by 4 months of age. This variation in timeline may be due to differences between the spontaneous mutation in mnd mice and the targeted Cln8 deletion in this study, or due to strain-specific background differences. Chang et al. used backcrossing of mice with a spontaneously occurring Cln8 mutation (33), while the current study employed engineered Cln8 gene knockout. Moreover, genetic background has been shown to affect the age of onset, speed of progression, precise neurological symptoms and type of cells affected in mnd mice (46). The aforementioned study used outcrossed C57BL/6J × AKR/J mice. A slightly more rapid retinal degeneration may be secondary to the rd8 mutation present in the C57BL/6N mice used in the current study, though it is difficult to definitively determine the secondary effect of the background strain, as the C57BL/6J strain wildtype mice also possess the rd8 mutation without displaying the phenotype (44). Published electroretinography abnormalities in mnd mice closely resemble those found in this study, with barely detectable waveforms only with the brightest stimulus by 5 months of age, and undetectable waveforms with single-flash methods at 6 months of age (33).

Previous histologic evaluation of retinal changes in mnd mice noted reduced numbers of photoreceptors and significant reduction in outer nuclear layer thickness, with one study noting the onset of these changes at 5 weeks of age (33), while another study documented photoreceptor layer atrophy in mice older than 3 months of age (40).

These changes are consistent with the reduced outer nuclear layer and photoreceptor segment thinning appreciated on OCT and histology in this study. Another study found that a prominent feature of photoreceptor degeneration in mnd mice was the persistent and progressive shortening of photoreceptor outer segments, while shortening of inner segments was less pronounced and occurred at a much later stage of degeneration (35). The histologic findings in the current study support this finding, in which significant thinning was noted in outer but not inner photoreceptor segments of Cln8^−/− mice.

While this study and previous reports (33,40) noted significant thinning of the outer retina in CLN8 murine models, Groh et al. (17) described predominant thinning of the inner retina in CLN1 and CLN3 murine models. Significant thinning of the nerve fiber layer, ganglion cell layer, inner plexiform layer, and inner nuclear layer was appreciated in 7-month-old CLN1 mice and 16 month old CLN3 mice (17). Although this variation in retinal layer predilection may reflect differences in pathophysiology amongst CNL diseases, it is interesting to note that PAS staining inclusions have been noted in retinal ganglion cells of mnd mice (33,34). Ultrastructural examination of the retina was not available in the current study and was thus unable to investigate intracellular changes such as inclusions. Further studies are warranted to evaluate intracellular changes in CLN8 retinal layers.

Variation in phenotypic presentation of retinopathy has been noted in humans with mutations in CLN8, with main ocular lesions ranging from cystoid macular edema, diffuse macular schisis, optic disk atrophy, peripheral bone spicules, and retinal atrophy (10,47,48). Significant similarities are noted between the limited descriptive reports available of retinopathy in humans with CLN8 and Cln8^−/− mice of this study, including attenuated retinal vasculature and diffuse retinal pigment epithelial mottling (10).

Additionally, attenuated rod and cone photoreceptor function was noted in numerous reports of CLN8 in humans, similar to that noted in the current study (10,47-49).

No gross abnormalities were noted in the brain or other extraocular organs in Cln8^−/− mice on necropsy in this study, though scattered lipid vacuoles were noted in splenic red pulp of all Cln8^−/− mice. This contrasts with reports of non-ophthalmic cellular pathology in mnd mice, encompassing cytoplasmic inclusion material in liver, heart, smooth and skeletal muscle, lamina propria of the intestine, pancreatic ducts, uterine glands, endothelial cells in the skin, and renal tubular epithelial cells (40). This difference in affected organs may be due to different levels of tissue evaluation, as ultrastructural analysis in the current study may have identified inclusions in organs lacking gross histologic abnormalities. In addition, specialized systems within each organ were not individually analyzed, such as the retinotectal system, which may have improved our ability to detect subtle lesions. None of the Cln8^−/− mice displayed obvious CNS (Central Nervous System) abnormalities however, such as premature death or seizures, which may support the absence of lesions noted in CNS organs on necropsy and histopathology in the current study. Non-ophthalmic abnormalities well documented in humans include cerebral and cerebellar atrophy, as well as white matter changes (47-50). Further studies are warranted to investigate gross CNS pathology in murine models of CLN8.

Limitations of the current study include a small study population and the cross-sectional nature of data collection at a single time point. Although a small study population may have resulted in discordant inner nuclear and inner plexiform layer measurements between groups in OCT and H&E images, the difference in layer thickness between these modalities is small and could be related to tissue fixation and processing. Significant thinning of the outer nuclear layer, outer photoreceptor segments, and whole retina in mice with Cln8^−/− were detected with confidence.

Additionally, a clear clinical and electrophysiologic phenotype could be described with the small number of study animals.

Despite minor limitations of this study, the overall similarities of ocular pathology in Cln8^−/− mice with the human disease suggests strong potential as a murine model for testing therapies in preclinical models. Future longitudinal studies with a larger study population are warranted to determine developmental onset and possible progression of retinal degeneration. Such studies would inform ideal ages for assessment of therapeutic strategies aimed at preventing or mitigating the visual consequences in this murine model that would be most translatable to the treatment of the human disease.

Conclusions

In conclusion, Cln8^−/− mice provide a potential alternative murine model for retinopathy in patients with CLN8 due to similar anatomic and electrophysiologic retinal pathology. This animal model may serve as a tool for therapeutic development and disease management.
