A narrative review of esophageal tissue engineering and replacement: where are we?

Introduction

Five thousand to ten thousand patients per year in the US require esophageal replacement. In the pediatric population long-gap esophageal atresia (LGA) is the primary indication. LGA represents 10% of congenital tracheo-esophageal fistulae which occur approximately 1/3,000 births and the etiology is unknown. Some children with this condition will have success with a trial of waiting for spontaneous growth (12 weeks) or traction-induced growth (Foker maneuver) with delayed primary repair, and some will not. Additional common indications for esophageal replacement in the pediatric population include recurrent leaks after primary repair of other types of esophageal atresia/tracheoesophageal fistula (EA/TEF), recurrent TEF after primary repair, refractory GERD, corrosive strictures, prolonged impaction of foreign bodies, and button battery erosions. Rarer indications include malignancies such as leiomyosarcoma and inflammatory pseudotumor, intractable achalasia, diffuse candidiasis in patients with immunodeficiency, scleroderma, epidermolysis bullosa and human immunodeficiency (HIV) related strictures (1).

Current options for esophageal replacement include stomach, jejunum and colon without any consensus as to which is the best option. This argument continues as all of these strategies are fraught with long and short term issues that include but are not limited to death, graft failure, leak, stricture, respiratory issues, dysphagia, reflux and dumping (2,3). Allotransplant is not an ideal solution in children due to appropriate sized organ scarcity, rejection, and the potential lifetime of immunosuppression required, but is being explored potentially for adult use. The high-morbidity intestinal replacement procedures leave much to be desired, and thus enters the possibility of esophageal replacement with tissue-engineered grafts. Tissue engineering integrates material engineering with cellular biology and gene therapy to develop various tissue replacements that potentially have the same function as innate tissues. The components include the scaffold and the cells seeded onto it. Scaffolds and cell-seeding have been used for tissue replacement both together and separately depending on the extent of the injury. Heretofore most of these studies have been in animal models, but there is increasing promise to human translation (4).

Esophageal replacement has been tried in multiple iterations in the past 100 years. Unfortunately, due to the complexity of its replacement by both autologous and non-autologous organs, studies have been scarce and success has been limited.

In the following sections, we will explore the current knowledge on esophageal tissue engineering, reconstruction and transplantation.

We present the following article in accordance with the Narrative Review reporting checklist (available at http://dx.doi.org/10.21037/atm-20-3906).

Tissue engineering

Scaffolds (Table 1)

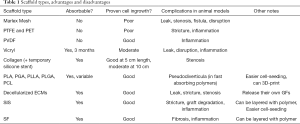

Table 1 Scaffold types, advantages and disadvantages
Full table

Scaffolds provide a matrix for cell ingrowth and survival. Ideally they should be non-immunogenic, able to be formed into various sizes, and biodegradable such that they will eventually be replaced with host-cells or host-generated tissue (5).

Acellular scaffolds have been used with the idea that they will be populated with migration of host epithelial and smooth muscle cells. Types of acellular scaffolds include synthetic materials, collagen, and decellularized extracellular matrices (ECM). Early studies in the 1950s and 60 s with full-thickness esophageal replacement with plastic tubes or Marlex mesh demonstrated predictably very poor cellular ingrowth and thus poor results (leakage, stenosis, fistulae, dislocation) in animal models (6). Another early studied trialed polyethylene terephthalate (Dacron) and expanded polytetrafluoroethylene (PTFE) replacement of a full-thickness segment of canine esophagus. These materials generally had poor cell ingrowth with limited neoepithelialization and caused a significant foreign body reaction with fibrin formation and resultant stricture (7). Vicryl (polyglactin 910) mesh with a 3-month average absorption time and non-absorbable polyvinylidene fluoride (PVDF) mesh were used in a 2004 study out of Germany with a full-thickness rabbit esophageal injury model. Vicryl mesh had a high rate of early leakage and failure with some evidence of limited re-epithelialization, some muscle cell ingrowth, and significant inflammatory reactions on histologic exam at 3 months. This is in contrast to the PVDF group which had no leaks and complete mucosal regeneration, some muscle cell ingrowth, and a small amount of foreign body reaction to the material. and did show evidence of neoangiogenesis as well (8). The omentum has been recognized to have a natural tendency to wall off perforations and contain infections, and thus has been used as a ‘natural bioreactor’ to aid in growth of implants of varying types. The implants in this study were wrapped in pedicalized omentum as a method of potentially decreasing leak and encouraging blood vessel ingrowth.

Collagen is the most prevalent ECM protein in the human body. Collagen has showed more promise than initial trials with older synthetics. A 1998 study from Japan replaced a 5 cm long segment of canine cervical esophagus with a double-layered tube of silicone interior stent and outer collagen sponge. Histological examination after silicone stent removal at 28 days with follow-up of 3–12 months demonstrated stratified epithelia with submucosal glands, inner circular and outer longitudinal muscle layers and no stenosis and no weight loss in the dogs (9). Longer cervical length (10 cm) and thoracic experimentation with the same model had a higher incidence of stenosis and less muscle ingrowth, even at 24 months. This is hypothesized by the authors to be due to less robust vascular supply in the thoracic esophagus as well as negative effects of pleural effusions after operation on the integrity of the collagen. In a further study by the same group, omental wrapping did not improve the outcomes of this scaffold in the thorax (10,11).

There are many available biodegradable synthetic polymers that are showing promise as scaffolds in other organs such as the trachea. These include polyester-based aliphatic polymers such as polylactide (PLA), polyglycolide (PGA), poly(l-lactic acid) (PLLA), poly(lactic-co-glycolic) acid (PLGA), and polycaprolactone/poly(l-lactic acid) (PCL/PLLA). These polymers have shown positive epithelial cell-seeding capabilities resulting in stratified layers and keratinization (12). Adding collagen or fibronectin has been shown to improve cell adherence and function of esophageal epithelial cells, smooth muscle cells and fibroblasts on these scaffolds (13). PLA, PGA and PLGA are quite biodegradeable and biocompatible and have been approved by the FDA for other human applications. PGA degrades over 2–4 weeks, PLA over months to years, and PCL over years (14). PGA scaffolds seeded with smooth muscle cells, fibroblasts and keratinocytes have been used to replace segments of canine esophagus. This resulted in segments with histologically normal-appearing squamous epithelium and smooth muscle, but no peristalsis was present (15,16). Poly-ε-caprolactone mesh was used to repair esophageal injuries in a rabbit study in 2015 with similarly-promising ingrowth of epithelial and smooth muscle cells at 30 days. These rabbits had a high incidence of pseudo-diverticula likely due to fast mesh degradation at this same time point of approximately 30 days (17).

Decellularized ECMs are a logical source of potential esophageal scaffold that provide three-dimensional micro-architecture of natural tissue and may promote cell growth without inducing inflammatory reactions that lead to graft stricture and leakage or failure. Collagen, elastin, fibronectin, laminin, and growth factors may be maintained on the ECM despite removal of the immunogenic cells that produced them (18). As the ECM is degraded by the host after implantation, there is further release of growth factors and peptides which influence angiogenesis, cell proliferation and differentiation, cell migration, and immune-cell infiltration (19). Sources include urinary bladder matrix (UBM), skin, pericardium, dura, gastric matrix, esophageal acellular matrix (EAM) and small intestinal submucosa (SIS). Decellularized scaffolds are prepared using mild detergents, acids, or enzymes to remove cells. Current methodologies for decellularization of different ECM sources often employ pressure controlled perfusion over multiple days and this strategy has been used in experiments for whole-organ decellularization in the liver, uterus, penis, larynx, and skin/muscle flaps among others (20-22). Decellularized esophagus itself has also been described and utilized for esophageal replacement. Arakelian et al. describes in a 2019 study a method of esophageal decellularization using SDS and EDTA (23). A 2018 study by Luc et al. trialed such decellularized porcine esophagus to replace a full-thickness 5-cm segment of pig esophagus, with and without cell seeding with human adipose-derived stem cells (hADSC) and with and without an intrabdominal omental maturation period. There were significant complications in 5/6 pigs, though 5/6 did survive to specimen harvest at 5 weeks and regained their previous weight as well. All specimen had 3 structural layers at the time of harvest. The omental maturation provided macroscopically visible neovascularization, but omental maturation was surgically detrimental in that these specimen were fibrous and difficult to anastomose. The hADSC seeding did not confer any significant beneficial change in graft cellularity or vascularization, postulated to be due to species incompatibility (24).

The same group that in 1999 trialed PTFE and Dacron segmental esophageal repairs also compared these to such an ECM, lyophilized dura mater (Lyodura). In contrast to the meshes, the esophagi in this group did have neoepithelialization at up to 12 month follow-up, but without significant smooth muscle cells noted, leading to more of a conduit rather than functional esophagus (7).

Alloderm (decelluarized human skin) has also been used in multiple experiments for partial esophageal replacement with mixed results. A 2001 study of 12 dogs with a 2 cm × 1 cm alloderm esophagoplasty demonstrated neoepithelialization with neovascularization at 3 months with no leaks, strictures or diverticulae (25).

Small intestinal submucosa (SIS) has been used with poor results alone, but slightly better results when combined with other polymers and with cell-seeding techniques. A trial out of Germany in 2009 of replacement of 4cm of piglet cervical esophagus with SIS alone resulted in 13/14 deaths by 4 weeks, mostly due to stricture and graft degradation (26). In a 2000 study by Badylak, 5 cm 50% defects were replaced with both SIS and urinary bladder submucosa (UBS) patches in a dog model. These demonstrated successful replacement by skeletal muscle and epithelium, but SIS and UBS graft tube repair of circumferential defects were plagued by strictures (27). Addition of synthetic polyesters such as PLGA and poly (3-hydroxybutyrate-co-3-hydroxyhexanoate) (PHBHHx) to SIS have been used in-vitro to improve the mechanical properties with some positive results but have not yet been trialed in animal models (28,29). Cell-seeded SIS will be discussed in the next section.

Silk-Fibroin (SF) is another material that has been recently trialed for esophageal grafting with promising early results. These matrices are derived from silkworm cocoons, are biodegradable, and have low immunogenicity. A 2015 experiment with SIS versus SF in a rat esophageal injury model demonstrated superior muscle and nerve ingrowth in SF versus SIS as well as less inflammatory reaction and fibrosis in the SF group (30). In a subsequent investigation by the same group in a full-thickness injury (3 cm × 1.5 cm) model in 6 pigs, grafts were implanted and then examined in 3 months. There were no leaks or strictures in any of the animals. Histologic exam revealed a stratified squamous epithelium, a muscularis mucosa and muscularis externa with circular and longitudinal layers, neovascularization and neuronal bundles (31). Preliminary experimentation with a multilayered poly (ε-caprolactone) and silk fibroin hybrid graft in a rat model of circumferential esophageal replacement demonstrated complete healing at 2 weeks in 8 out of 11 rats (32).

Cell-seeding

Cell-seeding is the transplantation of cultured cells, often from the patient themselves, either onto a scaffold and then to the site of injury or directly onto the injury. Many researchers have concluded that the most promise for a complete tissue-engineered esophageal replacement lies in a cell-seeded scaffold. Mesenchymal stem cells (MSCs) can be obtained from amniotic fluid, which may be of particular use in neonates with a prenatal diagnosis of EA. They act to release other factors such as TGFβ1, MCP1, VEGF and IL-6 that promote wound healing and modulate inflammation. MSCs are also present in bone marrow and adipose tissue. For the larger population in whom amniotic fluid MSCs are not applicable, esophageal epithelial cells (EECs) are a source of cells that can be obtained via endoscopy (33). Jensen et al. have recently experimented with amniotic MSCs and EECs seeded onto a polyurethane scaffold that gets extruded after tissue regeneration has occurred. The grafts were seeded, implanted into 5 cm defects in piglet esophagi, and the scaffolds extruded at 21 days. EEC seeding led to a complete stratified epithelium and one disorganized muscle layer by 4–5 months while MSC seeding led to a complete stratified squamous epithelium and 2 distinct muscle layers after the same time period. The piglets did require stenting to support their esophagi during the healing time. The piglets had good growth over the study period and the new segments of esophagi (EEC and MSC) both propelled barium on esophagrams (33). Adipose-derived stem cells (ADSC) were utilized by the Luc group in seeding decellularized esophageal matricies. These cells secrete angiogenic factors and play an immune role. When cultured and seeded in sheets, both in in vitro and in vivo environments, no significant or satisfactory change in cellularization occurred. This was improved in non-sheet cultured ADSC when mucus membranes were removed to allow penetration into deeper submucosal and muscularis layers (24).

In a canine model, oral mucosal epithelial cells (OMECs) have been harvested and cultured into 3–5 cell-thick layers and used to seed sites of injury created by large endoscopic submucosal dissections. The sheets were transported via an endoscope on a polyvinylidene difluoride (PVDF) membrane that was then removed after 10 minutes. Four week follow-up endoscopy revealed complete wound healing with no stenosis or fibrin, versus controls without cell-seeding that had fibrin, inflammatory cells, and central ulcers still remaining (34). In a similar experiment, OMECs were seeded onto SIS grafts (versus SIS alone) and used to replace a 50% circumferential 5-cm defect in dogs. The OMECs group had faster neoepithelialization and muscular ingrowth with less inflammation versus the SIS alone group (35).

MSCs have also shown promise when seeded onto a SIS scaffold. In a 2013 experiment, a 5 cm 50% circumferential defect was made in canine esophagi and replaced with either SIS alone or SIS seeded with bone marrow MSCs. The MSC group had more muscle ingrowth, neovascularization, epithelialization and less inflammation than the SIS group (36). A 2017 study out of France used MSCs seeded onto an SIS scaffold (versus SIS alone) to replace a 3 cm circumferential defect in pig esophagi. These scaffolds were matured on and implanted with an omental pedicle and around a removable stent. Histologic exam at 1–3 months demonstrated more epithelial and muscular cell ingrowth in the MSC group, though both groups had issues with stent migration and granulation tissue formation (37).

A recent study from the Mayo clinic utilized polyurethane scaffolds seeded with adipose-derived MSCs to replace a circumferential 6cm defect in pigs, supported by an intraluminal stent and treated with platelet-rich plasma (PRP) and more MSCs at 3 weeks. At 3 months the grafts had a mature mucosal layer with underlying mesenchyme with smooth muscle cells in it. Two pigs with their stents removed at 6 months were still alive at 18 and 19 months at the time of publication and awaiting further analysis (38).

Human experimentation

Limited studies have been performed in humans using the various materials and methods described above. In 2011, a University of Pittsburgh group performed long-segment circumferential endoscopic resection of Barrett’s esophagus down to the muscularis in 5 patients and the defects were covered with SIS held in place with a self-expanding stent. The stent was removed 9–18 days later, and endoscopic surveillance revealed degradation of the graft by 2 weeks and regeneration of the squamous epithelium as early as 4 months. There were multiple issues with post-operative strictures requiring dilations (39).

A Japanese group has successfully been using sheets of autologous oral mucosal epithelial cells applied to extensive areas of endoscopic submucosal dissection (ESD) in humans to reduce complications and speed re-epithelialization. In 9 patients, cell sheets of oral mucosa were cultured in-vitro for 16 days and transported on polyvinylidene difluoride support membranes to the ulcer sites with an endoscope. This procedure reduced average epithelial healing time from 4 to 3.5 weeks. One patient with a circumferential defect had a stricture requiring balloon dilation, and the other 8 had no evidence of stricture (40).

In a recent study from Argentina, 4 patients with large esophageal defects were repaired by tissue-engineered patches. Patches were created from 8-layered porcine urinary bladder matrix and sizes ranged from 4×2 cm to 5×3 cm and were sutured in place. There was one small contained leak and all patients had complete mucosal coverage at 2 months by EGD, with biopsy showing normal squamous epithelium (41).

A 24 year old with a large (5 cm) but not circumferential cervical esophageal defect underwent repair with alloderm covered in platelet-rich-plasma and a sternocleidomastoid muscle graft with internal self-expanding metal stent. After stent removal, EUS and biopsy demonstrated stratified epithelium, muscularis mucosa, submucosa, muscularis propria and adventitia in the repaired area with normal motility by manometry (42).

3D printing

Early studies in animals of the use of 3D printed scaffolds are starting to show promise. 3D printing allows fabrication in any shape from a digital image. A 2016 study from Park et al. utilized 3D printed esophageal scaffolds made from PCL and seeded with MSCs from rabbits, to repair a surgically created esophageal defect in these animals. All 6 subjects survived to harvest at 3 weeks and had no major complications. Mucosal epithelium and smooth muscle cells were seen in the specimen (43). Similarly Park et al. utilized a rat esophageal injury model to trial patches created with 3D printed PCL, seeded with ADSCs, as well as polyurethane-nanofiber (PU) scaffolds. They found that all defects were successfully repaired, but with better muscle regeneration in the PCL group, and better epithelial regeneration in the PU group (44). In 2018, Chung et al. used 3D-printed PCL with thicker reinforcing PCL rings and additional electrospun PCL to create circumferential esophageal scaffolds. These scaffolds were then cultured in vivo in rat omentum and subsequently used as interposition grafts for full-thickness circumferential esophageal defects. All rats (10) died up to 2 weeks after graft orthotopic transplantation (the time of death sacrifice) due to stenosis with obstruction by hair ingestion leading to malnutrition and proximal anastomotic leak. At the time of death/sacrifice they did have epithelial and smooth muscle ingrowth at the ends as well as neoangiogenesis on histologic exam (45).

A new technology developed in Japan called bio-3D printing is under investigation as well. This method is scaffold-free and consists of various cell types (dermal fibroblasts, esophageal smooth muscle cells, bm-MSCs, umbilical vein endothelial cells) prepared into multicellular spheroids and then bio-3D printed into, for example, esophageal-like tubes. One group utilized this technology and matured these tubes in a bioreactor for 4 weeks, then transplanted them into rats as an interposition graft from the stomach to the distal esophagus using a silicone stent for support. All rats survived to harvest at 30 days without major complication, with epithelium and smooth muscle cells present in all specimen. Orthotopic esophageal replacement did not work in this model due to aspiration pneumonia in the animals (46).

3D-printing applications to esophageal reconstruction are in their infancy of development, but should not be discounted. Printed PCL scaffolds already are demonstrating success as small patches. Full thickness circumferential grafts of larger diameter with reinforcement may not have the same stenosis problem that rat esophagus (2–3 mm diameter) did in the 2018 Chung study, although materially creating larger diameter and thicker grafts has not yet been feasible. Additionally, 3D-printed interposition grafts have not yet demonstrated peristaltic activity which has led to complications such as aspiration and obstruction in the experimented animals. Other studies of PCL grafts have established that MSC cell-seeding can help to speed stratified cell ingrowth and development, potentially resulting in more functional layers of neoesophagus; thus the combination of biomaterial 3D-printing advances with cell-seeding advances may be the key to customizable implantable neoesophagi.

Summary of tissue engineering

The immense diversity of materials and adjuncts to these is apparent in this review. Comparative studies of different cell-seeded and unseeded materials seem to suggest that mesenchymal stem cell or ADSC seeding in general leads to better cell ingrowth with mucosal and smooth muscle layers in the neo-esophageal tissue than in unseeded materials. What material is ideally used as a scaffold, and whether the construct may be amenable to a customizable 3D-printing technique is somewhat more unclear. Both absorbable synthetic polymers and decellularized matrices with cell-seeding have shown similar promise in early animal models. Patches for small defects require less scaffolding strength as they do not necessarily need to sustain vast radial pressure nor generate contractions to provide for a functionally acceptable outcome. Thus, early human experimentation with tissue engineered grafts for small areas is the first step and these trials are ongoing as mentioned above.

Another consideration is the use of internal support for circumferential grafts as they heal. Temporary silicone stents that may be sutured in place and removable self-expanding stents have both been used in animal models to support scaffolds as they develop cell-ingrowth and strength, and can be utilized in humans as well. More work must be done in large animal models to mimic the physical stressors of the human esophagus to determine which combination of these materials and adjuncts will provide enough strength to avoid graft leak, diverticulae, and disruption during the healing process.

Esophageal replacement and reconstruction

Since the early days of esophageal resection a century and a half ago, few pioneers described multiple autologous tissue and organs for esophageal replacement or reconstruction.

Unfortunately, as the esophagus traverses 3 different body compartments, it functional complexity and its unique vascular structural anatomy, there is no method of esophageal replacement or esophageal substitute that is universally accepted and preferred.

While replacement of the esophagus with stomach, jejunum or colon is well established and further advancement in transplant medicine in the past half a century proved successful in many other organs, there has been no advancement in esophageal transplantation.

In the following section we will describe less frequent autologous and non-autologous esophageal replacement methods.

Skin and fascia lata flaps for replacement of the esophagus

Autologous replacement of the cervical esophagus with skin flap was first described by Mikulicz in 1886 (47). During the next century, other investigators described multiple methods using different skin flaps, mostly to the cervical or high thoracic esophagus, when visceral esophageal replacement using stomach or bowel failed or did not suffice. As a result of extensive morbidity, the need for multiple surgeries, high number of fistulas and skin irritation, the trend has been away from using skin flap based tubes. When a portion of a visceral segment is lost as a result of inadequate blood supply or when additional length of conduit is needed, pedicled skin flaps may be considered as a mean of salvage for reconstruction, though in practice these are scarcely used due to the above complications.

Fascia lata transfer was first used by Neuhoff and Ziegler in 1922 for esophageal replacement in dogs (48). Robe and Bateman later reconstructed the pharynx with tantalum wire mesh covered by fascia lata in 1949 (49). Others have tried to use Fascia lata with other non-viceral replacement methods to promote granulation to bridge gaps across esophageal segmental resections, however early failure and stenosis were common. As none of these substitutes have been satisfactory to heal the tissue or maintain patency, and other visceral substitutes have become more successful, and the use of fascial flaps has been abandoned.

Aorta for replacement of the esophagus

Allogenic aorta has been used in animal models for esophageal replacement. Fresh and/ or cryopreserved allogenic aorta has shown promising results in transformation into tracheal or esophageal tissue in vitro (50-52). Aortic graft preservation without rejection despite absence of immunotherapy has been also shown promising results in vitro and in a few animal models. Tessier used allogenic thoracic aorta harvested from rabbit donors for segmental replacement of the esophagus. The authors used a wrapping protocol to create an aortic tube graft which they modified a few times during their study. Unfortunately, their results were disappointing with dismal survival. Most of the recipients died during the 1^st week post-transplant from hypo-motility, or severe graft necrosis. The authors concluded that larger animal models may have better success as self-expanding stents might be used in them to protect the anastomoses, maintain luminal patency and protect the graft from contamination (53).

Gaujoux has used aortic allografts interposed in segmental resections of the cervical esophagus in a study in 18 piglets. The anastomoses were protected by a self-expanding esophageal stent and no immunosuppression was given. Endoscopic surveillance was done at 1, 3, 6, 12 months post-surgery. The authors left the stent in for at least 6 months to avoid stenosis. After 12 months, the majority of the piglets showed gradual graft contraction, with adequate patency that allowed normal feeding and weight gain. Islets of smooth muscle organized as fascicules were identified as well. This successful study on piglets showed that the use of esophageal stents to protect the replaced esophageal segments by aortic allograft allows the restitution of patent esophageal lumen and nutritional autonomy without immunosuppressive therapy (54).

Tracheal replacement of the esophagus

Abbasidezfouli successfully replaced 8 cm of cervical esophagus by a 4-cm segment of adjacent trachea in mongrel dogs. No post-operative mortality was noted and the dogs started on liquid diet after 48 hours and on regular diet on post-operative day 7. Two-month follow-up showed no stenosis or other complications. The authors reported histological changes in the replaced tracheal segments such as transition of the columnar mucosa to squamous mucosa, atrophy or disappearance of cartilaginous rings and inflammation of sub-mucosal glands. The authors hypothesized that the fibro-areolar tissue left intact between the esophagus and trachea contributed to the robust blood supply and survival of the graft. The successful replacement of an esophageal segment with half-sized tracheal segment might be feasible in humans where longer tracheal resections are limited (55).

Complete esophageal transplantation

Solid organ transplantation has evolved significantly in the past half century due to improvement in immunosuppression and continued refinements in surgical techniques. The need for complete esophageal replacement following corrosive esophageal injuries, long strictures, complex esophageal atresia, severe foregut dysfunction, lack of other viable autologous conduits and esophageal neoplasm, although rare, might be indicated in highly selected cases.

Esophageal transplantation in rats

Uygun et al. studied 14 male Sprague-Dawley rats who underwent total esophageal transplantation without vascular anastomoses. The authors created ostomies with the proximal and distal parts of the transplanted esophagus and divided the rat cohort into immunosuppressive treated and immunosuppressive untreated groups. 10 days post transplantation, all rats survived. There was no evidence of major complication in both groups and all rats retained preserved esophageal tissue. Inflammation and muscular atrophy were lower in the immunosuppressed group whereas vascularity was higher in that group. The authors concluded that total esophageal transplantation is feasible with reasonable outcomes with or without immunosuppression (56).

Esophageal transplantation in humans

Vakili et al., reported a case of donor esophagus transplantation as part of multi-visceral graft transplantation for restoration of GI continuity in a 9 years old female with an inflammatory myofibroblastic tumor. Following en bloc resection of the patient’s visceral organs (Liver, stomach, duodenum, pancreas, small bowel, spleen, right and transverse colon), a donor’s Multivisceral organ complex (including distal esophagus, stomach, liver, pancreas, duodenum, small bowel and spleen) were transplanted. Transhiatal end-to-end esophagoesophagostomy at the level of the inferior pulmonary vein was done. One point nine years post operatively the patient was doing well, tolerating oral intake with no reflux or dysphagia and endoscopy showed a widely patent esophageal anastomosis (57).

To date, there are no reported human studies exploring esophageal transplantation. One of the authors of this manuscript is conducting cadaveric feasibility studies, exploring different aspects of human esophageal transplantation. These include different possibilities of accessing the abundant blood supply in the thorax and the multiple compartments available for donor esophagus placement in the human thorax and mediastinum. Coupled with experience in foregut surgery and vascular microsurgery, these cadaveric feasibility studies have had early promising results and are ready for larger animal studies [Unpublished data].

Conclusion

Over the past 20 years, experimentation with tissue-engineered esophageal repair and replacement has drastically advanced from purely in-vitro studies to viable animal models with long-term survival and now is reaching early human experimentation. What has been brought to light in both esophageal and other tissue engineering fields is that the scaffold alone seems to not be enough to support appropriate tissue in-growth. Stem-cell and epithelial cell applications have led to much better functional and histological outcomes than various graft materials alone. We have yet to determine the best extracellular (or synthetic, or combination) matrix and the best source of cells to seed it and stimulate ingrowth of the highly complex layered structure of the native esophagus. Significant further work in this field will be necessary before human application of long segment grafts can be attempted, though for smaller patch applications we have already seen early successes.

Though farther behind in experimentation than tissue-engineered grafts, esophageal transplantation remains a burgeoning field with little data but vast potential. Whole organ transplantation is the treatment of choice for total end-organ dysfunction in liver, kidney, pancreas and small bowel patients, and likewise may one day be the best option for esophageal replacement in select cases. This is especially true in those with total esophageal or long-segment disease where tissue-engineered grafts have not shown as much promise as in shorter-segment grafts. We look forward to the results of upcoming experimentation in animal models of esophageal allotransplantation.

Acknowledgments

Funding: None.

Footnote

Provenance and Peer Review: This article was commissioned by the editorial office, Annals of Translational Medicine for the series “Innovations and Updates in Esophageal Surgery”. The article has undergone external peer review

Reporting Checklist: The authors have completed the Narrative Review reporting checklist. Available at http://dx.doi.org/10.21037/atm-20-3906

Conflicts of Interest: Both authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-3906). The series “Innovations and Updates in Esophageal Surgery” was commissioned by the editorial office without any funding or sponsorship. OW served as the unpaid Guest Editor of the series and serves as an unpaid editorial board member of Annals of Translational Medicine from Oct 2019 to Sep 2021. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
