A narrative review of hybrid ablation for persistent and longstanding persistent atrial fibrillation

Introduction

On September 25^th, 1987, Dr. James Cox performed the first Cox-maze I procedure for the treatment of atrial fibrillation (1). The original procedure involved the cutting and sewing of areas on the heart, which had been previously identified through animal models to be sources for macro re-entrant circuits responsible for the propagation of AF (2). The procedure was subsequently successful in restoring sinus rhythm for several patients, however there was some left atrial dysfunction necessitating pacemaker placement as well as inability to accelerate rate in response to exertional activities (1). Further iterations to the procedure over the years led to the development of the Cox-maze III, which was associated with a 93% freedom from arrhythmia without antiarrhythmic medication (1). Despite the success of the Cox-maze III procedure, due to the technical complexity and prolonged cardiopulmonary bypass time required of performing the cut and sew lesion set, it was seldom performed. In 1999, the first Cox-maze IV procedure was performed, which included the lesion set presented in the Cox-maze III, however performed with cryothermal ablation to achieve the transmural lesions. The volume of surgical maze procedures remained low initially, with STS Database reporting 3,987 AF procedures in 2004 which rose dramatically the following year to 12,737 procedures performed (3). Since then, the surgical management of AF has continued to rise, with improvements in ablation technology and experience minimizing the associated morbidity and increasing efficacy (4). Today, surgical ablation is a Class I recommendation for patients with AF undergoing concomitant open surgery, Class IIa for patients with AF undergoing closed surgery (CABG or AVR) (4) (Table 1).

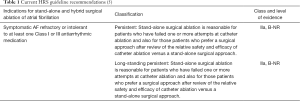

Table 1 Current HRS guideline recommendations (5)
Full table

Catheter ablation was first described in 1998 and continued to gain traction into the early 2000s (5). Initial attempts with transcatheter linear radiofrequency ablation in the right and left atria sought to replicate surgical procedures in patients (6). As pulmonary veins were identified as common triggers for patients with paroxysmal AF, increased attention was spent on developing catheter-based techniques to achieve pulmonary vein isolation (5). Targeting these ectopic pulmonary vein triggers led to high incidence of pulmonary vein stenosis (7). Soon thereafter, pulmonary vein antral isolation using a non-fluoroscopic 3D electroanatomic navigation system was developed to create radiofrequency lesions around the pulmonary vein ostia (8). The antral approach avoids ablating inside the PVs, so that pulmonary vein stenosis incidence is reduced.

This now represents the primary ablation strategy for catheter-based ablation therapy of both paroxysmal and persistent AF (5). The majority of ablation procedures performed for AF are catheter based, with a growth of 430% between 2006 and 2015 (9). Although catheter ablation is associated with lower morbidity than surgical maze procedures, the efficacy is also reduced. Patients who undergo catheter ablation often require repeat procedures to achieve maintained sinus rhythm, especially in persistent and longstanding persistent AF.

Adjunctive ablation lesion sets can be performed in these patients to address non pulmonary vein triggers that potentially contribute to the initiation and maintenance of AF (10). This includes addressing triggers originating from the superior vena cava, inferior vena cava, left atrial appendage, coronary sinus ostium, the vein of Marshall and posterior wall as well as complex fractionated atrial electrogram ablation and rotor ablation. Many of these strategies lack data from large randomized controlled trials.

For patients with symptomatic paroxysmal AF refractory to antiarrhythmic medication, catheter ablation currently has a Class IA recommendation (5). For patients with persistent and longstanding persistent AF (greater than one year), the recommendations are IIa, and IIb respectively (5). For patients with persistent or long-standing persistent AF, posterior wall isolation and ablation of non PV triggers also carry a Class IIb recommendation (5).

We present the article in accordance with the Narrative Review reporting checklist (available at http://dx.doi.org/10.21037/atm-21-196).

Cox-maze IV procedure

The goal of the maze procedure regardless of approach or lesion set is to create transmural ablation lines which prevent the conduction of re-entry circuits responsible for the propagation of atrial fibrillation. The Cox-maze IV procedure can be performed via sternotomy or right antero-lateral thoracotomy. Pulmonary vein isolation is achieved using bipolar radiofrequency clamps. Right atrial lesions include an ablation along the free edge of the right atrium down the aortic side of the right atrial appendage. An ablation line is extended from superior to inferior vena cavae. An endocardial ablation line is created using a cryoprobe extending from the right atrial free wall to the tricuspid valve annulus. In the left atrium, a “box lesion” is achieved by creating roof and floor lines connecting the superior and inferior pulmonary veins. A lesion extending from the left atrial appendage to the pulmonary vein as well as one extending to the mitral isthmus is created. The left atrial appendage, a known potential trigger for AF is also excluded (11).

Thoracoscopic hybrid maze

Hybrid ablation procedures for the treatment of AF have been proposed in several single-center trials, with promising results, however there has been a lack of uniformity in lesion sets, timing of surgical ablation (SA) versus catheter ablation (CA), rigor of patient follow-up, type of energy used, and management approaches to left atrial appendage.

The goal of hybrid AF ablation is to achieve the Cox-maze IV lesion set through a minimally invasive thoracoscopic approach followed by catheter ablation, thereby obviating the need for sternotomy and cardiopulmonary bypass while providing the patient with the best possible outcomes for management of AF. With the direct visualization afforded through endoscopic access to the thoracic cavity, the surgeon can perform pulmonary vein isolation utilizing a bipolar radiofrequency clamp, which completely surrounds the antrum of the pulmonary veins in a single movement. Pulmonary vein isolation is the cornerstone of AF ablation in most patients. Through the epicardial approach, the surgeon can avoid critical structures that can be injured during catheter ablation including the phrenic nerve, pulmonary vein orifices, and esophagus. Additionally, the ganglionic plexi and ligament of Marshall can be ablated under direct visualization and left atrial appendage can be excluded during the epicardial procedure. Following the epicardial procedure, the electrophysiologist performs completion lesions from an endocardial approach. Gaps in the epicardial “box lesions” can be addressed, pulmonary vein isolation can be verified, and ablation to sites not accessible through the epicardial approach can be achieved including the mitral isthmus lesion which lies close to the left circumflex artery as well as the coronary sinus and the cavotricuspid isthmus in the right atrium. In patients with increased epicardial fat, transmurality of epicardial lesions can be challenging, and better achieved through the endocardial approach. Following the completion of the Cox-maze IV lesion set pattern, the electrophysiologist has the opportunity to evaluate for additional AF trigger foci.

Advantages and challenges

Through a team-based approach to ablation, the electrophysiologist can provide feedback to the surgeon regarding transmurality of epicardial lesions as well as gaps in the ablation lines. There are limitations to an epicardial only lesion set; epicardial fat affects the transmurality of lesions and the heat sink effect of circulating left atrial blood limits depth of ablation. In endocardial only lesion sets, there is a risk of collateral damage to surrounding structures. By combining the strengths of both approaches, effectiveness is improved and the limitations are reduced. Timing of the epicardial and endocardial procedures has been variable in studies to date when it comes to concomitant or staged completion. There are advantages and disadvantages to performing the procedures concomitantly versus a staged approach. With the concomitant procedure, there is a decreased associated cost as well as a single hospitalization for the patient. It can be challenging to align the schedules of the surgeon and electrophysiologist for the concomitant approach. In addition, edema resulting from the surgical ablation may show block initially, but when edema has subsided these areas may reveal incomplete lesions. During a staged procedure, there is time to allow for fibrous tissue formation of the ablation lines allowing for a clear picture of gaps in lesions and to allow for closure of those gaps. To date, there is insufficient data to determine whether a single or staged approach would be superior (5). Recommendations have been made to delay the endocardial procedure for 1 to 3 months following the epicardial ablation (12) (Table 2).

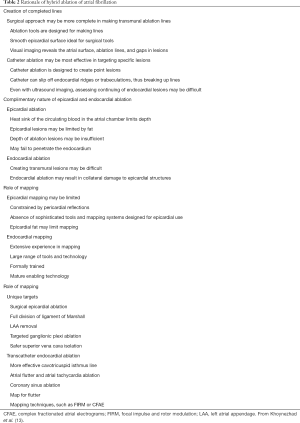

Table 2 Rationale of hybrid ablation of atrial fibrillation
Full table

Outcomes

There is a range of reported 1-year freedom from AF for a hybrid ablation for AF (Table 3). One meta-analysis reported 71% for hybrid ablation versus 87% for Cox-maze (19). Another meta-analysis reported successful freedom from atrial fibrillation following hybrid AF procedures ranging from 36.8% to 92% (20). These studies are plagued by lack of uniformity in approaches, lesion sets, timing to CA, and follow-up protocols. Recent studies over the past 2 years continue to illustrate the variability in these factors (Table 4).

Table 3 Summary of recent studies evaluating hybrid atrial fibrillation ablation
Full table

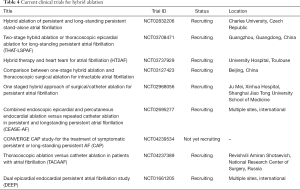

Table 4 Current clinical trials for hybrid ablation
Full table

Negative factors for outcomes

Some factors have been recognized as predictors for failure of ablation and should be used in the screening of patients when considering whether to proceed with a surgical or catheter ablation. These risk factors include increased left atrial size, advanced age, and extended duration of AF. In surgical ablation, anatomic locations are used to determine placement of lesions, where in catheter ablation there is the added benefit of mapping to aid in lesion creation. For patients with substantial epicardial fat, achieving transmurality of ablation lines can be challenging from the surgical approach leading to incomplete lesions. Additionally, there are some procedure-based limitations including lesion set pattern types. If a lesion set is restricted to only the left atrium, there are right-sided foci that may continue to trigger AF. The ablation energy source selected and experience of the operator are also important factors in the efficacy of surgical AF ablation.

Conclusions

Atrial fibrillation management remains a challenge, especially in patients with persistent and longstanding persistent AF. Through a team-based approach, hybrid ablation of persistent and longstanding persistent AF utilizes the strengths of electrophysiology and surgery and offers an alternative management process to improve outcomes. While data from current trials show promising results in management of patients with non-paroxysmal atrial fibrillation, ongoing clinical trials will lead to standardization of the protocols with respect to lesions sets, timing of CA as well as follow up protocols.
