Detection of ALK fusion transcripts in plasma of non-small cell lung cancer patients using a novel RT-PCR based assay

Introduction

Approximately 4% of advanced non-small cell lung cancer (NSCLC) patients harbor a genomic rearrangement of the anaplastic lymphoma kinase (ALK) gene which can be targeted by tyrosine-kinase inhibitors (1). To enable this targeted treatment, the detection of the genomic rearrangement is pivotal. ALK rearrangements are primarily detected by immunohistochemistry assays (IHC) or fluorescence in-situ hybridization (FISH) using tissue sections (2). Recently, NGS assays which allow the simultaneous detection of several genomic rearrangements using DNA or RNA isolated from tissue have also been developed (3). However, tissue sections are not always available or are limited in material. Consequently, the use of liquid biopsies could overcome this limitation, enabling the detection of ALK rearrangements from patient plasma samples at baseline to stratify patients for the respective treatment.

Here we describe the evaluation of a novel real time, reverse transcription PCR-based (RT-PCR) assay for the detection of ALK rearrangements from circulating free RNA (cfRNA) from limited amounts of plasma in a retrospective cohort of advanced NSCLC patients. We present the following article in accordance with the STARD reporting checklist (available at http://dx.doi.org/10.21037/atm-20-7900).

Methods

Patient samples

Sixty-six patients with advanced stage lung adenocarcinoma were prospectively included as supplement to the prospective multicentric STALKLUNG trial assessing circulating tumor cells (CTCs) for the use of ALK testing in NSCLC patients (NCT02372448) (4). Formalin-fixed, paraffin embedded tissue sections and plasma were collected from each patient. Up to 8 ml of blood was drawn per patient using either K2EDTA (BD vacutainer, BD, Franklin Lakes, USA) or Cell-Free DNA BCT (Streck, La Vista, USA) collection tubes. All EDTA samples were processed within 2 h of phlebotomy and all Streck samples were processed within 72 h. Plasma was obtained by double centrifugation at 2000 ×g at 4 °C as described previously and plasma was stored at −80 °C until extraction of cfRNA (5). All patients provided signed informed consent and the study was approved by the local ethics committee (No: 2014-A00417-40) and complied with the declaration of Helsinki (as revised in 2013).

ALK tissue analysis

ALK status from tissue was obtained as part of the STALKLUNG trial (NCT02372448). Tissue sections were evaluated either using the Vysis break-apart FISH kit (Abbott Molecular Inc., Des Plaines, USA) or by IHC using the D5F3 assay (Roche Diagnostics, Basel, Switzerland) as described previously (6).

cfRNA sample preparation and RT-PCR assay

For the detection of ALK rearrangements from plasma, the investigational cfRNA sample preparation method and ALK/RET RT-PCR assay were used following precisely the manufacturer’s instructions. Briefly, 2 mL of previously frozen plasma were used for cfRNA isolation. Samples were incubated with 3 mL lysis buffer and 400 µL Proteinase K for 30 minutes. Afterwards, the cfRNA was isolated using provided spin filter columns and a microcentrifuge. To avoid contamination with DNA, a DNAse digestion step for 15 minutes at room temperature was performed directly on the column. cfRNA was eluted in a final volume of 60 µL elution buffer. All buffers and columns were part of the investigational plasma cfRNA kit. RNA concentration was measured using a NanoDrop 2000 Spectrophotometer (Thermo Fisher Scientific, Waltham, USA).

ALK and RET fusion status was determined by a proprietary TaqMan-based RT-PCR multiplex assay on the user-defined channel of the cobas 4800 system (Roche, Pleasanton, USA). For amplification using RT-PCR, 25 µL of cfRNA input was added to a RT-PCR reaction mix comprised of forward and reverse primers, labeled probes, buffer, cosolvents, dNTPs, UNG, and DNA polymerase to a final volume of 50 µL. Each cfRNA sample was tested in a single PCR reaction on a 96-well plate. The RT-PCR thermal cycling profile includes steps for UNG digestion, followed by cDNA synthesis and standard PCR cycling conditions for amplification and fluorescence detection (7).

The assay is designed to detect fusion partner genes flanking the fusion exon junction and covers the most common ALK and RET rearrangements, including 95% of ALK and 96% of RET fusions in the COSMIC database (COSMIC v86), in a single reaction using 25 µL cfRNA input per sample. ALK and RET rearrangements covered by the assay are highlighted in Table 1. In addition to oligonucleotides covering the ALK and RET fusions, the reagent mix includes oligonucleotides detecting the expression of a control gene to serve as an internal control for cfRNA input. Each PCR plate run includes a positive control containing ALK and RET rearranged armored RNA particles as well as a water only no-template negative control. The run is considered valid only if the positive control is amplified and the negative control is not amplified. For the detection of the fusions, a proprietary algorithm has been developed. A cfRNA sample is determined to be valid if the expression of the internal control gene is detected within a pre-specified Cycle Threshold (Ct) range. A fusion is defined to be present if the amplification of the respective fusion reaches a Ct value that is below a pre-specified cycle number. If all the pre-specified parameters are met, the sample is called fusion positive. Failure of the internal, positive, or negative controls leads to a non-interpretable result that requires repetition of the assay/sample.

Table 1 ALK and RET fusions detected by the Roche ALK/RET RT-PCR prototype assay
Full table

For the data analysis, the underlying ALK rearrangement status was blinded to the investigator and data analyst.

Statistical analysis

Assay specifications like sensitivity, specificity, negative predictive value (NPV) and positive predictive value (PPV) were calculated using Med Calc v18 (MedCalc Software Ltd, Ostend, Belgium). For all the other statistics, R software v3.6.3 (R foundation for statistical computing, Vienna, Austria) was used.

Results

In total, sixty-six patients were included in the study. Forty-two patients (64%) were ALK rearrangement positive and twenty-four (36%) patients were ALK negative as determined by FISH/IHC. All patients’ characteristics are summarized in Table 2.

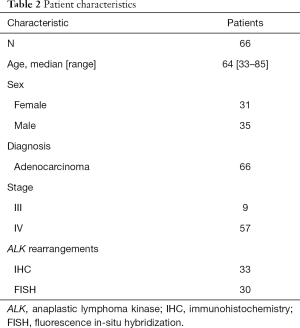

Table 2 Patient characteristics
Full table

Additionally, patient populations, classified by disease progression and ALK status based on RT-PCR testing, are presented in Figure 1. All PCR control and patient samples were valid, and runs were completed successfully. Interestingly, the internal control Ct values for the ALK negative samples were lower than for the ALK positive samples (mean ALK positive =26.1 vs. mean ALK negative =27.9; student’s two sided t-test consistent with Figure 2, P=0.047). Additionally, we saw a statistically significant inverse correlation between the Ct value of the internal control and the total amount of cfRNA (Pearson’s r=−0.32; 95% CI: −0.57 to −0.02; P=0.039) (Figure S1).

Figure 1 Flowchart and results of RT-PCR assay. The 95% confidence interval is highlighted in brackets. RT-PCR, reverse transcription PCR.

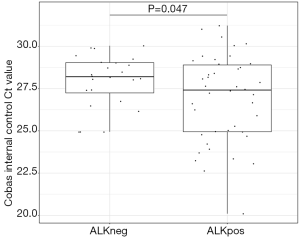

Figure 2 Boxplot comparing the positive control between the ALK positive and the ALK negative group. Ct values of the positive control in the assay are shown. Student’s t-test two sided was used to compute the P value. ALK, anaplastic lymphoma kinase.

Of the 42 ALK FISH/IHC positive patients, 30 (71%) TKI-naïve baseline patients were included (Figures 1,3). ALK rearrangements were detected by RT-PCR in 10/30 patients at baseline highlighting a sensitivity of 33.33% (95% CI: 17.29–52.81%). Of the 24 ALK FISH/IHC negative patients, all 24 patients were RT-PCR negative with a specificity of 100% (95% CI: 85.75–100%) (Figure 3). This results in a Cohen’s κ of 0.31 for samples tested at baseline.

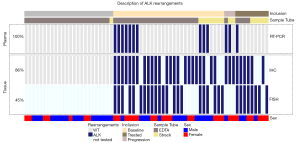

Figure 3 Oncoprint of ALK rearrangements. The detection of ALK rearrangements using the liquid biopsy RT-PCR assay (upper box) and the detection of ALK rearrangements from tissue (lower box) is highlighted. Additionally, the inclusion and blood collection tube are highlighted above, as well as the sex and age of the patients (below). The percentage of samples tested with the respective methods are highlighted to the left. ALK, anaplastic lymphoma kinase; RT-PCR, reverse transcription PCR.

In a subset of 21/30 (70%) patients, ALK FISH positive nuclei were assessed, and the percentage of positive nuclei ranged between 19% and 98% (median =58%). Receiver operator characteristics (ROC) were used to assess the relationship between the ratio of ALK rearrangement positive cells in FISH analysis and the positive outcome in the RT-PCR test (Figure S2). With an area under the curve (AUC) of 0.572 (95% CI: 0.341–0.782), no association was observed between FISH tumor cell positivity and false negative RT-PCR test results in this subset of patients. Likewise, the primary tumor size [which was measured in 15/30 (50%) patients] was not associated with RT-PCR result positivity (AUC =0.619; 95% CI: 0.278–0.890) (Figure S3). Additionally, the ratio of positive tests was comparable between the group with brain metastasis [3/7 (43%)] positive and the group without brain metastasis [6/16 (38%), positive fisher-exact test P value =1.00]. Importantly, there was no significant difference in test performance between samples stored in EDTA tubes [7/23 (30%) positive] and samples stored in BCT DNA tubes [3/7 (43%); positive fisher exact test P value: 0.657].

There were 12 ALK FISH/IHC positive patients who had been started on ALK TKI therapy. Of the 9 ALK positive patients who were currently on TKI therapy, only one (11%) yielded a positive fusion call. Interestingly, all 8 RT-PCR negative patients demonstrated an objective response to TKI treatment while the positively tested patient presented with a stable disease according to RECIST v1.1 (not shown). The remaining three non-baseline ALK positive patients were tested by RT-PCR at progression under TKI treatment, and two patients (66%) had a positive test result.

Discussion

The detection of ALK rearrangements at baseline in advanced lung cancer patients is mandatory to allow for the initiation of a targeted treatment. While the detection from tissue samples is routinely implemented as a gold standard, liquid biopsies are not well established and are challenging in this setting (8). Importantly, recent reports have demonstrated the use of NGS-based liquid biopsies; however, they did not compare the results directly to tissue sections or studied only a limited number of ALK-fusion positive patients (9,10). Using the here reported RT-PCR assay, we were able to detect ALK rearrangements from cfRNA with a sensitivity of 33% in baseline samples that were diagnosed based using FISH/IHC. ROC analyses of FISH nuclei positivity and primary tumor size did not show any association with ALK RT-PCR positivity of plasma specimens. However, we saw an inverse correlation between the total amount of extracted cfRNA and the internal control Ct value, which indicates that an increase of the plasma volume could increase the sensitivity of the assay. While the results are admittedly lower than expected, they are comparable to the results from recently reported NGS-based liquid biopsies assays made at baseline. Itotani et al. reported in a meeting abstract a positive percent agreement (PPA) of 44% for ALK fusions tested in tissue and circulating free DNA (cfDNA) with the majority of fusions only detected in the tissue samples using the Guardant 360 (Redwood City, CA-USA) assay (11). This result was independently confirmed by Supplee et al. who demonstrated a sensitivity of 50% using the same NGS assay (12). It is important to note that these studies used an NGS assay for both tissue and plasma testing, whereas this present study used FISH and IHC for tissue testing and RT-PCR for plasma testing. Similarly, Mezquita et al. reported a sensitivity of 67% at baseline, 46% at progression, and 11% under treatment, respectively for ALK and ROS1 rearrangements using the InVisionFirst-Lung NGS assay (Inivata, Morrisville, NC-USA) for plasma testing and a combination of FISH, IHC, and NGS for tissue testing (13). Interestingly and in line with the results reported in this study, a higher detection rate was observed in patients at progression than those under active anti-ALK treatment, suggesting that longitudinal tracking of ALK rearrangements under treatment might be predictive of response to therapy. Noteworthy, while most of the NGS studies used outsourced tests requiring an increased amount of blood (up to 30 mL of whole blood), the here reported RT-PCR assay used only 2 mL of plasma. Additionally, the turn-around time for the outsourced NGS tests is usually 1–2 weeks, whereas test results for the RT-PCR results can be obtained in less than one day. However, the coverage of RT-PCR tests is limited to fewer rearrangements and requires prior knowledge of variants, such as the known fusions detected in the present assay. In contrast, NGS panels are able to identify a broader spectrum of genomic rearrangements and especially newer assays analyzing the 5’/3’ imbalances have the potential to discover previously unreported fusion variants, which should increase the sensitivity (3). Also qRT-PCR based assays for the detection of novel variants using 5’/3’ imbalances have been developed for tissue samples and might also be adapted for its use in liquid biopsies (14). Indeed, one of the discordant plasma samples in this study, that was reported to be ALK fusion negative by RT-PCR but ALK fusion positive by IHC/FISH, was later sequenced on an NGS panel revealing a KLC-ALK fusion that is not covered by the RT-PCR assay. Importantly, the RT-PCR assay is also capable of detecting ROS1 fusions by adding a second reaction, which would detect the most frequent druggable fusion variants in NSCLC in one single assay. However, the ROS1 assay was not assessed in the present study as only a cohort of ALK positive patients was included and thus evaluation of the detection of RET or ROS1 rearrangements need to be performed independently.

Discordance between tissue and plasma-based tests have been attributed to biological factors such as tumor heterogeneity, tumor stage, and the variability in tumor shedding, which influences the amount of detectable mutant copies in liquid biopsies. Additionally, the here reported RT-PCR assay uses cfRNA rather than cfDNA. While there is still no consensus whether cfRNA is more suitable than cfDNA for ALK fusion detection from plasma, fusion RNA has interestingly been reported in exosomes isolated from plasma as well as in blood platelets (15). Therefore, other important factors to consider are the pre-analytical methods used during the whole blood collection and plasma processing steps (16,17). Importantly, the samples in this cohort were not specifically prepared for a cfRNA assay but used a protocol that was validated for the extraction of cfDNA. Consequently, adapting pre-analytical steps specifically for the use of cfRNA could also improve sensitivity of the assay. For example, the implementation of a double centrifugation spin during plasma separation, such as the one used in this study, may have adversely affected the recovery of exosomes and specifically other larger extracellular vesicles like macrovesicles or apoptotic bodies that might also contain significant amounts of RNA (data not shown). Additionally, due to the low stability of cfRNA, cooling of the blood directly after phlebotomy until plasma preparation might also be advised and was not performed in this protocol. Also, the use of blood collection tubes designed specifically to stabilize cfRNA may improve assay sensitivity. Further evaluation of pre-analytical methods is consequently urgently needed to determine the impact on assay performance and to establish standardized procedures for cfRNA processing.

Conclusions

Despite some limitations in sensitivity and spectrum of detected ALK rearrangements, this new RT-PCR assay was still able to detect ALK rearrangements in one third of patients, highlighting that a cfRNA-based RT-PCR assay using limited amounts of plasma is feasible. Admittedly, the low sensitivity highlights that a tissue biopsy remains standard of care. However, detecting ALK fusions in cfRNA could not only spare some patients an invasive procedure but also allow for longitudinal evaluation of fusion status. Nevertheless, improving the sensitivity of such an assay should be of highest priority to allow widespread implementation in routine clinical care.

Acknowledgments

Part of this research has been presented at the AACR 2020: 10.1158/1538-7445.AM2020-5299.

Funding: Reagents were kindly provided by Roche Molecular Systems, Inc., Pleasanton, CA, USA. This work was supported by the French Government (National Research Agency, ANR) through the “Investments for the Future” programs LABEX SIGNALIFE ANR-11-LABX-0028-01 and IDEX UCAJedi ANR-15-IDEX-01. This study was financially supported by a governmental grant from the French National Institute of Cancer (INCa PHRC; STALKLUNG01 13-APN-01), the “Cancéropôle PACA” and the “Conseil Départemental des Alpes-Maritimes”.

Footnote

Reporting Checklist: The authors have completed the STARD reporting checklist. Available at http://dx.doi.org/10.21037/atm-20-7900

Data Sharing Statement: Available at http://dx.doi.org/10.21037/atm-20-7900

Peer Review File: Available at http://dx.doi.org/10.21037/atm-20-7900

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-7900). SH reports personal fees from Qiagen, personal fees from Boehringer Ingelheim, other from Roche, outside the submitted work. JM is member of the advisory board of Merck, Roche, Astra-Zeneca, MSD, BMS, Pfizer, Hengrui, Daiichi, Boehringer, Pierre Fabre and reports research grants from Roche, Astra-Zeneca, Pierre Fabre. JR, ML and EO are full time employees from Roche Molecular Diagnostics, and have a patent App. No. 62/513,226 pending. DMS reports personal fees from Roche, Pfizer, Takeda, Abbvie, BMS, MSD, Astra Zeneca, Becton Dickinson, Novartis, Boehringer Ingelheim, outside the submitted work. MGD reports personal fees from AstraZeneca, BMS, Boehringer Ingelheim, Roche Diagnostics and grants and personal fees from Takeda, outside the submitted work; PH reports personal fees from Roche, Astra Zeneca, BMS, Novartis, Merck, MSD, Qiagen, Thermo Fisher, Biocartis, outside the submitted work. PH serves an unpaid editorial board member of Annals of Translational Medicine from Jul 2020 to Jun 2022. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All patients provided signed informed consent and the study was approved by the local ethics committee (No: 2014-A00417-40) and complied with the declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
