Human dermal fibroblasts support the development of human primordial/primary follicles in a 3-dimensional alginate matrix culture system

Introduction

Major advances in chemotherapy and radiotherapy have resulted in a marked improvement in the survival of young girls and women with cancer over the last decade (1). However, these treatments can put recipients at risk of losing their fertility (2,3). Ovarian cryopreservation and reimplantation studies in humans initially suggested the possibility of restoring follicular activity to some degree (4). However, ovarian tissue transplantation is associated with the risk of malignant disease transmission from cryopreserved tissue (5).

In recent years, the promise of in vitro growth of human pre-antral follicles as an option for safeguarding the fertility of cancer patients who face the risk of premature ovarian failure has been reported (6). To date, 2-dimensional system culture of isolated pre-antral human follicles has failed to yield adequate outcomes (7-11). However, recently, alginate hydrogel 3-dimensional (3D) systems have achieved success in the in vitro culture of pre-antral follicles from mice (12-16) and rats (17). Also, isolated bovine pre-antral follicles (after vitrification and warming) cultured using an alginate 3D system have been shown to have higher viability and a higher rate of normal morphology (18). Novel tyramine-based hyaluronan (HA) hydrogel is especially appealing as a 3D model for the cultivation of ovarian follicles, owing to its ability to encapsulate pre-antral follicles from mice with ease, together with its visible transparency, moldability, and contribution to follicular growth, estradiol secretion, and meiosis resumption (19). Non-human primate and human secondary follicles isolated from ovarian tissue have previously been successfully cultivated in calcium alginate hydrogels (20-24). Alginate has a strong affinity with water and, when calcium ions are present, is able to form gels under mild conditions; consequently, it is among the most commonly applied biomaterials for microencapsulation (25-29). However, alginate alone without well-defined signals (i.e., extracellular matrix or growth factors) does not interact with integrins of mammalian cells or regulate somatic cell growth and development (30,31), which is not conducive to the development of isolated human primordial/primary follicles (24). In a previous study, many putative local regulators (including extracellular matrix and cytokines) were secreted via autocrine and paracrine signaling between follicles and ovarian stromal cells, which appeared to influence the development of human primordial/primary follicles (6,32,33). For instance, growth differentiation factor 9 (GDF9) and bone morphogenetic protein 15 (BMP15), which are secreted by oocytes, are believed to play critical synergistic roles in the proliferation and development of granulosa cells (24).

Therefore, the effective and safe supplementation of extracellular matrix and cytokines in alginate gel to simulate the development pattern of follicles in vivo is a crucial step in ameliorating the in vitro culture microenvironment of isolated human follicles. Recently, theca-interstitial cells (TICs) (34) and mouse embryonic fibroblasts (MEFs) (35) were used to enhance mouse follicle survival and growth in vitro, which can secrete extracellular matrix and cytokines in in vitro culture. These studies suggested that co-culture 3D systems may be beneficial for the development of follicles. As feeder cells, human dermal fibroblasts (HDFs) secrete extracellular matrix and cytokines, which have the effects of enriching the medium, adhering to the extracellular matrix, or interacting with membrane-bound proteins, thus supporting the successful development of human embryonic stem cells and embryos in vitro (36). In the present study, we primarily focused on exploring the distribution and viability of HDFs in alginate scaffold microcapsules, and also attempted to investigate the effects of fibroblasts in calcium alginate scaffold on human primordial/primary follicular growth and survival in vitro.

We present the following article in accordance with the MDAR reporting checklist (available at http://dx.doi.org/10.21037/atm-21-2125).

Methods

Human ovarian tissue collection

The present study was approved by the Ethics Committee of the First Maternity and Infant Hospital Affiliated to Tongji University (No. TJLAC-018-062). All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). Strips of ovarian tissue were obtained from 34 women (aged 23 to 37 years) with benign gynecological diseases by laparoscopic surgery or laparotomy. Dermal tissue was obtained from 1 male patient (aged 24 years) who had undergone posthectomy. Ovarian and dermal tissue specimens incubated with HEPES-buffered modified Eagle medium were placed on ice and sent to the laboratory. Written informed consent was obtained from every participant in the study.

Freezing/thawing of the ovarian tissues

The ovarian tissue strips were frozen following a method detailed previously (37) with some modifications. Firstly, tissues were suspended in a tube containing 1 mL minimal essential medium (MEM), which was subsequently replaced with an identical quantity of cryoprotective solution with 10% dimethyl sulfoxide (DMSO) Sigma, St Louis, MO, USA) and 2% human serum albumin (Sanquin, Amsterdam, the Netherlands) in MEM (Gibco) at 0 °C. The cryotube was frozen using a programmable freezer according to the following steps: cooling from 0 to –8 °C (–2 °C/minute), seeding via touching the cryovials with forceps pre-chilled with liquid nitrogen, cooling to –150 °C (–0.3 °C/minute), and transfer to a liquid nitrogen tank. The ovarian tissue specimens were thawed by exposing the cryovials to room temperature for 2 minutes and immersing them in a water bath at 37 °C to completely melt the ice. The ovarian tissues were transferred to MEM-containing Petri dishes and subjected to washing 3 times to isolate follicles.

Ovarian follicle isolation

The isolation of follicles from ovarian tissue was performed using a procedure described in a previous study (38). Ovarian tissue was serially cut into small fragments measuring 1 mm in width using the McIlwain Tissue Chopper (The Mickle Laboratory, Guildford, UK). Then, we placed the fragments into 50-mL tubes with 0.07 mg/mL Liberase enzyme (Roche, Indianapolis, USA) and 20 U/mL DNA enzyme (Sigma-Aldrich Co. Carlsbad, CA, USA) before incubating the tubes in a water bath at 37 °C for 1 hour. The tube contents were subjected to blowing and aspiration with Pasteur pipettes at 15-minute intervals. An equal volume of MEM (with 10% human serum albumin) and centrifugation at 50 g for 10 minutes at 4 °C were used to terminate digestion. The pellets were transferred to culture dishes, and a stereomicroscope was used to investigate the follicles (Leica, Wetzlar, Germany). Dulbecco’s Phosphate-Buffered Saline (D-PBS) with 10% human serum albumin was used to wash the follicles after isolation.

Proliferation and isolation of HDFs

HDFs were isolated from skin specimens according to the previously described protocol (39). Briefly, samples of subcutaneous adipose tissue were removed and cut into 2 mm × 2 mm strips using Dispase II (Roche, Penzberg, Germany). After the careful removal of the epidermal layer, the dermis was minced and subjected to 3 hours’ incubation under magnetic rotation with 0.1% collagenase I (Roche, Penzberg, Germany). A mesh stainless steel mesh filter (BD biosciences, Hamburg, Germany) was used to filter the mixture, after which the filtrate was centrifuged (10 minutes at 100 ×g) 3 times with Dulbecco’s Modified Eagle Medium (DMEM, 0.15% human serum albumin) for washing. A hemocytometer was employed for cell counting. Cell viability exceeded 95%, as determined by 0.5% Trypan Blue exclusion.

Fibroblasts were plated separately at 2×10⁶/mL in a 25-cm² culture flask (Nunc Inc., Roskilde, Denmark) at 37.0 °C in a humidified atmosphere of 5% CO2 in air. Medium changes were conducted at 2-day intervals until confluency had been reached, at which point, the cells were rinsed 2 times with phosphate-buffered saline (PBS) without Ca²⁺ and Mg²⁺. For fibroblast collection, cells were subjected to incubation in 0.02% trypsin PBS and ethylenediamine tetraacetate dihydrate (EDTA) at 37.0 °C for 2 to 4 minutes followed by centrifugation (10 minutes at 100 ×g) with DMEM 3 times for washing. The cell sediment was suspended in 1 ml of the frozen solution (10% DMSO10% FBS + 90% DMEM) in cryovials. The cryovials were placed on the surface of liquid nitrogen for 30 minutes, and then quickly put into liquid nitrogen. We thawed the cryovials by immersing them in a water bath at 37 °C for 3 minutes until all the ice had melted. Then, for washing, the frozen cell suspension was centrifuged (10 minutes at 100 ×g) with DMEM 3 times.

Embedding and in vitro culture of follicles

Follicles were randomly divided into the alginate group (AG) and the fibroblast-alginate group (FAG) (sodium alginate 55–65% guluronic acid, FMC BioPolymers Philadelphia, PA). Culture was conducted using a procedure previously reported (24) with modifications, as follows: Isolated single follicles were transferred with a stripper tip to droplets (6 µL) of alginate hydrogel solution (1.5% w/v) or HDF alginate hydrogel solution [HDF concentration (5×10⁴/mL) in 1.5% (w/v) alginate hydrogel]. The droplets were slowly released into a small beaker containing a CaCl2 (0.1 M) solution. Then, the beads in which the follicles were contained were removed from the beaker and subjected to 3 washes with MEM.

We grew the follicles in 96-well plates (with 1 follicle per well) in 100 µL culture medium comprising MEM supplemented with 10% human serum albumin, 0.47 mM pyruvic acid (Sigma), 50 IU/mL penicillin (Sigma), and 50 mg/mL streptomycin sulfate (Sigma) with 5% CO₂ at 37 °C. The addition of insulin, transferrin, and selenium (ITS-G; Gibco) was also made to the medium (10 mg insulin/mL, 5.5 mg transferrin/mL, and 6.7 ng sodium selenite/mL). At 2-day intervals, 50% of the culture media was replaced. All follicles were photographed with a Leica DM IL light microscope (Leica, Wetzlar, Germany) equipped with phase objectives, a heated stage, and a Spot Insight 2 Megapixel Color Mosaic camera and Spot software (Spot Diagnostic Instruments, Sterling Heights, MI, USA). After that, ImageJ (National Institutes of Health, USA) was used to measure the follicular diameter. Oocyte diameters were measured without zona pellucida.

Frozen sections and scanning electron microscopy of HDF-alginate hydrogels

The beads in the FAG were coated with OCT (a water-soluble polyethylene glycol and polyvinyl alcohol mixture) embedding medium for frozen head. The cold head was quickly put in a LEICA CM1950-type frozen section machine (Leica Mikrosysteme Vertrieb GmbH Leica Wetzlar, 35578 Germany), frozen on stage at –25 °C for 3 minutes, and was frozen sections, cold dry, 10% neutral formaldehyde 40 seconds, hematoxylin-eosin (HE) staining, dehydration, cementing. Fibroblasts were observed under a microscope. The beads in the FAG were also fixed in 2.5% glutaraldehyde for 48 hours and dehydrated in gradient volume fractions of ethanol (0.70, 0.85, 0.95, and 1.00), which was followed by critical point drying and vacuum coating with pure gold. Fibroblast distribution was observed with an SM-T300 scanning electron microscope (SEM) (JEOL Technics Co., Ltd., Tokyo, Japan).

Detection of follicular activity

The viability of follicles was assessed as described previously (40). We subjected follicles to incubation in D-PBS containing 2 mmol/L calcein-AM and 5 mmol/L ethidium homodimer-I for 20 minutes at 37 °C in darkness. After washing in PBS, the follicles were examined using an inverted fluorescence microscope (DMIRB Leica Germany). In live cells, esterases cleave non-fluorescent cell-permeant calcein-AM after its entry into the cell, resulting in the production of calcein, which is well retained in living cells and lends itself to an intense uniform green fluorescence (ex/em 495/515 nm). Ethidium homodimer-I binds to DNA with high affinity in cells with membrane damage, leading to a 40-fold enhancement in fluorescence and the production of bright red fluorescence (ex/em 495/635 nm) in dead cells.

3H-thymidine incorporation capability of granulosa cells

Culture medium was replaced with medium supplemented with 0.4-Ci methyl-3H-thymidine (PerkinElmer, Boston, USA; 1 µci/100 µL) per well. Sixteen hours later, 5 follicles isolated from the FAG or AG were collected for each replicate and subjected to 2 washes with D-PBS, followed by dissolvement in 10 mM EDTA. Next, a 3H-thymidine incorporation assay was performed.

Nested quantitative real-time PCR

Follicles were removed from the alginate beads using insulin gauge needles. Follicles were transferred to culture dishes with 0.04 mg/mL Liberase enzyme (Roche, Indianapolis, USA) for 15 minutes, and mechanical separation of individual oocytes was performed via repeated aspiration using a narrow-bore Pasteur pipette under a stereomicroscope (Leica, Wetzlar, Germany). The gene expression of BMP15 and GDF9 in oocytes of FAG and AG were detected by Nested Quantitative Real-Time PCR assay as previously reported (41). Total RNA was extracted and reverse transcribed into complementary DNA, which was then amplified; finally, quantitative real-time PCR was carried out with Tagman probes (Shanghai Shinegene Molecular Biotechnology Co., Ltd.). Cycle threshold (CT) values indicating the quantity of the target gene in each sample were obtained, and target gene sequence determination was carried out in real time with the ABI Prism 7000 sequence detection system (Applied Biosystem, Foster City, CA). For each sample, the abundances of GDF9 and BMP15 messenger RNA (mRNA) were determined, with β-actin mRNA serving for normalization. For each sample, 3 replicates were performed, with the mean value taken for statistical analysis. Relative gene expressions were calculated according to the abundance ratio of each target gene to β-actin.

Statistical analysis

SPSS 11.5 (SPSS Inc.) was employed for all statistical analyses. Follicle viability was compared by performing the chi-square test. Follicular diameters were expressed as means ± standard deviations, with the paired-sample t-test applied for comparisons. The Mann-Whitney U test was used to compare BMP15 and GDF9 mRNA expression between the 2 groups. P<0.05 was indicative of a statistically significant difference.

Results

HDFs support the development of follicles in 3D culture system

The morphology of HDFs (5×10⁴/mL) in the FAG was studied by HE staining and SEM (Figure 1A,B). Fibroblasts in the fibroblast-alginate matrices group were round in shape, and were distributed as uniform clouds on the surface and gaps in alginate matrices (Figure 1C,D,E,F). The viability of fibroblasts in alginate matrix after 21 days of culture is shown in Figure 2.

Figure 1 Characterization of fibroblasts in alginate matrix. Light microscope: (A) ×50, (B) ×100, after encapsulation and culture, fibroblasts (FC) were round, uniform clouds on the surface and in the gaps of the alginate; scanning electron microscope: (C,D,E,F).

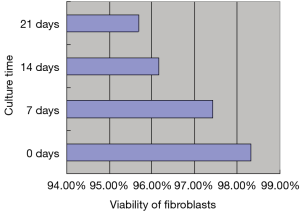

Figure 2 The viability of fibroblasts in alginate matrix in vitro after 21 days of culture. After 0, 7, 14, and 21 days of culture, the survival rate of fibroblasts in the fibroblast (FC)-alginate group did not show a statistically significant difference. P>0.05.

Follicles were randomly divided into the FAG (n=68) or AG (n=63), and were cultured for 21 days (Figure 3). Initially, the follicle diameter in the FAG and AG did not show a significant difference (P>0.05). However, following 21 days’ culture, follicles cultured in HDF-alginate matrices showed a significant increase in size compared to those cultured in alginate matrices, and the oocyte diameter in the FAG was significantly greater than that in the control group (Table 1). Follicle viability was assessed by calcein-AM and ethidium homodimer-I in vitro culture, and the results are shown in Figure 4. After culture for 21 days, the survival rate of follicles in the FAG and AG was statistically significantly different (Figure 5). Alginate hydrogel with an HDF concentration of 5×10⁴/mL effectively enhanced follicular survival.

Figure 3 Scale bar: 100 µm. Follicles in the fibroblast (FC)-alginate group (FAG). Follicles in the alginate group (AG). FAG-1 and AG-1 after 7 days of culture; FAG-2 and AG-2 after 14 days of culture; FAG-3 and AG-3 after 21 days of culture. Follicles were examined for size measurements using an inverted Leica DM IRB microscope with transmitted light and phase objectives (Leica, Bannockburn, IL, USA).

Table 1 Diameter of follicles cultured under different 3-dimensional culture systems for 21 days
Full table

Figure 4 Follicular viability under 3D culture systems after 21 days of in vitro culture. The viability of follicles in the fibroblast-alginate group (FAG) and the alginate group (AG) after in vitro culture. The first line (FAG-V1, AG-V1) shows follicles under a light microscope. The second (FAG-V2, AG-V2) and third (FAG-V3, AG-V3) lines show follicular viability assessed by calcein-AM and ethidium homodimer-I (Leica inverted fluorescence microscope). Scale bar: 100 µm.

Figure 5 Proportions of viable follicles in the fibroblast-alginate group (FAG) and the alginate group (AG) after culture for 21 days. *the viability of follicles in the FAG (96.17%) was significantly higher than that in the AG (80.32%) (P<0.05). FAG, follicles embedded in fibroblast-alginate matrix; AG, follicles embedded in alginate matrix.

Proliferation of human follicular somatic cells

A [3H]thymidine incorporation assay was performed to assess human follicular somatic cell proliferation in the FAG and AG after 21 days culture. Following the completion of culture, incorporation of [³H]thymidine by follicles was observed under all media conditions, which indicated the occurrence of DNA replication and consequential cell proliferation. Also, [³H]thymidine incorporation was significantly increased in follicles subjected to co-culture with fibroblasts in alginate matrices in comparison with follicles cultured without fibroblasts (Table 2).

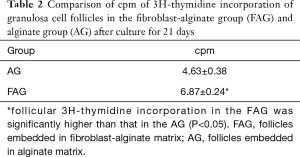

Table 2 Comparison of cpm of 3H-thymidine incorporation of granulosa cell follicles in the fibroblast-alginate group (FAG) and alginate group (AG) after culture for 21 days
Full table

The FAG had higher expression levels of GDF9 and BMP15 mRNA in oocytes

To establish whether the expression levels of growth-related factors could reflect human follicle development, the oocyte-specific markers GDF9 and BMP15 were examined using real-time PCR after 21 days’ culture, and comparisons were conducted between oocytes from the FAG and AG. After 21 days, the expressions of GDF9 and BMP15 mRNA in oocytes in the FAG were significantly higher than those in the AG (P<0.05) (Table 3).

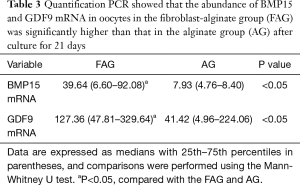

Table 3 Quantification PCR showed that the abundance of BMP15 and GDF9 mRNA in oocytes in the fibroblast-alginate group (FAG) was significantly higher than that in the alginate group (AG) after culture for 21 days
Full table

Discussion

As far as we are aware, the present study is the first to evidence that human primordial/primary follicles can grow in HDF-alginate matrices after 21 days’ culture, which proves that HDFs in alginate matrix are a suitable support for in vitro long-term culture of isolated human primordial/primary follicles.

The development of technologies to grow and mature oocytes from primordial/primary follicles holds much attraction for researchers studying fertility preservation (42). To date, researchers have created hydrogel encapsulation-based follicle culture systems with biomaterials, including alginate, which can maintain the spherical structure and cell–cell interactions of the follicles (22). In our study, follicles in the FAG showed substantial growth during the 21-day culture period, reaching a mean size of 150 µm. A previous study using an an alginate matrix culture system reported that follicles (34–51 µm) derived from cryopreserved tissue survived for 7 days and grew to 44–70 µm (24). In the present study, the survival rate of primordial/primary follicles in the FAG was significantly higher than that of the control follicles after a relatively long culture period (21 days), showing that human foreskin fibroblasts had a significant effect on the survival of encapsulated follicles. When cultured within a 3D extracellular matrix such as collagen or fibrin, fibroblasts, as feeder cells, can secrete a richer, more complex extracellular matrix and cytokines, to influence other cellular functions in the in vitro culture environment (43). Various factors (including extracellular matrix, leukemia inhibitory factor (LIF), basic fibroblast growth factorb (FGF), kit ligand or stem cell factor, insulin-like growth factor, bone morphogenetic proteins, and activin A), which are secreted by fibroblasts, are critical in early follicle development (6). The results of the present study strongly suggest that extracellular matrix and cytokines secreted by fibroblasts in 3D alginate matrices may create a superior microenvironment for the growth of primordial/primary follicles. Therefore, unidirectional paracrine signaling from HDFs to follicles is seemingly the mechanism responsible for the stimulatory effect of HDFs on follicular growth. Nevertheless, this study did not attempt to identify the critical factors supporting and stimulating follicle growth by testing the extracellular matrix or cytokines secreted by HDFs. Therefore, more studies are required to investigate which types of HDF-secreted extracellular matrix or cytokines in 3D-alginate matrix are involved in regulating the initiation of human primordial/primary follicle growth during in vitro culture. A previous study also showed that the addition of low-dose 1,25-dihydroxy vitamin D3 (VD3) increased the survival of pre-antral follicles and maintained Anti-Mullerian hormone (AMH) production by antral follicles, whereas high-dose VD3 improved antral follicle growth (44). In future, more studies are needed to reveal which factors can enhance the survival and growth capabilities of human pre-follicles encapsulated within human fibroblast-alginate matrix during culture.

There are reports of BMP15 and GDF9 expression in primordial as well as primary follicles (45-49) in humans at various developmental ages. Wang and Roy reported that recombinant GDF-9 derived from oocytes increased the numbers of primary and secondary follicles in ovarian cortical samples from humans and rodents in vitro, indicating it to play a critical part in the initiation and progression of follicular growth (50). Furthermore, BMP-15 has been shown to stimulate granulosa cell proliferation in a follicle stimulating hormone (FSH)-independent way (51). A previous study suggested that GDF9 and BMP15 expression in oocytes of patients with polycystic ovary syndrome could not be restored to a normal level, even by ovarian stimulation. In the same study, these factors were found to have abnormal expression patterns during oocyte maturation, which may be related to the impairment of oocyte quality and developmental competence in polycystic ovary syndrome (52). In the present study, the levels of GDF9 and BMP15 in oocytes in the FAG were significantly higher than those in the control group after 21 days’ in vitro culture, which enabled the culture of human follicles within alginate hydrogels. However, the exact mechanism of how HDFs increase the expression of GDF9 and BMP15 in oocytes cultured in alginate hydrogels in vitro needs further investigation.

The results of this study show that the technologies of human primordial/primary follicles and HDFs in alginate gel co-culture systems may benefit young female patients with cancer who have undifferentiated status and large numbers of primordial follicles in helping to preserve their fertility. Theoretically speaking, the presence of ovarian-derived fibroblasts may be conducive to the development of human follicles in vitro. However, the procedure of isolating and purifying ovarian-derived fibroblasts is more likely to be mixed with tumor cells. The advantages of isolating HDFs from healthy human derma are that they are homogenous, easy to produce, and commercially available (53). One of shortcomings of our research is that the HDFs were derived from male skin; in future, it is necessary to establish a fibroblast line derived from skin of a healthy female patient for the development of follicles in vitro.

In conclusion, our study has revealed that isolated human primordial/primary follicles encapsulated in human fibroblast-alginate matrix have greater capability to survive and grow during culture. However, it should be pointed out that the developmental competence of human oocytes from follicles was not examined in this study. Therefore, further studies are required to investigate the physiology of oocytes of human follicles in HDF-alginate matrices.

Acknowledgments

Funding: This study was supported by funding from Scientific Research Project funded by Shanghai Municipal Commission of Health and Family Planning (No. 201740170).

Footnote

Reporting Checklist: The authors have completed the MDAR reporting checklist. Available at http://dx.doi.org/10.21037/atm-21-2125

Data Sharing Statement: Available at http://dx.doi.org/10.21037/atm-21-2125

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-21-2125). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). The present study was approved by the Ethics Committee of the First Maternity and Infant Hospital Affiliated to Tongji University (No. TJLAC-018-062). Written informed consent was obtained from every participant in the study.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
