The effect of enhanced bone marrow in conjunction with 3D-printed PLA-HA in the repair of critical-sized bone defects in a rabbit model

Introduction

The treatment of critical-sized bone defects caused by high-energy trauma, infection, or tumor resection remains a substantial challenge in the field of orthopedics (1-3). Traditionally, the iliac crest has been the most common harvesting site for autologous bone grafts; however, it has some limitations, including poor availability and donor-site morbidity (4-6). Therefore, new bone substitutes need to be developed for the repair of large bone defects.

Intramedullary reaming and nailing is widely known to be suitable for treating long-bone nonunions (7). In the process of reaming, debris, which is referred to as enhanced bone marrow (eBM), is produced. Previous studies have shown that eBM obtained from the reaming of long-bone medullary canals containing large quantities of stem cells has the potential to accelerate bone repair and regeneration (8-10). Given its excellent properties for bone repair, eBM has become an alternative autologous bone graft harvested from bone cavity and overcomes some of the drawbacks of iliac crest bone grafts (10). However, eBM does not possess the gross anatomical structure required to guide bone repair and regeneration.

Recently, the field of bone tissue engineering (BTE) has been developing rapidly, and various promising biomaterials have emerged and have been widely applied for bone repair and regeneration (11,12). The use of osteogenic cells combined with various growth factors and biocompatible scaffolds can greatly promote bone repair. As one of the 3 key elements of BTE, scaffolds can provide the necessary spatial and structural support for cellular growth. An ideal tissue engineering scaffold should exhibit some excellent properties, such as biocompatibility, osteoinductivity, and osteoconductivity, and possess an appropriate pore size and porosity (13,14).

In recent decades, hydroxyapatite [HA; Ca₅(PO₄)₃OH] and beta-tricalcium phosphate [β-TCP; Ca₃(PO₄)₂] have been widely applied to facilitate bone repair and regeneration in clinical settings due to their recognized biocompatibility and osteoconductivity (15,16). Previous studies have also shown that single-phase materials cannot perfectly meet the needs of BTE scaffolds (17). To construct synthetic scaffolds, HA and β-TCP have been incorporated into polymers, such as poly(lactic acid) (PLA), polycaprolactone (PCL), poly(ethylene glycol) (PEG), and poly(lactic-co-glycolic acid) (PLGA) (18). The polylactide–hydroxyapatite (PLA-HA) composite has great biocompatibility, degradability and good mechanical properties, and thus has attracted significant attention and been investigated widely (19-22). However, the osteoinductivity of the scaffold needs to be enhanced. Thus, we hypothesized that the PLA-HA composite could provide mechanical support for seeded eBM and be used to construct a complex scaffold to facilitate bone repair and regeneration.

Three-dimensional (3D)-printing techniques represent a new way to construct BTE scaffolds. These techniques can be applied to fabricate different forms on the basis of bone defects, and provide a suitable environment for cell attachment and proliferation (23,24). They have been used for the formation of polymer products, including implants and medical devices. In the present study, we applied a 3D-printing technique to build synthetic PLA-HA scaffolds.

In the present study, we used a method (25) that mimicked the reamer-irrigator-aspirator technique to acquire eBM. Using a 3D-printing technique, 3D-printed PLA-HA scaffolds were successfully fabricated. We hypothesized that eBM in conjunction with PLA-HA could be used to facilitate bone repair and bone regeneration in the treatment of critical-sized bone defects. We present the following article in accordance with the ARRIVE reporting checklist (available at https://dx.doi.org/10.21037/atm-20-8198).

Methods

Preparation and characterization of 3D-printed PLA-HA hybrid scaffolds and cell seeding onto scaffolds

All chemicals were obtained from Sigma Aldrich (Shanghai, China). A 3D-Bioplotter™ (Envision TEC GmbH, Germany) was used to construct the 3D-printed scaffolds using a computer. First, PLA particles (mean molecular weight ~20.0×10⁴ Da) were dissolved in 1, 4-dioxane. HA powders (particle size ~50 m) were then added to the PLA solution and stirred for 12 h to form a uniform PLA/HA paste using a ratio of 7:3. Next, the cylinder models were loaded into 3D bioplotter software. The 3D-printed scaffolds were fabricated to have an outer diameter of 5 mm, an inner diameter of 2 mm, and a height of 15 mm for the in-vivo experiments.

High-resolution micro-computed tomography (Scanco Medical, μCT; Switzerland) was used to assess the porosity and average pore size of the scaffolds. The data were analyzed by μCT. Scanning electron microscopy (SEM; USA) was performed to observe the microstructure and morphology of the 3D-printed scaffolds.

Mesenchymal stem cells (MSCs) isolated from the eBM were used. Cell suspension was seeded at a density of 1×10⁵ cells on the 3D-printed scaffolds in 24-well plates. Cell spreading and focal adhesion formation were assessed after 24 hours of culture (37 °C and 5% carbon dioxide in a humidified incubator). SEM was used to observe the attachment of cells onto the scaffolds.

Animal groups

Twenty-seven adult New Zealand white rabbits were included (aged 6 months and weighing 2.5±0.25 kg). The rabbits were housed in separate cages, fed a standard diet, and allowed free movement during the experimental period. The 27 rabbits were randomly divided into the following 3 groups (n=9): (I) the control group (critical-sized bone defects without treatment); (II) the PLA-HA group (critical-sized bone defects treated with implantation of 3D-printed PLA-HA scaffolds); or (III) the PLA-HA/eBM group (critical-sized bone defects treated with 3D-printed PLA-HA scaffolds in conjunction with eBM). All experiments were performed under a project license (no. HKDL [2018] 499) granted by the Animal Care Committee of Shanghai Jiao Tong University, in compliance with the guidelines for the care and use of animals of Shanghai Ninth People’s Hospital Affiliated Shanghai Jiao Tong University School of Medicine.

Surgical procedure

A large bone defects rabbit model was used in this study. Anesthesia was given in the form of 3% pentobarbital sodium (30 mg/kg) via intramuscular injection. Unilateral 15-mm critical-sized defects were constructed in the middle of the left radius. In the control group, no treatment was given. In the PLA-HA group, a 3D-printed PLA-HA scaffold was inserted at each bone defect site. In the PLA-HA/eBM group, a 2-mm drill was used to ream the distal femur and a medullo-puncture needle was used in the proximal femur. Suction was carried out simultaneously with drill reaming. A 10-mL syringe was used to inject eBM into the hollow tunnel of the scaffold. Subsequently, the scaffold material in the tube was soaked with the eBM and mixed well for 10 minutes. The 3D-printed PLA-HA scaffold together with the eBM was inserted into the bone defect site. Figure 1 provides a schematic illustration of the use of eBM in conjunction with 3D-printed PLA-HA scaffold in the repair of a critical-sized bone defect in the rabbit model. X-ray and μCT evaluation of critical-sized bone defect repair.

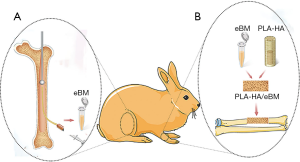

Figure 1 Schematic illustration of enhanced bone marrow (eBM) in conjunction with three-dimensional (3D) PLA-HA scaffolds on repairing long bone defects in a rabbit model. (A) eBM harvest. (B) PLA-HA/eBM scaffolds were implanted into bone defects.

At 0 weeks (i.e., immediately after the operation), 4 and 8 weeks, X-rays of the defect sites were performed using an X-ray machine (Faxitron X-ray Corporation, USA). Lane-sandhu X-ray scores (26) were used to compare the effect of bone healing in each group. At 8 weeks, all of the animals were sacrificed, and a μCT (μCT-80, Switzerland) analysis was subsequently conducted to assess bone healing. A global threshold procedure was used to analyze the bony compartments. The threshold of bony tissue was greater than or equal to 150. The threshold of soft tissue and implanted composite scaffolds was below 150. In this study, a cylindrical area of 15 mm, including the bone defect site of the radius in the center, was selected as the region of interest to quantify the bone volume (BV) and the bone volume/total volume (BV/TV).

Histological evaluation

After μCT scanning, the radius specimens were decalcified in 12% ethylenediaminetetraacetic acid disodium salt (EDTA-2Na; Sangon Biotech, China) for 4–5 weeks, dehydrated in a graded series of alcohol, and embedded in paraffin for histological sectioning. Sections with a thickness of 6 μm were cut and stained with hematoxylin and eosin (HE). The stained sections were observed microscopically, and newly formed bone was evaluated with Image Pro Plus 6.0 software (Media Cybernetics, USA).

Statistical analysis

One-way analysis of variance using SPSS 22.0 software (SPSS Inc., Chicago, IL, USA) was conducted to analyze the results. The results were expressed as the mean ± standard deviation (SD) from at least 3 independent experiments. A value of P<0.05 was defined as being statistically significant.

Results

Structure of the 3D-printed PLA-HA scaffolds and cell attachment on the scaffolds

We successfully fabricated 3D-printed PLA-HA scaffolds using a 3D-printing technique. The 3D-printed PLA-HA scaffolds were indicated by μCT and SEM to be hollow cylindrical structures, similar to long bones, possessing a porous wall structure, with a pore size of 500±47.1 μm and 60%±3.5% porosity (Figure 2). Well-spread MSCs were observed on the scaffolds.

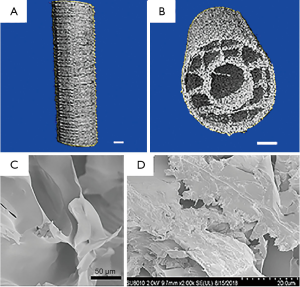

Figure 2 Microstructure and morphology of 3D PLA-HA scaffolds. (A,B) µCT (scar bar =1 mm), (C) Scanning electron microscopy (SEM) of 3D PLA-HA scaffolds. (D) Well spread MSCs was observed on the scaffold (scar bar =20 µm).

Gross observation, X-ray, and µCT evaluation

All animals recovered well from the operative procedure (Figure 3). No infections or other complications were observed. Three rabbits in each group were sacrificed for analysis. At 4 and 8 weeks, X-rays indicated that bone healing was obviously better in the PLA-HA/eBM group than in the other 2 groups (Figure 4A). Furthermore, the lane-sandhu X-ray score in the PLA-HA/eBM group was significantly higher than that in the PLA-HA group (P<0.01), and the scores of both these groups were superior to that of the control group (P<0.01) (Figure 4B). In the PLA-HA/eBM group, μCT showed bone tissue regeneration to be enhanced compared to that in the PLA-HA group (Figure 5A). At 8 weeks, μCT analysis showed that the BV (Figure 5B) and BV/TV (Figure 5C) in the PLA-HA/eBM group were significantly higher than those in the PLA-HA group (P<0.01), and the results of both groups were superior to those of the control group (P<0.01).

Figure 3 Surgical procedure. (A) The isolation of eBM. (B) The radial bone defect was constructed. (C) eBM was loaded into3D printed PLA-HA scaffolds. (D) The defects were treated with nothing (control group). (E) The defects were treated with 3D printed PLA-HA scaffolds (PLA-HA group). (F) The defects were treated with eBM in conjunction with 3D printed PLA-HA scaffolds (PLA-HA/eBM group).

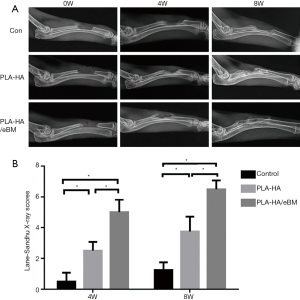

Figure 4 Evaluation of critical-sized bone defect repair with X-rays. (A) X-rays of radial bone defect in control group, PLA-HA group, PLA-HA/eBM group at 0, 4 and 8 weeks. (B) Lane-Sandhu X-ray scores in all groups taken at 4 and 8 weeks post-operatively. *P<0.01.

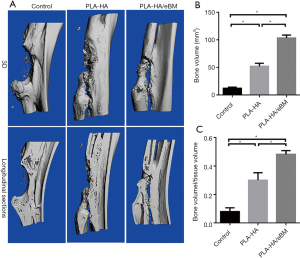

Figure 5 Evaluation of critical-sized bone defect repair with Micro-CT. (A) Representative Micro-CT images (3D and longitudinal sections) of radial long bone defects reconstructed in the control group, the PLA-HA group, and the PLA-HA/eBM group at 8 weeks. (B) bone volume (BV), (C) bone volume/tissue volume (BV/TV) within the defects of the radius at 8 weeks. *P<0.01.

Histological evaluation

At 8 weeks, a large amount of fibrous tissue and a small amount of new bone had grown at bone defect sites in the control group. The largest amount of new bone tissue formed was observed in the PLA-HA/eBM group (Figure 6A). HE staining indicated that the area of new bone in the PLA-HA/eBM group was significantly larger than that in the PLA-HA group (P<0.01), and the results of both groups were superior to those of the control group (P<0.01) (Figure 6B).

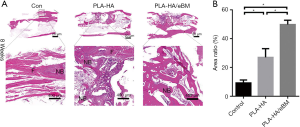

Figure 6 Evaluation of critical-sized bone defect repair with HE staining. (A) Representative images of HE staining in different groups at 8 weeks (NB: new bone; F: fibrous tissue; scale bars =400 µm). (B) The area ratio of NB at 8 weeks. *P<0.01.

Discussion

The management of critical-sized bone defects remains a huge challenge, and substitute materials for implantation are needed (27). Currently, numerous strategies have been developed for the treatment of critical-sized bone defects, such as autologous bone transplantation and the application of allografts (28-30). However, as mentioned above, the limitations of these strategies have hampered their application. Over the past decade, eBM tissue has been investigated as a bone graft to facilitate bone repair and regeneration. By providing a large quantity of tissue to fill defect sites, eBM can successfully facilitate bone regeneration. In recent years, BTE has emerged as a new solution for constructing the substitute material for bone repair (31). Researchers have afforded 3D-printing techniques considerable attention for the preparation of advanced BTE scaffolds with biomimetic structures (32). In the present study, we investigated the effect of eBM in conjunction with 3D PLA-HA scaffolds in the repair of long radial defects in rabbits.

Previous studies have indicated that eBM contains a large quantity of tissue, including fragments of fat, cartilage, bone, and intact pieces of vasculature, and provides concentrations of osteoprogenitor cells and growth factors that have the potential to facilitate bone repair and regeneration (7). The reamer-irrigator aspirator (RIA) technique can be used to obtain a voluminous amount of bone graft, which appears to have superior growth potential compared to the iliac crest bone graft (33,34). In the present study, we used a 2-mm drill to make holes and ream the distal femur, and a medullo-puncture needle was used in the proximal femur. We successfully obtained large amounts of eBM. Owing to its capacity to accelerate bone repair and regeneration, eBM can serve as a bone substitute graft. However, due to its putty-like shape, eBM cannot impart load-bearing mechanical integrity. In the field of BTE, 3D-printing is a promising technology, as it permits the creation of patient-specific implants with complex porous architectures.

In the present study, 3D-printed PLA-HA scaffolds were successfully fabricated using a 3D-printing technique to provide mechanical support for seeding eBM. Pore size is a scalar quantity that describes the diameter of a hole. The porosity of a material is the percentage of the pore volume of a block material relative to the total volume of the material in its natural state. To facilitate bone formation, bioactive scaffolds should have a porous structure and porosity which are conducive to bone repair, vascular access, and adequate oxygen supply (16). Large pores of 200–500 μm in the scaffold improve bone growth and capillary formation (35). Similar to long bones, 3D-printed PLA-HA scaffolds are hollow, cylindrical structures. These scaffolds possess a porous wall structure, a pore size of 500±47.1 μm, and 60%±3.5% porosity. They can provide adequate room for eBM and an attachment surface onto which MSCs can proliferate and differentiate. Good biocompatibility is an essential property of scaffold materials. Consistent with the findings of previous research (19), we found that MSCs grew well on the surface of PLA-HA scaffolds.

In the current study, critical-sized bone defects were successfully developed in a rabbit model. We harvested eBM using our method, and 3D-printed PLA-HA scaffolds (produced using a 3D-printing technique) were used. Radiological and histological methods were applied to investigate the effect of bone repair and bone regeneration in each group of rabbits. At 4 and 8 weeks, X-rays indicated that bone healing in the PLA-HA/eBM group was obviously better than that in the other 2 groups. Additionally, the lane-sandhu X-ray score in the PLA-HA/eBM group was significantly higher than that in both the PLA-HA group and the control group (P<0.01). At 8 weeks, the μCT analysis showed that BV/TV in the PLA-HA/eBM group was significantly higher than that in the PLA-HA group and the control group (P<0.01). HE staining indicated that the new bone area in the PLA-HA/eBM group was significantly larger than those in the PLA-HA group and the control group (P<0.01). The above means of detection also indicated that the treatment in the PLA-HA group was superior to that in the control group. These results suggested that the scaffolds had a number of benefits in relation to the minimization of soft tissue and new bone formation. Further, the results showed that eBM significantly enhanced bone repair and bone regeneration. The results of the X-ray imaging, µCT, and histological evaluations suggested that the combination of eBM with PLA-HA achieves a satisfactory bone-healing effect. This new 3D-composite scaffold may be a good material to address the autologous transplantation shortage. Other species, such as sheep and dogs, will be used in further studies.

This study has some limitations. First, due to availability issues, we did not use RIA to acquire eBM. The method we used may have caused more trauma to the animals than RIA would have; however, no animal used in this study became infected or died, which indicates that the method we used was safe. Second, the exploration of 3D-printed PLA-HA was minimal, as the primary purpose of this study was to develop a novel scaffold to facilitate bone formation. Our data were limited, and while this did not affect our research results, further evaluations, including additional qualitative and quantitative studies, may clarify whether this novel scaffold can serve as a bone substitute.

Conclusions

In the present study, we used eBM in conjunction with 3D-printed PLA-HA scaffolds to repair critical-sized bone defects in a rabbit model. Radiological, µCT, and histological techniques were applied to investigate bone regeneration efficacy. The radiological, µCT, and histological results revealed that eBM enhances the capacity of PLA-HA for bone repair and regeneration. Thus, the use of eBM in conjunction with 3D PLA-HA scaffolds represents a promising treatment for critical-sized bone defects.

Acknowledgments

Funding: This work was supported by grants from the Natural Science Foundation of Shanghai (Grant No. 18ZR1422000), and the National Natural Science Foundation of China (Grant No. 81171729).

Footnote

Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at https://dx.doi.org/10.21037/atm-20-8198

Data Sharing Statement: Available at https://dx.doi.org/10.21037/atm-20-8198

Peer Review File: Available at https://dx.doi.org/10.21037/atm-20-8198

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/atm-20-8198). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All experiments were performed under a project license (no. HKDL [2018] 499) granted by the Animal Care Committee of Shanghai Jiao Tong University, in compliance with the guidelines for the care and use of animals of Shanghai Ninth People’s Hospital Affiliated Shanghai Jiao Tong University School of Medicine.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
