Proteins in plasma as a potential biomarkers diagnostic for pelvic organ prolapse
Introduction
Pelvic organ prolapse (POP) is the most common and widespread female pelvic floor dysfunction disease (PFD) and is often accompanied by structural and functional defects of the pelvic supporting tissues. POP can have significant effects on a woman’s quality of life, along with their physical and mental health (1). The global incidence of POP is approximately 20% and is increasing on an annual basis (2,3). Multiple factors including age, menopause, parity, obesity (4), hysterectomy, and connective tissue disorders have been reported to be in association with POP development (5,6). Age more than 55 years old and natural childbirth history were reported as two independent risk factors for POP, suggesting the existence of long-term pathology. However, the underlying molecular mechanisms of POP are still unclear.
At present, the diagnosis of POP is mainly based on clinical phenotype, medical history, and relevant functional examinations. However, there is a clear absence of specific biomarkers for functional molecules in the early stages that can reflect the long-term pathological progression. Therefore, it is very challenging to identify and evaluate patients with POP, and perform appropriate interventions in a timely manner. Therefore, a rapid and simple test that is based on highly accurate biomarkers that surpass the sensitivity and specificity of the current methods used for the diagnosis of POP will significantly enhance our ability to treat women who are suspected of having POP.
Deng et al. utilized ultra-high performance liquid chromatography-quadrupole time-of-flight mass spectrometry (UHPLC/Q-TOF-MS) to comprehensively investigate serum and urine 17 metabolomes of POP patients and controls and found that six metabolites including glycerophosphocholine (GPC), 1-methyladenosine, maleic acid, L-pyroglutamic acid, inosine, and citrate are significantly changed in both serum and urine samples from patients with POP (7). Zou et al. reported that the higher levels of matrix metalloproteinase (MMP)-2 and MMP-9 and lower levels of tissue inhibitor of metalloproteinase (TIMP)-2 in the plasma of Caucasian women may indicate a greater tendency for collagenolysis and weaker connective tissue with increased risk of developing PFDs, and they may potentially serve as biomarkers for pelvic floor tissue integrity (8).
In this study, we used an antibody array as a screening tool and identified three proteins heat shock protein 10 (HSP10), zinc finger CCCH domain-containing protein 8 (ZC3H8), and unc-45 myosin chaperone A (UNC45A), that exhibited significantly different levels when compared between patients with POP and healthy controls. Based on these findings, we demonstrated that these proteins represent good diagnostic biomarkers for POP.
We present the following article in accordance with the STARD reporting checklist (available at https://dx.doi.org/10.21037/atm-21-1607).
Methods
Subjects

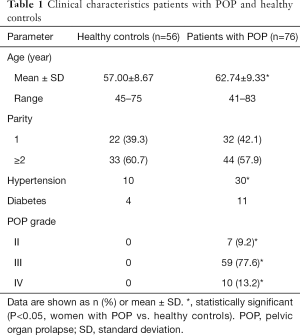

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Research Medical Ethics Committee of West China Second University Hospital, Sichuan University (2020121) and informed consent was taken from all individual participants. In total, 132 women were enrolled in this study between September 2019 and September 2020. Women with malignant tumors, fibromyoma, pelvic masses, and mental abnormalities were excluded. Of the women included, 76 were diagnosed with POP and 56 women without POP were recruited as healthy controls (Table 1). As presented in Table 1, age of healthy controls was between 45 and 75 years, with a mean age of 57 years. Age of patients with POP was between 41 and 83 years, with a mean age of 63 years. Thirty-two women with POP were parity with once and 44 women with POP were parities with equal and more than two times, while 22 non-POP women were parity with once and 33 non-POP women were parities with equal and more than two times.
Full table
The clinical description of pelvic floor anatomy was determined during physical examinations of the external genitalia and vaginal canal. POP was confirmed according to the following criteria: (I) symptoms attributed to POP, such as a bothersome bulge and pressure symptoms, sexual dysfunction, lower urinary tract dysfunction, or defecatory dysfunction; and (II) a POP quantification (POP-Q) examination was applied to judge the grade of POP (9). POP grade II was defined as when the leading edge of POP was approximately 1 cm inside the hymen margin to 1 cm outside the hymen. POP grade III was defined as when the leading edge of POP was beyond the level of 1 cm above the hymen (10). POP grade IV was defined as when the farthest end of POP exceeded the hymen margin and was greater than the total length of the vagina minus 2 cm. Non-POP healthy controls were recruited according to the following criteria: (I) women accepted physical examination in our hospital and showed normal results with regards to medical reports, biochemical tests, malignant tumors, pelvic masses, mental abnormalities, and PFD; (II) there were no complaints of symptoms such as sexual dysfunction, lower urinary tract dysfunction, or defecatory dysfunction; and (III) women were diagnosed as non-POP by the POP-Q examination.
Sample collection
Blood samples were collected from 76 patients with POP and 56 healthy controls. From each woman, we acquired 1 mL of venous blood which was placed into a sterile ethylene diamine tetraacetic acid (EDTA)-containing vacutainer tube. Samples were then centrifuged at 1,600 rpm at 4 °C for 10 min. The resultant plasma was then collected, aliquoted, and stored at –80 °C to await subsequent analysis.
Screening assay using antibody array
Three plasma samples from 76 patients with POP and three samples from 56 healthy controls were screened using the L-Series human antibody array 2000 membrane kit, which is a combination of human L507, L-493, L-3 and L-4 arrays (AAH-BLM-2000B, RayBiotec Inc., Norcross, GA, USA). This array could simultaneously detect 2,000 soluble human proteins. Experiments were conducted in accordance with the manufacturer’s guidelines. In brief, three plasma samples from each group were mixed in equal volumes. Each mixture was then dialyzed in dialysis buffer on a stirring plate for at least 3 h at 4 °C. The dialyzed plasma samples were then labeled with biotin at room temperature (RT) for 30 min. The array membranes were then incubated in blocking buffer at RT for 1 h. After removing the blocking buffer, the biotin-labeled samples were diluted with blocking buffer, placed onto the membrane array and incubated at RT for 4 h. Following incubation, the sample fluid was discarded, and the membranes were washed three times. HRP-conjugated streptavidin was then added and incubated at RT for 2 h. Membranes were then washed three times in 2 mL of washing buffer. Signals were then detected and visualized by the addition of a detection mixture and the application of a chemiluminescence imaging system (ChemiDocTM MP Imaging System, Bio-Rad Laboratories, Hercules, CA, USA).
Enzyme-linked immunosorbent assays (ELISAs)
The levels of soluble HSP10, ZC3H8, utrophin (UTRN), UNC45A, and unc-5 homolog 4 (UNC5H4), were determined in duplicate plasma samples by commercial ELISA kits purchased from Abbexa Ltd. (Cambridge, UK) and Raybiotech, Inc. (Norcross, GA, USA). Experiments were conducted in accordance with the manufacturer’s guidelines. In brief, diluted plasma samples were added into duplicate wells and mixed with 50 µL of HRP-conjugate per well in a 96-well plate. After incubation at RT for 2 h on a microplate shaker rotating at 100 rpm, the plate was then washed. We then added 100 µL of tetramethylbenzidine (TMB) Substrate Solution to each well and incubated the plates at RT for approximately 10 min; this process initiated the development of color. Reactions were then terminated and the optical absorbance of each well was read immediately on a spectrophotometer (Infinite M200, Tecan Trading AG, Switzerland) using 450 nm as the primary wavelength. The levels of each analyte were then determined by referring to a standard curve generated simultaneously on the same plate. Samples showing levels higher than the detection limits of the kits were diluted and re-measured. In our laboratory, the intra-assay and inter-assay coefficients of variation were <10% for all three assays.
Statistical analysis
The plasma levels of HSP10, ZC3H8, UTRN, UNC45A, and UNC5H4, were expressed as means ± standard deviation (SD). The statistical significance of the findings was evaluated by the Student’s t-test or by one-way analysis of variance (ANOVA) in Prism 8 software (GraphPad Software, San Diego, CA, USA). A P value <0.05 was considered to be statistically significant. The plasma levels of HSP10, ZC3H8, and UNC45A, were used to create a threshold that indicated the maximal sensitivity and specificity for the diagnosis of POP, as determined by receiver operator characteristic (ROC) curves.
Results
Screening of plasma samples
The L-Series 2000 antibody array used in this study could simultaneously detect 2,000 cytokines and related proteins in a given sample. The results were semi-quantitative when assessed by the density of each analyte spot. Multiple analytes were detected positively in the mixed sample created from each group. Among the positive analytes, the plasma levels of HSP10, ZC3H8, UTRN, UNC45A, and UNC5H4, were significantly decreased in the samples from patients with POP. The essential feature of diagnostic biomarkers is the fact that they exhibit significant differences when compared between samples from patients with disease and those from healthy controls.
Plasma levels of HSP10, ZC3H8, and UNC45A, in samples from patients with POP and healthy controls
Following ELISA screening, we focused only on UNC45A, UNC5H4, HSP10, ZC3H8, and UTRN because these proteins appeared to be more promising than the other analytes. As presented in Table 2, ELISA assays detected quantitative differences in the levels of HSP10, ZC3H8, UTRN, UNC45A, and UNC5H4, between 24 patients with POP and 12 healthy controls. The mean levels of HSP10, ZC3H8, and UNC45A, in samples from patients with POP were 3.21±2.63, 14.07±17.29, and 1.40±1.71 ng/mL; this compared to 5.43±2.86, 22.70±15.78, and 2.40±1.17 ng/mL, in the healthy controls. The plasma levels of UTRN were not significantly different when compared between the two types of samples. We observed higher plasma levels of UNC5H4 in samples from patients with POP, although some samples in each group did not show a detectable level of this protein. Plasma levels of HSP10, ZC3H8, and UNC45A, were significantly lower in the samples from patients with POP than in the samples from healthy controls. Consequently, our subsequent analysis focused on only HSP10, ZC3H8, and UNC45A.
Full table

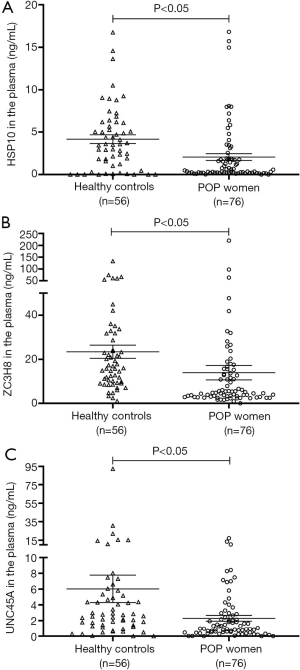

Next, we evaluated the diagnostic value of these three biomarkers by recruiting 76 POP patients and 56 healthy controls. As depicted in Figure 1, the levels of HSP10, ZC3H8, and UNC45A, in the plasma samples of POP patients were 2.07±3.49, 13.94±28.42, and 4.73±21.40 ng/mL, respectively. These were significantly lower than the plasma levels in healthy controls with 4.16±3.85, 23.40±22.43, and 6.04±13.02 ng/mL, respectively (P<0.05).

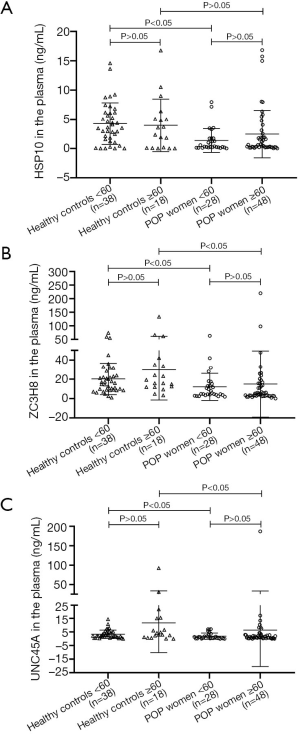

Our data showed that aging was associated with POP. Since people older than 60 years of age are considered to be elderly, subjects in this study were grouped by age at 60 years old, as shown as Figure 2. Obviously, the plasma levels of HSP10, ZC3H8, and UNC45A, were significantly lower in the plasma samples from patients with POP compared with the control within the same age group at aged <60 or >60 years. It indicates that these biomarkers were capable to distinguish between patients or controls even they plasma concentration were related with aging. There were no significant differences in the plasma levels of these three proteins in the controls irrespective of whether the controls were aged <60 or >60 years. A similar trend was evident in the samples acquired from patients with POP.
The diagnostic value of HSP10, ZC3H8, and UNC45A, for POP
Based on the individual levels of the three target proteins in plasma samples from patients with POP and healthy controls, we next used ROC analysis to evaluate their diagnostic value. The threshold that provided maximal levels of sensitivity and specificity for the diagnosis of POP were selected as the cut off values. The results are shown in Figure 3 and Table 3. Using cut off values of 1.79, 12.75, and 2.06 ng/mL, for HSP10, ZC3H8, and UNC45A, respectively, the sensitivities of all three proteins were >70%; HSP10 had the highest levels of sensitivity and specificity at 73.7% and 71.4%, respectively.
Full table
Discussion
Pelvic and abdominal organs are supported by pelvic floor muscle which surrounds the opening of the urethra, vagina, and rectum. POP involves the long-term effects of pelvic floor muscle weakness, especially in postpartum women. A range of pathogenic factors, including infection, inflammation, trauma, and degenerative changes associated with aging, may play a key role in the pathogenesis of POP. Many middle-aged and elderly women suspected of having POP often miss the opportunity for early rehabilitation and have to undergo surgery due to serious prolapse. Therefore, there is a critical need to investigate the functional; deterioration of the pelvic floor tissue accompanied by aging and the pathological factors created by aging-related diseases as these could represent important and high-risk factors for POP. Atrophy and weakness of the skeletal muscle are the main causes of POP.
HSP10 is known to be associated with the degeneration of muscle cell function. One of the main characteristics of muscle aging is a reduction in maximal tetanic force (Po). Previous research has shown that the overexpression of HSP10 prevents the age-related decline in Po and can prevent damage caused by muscle contraction, although damage that had already being incurred could not be repaired (11). Both HSP10 and HSP60 have been found in various types of muscle cells and are known to exert anti-apoptotic effects; these proteins are also related to the development of cardiomyopathy and the process of apoptosis in cardiomyocytes (12). However, prior to the present study there was no evidence to suggest that plasma levels of HSP10 could be used as a biochemical biomarker to facilitate the clinical diagnosis of POP.
ZC3H8 has been reported with organ degeneration by inhibiting the inflammatory response in zebrafish mediated by the NF-κB pathway and leading the degeneration of multiple organs, including the liver, gut, and pancreas (13). Whether ZC3H8 is related to the degeneration of muscle cell function in POP wasn’t reported in previous research. In the present study, we found that the expression levels of ZC3H8 were significantly lower in patients with POP when compared to healthy controls. The mechanisms underlying this observation need to be elucidated in further study.
UNC45A is widely expressed in various muscle cells. It is an essential protein for the assembly and function of muscle tissue. Studies have shown that UNC45A molecule is a dynamic component of actin stress fibers and acts as a myosin chaperone (14). Cells knocked out UNC45A were reported serious defects associated with fiber assembly errors that resulted in changes in cell morphology, abnormal migration, and eventually, symptoms associated with reduced muscle function (15-17). In the present study, we found that the plasma levels of UNC45A were significantly lower in samples from patients with POP than those in healthy controls. Since weaken or decline of muscle cell may be the cause of POP, the role of UNC45A in the pathogenesis of POP should be explored in further research.
Researchers have investigated a number of potential diagnostic biomarkers for POP over recent years. A metabolomics screening study, involving samples of serum and urine, found that pathways involving arginine biosynthesis and purine metabolism were significantly related to POP. A total of six metabolites, including GPC, 1-methyladenosine, maleic acid, L-pyroglutamic acid, inosine, and citrate, showed significant differences when compared between patients with POP and healthy controls. These six metabolites were therefore considered as potential biomarkers for the diagnosis of POP. However, the sample size in this previous study was insufficient, with a total of 50 samples (including 24 samples in the POP group and 25 samples in the control group). Further studies are needed to fully evaluate the diagnostic efficiency of these metabolites (7). Matrix metalloproteinase (MMPs) is a protease that is related to the degradation of collagen and elastin. Studies have shown that compared with a control group, the collagen content in samples of vaginal tissue from women experiencing were decreased and that the expression levels of MMP-2 and MMP-9 were increased. These results indicated that MMPs participate in the degradation of collagen in pelvic supporting structures, thus leading to the weakening of connective tissues, and ultimately to POP (18). However, the biomechanical changes related to POP may also be the cause of the increased expression levels of MMPs. Therefore, the potential for MMP-1, MMP-2, and MMP-9, to act as biomarkers for POP needs to be confirmed in future research (19).
Data in this study provides a research basis to further develop rapid detection technology for early screening and community health care. We will start a larger size study to identify high-risk individuals and test plasma levels of HSP10, ZC3H8, and UNC45A in the follow-up population, to provide scientific evidence for early diagnosis. The timely and accurate biochemical detection at an early stage is very important if we are to prevent and control POP in a more effective manner. China has the largest population of any country in the world. It is estimated that there will be a huge explosion in the elderly population by 2050, with approximately 400 million people (26.9% of the total population) over 65 years-of-age, and approximately 150 million over 80 years-of-age. As life expectancy continues to grow, China will inevitably become one of the countries with the highest proportion of elderly individuals. Consequently, the need to prevent, control, and treat POP will become increasingly more prominent in the future since the incidence of POP will inevitably increase, potentially far higher than the incidence of other chronic diseases (20).
Conclusions
In the present study, we aimed to identify specific biomarkers for the diagnosis of POP by identifying significant differences in the expression levels of key proteins between patients with POP and healthy controls. By applying a screening assay and a quantifying the plasma levels of selected proteins, we demonstrated that HSP10, ZC3H8, and UNC45A, represent potential biomarkers for POP with good levels of accuracy. The diagnosis of POP remains a clinical challenge given that the current diagnosis of POP depends on the observation of clinical symptoms, functional testing of the pelvic floor muscles and image detection including computer tomography (CT), magnetic resonance imaging (MRI), and ultrasound scanning. These methods provide an indication of POP but are more effective in the latter phases of POP since the pathogenesis of POP is a chronic cumulative process involving many factors. Developing simple, fast, and effective, detection technologies for early screening and community health care will help us to identify high-risk individuals, and provide scientific evidence for early diagnosis, intervention, and treatment.
Acknowledgments
Funding: This work was supported by grants from Key Research and Development Projects of Sichuan Science and Technology Department (2021YFS0015) and Key Research and Development Plan of Ministry of Science and Technology (2021YFC2009100).
Footnote
Reporting Checklist: The authors have completed the STARD reporting checklist. Available at https://dx.doi.org/10.21037/atm-21-1607
Data Sharing Statement: Available at https://dx.doi.org/10.21037/atm-21-1607
Peer Review File: Available at https://dx.doi.org/10.21037/atm-21-1607
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/atm-21-1607). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Research Medical Ethics Committee of West China Second University Hospital, Sichuan University (2020121) and informed consent was taken from all individual participants.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
