En bloc procurement of porcine abdominal multiple organ block for ex situ normothermic machine perfusion: a technique for avoiding initial cold preservation

Introduction

Organ transplantation is the optimal choice to prolong the lives of people with chronic end-stage disease. Organ preservation is a key component of successful organ transplantation, and the development of organ preservation techniques has greatly promoted organ transplantation (1-3). There are two main organ preservation methods distinguished by temperature: cold preservation and warm preservation.

Cold preservation decreases organ temperature, reduces enzyme activity and slows cell metabolism, hence prolonging the preservation time of isolated organs (4). With the advantages of a simple technique, low cost and ease of transport, cold preservation has become a widely used technology in the clinic, and static cold storage (SCS) with the University of Wisconsin (UW) solution is the gold standard in organ preservation (5).

Hypothermic machine perfusion (HMP) is another type of cold preservation. Compared to SCS, HMP provides continuous perfusion with cold perfusate via a perfusion machine, can remove metabolic waste in a timely manner and provides some metabolic substrates. HMP can better protect organ function and decrease the rate of delayed graft function (DGF) (6,7). Another advantage of HMP is assistance in assessing organ function according to the perfusion parameters (8). Hypothermic oxygenated perfusion (HOPE) is a new technique with an additional oxygen supply based on HMP and has been reported to be excellent for organ preservation (9-11).

In contrast to cold preservation, warm preservation is a technique that ex situ mimics the normal physiological state with the aid of a normothermic machine perfusion (NMP) device. Compared to SCS and HMP, organs can maintain normal metabolism ex vivo through the NMP technique, and the preservation effect of NMP has been proven in many studies. NMP has been shown to sustain the liver ex vivo for 7 days, and liver function remained good (3). Randomized controlled clinical studies have also shown some advantages of NMP over SCS in liver preservation (12).In addition, NMP has a unique advantage in organ function assessment. NMP assists in assessing organ function according to viability criteria, reduces the rate of organ discard and improves the organ pool (13,14).

Ex vivo maintenance of a single organ with NMP is currently the main focus, but few studies have reported the perfusion of multiple organs (15). A self-perfusing system called multiple organ block (MOB), which contains the heart, lungs, kidneys, liver, pancreas, and bowel and is en bloc procured with the vascular system, has been reported. The heart maintains the blood circulation, and the lung provides oxygenation under artificial ventilation (16). MOBs from pigs have been preserved ex situ for 18 to 37 h with this self-perfusing system (17).

Based on the above research, we conceived to procure abdominal multiple organ block (AMOB) using the surgical method of en bloc procurement with the vascular system. AMOB contains multiple abdominal organs and maintains the normal anatomic relationship. Unlike the self-perfusing system of MOB, AMOBs were transferred to an NMP device for ex situ perfusion of multiple organs.

NMP technology has been widely used in our center (15,18-20), and a new concept of organ-oriented research and treatment were introduced by our team (21). Organ-oriented research and treatment represents the study or cure of a disease at the organ level with the help of NMP technology in situ or ex situ. The overarching idea is to combine NMP with advances in surgery, pharmacology, and teaching and so on. To maintain AMOBs ex situ by NMP is part of the organ-oriented research and treatment.

Two improvements were documented in this research: elimination of cold preservation and collection of autologous whole blood as a perfusate component during the procurement surgery. Five pigs in total underwent the experiments, and the surgical information and NMP data are reported in this article.

We present the following article in accordance with the ARRIVE reporting checklist (available at https://dx.doi.org/10.21037/atm-21-1308).

Methods

In this research, the main objective was to test the feasibility of en bloc procured AMOB for ex situ NMP, avoiding initial cold preservation. The performance during the ex situ NMP process was used to assess the success of en bloc procurement surgery. Five pigs underwent en bloc procurement surgery, and then the AMOBs were transferred to NMP. The poor performance of NMP in cases 1 and 2 was due to repeated hypotension during the procurement surgery. After improving and optimizing the procurement processes, in cases 3 to 5, the NMP process was smooth.

Animals

In this research, AMOBs were procured from Ba-Ma miniature pigs; the median weight of the pigs was 50.0 (43.8–50.0) kg, and the median age was 13 [12–14] months old. There were 2 male and 3 female pigs. The pigs were kept in a comfortable environment with a constant temperature and food and water available ad libitum. The rights of the animals were guaranteed fully according to the Chinese guidelines and the international guidelines (22).Before the operation, all the experimental pigs were banned from food for 12 h and from water for 4 h. The experimental procedures and protocols were approved by the Committee on Ethics of Animal Experiments of Silver Snake (Guangzhou) Medical (No.: QR-MR003-002-A0), in compliance with Chinese national guidelines for the care and use of animals.

Anesthesia

All the pigs underwent general anesthesia. In the induction phase, tiletamine/zolazepam (5 mg/kg; Virbac, France) was used via intramuscular injection. Endotracheal intubation was executed via laryngoscopy after the onset of anesthesia, which was then connected to a ventilator to maintain breathing during procurement. In the maintenance phase, isoflurane inhalation and intravenous propofol (10 mg/kg/hAstraZeneca, British) were continued throughout the procurement surgery. Meloxicam injection (0.3 mg/kg; Boehringer Ingelheim, Germany) was used as an analgesic.

The heart rate, electrocardiogram and saturation of blood oxygen were monitored during procurement. Invasive arterial blood pressure monitoring in the right femoral artery and right femoral vein catheterization were used for rapid fluid infusion to maintain circulatory stability. Another venous infusion access was the right ear vein. All operations in this research complied with the principle of minimizing suffering.

En bloc procurement of AMOBs

The en bloc procurement operation was performed under a heart-beating status. The pig was laid on the operating bed in a supine position. After skin preparation and draping, a midline abdominal incision was made from the subxiphoid to the superior margin of the pubic symphysis, and a transverse incision was made through the umbilicus and ended at the bilateral midaxillary line. An abdominal surgery retractor was used to expose the field of surgery. The en bloc procurement method was applied to remove the AMOB with a normal anatomical relationship. There were three main steps to freeing the AMOB (Figure 1).

Figure 1 The process of en bloc procurement surgery. (A) showed the visual appearance of the abdominal multiple-organ after open surgery. (B) represent the visual appearance of the abdominal multiple-organ after completing the first and second steps of the procurement surgery (there was only remained the vessel system). (C) showed the abdominal multiple organ block (AMOB) transfer to normothermic machine perfusion (NMP) device to reconstruct blood flow. The dorsal side of the AMOB was kept facing upward during the connection process.

First step: free the inferior vena cava (IVC) and aorta artery (AA) from the posterior peritoneum

To open the posterior peritoneum along the right renal lateral border, the dorsal part was dissected to free the kidney. Then, the posterior peritoneum was opened along the right side of the IVC, and the IVC and AA were dissected, carefully separating and ligating branch vessels (principally lumbar arteries and veins) sprouting from the AA and IVC. Isolation was continued upward to the vena cava foramen of the diaphragm and downward to the right common iliac vessels. The same operation was performed on the left side, opening the posterior peritoneum along the left renal lateral border and freeing the kidney. Then, the posterior peritoneum was opened along the left side of the AA upward to the aorta hiatus and downward to the left common iliac vessels to free the AA and IVC absolutely.

Second step: transecting the AMOB from the chest and pelvic cavity except vessels.

The rectum was dissected carefully and transected close to the anal canal, and the urethra was cut near the bladder. Starting from the inferior pole of the bilateral kidneys, together with the posterior peritoneum, the bilateral ureters were completely dissected to the bladder inlet, preserving the whole bladder and ureter. When the gilt was procured, the uterus and ovaries were preserved, ligated and transected the vagina close to the uterus. After that, the diaphragm was opened and dissected to the bilateral crura of the diaphragm, and the phrenic artery and phrenic vein were dissected and ligated. To isolate the esophagus, it was ligated and transected above the diaphragm.

Last step: clamping and transecting the vessels and moving the AMOB to the NMP device

Unfractionated heparin was injected via the venous catheter at a dosage of 37,500 U. After waiting approximately 2 minutes, bilateral common iliac vessels were ligated and cut, and then, to clamp and transect the aorta above the diaphragm level, the suprahepatic vena cava was clamped and transected close to the liver. The AMOB was then free and transferred to the NMP device.

The hypotension during procurement in this research refers to the mean arterial pressure (MAP) was less than 60 mmHg. Warm ischemia time (WIT) contained the time of MAP below 60 mmHg intraoperative plus the time from donor blockade blood flow to NMP cannulation to rebuild circulation.

Autologous whole blood collection

Autologous whole blood was the main perfusate component in the initial stage; therefore, blood was collected during the intraoperative period. After opening the abdominal cavity, the left external iliac artery was located, dissected and catheterized to collect blood. The blood was preserved in a blood bag with citrate anticoagulation. It was important to observe the changes in vital signs during exsanguination. A rapid infusion was performed if the blood pressure continuously declined, and exsanguination was suspended when the systolic pressure was lower than 70 mmHg.

NMP device and perfusion process

The NMP device was designed as an open perfusion circuit that provides continuous (no pulsatile) arterial flow at a temperature of 37.5 °C. AMOB is en bloc procurement with the AA and IVC; therefore, the NMP device was designed with only one channel to perfuse the AMOB via the AA. The main components of the NMP device consist of a thermostatic water box, an organ chamber, an opened blood reservoir, a centrifugal pump, a roller pump, an oxygenator and a heat exchanger. Perfusion parameters were monitored in real time by a temperature probe, flow probe and pressure probe (details shown in Figure 2).

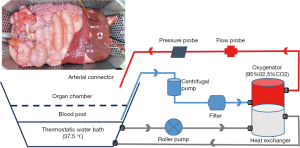

Figure 2 The schematic of normothermic machine perfusion (NMP) device. NMP device was designed as an opened perfusion circuit with continuous (no pulsatile) arterial flow at a temperature of 37.5 °C. The device consists of three layers: from the bottom to surface are the thermostatic water box, the open blood reservoir and the organ chamber respectively. The key components are an oxygenator, heat exchanger, flow probe, pressure probe, centrifugal pump, roller pump and Connecting Pipes.

The machine was circulating in advance with autologous whole blood, and after the machine was circulating steadily, the organ connection process was executed. The AMOB was moved to the NMP device, and the dorsal side of the AMOB was kept facing upward during the connection process. In the initial phase, the rotation speed of the centrifugal pump was increased, and the pressure was gradually increased. The control system was switched to the constant-pressure model when the pressure value was over 45 mmHg. The posterior wall of the AA was carefully examined for points of bleeding, which were ligated, and then the organs were rolled over to the normal anatomic position. The pressure target level was raised to 60–65 mmHg, and the flow rate was maintained over 1,000 mL/min.

Specimens preservation

Arterial blood gas analysis was executed every 10 min in the first 30 min and every hour in the next time. A perfusate specimen was collected each hour to test the liver and kidney function. A 16F urinary catheter is inserted into the bladder through the urethral break and the catheter is connected to a negative pressure drainage bottle to drain the urine. The drainage bottle is scaled so that the amount of urine drained can be measured directly. Bile was collected by intubation of the bile duct. The common bile duct was located near the pylorus duodenum, and the distal end of the common bile duct was ligated with a #0 silk suture near the duodenum. A small incision was cut in the common bile duct and bile leakage was seen. The collection of bile was performed using a 2 mm diameter micropump extension tube inserted from the incision into the common bile duct up to the level of the common hepatic duct and secured with a #0 silk suture. The cystic duct was separated near the neck of the gallbladder and ligated with a #0 silk suture.

Statistical methods

This research is mainly an observational study. There were 5 cases in total, and the measurement data are expressed as the median and the range.

Results

Perfusate elements

Whole blood was the main element in the perfusate; hetastarch, 20% albumin, Sodium chloride injection, Compound Amino Acid Injection and methylprednisolone were added, the total volume of perfusate was approximate to 3,000 mL at first. Ten percent calcium gluconate was used for regulating blood calcium concentration, and 5% sodium bicarbonate was used to adjust the pH. Metronidazole and cefoperazone sodium and sulbactam sodium were used to prevent infection. Autologous whole blood was used in the beginning, and allogeneic whole blood was used as a standby liquid to supplement the perfusate if the cross-match test was negative (the detailed information showed in Table 1).

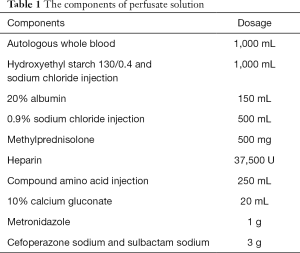

Table 1 The components of perfusate solution
Full table

En bloc procurement surgery

Five Ba-Ma miniature pigs underwent en bloc procurement surgery to acquire the AMOB for NMP. The pigs were 2 males and 3 females, their median weight and median age were 50.0 (43.8–50.0) kg and 13 [12–14] months respectively. The median time of procurement surgery was 220 [195–230] min, and the median warm ischemia time (WIT) was 240 [85–600] sec.

In the first attempts at this surgery, case 1 and case 2 suffered from repeated hypotension, and case 2 exhibited hemorrhage. AMOB functions were damaged in both cases due to warm ischemia injury caused by hypotension. After improved and optimized procurement processes, hypotension and hemorrhage were prevented in the remaining cases. The vital signs of cases 3 to 5 remained stable during the whole procurement, and the volume of fluid supply during the procurement was less than that in cases 1 and 2 (Table 2). Meanwhile, the volume of blood collection and urine output were greater than those in cases 1 and 2 during the procurement. The WIT gradually declined and was only 85 seconds in case 5 (Table 2).

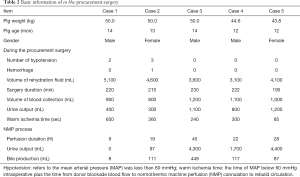

Table 2 Basic information of en bloc procurement surgery
Full table

During the NMP process, the perfusion duration of case 3 to case 5 was significantly longer than that of case 1 and case 2, and the longest ex situ maintenance time reached was 45 h. The urine output during the NMP was also obviously higher in cases 3 to 5, the median volume of urine was 4,300 [1,700–4,400] mL. However, case 1 was urine absent, and case 2 only had 97 mL of urine. The bile produced in case 1 during ex vivo NMP was only 8 mL but was normal in case 2at a volume of 111 mL (Table 2).

Reperfusion and perfusion parameters

A constant pressure mode was adopted during the NMP in this research, and the target value of pressure was set between 60 and 70 mmHg. A pressure limited to 70 mmHg was used to avoid hemorrhage of the intestinal mucosa, which has been observed in many failed attempts. The vasodilator papaverine was continuously infused (6–12 mg/h) to maintain an appropriate flow rate during NMP, and the target value of the flow rate was kept above 1,000 mL/min.

A smooth reperfusion process indicates the success of en bloc procurement surgery. The organ functions of cases 1 and 2 were damaged due to hypotension during en bloc procurement. Therefore, the flow rate was increased slowly in the beginning and could not sustain stability even when continuously infused with a high dose of papaverine (48 mg/h). The maximum flow rate was less than 1,000 mL/min in case 1 and case 2 (Figure 3A). By contrast, at the same constant pressure mode with 60 to 65 mmHg, the flow rate in cases 3 to 5 increased rapidly, and the value exceeded 1,500 mL/min in the first phase. In the first 10 h of NMP, the flow rate was maintained at over 1,000 mL/min (Figure 3B).

Figure 3 Variation curves of the flow and pressure in the first 10 h normothermic machine perfusion (NMP). (A) represent the changes of perfusion parameters in cases 1 and 2. The flow rate was slow upturn in the beginning, and the maximum flow rate was less than 1,000 mL/min.Brief increase in flow rate in case 1 followed by a rapid decrease. Contrary to that, at the same constant pressure mode with 60 to 65 mmHg, (B) showed the flow rate in cases 3 to 5 increased rapidly at first, and the value even exceed 1,500 mL/min. In the first 10 h NMP, the flow rate consistently exceeding 1,000 mL/min.

A good visual appearance of the AMOB and active gastrointestinal peristalsis after restored blood flow with NMP also indicate the success of en bloc procurement surgery. The liver, spleen and intestines showed uniform perfusion and a scarlet appearance in the first hour in cases 3 to 5 (Figure 4), and as time passed, the gross appearance of the organs gradually became gray due to anemia, but gastrointestinal peristalsis continuously existed and was active. Fewer secretions accumulated in the intestinal lumen, and no obvious intestinal mucosal bleeding was observed (Figure 4, 3 and 7 h). In case 1 and case 2, the organs also received uniform perfusion in the beginning, but at 3 and 7 h, the intestine became swollen and appeared black, indicating intestinal mucosal bleeding. The flow rate continuously declined, the organ gross appearance became black, and gastrointestinal peristalsis was lost. NMP was maintained for only 9 h in case 1, and perfusion was sustained in case 2 with continuous infusion of a high dose of papaverine (48 mg/h).

Figure 4 Visual appearance of abdominal multiple organ block (AMOB) during the ex vivo normothermic machine perfusion (NMP). Visual appearance at 1, 3 and 7 h after NMP in all 5 cases. At 1 h, the organs also received uniform perfusion in case 1 and case 2, but after perfusion at 3 and 7 h, the intestine became swollen and black appearance, which indicates bleeding in the intestinal mucosal. In case 2, perfusion was sustained with continuous infusion of a high dose of papaverine (48 mg/h). In cases 3 to 5, the liver, spleen and intestines showed uniform perfusion and a scarlet appearance at 1 h. The visual appearance of the organs gradually became gray due to anemia at 3 and 7 h, but gastrointestinal peristalsis continuously existed and was active. Fewer secretions accumulated in the intestinal lumen, and no obvious intestinal mucosal bleeding was observed.

Lactic acid levels

The oxygen flow was set at 2 L/min, and the oxygen concentration was 95% in the beginning. The changes in lactic acid levels reflected tissue perfusion and cell metabolism. In case 1, WIT reached 10 min due to repeated hypotension during the procurement surgery, the lactic acid level was over 12 mmol/L at first, and the value rapidly increased exceeding 20 mmol/L at 1 h due to the low flow during NMP. The value of lactic acid in case 2 was obviously lower than that in case 1 in the beginning, but given the poor perfusion parameters due to organ injury in the procurement, the level of lactic acid increased rapidly and exceeded 20 mmol/L at 6 h. The level of lactic acid in case 3 was slightly high at first, but the value remained stable in the first 10 h. The levels of lactic acid in cases 4 and 5 were low and remained stable during the first 10 h, which indicated that good organ function was preserved and adequate blood perfusion was achieved (Figure 5).

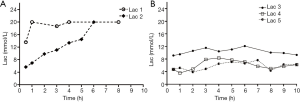

Figure 5 Change curve of lactic acid level in the first 10 h normothermic machine perfusion (NMP). (A) showed the lactic acid level was over 12 mmol/L in case1 at first, and rapidly increased exceed 20 mmol/L at 1 h. In case 2, the lactic acid level was obviously lower than that in case 1 in the beginning, but the value continued to rise, exceeding 20 mmol/L at 6 h after NMP. (B) The lactic acid level in case 3 was slightly high at first, but the value remained stable in the first 10 h NMP. The lactic acid level in cases 4 and 5 were low and remained stable during the first 10 h, which indicated well maintained organ function during the procurement and adequate blood flow during the NMP.

Organ function

Perfusate samples were regularly collected to detect liver and kidney function during NMP. The results showed that the alanine aminotransferase (ALT) level and the aspartate aminotransferase (AST) level were higher in cases 1 and 2 than in cases 3 to 5. The levels of ALT and AST rapidly increased in the later period in cases 1 and 2 but remained stable in cases 3 to 5 (Figure 6A,B). The creatine levels all remained stable in the first 10 h of NMP, but the volume of urine in case 1 and case 2 was significantly less than that in cases 3 to 5 in this period (Figure 6C). The changes in glucose levels in all cases proved that the organs recovered metabolism (Figure 6D).

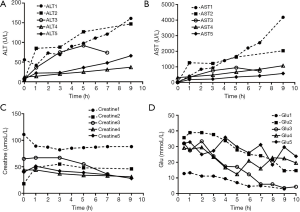

Figure 6 Variation curves of liver and kidney function and glucose levels in the first 10 h normothermic machine perfusion (NMP). (A and B) showed the alanine aminotransferase (ALT) and aspartate aminotransferase (AST) levels were higher in cases 1 and 2 than in cases 3 to 5. The ALT and AST levels continuously elevated in cases 1 and 2 in first 10 h, but slightly elevated in cases 3 to 5. (C) showed the creatine levels in all cases remained stable in the first 10 h, but the urine output in cases 1 and 2 were significantly less than that in cases 3 to 5 in this period. The changes of glucose level in (D) indicate that the organs underwent metabolism in all cases. Cases 3 to 5 irregular addition of glucose, but cases 1 and 2 without any added glucose during NMP.

Pathological results

Pathological specimens of liver and small intestines were reserved at a regular interval. Unfortunately, no pathological specimens were kept in case 1. In cases 2 to 5, the retained small intestine and liver specimens were paraffin-embedded and sectioned, and then hematoxylin-eosin staining was performed. The pathological results of cases 2 to 5 were showed in Figure 7 (×200 magnification, the scale length is 100 μm).

Figure 7 Pathological changes of liver and small intestines during the normothermic machine perfusion (NMP). This figure showed pathological changes of small intestines (A) and liver (B), hematoxylin and eosin (HE) staining with 200× magnification, the scale length is 100 µm. In case 2, Pathology showed the villi of the small intestine was preserved well at 1 h, but at 6 and 12 h, the intestinal pathology showed significant damage and the villi structure was obviously damaged and disintegrating. The structure of the liver in case 2 was preserved well at 1 h, and liver pathology at 6 and 12 h also did not show significant damage. The portal area kept intact, the hepatic cell was integrated and showed mild swelling, and the hepatic sinusoid structure was general normal. In cases 3, the small intestine pathology showed the villi of the small intestine were preserved well at 1, 6 and 12 h, the small intestines pathology in cases 4 and 5 were also kept well. During the same period, no obvious changes in liver pathology were observed in cases 3 to 5. The portal area kept intact, the hepatic cells were integrated and showed mild swelling, and the hepatic sinusoid structure were also general normal.

In case 2, Pathology showed the villi of the small intestine was preserved well at 1 h, but at 6 and 12 h, the intestinal pathology showed significant damage and the villi structure was obviously damaged and disintegrating. The structure of the liver in case 2 was preserved well at 1 h, and liver pathology at 6 and 12 h also did not show significant damage. The portal area kept intact, the hepatic cell was integrated and showed mild swelling, and the hepatic sinusoid structure was general normal. In cases 3, the small intestine pathology showed the villi of the small intestine were preserved well at 1, 6 and 12 h, the small intestines pathology in cases 4 and 5 were also kept well. During the same period, no obvious changes in liver pathology were observed in cases 3 to 5. The portal area kept intact, the hepatic cells were integrated and showed mild swelling, and the hepatic sinusoid structure were also general normal.

Discussion

This article describes the first attempt to en bloc procure AMOB for NMP. The results confirmed that it was feasible to obtain AMOB for NMP through en bloc procurement surgery, and only a reliable procurement surgery could achieve a good NMP effect. In the first 2 cases,due to insufficient skill in intraoperative coordination and inadequate knowledge of local anatomy, repeated hypotension occurred during the surgery, the function of the AMOB was damaged, and the perfusion performance was inadequate during the NMP period. After improving the procurement process and optimizing the details, the function of the AMOB was preserved well in the remaining 3 cases, and the NMP process was smooth.

Interestingly, although the WIT was only 600 and 360 seconds in cases 1 and 2, respectively, the multiple-organ function suffered severe damage and made it difficult to maintain the NMP. In contrast, in the previous porcine DCD model, the WIT was as long as 30 to 60 min, and the NMP effect was still better (15,23). Possible reasons to consider include that although the recorded WIT was not long, local tissue ischemia persisted during procurement surgery, especially in the intestinal tissues. The volume of the gastrointestinal tract was large, and repeated hypotension and exposure of the surgical field may persistently impact the intestinal blood supply, causing severe impairment of organ function and thus leading to poor NMP perfusion. In addition, the intraoperative urine output was significantly lower in cases 1 and 2 than in cases 3 to 5 (Table 2), which also indicates circulatory instability.

An improvement measure was eliminated from the process of cold preservation, which is a routine operation in the clinic and in experiments (24,25). Considering the good mobility of the NMP device and the expected short duration of WIT, to save costs and simplify the operation steps, the process of cold preservation was eliminated in the experimental design. To shorten the time of organ ischemia, the blood vessels were dissociated at the end of procurement surgery, and the NMP device was also operated in advance before the vessels were dissociated. In the fifth experiment, the time from blocking blood perfusion in the donor to transfer to the NMP device to re-establish blood flow was only 85 seconds.

The NMP process was successful, demonstrating the feasibility of this cold-free preservation procedure. In addition, if cold preservation is carried out, the AMOB will undergo a process of cooling and rewarming in a short time, and whether rapid cooling and rewarming affect the NMP results is another problem. However, one study demonstrated that avoiding cold preservation does not improve liver quality in a porcine DCD model of NMP (26). Actually, eliminating cold preservation also resulted in some slight negative effects; most visible was that the lactic acid level was slightly higher in the beginning. Because there was no cold flushing, a large amount of autologous blood and metabolic waste accumulated in the vascular lumen and circulated into the perfusate after NMP operation. However, the negative effects were limited, and the lactic acid level remained stable in the first 10 h and even decreased to normal upon further perfusion.

Another improvement measure was autologous whole blood as an NMP perfusate in the initial phase. Previous animal experiments by our team found that cross-use of allogeneic pig blood may cause hemolysis and lead to perfusion failure for the complex blood group system in pigs (27). Therefore, to reduce the occurrence of this risk and improve the outcome of the NMP experiment, autologous whole blood was used as the component of perfusate at the beginning, and allogeneic pig blood from the slaughterhouse was used as a supplementary liquid after the cross-matching test was negative. This improvement process could reduce the number of experimental pigs, decrease experimental costs, and be more in line with animal ethical requirements.

There were more challenges in this research than in the few experiments reported on the use of autologous blood (28). The procurement surgery was performed under the heart-beating status in our research, and due to abandonment of cold preservation, the collection of whole blood must be accomplished during the surgery to advance the operation of the NMP device. Circulatory instability was observed during blood collection in the first 2 cases of the experiment, leading to organ function damage and poor NMP performance. The lactic acid level rapidly increased in a short period. After the modified and optimized process, the en bloc procurement process of the following 3 cases was very smooth. There was no obvious hypotension in the blood collection process, and organ function was maintained well. In total, 1,000–1,200 mL whole blood was collected during the procurement surgery, basically meeting the needs of the initial stage perfusion.

There are also some limitations to this research. First, this is just an observational study to prove the feasibility of en bloc procured AMOB for NMP without initial cold preservation. More accurate detection indicators or transplant models are needed to confirm the organ functions of AMOBs. Second, although AMOBs were ex situ maintained with NMP for a relatively long period of time, organ function was not optimally maintained, and the optimal perfusion strategy needs to be explored. Third, AMOBs were procured from heart-beating pigs in this research, and AMOBs procured from donation after cardiac death (DCD) mode may be more meaningful.

To our knowledge, this is the first report of relevant research. We proved the feasibility of en bloc procurement of AMOB to ex situ NMP without initial cold preservation. This is a meaningful attempt, and according to the concept of organ-oriented research and treatment, we can use this model for scientific research and teaching, such as drug development, organ-to-organ interactions, laparoscopic live organ training, etc. If we can use the discarded abdominal organs of pigs in slaughterhouses to build models, it will greatly reduce the cost and be more in line with animal ethics, which is the next direction of our research.

Conclusions

In conclusion, procuring AMOBs from heart-beating pigs with en bloc procurement surgery for NMP without cold preservation is feasible. Autologous whole blood as a perfusate component in the beginning of NMP is a feasible measure, and approximately 1,000 mL of whole blood collected during procurement surgery had a stable circular status.

Acknowledgments

Funding: This work was supported by the National Natural Science Foundation of China (81401324 and 81770410), Guangdong Basic and Applied Basic Research Foundation (2020A1515011557, 2020A1515010903), Science and Technology Planning Project of Guangdong Province (2016A020215048), Guangdong Provincial Key Laboratory of Organ Donation and Transplant Immunology, The First Affiliated Hospital, Sun Yat-sen University, Guangzhou, China (2020B1212060026), Guangdong Provincial International Cooperation Base of Science and Technology (Organ Transplantation), The First Affiliated Hospital, Sun Yat-sen University, Guangzhou, China (2015B050501002).

Footnote

Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at https://dx.doi.org/10.21037/atm-21-1308

Data Sharing Statement: Available at https://dx.doi.org/10.21037/atm-21-1308

Peer Review File: Available at https://dx.doi.org/10.21037/atm-21-1308

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/atm-21-1308). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Experiments were performed under a project license (No.: QR-MR003-002-A0) granted by the Committee on Ethics of Animal Experiments of Silver Snake (Guangzhou) Medical, in compliance with Chinese national guidelines for the care and use of animals.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
