Endovascular interventions in the management of acute extremity trauma: a narrative review
Introduction
Trauma is the largest cause of mortality in those under 45 and the third overall cause of mortality regardless of age (1). Vascular trauma is associated with a high mortality rate; while vascular injuries make up 1–2% of all trauma cases but contribute to upwards of 20% of all trauma-related mortality (2,3). Approximately 75–80% of extremity trauma is penetrating and carry with them a high likelihood of vascular involvement (4). Blunt trauma injuries with vascular involvement include supracondylar fractures, posterior knee dislocation, and tibial plateau fractures.
In recent years, endovascular approaches in the management of upper and lower vascular trauma have been increasingly utilized due to advances in technology and procedural techniques (5). Endovascular interventions can have both diagnostic (catheter-based angiography to detect extravasation) and therapeutic (urgent embolization or stenting to maintain the integrity of the injured vasculature) utility. These endovascular techniques can even allow for simultaneous diagnosis and intervention in peripheral vascular trauma and are especially useful in cases where sites of bleeding are difficult to access or identify. In the case of extremity trauma, endovascular interventions can achieve minimally invasive hemostasis whether it be by embolization or stent graft placement (6).
According to recent Society for Interventional Radiology guidelines for the role interventional radiology (IR) in acute trauma care, endovascular techniques can be used when open surgery increases risk of injury to surrounding structures, or when blood loss needs to be rapidly minimized (7).
We review the diagnosis and initial work-up of extremity trauma as well as various endovascular approaches. Technical challenges associated with the utilization of minimally invasive interventions in extremity trauma are also discussed. We present the following article in accordance with the NARRATIVE REVIEW reporting checklist. Literature review was conducted by compiling previous case reports, retrospective studies, and guideline commentaries that were indexed on the PubMed database.
We present the following article in accordance with the Narrative Review reporting checklist (available at https://dx.doi.org/10.21037/atm-20-5428).
Assessment of extremity trauma
Assessment and initial stabilization of extremity trauma is incorporated in the primary survey. Focused physical exam of the extremity is performed to determine the location and extent of injury. Clear signs of vascular extremity injury include active bleeding, expanding pulsatile hematoma, ongoing external blood loss, bruit/thrill heard over the wound, absent distal pulses with or without distal ischemic changes (8). If entry or exit wound is clearly present, the expected path of injury should be sought to evaluate likelihood of major arterial injury (9). Traditionally, patients with significant hemodynamic instability secondary to blood loss from extremity trauma are best served with emergent surgical repair and possible amputation. Amputation would be determined by the operating surgeon based on a number of factors, including tissue damage, ischemia, shock, and age of the patient; an objective and validated measure is the Mangled Extremity Severity Score (10). However, depending on institutional practice and operator preference, endovascular intervention in a hybrid operating room can be considered in unstable patients.
Diagnostic imaging
There are a variety of diagnostic modalities that can be used in the setting of vascular extremity trauma including Doppler sonography, computed tomographic angiography (CTA) and digital subtraction angiography. Doppler sonography is a low cost and readily available tool to screen for vascular extremity trauma. As ultrasound is readily available in the trauma bay for a Focused Assessment with Sonography in Trauma (FAST) scan, this can be used to assess for the presence of a hematoma, pseudoaneurysm or vessel occlusion (7). In one systematic review, ultrasound was shown to have a sensitivity of 84.6% and a specificity of 99.1% in the evaluation of significant vascular extremity trauma (5,11).

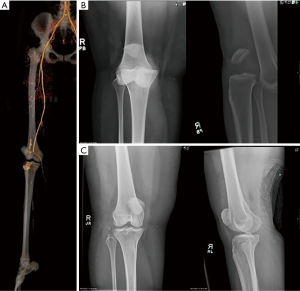

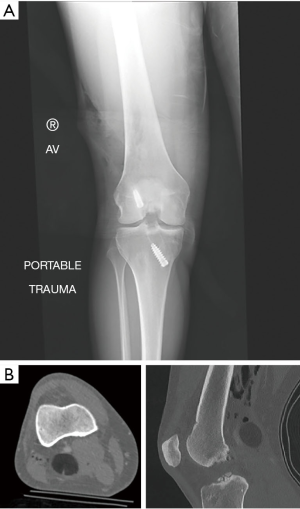

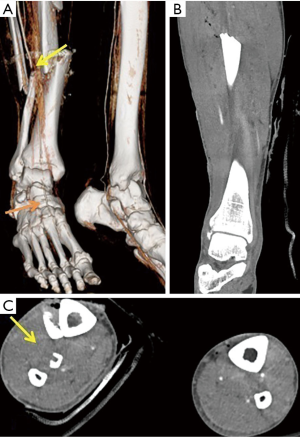

CT angiography is rapid, highly sensitive and highly specific for detecting major vascular injury (12,13). In two prospective studies, the sensitivity of CTA in detecting focal arterial injuries in the proximal extremities ranged from 90–100%, while the specificity was greater than 98% (14,15). An additional meta-analysis by Jens et al. showed a sensitivity of 96.2% and a specificity of 99.2% (16). In a study by Wallin et al., if a patient had a normal CTA, surgical or endovascular intervention was rarely needed (17) (Figure 1). CTA can detect below the knee vascular occlusion in cases of fracture (Figure 2) as well as large vessel (popliteal artery) occlusion in the setting of posterior knee dislocation (Figure 3).
While conventional angiography is the gold standard for diagnosing vascular injury it is invasive and less available. A major advantage of catheter-based angiography is the ability to both diagnose and treat (3,18,19). Angiographic findings of life or limb-threatening injury include active contrast extravasation, large pseudoaneurysms, vessel transection or vessel occlusion. Minor findings that are non-limb threatening would include vessel narrowing, occlusion of noncritical branches and small arteriovenous fistulas (9). When angiography was previously the preferred method of diagnosing extremity trauma, the necessity of the procedure would be determined based on positive physical exam findings that indicate a high probability of arterial injury. Those with a negative physical exam could receive angiographies electively (20).
Endovascular techniques in extremity trauma
Extrapolating from peripheral arterial data, patients undergoing endovascular intervention for extremity trauma may have fewer complications and shorter length-of-hospital-stays than patients undergoing open repair (21). This may be especially true in regions where open surgery would cause iatrogenic complications (5). Endovascular interventions in extremity trauma have been associated with decreased blood loss compared to open surgery (22). Endovascular techniques have been used in both upper and lower extremity trauma cases; the majority of data is from case series including reported technical and clinical success in all lower extremity arteries (19,23,24). Iliac artery injuries can be quite severe and are associated with significant mortality rates upwards of 40% (25), necessitating the need for rapid intervention. Open surgical exposure of the iliac arteries is often difficult and endovascular approach may be preferred. Though endovascular techniques present many benefits to open surgery in regards to patient outcomes, these methods may be limited in cases where the vessel is transected, as this would prevent the catheter from being able to cross the site of injury. There is still a need for more evaluation of the long-term patency rates for certain endovascular interventions like stent grafts (12). At the time of this review, there does not appear to be any previously published prospective series evaluating endovascular versus open approaches.
Upper extremity traumatic injuries experience is more limited but both stent graft placement and coil embolization has been described (26). An endovascular approach is preferred for the axillary-subclavian region due to important adjacent structures in this region such as the brachial plexus and veins which are at risk for injury with an open surgical approach.
The two general endovascular approaches in peripheral arterial trauma include embolization and stent grafting (27). The site and size of vessel injury, whether it is in a main vessel or distal branch, and the type of injury that is manifesting (i.e., active extravasation or pseudoaneurysm formation) determines whether embolization or stent grafting is used (28). Other lesser used interventions include temporary balloon occlusion, often done as an adjunct to open surgery and percutaneous thrombin injection (4,29).
Embolotherapy

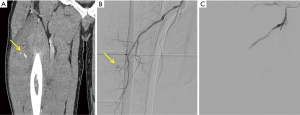

Embolization is commonly performed for vascular extremity trauma and involves the endovascular deployment of an embolic material to intentionally occlude an artery (Figure 4). It has a high success rate in controlling hemorrhage and offers minimal complications when compared to open surgical approaches. Proximal and distal control to the site of vessel injury should be achieved to prevent rebleeding from collateral or retrograde flow. This method of treatment should not be used if vessel occlusion would cause distal limb ischemia and is better suited for muscular branches (e.g., thigh bleed from bleeding from a branch of the profunda femoris artery) (30). When performing embolization, extra care should be made to avoid non-target embolization.

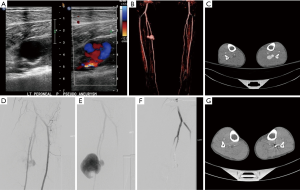

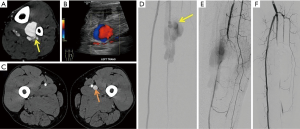

Once embolotherapy is considered, different embolic agents may be used depending on operator preference, anatomic complexity, and whether the embolization is desired to be temporary or permanent. Gelfoam is a commonly used temporary embolic agent (31). There are many benefits of Gelfoam including its availability and low cost. Gelfoam will typically recanalize within 2–3 weeks, allowing ample time to initially stop extravasation and then allow the vessel to naturally heal (31,32). If a more permanent embolic solution is required, coils can be used and are usually effective for medium or small sized arteries (Figures 5,6).
Liquid embolic agents such as glues are used frequently in arteriovenous malformation treatment (33) but have limited use in trauma cases due to risk of accidental distal embolization. They can also be sclerosing, which can damage vessel walls leading to increased risk of tissue ischemia and necrosis (31). Nevertheless, the inflammatory reaction and subsequent instant thrombosis they produce may be desired in certain situations. For example, there are reported case studies of Onyx being used as an embolization agent for traumatic and non-traumatic peripheral vascular lesions (34).
Endovascular stent grafting

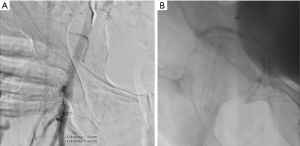

If the site of bleeding or injury involves a major vessel whose occlusion would lead to limb ischemia or other complications, stent grafting would be the endovascular treatment of choice (Figure 7). The location of vascular extremity injuries, whether they are centrally or distally located, influences the technique used. More centrally located injuries (large main vessels) require the use of endovascular stent grafts. Stents have been shown to be efficacious in both upper extremity vessels (subclavian, axillary) and lower extremity vessel bleeds (femoral, popliteal) (12).
Small case series remain the best evidence for their efficacy, safety and long-term patency. One of the largest series to date included 57 patients with subclavian arterial injury treated with stent grafting. No limb loss, need for open surgery or deaths were reported (27). In a cohort of 18 patients treated with endovascular stent placement for peripheral arterial injury, Biagioni et al. demonstrated a 100% technical success rate as well as a patency rate of 92.3% and 61.5% at one and two years follow-up (35). In another study of 28 patients receiving grafting for arterial injury, 6 required a secondary procedure, and the limb salvage rate was 92% at 45 days and 79% at 93 days (36). Complications of stent grafting include stent fractures especially at sites of flexion and extension such as the common femoral artery of distal superficial femoral/popliteal region (Figure 7). From 29 studies analyzed over the course of a 10-year period, the incidence of reported fractures ranged from 0–65% for stents placed in the femoropopliteal region (37).
Technical challenges
In the setting of acute extremity trauma, it is imperative to minimize blood loss as efficiently quickly as possible. Therefore, the operator should have a high level of experience with small vessel embolization (38). If hemodynamic instability were to develop while attempting an endovascular approach, balloon occlusion could be utilized to minimize blood loss while a surgical approach is considered to stabilize the patient (39).
Complex anatomy poses additional technical hurdles in the trauma setting. Rapid identification and selection of vessels that can be sacrificed safely, such as distal perforating branches of main vessels, is paramount to safe and effective embolization (38). In the event of pseudoaneurysm formation at the site of injury, it is important to stent graft or coil across the site of arterial break to prevent retrograde collateral flow into the pseudoaneurysm (40). Alternatively, the pseudoaneurysm may need to be filled with coils or other embolic agents to prevent perfusion. Pseudoaneurysms may co-exist with arteriovenous fistulas (Figure 5). Finally, in volume depleted and hemodynamically unstable patients, especially those on pressors, arteries may be constricted due to excess sympathetic tone. This can obscure underlying injuries. Additionally, it can make navigation of guidewires and catheters difficult. Finally, if one is unaware of this small vessel size, embolic or stents may be undersized leading to device migration or endoleaks.
Conclusions
Endovascular techniques are becoming increasingly utilized in all types of trauma, including arterial extremity trauma. Depending on anatomic site of injury and patient’s clinical status, endovascular intervention, either by stent graft placement or embolization, can be effective with lower rates of complications and blood loss compared to open surgery.
Acknowledgments
Funding: None.
Footnote
Provenance and Peer Review: This article was commissioned by the editorial office, Annals of Translational Medicine for the series “Endovascular interventions in trauma”. The article has undergone external peer review.
Reporting Checklist: The authors have completed the Narrative Review reporting checklist. Available at https://dx.doi.org/10.21037/atm-20-5428
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/atm-20-5428). The series “Endovascular interventions in trauma” was commissioned by the editorial office without any funding or sponsorship. KQ served as the unpaid Guest Editor of the series and serves as an unpaid editorial board member of Annals of Translational Medicine from Aug 2019 to Jul 2021. RO serves as an unpaid editorial board member of Annals of Translational Medicine from Aug 2019 to Jul 2021. The authors have no other conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
