Development of a machine learning model to predict the risk of late cardiogenic shock in patients with ST-segment elevation myocardial infarction

Introduction

Cardiogenic shock (CS) is the most common cause of in-hospital death in patients with acute myocardial infarction (AMI), occurring in approximately 5–10% of patients. Up to 70% of CS cases can be attributed to AMI (1,2). Mortality among patients with AMI-complicated CS remains high despite early revascularization. ST-segment elevation myocardial infarction (STEMI) is the most severe type of AMI, with poor prognosis and high mortality (3,4). In China, a recent survey suggests that admission rates (per 100,000) for cases of STEMI has increased approximately 4-fold, from 4.6 to 18.0 in men, and 1.9 to 8.0 in women, between 2001 and 2011 (5).

Studies have suggested that the in-hospital mortality of STEMI patients increases to more than 50% after a secondary CS event, especially within 30 days (6). In addition, STEMI-related complications represent a huge medical and economic burden. Some believe that the high mortality rate and the high incidence of complications in STEMI patients are related to the lack of early effective prevention and intervention measures (7). The lag in intervention has been attributed to delayed first medical contact (FMC), the lack of valuable predictive markers, and the inability of traditional scoring scales to provide accurate predictions. Considering the risk of CS and its many related risk factors, an accurate clinical prediction tool must be developed to accurately predict the occurrence of CS. The main risk factors resulting in the death of STEMI patients including older age, previous MI, renal dysfunction, cardiogenic shock, anterior MI, out-of-hospital cardiac arrest, non-reperfused patients. Several risk scores have been developed in the last 20 years to stratify patients hospitalized with acute coronary syndromes (ACS) (8). The most commonly used score is the Global Registry of Acute Coronary Events (GRACE) risk model, which uses eight variables and applies to the entire spectrum of ACS (9). The Brittany Regional Infarction Observatory (ORBI) study provided a scoring system to identify STEMI patients with impending CS following percutaneous coronary intervention (PCI) (10). However, these risk scores were developed by traditional regression methods, and the use of procedural characteristics in the prediction model may cause a delay in calculating the risk while awaiting the results. Thus, in many cases, the shock develops before the risk can be assessed.

Machine learning is a multidisciplinary field involving artificial intelligence, computational complexity theory, that can be characterized by system self-improvement. Based on machine learning methods and admission variables, a nomogram model may improve performance for STEMI patients who may have CS after admission. To the best of our knowledge, this is the first study to use machine learning algorithms to establish an accurate and easy method for predicting the occurrence of STEMI using readily available features on admission. Different machine learning methods for late CS prediction were compared. We present the following article in accordance with the TRIPOD reporting checklist (11) (available at https://dx.doi.org/10.21037/atm-21-2905)

Methods

Patients

All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). Research approval was obtained from the Ethics Committee of the Affiliated Hospital of Zunyi Medical University (approval No. KLL[2020]0144). Patient written informed consent was waived due to the retrospective nature of the study. Patients were recruited from the Affiliated Hospital of Zunyi Medical University between January 2016 and May 2020 (Figure 1) according to the STEMI criteria of the European Society of Cardiology (ESC) [2017] (8).

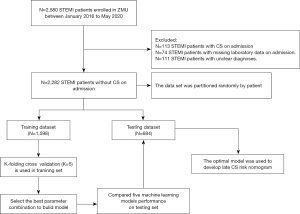

Figure 1 A flow diagram showing the study process. Training and test dataset generation, model training and performance evaluation. A total of 2,282 patients were recruited in the current study. The data were preprocessed and randomly divided into a training set (70%) and a test set (30%), maintaining similar proportions for the two classes proportions in each set. In the training set, k-fold cross-validation (k=5) was used. STEMI, ST-segment elevation myocardial infarction; CS, cardiogenic shock.

Outcomes

The primary outcome was in-hospital CS defined as systolic blood pressure ≤90 mmHg for more than 30 minutes following the exclusion of hypovolaemia, with clinical evidence of hypoperfusion (cool extremities or a urine output of <30 mL/h and a heart rate ≥60 beats/min) or the requirement for mechanical left ventricular support to correct the condition (12). Late CS was defined as CS developed in the ward. Patients with CS on admission were excluded.

Candidate predictors

Demographic data, disease, electrocardiographic data, laboratory parameters on admission, and in-hospital events were collated from the patient’s medical records. Baseline characteristics, demographics (age and gender), risk factors (hypertension, diabetes, current smoking, family history), non-weekday admission (NWDS), delay (defined as patient FMC >12 hours), medical history [previous stroke, previous chronic kidney disease (CKD)], and electrocardiogram (ECG) findings (inferior, anterior, right ventricular, other) were all recorded from our electronic database. Patients with an estimated glomerular filtration rate (eGFR) <60 mL/min/1.73 m² for more than three months were defined as having CKD, where the eGFR was calculated for all patients using the Chronic Kidney Disease Epidemiology Collaboration (CKD-EPI) creatinine equation (13). The dataset was randomly partitioned into the training set and a test set. Based on TRIPOD reporting guidelines, the rule of thumb for sample size is to have at least 10 outcome events per variable (EPV). Assessment of predictors in our study has be done without knowledge of the participant’s outcome. A single investigator assessed all demographic information and clinical data and was blinded to the outcome.

Missing data

Complete case data were collected from the electronic health records (EHRs) and analyzed. All variables can be queried in the EHRs. Some patients were excluded as they refused the candidate predictor laboratory test.

Statistical analysis

CS risk prediction models were bases on five machine learning methods, namely, logistic regression (LR), light gradient boosting machine (LightGBM), extreme gradient boosting (XGBoost), support vector machine (SVM), and least absolute shrinkage and selection operator (LASSO) regression. All numbers listed initially with each hyperparameter were considered default values. Continuous variables are presented as medians, and categorical variables are presented as absolute counts and percentages (n, %). To determine the variables associated with CS risk and to create a predictive model using these variables, machine learning methods and LR analyses were employed. The discriminative abilities of the machine learning models were evaluated and the hyperparameters were tuned by calculating the area under the curve (AUC), accuracy, recall, precision, and the Gini coefficient. The optimal model was used to determine the best combination of variables and develop a nomogram. The variables selected by the best model were manually removed by trial and error to obtain as accurate a model as possible with the smallest number of variables. Five-fold cross-validation (CV) with the training cohort was employed with different randomization schemes. A multivariable LR model was created for comparison by using the variables identified by the best model. Calibration curves were determined as for the best model. These characteristics are described as odds ratios (OR) with 95% confidence intervals (CI) and P values. The CI of Harrell’s concordance index was obtained by creating 1,000 bootstrap samples from the entire dataset and replicating the estimation process. The calibration curve was used to analyze the agreement between the nomogram and ideal observations. Decision curve analysis (DCA) was conducted to assess the clinical usefulness of the predictive nomograms by quantifying the net benefits at different threshold probabilities. All analyses were conducted with the statistical packages R version 4.0.2 and Python 3.7.

Results

Model selection

In this study, 1,598 and 684 STEMI patients, including 117 and 53 patients with CS records, were included in the training and test datasets, respectively (Table 1). The distributions of these variables are shown in Table S1 (variable correlation heatmap in Figure S1). Among the individuals included in the training dataset, the median age was 64 years [interquartile range (IQR) 53, 73], 75% were male, and 9% had CKD. Table 2 presents the accuracy, AUC, recall, precision, and Gini coefficient values of the logistic, LASSO, LightGBM, XGBoost, and SVM models with the training and test datasets in predicting CS. The accuracy and AUC with the test dataset show the performance of the developed models. The linear models, LASSO and LR, showed the highest overall predictive power, with average accuracy and AUC above 0.93 and 0.82, respectively, and similar models produced similar results. However, the feature selection method was not applied in the logistic model, therefore, the LASSO regression method with regularization was adopted. Generally, the LightGBM and XGBoost algorithms showed better performance with the training and test datasets. However, the LASSO model had the highest AUC and accuracy (0.822 and 0.931, respectively) with the test dataset (Figure S2). This indicated that LightGBM and XGBoost may encounter more serious overfitting problems compared to other algorithms. In binary classification, LASSO regression may have greater accuracy and demonstrate more convenient advantages compared to other algorithms (Figures S3,S4).

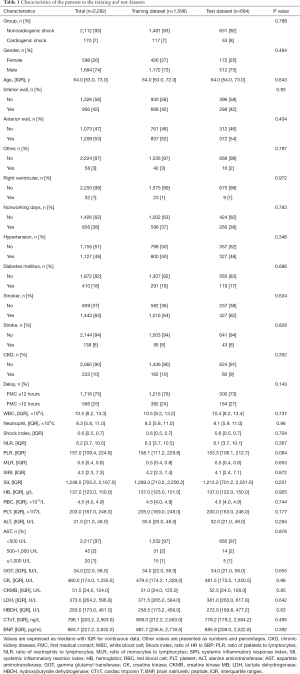

Table 1 Characteristics of the patients in the training and test datasets
Full table

Table 2 A comparison of the model performances with the training and test datasets
Full table

Predictors of in-hospital CS by the LASSO model selection

Of the 33 initial demographic, disease, and lifestyle characteristics, 8 potential indicators based on 2,282 patients were ultimately retained and included in the LASSO regression model with nonzero coefficients (Figure S5). These characteristics included age, CKD, shock index (SI, define as ratio of HR to SBP), delay, white blood cell (WBC) count, hemoglobin (HB), aspartate aminotransferase (AST), and lactic acid dehydrogenase (LDH) (Table S2).

LASSO risk nomogram model building

A model that incorporated the above independent predictors was developed and presented as a nomogram (Figure 2A). The nomogram results for patient #6 are illustrated by mapping its values to the covariate scales. The estimated probability of late CS after admission was 0.352 (Figure 2B).

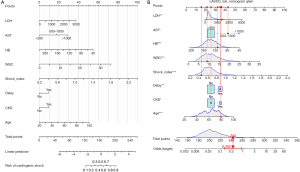

Figure 2 LASSO risk model that incorporated the 8 independent predictors was developed and presented as a nomogram. (A) Proposed CS nomogram; (B) the nomogram results for patient #6 are illustrated by mapping the values to the covariate scales. The incidence estimated for late CS after admission is 0.352. *, P<0.05; **, P<0.01; ***, P<0.001. CS, cardiogenic shock; LDH, lactate dehydrogenase; AST, aspartate aminotransferase; HB, hemoglobin; WBC, white blood cell; CKD, chronic kidney disease.

Performance of the LASSO risk nomogram model

In this cohort, the nomogram calibration curve for the prediction of CS risk in STEMI patients demonstrated good agreement (Figure 3A). The C-index for the prediction nomogram was 0.811 (95% CI: 0.769–0.853) for the cohort and 0.821 following bootstrapping validation, indicating intense discrimination by the model. The output of the LASSO nomogram model thus indicated a strong predictive ability. The AUCs calculated for each of the risk models for late CS following admission are shown in Figure 3B. The highest performance of the LASSO risk model demonstrated its improved predictive accuracy (AUC =0.811) over the simple-ORBI model (based only on admission variables in the ORBI score; AUC =0.756), a model based on GRACE (AUC =0.778), and a model based on the admission SI (AUC =0.645). The prediction model was further evaluated by DCA and the clinical impact curve (CIC; Figure 3C,D). The results demonstrated that the LASSO model provided a substantial net clinical benefit over the simple-ORBI model, GRACE model, and the admission SI model for relevant decision thresholds. For a decision threshold of 10% in-hospital CS risk, the LASSO nomogram model identified 20 additional cases compared to the other models, without identifying any false positive cases in a population of 1,000 patients.

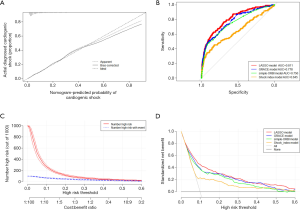

Figure 3 Performance of the LASSO risk nomogram model. (A) Calibration curves for the predictions of the CS nomogram in the cohort. The solid line represents the performance of the nomogram; a closer fit to the diagonal dotted line represents a better prediction. (B) Predictive accuracy of the LASSO model, GRACE model, simple-ORBI model (based only on admission variables in the ORBI score, such as age, previous stroke/TIA, presentation with cardiac arrest, anterior myocardial infarction, FMC delay >90 min, Killip Class II or III, heart rate >90 beats/min, and the combination of systolic blood pressure <125 mmHg and pulse pressure <45 mmHg) and shock index model for late CS. (C) Decision curve analysis for the CS nomogram. The LASSO nomogram model (red) demonstrated an improved net benefit compared with the simple-ORBI model (green), the GRACE model (blue), and a model based on admission shock index (orange). (D) Clinical impact curve for the LASSO nomogram model. The heavy red solid line shows the total number of patients out of 1,000 who would be deemed high risk for each risk threshold. The blue dashed line shows how many of those patients would be true positive cases. CS, cardiogenic shock; LASSO, least absolute shrinkage and selection operator; GRACE, Global Registry of Acute Coronary Events; ORBI, Brittany Regional Infarction Observatory; TIA, transient ischemic attack; FMC, first medical contact.

Discussion

As the prognosis in patients with CS is grave and evidence-based treatment is limited among patients with fulminant CS, the identification of patients in a pre-CS state may be important (14). In this study, five machine learning models were used to predict CS risk in STEMI patients. Although LightGBM and XGBoost showed the highest AUC and accuracy in the training dataset, those in the test dataset are the most important for constructing a predictive model for an early warning system in clinical practice. Among the models constructed, the LASSO method (accuracy =0.931, AUC =0.822, recall =0.212, precision =0.647, Gini coefficient =0.643) achieved the best performance for CS prediction with the test dataset (Table 2, Figure S2). The LASSO model had a stronger explanatory ability and applicability than the other models. LASSO regression results in a full shrinkage of a subset of variables, which effectively operates as a form of variable selection and results in a more stable model that produces a better predictor, particularly when applied to external datasets (15). To date, nomograms have been widely used in the prognostic analysis of tumors and other medical conditions (16). Nomograms rely on a user-friendly digital interface, high accuracy, and a clear interpretation of prognosis to aid clinical decision-making (17). This study is the first to evaluate the efficacy of of multiple machine learning models and select the optimal model with which to construct a nomogram and apply it to the risk prediction of STEMI patients developing late CS following admission.

In this sizeable homogeneous cohort of STEMI patients without CS on admission, we developed and validated a new predictive tool that uses 8 variables, including 4 patient-related variables and 4 laboratory-related variables, to predict the development of in-hospital CS after admission. Integrating risk factors for age, disease, and laboratory measurements into an easy-to-use nomogram helps the individualized prediction of late CS development in patients with STEMI via the creation of a risk nomogram. The internal validation of the model showed good differentiation and calibration capability. In particular, our high C-index from the internal validation indicated that the nomogram can be used extensively and accurately because of the reasonably large sample size used in its construction. In agreement with previous studies (18-20), approximately 5–10% of STEMI patients in this study presented with CS. Recent analyses indicated that older age, diabetes mellitus, stroke, treatment delays, anterior STEMI, heart rate, systolic blood pressure, cardiac arrest, elevated glycemia, and impaired renal function were associated with the development of in-hospital CS (14,21-24). In this current study, the risk factors for CS in STEMI patients were determined to be age, CKD, SI, delay, and laboratory measurements including WBC, HB, AST, and LDH. Moreover, in the recently published ORBI risk score study, which included 9,046 STEMI patients, older age, SI, and longer delays between symptoms were also predictors of CS, which concurs with the prognostic impact of these factors identified in the present analysis.

There is a close relationship between renal and cardiovascular diseases, which may be related to the shared profile of risk factors (25). Compared with normal kidney function in healthy patients, abnormal kidney function in STEMI patients is associated with a greater than 70% increase in the risk of adverse clinical events (26). Chronic renal failure has been defined as a prognostic determinant in STEMI patients complicated with CS (27). CKD is a predisposing factor for renal acidosis and since severe hypotension deteriorates renal perfusion, it exacerbates renal acidosis and plays a prominent role in the vicious cycle encountered in CS patients. Furthermore, the success of PCI has been reported to be low in patients with CKD, and their coronary atherosclerotic plaques tend to have marked calcification with increased media thickness, particularly in end-stage renal disease patients. In addition, microvascular impairment has been observed in patients with CKD (28,29). In this model, delay refers to an FMC >12 hours. These patients may present with atypical symptoms or a lack of awareness of their condition. At present, the patient delay is the main reason for the total excess time of STEMI ischemia and poor prognosis. Systemic delay can be improved by constructing chest pain centers and training the medical team (30). To minimize patient delay, the public should be made awareness of the common symptoms of AMI and when to call emergency services. The model presented in this study confirmed that SI is a valuable indicator for predicting prognosis in patients with AMI complicated by CS. Previous studies have used SI to predict mortality in the ACS population and have found that an increased SI can predict short-term mortality in patients with STEMI. A SI ≥0.7–0.8 on admission in patients with STEMI was associated with a mortality rate of 16–20%, and the lower the SI, the lower the risk of death (31-34). This study showed that the traditional inflammatory indicators, WBC count and myocardial enzymes (LDH and AST), remain essential in the risk prediction of STEMI and confirmed that anemia might increase the risk among patients after PCI. Pathophysiologically, hemoglobin concentration and blood oxygen saturation decrease in patients with anemia, which leads to an imbalance in the oxygen supply, consumption of cardiomyocytes, and myocardial ischemia. After myocardial ischemia, a reflex causes the activation of the sympathetic nerve and the angiotensin aldosterone system, which leads to a compensatory increase in heart rate and blood volume. This increase leads to an increase in cardiac load and aggravates myocardial ischemia. In addition, vascular inflammation increases in patients with anemia, which can aggravate coronary artery plaques and thrombi.

The machine learning-based nomogram presented in this study has several strengths. First, the nomogram was developed from a largely homogeneous population of STEMI patients analyzed by machine learning with improved model performance over traditional regression methods. This method also results in a superior final prediction model without sacrificing the interpretability of the relationship between risk factors and the outcomes of interest. Second, the assessment of the risk of bias (ROB) is an essential step in any prediction model study. A high ROB will overestimate the model efficacy. The Prediction Model Risk of Bias Assessment Tool (PROBAST) was developed to address the lack of appropriate tools specific to the evaluation of ROB and the applicability of prediction model studies (35). The ROB is low when predictions are made without knowledge of the outcome status. Based on the patient’s clinical and laboratory data on admission, the proposed LASSO risk model of late CS was constructed to ensure a low ROB. Additionally, there was no risk of delayed calculation caused by waiting for the procedural results to be available. Third, as previously discussed, to ensure that the outcome was isolated to the predictors, several known risk factors for the development of CS in STEMI were not included in the present study, such as in-hospital treatment (including PCI and coronary artery bypass grafting), diagnostic variables, left ventricular ejection fraction (LVEF), and lactate levels. The inclusion of these factors would have inflated the apparent model performance because they are measured closer in time to the outcome assessment and are likely to be more strongly associated with the outcome. Fourth, the nomogram demonstrated superior clinical benefit compared with the simple-ORBI model (based on ORBI but excluding procedural variables) and the GRACE model, which have been externally validated in the general population for predicting in-hospital late CS (9,10). Finally, the nomogram efficiently addresses a significant clinical need, refining the identification of patients at high risk of CS development on admission, which may be the most suitable time to initiate early adjunctive therapies. This was the first machine learning model developed for this condition using a large sample size, and the results were displayed directly via a nomogram, which can be easily applied in clinical practice. The early prediction of CS has positive clinical importance in the treatment and prognosis of patients with STEMI. Patients at higher risk may benefit from early management, which may prevent iatrogenic shock.

Limitations

There were certain limitations to this current research. First, the data collected only represented a portion of STEMI patients and may not be representative of all STEMI patients. Second, not all possible factors that influence CS were included in the risk factor analyses. For example, glycemia is not routinely recorded in our patients and therefore could not be tested as a potential predictor of CS. Additionally, the influence of other variables, such as insurance and other factors, are not fully understood. Third, although the bootstrap test thoroughly assessed the robustness of our nomogram, external testing could not be conducted, and the generalizability to other STEMI populations in other regions and countries is unclear. Further investigations using larger populations are warranted to fully evaluate the applicability of this model.

Conclusions

This research established a new nomogram capable of predicting the risk of CS in STEMI patients with good accuracy. This nomogram is a simple and efficient tool that may be implemented on admission in routine clinical practice to identify STEMI patients with a high risk of developing in-hospital CS.

Acknowledgments

Funding: None.

Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://dx.doi.org/10.21037/atm-21-2905

Data Sharing Statement: Available at https://dx.doi.org/10.21037/atm-21-2905

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/atm-21-2905). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was locally approved by the Ethics Committee of the Affiliated Hospital of Zunyi Medical University (approval No. KLL[2020]0144). All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). Patient written informed consent was waived due to the retrospective nature of the study.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
