The mechanisms of Chuanxiong Rhizoma in treating spinal cord injury based on network pharmacology and experimental verification

Introduction

Spinal cord injury (SCI) is one of the most severe traumatic diseases causing permanent disability such as functional loss and neurological dysfunction (1-3). It can be divided into primary injury and secondary injury phases on the basis of its complex pathophysiology. Primary SCI is transient and mainly caused by a direct compression and local bleeding. After primary injury, the spinal cord pathophysiology changes are mainly reflected by impaired blood circulation, and tearing of nerve cells and axon membranes, which releases harmful inflammatory mediators and eventually triggers secondary injury. Secondary injury is an initiative process that includes a series of pathological events such as oxidative stress, hemorrhage, neuron apoptosis, excitotoxicity, and posttraumatic inflammation (4).

Neuroinflammation, ischemia, and hypoxia following SCI play a crucial role in the development of SCI (5). Previous studies have shown that inhibition of the inflammatory response can decrease the expression of inflammation-related factors, thereby reducing secondary damage caused by inflammation and creating a favorable microenvironment for axonal regeneration (6,7). Ameliorating the hypoxic ischemic microenvironment of the local spinal cord could reduce the secondary damage and improve the recovery of neurological function (8).

Network pharmacology is a promising method that uses bioinformatics and pharmacology to uncover the interactions of traditional Chinese medicine (TCM) on diseases, providing a new technical route and logical guidance for understanding and developing of drugs in a visual way (9,10). Chuanxiong Rhizoma (CR), the dried rhizomes of Ligusticum striatum DC, is a traditional Chinese medical herb widely applied for the therapy of brain and heart diseases, such as stroke and coronary heart disease (11,12). Recent pharmacological studies have demonstrated that there are many effective ingredients in CR, such as ferulic acid, senkyunolide I, and ligustilide, and that it has multiple pharmacological effects including anti-inflammatory, anti-oxidative, and anti-obesity (13,14); however, how CR exerts therapeutics effects on SCI remains unclear.

In this study, we first time used the network pharmacology approach as a tool to explore the active ingredients of CR and investigate its underlying mechanism of action in the treatment of SCI. Then, molecular docking of hub targets was used to verify network pharmacology of selected active components. Finally, we validated the neuroprotection role of CR and the key targets expression in an SCI-rat model. The analysis workflow of this research is shown in Figure 1. We present the following article in accordance with the ARRIVE reporting checklist (available at https://dx.doi.org/10.21037/atm-21-2529).

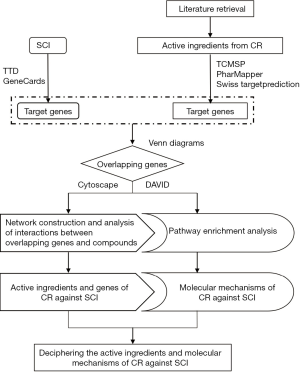

Figure 1 The analysis program flowchart of the study. CR, Chuanxiong Rhizoma; SCI, spinal cord injury; TTD, Therapeutic Target Database.

Methods

Acquiring of pharmacodynamic ingredients and related targets in CR

The TCMSP database is a systematic online pharmacological database which is used for selecting compounds and evaluating the pharmacokinetic effectiveness of TCM (15). Using the TCMSP database, we obtained active constituents of CR at the thresholds: oral bioavailability (OB) ≥30% and drug-likeness (DL) ≥0.18. The chemical structures were retrieved from PubChem (16). The SwissTargetPrediction online database and PharMapper were used to identify the gene targets corresponding to chemical structures for active compounds.

Potential target genes for SCI

The action targets related to SCI were retrieved from the Therapeutic Target Database (TTD) and GeneCards (17,18). All the collected genes of CR and SCI were merged before being rectified by the Uniprot database (19). Then, common target genes were obtained using a Venn diagram. The study was in accordance with the Declaration of Helsinki (as revised in 2013).

Construction of the candidate target protein-protein interaction (PPI) network of CR in treating SCI

To explore the interaction mechanism of these common targets, we putted theses genes into Search Tool for the Retrieval of Interacting Genes/Proteins (STRING) database 11.0 to build a PPI network (20). The candidate target genes were uploaded to the STRING database to visualize and establish the PPI network set the parameter as interaction value >0.9 (21).

Gene ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analysis

In order to investigate the GO BP and the contributing signaling pathway of the target genes in the treatment of SCI, GO enrichment analysis and KEGG pathway annotation were performed using the package “ClusterProfifiler” (22). Adjusted P value <0.05 was considered statistically significant.

Molecular docking technology

The three-dimensional (3D) tructures of the proteins were downloaded from the Research Collaboratory for Structural Bioinformatics (RCSB) Protein Data Bank (PDB) databases. AutodockTools 1.5.6 was performed to dcok the receptor protein with the selective molecule ligands of the active ingredients of CR.

Molecular docking studies were conducted by using AutodockTools 1.5.6. For the results of docking, a score of 0–10 indicates that binding capacity of the protein from weak to strong, which is the negative logarithm of the experimental dissociation/inhibition constant (pKd/pKi) (23).

Animals

Adult female Sprague Dawley rats weighing 250±25 g (10-week-old) were obtained from Gempharmatech Co. Ltd. and were housed in a humidity- and temperature-controlled environment. The experimental processes were approved by the Ethics Committee of Tianjin Institute of Radiation Medicine (IRM-DWLL-2019039) and according to the National Institutes of Health in the Guide for the Care and Use of Laboratory Animals (NIH Publications No. 85-23, revised 1996).

Experimental design

The rats were firstly randomly assigned to 3 groups: SCI only, Sham group, and SCI+1.8 g/kg CR (rats were orally administered CR daily after SCI). Each group had 10 rats. Intervention doses of CR were determined based on previous studies (24).

SCI

The contusion SCI model was established using a New York University Impactor device (NYU, New York, USA) as previously described (25). In the sham group, the rats underwent laminectomy only.

Locomotion recovery analysis

Basso Beattie Bresnahan (BBB) score and inclined plane test were performed prior to test the locomator function of rat after SCI. The BBB test score which evaluated the movement of lower limbs on a scale of 0 to 21. Scoring was based on the accurate observation of hindlimb movement during a 5 min in the open field. The maximum angle that a rat could stay on an angle plane for 5 s without falling was recorded. Each test was performed in triplicate. This testing was performed weekly until 4 weeks post-SCI.

Mechanical allodynia

To evaluate the nerve function recovery of rats after SCI, the pain nociception was measured using the automated von Frey filaments. After at least 30 min of habituated the environment, a touch stimulator was applied to the center of plantar surface of each hind paw using a adjusted angled mirror. The paw with threshold was calculated as an average of hind paws at the interval of 10 s.

Quantitative real-time polymerase chain reaction (qRT-PCR) verification

The procedure was performed as previously described (26). Total RNA was isolated from the spinal cord tissues with TRIZOL reagent (Invitrogen, Shanghai, China), and reverse transcription was then used with a poly(T) adapter (Takara, Dalian, China) into cDNA following the manufacturer’s instructions. Real-time quantitative PCR was performed using SYBR green Premix Ex TaqTM Kit (Takara, Dalian, China). The primers as listed in Table 1.

Table 1 The primers of RT-PCR assays
Full table

Statistical analysis

All data were shown as mean ± standard error of the mean (SEM). GraphPad Prism 6.0 (GraphPad Software, Inc., La Jolla, CA, USA) was used for statistical analysis and image construction. Multiple different groups were analyzed with a one-way analysis of variance (ANOVA) followed by Bonferroni test. A P value <0.05 was considered statistically significant.

Results

Screening of active ingredients and potential targets in CR

As results, 7 chemical components of CR were collected from the TCMSP database (Table 2). Furthermore, based on the structure similarity algorithm and data mining, we finally obtained 246 potential targets of CR and 1,260 SCI-related targets. Ultimately, by taking an intersection of the CR-target genes and SCI-related target genes, 111 common targets were summarized (Figure 2A). We then established a compound-target network of CR (Figure 2B).

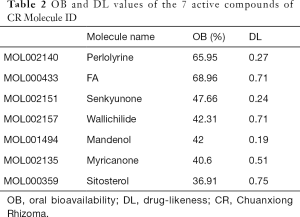

Table 2 OB and DL values of the 7 active compounds of CR Molecule ID
Full table

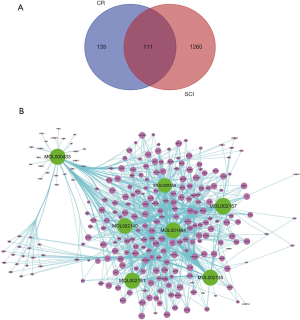

Figure 2 Venn analysis and network analysis of active compounds and potential targets of CR in SCI. (A) The Venn diagram of target proteins of CR and SCI-related targets based on open targets platform. (B) The compounds-targets network diagram of CR to treat SCI, square nodes represent compounds, circular nodes represent target proteins. CR, Chuanxiong Rhizoma; SCI, spinal cord injury.

The PPI network against SCI

A PPI network showed that the proteins encoded by the 111 common targets had complex interactions (Figure 3). The network contained 109 nodes and 1,229 edges; which were the core targets of CR in the treatment of SCI. The node color showed the degree of node contribution in the network and if there was a positive correlation in the development of SCI. Among them ALB, AKT1, MAPK1, EGFR, MMP9, CASP3, MAPK8, SRC, HRAS, HSP90AA1, CAT, and MMP2 were significantly enriched, which were considered to be hub genes. The top 10 genes in the network were ranked by degrees (Table 3). Comparing the results, ALB, AKT1, MAPK1, and EGFR were selected to conduct molecular docking experiments.

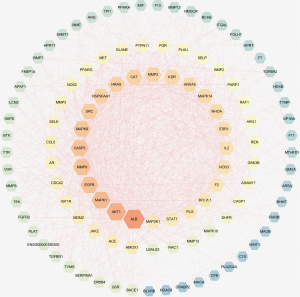

Figure 3 The PPI network of CR target genes. The PPI network contains 109 nodes and 1,229 edges. PPI, protein-protein interaction; CR, Chuanxiong Rhizoma.

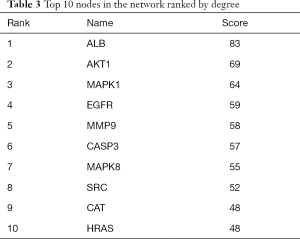

Table 3 Top 10 nodes in the network ranked by degree
Full table

GO and KEGG pathway enrichment analyze

The 111 potential targets of CR to treat SCI were further analyzed for BP and KEGG pathways. It was revealed that BP with high enrichment scores, such as response to steroid hormone, neutrophil mediated immunity, and neutrophil activation and degranulation (Figure 4A). The KEGG analysis results showed the main pathway included the estrogen signaling pathway, Ras signaling pathway and vascular endothelial growth factor (VEGF) signaling pathway were most closely related to SCI (Figure 4B).

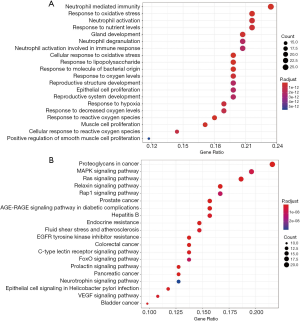

Figure 4 The GO and KEGG enrichment analysis of core targets of CR in treating SCI. (A) The top 20 GO biological process analysis. (B) The top 20 KEGG signal pathways annotation. GO, Gene Ontology; BP, biological process; KEGG, Kyoto Encyclopedia of Genes and Genomes; CR, Chuanxiong Rhizoma; SCI, spinal cord injury.

Molecular docking of active compounds and hub proteins

The molecular docking results showed that there was a good binding between all the 7 active compounds of CR could easily bind the following selected proteins (Figure 5): ALB, AKT1, MAPK1, and EGFR. At the same time, the result of molecular docking verified the reliability of network pharmacology. The docking results are shown in Table 4.

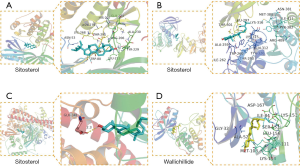

Figure 5 The docking of 4 core targets and their strongest binding components of CR. (A) ALB, (B) AKT1, (C) MAPK1, (D) EGFR. CR, Chuanxiong Rhizoma.

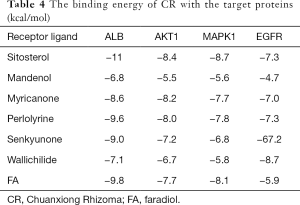

Table 4 The binding energy of CR with the target proteins (kcal/mol)
Full table

CR improved the functional recovery and mechanical allodynia of rats after SCI

To examine the efficacy of CR in SCI, the motor function recovery of SCI rats were evaluated by using BBB score and mechanical allodynia were applied from day 1 until 4 weeks post-SCI. There was a significant difference in the mean BBB score and incline plane test between the Injury and CR-treated group after 1 week post-injury, which showed that CR could improve functional recovery after SCI (Figure 6A,B). Meanwhile, CR could also improve mechanical pain threshold (Figure 6C).

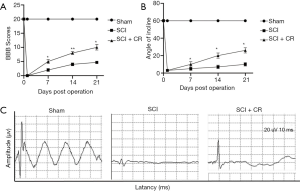

Figure 6 CR promotes recovery of locomotor function and mechanical allodynia in SCI rats. (A,B) The BBB locomotor scores and inclined plane test at 0, 7, 14, and 21 d post-SCI were shown for all groups of rats. (C) MEP were tested at 4 weeks for all groups of rats. *, P<0.05; **, P<0.01. CR, Chuanxiong Rhizoma; SCI, spinal cord injury; BBB, Basso Beattie Bresnahan; MEP, motor evoked potential.

In vivo experiment

In order to clarify the mechanism of CR on Spinal cord injury rats, we validated the expression of the four core genes by using qRT-PCR method. Compared with SCI groups, the expression of ALB, AKT1, MAPK1, EGFR with CR treatment group has decreased, which was consistent with above results. The results were shown in Figure 7.

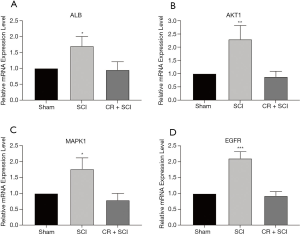

Figure 7 The expression of four core genes in SCI rats after 4 weeks of CR treatment. qRT-PCR was used to verify the genes (A) ALB, (B) AKT1, (C) MAPK1, (D) EGFR. * indicated P<0.05, ** indicated P<0.01, *** indicated P<0.001. SCI, spinal cord injury; CR, Chuanxiong Rhizoma; qRT-PCR, quantitative real-time polymerase chain reaction.

Discussion

In recent times, increasing attention has been paid to research focused on natural products (27,28). Through the combination of network pharmacology and molecular biology network analysis, several new therapeutic drugs derived from natural products have been decoded (29). This approach provides new insight into the systemic linkages between different diseases and therapeutic targets as a whole, and provides a promising and powerful tool to elucidating disease mechanisms at a systemic level and facilitate the discovery of potential active compounds (30). Recently, many Traditional Chinese Medicine formulae have been proven to be effective in treating diseases. The network pharmacology method was used to screen and confirm the traditional Chinese medicine components in the formulation of TCM. Tao et al. identified potential targets of Coronavirus disease (COVID-19) through network pharmacology and obtained mainly 168 pathways related to COVID-19. This study confirmed the mechanism of Huashi Baidu formula (HSBDF) in treating COVID-19 and indirectly proved the effectiveness of Huashi Baidu formula (HSBDF). TNF signaling pathway, PI3K-Akt signaling pathway, NOD-like receptor signaling pathway, MAPK signaling pathway, and HIF-1 signaling pathway, and other signaling pathways were also found to be connected (31). Gu et al. collected the components of indigo naturalis (IN) and predicted their targets by using network pharmacology and obtained the ulcerative colitis targets in GEO database at the same time. This research concluded that IN could regulate genes and biological processes related to regulation of reactive oxygen species and cell proliferation and the participation of apoptosis (32).

In this research, the network pharmacology approach and molecular docking experiments were used to reveal the bioactive ingredients of CR and its molecular mechanism in the treatment of SCI. There were 7 bioactive ingredients and 111 different targets identified via the online database. We established a PPI network of candidate targets which revealed 109 nodes and 1,229 edges. Through the degree values, it was revealed that ALB, AKT1, MAPK1, and EGFR proteins were likely to play key roles in the development of SCI.

In addition, on the basis of GO enrichment analysis, the BP terms enriched in target genes mainly focused on the regulation of neutrophil activation, neutrophil degranulation, and steroid hormone mediated signaling pathway. The KEGG enrichment analysis indicated that 111 target proteins were significantly enriched in the estrogen signaling pathway, VEGF signaling pathway, and Ras signaling pathway, which are closely related to the signal pathway of SCI.

A previous study demonstrated that up-regulation of the Ras signaling pathway aggravates the development of SCI by damaging spinal cord-injured neurons regeneration and causing neural microenvironment imbalances, and that inhibiting this signal pathways could restore the injured neuronal cell migration, adhesion, neurogenesis, and dendritic spine development (33). A characteristic of SCI is an inflammatory response that induces the increased expression of several cytokines, estrogen has been reported have an interfering effect and it reduces the expression of several inflammasome components after SCI (34,35). The VEGF represents an endothelial-specific growth factor which plays an important role in vasculogenesis and angiogenesis. In the nervous system, it has been demonstrated that VEGF exerts a neuroprotective effect to promote nerve regeneration and stimulate the growth and survival of neurons by upregulating MAP2 expression (36-39). Chen et al. demonstrated that the VEGF signaling pathway plays a vital role in SCI secondary injury; activation of the VEGF signaling pathway induced the VEGF protein expression to increase, it can improve the local hypoxic microcirculation environment, reduce SCI secondary damage, and promote the improvement of locomotor function (8).

To confirm the above results of network pharmacology analysis, we also conducted an SCI rat model animal validation experiment, the results of which showed that CR can effectively promote locomotion recovery. These results indicated that through the above mechanisms, CR is closely associated with these key target proteins, BP, and signaling pathways against SCI. Further experiments and clinical validations are still required to verify our findings.

Conclusions

In summary, we first elucidated the pharmacological effects of CR on SCI through network pharmacology analysis. A total of 111 target genes including ALB, AKT1, MAPK1, and EGFR were the key target proteins of CR anti-SCI. GO and KEGG Functional enrichment showed that proteins targeted by CR were mainly enriched in estrogen signaling pathway, Ras signaling pathway, and VEGF signaling pathway. This research may provide a theoretical basis for further studies of CR in SCI.
