Hemodynamic changes of anesthesia, pneumoperitoneum, and head-down tilt during laparoscopic surgery in elderly patients

Introduction

Laparoscopic surgery has been widely used in recent decades because of its favorable short-term outcomes, such as less pain, reduced blood loss, and improved recovery time (1). During laparoscopic surgery, the combined effect of anesthesia, pneumoperitoneum, and body position can alter the patient’s cardiovascular, respiratory, and cerebral physiology. Several studies suggested that laparoscopic surgery caused few hemodynamic changes that were well tolerated by the majority of the elderly patients with head-up tilt position that affect venous return subtly (2,3). While central venous pressure will increase with tilt-down position during laparoscopic surgery and affect venous return significantly, which may compound the changes in hemodynamics, organ perfusion, and tissue oxygenation, especially in vulnerable patients such as the elderly. The hemodynamic variations of cardiac and cerebral blood monitoring during pneumoperitoneum and head-down tilt position in general anesthetized elderly patients remain unresolved.

Recently, a few studies have reported the simultaneous monitoring of cerebral perfusion during laparoscopic surgery with head-up or head-down tilt (4). However, these studies recruited healthy patients [American Society of Anesthesiologists (ASA) Physical status 1–2] or excluded patients with cerebral disease. In our study, we investigated ASA physical status 1–3 in elderly patients with comorbidities of cardiovascular and cerebral diseases. We used the FloTrac/Vigileo system (Edwards Lifesciences, Irvine, CA, USA) to provide important information on hemodynamics, such as arterial pressure-based cardiac output (APCO), stroke volume (SV), cardiac index (CI), stroke volume index (SVI), and tissue near infrared spectroscopy (NIRS) to monitor cerebral tissue oxygen saturation (SctO₂), with the probe placed on the forehead. We wanted to explore the relationship between cardiac dynamic changes and cerebral perfusion at different time points during surgery.

We present the following article in accordance with the STROBE reporting checklist (available at https://dx.doi.org/10.21037/atm-21-3407).

Methods

All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). This prospective, observational study was conducted between November 21, 2019, and December 20, 2020, after approval was obtained from the Ethics Committee of Beijing Hospital (no. 2019BJYYEC-032-04). The trial was registered with the Chinese Clinical Trial Registry (registration no. ChiCTR1900026143). Written informed consent from either the patients or their families was obtained. Patients aged over 65 years undergoing elective laparoscopic colorectal radical resection with head-down tilt were enrolled in this study, and the ASA physical status ranged from I to III. Patients with known aortic valve regurgitation and arrhythmia were not included, as these are contraindications for the use of the FloTrac/Vigileo system. This study had a prospective, observational design.

Anesthesia procedure

In the operating room, all the patients inhaled 100% oxygen at 5 L/min with a mask. Arterial catheters were inserted into the left radial artery followed by connection to the FloTrac sensor and Vigileo monitoring device (Edwards Lifesciences, Irvine, CA, USA), and continuous APCO, SV, APCI, and SVI monitoring were commenced. SctO₂ was measured using 2 probes placed on the left and right forehead (EGOS-600A; Enginmed Bio-Medical Electronics, Suzhou, China). A bispectral index (BIS) was used to monitor the depth of anesthesia. Propofol and sufentanil were infused by target controlled infusion (TCI) system (Orchestra Base Primea, Fresenius,Badendburg, Germany). The initial target effect site concentration (Ce) of sufentanil was set at 0.25 ng/mL, while that of propofol was set at 2.0 µg/mL. Ce of propofol was then increased in 0.5 µg/mL increments until the patient lost consciousness. Tracheal intubation was facilitated with cisatracurium 0.2–0.3 mg/kg, and patients were mechanically ventilated. Patients were ventilated by tidal volume control ventilation with 40% oxygen in air, with tidal volumes at 8 mL/kg of ideal body weight and an inspiratory to expiratory ratio of 1:2. Central venous catheters were then inserted through the right subclavian venous or right internal jugular vein, and central venous pressure (CVP) was measured. Other monitoring of anesthesia included pulse oximetry, heart rate (HR), 5-lead electrocardiogram, and capnography.

Anesthesia was maintained with inhalation of sevoflurane, bolus injection of cisatracurium, and TCI of propofol and sufentanil. The BIS was maintained between 40 and 60.

Pneumoperitoneum was created by intraperitoneal insufflation of CO₂, and intraperitoneal pressure was kept at 11 to 14 mmHg throughout the procedure. A few minutes after induction of pneumoperitoneum, patients were tilted head-down by 20 to 30 degrees. At the end of the procedure, the patient was returned to a horizontal position, and pneumoperitoneum was terminated. Then, toward the end of surgery, 4 mg of ondansetron was given intravenously to prevent postoperative nausea and vomiting. Intermittent doses of phenylephrine (100 mcg) or a phenylephrine infusion were used when appropriate to uphold mean arterial pressure (MAP). After carbon dioxide insufflation, the intraperitoneal pressure was kept at 11 to 14 mmHg throughout the procedure.

Values were recorded at the following 9 time points: [1] awake patients in OR (T₁); [2] approximately 5 minutesafter induction anesthesia and intubation (T₂); [3] before incision (T₃); [4–7] approximately 5 minutes after pneumoperitoneum and the head-down tilt (T₄) and 20 (T₅), 40 (T₆), and 60 (T₇) minutes after head-down tilt; [8] at the end of pneumoperitoneum and return to the horizontal position (T₈); and [9] at the end of surgery (T₉).

Statistical analysis

Reported values are medians with 95% confidence intervals (CIs) calculated by the Hodges-Lehmann estimate, unless otherwise noted. The Friedman test was used to test for differences across the 9 related time points. The Wilcoxon matched-pairs signed-rank test against a 2-sided alternative was used to test for differences between time points for our primary outcome variable, SctO₂. For this test, the level of significance was Bonferroni-corrected and set at a P value <0.05. For ease of comparison with other work, the percentage changes in cardiac index, MAP, and HR between states were also calculated for each participant; this included medians and 95% CI of the percentage change. The statistical significance level was set at a P value <0.05.

Results

Patient demographics and operative variables are shown in Table 1. A total of 47 patients, 31 men and 16 women, aged 74 years (range, 65–86 years), with a mean body mass index (BMI) of 24.3 (range, 17.6–31.4 years) and an ASA physical status from I–III were recruited. The patients’ comorbidities included type 2 diabetes (1 male, 6 females), hypercholesterolemia (3 males, 3 females), idiopathic hypertension (20 males, 8 females), asthma (1 male), anemia (2 males), chronic obstructive pulmonary disease (COPD) (1 female), coronary heart disease (7 men), and cerebral infarction (1 male, 3 females).

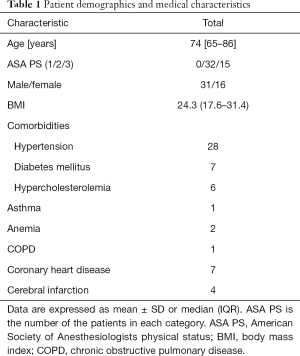

Table 1 Patient demographics and medical characteristics
Full table

Table 2 presents absolute values of cerebrovascular and cardiovascular variables at each time point. Figure 1 summarizes group mean HR, SBP, DBP, MAP, CVP, CO, CI, SV, SV index, SctO₂, THI at each time point.

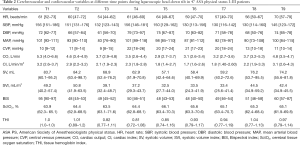

Table 2 Cerebrovascular and cardiovascular variables at different time points during laparoscopic head-down tilt in 47 ASA physical status I–III patients
Full table

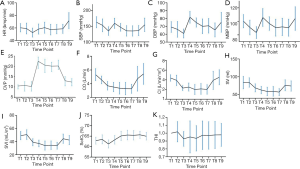

Figure 1 Cerebrovascular and cardiovascular changes at different time points during laparoscopic head-down tilt in 47 ASA physical status I–III patients. Vales were measured at nine time points: [1] awake patients in OR (T1); [2] approximately 5 minutes after induction anesthesia and intubation (T2); [3] before incision (T3); [4–7] approximately 5 minutes after pneumoperitoneum and the head-down tilt (T4) and 20 (T5), 40 (T6), and 60 (T7) minutes after head-down tilt; [8] at the end of pneumoperitoneum and return to the horizontal position (T8); and [9] at the end of surgery (T9). (A) HR changes at different time points; (B) SBP changes at different time points; (C) DBP changes at different time points; (D) MAP changes at different time points; (E) CVP changes at different time points; (F) CO changes at different time points; (G) CI changes at different time points; (H) SV changes at different time points; (I) SVI changes at different time points;(J) SctO₂, changes at different time points; (K) THI changes at different time points. HR, heart rate; SBP, systolic blood pressure; DBP, diastolic blood pressure; MAP, mean arterial blood pressure; CVP, central venous pressure; CO, cardiac output; CI, cardiac index; SV, systolic volume; SVI, systolic volume index; SctO₂, cerebral tissue oxygen saturation; THI, tissue hemoglobin index.

Effects of anesthesia

Induction of anesthesia and tracheal intubation resulted in an 16.3% reduction in MAP compared with the waking state (P<0.05). Subsequently HR, SBP, DBP, MAP, CO, CI, SV, SVI, and SctO₂ measured before incision decreased significantly compared with those measured during the waking state (P<0.05). SBP, CO, CI, SV, and SVI before incision decreased significantly compared with those during induction and intubation (P<0.05). The duration between tracheal intubation and induction was about 30–40 minutes for surgical preparation.

Effect of pneumoperitoneum and head-down tilt

Since the interval between pneumoperitoneum and head-down tilt was very short, we investigated the combined effects of these 2 factors. SBP, DBP, MAP, and CVP increased significantly after pneumoperitoneum and head-down tilt compared with T3 (<0.05) and reached the maximum at T₄, then decreasing during the following hour. CO decreased to 3.5 L/min after pneumoperitoneum and head-down tilt, and then decreased from 2.9 to 3.1 L/minand 3.2 L/min at 20, 40, and 60 minutes respectively. CI increased to 2.3 L/min/m² after pneumoperitoneum and head-down tilt, and then maintained at 1.8 to1.7 L/min/m²in the following hour. SV increased to 62.9 mL after pneumoperitoneum and head-down tilt, and then maintained at 57.1 to 59.2 mL in the following hour. SVI decreased to 37.2 mL/m² after pneumoperitoneum and head-down tilt, and then remained at 32.5 to 33.5 mL/m² in the following hour.

SctO₂ increased after pneumoperitoneum and head-down tilt and remained stable during the following hour.

End of pneumoperitoneum and horizontal position

CVP decreased while CO, CI, SV, and SVI increased significantly at the end of pneumoperitoneum and head-down tilt (P<0.05).

End of surgery

HR and MAP increased significantly at the end of surgery compared to at the end of pneumoperitoneum and head-down tilt (P<0.05).

Pearson correlation coefficient between different variables and SctO_²

CI, HR, DBP were associated with SctO₂ by Pearson correlation coefficient significantly. Table 3 showed CI was associated with SctO₂ as indicated by a Pearson r of 0.035 (P<0.05).

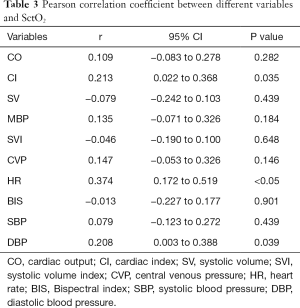

Table 3 Pearson correlation coefficient between different variables and SctO₂
Full table

Discussion

Our study demonstrated that in elderly patients undergoing elective laparoscopic surgery, SctO₂ declined as CO, CI and MAP decreased between intubation and incision. During this period, the elderly patients showed larger hemodynamic fluctuations compared with those reported in other studies, which focused on ASA I–II or younger patients (5). Another period of marked cardiovascular changes occurs in the pneumoperitoneum and head-down tilt procedure. We found 12 of 43 elderly patients suffered a sharp decline above 40% in CO and CI with a higher CVP.

SctO₂ can also be written as tissue oxygenation index (TOI), which refers to the percentage of regional tissue oxygenated hemoglobin Ce to total hemoglobin Ce. TOI is the weighted average of the blood oxygen saturation in arterioles, venules. and capillaries in regional tissues. Since the ratio of venule blood to arteriolar blood is approximately 3:1, tissue oxygen saturation is closer to the oxygen saturation of venule blood in the tissue. TOI can directly reflect the dynamic balance between oxygen supply and consumption in regional tissue.

Meanwhile, THI is an absolute quantity, and has the same value as the product of the reduced scattering coefficient (K), blood volume (BV), and hematocrit (HCT) of the tested regional tissue. THI does not have a normal value range, just as the value of K varies with different people, tissues, and even distinct parts of the tissue. Therefore, comparisons of THI between different people, tissues, or distinct parts of the tissue do not have any clinical implications. K can be considered constant if the position of the probe is fixed throughout the measurement. HCT, being the volume ratio of red blood cells in the whole blood, changes little during laparoscopic surgery and can also be considered constant. BV, being the BV of the regional tissue, can reflect the diastolic and constrictive state of microvasculature in regional tissue. Microvascular diastole and BV increase when there is hyperemia in the tissue but decrease when there is ischemia. Therefore, in laparoscopic surgery, the change of THI can reflect the hyperemia or ischemia of microvascular in regional tissues, which can assist the clinical evaluation of microcirculation from the perspective of BV.

Cerebral autoregulation (CA) is the intrinsic tendency of cerebral vessels to maintain stable blood flow despite fluctuations in perfusion pressure (6). Defects in CA increase the risk of tissue hypoperfusion during hypotension, hyperperfusion during hypertension, and unstable flow with fluctuating blood pressure. Hypo- or hyperperfusion may cause brain injury (7-9). CA is not invariant. We often use the curve of cerebral blood flow varying with perfusion pressure to represent CA. The platform stage as well as the lower limit and upper limit of this curve may be influenced by various factors such as age, disease, anesthesia, and CO₂, and it is thus important to evaluate the CA of each patient in real time (6).

A large number of methods to assess the quality of CA have been proposed over the last 30 years. However, no single method has been universally accepted as a gold standard (10). CA can be divided into two main groups, static cerebral autoregulation (sCA) and dynamic cerebral autoregulation (dCA); sCA describes the ability to maintain stable cerebral blood flow during slow and progressive changes in blood pressure and is calculated using the linear relationship between blood pressure and cerebral blood flow (11). The change of cerebral blood flow in the change of blood pressure is described as dCA, which is often evaluated by using phase difference and gain in the method of transfer function (12).

TOI reflects the blood oxygen saturation of regional tissues. When the blood oxygen saturation of arteries, the metabolic rate of brain tissue, and the oxygen diffusion ability of brain tissue are stable, as they are when under stable general anesthesia, TOI changes can, to some extent, reflect the change of cerebral blood flow (13,14). Therefore, THI can be considered capable of reflecting the change of microvascular diameter in brain tissue, while TOI can be considered capable of reflecting the change of microcirculation flow in brain tissue under stable general anesthesia. If the patient's CA function is normal, when the whole-body hemodynamic index changes due to various causes, the microvascular diameter of brain tissue changes accordingly, resulting in the change of cerebrovascular resistance, while the microcirculation flow of brain tissue remains relatively stable. Therefore, from the point of view of CA, THI embodies the self-regulating behavior of cerebral vessels, while TOI can reflect the results of self-regulating of cerebral vessels.

In this study, we found that the overall degree of CI data was more discrete in head-down laparoscopic surgery, which showed that the same operation (pneumoperitoneum and head-down tilt) had different effects on CO in different patients. In order to maintain stable cerebral blood flow, the self-regulating behavior of intracerebral blood vessels varied, which led to greater THI dispersion in this study. In addition, this study also found that the TOI dispersion was relatively slight, indicating that the TOI changes in different patients are relatively consistent. In summary, we believe that when the CO changes of individual patients are different, each stimulates different cerebrovascular self-regulation behaviors, thereby ensuring that the overall cerebrovascular self-regulation results are relatively consistent. So cardiac and cerebral perfusion monitorings should be performed in elderly patients to find the hemodynamic variables and provide individualized treatment.

Conclusions

Our findings suggest that anesthesia, pneumoperitoneum, and head-down tilt affect cardiac function and cerebral perfusion in elderly patients. Rigid surveillance of cardiac and cerebral perfusion should be performed in elderly patients to provide individualized treatment.

Acknowledgments

Funding: Talent Training Projects of Dongcheng District, Beijing City; Beijing Hospital Clinical Research 121 Project; Disciplines Construction Project of Peking Union Medical College.

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://dx.doi.org/10.21037/atm-21-3407

Data Sharing Statement: Available at https://dx.doi.org/10.21037/atm-21-3407

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/atm-21-3407). The authors report that this work was supported by Talent Training Projects of Dongcheng District, Beijing City; Beijing Hospital Clinical Research 121 Project; Disciplines Construction Project of Peking Union Medical College. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was approved by the Ethics Committee of Beijing Hospital (no. 2019BJYYEC-032-04). Written informed consent from either the patients or their families was obtained. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.

References

1. Bonjer HJ, Deijen CL, Abis GA, et al. A randomized trial of laparoscopic versus open surgery for rectal cancer. N Engl J Med 2015;372:1324-32. [Crossref] [PubMed]
2. Ramos LPJ, Araújo RB, Castro MDCV, et al. Hemodynamic evaluation of elderly patients during laparoscopic cholecystectomy. Rev Col Bras Cir 2018;45:e1659 [Crossref] [PubMed]
3. Goel A, Gupta S, Bhagat TS, et al. Comparative Analysis of Hemodynamic Changes and Shoulder Tip Pain Under Standard Pressure Versus Low-pressure Pneumoperitoneum in Laparoscopic Cholecystectomy. Euroasian J Hepatogastroenterol 2019;9:5-8. [Crossref] [PubMed]
4. Tanaka N, Yamamoto M, Abe T, et al. Changes of Cerebral Blood Volume During Robot-Assisted Laparoscopic Radical Prostatectomy: Observational Prospective Study Using Near-Infrared Time-Resolved Spectroscopy. J Endourol 2019;33:995-1001. [Crossref] [PubMed]
5. Skytioti M, Elstad M, Søvik S. Internal Carotid Artery Blood Flow Response to Anesthesia, Pneumoperitoneum, and Head-up Tilt during Laparoscopic Cholecystectomy. Anesthesiology 2019;131:512-20. [Crossref] [PubMed]
6. Meng L, Wang Y, Zhang L, et al. Heterogeneity and Variability in Pressure Autoregulation of Organ Blood Flow: Lessons Learned Over 100+ Years. Crit Care Med 2019;47:436-48. [Crossref] [PubMed]
7. Paulson OB, Strandgaard S, Edvinsson L. Cerebral autoregulation. Cerebrovasc Brain Metab Rev 1990;2:161-92. [PubMed]
8. Grossbach AJ, Abel TJ, Hodis B, et al. Hypertensive posterior reversible encephalopathy syndrome causing posterior fossa edema and hydrocephalus. J Clin Neurosci 2014;21:207-11. [Crossref] [PubMed]
9. Franco Folino A. Cerebral autoregulation and syncope. Prog Cardiovasc Dis 2007;50:49-80. [Crossref] [PubMed]
10. Claassen JA, Meel-van den Abeelen AS, Simpson DM, et al. Transfer function analysis of dynamic cerebral autoregulation: A white paper from the International Cerebral Autoregulation Research Network. J Cereb Blood Flow Metab 2016;36:665-80. [Crossref] [PubMed]
11. Tiecks FP, Lam AM, Aaslid R, et al. Comparison of static and dynamic cerebral autoregulation measurements. Stroke 1995;26:1014-9. [Crossref] [PubMed]
12. Zhang R, Zuckerman JH, Giller CA, et al. Transfer function analysis of dynamic cerebral autoregulation in humans. Am J Physiol 1998;274:H233-41. [PubMed]
13. Steiner LA, Pfister D, Strebel SP, et al. Near-infrared spectroscopy can monitor dynamic cerebral autoregulation in adults. Neurocrit Care 2009;10:122-8. [Crossref] [PubMed]
14. Brady KM, Lee JK, Kibler KK, et al. Continuous time-domain analysis of cerebrovascular autoregulation using near-infrared spectroscopy. Stroke 2007;38:2818-25. [Crossref] [PubMed]

(English Language Editors: B. Meiser and J. Gray)
