The effects of GelMA hydrogel on nerve repair and regeneration in mice with spinal cord injury
Introduction
Spinal cord injury (SCI) is a severe disease of the central nervous system (CNS) manifesting as movement and sensory dysfunction of various degrees and segments due to autonomic nervous system dysfunction (1). Not only does SCI cause physical and sensory damage to patients, but it can also lead to severe anxiety and depression, giving rise to an increased risk of suicide and decreased quality of life (2). Unfortunately, the CNS has a limited ability for spontaneous regeneration. After nerve injury, activated glial cells secrete inhibitory factors that prevent the growth of the myelin sheath and neurons, and dense scar tissues usually form around the injury site (3). Currently, surgical stabilization is the main treatment for SCI, followed by rehabilitative nursing support (4). Despite rehabilitation, function recovery is generally very limited, and thus, the recovery of nerve regeneration after SCI has become a focal point in scientific research and clinical treatment.
Gelatin methacryloyl (GelMA) hydrogels possess highly desirable physical and biological properties (5). Certain cell attachment motifs and matrix metalloproteinase reactive peptide motifs have been diffused well into the GelMA hydrogel scaffold, and these encourage cell proliferate. With such characteristics, GelMA hydrogel is highly similar to some natural extracellular matrixes with important characteristics (6). GelMA hydrogel can be crosslinked in one minute or even a few seconds with a photoinitiator with a relatively low concentration (7). It can promote cell-to-cell interaction, migration, and more effective metabolism (8). Dursun Usal and colleagues (9) demonstrated that GelMA-pHEMA hydrogel improved the mechanical strength needed for suture of guide wires as a nerve conduit, and it contributed to ideal nerve guidance in the treatment of peripheral nerve injury. Additionally, Ning et al. (10) showed that GelMA hydrogelprolonged the release of peptides which promoted bone healing in rats. Zhou et al. (11) implant the functional GelMA hydrogel scaffold loaded with BMSCs and NSCs into the hemicomsected spinal cord of rats can significantly promote motor function recovery and neuronal differentiation, and reduce glial scar, fibrotic scar and inflammatory response. However, there are few reports on the effects of direct injection of Gelma on nerve repair and regeneration in mice with spinal cord injury. So this study constructed mice models of SCI and examined the effects of GelMA hydrogel on nerve repair and regeneration in mice with SCI.
We present the following article in accordance with the ARRIVE reporting checklist (available at https://dx.doi.org/10.21037/atm-21-2874).
Methods
Experimental animals
A total of 30 ICR mice (6–8 weeks old, 200–300 g, male or female) were provided by the Center of Animal Laboratory, Soochow University (Suzhou, China). Mice were housed for 1 week in a clean environment with humidity of 40–70% and temperature of 20–26 °C, and provided free access to food and water. The protocol was prepared before the study without registration. This study and all included experimental protocols and surgical procedures were approved by the Ethics Committees of the First Affiliated Hospital of Soochow University and the Animal Ethics Committee at Soochow University, China (approval No. SUDA20200316A01). All experiments were conducted in accordance with the Guidelines for the Care and Use of Laboratory Animals (12).
Preparation of GelMA hydrogel
Gelatin was dissolved in phosphate buffered saline (PBS) at 50 °C (pH 7.4), followed by addition of methacrylic anhydride. The reaction was terminated by addition of PBS (5 times the volume of gelatin). The solution was then dialyzed in deionized water for 5–7 days through a 12–14 kDa dialysis bag to eliminate small molecular impurities. The deionized water was replaced twice a day. The dialyzed GelMA solution was freeze-dried or stored at low temperature.
Establishment of the SCI model in mice
Briefly, 30 mice were randomly divided into control group, model group and experimental group by random digits table method. There were 10 mice in each group. Specific steps: 30 mice were numbered 01–30, and the starting point 01 and the end point 30 of sampling were specified on the random number table. The first 10 numbers on the random number list were divided into the control group, the last 10 numbers into the model group, and the remaining 10 numbers into the experimental group. The SCI model was established in model group (n=10) and experimental group (n=10) mice as previously described (13). Mice were anesthetized by intraperitoneal injection of xylazine (10 mg/kg) and ketamine (100 mg/kg), and the back hairs were removed. The mice were fixed on the operating table in a prone position, disinfected with 75% ethanol, and a middle dorsal incision was made. The skin and subcutaneous tissues were cut open successively by approximately 2 cm with T8 at the center. The paraspinal muscles were sharply cut and separated to either side, exposing the spinous process and lamina of the T8-L1 vertebral body. The spinous process and whole lamina of the T9-T11 vertebral body were removed with a mosquito clamp. By counting the ribs, it was found that the spinous process of T9 was oblique to the caudal side, T11 was oblique to the cephalic side, and T10 was neutral. With T10 as the center, the spinal cord tissue was clamped for 1 minute with an aneurysm clip (25 g), thereby causing SCI (Figure 1). All the 20 mice were successfully modeled. For mice in the experimental group (n=10), prepared GelMA hydrogel was implanted into the injury site of each mouse, and the muscles and skin were sutured. For mice in the model group (n=10), the muscles and skin were sutured without any other intervention. For the control group (n=10), the spinal cord was exposed during the modeling, but these mice were not subjected to clamping with the aneurysm clip. If the mice had severe adverse reactions during the experiment or were on the verge of death, they were killed by cervical dislocation.
Outcome measures
Behavioral scoring with the bedside mobility scale (BMS) (14 )
The total score and sub-score of the BMS were adopted to evaluate the exercise performance of mice on post-operative days 1, 3, 7, and 14. The BMS score ranges from 0 to 9 points, and the maximum sub-score is 11 points. Higher scores indicate better exercise movement function of the mouse.
Comparison of the axon length of neurons
At 14 days, mice in the model group (n=10) and the experimental group (n=10) were sacrificed via intraperitoneal anesthesia. The dorsal root ganglion (DRG) tissues were dissected and incubated in collagenase A (1.0 mg/mL) at 37 °C for 90 minutes. The samples were then digested with 0.25% trypsin at 37 °C for 15 minutes. Minimal essential medium (MEM) containing 10.0% fetal bovine serum (FBS) was added to terminate the digestive process. The isolated DRG sensory neurons were placed on coverslips and cultured in MEM containing 5% FBS, 10 mg/mL streptomycin, and 100 IU/mL penicillin for 3 days at 37 °C and 5% CO2 in an incubator (Thermo Fisher Scientific, Waltham, MA, USA).
Immunofluorescence staining of the DRG
To determine the nuclear localization of BCL2L11, the neurons from the SCI model were treated with tubulin tyrosine ligase (TTL) for 1 hour followed by washing with PBS. Cells were then fixed in 4% paraformaldehyde for 30 minutes, washed, and permeabilized in cold acetone for 30 minutes. Thereafter, the cells were sealed in 5% bovine serum albumin (BSA) (Hengfei Biotechnology Co., Ltd., Shanghai, China, R00911) containing 0.5% goat serum for 1 hour, and incubated with a BCL2L11 primary antibody for 1 hour at room temperature. Finally, the cells were washed with PBS and incubated in a FITC-conjugated secondary antibody for 45 minutes at room temperature in the dark.
Area of syringomyelia
After 14 days, mice were sacrificed and the original surgical incision was opened. The spinal cord tissues (2 cm around the injured site) were harvested, immobilized in 40 g/L paraformaldehyde for 48 hours, followed by freezing and sectioning (longitudinal sectioning, 10 μm). Immunofluorescence staining was performed on the sections. Briefly, the sections were incubated with Cdk5, SYN, or SNARE antibodies (dilution ratio of 1:200) at 4 °C overnight, followed by a goat anti-rabbit secondary antibody (dilution ratio of 1:200) at 4 °C overnight. All antibodies were purchased from Shenzhen OTWO Biotechnology Co., Ltd. The syringomyelia after SCI was evaluated under a Leica confocal scanning microscope.
Western blot (WB)
Spinal cord tissues (50 mg) were lysed in 500 μL lysis solution, followed by homogenization on an ice bath and centrifugation for 20 minutes (12,000 g, 4 °C) to collect the supernatant. The protein concentration of the supernatant was quantified using the BCA kit (Fantai Biotechnology Co., Ltd., Shanghai, CN, FT-D24505), and the protein were isolated on a 12% SDS-PAGE (sodium dodecyl-sulfate polyacrylamide gel electrophoresis; Yiyan Biotechnology Co. Ltd., Shanghai, China, EY-0975) and transferred ontopolyvinylidene fluoride (PVDF) membranes. Membranes were blocked in 5% skim milk followed by incubation with the primary antibody (1:1,000) overnight at 4 °C. After washing with PBS, the membrane was incubated with horseradish peroxidase labeled goat anti-rabbit secondary antibody (1:1,000) at 37 °C for 1 hour, and rinsed thoroughly 3 times with PBS for 5 minutes each time. Protein bands were visualized with an electrochemiluminescence (ECL) agent and images were captured using the Quantity One infrared imaging system. The relative expression of proteins was recorded as the gray value of the band and compared to that of an internal reference protein band, namely, b-actin.
Determination of the optical density (OP) of glial fibrillary acidic protein (GFAP)
The spinal cord sections from mice in the experimental group and the model group were examined at 400× magnification. Pictures were taken along the periphery of the scar to ensure the coverage of the injured area. Semi-quantitative analysis was carried out on all collected images with NIS-Elements Br 3.0, and the average OP of GFAP was determined directly. The arithmetic mean OP of each specimen was analyzed and compared.
Statistical analyses
The GraphPad 6 software was used for all data analyses and preparation of figures. If the data fit the normal distribution, Inter-group comparisons and multi-group comparisons of all data, presented as the mean ± standard deviation (SD), were carried out via independent-sample t-tests and one-way analysis of variance (ANOVA; expressed by F), respectively. Post hoc pairwise comparisons were carried out via the Fishers LSD-t-test. Expression at multiple time points was analyzed via the repeated measures analysis of variance, and expressed as F, and Bonferroni post hoc tests were carried out. If the data were not normally distributed, the median (P25, P75) was used to represent the data. Intergroup comparison and multi-group comparison were performed by Mann-Whitney U test and Kruskal-Wallis test. A P value <0.05 was considered statistically significant. The SPSS25.0 software from IBM company was used for data analyses.
Results
A comparison of bedside motility scale (BMS) scores among the three groups
Compared to mice in the control group, mice that underwent SCI in the model group and the experimental group had notably lower total scores and sub-scores on the BMS on the first day after surgery. These scores significantly increased 3 days after SCI. On post-operative days 3, 7, and 14, the experimental group showed markedly higher total scores and sub-scores compared to the model group (P<0.05; Figure 2), suggesting that intervened with GelMA hydrogel improved exercise ability in SCI mice.

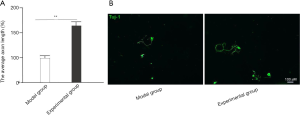

A comparison of axon length of the neurons after intervention with GelMA hydrogel
The axon length of neurons isolated from mice in the experimental group (161±9.3) who were treated with GelMA hydrogel were significantly longer than the neurons isolated from mice in the model group (100±5.1) (P<0.05; Figure 3).
Amelioration of the area of syringomyelia after intervention with GelMA hydrogel
Mice in the experimental group (2.3±0.1) showed a significantly decreased area of syringomyelia after treatment with GelMA hydrogel, compared with the model group (4.5±0.2) (P<0.05; Figure 4).
The effects of GelMA hydrogel on nerve repair and regeneration
Mice in the model group showed significantly increased expression of growth associated protein (GAP)43, nestin, and GFAP compared with mice in the control group (all P<0.05). In the experimental group, intervention with GelMA hydrogel significantly increased GAP43 and nestin expression, but decreased GFAP expression (all P<0.05; Figure 5).

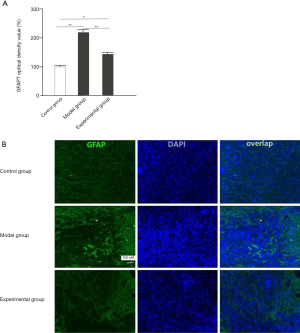

The effects of GelMA hydrogel on the OP of GFAP
Compared with mice in the control group, mice in the model group showed notably increased OP of GFAP (P<0.05), and after intervention with GelMA hydrogel, the experimental group showed significantly decreased OP of GFAP (P<0.05; Figure 6).
Discussion
SCI often severely damages a patient’s movement, sensory, and autonomic neurological functions, resulting in significant emotional and financial burden (15). SCI often results in activation of astrocytes in large quantities (16), which inhibits the expression of nutritional factors, and also inhibits axon growth-associated proteins, thereby hindering the repair and regeneration of damaged neurons (17). Therefore, effectively repairing SCI is of crucial importance.
This study demonstrated that after intervention with GelMA hydrogel, mice with SCI presented significantly better movement function as well as improved nerve repair and regeneration abilities. The recovery of limb movement function after SCI depends on axonal regeneration of injured nerve cells (18). Implantation of a hydrogel scaffold may be beneficial in patients with SCI. Hydrogel has been shown to be nontoxic to cells, have a strong anti-regeneration effect on bone marrow mesenchymal stem cells and macrophages, and contribute to fast recovery of limb movement function in model animals (19). The conclusions of this latter study were similar to this current investigation. Compared with the control group, the spinal cord injured mice showed significantly lower total scores and sub-scores on the BMS on post-operative day 1. These scores significantly increased 3 days after SCI. Additionally, on post-operative days 3, 7, and 14, the experimental group that had been treated with GelMA hydrogel achieved significantly higher total scores and sub-scores on the BMS compared to the model group. These results suggested that intervention with GelMA hydrogel improved the scored on the BMS and restored limb movement function in SCI mice. Studies have suggested that it is very difficult to grow neuronal processes after SCI (20). As hydrogel is capable of transferring genes, it provides a combined method for nerve regeneration. Not only can hydrogel support the growth of neurites and gene transfer, but it can also induce the expression of inducible factors. Furthermore, studies have shown that neurites produced by the delivery of lipid complexes in the gel are longer (21). These latter results agree with this current report which demonstrated that compared with the model group, the experimental group showed significantly increased axon length of neurons after treatment with GelMA hydrogel. This suggested that GelMA hydrogel promoted the regeneration of neuronal axons after SCI. This is further supported by the report by Fan et al., showing that intervention with GelMA hydrogel promoted nerve regeneration in cases with SCI, reduced the cavity area of mice, strongly promoted function recovery, inhibited the formation of glial scars, and accelerated axonal regeneration (22). In our study, in contrast to the model group, the experimental group showed significantly decreased area of syringomyelia after treatment with GelMA hydrogel, suggesting that intervention with GelMA hydrogel contributed to superior repair of the spinal cord and better alleviation of internal bleeding, tissue edema, and cavitation of spinal cord structure after injury.
GFAP is a specific protein found in astrocytes and can be used to measure the proliferation of astrocytes (23). Nestin is an intermediate filament protein peculiar to neural stem cells (24). GAP43 regulates neuronal growth and axonal regeneration in normal nerve tissues (25). Therefore, these three proteins were used as markers of nerve injury to evaluate the beneficial effects of GelMA hydrogel on spinal nerve trauma. According to a study by Li and colleagues (26), hydrogel can improve the abundance of GAP43 and GFAP in cell fibers. Our current study demonstrated that expression of GAP43, nestin, and GFAP were significantly increased in the SCI mice compared to the control mice. However, in contrast to Li et al., while intervention with GelMA hydrogel significantly increased GAP43 and nestin, GFAP expression was significantly decreased. These results suggested that GelMA hydrogel can increase neural stem cells, promote their differentiation and growth, reduce the glial content in nerve cells, and can also reverse the nerve damage caused by reactive astrocytes. The OP of GFAP in the model group was significantly increased compared to that in the control group. After intervention with GelMA hydrogel, the experimental group showed significantly decreased OP of GFAP, suggesting that GelMA hydrogel can cause weaker activation of astrocytes, prevent the formation of reactive astrocytes, and thus may be beneficial to the repair of the injured spinal cord. However, there are still some limitations in this study, such as whether GelMA has the same effect on other species. Given that Gelma promotes nerve regeneration and limb motor function recovery in mice with spinal cord injury, we will further study the effects of Gelma on nerve repair and regeneration after spinal cord injury in other species to explain other species where Gelma may be applicable.
In summary, this investigation demonstrated that in SCI, local injection of GelMA hydrogel can inhibit scar formation, reduce the area of syringomyelia, and promote nerve regeneration and recovery of limb movement function.
