Assessment of liver injury using indocyanine green fluorescence imaging

Introduction

The liver plays an essential role in various metabolic processes, including glucose homeostasis and detoxification, proteins synthesis, as well as the utilization of various nutrients (1). Generally, liver injury is considered a result of exposure to high levels of toxic chemicals and drugs, which are associated with metabolic dysfunctions, ranging from the transient elevation of liver enzymes to life-threatening liver cirrhosis, hepatic fibrosis, and even hepatocellular carcinoma (2). The pathogenic factors of liver injury are complex, accompanied by a rapid decline in liver function during the period, and even death in severe cases (3). Among them, fatty liver and carbon tetrachloride (CCl₄)-induced acute liver injury can cause liver microcirculation damage and reduction of effective blood flow due to fat accumulation or collagen fiber hyperplasia (4).

At present, optical molecular imaging technology is developing rapidly, and offers advantages such as being real-time, non-invasive, precise, and sensitive (5). Among them, indocyanine green (ICG) is commonly used as a fluorescent dye, which is completely absorbed by the liver through a selective mechanism and metabolized with bile in an unbound state. It can be used to detect the blood flow of the liver to reflect the active state of liver cells (6,7). This technology has been applied in the resection of centrally located liver tumors and hilar (Klatskin’s) tumors (8). There are few studies regarding its application in other liver diseases. In this paper, we hypothesized that ICG fluorescence imaging technology could be applied to evaluate liver pathological damage caused by high-fat (HF) feeding and CCl₄. The study may provide preclinical evidence for us to develop fluorescent imaging techniques for the evaluation of liver function in the future. We present the following article in accordance with the ARRIVE reporting checklist (available at https://dx.doi.org/10.21037/atm-21-3049).

Methods

Animals and treatment

Male Sprague-Dawley (SD) rats (180–200 g) were purchased from Qinglongshan Animal Breeding Centre (Nanjing, China). Rats were fed freely in a temperature-controlled room (22±2 °C) with a 12 h light-dark cycle. To induce acute liver injury, the rats received a 50% CCl₄ solution (1 mL/kg, dissolved in corn oil) intraperitoneally, as previously described (9). The chronic liver injury model was induced by HF feed (formulation: 2% cholesterol, 0.5% bile salt, 12% lard, 0.2% propyl, and the remaining 85.3% as basic feed) for 10 weeks. Control rats were fed normally and injected with the same volume of the corn oil vehicle intraperitoneally. For evaluation of blood biochemistry, near-infrared fluorescence imaging and histopathological staining were utilized (n=5 for each group). All experimental procedures were performed under a project license (No.: 2021-06-012) granted by institutional ethics board of China Pharmaceutical University (Nanjing, China), in compliance with the National Institutes of Health (Bethesda, MD, USA) guidelines for the care and use of animals.

Blood biochemistry

The rats were anesthetized by 3% chloral hydrate (300 mg/kg, i.p), and blood was collected from the fundus venous plexus. The serum was separated by centrifugation at 3,000 rpm for 10 min at 4°C. The levels of serum triglyceride (TG), total cholesterol (TC), alanine aminotransferase (ALT), and aspartate aminotransferase (AST) were measured using test kits (Nanjing Jiancheng Institute of Biological Engineering, Nanjing, China) according to the manufacturer’s instructions.

Near-infrared fluorescence imaging

The rats were sacrificed and their livers were collected and weighed before extracorporeal perfusion with Perfusate (Zhongyi Medical Technology, Shanghai, China). The livers were then injected with a different concentration of ICG solution (1 mL/10 g, Dandong Yichuang Pharmaceutical Co., Ltd., Dangdong, China) through the portal vein, and detected under a near-infrared fluorescence imaging system (REAL-IGS, Nanjing Shengshengyuan Pharmaceutical Industry Co., Ltd., Nanjing, China). The images of the livers and the corresponding spectral values were recorded after 15 minutes of ICG administration.

Histopathological staining

For the histological investigations, liver tissues were removed from a portion of the left lobe, and cryosections were cut at a thickness of 6 μm. After hematoxylin and eosin (H&E) staining, the slides were observed for conventional morphological evaluation under a light microscope (Olympus BX53, Japan) and photographed at 200× magnification. The histological changes were scored according to previous reports (10).

• “0”: normal hepatic cell structure;
• “1”: fatty changes of hepatocytes (<1/3), scattered inflammatory cells, and ballooning degeneration of hepatic cells;
• “2”: fatty changes of hepatocytes (approximately 1/3–2/3), focal inflammatory cell infiltration, and severe ballooning degeneration of hepatic cells;
• “3”: extensive hepatocellular fatty changes (>2/3), and patchy inflammatory cell infiltration.

Statistical analysis

Statistical analysis was performed by IBM SPSS Statistics v22.0 software (USA), and the data were presented as means ± standard deviation (SD). One-way analysis of variance (ANOVA) was used to compare the statistical differences between groups. Differences were considered statistically significant at P<0.05. Statistical figures were constructed using Adobe Photoshop CC 2019 (USA) and GraphPad Prism Version 8.0 (USA).

Results

As shown in Figure 1, near-infrared fluorescence images of control livers displayed all colors (purple to red) after ICG injection at concentrations of 0.02 and 0.05 mg/mL. When compared with 0.05 mg/mL, the spectral values of different fluorescence intensities at a concentration of 0.02 mg/mL were higher, and thus, 0.02 mg/mL of ICG was selected to inject through the portal vein after in vitro perfusion.

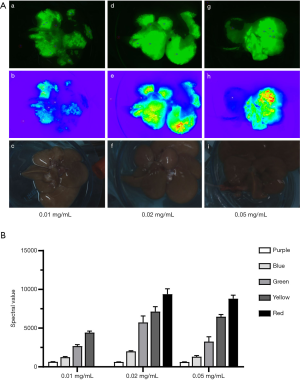

Figure 1 Imaging effect of normal liver after ICG injection. (A) Different images of normal liver under (a, d, g) near-infrared fluorescence, (b, e, h) fusion pseudo light, and (c, f, i) visible light. (B) Corresponding spectral values of different intensities in near-infrared fluorescence images. Values were shown as mean ± SD (n=5). The different colors in the figure represent different fluorescence intensities. ICG, indocyanine green.

As shown in Figure 2A, the results of H&E staining showed that HF feed induced harmful effects on the rat livers. HF feed caused visible histological changes, including extensive inflammatory infiltration and ballooning degeneration of hepatic cells in the liver. Moreover, the liver injury score significantly increased in the HF model rats as compared with the controls (P<0.01, Figure 2B). Furthermore, compared with the control group, the ratio of liver weight versus body weight (LW/BW) enhanced in the HF model rats (P<0.01, Figure 2C). HF feed also significantly increased the levels of serum TC, TG, AST, and ALT (P<0.01, Figure 2D,E). These results indicated that 10 weeks of HF feed induced severe liver injury.

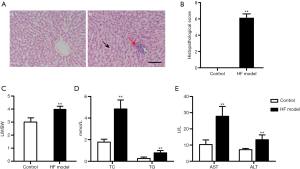

Figure 2 Changes of liver histomorphology and function in CCl4-treated mice. (A) H&E staining shows the extensive cellular damage and infiltration of inflammatory cells in (a) control rats and (b) HF model rats. The black arrow indicates ballooning degeneration. The red arrow indicates infiltrating inflammatory cells. Scale bars, 100 µm. (B) Qualification of hepatic histological injury. (C) Relative LW/BW of rats. (D) The levels of serum TC and TG in rats. (E) The levels of serum AST and ALT in rats. Values were shown as mean ± SD (n=5). **P<0.01, vs. control group. H&E, hematoxylin and eosin; HF, high-fat; LW/BW, liver weight versus body weight; TC, total cholesterol; TG, triglyceride; AST, aspartate aminotransferase; ALT, alanine aminotransferase.

ICG fluorescence imaging was performed to evaluate liver damage after ICG injection (Figure 3A). The control group displayed intact liver lobes under near-infrared fluorescence and fusion pseudo light, while the HF model group and CCl₄ model group exhibited incomplete liver lobes. As shown in Figure 3B, when the fluorescence intensity was shown as yellow and green, the liver spectrum values of HF model group and CCl₄ model group significantly decreased as compared with the control group (P<0.01).

Figure 3 Imaging effect of normal liver after ICG injection. (A) Different images of normal liver under (a, d, g) near-infrared fluorescence, (b, e, h) fusion pseudo light, and (c, f, i) visible light. (B) Corresponding spectral values of different intensities in near-infrared fluorescence images. Values were shown as mean ± SD (n=5). **P<0.01, vs. control group. ICG, indocyanine green.

Discussion

In this experiment, a HF diet and intraperitoneal injection of CCl₄ were used to induce chronic and acute liver injury in rats, respectively. After HF feeding, the liver index and levels of serum TC, TG, AST, and ALT increased significantly. Moreover, the H&E staining results showed that the livers of HF model rats displayed extensive inflammatory infiltration and ballooning degeneration of hepatic cells. These results indicated that the liver injury model had been successfully established. The liver of each rat was administered the same concentration of ICG solution after in vitro perfusion. After ICG fluorescence imaging, the HF and CCl₄ model groups displayed incomplete liver lobes under near-infrared fluorescence and fusion pseudo light. Meanwhile, when the fluorescence intensity was yellow and green, the liver spectrum values of the CCl₄ model group and the HF model group were significantly reduced, indicating that ICG fluorescence imaging can be used to evaluate rats with HF diet- and CCl₄-induced liver injury.

ICG is a water-soluble tricarbocyanine dye developed by Kodak Research Laboratory in 1955. ICG can be activated by extraneous light with a wavelength of 750–810 nm to emit 840 nm near-infrared light. After being injected into the cycle, it combines with plasma proteins (albumin, α1-lipoprotein) completely and enters the liver. It is then taken up by hepatocytes and subsequently excreted into bile in an unbound state (7). ICG enters hepatocytes of normal liver tissue quickly and emits fluorescence, the intensity of which gradually weakens after excretion into bile (11). The detected fluorescence intensity of ICG is eliminated in a typical linear manner, which can be used to evaluate liver reserve function after intravenously injection at a high dose (12).

The entry of ICG into hepatocytes is blocked due to liver injury induced by ischemia or cirrhosis (13,14). Previous studies have shown that ICG-mediated fluorescence imaging technology mainly focuses on real-time positioning of tumor tissue during surgery. This real-time, non-invasive, and sensitive technology can be used to detect tumor lesion boundaries, liver resection range, as well as small and residual lesions (8,15,16). This technique is widely used in the diagnosis of liver tumors, however there are few studies regarding its application in other liver diseases.

The liver is a critical organ, where many physiological and biochemical processes occur in the human body, and is closely related to human health (1). The liver accounts for 2.5% of the total body weight and utilizes nearly 25% of the cardiac output (17). Fatty infiltration of liver cells leads to cell swelling and degeneration in fatty liver patients (18). At the same time, the resistance of hepatocytes’ portal blood flow increases, causing liver microcirculation damage and effective blood flow reduction (19,20). In this study, the liver cells of rats in HF and CCl₄ model groups showed severe steatosis and mild necrosis, which reduced the intake of ICG by hepatocytes. Compared with the control group, the liver lobes of rats in the HF and CCl₄ model groups under near-infrared fluorescence displayed incomplete fluorescence, and the corresponding spectrum values were significantly reduced at the same fluorescence intensity. These results indicate that ICG fluorescence imaging can be used for visual evaluation of liver injury induced by HF feeding and CCl₄ to a certain degree.

ICG is administered via the portal vein to detect the intake by the liver, which can directly reflect the perfusion of the liver to assess its function. Compared with the ICG plasma clearance test that is commonly used clinically, the injection of ICG after in vitro perfusion can avoid the disturbance of some factors, such as arteriovenous fistulas, bilirubin, portal vein cancer thrombi, vasodilators, bile excretion, and secretion disorders, which affect liver blood flow and lead to test result instability (21). In this study, the liver was perfused in vitro before the administration of ICG to eliminate the influence of blood flow. In the future, it can be applied to evaluate donation after cardiac death (DCD) donor livers. Importantly, it is necessary to perform pathological examination and reserve function evaluation of the donor liver before liver transplantation. Currently, the commonly used methods, such as liver biopsy, serum biochemical index examination and imaging examination (22,23), are not fully applicable due to the diminishing accuracy of liver functional assessment (24,25). Quantitative methods for liver function with high accuracy and practicability, such as the ICG clearance test (26,27), can only be performed on live livers. Therefore, the development of more effective methods to assess DCD donor liver function may contribute to solving the current insufficiency of donors (28).

In summary, ICG can be injected through the portal vein after in vitro perfusion, resulting in a good fluorescence imaging effect. When the liver is damaged due to a HF diet and CCl₄, the fluorescence intensity and corresponding spectral value under ICG fluorescence imaging can dynamically reflect the liver damage. This method is simple, practical, and safe, and may have application prospects in the field of liver transplantation.

Acknowledgments

Funding: This work was supported by the National Key Research and Development Program of China (2016YFC0104100) and the Key Promotion Project of Core Technology of Jiangsu province (2018-2020).

Footnote

Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at https://dx.doi.org/10.21037/atm-21-3049

Data Sharing Statement: Available at https://dx.doi.org/10.21037/atm-21-3049

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/atm-21-3049). YW and HC are employees of Nanjing Nuoyuan Medical Devices Co., Ltd. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All experimental procedures were performed under a project license (No.: 2021-06-012) granted by institutional ethics board of China Pharmaceutical University (Nanjing, China), in compliance with the National Institutes of Health (Bethesda, MD, USA) guidelines for the care and use of animals.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
