Application of an indocyanine green-mediated fluorescence imaging navigation system in detecting mice tumors

Introduction

Cancer causes nearly 10 million deaths globally on an annual basis (1) and imposes a huge economic burden on society (2,3). The treatment of cancer is often difficult, and current methods include surgery, radiotherapy, systemic therapy, interventional therapy, and local ablation (4-6). While surgical resection is considered the most common and effective method, there are also many difficulties in surgery, including the precise positioning of tumor tissue in the preoperative detection process and the precise resection of tumor mass in the surgical process.

In recent years, fluorescent contrast agent dye-guided surgery has developed vigorously in various fields of surgery. Clinically, fluorescent contrast agents can be used to accurately display tumor contours, guide surgery in real time, locate lymph node metastases, find micrometastasis, and identify important anatomical structures intraoperatively to avoid possible postoperative problems (7,8). A fluorescence imaging surgical navigation system can locate tumor tissue more quickly and accurately during operation, greatly improving the success rate of surgery and reducing many postoperative adverse reactions (9). Indocyanine green (ICG) is a small organic near-infrared fluorescent dye of the anthocyanin family and the only near-infrared fluorescent dye approved by the FDA for clinical surgical use. After intravenous injection, it quickly binds to plasma proteins and is confined to the vascular lumen where it is absorbed before being metabolized by the liver and excreted in bile. The plasma clearance rate of ICG is high and its adverse reaction rate is less than 0.1% (10). The maximum absorption wavelength of ICG is around 800 nm, and when combined with plasma protein it emits fluorescence with a peak wavelength of about 830 nm under near-infrared light irradiation, which easily penetrates tissues and cells and has a high ratio to background signals (11-13). In normal tissues, the endothelial space of microvessels is dense and structurally complete, while in solid tumor tissues, blood vessels are abundant, the vascular wall space is wide, and structural integrity is poor, resulting in selective high permeability and retention of macromolecules and lipid particles. This phenomenon is known as the enhanced permeability and retention effect (EPR) (14). After ICG binds to plasma proteins, the complex accumulates and targets the tumor region because of EPR, and the fluorescent signals generated by the excitation of near-infrared light source are received by the imaging system and converted into visual images (15,16). ICG-mediated fluorescence imaging navigation systems have been widely used in the resection of liver pancreatic, and breast cancer, and other clinical tumors (17,18).

At present, there are many studies using fluorescence imaging systems to detect tumors, but the detection limit of fluorescence imaging systems is not yet clear. Our study first examined the fluorescence image surgery navigation system minimum visual concentration of ICG in vitro and the minimum detection limit of tumor in vivo. By establishing a tumor-burdened model involving ICG injection to the tail vein of mice, the system was used to detect the diameter of mouse axillary tumors, and the results were compared with vernier calipers to assess their detection limit and error, providing an experimental basis for the further development of digital diagnosis and treatment equipment in clinical practice. We present the following article in accordance with the ARRIVE reporting checklist (available at https://dx.doi.org/10.21037/atm-21-3050).

Methods

Mice and cell line

We purchased 18–22 g female Institute of Cancer Research (ICR) mice from the Zhejiang Academy of Medical Sciences and Shanghai Jiesjie Laboratory Animal Co., Ltd., and 18–22 g female BALB/c Nude mice from the Changzhou Cavens Laboratory Animal Co., Ltd. Mice were housed under controlled room temperature (22±2 °C) and humidity (55%±5%) on a 12 h light-dark cycle with free access to water and food in an SPF environment. Experiments were performed under a project license (No.: 2021-06-013) granted by the committee of the Laboratory Animal Welfare in Pharmaceutical Animal Laboratory Center at China Pharmaceutical University, in compliance with the Laboratory Animal Welfare in Pharmaceutical Animal Laboratory Center guidelines for the care and use of animals.

Mouse sarcoma 180 cell line (S180) was purchased from the Jiangsu Cancer Drug Research Institute, and a human colon cancer cell line (HT-29) was purchased from the Shanghai Institute of Cells.

Measurement of the lowest visible concentration in vitro

A 0.0031 g sample of ICG was weighed and dissolved in 10 mL water for injection containing 10% fetal bovine serum (FBS) to prepare a solution of 4×10⁻⁴ mol/L. This was then diluted to 1×10⁻¹² M, 2×10⁻¹² M, 4×10⁻¹² M, 1×10⁻¹¹ M, 2×10⁻¹¹ M, 4×10⁻¹¹ M, 1×10⁻¹⁰ M, 2×10⁻¹⁰ M, 4×10⁻¹⁰ M, 1×10⁻⁹ M, 2×10⁻⁹ M, 4×10⁻⁹ M, and 0 M proportionately with the injection water containing 10% FBS. These were placed in a 96-well plate, with three wells per concentration, and the final volume of ICG in each well was 200 μL. The spectral peak values of each well of the fixed spectral probe and the handheld spectral probe were read respectively, and the fluorescence brightness on the display screen was observed.

Establishment of S180 tumor-burdened model mice

The 120 female ICR mice were randomly divided according to body weight into a high-dose ICG solution group (H, 4 mg/kg, 0.4 mg/mL), medium-dose ICG solution group (M, 2 mg/kg, 0.2 mg/mL), and low-dose ICG solution group (L, 1 mg/kg, 0.1 mg/mL), with 40 mice in each group. According to the method of transplantation tumor study, solid tumors were inoculated under aseptic operation. The milky-white thick ascites of S180 ascites tumor mice were extracted and diluted into 1:5 cell suspension with normal saline, and each mouse was subcutaneously inoculated with 0.2 mL in the forelimb armpit. Tumor bearing mice in each group were injected with high, medium, and low doses of ICG (0.2 mL/20 g) through the caudal vein at 0, 1, 2, 3, and 4 days after inoculation, and detected at 24 h after injection (19).

Establishment of HT-29 tumor-burdened model mice

Using the same method as described above, 120 female BALB/c nude mice were grouped. According to the transplanted tumor study method, solid tumors were inoculated under aseptic procedures. Human colorectal cancer HT-29 cell lines in logarithmic growth phase were taken and prepared into a 5×10⁶/mL cell suspension under aseptic conditions and 0.1 mL cell suspension was inoculated into the right axilla subcutaneously of BALB/c nude mice (20). The method of experiment after inoculation followed that described above.

Tumor diameter test

Within 24 hours of ICG injection, the mice were anesthetized by intraperitoneal injection of 2% chloral hydrate, and fixed. The skin at the inoculation site in the axilla was then cut to expose the solid tumor. The length and width of the solid tumor detected under the fluorescence imaging navigation system, were measured and recorded with a vernier caliper. Three mice in each group were randomly stripped of tumors and stained with hematoxylin-eosin (HE) (21).

Statistical analysis

ImageJ and SPSS 22.0 were used for data analysis and processing and all values were expressed as mean ± SD.

Results

Minimum visible concentration of ICG in vitro

The concentrations of ICG respectively were 1×10⁻¹² M (A1–A3), 2×10⁻¹² M (A4–A6), 4×10⁻¹² M (A7–A9), 1×10⁻¹¹ M (B1–B3), 2×10⁻¹¹ M (B4–B6), 4×10⁻¹¹ M (B7–B9), 1×10⁻¹⁰ M (C1–C3), 2×10⁻¹⁰ M (C4–C6), 4×10⁻¹⁰ M (C7–C9), 1×10⁻⁹ M (D1–D3), 2×10⁻⁹ M (D4–D6), 4×10⁻⁹ M (D7–D9), and 0 M (E1–E3). The green fluorescence of ICG detected by the fixed spectral probe at this concentration is shown in Figure 1, and the handheld spectral probe at this concentration is shown in Figure 2. As can be seen, the minimum visible concentration of ICG by the fixed spectral probe of the fluorescence imaging navigation system can reach 2×10⁻¹¹ M (B4–B6), and by the handheld spectral probe can reach 1×10⁻¹² M (A1–A3).

Figure 1 The fluorescence intensity of ICG solutions with different concentrations under the fixed spectral probe of the fluorescent imaging surgical navigation system. (A) Bright field pictures of ICG at different concentrations; (B) fluorescence images of ICG at different concentration; (C) merge of bright field and fluorescence composite images; (D) 96-well plate distribution diagram. ICG, indocyanine green.

Figure 2 The fluorescence intensity of ICG solutions with different concentrations under the handheld spectral probe of the fluorescent imaging surgical navigation system. (A) Bright field pictures of ICG at different concentrations; (B) fluorescence images of ICG at different concentration; (C) merge of bright field and fluorescence composite images. ICG, indocyanine green.

Minimum tumor diameter

HE staining results shows fibrous connective tissue within the article, funicular and small nests of epithelioid cells, and bright or eosinophilic cytoplasm, and the cell nuclei have obvious atypia, obvious nucleoli, nuclear fission, and apoptosis necrosis (Figures 3,4). The histological appearance of the tumor is consistent.

Figure 3 The HE staining diagram of HT-29 solid tumor (100×) showed that the tumor cells were densely arranged in bands and clusters, with disordered arrangement. The phenomenon of nuclear mitosis was common, and locally the cells were arranged in a ring to form a glandular cavitary structure. HE, hematoxylin-eosin.

Figure 4 Representation of HE staining for solid tumor of S180 (100×). The tumor cells were densely cabled and clumped, with different cell sizes and shapes, obvious atypia, and frequent nuclear mitosis. HE, hematoxylin-eosin.

As shown in Tables 1,2 and Figures 5,6, the mean values of measured tumor length and width increased with the increase of inoculation days, and green fluorescence is seen in the axillary inoculation site. The accuracy of the fluorescence imaging navigation system is high, with the minimum detection limit up to 0.2 mm, and the measured error between the system and vernier calipers is within 0.2 mm.

Table 1 Size of S180 solid tumor (mm, mean ± SD, n=8)
Full table

Table 2 Size of HT-29 solid tumor (mm, mean ± SD, n=8)
Full table

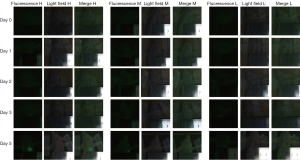

Figure 5 Representative images of each group of S180 solid tumor detected by surface light source using fluorescent imaging surgical navigation system. Representative images of fluorescence images, bright field images, and merge images of each group of animals under fixed spectral probe 0–5 days after inoculation of S180 solid tumor. H: high-dose (4 mg/kg) group of ICG solution; M: middle-dose (2 mg/kg) group of ICG solution; L: low-dose (1 mg/kg) group of ICG solution. ICG, indocyanine green.

Figure 6 Representative images of each group of HT-29 solid tumor detected by surface light source using fluorescent imaging surgical navigation system. Representative images of fluorescence images, bright field images and merge images of each group of animals under fixed spectral probe 0–5 days after inoculation of HT-29 solid tumor. H: high-dose (4 mg/kg) group of ICG solution; M: middle-dose (2 mg/kg) group of ICG solution; L: low-dose (1 mg/kg) group of ICG solution. ICG, indocyanine green.

Discussion

Cancer is the leading cause of death in developed countries and the second in developing countries (22,23). As surgery is the main treatment for many malignant tumors, precise localization of the tumor resection area plays a crucial role in the prognosis of patients (9). Currently, the main clinical imaging examinations for localization include computed tomography (CT), magnetic resonance imaging (MRI), positron emission tomography/CT (PET/CT), and single photon emission computed tomography (SPECT/CT) (24). However, the above detection methods are often used for preoperative diagnosis and postoperative evaluation, which have little significance for the accurate location of the intraoperative tumor margin. As it is noninvasive, real-time, sensitive and inexpensive, and can be used to achieve tissue, cellular and subcellular imaging of living animals by bioluminescence or fluorescence (25), the development of optical molecular image navigation technology has provided a new option for intraoperative tumor visualization. Fluorescent surgical navigation technology has been widely used in sentinel lymph node mapping, solid tumor identification, lymphography, angiography, and intraoperative anatomical imaging. At present, most intraoperative fluorescence navigation systems are equipped with near-infrared sensing detectors and charge coupled devices cameras. Compared with visible light, near-infrared light is a common light source for optical molecular imaging because of its strong penetrating ability, less autofluorescence, and higher signal-to-noise ratio (26). ICG is the only near-infrared fluorescent dye currently approved by the FDA for clinical surgical use. Some studies pointed out that ICG-guided fluorescence intraoperative navigation systems can detect small tumor lesions of 2–5 mm, but clinical tumor resection has higher requirements for precise identification and accuracy of tumor edge recognition ICG (27).

This study first ascertained the ICG minimum concentration of the fluorescence image surgery navigation system in vitro. Through the establishment of a tumor-burdened mice model, we explored the minimum detection limit of the in vivo fluorescence intraoperative navigation system, which provided an experimental basis for the further development of optical molecular imaging technology in the field of clinical tumor resection. In this experiment, the inoculation site of tumor-bearing mice was exposed and placed under the fixed probe about 24 h after ICG injection, at which point green fluorescence from the tumor site could be seen, and the fluorescence range increased with the growth of the tumor. The minimum detection limit was up to 0.2 mm. The minimum detection concentration of ICG in vitro with the fixed spectral probe of the fluorescent imaging surgical navigation system was up to 2×10⁻¹¹ M, and that with the handheld spectral probe was up to 1×10⁻¹² M. The above results indicate that, compared with the traditional visual identification of the tumor margin, the fluorescent imaging surgical navigation system has higher sensitivity and accuracy, which is of great significance for the accurate identification and resection of the tumor margin and the improvement of prognosis.

There are also some limitations in the application of fluorescence imaging navigation systems. Currently, the main challenge is the development of tumor specific targeting fluorescence contrast agents with high fluorescence efficiency (28). New fluorescent probes, such as monoclonal antibody coupled fluorescent probes, cell surface enzyme activated fluorescent probes, and lysosomal activated fluorescent probes, are better than traditional fluorescent probes such as ICG, methylene blue, and sodium fluorescein in tumor targeting and background signal ratio. However, their safety remains to be established and their clinical transformation faces certain difficulties (29,30). With the continuous improvement and development of technology, more targeted fluorescent imaging probes have been developed, providing great potential for the application of fluorescent imaging surgical navigation technology to reduce postoperative recurrence rate and improve postoperative survival in the future.

Acknowledgments

Funding: This work was supported by the National Key Research and Development Program of China (2016YFC0104100) and Key Promotion Project of Core Technology of Jiangsu Province (2018).

Footnote

Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at https://dx.doi.org/10.21037/atm-21-3050

Data Sharing Statement: Available at https://dx.doi.org/10.21037/atm-21-3050

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/atm-21-3050). HC and YW are employees of Nanjing Nuoyuan Medical Devices Co., Ltd., Nanjing, China. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Experiments were performed under a project license (No.: 2021-06-013) granted by the committee of the Laboratory Animal Welfare in Pharmaceutical Animal Laboratory Center at China Pharmaceutical University, in compliance with the Laboratory Animal Welfare in Pharmaceutical Animal Laboratory Center guidelines for the care and use of animals.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
