Lateral minimal approach to the terrible triad of the elbow: a treatment protocol in Beijing Jishuitan Hospital

Introduction

The terrible triad of the elbow, which was first described by Hotchkiss in 1996, is usually characterized by elbow dislocation combined with fractures of the radial head and coronoid process of the ulna (1). Typically, the elbows display obvious posterolateral rotational instability and associated severe soft tissue injuries, especially the lateral collateral ligament (LCL) complex (2,3). Therefore, the treatment of this complex injury has posed a great challenge for orthopedic surgeons and is often associated with devastating complications including elbow stiffness (10.3%), failure of osteosynthesis (6.7%) and ulnar neuropathy (6.2%) etc. (2,4-6). Recently, with more in-depth studies regarding elbow anatomy and biomechanics as well as the advancement of surgical techniques, the prognosis of a such complex injury has been greatly improved. However, the sample sizes of previous clinical studies have been relatively small and the surgical procedures for treating the terrible triad have remained controversial, especially concerning the specific surgical approaches (7-10).

Regarding the surgical approaches, a posterior approach (7,8) or a combined medial and lateral approach (9,10) have been the preferred choices for most surgeons to restore elbow stability. However, these 2 approaches have been found to increase intraoperative soft tissue disruption to the elbow, and thus, they may increase the risk of developing postoperative elbow stiffness, heterotopic ossification, or ulnar nerve symptoms.

In this study, we proposed a treatment protocol for the terrible triad of the elbows using an extensor digitorum communis (EDC) split approach through a single lateral incision, which is generally 4 cm long with very few cases extending to 6 cm. Here, we aimed to introduce this method in detail and further evaluate the clinical outcomes of patients with terrible triad treated via this surgical approach. We present the following article in accordance with the STROBE reporting checklist (available at https://dx.doi.org/10.21037/atm-21-2542).

Methods

Patients in Beijing Jishuitan Hospital Department of Orthopedic Trauma with acute terrible triad of elbows who required surgical treatment due to severe instability or displaced fracture fragments after closed reduction between January 2013 and December 2019 were included in this study. Retrospective clinical research was conducted with the following inclusion criteria: (I) treated by single lateral incision and EDC split approach; (II) complete perioperative information and postoperative follow-up data; (III) minimum 1 year follow-up time. The exclusion criteria were as follows: (I) age <14 years old; (II) pathologic fractures; (III) unclosed epiphysis; and (IV) lost to follow-up.

A total of 136 patients with the terrible triad of the elbows underwent surgical treatment at our institution. After applying the inclusion and exclusion criteria, 109 patients were included in the study. For the patients who were excluded, there were 2 patients who were <14 years old, and there were 25 patients who were lost to follow-up. The mean age of all participants was 42.2±13.8 [14–71]. The study was approved by Beijing Jishuitan Hospital Institutional Review Board (No. 201708-04) and written informed consent was obtained from all patients. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013).

All participants underwent closed reduction and immobilization with plaster in the emergency room to maximally restore joint congruence. All participants were treated via a single lateral incision, which was generally 4 cm (with very few cases extending to 6 cm), and EDC split approach to expose the injured LCL complex, the origin of common extensor tendon, radial head fracture, coronal process fracture, and anterior joint capsule, respectively (Figure 1). Usually, a bare area was to be found on the posterior aspect of the lateral epicondyle of the distal humerus, due to the origin of the LCL complex having been torn apart. Through the “entrance” just distal to the bare area, the common extensor muscle was split open along the lateral epicondyle and the midline of the radial head. In this way, it was easier to avoid further disruption to collateral ligaments and surrounding muscles and preferable for the exposure and fixation of fractures of the radial head and coronoid process. However, the anterior aspect of the lateral epicondyle was usually intact and required additional stripping to enhance exposure.

Figure 1 The single lateral incision.

We firstly dealt with fractures of the coronoid process. The anterior joint capsule attached to the coronoid fracture fragment was sutured using ETHIBOND#2 (Ethicon Inc., Johnson and Johnson, New Brunswick, NJ, USA) and further reduced using the “lasso technique” without tightening the suture tails. Then, a pair of K-wires (diameter 1.5 mm) were inserted from the dorsal side of the proximal ulna into the center of the base of the coronoid fragment. After adequate reduction of the coronoid process using the lasso, the K-wires were further inserted into the fragment for stabilization. The suture tails were tensioned and tied on the subcutaneous posterior border of the ulna. Then, the tail of K-wires was bent, shortened, and buried beneath the skin. The sequential order of K-wire fixation and suture tail tightening is crucial for preventing the secondary fragmentation and loosening of the lasso suture. If the fragment was too small or comminuted to be fixed by K-wires, we just performed a “lasso technique” to stabilize the coronoid process.

Secondly, we dealt with the radial head fractures. A total of 58 participants were fixed by 2.4 mm headless cannulated screws (HCS), and the remaining 51 participants were treated by radial head replacement due to severe comminution.

Thirdly, we dealt with the soft tissue. The LCL complex and the origin of common extensor tendon were repaired using either suture anchor (81 participants) or transosseous braided suture through the lateral epicondyle using ETHIBOND#2 (28 participants). In all participants, the medial collateral ligaments (MCL) were not surgically treated and left as they were.

Lastly, the elbow joint stability must be carefully examined after open reduction and internal fixation. Physical examination revealed mild “drop sign” on lateral radiographs when flexing the elbow joints in 46 participants, and they were further treated by Stryker dynamic joint distractor (DJD) II hinged external fixator (Stryker Corp., Kalamazoo, MI, USA) in order to achieve better joint stability and protect the fixation of bony structures and repair of soft tissue (Figure 2). This supplementary intervention was performed to enable patients to achieve full range of motion exercises in early stage rehabilitation. A total of 63 participants achieved adequate stability when flexing and extending the elbow joint during surgery, and they were protected by braces or plaster casts (for less than 1 week) as precautionary measures in order to maintain joint congruence (Figure 3). The humeroulnar joints of all our participants were not fixed by K-wires. Drainage was removed when there was less than 30 mL during the first 24–48 hours after surgery. Glucosamine was routinely administered 100 mg TID for 6 weeks postoperatively. The K-wires for the fixation of coronoid process fracture were usually removed after 2–3 months.

Figure 2 Elbow function and X-ray postoperatively. (A,B) The postoperative X-ray of a patient with Stryker DJD II hinged external fixator. (C-F) The ROM of the patient after 2 months. DJD, dynamic joint distractor; ROM, range of movement.

Figure 3 The postoperative X-ray without an external fixator.

Regarding postoperative rehabilitation, for participants treated by external fixators, full range of motion (ROM) active and gentle passive exercises were initiated on the second day after surgery. Participants without external fixators were protected by braces or casts for a week without active extension exercises. Moreover, elbow extension was limited to within 30 degrees during the first month of rehabilitation. Violent passive massage or stretching conducted by others were strictly forbidden.

Functional outcomes were collected and documented in our database after routine follow-ups in outpatient clinics. Clinical results of the latest follow-up were extracted from our database and evaluated using the parameters including chief complaints, ROM, Mayo Elbow Performance Score (MEPS) (11,12), visual analogue scale (VAS), complications, and secondary operations. The ROM and MEPS was measured by a doctor who wasn’t the surgeon.

Statistical analysis

The software SPSS 24.0 (IBM Corp. Armonk, NY, USA) was used for statistical analysis of all follow-up data. For the quantitative variables, the descriptive statistics included means, medians, standard deviations, and ranges.

Results

A total of 109 patients with the terrible triad of the elbows were collected from our database. The average follow-up duration was 36.1±11.1 months (6–60 months). The baseline characteristics were as follows (Table 1).

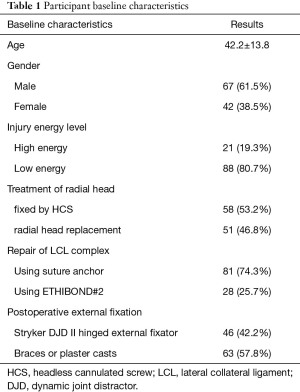

Table 1 Participant baseline characteristics
Full table

The average ROM of flexion and extension was 123.8°±20.5°, ROM of rotation was 151.1°±25.1°, MEPS was 92.4±8.8 (68.8% were excellent), and VAS was 0.9±1.5. There were 22 participants (19.5%) who experienced ulnar nerve symptoms, which is defined as local sensory abnormality or weakened muscle strength after surgery. There were 16 participants (14.7%) with elbow stiffness, which is generally defined as an elbow ROM less than 100° either in flexion-extension or pronation-supination. There were 7 participants who underwent secondary surgery, including 6 removals of internal fixation, 5 arthrolyses of the elbow, and 2 ulnar neurolyses. None of the participants experienced infection or bone nonunion (Table 2).

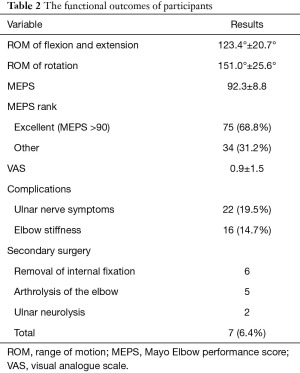

Table 2 The functional outcomes of participants
Full table

Discussion

The terrible triad of the elbow refers to complex fracture and dislocation of radial head fracture, coronoid fracture, and elbow dislocation, which often leads to complications such as elbow stiffness, failure of osteosynthesis, ulnar neuropathy and recurrent instability (2,6).

The coronoid process and the radial head are the primary constraints against posterior translation of the forearm. After a fall on the outstretched hand with the elbow extended or slightly bent, the forearm translates posteriorly, which leads to transverse shearing fractures of the coronoid, and the “anterior rim” of the radial head hits against the capitulum causing a radial head fracture. As a result, the terrible triad injury occurs. With thorough understanding of elbow anatomy and biomechanics and the advancement of surgical techniques, orthopedists have gradually established systematic treatment protocols and rehabilitation strategies for the terrible triad, which has significantly improved its prognosis.

The goal of surgical management of the terrible triad is to achieve concentric reduction and stability of the elbow joint, which allows early mobilization to maximally restore elbow function (13). For less severe injuries, closed reduction and hinge external fixation can be used to achieve satisfactory results. Most instances of the terrible triad will lead to bony block and difficulty in maintaining the stability of the elbow, so treatment is usually via surgery. Common surgical approaches to the terrible triad include the posterior approach, combined medial and lateral approach, and anterior approach (7-10). Many surgeons may choose the first 2 approaches to reconstruct the anatomy. Lindenhovius et al. (14) followed 18 terrible triad patients through the posterior approach, achieving good functional outcomes with a flexion-extension arc of 119°and a rotational range of 141°, and the average MEPS of these patients was 88 points, after a mean follow-up of 24 months. Zhang et al. (10) followed 21 terrible triad patients undergoing internal fixation through the combined medial and lateral approach for an average of 32 months, achieving good functional outcomes with a flexion-extension arc of 126.0°±4.8° and a rotational range of 139.0°±4.1°. The average MEPS of these patients was 95.2 points. Although these 2 approaches can more satisfactorily restore the stability of the elbow joint, they significantly increase surgical trauma, which adds to the probability of joint stiffness, ectopic ossification, and ulnar nerve symptoms. The anterior approach exposes the coronoid process more optimally, but also damages the anterior joint capsule. Once stiffness occurs, it will be difficult to improve the extension of the elbow. Therefore, the anterior approach is not recommended. Pugh et al. (13) proposed a single lateral approach to the terrible triad, which achieved satisfactory outcomes. A year later, McKee et al. (15) suggested a standard surgical protocol for the terrible triad of the elbow, indicating that a single lateral approach was enough for most cases, and the combined medial approach was needed only when the coronoid process was difficult to expose by the lateral approach, preoperative ulnar nerve injuries existed, and MCL needed to be repaired.

At Beijing Jishuitan Hospital, we have treated the terrible triad of the elbow through a lateral minimal approach. Compared with the other abovementioned approaches, the single lateral minimal approach damages less soft tissue, maintaining the stability of the injured elbow, which may lead to better functional outcomes. Through the lateral minimal approach, the injured lateral ulnar collateral ligament (LUCL), radial head fracture, coronoid fracture, and anterior joint capsule were revealed from shallow to deep, and then the coronoid process, anterior joint capsule, radial head, LCL complex, and extensor tendon origin were repaired from deep to shallow. The lateral epicondyle was used as an anatomical landmark. A 4 cm incision was made along the line of the supracondylar crest-lateral epicondyle-radial head. Soft tissue avulsion was usually found behind the midline of the lateral epicondyle, forming a bare area. Through the original rupture, the EDC was split along the lateral epicondyle of the humerus and the midline of the radial head. Dissection did extend distally to the radial neck, to avoid damage to the deep branch of the radial nerve below the radial tubercle. Proximal dissection of the brachioradialis and extensor carpi radialis longus and brevis anterior to the midline of the lateral epicondyle was performed, and the anterior joint capsule was retracted forward. Even if the radial head fracture was relatively intact with small fragments, the coronoid process could be well exposed and fixed through this approach. In cases treated with radial head arthroplasty, the coronoid process was more clearly exposed. Anatomical studies (16) also confirmed that this method could better expose the radial head and coronoid process.

Our team believe that the terrible triad is caused by posterolateral rotational injury; as for other radial head fractures, elbow dislocations combined with anteromedial coronoid process compression fractures caused by varus stress, the articular surface of the coronoid process needs to be reduced and fixed with a buttress plate from the medial side, so they are diagnosed as varus posteromedial instability instead of the terrible triad. The most common coronoid fracture in terrible triad is a tip fracture (17), which is mostly the anterolateral part of the coronoid process, generally not exceeding the sublime tubercle; the ulnar attachments of MCL are often intact, so a medial buttress plate is not usually needed. Due to the coronoid fracture fragments in the terrible triad usually being small and comminuted, the use of screws can easily cause the fragments to break again, increasing the difficulty of the operation and risk of ineffective fixation. The coronoid process can be fixed with 2 Kirschner wires from the dorsal side of the proximal ulna anteriorly and sutured to the anterior joint capsule through 2 bony holes to maintain the anterior stability of the elbow. In cases with small coronoid fragments, a simple fixation with sutures is performed. In patients with severe elbow injuries, the anterior soft tissue is torn from the anterior side of the proximal ulna, resulting in a dislocation tendency of the humeroulnar joint. In these cases, the tension of the anterior joint capsule is more important than the osseous stability of the coronoid process, and this method can achieve satisfactory stability of humeroulnar joint. It is not recommended to resect fragments of radial head in terrible triad, which often leads to postoperative instability. The radial head may be fixed with 2 crossed countersunk screws other than plates after anatomical reduction when possible, so as to reduce implant irritation. If the radial head is severely comminuted or has poor bone density, radial head arthroplasty should be considered. Attention should be given to the height and diameter of the prosthesis in the operation to avoid postoperative instability or “overstuffing” syndrome. Two studies have focused on the clinical results of ORIF versus replacement of the radial head regarding the terrible triad injuries. Watters et al. (18) did not observe any significant differences between groups in terms of ROM and DASH at a minimum of 18 months follow-up. Leigh et al. (19) found that revision surgery was more common in the ORIF group (5/13) than in the radial head replacement group (2/11) after a mean follow-up of 41 months.

The repair of the attachments of the LCL complex and the common extensor tendon is critical to postoperative stability (8). They can be repaired by drilling and suturing on the lateral epicondyle or using anchors. It is generally suggested that reconstruction of LUCL should be performed at 40°–50° elbow extension, but when repairing fresh injuries, reconstruction at 90° elbow flexion and a neutral rotational position of forearm is more convenient (20). Whether to repair MCL is still controversial. Most surgeons believe that it is not necessary to repair MCL, because the extra medial incision will further increase surgical trauma to the soft tissues and cause postoperative complications, especially elbow stiffness (3,7,15,21). The elbow is a triangular stable structure composed of medial, lateral, and anterior parts. After the anterior joint capsule is repaired, flexion-extension stability is established; after the lateral structures are reconstructed, rotational stability reappears. The MCLs of patients with the terrible triad often suffer from incomplete injuries, and valgus is generally forbidden during the rehabilitation process, which allows MCLs to heal gradually over 2 months. Therefore, it is usually not necessary to deliberately add a medial incision for repair. After the repair of fractures and soft tissues, the stability of the elbow joint must be verified. An elbow with a full flexion-extension arc under anesthesia without dislocation is considered stable and no stress test is required (22,23). If the elbow is stable intraoperatively, short-term plaster immobilization for within 1 week is sufficient. When the elbow is still unstable after reconstructing the osseous structures and ligaments, a hinged external fixator is applied to protect the repaired bones and soft tissues, maintain the stability of the joint, and enable the patient to mobilize early.

Pugh et al. (13) followed 36 terrible triad patients undergoing internal fixation through the single lateral approach for an average of 34 months, achieving good functional outcomes with a flexion-extension arc of 112°±11° and a rotational range of 136°±16°. The average MEPS of these patients was 88 points. Gong et al. (24) compared the outcomes of the single lateral approach with the combined medial and lateral approach for terrible triad of the elbow, and found that the single lateral approach provided better functional results and a lower incidence of postoperative heterotopic ossification.

From 2013 to 2019, 109 patients with terrible triad were treated through a lateral minimal approach at Beijing Jishuitan Hospital. At a mean time of 36.1±11.1 months postoperatively, the flexion-extension ROM of the elbow averaged 123.4°±20.7° degrees and forearm rotation averaged 151.0°±25.6° degrees. The mean MEPS was 92.4±8.8 points, with a low reoperation rate of 6.4%, demonstrating satisfactory short-term functional outcomes of the lateral minimal approach.

This study has the following limitations: (I) as a retrospective study, the result is prone to have selection bias; (II) the size of this study, though comparable to or even larger than similar studies, may not be large enough to show the functional outcomes of the lateral minimal approach; (III) the measurement of ROM of elbows was performed by the same doctor, and there may have been favour detection bias.

Conclusions

Coronoid fractures, radial head fractures, and LCL injuries in the terrible triad of the elbow can be treated satisfactorily through a lateral minimal incision, combined with a hinged external fixation if necessary. The method described above can restore the normal anatomy of the elbow and provide sufficient stability, which may lead to a reduction in the incidence of elbow stiffness by reducing surgical trauma and promoting early mobilization.
