The BYPASS-CTCA Study: the value of Computed Tomography Cardiac Angiography (CTCA) in improving patient-related outcomes in patients with previous bypass operation undergoing invasive coronary angiography: Study Protocol of a Randomised Controlled Trial

Introduction

Each year, approximately 300,000 coronary artery bypass graft (CABG) surgeries are performed in the US (1) and 20,000 in the UK (2). The purpose of CABG is to restore an adequate blood supply to blood deprived myocardium, and the success of the operation depends mainly on the patency of the bypass grafts (3). Indeed, the natural history of bypass grafts is such, that 10–15% of venous grafts become occluded per year, with 50% occluded after a period of 10 years (4-6). These patients therefore often need coronary evaluation by means of invasive coronary angiography (ICA) in order to explore recurrence of chest pain, heart failure, or for pre-operative evaluation prior to cardiac valve replacement or high-risk non-cardiac surgery.

While ICA remains the gold standard for both coronary artery and graft evaluation, it is still associated with a risk of complications such as kidney damage, myocardial infarction, stroke, vascular complications and death (7,8). The risk of these complications is significantly increased in the CABG population, in part due to increased co-morbidity. Cardiac catheter manipulation to engage the grafts is associated with an increased risk of embolic stroke or dissection (9), as graft engagement is technically more difficult than native vessels, with the location of the bypass ostia often variable. ICA in CABG patients is often performed via the femoral route, lasts longer, and leads to higher irradiation and nephrotoxicity than ICA in patients without CABG (10,11). This emphasises the need for improvement in techniques to aid the search for bypass grafts during ICA, a topic that has been well discussed for many years.

Improvements in Computed Tomography Cardiac Angiography (CTCA) technology have allowed its emergence as a useful clinical tool in CABG assessment. CTCA allows detailed evaluation of venous and arterial grafts, and is also highly accurate at detecting stenoses in bypass grafts (see Figure 1) with sensitivity, specificity, negative and positive predictive values of 97%, 97%, 93% and 99%, respectively (12-14). The evolution of scanners has resulted in markedly reduced radiation doses (<2 mSv), required contrast media (<90 mL) and acquisition time (seconds). Reconstruction of any structure of interest in 3D by CTCA means it is now possible to fuse reconstructions in real time with other forms of interventional imaging such as angiography (15,16). These images can be used to guide interventional procedures, facilitate identification of the origin of the grafts and indicate the appropriate catheters for graft selection. CTCA itself is well tolerated with previous studies demonstrating high patient satisfaction scores (17). These factors, along with the low risk of complications, means that CTCA has the potential to optimise ICA in this patient group.

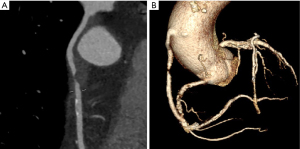

Figure 1 Reconstructed computed tomography (CT) images showing (A) severe stenosis in a saphenous vein graft to the right coronary artery in 2D, and (B) severe stenosis in the same vessel (saphenous vein graft to right coronary artery) reconstructed in 3D.

Observational data exists to support the utility of CTCA in guiding cardiologists performing ICA in CABG patients to assist graft detection. Two studies, one using pre-existing CT scans (18) and one dedicated CTCAs (19), have found that prior CTCA before ICA could lead to a reduction in procedural time, contrast administered and ionizing radiation exposure during ICA however, no randomised study has been performed to date to assess whether routine CTCA prior to planned ICA improves procedure metrics or patient outcomes. We present the protocol of the BYPASS-CTCA study in accordance with the SPIRIT reporting checklist (available at https://dx.doi.org/10.21037/atm-21-1455).

Methods

Hypothesis

CTCA prior to ICA, in patients who have had previous CABG, leads to reduced procedure duration, post-procedural kidney damage and improved patient satisfaction, compared to ICA alone.

Trial design

The BYPASS-CTCA study is a prospective, single centre, randomised controlled trial to determine the value of CTCA in improving patient satisfaction and reducing iodinated contrast load, procedural duration and complications in patients who have had previous CABG undergoing ICA +/- percutaneous coronary intervention (PCI). The study is registered on Clinicaltrials.gov, number NCT03736018 (20). The trial will be conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the local ethics committee (London – Westminster Research Ethics Committee, reference 18/LO/1583).

Study population

Patients [688] with previous CABG undergoing invasive coronary procedures involving the administration of intracoronary iodinated contrast media (ICA +/- PCI), over the age of 18 and able to give written informed consent, will be recruited at The Barts Heart Centre (BHC), based at St Bartholomew’s Hospital, London UK. This is the largest cardiac centre in the UK, serving a population of approximately 6 million people from North East and Central London and is a 24/7 centre performing approximately 6,000 angiograms and 2,000 non-primary angioplasties per year. Patients fulfilling inclusion criteria at the time of arrival to BHC will be screened by the research doctor or principal investigator (PI) for entry into the study. Patients may also be referred by their attending physician to the research team once a decision for elective ICA has been made. Patients will be given time to consider their full participation, although patients with an acute coronary syndrome (ACS) will, by the urgent nature of their condition, have less than 24 hours to consider participation. See Table 1 for full inclusion and exclusion criteria.

Intervention—CTCA

In elective planned ICA cases, the aim is to perform the CTCA at least 2 weeks prior to the ICA in order to ensure adequate time between the two investigations, however patient preference will be taken into account meaning that in some cases CTCA may be performed on the same day as the ICA. In patients presenting with ACS, the CTCA and ICA will also be performed within 24 hours, based on guidelines and clinical pathways.

All CTCAs will be performed at BHC using a third-generation dual source CT scanner (Somatom FORCE, Siemens, Germany). The scan range will include the ascending aorta from the Sinuses of Valsalva to the Subclavian arteries to visualize the origins of the grafts. Prospectively ECG-triggered high-pitch spiral scanning or sequential scanning protocols will be used, depending on patients’ characteristics and heart rate. The scan time required for the defined anatomical range will be <5 s. Automated exposure control (CARE Dose 4D) will be used. It is expected that radiation exposure to patients will be in the range of 0.4–8 mSv, accounting for variability related to patient’s weight, body mass index (BMI) and habitus. Radiation dose and contrast volume administered during CTCA will be recorded for those patients in the CT arm. A set of 0.75 mm-thick images will be reconstructed with a reconstruction increment of 0.5 mm using an iterative reconstruction algorithm (ADMIRE, strength 2). The dataset will be post-processed according to multiplanar reconstruction (MPR’s) and maximum intensity projections (MIP’s). Fluoroscopic views that optimize the visualization of the graft origins for cannulation will be identified, the angles will be communicated to the interventional team (LAO/RAO, Cra/Cau) and corresponding 2D images will be generated from the CTCA data and displayed on the monitor during ICA to facilitate graft engagement. Additionally, the CT images of each patient will be post-processed to reconstruct a 3D volume of the aortic arch, subclavian arteries and proximal portion of the grafts.

Invasive coronary angiogram procedure

All coronary angiograms will be performed at BHC. X-ray exposure settings (low dose with a default frame rate of 4 frames/s fluoroscopy and 7.5 frames/s acquisition), radiation protection and contrast agents used will be the same in all studied patients. To minimize the effect of the operators on outcomes all the ICAs will be performed by experienced cardiologists. Femoral or radial access will be chosen based on the interventional cardiologist’s decision. In patients randomised to CTCA, the CTCA report detailing the number of grafts, location, and patency will be made available to the operator at the time of the ICA. When possible, reconstructed 3D images will also be initially registered and overlaid over the real-time fluoroscopic images using image fusion software.

Randomisation

Eligible patients that have given written informed consent will be block randomised on a 1:1 basis (using an online randomisation database) to receive ICA alone, or CTCA prior to angiography. Since ACS patients are at a higher risk of developing CIN, these patients will be included with equal stratification in both groups.

Study endpoints

The primary endpoint for the study is a composite endpoint consisting of:

• ICA procedure duration;
• Incidence of CIN, as defined by the Kidney Disease Improving Global Outcomes (KDIGO) criteria (21);
• Patient satisfaction scores post ICA (based on a validated questionnaire).

The secondary endpoints are:

• Contrast amount (mL) administered during ICA;
• Radiation exposure (mSv) during ICA;
• Angiography related complications (coronary or aortic dissection, stroke, bleeding and vascular access complications);
• Radial access rates during ICA;
• Number of catheters used during ICA;
• Number of grafts not identified during ICA;
• Accuracy of the CTCA for detecting graft patency;
• Cost effectiveness of CTCA (QALY) measured over 12 months of follow-up.

Participant timeline

At baseline, a comprehensive medical history, medication history and physical examination (including height, weight, BMI, resting BP and heart rate) will be recorded. Following consent and prior to their ICA procedure venous blood will be taken to measure baseline renal function or alternatively, any recent clinically relevant bloods will be utilised. The participant will be randomised to CTCA or not prior to their planned angiographic procedure. A Quality of Life assessment (EQ5D) and a Seattle Angina Questionnaire (SAQ) will be performed prior to angiography +/- PCI.

ICA procedure duration will be measured using a timer started after the insertion of the arterial catheter and stopped when the catheters are removed, after opacification of the native coronary arteries and grafts. As for all interventional radiology procedures, the parameters corresponding to the applied irradiation and quantity of contrast agent required will be reported in each group. Thus, the total air kerma (AK) in milliGray (mGy), dose area product (DAP) in centiGray per square centimeters (cGy/cm²), fluoroscopy time in minutes, total radiation time in minutes and amount of iodinated contrast agent in millilitres (mL) will be reported.

After the procedure the patient will be asked to complete a patient satisfaction questionnaire (17). A blood test will be taken at 48–72 hours for renal function (samples up to 1 week post procedure will be accepted for the assessment of CIN as per the KDIGO criteria). The participant will be asked to come back at 3 months to repeat the renal function test. Quality of life assessments (EQ5D and SAQ) will be repeated at 3 months post procedure and an assessment of major adverse cardiac events (MACE) will be carried out. At 1 year, participants will have telephone follow-up for assessment of MACE, EQ5D and SAQ. The duration of the study for each individual patient will be 1 year (see Figure 2).

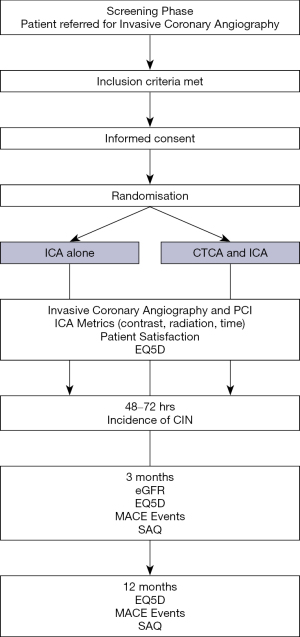

Figure 2 Study flowchart. CTCA, Computed Tomography Cardiac Angiography; EQ5D, Quality of Life Questionnaire; CIN, contrast-induced nephropathy; eGFR, estimated glomerular filtration rate; MACE, major adverse cardiac events; SAQ, Seattle Angina Questionnaire. CCS, Canadian Chest Pain Score, CTCA, Computed Tomography Coronary Angiography; CABG, coronary artery bypass grafts.

Patient satisfaction, cost and health outcome data

Patient satisfaction with both the CTCA and the ICA will be assessed following each procedure using a validated questionnaire. Length of stay and MACE will be recorded from telephone contact with patients, hospital and primary care records, and deaths from the Central Registry Office or equivalent. EQ5D is a questionnaire, designed in Europe, which evaluates generic quality of life. The EQ5D descriptive system is a preference-based Health-related Quality of Life measure with one question for each of the five dimensions that include mobility, self-care, usual activities, pain/discomfort, and anxiety/depression. The Seattle Angina Questionnaire (SAQ) is a self-administered, disease-specific health status questionnaire that measures clinically important dimensions of health in patients with ischemic heart disease (22).

Sample size

The study is powered to detect a composite primary endpoint with individual power for all three primary study endpoints. The primary endpoint requiring the largest sample size is CIN; 510 patients give 80% power (significance level 0.05) to demonstrate a CIN reduction of 60%, assuming an estimated CIN rate of 12%. For the other endpoints 510 patients provides 90% power (significance level 0.05) to demonstrate a 3.5 minutes (14%) reduction in procedure time, assuming a mean procedure time of 25 minutes (SD of 12) and 90% power (significance level 0.05) to demonstrate a 15% improvement in patient satisfaction scores, assuming an estimated mean control score of 1.5±0.7 (1.72 compared to 1.5) [data from previously published ICA satisfaction studies (17,23,24)]. We applied the Bonferroni correction and used a=0.017 in the calculations. This gives a total sample size of N=618 which increases to N=688 after accounting for drop out, based on 80% power for the CIN effect, and 90% power for procedure duration and patient satisfaction correcting for multiple comparisons.

Statistical analysis

Analysis will be on an intention-to-treat basis. The total number of subjects and the number and proportion of subjects with CIN will be presented by treatment group and overall. The effect size will be presented as an odds ratio with confidence intervals obtained during logistic regression. For procedural duration and patient satisfaction scores, the total number of subjects with data, mean (SD) and median [IQR] will be presented by treatment group and overall. Differences will be assessed using a two-sample t-test with unequal variances and effect size presented as the difference between groups with 95% confidence intervals. If the data is considered non-normally distributed, a Mann-Whitney U test will be conducted. For all three primary endpoints adjustment for ACS status and creatinine at baseline will be made. Subgroup analysis will be performed for primary outcomes stratified by ethnicity (white versus black, Asian and minority ethnic), type of presentation (stable/elective versus ACS), seniority of the clinician performing the ICA (consultant versus interventional trainee) and knowledge of graft anatomy [operation note/previous angiogram since CABG (yes versus no)]. Unadjusted effect sizes will be shown by subgroup and for all patients using a modified forest plot, along with a test for heterogeneity. For secondary endpoint analysis confidence intervals and statistical tests are of an exploratory nature.

Discussion

Trial management

This study is supported by the Barts Cardiovascular Clinical Trials Unit (CVCTU), a branch of the Barts CTU UKCRC Reg No. 4. Similar to other trials they support (25), the CVCTU will oversee the management and conduct of the trial, including safety reporting, co-ordination of trial committees, statistical analysis and reporting, and database management and electronic case report form (eCRF) design.

Source data will be collected by delegated members of the research team and captured in the eCRF using the REDCap database with electronic signatures and an audit trail. Information related to participants will be kept confidential and managed in accordance with the NHS Code of Confidentiality and the GDPR and UK Data Protection Act 2018. During the study, participant study records and paper source documents will by marked by a single pseudoanonymised subject identifier. This will be identified on eCRFs and any paper source documentation. All paper source data will be kept securely in participant study files or investigator site files within locked cabinets in restricted access rooms within St. Bartholomew’s Hospital.

Adverse events (AEs) reporting

All AEs and serious AEs will be recorded and reported to the PI. Related unexpected serious AEs, as assessed by the PI, will be reported within 24 hours of the research team becoming aware, to the Joint Research Management Office and the main Research Ethics Committee, as per the local and CVCTU policy (25).

Monitoring

A Trial Steering Committee (TSC) composed of three independent experts in the fields of cardiac imaging (CT), and cardiology along with the investigators and a lay member will monitor the study. They will meet before patient recruitment and as per the TSC charter thereafter to assess trial conduct, recruitment, feasibility or other arising issues.

An independent Data Safety Monitoring Board (DSMB) will be formed to monitor patient safety. The DSMB will meet prior to initiation of the study, after recruitment of 10 patients, and thereafter as per the DSMB charter. If there is serious concern with the safety of the participants, the DSMB may recommend early termination of the study. An interim analysis for safety by treatment arm will be undertaken once 400 patients have been recruited and results reported to the DSMB.

Trial status

The trial opened to recruitment in November 2018, with an estimated recruitment period of 30 months and will finish 1 year after the last participant is recruited with an estimated end-date of late 2022/early 2023. All relevant data will be submitted to peer reviewed journals for publication. We aim to publish the primary endpoint results after the last recruited participant has reached their 3-month follow-up with secondary analyses assessing 1 year MACE outcomes and cost-effectiveness after the trial is completed.

Limitations

As this is a single centre study, limitations may include the application of results to other centres where CTCA may not be readily available. The interpretation and application of information from CTCA also currently still varies amongst clinicians however this study may provide further insight into this.

Conclusions

ICA remains the gold standard for evaluation of both native coronary arteries and grafts, however in patients with previous CABG it remains technically more challenging and associated with a higher risk of complications. The role of CTCA in these patients has been increasing with advancing technology. The BYPASS-CTCA study aims to show that the use of CTCA in this patient population prior to ICA leads to improvements in patient satisfaction as well as a reduction in procedural time and post-procedure kidney problems. Results may influence future techniques to improve outcomes in this group of patients.
