Recognizing blood pressure patterns in sedated critically ill patients on mechanical ventilation by spectral clustering

Shengjun Liu1#, Longxiang Su1#, Xin Liu2, Xueqian Zhang2, Zuyu Chen2, Chun Liu3, Na Hong3, Yali Li2, Yun Long1

1Department of Critical Care Medicine, State Key Laboratory of Complex Severe and Rare Diseases, Peking Union Medical College Hospital, Chinese Academy of Medical Science & Peking Union Medical College, Beijing, China; 2Department of Electronic Engineering, Tsinghua University, Beijing, China; 3Digital Health China Technologies Co., Ltd., Beijing, China

Contributions: (I) Conception and design: S Liu, L Su; (II) Administrative support: Y Long, Y Li; (III) Provision of study materials or patients: S Liu, L Su; (IV) Collection and assembly of data: C Liu, N Hong, S Liu; (V) Data analysis and interpretation: X Liu, X Zhang, Z Chen; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Dr. Yun Long. Department of Critical Care Medicine, Chinese Academy of Medical Science & Peking Union Medical College, Beijing, China. Email: ly_icu@aliyun.com; Dr. Yali Li. Department of Electronic Engineering, Tsinghua University, Beijing, China. Email: liyali13@tsinghua.edu.cn.

Background: Blood pressure is a critical therapeutic goal in intensive care unit (ICU). One important factor influencing blood pressure are analgesia and sedation. Analgesic and sedative drugs are commonly used in critically ill patients. These drugs affect blood pressure by reducing the tension of the venous system, the cardiac preload, and cardiac output and inhibiting cardiac functions. Consequently, vasoactive agents are commonly used to increase blood pressure. The indications for the usage of vasoactive agents are unequivocal. However, opinions on when to stop raising blood pressure vary. This study explored the relationship between blood pressure and sedation.

Methods: Patients in the Multiparameter Intelligent Monitoring in Intensive Care-III (MIMIC) database who had received mechanical ventilation, had been administered sedative analgesics during their ICU stay, and met the inclusion criteria were included in this study. The mean arterial pressure (MAP) tendency patterns were identified using spectral clustering and visualized using the t-distributed Stochastic Neighbor Embedding (t-SNE) algorithm. The 28-day mortality rates of patients with different MAP patterns during their first 24 hours in the ICU and their sedation levels were calculated in the crosstab.

Results: Fourteen thousand seven hundred and eighty-five patients from the MIMIC-III database were included in this study. Three MAP patterns were identified by spectral clustering. The median MAP of the low, moderate, and high MAP groups was 71.2, 80.4, and 97.6 mmHg, respectively. The 28-day mortality rate of patients in the moderate MAP group (13.0%) was lower than that of patients in the low (16.6%) and high (15.6%) MAP groups. No difference was found in the 28-day mortality rate between the low and high MAP groups. Dynamic changes in blood pressure at different sedation depths were also examined. Notably, compared with light and moderate sedation level, patients in the deep sedation group, especially those in the high MAP group (48.5%), had a higher 28-day mortality rate (36.5%).

Conclusions: Low MAP in the first 24 hours in ICU indicates a high possibility of poor prognosis for critically ill patients on mechanical ventilation. For patients under deep sedation, maintaining a high mean arterial pressure also indicates poor prognosis. A personalized MAP target should be determined according to the severity of illness and level of sedation for each patient.

Keywords: Blood pressure patterns; spectral clustering; t-distributed stochastic neighbor embedding (t-SNE); mechanical ventilation; sedation administration


Submitted May 29, 2021. Accepted for publication Aug 06, 2021.

doi: 10.21037/atm-21-2806


Introduction

In the intensive care unit (ICU), patients suffer from discomfort and pain, which are mainly attributable to hypoxia, shock, high fever, visceral pain, and surgical incisions. Additionally, studies have shown that various treatment procedures and noisy medical environments can further deteriorate the surroundings of patients (1,2). Such factors may increase patients’ anxiety, irritability, pain and may even make them delirious. In addition to negative subjective emotions, these factors may also lead to changes in patients’ physiological states, increase the burden placed on organ functions, and worsen patients’ condition in severe cases (3). Thus, sedatives are frequently administered to critically ill patients in the ICU to relieve anxiety, reduce the stress of being mechanically ventilated, and prevent agitation-related harm (4,5).

Due to their pharmacological features, the use of sedatives may increase morbidity (6). The depth of sedation is associated with delirium, increase the duration of mechanical ventilation, increase the length of stay, and decrease survival (7). Accumulating evidences have shown the hemodynamic effects of sedation (8). As blood pressure changes, analgesia and sedation drugs may reduce the tension of the venous system, reduce the tension volume, and change patient’s volume state, thereby reducing the cardiac preload and cardiac output and lowering blood pressure (9). Additionally, Analgesic and sedative drugs can inhibit cardiac functions due to their negative chronotropic and negative inotropic effects (10,11).

Consequently, doctors may use vasoactive agents to increase blood pressure in the ICU. However, there is debate on whether maintaining a high mean arterial pressure (MAP) is essential for sedated patients in intensive care unit (12). Guidelines provide indications on the use of vasoactive agents (13) but fail to indicate when blood pressure should stop being elevated.

This study used the spectral clustering method to examine MAP patterns in sedated ICU patients and realized dimensionality reduction by t-distributed stochastic neighbor embedding (t-SNE) algorithm. Clinical features were extracted to identify any standard or feature that determines the patients’ optimum blood pressure and sedation depth.

We present the following article in accordance with the STROBE reporting checklist (available at https://dx.doi.org/10.21037/atm-21-2806).


Methods

Data set

The Medical Information Mart for Intensive Care-III (MIMIC-III) database is a free database comprising de-identified health-related data. The database comprises the data of over 40,000 patients who stayed in critical care units at the Beth Israel Deaconess Medical Center between 2001 and 2012 (14). We used the data of 14,785 adults from the MIMIC-III database who had received mechanical ventilation and had been administered sedative analgesics during their ICU stay. Patients’ data were extracted from the MIMIC-III database for the study if they met the following inclusion criteria: (I) The patient was aged over 18 years, had complete medical records, and had received medical ventilation; and/or (II) the patient had received any of the following 5 sedative or analgesic drugs: fentanyl, midazolam, morphine, propofol, and dexmedetomidine. The patient selection process is shown in Figure 1. For missing values in the MAP data, we applied the Akima method (15), as it provides a natural and smooth interpolation that builds a continuously differentiable sub-spline from piece-wise cubic polynomials.

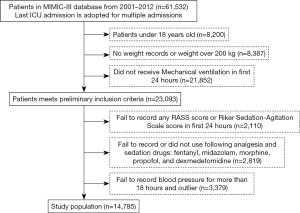

Figure 1 Flow chart of patient selection. MIMIC-III, Medical Information Mart for Intensive Care; ICU, intensive care unit; RASS, Richmond agitation-sedation scale.

Analysis of analgesia and sedation depth

The Richmond-Agitation-Sedation Scale (ASS) (16) and the Riker Sedation-Agitation Scale (17) reflect the degree of sedation of a patient. The lower the score, the better the sedation effect. In the MIMIC-III database, sedation depth is evaluated according to these 2 scales. Based on previous clinical studies and experiences, we divided patients into the 3 categories to reflect different degrees of sedation (deep sedation, moderate sedation, and light sedation) based on Richmond-ASS scores of [–5, –3], [–3, 0], and [0, +4], and Riker Sedation-Agitation Scale scores of 1 and 2, 3 and 4, and ≥5 respectively (18).

Clustering analysis

We applied spectral clustering (19) method to explore the patterns of the MAP data. As a flexible and computationally efficient approach, spectral clustering does not make any assumption on the form of the data clusters; thus, it was an appropriate method for clustering the MAP data. The method uses the spectrum of the affinity matrix, which is constructed by computing a graph of the nearest neighbors, to classify MAP data points into 3 groups according to their similarities. From the graph cut point of view, each data point can be regarded as a graph’s vertex in a high-dimensional space. Spectral clustering aims to find a partition in the graph for which the edges within the same groups have a high weight while the edges between different groups have a low weight. The algorithm can be formulated as:

Minimize Graphcut

(A1,...,Ak)=12i=1kmAi,nAi¯wmn

where A1,...,Ak denote the partition of the graph, Ai¯ complement, and represent the weight between data point m and data point n.

As the ground-truth labels were not known, we used a silhouette coefficient to evaluate the clustering quality. This coefficient measures how similar a data point is to its cluster compared to other clusters (20). the silhouette coefficient is given as:

s=dbdamax(da,db)

where da denotes the mean distance between a data point and all other points in the same cluster, and db is the mean distance between a data point and all other points in the next nearest cluster. In our study, the silhouette coefficient was 0.21, which indicates that the clusters were relatively dense and well separated.

t-distributed stochastic neighbor embedding

t-SNE is a non-linear dimensionality reduction algorithm that approximates a simple form of spectral clustering and is suitable for the dimensionality reduction of high-dimensional data into 2 or 3 dimensions for visualization. t-SNE converts the similarity between data points into probabilities and models the distribution of each data point’s neighbors (the term ‘neighbors’ refers to a set of data points close to each other). The similarity in the original high-dimensional space is represented by the Gaussian distribution, and the similarity in the embedding space is represented by the t-distribution. The ultimate goal is to minimize the gap between these 2 distributions for all points. The Kullback-Leibler (KL) divergence of the joint probability of the original space and the embedding space is used to evaluate the quality of the visualization; that is, the function of the KL divergence is used as the loss function, which is given as:

KL(PQ)=ijPijlogPijQij

where P and Q are the distribution function of data in the original space and embedding space. The loss function is then minimized by the gradient descent method, and finally, the convergence results can be obtained. The distribution of MAP data are shown in a 2-dimensional space.

Statistical methods

Statistical analyses were performed using SPSS Statistics under the Windows system (version 19.0, IBM Corporation, Armonk, NY). The clustering analysis and t-SNE were implemented based on Python programming and Scikit-learn library. The student’s t-test or the Wilcoxon rank-sum test was used to compare the continuous variables. The categorical data were compared using the chi-square test or Fisher’s exact test. A one-way analysis of variance among groups was used to compare differences in continuous parametric variables with normal distributions, and the Kruskal-Wallis test was used to compare differences in continuous parametric variables with abnormal distributions. Differences in the variables between the groups were considered statistically significant at the level of P<0.001.

Ethical statement

This study is carried out according to the provisions of the Declaration of Helsinki (revised in 2013). Data in MIMIC-III database was deidentified in accordance with Health Insurance Portability and Accountability Act (HIPAA) standards using structured data cleansing and date shifting. Protected health information was removed from free text fields. The components of this deidentification system are continually expanded as new data is acquired.


Results

Patient characteristics

14,785 patients from the MIMIC-III database were included in this study. The cohort comprised 5,665 women (38.3%) and 9,120 men (61.7%) with a mean age of 63.8±15.9 years. The simplified acute physiology score (SAPS II) score and sequential organ failure assessment (SOFA) score are 37 [interquartile range (IQR): 29 to 47] and 5 (IQR: 3 to 7), respectively. The overall 28-day mortality of the included patients was 14.8%. According to the analysis of sedation depth, the number of patients in deep sedation, moderate sedation, light sedation was 1,610, 12,472, and 433, respectively (Table 1).

Table 1

Basic patient characteristics of the included patient population

Parameters Values
Age (years) 63.8±15.9
Male gender 9,120 (61.7)
SAPS II score 37 [29–47]
SOFA score 5 [3–7]
Mortality (28 days) 14.8%
Sedation depth
   Deep 1,610 (10.9)
   Moderate 12,742 (86.2)
   Light 433 (2.9)
Sedatives/analgesics usage
   Dexmedetomidine 834 (5.6)
   Fentanyl 5,828 (39.4)
   Midazolam 4,010 (27.1)
   Morphine 3,936 (26.6)
   Propofol 12,691 (85.8)

SAPS II, Simplified Acute Physiology Score II; SOFA, Sequential Organ Failure Assessment.

Clustering of blood pressure patterns

Figure 2 shows the visualization of the clustering results, which was produced by reducing the dimensionality of high-dimensional MAP data to 2 dimensions using the t-SNE algorithm. The blood pressure vectors of the 14,785 patients were classified into 3 categories.

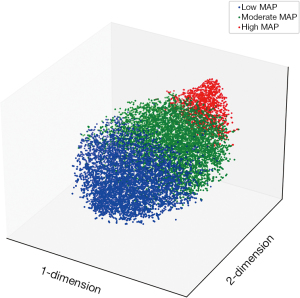

Figure 2 t-SNE visualization analysis of clustering results for blood pressure patterns. t-SNE, t-distributed stochastic neighbor embedding; MAP, mean arterial pressure.

Characteristics exploration of the 3 blood pressure patterns

According to the clustering, Figure 3 shows the MAP tendency of overall patients and the 3 MAP patterns for patients in the initial 6–24 hours in the ICU. The mean MAPs and their 95% confidence intervals are depicted by the full lines and shadow areas. The trend is similar between the deep, moderate, and light sedation groups. The clinical characteristics of the 3 groups are shown in Table 2. Notably, the median, mean MAP of the low, moderate, and high MAP group was 71.2, 80.4, and 97.6 mmHg, respectively. The 28-day mortality rate of patients in the moderate MAP group (13.0%) was statistically lower than that of patients in the low MAP (16.6%) and high MAP (15.6%) groups. However, there was no statistically significant difference in the 28-day mortality rate between the low and high MAP groups.

Figure 3 Visualization of MAP of (A) overall, (B) deep sedation, (C) moderate sedation, (D) light sedation patients in initial 6–24 hours in ICU. The red, green and blue line represents high, moderate and low MAP groups respectively; unit of x axis is hour. MAP, mean arterial pressure; ICU, intensive care unit.

Table 2

Description of clinical characteristics of three blood pressure patterns

Parameters Group 1: low MAP (N1=6,194) Group 2: moderate MAP (N0=7,093) Group 3: high MAP (N2=1,498) P (G1, G2) P (G2, G3) P (G1, G3)
General features
   Age 69 [59–78] 64 [53–74] 54 [43–66] * * *
   Gender (male) 3,479 (56.2) 4,424 (62.4) 947 (63.2) 0.029 0.539 0.055
   Weight (kg) 79 [66.7–92] 80 [68.5–95.2] 80.5 [68.3–96.2] * * 0.490
   Mortality (28 days) 1,028 (16.6) 919 (13.0) 234 (15.6) * 0.006 0.360
   SAPS II 40 [31–51] 36 [29–46] 32 [24–41] * * *
   SOFA 5 [4–8] 5 [3–7] 4 [2–6] * * *
Sedation Level 0.007 * *
   Deep sedation 667 (10.8) 747 (10.5) 196 (13.1)
   Moderate sedation 5,391 (87.0) 6,128 (86.4) 1,223 (81.6)
   Light sedation 136 (2.2) 218 (3.1) 79 (5.3)
Sedation medications
   Dexmedetomidine 385 (6.2) 380 (5.4) 69 (4.6) 0.081 0.024 0.196
   Fentanyl 2,838 (45.8) 2,330 (32.8) 660 (44.1) 0.005 * 0.004
   Midazolam 1,862 (30.1) 1,767 (24.9) 381 (25.4) 0.003 0.017 0.513
   Morphine 1,826 (29.5) 1,828 (25.8) 282 (18.8) * * *
   Propofol 5,203 (84.0) 6,168 (87.0) 1,320 (88.1) * * 0.223
Vital signs and I/O parameters
   Heart rate (bpm) 84.4 [77.4–93.4] 85.7 [77.1–95.6] 89.2 [78.1–101.1] 0.003 * *
   Respiratory rate 17.6 [15.7–20.2] 17.7 [15.8–20.1] 18 [15.9–20.4] 0.559 0.002 0.005
   Systolic pressure (mmHg) 107.4 [102.2–112.8] 118.7 [111.9–126.7] 142.2 [133.6–152.0] * * *
   Diastolic pressure (mmHg) 53.5 [49.7–56.8] 61.8 [58–65.8] 75.6 [70.5–80.3] * * *
   Mean arterial pressure (mmHg) 71.2 [68.0–74.3] 80.4 [76.7–85.0] 97.6 [93.2–103.1] * * *
   In amount (mL) 6,127 [4,107–8,568] 5,375 [3,571–7,682] 4,858 [3,080–7,400] * * *
   Out amount (mL) 1,795 [1,064–2,664] 1,940 [1,245–2,792] 2,040 [1,299–3,008] 0.005 * 0.001
   Fluid Balance (mL) 4,059 [1,984–6,693] 3,226 [1,360–5,608] 2,646 [735–5,165] * * *
   Temperature (°C) 36.9 [36.5–37.3] 36.9 [36.6–37.4] 37.1 [36.7–37.5] * * *
   SpO2 (%) 98.2 [97.1–99.1] 98.2 [97–99.1] 98.5 [97.1–99.5] 0.017 * *
   CVP (mmH2O) 10.8 [8.4–13.3] 10.7 [8.3–13.2] 9.8 [7.5–13.1] 0.151 * 0.004
Laboratory examinations
   CBC and CRP
    White blood cell (×109) 12.2 [9.3–16] 11.7 [8.9–15.1] 11.4 [8.4–14.9] * * 0.008
    Neutrophil (%) 82.5 [73.6–88] 82.8 [74.7–88] 83 [75.2–88.3] 0.147 0.103 0.499
    Hemoglobin (g/dL) 10.1 [9.2–11.1] 10.6 [9.5–11.9] 11.6 [10.2–13.1] * * *
    Hematocrit (%) 29.9 [27.5–32.9] 31.4 [28.4–35.1] 33.9 [30.1–38.4] * * *
    Platelet (×109) 179 [137–241] 188.5 [141–251] 211 [144–276] * * *
    CRP (mg/L) 77.4 [13.4–150.7] 41.1 [7.4–123.3] 18.9 [7.7–56.4] 0.230 0.009 0.079
   Biochemical and electrolyte
    Total bilirubin (mg/dL) 0.8 [0.4–1.6] 0.7 [0.4–1.4] 0.7 [0.4–1.6] * 0.530 0.011
    Albumin (g/dL) 2.9 [2.4–3.4] 3.1 [2.6–3.6] 3.2 [2.8–3.7] * * *
    ALT (U/L) 28 [17–61] 30 [18–71] 35 [19–120.5] 0.003 * *
    AST (U/L) 47 [27–105] 44 [26–104] 48 [25–158] 0.303 0.199 0.035
    BUN (mg/dL) 18.5 [13.5–29.5] 17 [12.5–25.3] 16.5 [11.5–25] * * 0.004
    Lactate (mmol/L) 2.0 [1.4–2.8] 1.9 [1.4–2.7] 2.0 [1.4–3.0] * 0.898 0.060
    Potassium (mmol/L) 4.3 [4–4.6] 4.2 [3.9–4.5] 4.0 [3.7–4.3] * * *
    Sodium (mmol/L) 138 [136–140] 138 [136–140] 139 [137–142] * * *
    Chloride (mmol/L) 107 [104–110] 106.3 [103–109] 105.2 [102–108] * * *
    Total calcium (mmol/L) 8.1 [7.7–8.6] 8.3 [7.8–8.7] 8.4 [7.9–8.9] * * *
   Arterial blood gas analysis
    pH 7.4 [7.3–7.4] 7.4 [7.3–7.4] 7.4 [7.3–7.4] * * *
    PO2 (mmHg) 197 [134.3–250.1] 188.5 [135–242.6] 172 [126–229.2] 0.022 * *
    PCO2 (mmHg) 41 [37.8–44.2] 40.7 [37.3–44.2] 40 [36.5–44.4] 0.703 * 0.001
    HCO3 (mmol/L) 23.5 [21–25.3] 23.7 [21.5–25.7] 24 [21.5–26.3] * * 0.022
    Base excess (mmol/L) 2.3 [1.5–3.3] 2.3 [1.5–3.5] 2.5 [1.5–4] 0.139 0.001 0.022

*, stands for <0.001. SAPS II, Simplified Acute Physiology Score II; SOFA, Sequential Organ Failure Assessment; I/O, input/output; SpO2, pulse oximetry; CVP, central venous pressure; CBC, complete blood count; CRP, C-reactive protein; ALT, alanine transaminase; AST, aspartate aminotransferase; BUN, blood urea nitrogen; pH, blood urea nitrogen; PO2, partial pressure of oxygen; PCO2, partial pressure of carbon dioxide.

The 28-day mortality rates of patients are set out in Table 3. Patients in the deep sedation group, especially those in the high MAP group, had higher 28-day mortality compared with other groups. Additionally, the mortality of patients in the moderate sedation and moderate MAP group was 10.2% (622/6,128), which was statistically significantly lower than the mortality of patients overall (2,181/14,785) (P<0.001).

Table 3

Mortality rate of patients under different blood pressure patterns and sedation depth

Low MAP (n=6,194) Moderate MAP (n=7,093) High MAP (n=1,498)
Light sedation (n=433) 26.5 13.8 8.9
Moderate sedation (n=12,742) 14.2 10.2 10.8
Deep sedation (n=1,610) 33.7 35.7 48.5

MAP, mean arterial pressure.


Discussion

Using the data of the sedated mechanical ventilation patients, a 3-way classification of the MAP tendency pattern was made by spectral clustering and visualized by the t-SNE algorithm. We found that the 28-day mortality rate of patients in the moderate pattern MAP group was lower than that of patients in the low and high pattern MAP groups. However, there was no difference in the 28-day mortality rate between the low and high MAP groups. Additionally, low MAP was associated with the severity of illness (i.e., higher SAPS II and SOFA scores), a deep sedation level, and more usage of sedative/analgesic medications. Thus, clinicians must balance the depth of analgesia and sedation against the adverse hemodynamic effects of the drugs.

Unsurprisingly, compared to the same sedation level, patients with low MAP had a higher rate of 28-day mortality compared with other groups. The harms of hypotension in critically ill patients are obvious. In a retrospective analysis of 110 United States hospitals, researchers found that for every 1 unit increase in a time-weighted average MAP <65 mmHg, the odds of in-hospital mortality increased by 11.4% (P<0.001), the odds of acute kidney injury increased by 7.0% (P<0.001), and the odds of myocardial injury increased by 4.5% (P=0.03) (21). However, in our study, we found that even if the SAPS II and SOFA score was statistically higher in the low MAP group, the 28-day mortality rate of patients with high MAP was not statistically lower than that of patients with low MAP (P=0.360). Thus, patients do not appear to benefit from aimless blood pressure elevating.

In the subgroup analysis of deep sedation patients, we found that patients with high MAP had a much higher mortality rate (48.5%) compared with low and moderate blood pressure groups. According to clinical practice, as agitation/sedation medications may cause hypotension, doctors may use a relatively high dosage of vasoactive agents to prevent hypotension. Interestingly, our results showed that patients with higher blood pressure also had a worse prognosis. Thus, patients may not benefit from aimless blood pressure elevations. There may be several reasons for this. First, increasing arterial pressure does not necessarily improve microvascular perfusion. In 2015, the concept of “hemodynamic coherence” was examined by Ince (22). The goal of recovery is to improve systematic circulation and microcirculation simultaneously. In a study of 252 patients with severe sepsis for whom sublingual microcirculation was visualized, De Baker et al. found that circulation-perfusion uncoupling in microcirculation was strongly associated with an unsatisfactory prognosis (23). Second, different organs have different requirements for perfusion pressure under different hemodynamic conditions; fluctuations in blood pressure and their relationship with metabolism may be the most important parameters (24). Adrenergic vasopressors could cause a reduction in splanchnic circulation, which could increase the oxygen consumption of the intestinal tract and the whole body, which could, in turn, elevate lactic acid (25).

Further, adrenergic vasopressors are associated with reductions in cerebral tissue oxygenation (26), cardiac complications, including myocardial cell injury and atrial fibrillation (27), and muscle weakness in mechanically ventilated patients (28). Thus, the appropriate blood pressure should be determined based on tissue perfusion function and each patient’s specific condition (29). Additionally, it may be that subjective evaluation methodologies of sedation (based on the Richmond-ASS and Riker Sedation-Agitation Scale) do not precisely reflect a patient’s actual sedation status. An actual unsatisfactory sedation level could cause high MAP. In such circumstances, to rule out this possibility, objective evaluation method should be used to titrate the usage of agitation/sedation medications, such as bispectral index monitoring (30).

The limitations of this study need to be considered. First, vasoactive agents may have also contributed to changes in blood pressure. In the low blood pressure group, 1,810 patients used anti-hypertension agents, which is surprising, as anti-hypertension agents are seldom used in patients with low blood pressure. It may be that those patients had relatively high blood pressure initially, and their blood pressure only lowered after their physicians administered anti-hypertension agents. However, compared to moderate blood pressure, low blood pressure did not produce any benefits for patients. Additionally, in this study, 14.2% of patients used both vasopressors and hypotensive drugs in the first 24 hours in the ICU, which suggests that there is a modulation/titration in blood pressure in the first 24 hours. We do not have any information about the sequencing and dosage of vasopressors and hypotensive drugs for these patients. However, all adjustments of vasoactive agents could end up affecting blood pressure. Second, concerning the database, we were not aware of the real target MAP of each patient. Thus, in considering the reason why some patients had poor outcomes, we cannot determine whether the physicians achieved an optimal MAP for patients or whether the patients had a serious illness that prevented physicians from achieving the MAP target. Third, three group with low, moderate, and high MAP had different baseline characteristics, which could potentially affect outcome. Logistic regression can be used to make adjustments of confounding factors. However, given there are three sedation levels and three blood pressure levels, more than 25 parameters which may potentially affect outcome analysis and some of them are interactive (e.g., evaluation of SAPS II score including MAP. A low MAP may increase SAPS II. Evaluation of SOFA score including vasopressors, the usage of vasopressors may increase SOFA score), such measurements that reduce effect of confounding factors have its limitations too.

In terms of the machine learning analysis, the spectral clustering method does not assume the statistics of the clusters and is highly adaptable to different data distributions, including MAP data distributions. The main advantage of t-SNE is its ability to maintain a local structure, which suggests that similar points in the high-dimensional data space remain similar when projected into a low-dimensional data space. A t-distribution has a longer tail, which helps the data points to be more evenly distributed in the 2-dimensional space.


Conclusions

We examined sedated critically ill patients on mechanical ventilation and found that patients with low MAP had a high possibility of a poor prognosis. High MAP in deep sedated patients should be cautiously considered to identify any underlying issues. To improve prognosis, a personalized MAP target should be set according to the severity of the illness and level of sedation. We should endeavor to use the positive hemodynamic effects of analgesic and sedative treatments to facilitate the treatment of the underlying disease in patients with critical illness to improve patient outcomes. Such medications may not only relieve pain and anxiety but also optimize tissue perfusion and oxygen supply and demand.
