An unusual presentation of acute deep vein thrombosis after the Moderna COVID-19 vaccine—a case report

Introduction

Severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) has caused a worldwide pandemic of the multisystem disease, coronavirus disease-2019 (COVID-19). In December 2020, the United States Food and Drug Administration issued an Emergency Use Authorization (EUA) for the Moderna COVID-19 vaccine (mRNA-1273 SARS-CoV-2) (1). The 2-dose vaccine had a reported vaccine efficacy of 94.1% in preventing illness in initial trials. It is generally well tolerated with mild side effects including local injection site reactions and systemic side effects (2). Venous thromboembolism has been rarely described among mRNA vaccines. We describe the uncommon adverse event of an acute deep venous thrombosis associated with the Moderna COVID-19 vaccine. We present the following article in accordance with the CARE reporting checklist (available at https://dx.doi.org/10.21037/atm-21-2772).

Case presentation

A 27-year-old Caucasian female had been in her usual state of good health until the morning of hospital presentation when she developed right upper extremity generalized swelling, pain, and redness (Figure 1). She received the second dose of the Moderna COVID-19 vaccine to the right deltoid muscle 3 days before the onset of symptoms. Her first dose of the Moderna COVID-19 vaccine in her right deltoid muscle was 4 weeks previously and was well tolerated with only mild soreness at the injection site which resolved within a few days. Her past medical history and family history were unremarkable, including no prior blood clots, COVID-19 infection or smoking. She was never tested for any thrombophilic condition previously. She was not on any medications but had a hormonal intrauterine device (IUD) in place for 21 months prior to the current presentation.

Figure 1 Right arm swelling and erythema.

On physical examination, she had generalized swelling of the right upper extremity from the hand to the shoulder area, with bruising and erythema around the injection site in the deltoid. Her initial laboratory results included an elevated D-dimer level 536 ng/mL, an international normalized ratio (INR) 1.2 seconds, a prothrombin time (PTT) 13.5 seconds, and a platelet count 217,000 per cubic mm. Venous duplex ultrasound showed an acute thrombosis involving the right subclavian and axillary veins (Figure 2). CT angiogram of the chest was negative for pulmonary embolism; however, it showed extensive bilateral axillary lymphadenopathy and mild left subclavian vein extrinsic compression between the clavicle and first rib. Subsequently, her thrombophilia workup was negative, including cardiolipin antibodies, beta-2 glycoprotein antibodies, factor 5 Leiden, prothrombin gene mutation, lupus anticoagulant panel, and Russell viper venom time. Heparin-induced thrombocytopenia platelet factor 4 (PF4) antibody was not checked. She was started on an intravenous unfractionated heparin infusion with activated partial thromboplastin time (aPTT) as a monitor for anticoagulation response, and was subsequently discharged on rivaroxaban for 3 months. At 2 weeks post discharge follow up, her arm swelling, and pain had significantly decreased. All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the healthcare power of attorney of the patient for publication of this case report and accompanying images.

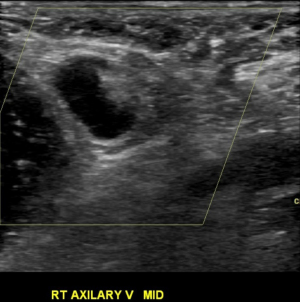

Figure 2 Ultrasound of the right upper extremity showing a thrombus in the right axillary vein.

Discussion

Through the first month of the COVID-19 vaccination campaign (December 14, 2020–January 13, 2021), 13.7 million vaccine doses were administered (3). Ninety point eight percent of adverse events reported through the Vaccine Adverse Event Reporting System (VAERS) database were classified as nonserious (3). The symptoms most frequently reported by Moderna following the second dose of the vaccine were local pain (88.4%), fatigue (65.7%), headache (58.9%), myalgia (58%), chills (44.4%), arthralgia (42.9%), nausea/vomiting (19%), fever (15.7%), axillary swelling/tenderness (14.2%), local swelling (12.3%) and local erythema (8.7%) (2). No unexpected patterns of adverse reactions or other safety concerns were identified during early monitoring by the Centers for Disease Control and Prevention (CDC) (3).

Venous thromboembolism has rarely been reported following vaccination. In a study looking at the association of venous thromboembolism post influenza vaccine administration in a population above age 50 years, there was no increased risk overall. In a post-hoc analysis, an increased risk of venous thromboembolism within 10 days of influenza vaccination was found in current tobacco smokers (4). Research has also indicated a transient increase in proinflammatory cytokine production after influenza vaccination (5,6) which theoretically could explain the association.

As of April 01, 2021, VAERS has collected at least 17 case reports of acute deep vein thrombosis (DVT) after the Moderna COVID-19 vaccine (7). Case reports have primarily involved acute DVTs of the lower extremities. The VAERS system, however, is subject to reporting bias and may include cases not directly caused by vaccination.

Our case of DVT post Moderna COVID-19 vaccine should not be confused with recent reported cases of vaccine-induced immune thrombotic thrombocytopenia (VITT). The latter condition has been associated with PF4 antibodies induced by adenoviral vector COVID-19 vaccines [ChAdOx1 nCoV-19 (8) and Ad26.COV2.S (9)]. This leads to thrombocytopenia and platelet activation with venous and arterial thromboses at multiple and unusual sites including cerebral venous sinus thromboses. Our case did not have thrombocytopenia and had localized venous thrombosis at the ipsilateral arm where the patient was vaccinated, presumably predominantly due to mechanical factors associated with soft tissue swelling, adenopathy, local venous compression and stasis. Our patient may have an underlying anatomic variant contributing to a partial compression of the subclavian vein between the first rib and the clavicle, which could have been further exacerbated by the soft tissue swelling and lymphadenopathy post vaccination. There has also been suggestion that mRNA COVID-19 vaccine may bind to pattern recognition receptors (PRR) in the endosomes and cytosol leading to a pro inflammatory cascade and coagulopathy (10).

Although some oral contraceptives may increase the risk of VTE, previous studies have shown that hormonal IUD do not increase the risk significantly, odds ratio (OR) 0.3; [95% confidence interval (CI), 0.1 to 1.1] in one study (11) and adjusted rate ratio (aRR) of 0.89; (0.64 to 1.26) in another (12). The fact that our patient had her IUD in place for 21 months and the temporal association of her recent vaccination is more suggestive of a true association of the DVT and the Moderna COVID-19 vaccine rather than her any relationship to her IUD.

We acknowledge several limitations in conclusively attributing the DVT to vaccination, including the incomplete testing for PF4 antibodies and the fact that this a single case report rather than a larger scale population surveillance. Additional research is needed to better evaluate the prevalence and pathophysiology of thrombosis with the Moderna and other COVID-19 vaccines. In patients who present with significant arm swelling post vaccination, workup should include complete blood count (CBC) with platelet count, INR, PTT, D-dimer levels, fibrinogen levels, PF4/heparin enzyme-linked immunosorbent assays (ELISA) followed by a confirmatory PF4 platelet activation assay such as serotonin release assay, P-selectin expression assay, or heparin induced platelet aggregation (HIPA) assay; and imaging for thrombosis (13). While rare, our report should serve as an alert for an uncommon complication of the Moderna COVID-19 vaccine and remind that not all post COVID vaccination limb swelling should be disregarded.
