MRI-based three-dimensional reconstruction for staging cervical cancer and predicting high-risk patients
Introduction
Cervical cancer is the fourth most common cancer among women worldwide (1). The International Federation of Gynecology and Obstetrics (FIGO) staging system for cervix uteri is a clinical staging system, wherein the accurate measurement of cervical cancer lesion size plays an important role. The 2018 FIGO staging system for cervix uteri added a tumor diameter of ≥2 cm as the new threshold for stage IB2 disease, and a tumor diameter of ≥4 cm was used to define stage IB3 disease (2). However, cervical tumors usually have an irregular three-dimensional morphology with many concavities and variable locations on the cervix, and approximately 55% of cervical tumors have a non-ellipsoid configuration (3). Magnetic resonance imaging (MRI) is recognized as a preferred option used to examine the cervical cancer lesions (4). However, this method can only produce a rough estimate of cervical cancer size based on a diameter measurement from a two-dimensional MRI slice. Because it can offer observation from multiple angles, the MRI-based three-dimensional (MRI-3D) reconstruction may serve as a new approach to accurately measure cervical cancer lesion size.
Furthermore, stage III cervical cancer was classified as IIIC (p) and IIIC (r) in the 2018 FIGO staging system, which increases the importance of predicting lymph node metastasis (LNM). LNM is one of the adverse pathological factors of cervical cancer. Postoperative patients are categorized into low-, intermediate- or high-risk according to these factors. Adjuvant chemoradiotherapy (CRT) was recommended to intermediate- and high-risk patients (2). Furthermore, initial CRT could be considered as an option for cervical cancer patients who were at risk of adjuvant CRT to avoid surgery and its related complications. Additionally, the automatic calculation of cervical cancer volume by MRI-3D reconstruction is more accurate, time-saving, and labor-saving than that produced by MRI.
The present study aimed to (I) evaluate whether MRI-3D reconstruction could assist cervical cancer staging, and (II) explore the value of automatically calculated tumor volume by MRI-3D in predicting adverse pathological factors in intermediate- or high-risk patients. We present the following article in accordance with the STARD reporting checklist (available at https://dx.doi.org/10.21037/atm-21-2246).
Methods
Patients
This was a retrospective study. We consecutively enrolled 54 pathology-confirmed cervical cancer patients aged 18 years or older who underwent MRI within 4 weeks before treatment between September 2019 and December 2019 at the gynecological oncology department, Peking Union Medical College Hospital. Staging was determined based on the 2018 cervical cancer FIGO stage. We used findings from pelvic MRI, chest radiography, urinary system ultrasonography, and direct gynecological examinations. Re-staging defined as a reviewed stage was determined according to findings from MRI-3D reconstruction. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Ethical approval was granted by the institutional review board of Peking Union Medical College Hospital (approval number: JS-2082). Written informed consent for participation was waived for this retrospective study.
MRI Protocol and 3D reconstruction
Pelvic MRI was performed using an Ingenia Elition 3.0T scanner (Philips Company) with a dedicated pelvic coil. Oral administration of 10 mg raceanisodamine was prescribed 30 minutes before the MRI examination to minimize bowel-related motion artifacts. The MRI protocol included the following sequences: T1-weighted [T1W; repetition time (TR), 450 ms; echo time (TE), 12.1 ms; field of view (FOV), 280 mm × 280 mm; matrix size, 256×224; slice thickness/interval, 5/1.5 mm; number of excitations (NEX), 4], gadolinium contrast-enhanced, T1-weighted images with fat suppression (CET1W; TR, 1.8 ms; TE, 3.8 ms; FOV, 280 mm × 280 mm; matrix size, 256×192; slice thickness/interval, 5/1.5 mm; NEX, 1), T2-weighted (T2W; TR, 4300 s; TE, 95 ms; FOV, 180 mm × 80 mm; matrix size, 256×224; slice thickness/interval, 5/1.5 mm; NEX, 2), and 3D-SPACE-STIR (TR, 1700 ms; TE, 102 ms; FOV, 250 mm × 250 mm; matrix size, 320×272; slice thickness/interval, 1/0 mm; NEX, 2). A contrast agent was intravenously injected into the patient (gadolinium-dextran, 20 mL, 9.38 g; Beijing Beilu Pharmaceutical Co., Ltd.) at a dose of 0.1 mmol/kg.

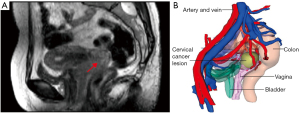

The pelvic imaging data were saved in the Digital Imaging and Communications in Medicine (DICOM) format and emailed to VitaWorks® Technology Co., Ltd. for MRI-3D reconstructions using VitaWorks®, a medical 3D Visualization Analysis System. The pelvis, iliac vessels, pelvic lymph nodes (with enlargement), bladder, urethra, rectum, uterus, cervical tumour(s), parametrial tissue (if there was thickening), and vagina were marked with different colours (Figure 1). VitaWorks® was set to automatically recognize the signal intensity difference of 3D-SPACE-STIR imaging sequence and perform 3D reconstruction.
Assessing tumor size and extent of invasion
On 3D-MRI reconstructions, the following parameters were measured: maximum tumor diameter, tumor volume, pelvic lymph node metastasis (LNM) and/or parametrial infiltration, and morphological integrity of the bladder, rectum, and vagina. The maximum tumor diameter was measured twice by the same investigator and the mean value was used for the analysis. The cervical tumor volume was calculated automatically using VitaWorks®. The presence of LNM and/or parametrial infiltration was considered as positive based on outlined structures that were identified using VitaWorks®; the absence of LNM and/or parametrial infiltration outlined by VitaWorks® was considered as negative. Any loss of morphological integrity at the bladder, rectum, or vagina was interpreted as cervical cancer invasion.
Postoperative pathological findings
Adverse pathological factors include LNM, parametrial infiltration, positive margins, deep stromal infiltration, lymphovascular invasion, and tumor size ≥4 cm. Patients were defined as high risk if they had any one of first three pathological adverse factors (LNM, parametrial infiltration, positive margins). Patients were defined as intermediate risk if they had any two of last three pathological adverse factors (deep stromal infiltration, lymphovascular invasion, tumor size ≥4 cm).
Statistical analysis
The statistical analyses were performed using SPSS software (version 25.0; IBM Corp.) and differences were considered statistically significant at two-sided P values <0.05. The maximum tumor diameter measured by MRI-3D reconstruction and MRI were compared using Student’s t-test. The maximum tumor diameter measured by MRI-3D reconstruction and gynecological examination were compared using Student’s t-test. The intraclass correlation coefficient (ICC) was used to evaluate the repeatability of multiple measurements of the same parameter by the same investigator. The predictive value and the cut-off threshold were calculated using the area under the receiver operating characteristic (ROC) curve.
Results
Table 1 shows the clinicopathological characteristics of the 54 patients investigated in this study. 54 patients with an average age of 49 years were enrolled. There were 41 cases of squamous cell carcinoma and 13 cases of adenocarcinoma or adenosquamous cell carcinoma. There were 49 cases of early-stage cervical cancer (stage I & II), and 5 cases of advanced-stage cervical cancer (stage III & IV). The treatment strategies involved giving up on treatment (5/54, 9.3%), concurrent CRT (9/54, 16.7%), surgery only (24/54, 44.4%), surgery plus adjuvant CRT (13/54, 24.1%), and neoadjuvant CRT, surgery, and adjuvant CRT (3/54, 5.6%). Among patients who received surgery ± adjuvant CRT, 35 underwent hysterectomy and pelvic lymphadenectomy. According to the postoperative pathology results, were 5, 6, and 25 patients were identified as high risk, intermediate risk, and low risk, respectively.
Table 1
| n (%) | |
|---|---|
| Characteristics | |
| Age (years) | |
| M ± SD | 49.0±11.5 |
| Range | 24–73 |
| Histology | |
| SCC | 41 (75.9) |
| AC or ASC | 13 (24.1) |
| FIGO stage (2018) | |
| IA1 | 2 (3.7) |
| IA2 | 2 (3.7) |
| IB1 | 19 (35.2) |
| IB2 | 14 (25.9) |
| IB3 | 3 (5.6) |
| IIA1 | 1 (1.9) |
| IIA2 | 2 (3.7) |
| IIB | 6 (11.1) |
| IIIB | 2 (3.7) |
| IIIC | 2 (3.7) |
| IVA | 1 (1.9) |
| Adverse pathological factors | n (%) |
| LNM | |
| Positive | 5 (13.9) |
| Negative | 31 (86.1) |
| Parametrial infiltration | |
| Positive | 0 |
| Negative | 35 (100.0) |
| Positive margins | |
| Positive | 0 |
| Negative | 35 (100.0) |
| Deep stromal infiltration | |
| Positive | 12 (34.3) |
| Negative | 23 (65.7) |
| Lymphovascular invasion | |
| Positive | 10 (28.6) |
| Negative | 25 (71.4) |
| Tumor size | |
| ≥4 cm | 1 (2.9) |
| <4 cm | 34 (97.1) |
M ± SD, mean ± standard deviation; SCC, squamous cell carcinoma; AC, adenocarcinoma; ASC, adenosquamous cell carcinoma; LNM, lymph node metastasis.
On the 3D-MRI reconstruction, the investigator’s measurements of maximum tumor diameter were highly consistent (ICC: 0.988, 95% confidence interval: 0.979–0.993, P<0.001). The median maximum tumor diameter was 33.0 mm (range: 6.4–73.9 mm) and the median tumor volume was 5.5 mL (range: 0.1–133.5 mL). The maximum tumor diameter measured using the MRI-3D reconstruction was non-significantly larger than the measurement from the direct MRI findings (P=0.79), and was significantly larger than the measurement from the gynecological examination (P<0.05). Based on the maximum tumor diameter from the MRI-3D reconstruction, underestimation of the FIGO stage was noted for 16 patients (16/54, 29.6%), and 12 of these patients required upgraded hysterectomy types (Table 2).
Table 2
| FIGO stage (2018) | Reviewed stagea | Hysterectomy types upgrade | Number |
|---|---|---|---|
| IA1 | IB1 | Subradical hysterectomy instead of extrafascial hysterectomy (If stage IA1 without lymphovascular invasion) | 2 |
| IA2 | IB1 | No | 1 |
| IA2 | IB2 | Radical hysterectomy instead of subradical hysterectomy | 1 |
| IB1 | IB2 | Radical hysterectomy instead of subradical hysterectomy | 8 |
| IB1 | IB3 | Radical hysterectomy instead of subradical hysterectomy | 1 |
| IB2 | IB3 | No | 3 |
a, according to the MRI-3D reconstruction, the stages of the enrolled patients were reviewed. FIGO, the International Federation of Gynecology and Obstetrics; MRI-3D, magnetic resonance image based three-dimensional.
Each patient staged IIIB and staged IB1 (2/54, 3.7%) had LNM presented by the MRI-3D reconstruction, and these cases were upstaged to stage IIIC (r). For patients staged IIIB, this mis-staging did not influence the choice of treatment. Conversely, for patients staged IB1, the appropriate should have been concurrent CRT, rather than surgery. Furthermore, a patient staged IB3 (1/54, 1.9%) had lost morphological integrity at the vaginal fornix presented by the MRI-3D reconstruction, which should have been classified as stage IIA2. However, this mis-staging would not have influenced the choice of treatment.

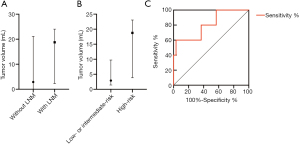

A comparison of the groups with and without LNM revealed a significant difference in tumor volume (P<0.05) and a non-significant difference in maximum tumor diameter (P>0.5). The median tumor volumes were 2.9 mL (range: 0.1–21.2 mL) for patients without LNM and 18.8 mL (range: 2.3–24.0 mL) for patients with LNM (Figure 2A). There was a significant difference in tumor volume between the low- or intermediate-risk and high-risk groups (P<0.05), as well as a non-significant difference in maximum tumor diameter (P>0.5). The median tumor volumes were 2.9 mL (range: 0.1–21.2 mL) for the low- or intermediate-risk group and 18.8 mL (range: 2.3–24.0 mL) for the high-risk group (Figure 2B). A larger tumor volume had predicted value for high-risk patients (P<0.05), with a cut-off value of ≥18.6 mL providing 60% sensitivity, 96.7% specificity, 75% positive predictive value (PPV) and 93.5% negative predictive value (NPV) (area under the ROC curve: 0.807, 95% confidence interval: 0.588–1.00) (Figure 2C).
Discussion
The development of new imaging modalities that provide more details on the disease could affect its diagnosis and treatment. MRI-3D reconstruction involves post-processing and secondary analysis of MRI data, which has already been applied in tumor volume calculations of oral tongue cancer and kidney cancer (5,6), measuring parameters such as liver volume (7) and navigation of nerve-sparing radical hysterectomy (8).
In our study, MRI-3D reconstruction was first applied to cervical cancer staging. Up to approximately 35% of patients required upstaging because of a larger tumor size, LNM, and vaginal fornix invasion evaluated by MRI-3D reconstruction. Under-staging may lead to inadequate treatment choices including inappropriate hysterectomy types and unnecessary initial surgical treatment, which may then lead to the need for adjuvant CRT after surgery. However, initial surgery plus postoperative adjuvant therapy will make patients prone to complications (9).
We identified 2 cases of stage IA1 that were upstaged to stage IB1 based on findings from the MRI-3D reconstruction. Given the substantial difference between a micro-invasive lesion and a grossly visible tumor, we noted that both patients underwent MRI after conization. The unabsorbed suture and surrounding tissue edema mimicked a cervical tumor on the MRI, and were incorporated into the MRI-3D reconstruction. The quality of the MRI-3D reconstruction depends on the MRI data. Specific MRI sequences are needed for different target lesions. For example, recent studies attempted to identify LNM using various MRI sequences or related methods, such as diffusion-weighted imaging (10) and dynamic contrast-enhanced MRI (11). Another study implies that Zonal Oblique Multislice-diffusion weighted imaging might be useful for identifying parametrial infiltration and vaginal invasion of cervical cancer (12). The present study used a thinner slice thickness, which is not commonly used in clinical practice. Thicker slices usually produce the loss of morphological details, while the current thinner slices provide greater detail.
Measurements of maximum tumor diameter and tumor volume using MRI-3D reconstruction appear to be more convenient and accurate than direct MRI-based measurements. Specifically, measurements of maximum tumor diameter on the 3D-MRI reconstruction are not limited to the sagittal, axial, or coronal positions. Multi-angle observation helps to more accurately measure maximum tumor diameter. Furthermore, the acquisition of tumor volume data from the MRI-3D reconstruction is automatic, while manual delineation of cervical cancer tumor on direct MRI findings is time-consuming, labor-intensive and the required tumor volume estimation requires assistance of formulas or applications. Previous studies that estimate cervical tumor volume based on direct MRI findings have been constrained by these obvious disadvantages (13-16).
Chen et al. (14) and Chen et al. (17) both reported that cervical cancer tumor volume was associated with LNM. In addition, Chen et al. (14) also reported that cervical cancer tumor volume provided superior predictive value to two-dimensional parameters. Our findings are consistent with Chen et al.’s and we also found that tumor volume can potentially predict high-risk patients. LNM is a high-risk adverse pathological factor of cervical cancer, indicating postoperative adjuvant CRT. A recent study showed that cervical cancer tumor volume was larger in patients with LNM than in those without LNM (16). However, this difference did not reach statistical significance. Furthermore, this study found that tumor volume was a great predictor of high-risk early cervical cancer patients.
This study has several limitations. First, selection bias may have occurred because this study took place at a tertiary referral university teaching hospital. The enrolled patients are representative of hospital-based cervical cancer patients, rather than patients from the general population. Second, the small sample size of this study reduces the reliability of our data. A larger study is needed to verify our findings and clarify the relationship between tumor volume and the adverse pathological factors of cervical cancer. The predictive value of tumor volume in cervical cancer outcome is also worth exploring.
Conclusions
MRI-3D reconstruction may become a new approach to accurately measure cervical cancer tumors. MRI-3D reconstruction showed larger cervical cancer maximum tumor diameters, which resulted in an upstaging of approximately 30% of patients. Cervical cancer with LNM was associated with a significantly larger tumor volume.
Acknowledgments
The authors thank VitaWorks® Technology Co., Ltd. (Shanghai, China) for providing technical and software support. Vitaworks® had no control of the data or information submitted for publication, which remained the sole responsibility of the authors. The authors thank Huimei Zhou, Peng Peng, Ying Zhang, Jinhui Wang, Ninghai Cheng, Mei Yu, Jiaxin Yang, Department of Obstetrics and Gynecology, Peking Union Medical College Hospital, for their careful diagnosis and treatment of enrolled patients. The authors also thank the staff of Department of Radiology, Peking Union Medical College Hospital, for their diligent imaging-related work of enrolled patients.
Funding: This study was supported by the Fundamental Research Funds of Central Public Welfare Scientific Institution of the Chinese Academy of Medical Science [2019PT320011].
Footnote
Reporting Checklist: The authors have completed the STARD reporting checklist. Available at https://dx.doi.org/10.21037/atm-21-2246
Data Sharing Statement: Available at https://dx.doi.org/10.21037/atm-21-2246
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/atm-21-2246). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Ethical approval was granted by the institutional review board of Peking Union Medical College Hospital (approval number: JS-2082). Written informed consent for participation was waived for this retrospective study.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
