Entity relation extraction from electronic medical records based on improved annotation rules and BiLSTM-CRF

Introduction

Electronic medical records (EMRs) consist of a series of digital graphic data that have been generated during patient diagnosis and treatment by hospitals and other medical institutions. They are stored in hospital databases for easy management and application (1). With the growing digitization of modern health care, the use of big data and artificial intelligence-related technologies to extract clinical information from EMRs while building a medical knowledge base has become an important method in smart medical projects. Entity relation extraction in EMRs is a major research area in information extraction and is an important technology for building medical knowledge bases.

As computer hardware has improved, deep learning has demonstrated amazing capabilities in various research fields. In the field of relation extraction, more and more researchers have researched deep learning technology. Zeng et al. (1) first used a convolutional neural network (CNN) to perform relation extraction tasks on public data sets, which obtained better results than non-neural-network methods. Nguyen and Grishman (2) designed a number of different convolution kernels for experiments and achieved better success on multiple data sets than had previously been attained. Zeng et al. (3) further improved the characteristics of the CNN model by expanding it through use of the segmentation method. The multi-instance learning method (3) and the multi-instance multilabel learning method were then combined by Riedel et al. and proved to be superior to traditional methods on data sets employed (4). Jiang et al. (5) combined word vectors to form sentence vectors and then used CNNs to solve the problem of multiple entity relationships for the same entity pair. Wu et al. (6) proposed a feature learning method based on deep learning, using deep sparse automatic coding to re-represent the vector representation of entity contexts, and achieved better entity relation extraction results. dos Santos et al. (7) completed a new CNN model by designing a new loss function. When using this model to extract entity relationships, the distinction between different relationship categories can be enhanced. Xu et al. (8) added the shortest path method based on the CNN model to improve the effect of relationship classification. Yan et al. (9) proposed replacing the traditional recurrent neural network with long- and short-term memory (LSTM) systems for relation extraction. Based on this, Zhang et al. (10) used bidirectional LSTM (BiLSTM) to obtain contextual information, thereby achieving better completion of relation extraction tasks. Miwa and Bansal (11) proposed a method of using BiLSTM systems and tree LSTM systems to construct a neural network model for entity relation extraction. Lin et al. (12) used the attention mechanism during entity relation extraction tasks and proposed assigning different attention mechanisms to different text contents so that relatively useful information would not be lost. Ning et al. (13) proposed a recurrent + transformer neural network architecture based on a multichannel self-attention mechanism to enhance the model’s ability to capture sentence-level semantic features, thus improving its ability to learn the characteristics of specialized text found in EMRs. Zeng et al. (14) used a third entity as an intermediate entity when extracting the relationship between two entity pairs, by separately constructing the relationship between the two entities and the third entity. The relationship between the two entities was then inferred, thus establishing the reasoning path for the relationship between the two entities. Zhang et al. (15) combined CNNs with support vector machines and conditional random fields (CRFs) to construct a joint neural network model, which achieved extremely good results when used on a corpus of medication instructions. Ye et al. (16) modeled entity relationships at the semantic level. Zan et al. (17) proposed starting from the relevant concepts of entity relation extraction in the medical field to classify deep learning models from different perspectives and then analyzed and discussed the multi-instance learning models of supervised learning and remote supervision based on the construction method for the data sets. Huang et al. (18) proposed an entity recognition and entity relation extraction method based on the combination of BiLSTM networks and CRFs, which were then used in the construction and application of medical knowledge graphs. Zhang et al. (15) proposed a bidirectional gated recurrent unit (GRU) and dual attention mechanism to identify the medical entity relationship in Chinese EMRs, by using the bidirectional GRU to learn contextual information from words and obtain more fine-grained features.

The combined extraction method for entities and relationships proposed by Zheng et al. (19) based on a new annotation mode has expanded the thinking about extracting entity relationships. This method transforms entity relationships into annotation rules and completes the combined extraction of entities and relationships through entity recognition models. This paper first proposes directly modeling the relationship triplets (E₁, R, E₂) and designing a label that includes entity category and relationship category. Using this annotation mode, the relation extraction task is transformed into an annotation task. However, this method cannot solve the one-to-many entity relation extraction task. This article further improves the annotation rules, converting one-to-many relationship annotation into an entity labeling issue. The results from these experiments show that this method can be used to effectively complete the one-to-many entity relation extraction tasks on EMRs.

Methods

Concept definition

To clearly describe the annotation method for entity relationships, this article first provides the following definitions:

Concept set: medical-related concept set C mentioned in the EMRs, such as “disease”, “symptom”, and “location”.

Entity set: All entity sets E extracted from EMRs belonging to concept C. That is, for any entity e (e∈E), e is an instance of concept c (c∈C).

Relationship set: the set of relationships R between medical concept entities described in EMRs.

Entity relationship: a specific relationship description extracted from EMRs, usually expressed in the form of triplets (subject, predicate, object), such as (e_i, r, e_j), where r∈R, e_i, e_j∈E.

One-to-many relationship: entity set E={e₁,e₂,…,e_n} is extracted from the EMR, if for one of the entities e_i there exists (e_i, r₁, e_a), (e_i, r₂, e_b), (e_i, r₃, e_c), where r₁, r₂, r₃∈R, and e_a, e_b, e_c∈E, then entity e_i is said to have a one-to-many entity relationship.

Relation entity category: within the relationship instances (e_i, r, e_j), e_i is an instance of c_m, e_j is an instance of c_n (c_n∈C), so we have defined that, within the entity relationship (e_i, r, e_j), the relation entity type of e_i is c_m-s, and similarly, the relation entity type of e_j is c_n-p. That is, the agreed relation entity category is composed of the concept that the entity belongs to and s/p, where s (subject) represents the subject in the relationship instance and p (predicate) represents the predicate in the relationship instance.

Annotation analysis

Relationships are usually expressed in the form of a relationship triple as (e₁, r, e₂), where e₁ is the subject entity of the triplet, e₂ is the object entity of the triplet, and r is the relationship between the two entities. As shown in Figure 1, in the description from an EMR “Heart B-ultrasound indicates: coronary heart disease, heart enlargement”, a relationship of “exam-disease” exists between the examination entity “heart B-ultrasound” and the disease entity “coronary heart disease”. Thus, (heart B-ultrasound, exam-disease, coronary heart disease) is an entity relationship, and the relationship category is exam-disease. Likewise, (heart B-ultrasound, exam-exam result, heart enlargement) is also an entity relationship, and the relationship category is “exam-exam result”.

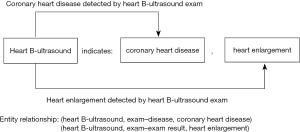

Figure 1 Entity relation extraction.

By formulating specific annotation rules, the relationship between entities is hidden in entity labels, so that the relation extraction is converted into an entity recognition issue, and the one-to-many relation extraction is solved. As shown in Figure 2, the relation entity category label is used as the entity label.

Figure 2 Annotation of relation entities.

The above figures show that, using the annotation method for the relation entity category, “heart B-ultrasound” will be annotated as “exam-s”, “coronary heart disease” will be annotated as “disease-p”, and “heart enlargement” will be annotated as “exam result-p”. The final entity relation recognition is formed by assembling the entities annotated c_m-s and c_n-p. According to the entity recognition results in the graph, two entity relations can be assembled to complete the one-to-many relationship recognition. At this point, this paper has converted the problem of relation extraction into an entity extraction problem based on relation entity category annotations. That is, specific annotation rules are used to achieve relation extraction, particularly for the problem of one-to-many relation extraction.

Sequence annotation based on BIO

In this article, the BIO (Begin-Intermediate-Other) sequence annotation set method was used in sequence annotation of the EMR text, where B represents the first character/word of the entity, I represents the other characters/words of the entity, and O represents any characters/words other than the entity. Unlike BIEO’s (Begin-Intermediate-End-Other) sequence annotation, BIO does not require the existence of the E label (in the BIEO annotation system, E represents the end of the entity). From the perspective of multilabel prediction, the number of prediction categories is reduced, which may improve prediction accuracy. Thus, enhancing prediction accuracy is possible. Before annotation, word segmentation processing is performed on the text, and the BIO annotation set is integrated with the related entity category to complete the sequence annotation of the words in the EMR. The annotation effect is shown in Figure 3.

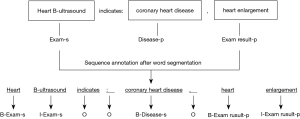

Figure 3 Sequence annotation of the entity relationship.

As shown in Figure 3, after word segmentation, “Heart B-ultrasound” is divided into two words: “Heart” and “B-ultrasound”. “Heart” is annotated as “B-exam-s”, and this label indicates that the currently annotated sequence belongs to the partial sequence of the “exam” entity and is the first character/word of the sequence. The entity in which the sequence is located is the subject of the relation entity; similarly, “B-ultrasound” is annotated as “I-exam-s”, which indicates that the currently annotated sequence is a partial sequence of the “exam” entity and is a non-header sequence. The entity in which the sequence is located is the subject of the relation entity. After undergoing the BIO sequence annotation process, each character/word is marked with a sequence label.

Character and word vector training

Word vector technology converts words into word embedding vectors. Word vectors can be used as input into the deep network model for making calculations. The theoretical basis of Word2Vec (20) is that when two words have the same or similar meaning, the distance of the corresponding word vector in the vector space will be very close. For example, “China-Beijing” should have a similar spatial distance to the value of “England-London”. Word2Vec maps words and word strings into low-dimensional vector spaces by training the word embedding matrix.

To obtain the corpus required for word vector training, we crawled the descriptions of diseases and symptoms in web pages with higher data quality based on rankings in the Baidu Medical Health Network and then used keywords such as “disease” and “symptoms” as the criteria for crawling data in the Baidu Encyclopedia about related symptoms and diseases. After the data were obtained, data cleaning along with other processing was carried out, which enabled the data to meet the criteria for use. Chinese words are made up of Chinese characters, and each character that forms part of a word has its own meaning. Moreover, to a certain degree, each individual character can often reflect the meaning of the word as well. Therefore, word vectors play an important role when used to represent Chinese words.

The characters and word vectors used in this article were trained based on the character-enhanced word embedding model of Chen et al. (21). Based on the special features involved in the relationship between Chinese words and characters, the continuous bag of words model in Word2Vec was used to train the words and characters at the same time, and the word vectors used in this article were obtained.

Entity recognition model construction

This article mainly uses the BiLSTM-CRF deep learning network model as its entity recognition algorithm. BiLSTM networks can effectively learn the characteristic information of the sequence phrase in context, and the CRF layer can improve the effective combination of the recognition entity sequence using conditional probabilities. When performing entity recognition, a CNN layer is first used for word convolution. After the word information is extracted, it is combined with the word vector as further input, and the sequence information is then extracted using BiLSTM. Finally, the sequence determination is performed through the CRF layer to obtain the prediction result. The structure of the model is shown in Figure 4.

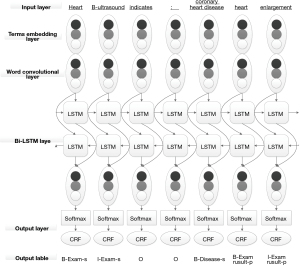

Figure 4 Model structure.

The word embedding layer uses the sentences input into the model and converts them into the matrix form required in the neural network based on word vector representation. Assuming that there are n words in the input sentence, the word embedding layer combines all the pretrained word vectors into matrix S =[w₁w₂…w_n]^T, where w₁,w₂,…,w_n are the vectors of each word in the sentence, the number of rows in the matrix is the number of words in the input sentence, and the columns of the matrix are the dimensions of the word vector. Since the sentences can have different numbers of words, during processing the maximum sentence length in the training data set needs to be set to the number of matrix rows, and sentences shorter than this are supplemented with padding to ensure the same matrix dimensions.

Since Chinese words are made up of characters, the meanings of the individual characters will affect the information derived from the words to a certain extent. Therefore, character features can be obtained by performing convolution on the characters, and the features of the characters and the words can be combined to improve the information contained in the word vector, thereby improving the recognition effect of the model. During data preprocessing, as training is conducted to obtain word vectors, character vectors are also obtained. When convolution operations are used to extract the information of character vectors, the convolution kernels used are 2, 3, and 4, and the step size is 1. After performing the related operations of convolution pooling, the features extracted by convolution are obtained. After obtaining the corresponding word convolution features, according to the attention mechanism processing method (22), a dynamic weight matrix trained by a model is used to combine features obtained from the word vector and character convolution, and the newly obtained vector is used as the input for the next layer.

The BiLSTM layer obtains contextual semantic information required by the input words by modeling the contextual information. The output layer of this model is composed of a softmax layer and a CRF layer. The softmax layer normalizes the results passed in by the BiLSTM layer, and then the CRF further performs category constraints, handles some of the more obvious category errors, and finally outputs the label results predicted by the model. After the label for each word is output, it is restored to the corresponding relationship category based on the implementation-defined relationship set and the relation extraction category.

To prevent model overfitting, a dropout mechanism is added to the model. Specifically, a control mechanism is added to the hidden layer of neurons. During the training of neurons, the work of some neurons is randomly halted in order to create a network structure during training that is different. This is equivalent to training a combination model of multiple neural networks, and the parameters of each model are fewer than the total model parameters, thereby effectively preventing overfitting.

Statistical analysis

The chi-square test was used to compare the corpus entities of different symptoms, different parts, different examination results and different diseases, P<0.05 was statistically significant. Statistical analysis of the characteristics of electronic medical records was performed using SPSS software (version 22.0, IBM Corporation).

Results

The experimental data in this article come from 200 articles each from the fields of nephrology, cardiology, gastroenterology, respiratory medicine, and gynecology, totaling 1,000 EMRs. All the data have been desensitized. Annotated concept set C={“symptom”, “disease”, “exam”, “exam results”, “location”} extracts relationship set R={“exam-disease”, “exam-exam result”, “location-symptoms”, “location-examination results”}, such that the annotated related entity categories are {“exam-s”, “disease-p”, “examination result-p”, “location-s”, “symptom-p”}. After the annotation and review of 1,000 medical records, this article divides the annotation results into two parts; 80% of the corpus results are used for training, and 20% of the corpus results are used for verification. Moreover, they are randomly divided into 10 experiments, and their average value was obtained.

Experimental parameter settings

Many parameters need to be set in the neural network model, and these parameters will affect the training results of the model. In accordance with the requirements of the control variable method, when testing a variable, other variables remain unchanged and are then compared to obtain the parameter data (Table 1). It is assumed that all parameters are independent of each other, and mutual influence is not taken into consideration.

Experimental evaluation

After annotating all the data sets, we gather statistics on the relevant information of the data sets (Table 2), where sentences refers to the number of sentences counted after the medical record text is segmented; words refer to the number of words counted after word segmentation of the medical record text; characters are the number of words in the medical records; entities refer the count of all the entries in the medical record text that are marked as relation entities; and relationships are the number of entity relationships in the medical records.

The experiment uses general classification evaluation indicators: accuracy (P), recall (R), and F1 value:

P=TPTP+FP[1]

R=TPTP+FN[2]

F1=2×P×RP+R[3]

For a certain type of entity, TP is the number of entities that are correctly classified into this type of entity, FP is the number of entities that are incorrectly classified into this type of entity, and FN is the number of entities that are classified into other types of entities.

Experimental results

By serving as the recognition factor for relation entities, the entity itself contains the entity category while also concealing the relational attributes. For example, the entity recognized as “exam-s” is not only an entity with the concept of “exam” but is also an entity that is the subject of the relationship in the current sentence. Therefore, we first analyze the recognition results of entity categories (Table 3).

In Table 3, “All” means all entities identified. The accuracy P of the entities identified by the algorithm is 90.76%, the recall rate R is 91.40%, and the value of comprehensive index F1 is 0.9108. From the analysis of comprehensive indicators, the recognition effect of the entity with the concept of “location” is good, the F1 value reaches 0.9447, but the recognition effect of “exam result” is rather poor, with an F1 value of 0.8240, which is mainly because “location” in the EMRs is generally more standardized and the description range of the location is relatively narrow, while the description of the “exam result” entity is generally more complex.

After identifying these relationship entities, the entities in each sentence are then associated and integrated with subject, predicate, and object based on the definitions of the relationship categories so as to extract the relationship instances between the entities, including one-to-many entity relationships.

According to the experimental methods applied to the training set and the verification set, the entity relationship in the verification set is used as the verification standard. In this article, the extracted entity relationship and the entity relationship in the verification set are matched and analyzed. The analysis and statistics results are shown in Table 4.

From the experimental results in Table 4, it can be seen that the overall effect of entity relation extraction is lower than that of entity extraction because the recognition of the relationship is based on further assembly, which in turn is based on the extraction of the relation. However, during the assembly process, certain discrepancies exist, so the recognition accuracy of entities serves as a prerequisite for relation extraction. From the overall effect of entity relation extraction, the accuracy rate reaches 83.46%, the recall rate is 81.12%, and the value of comprehensive index F1 is 0.8227. The results from this experiment show that the extraction of entity-to-entity relationships can be achieved through specific annotation rules, and the problem of one-to-many entity relation extraction can be effectively solved.

Discussion

Table 5 compares the entity recognition performance of different models under different annotation systems. From the comparison results, the effects of the models under the BIO annotation system are better than those under the BIEO annotation system. Under different deep learning systems, the effect of the iterated dilated CNNs and CRFs (IDCNN + CRF) model is slightly better than the effect of BiLSTM + CRF. As shown in Table 6, in order to raise the effectiveness of entity relation extraction, a very important approach involves improving the effect of entity extraction. This article has focused on improving the effect of entity extraction by enhancing annotation systems and selecting different models. From the overall comparison result, the annotation system using BIO is better than the annotation system of BIEO. Under the same annotation system, the effect of using the IDCNN + CRF model is better than that of BiLSTM + CRF.

Conclusions

This paper proposes a method of transforming entity relation extraction into entity recognition. At the same time, by improving annotation rules, the one-to-many entity relationship is transformed into an entity annotation problem based on relation sets. Annotation and recognition experiments were carried out using EMR data sets. The results of these experiments show that this method can effectively extract specific medical entity relations from EMRs. The proposed method also provides an effective solution to the many-to-many relation extraction requirements for future projects.
