Acoustic features as novel predictors of difficult laryngoscopy in orthognathic surgery: an observational study

Ming Xia1#, Shuang Cao1#, Ren Zhou1, Jia-Yi Wang1, Tian-Yi Xu1, Zhi-Kai Zhou2, Yan-Min Qian2, Hong Jiang1

1Department of Anaesthesiology, Shanghai Ninth People’s Hospital, Shanghai Jiao Tong University School of Medicine, Shanghai, China; 2X-LANCE Lab, Department of Computer Science and Engineering, Shanghai Jiao Tong University, Shanghai, China

Contributions: (I) Conception and design: H Jiang, M Xia, YM Qian; (II) Administrative support: None; (III) Provision of study materials or patients: None; (IV) Collection and assembly of data: S Cao, JY Wang, TY Xu; (V) Data analysis and interpretation: S Cao, R Zhou, ZK Zhou; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Hong Jiang. Department of Anaesthesiology, Shanghai Ninth People’s Hospital, Shanghai Jiao Tong University School of Medicine, Shanghai 200011, China. Email: jianghongjiuyuan@126.com; Yan-Min Qian. X-LANCE Lab, Department of Computer Science and Engineering, Shanghai Jiao Tong University, Shanghai 200240, China. Email: yanminqian@sjtu.edu.cn; Ming Xia. Department of Anaesthesiology, Shanghai Ninth People’s Hospital, Shanghai Jiao Tong University School of Medicine, Shanghai 200011, China. Email: xiaming1980@xzhmu.edu.cn.

Background: The evaluation of the difficult intubation is an important process before anaesthesia. The unanticipated difficult intubation is associated with morbidity and mortality. This study aimed to determine whether acoustic features are valuable as an alternative method to predict difficult laryngoscopy (DL) in patients scheduled to undergo orthognathic surgery.

Methods: This study included 225 adult patients who were undergoing elective orthognathic surgery under general anaesthesia with tracheal intubation. Preoperatively, clinical airway evaluation was performed, and the acoustic data were collected. Twelve phonemes {[a], [o], [e], [i], [u], [ü], [ci], [qi], [chi], [le], [ke], and [en]} were recorded, and their formants (f1-f4) and bandwidths (bw1-bw4) were extracted. Difficult laryngoscopy was defined as direct laryngoscopy with a Cormack-Lehane grade of 3 or 4. Univariate and multivariate logistic regression analyses were used to examine the associations between acoustic features and DL.

Results: Difficult laryngoscopy was reported in 59/225 (26.2%) patients. The area under the curve (AUC) of the backward stepwise model including en_f2 [odds ratio (OR), 0.996; 95% confidence interval (CI), 0.994–0.999; P=0.006], ci_bw4 (OR, 0.997; 95% CI, 0.993–1.000; P=0.057), qi_bw4 (OR, 0.996; 95% CI, 0.993–0.999; P=0.017), le_f3 (OR, 0.998; 95% CI, 0.996–1.000; P=0.079), o_bw4 (OR, 1.001; 95% CI, 1.000–1.003; P=0.014), chi_f4 (OR, 1.003; 95% CI, 1.000–1.005; P=0.041), a_bw4 (OR, 0.999; 95% CI, 0.998–1.000; P=0.078) attained a value of 0.761 in the training set, but a value of 0.709 in the testing set. The sensitivity and specificity of the model in the testing set are 86.7% and 63.0%, respectively.

Conclusions: Acoustic features may be considered as useful predictors of DL during orthognathic surgery.

Keywords: Difficult airway; difficult laryngoscopy; acoustic features; orthognathic surgery


Submitted Aug 03, 2021. Accepted for publication Sep 07, 2021.

doi: 10.21037/atm-21-4359


Introduction

Airway risk assessment is an essential part of the preoperative anaesthetic protocol. As the chief aetiology of airway-related adverse events, difficult or failed airway management accounts for 25% of anaesthesia-related deaths (1). The definition of difficult laryngoscopy given by the American Society of Anesthesiologists (ASA) is that even with multiple attempts it is not possible to visualize any portion of the vocal cords during conventional laryngoscopy (2). The Cormack-Lehane grades describes how visible the vocal cords are during laryngoscopy, ranging from 1 (full view of vocal cords) to 4 (cannot see the epiglottis), which were used to classify difficult laryngoscopy (3). Poor view at laryngoscopy (Cormack and Lehane grade 3 to 4) were also a common definition of difficult intubation. Among all cases, the incidence of difficult laryngoscopy was 4.9% (4). However, this incidence rises considerably (to 15.4%) for patients undergoing oral and maxillofacial surgery (5). Orthognathic surgery is a common type of maxillofacial surgery in which anaesthesiologists frequently encounter difficult intubation due to retrognathia or a short mandible (6). Therefore, airway risk assessment is critical to identifying potential cases of difficult intubation before such procedures.

Numerous investigations have been conducted in an effort to predict the occurrence of difficult airway through physical examination (7-11), using tests including the modified Mallampati test (MMT), inter-incisor gap (IIG), thyromental distance (TMD), sternomental distance (SMD), upper lip bite test (ULBT), and composite scores. However, all the common clinical screening tests currently used have low sensitivity and specificity, and limited predictive value.

Voice formation is a complex physiological process involving interactions between the vocal cords, larynx, pharynx, tongue, epiglottis, palate, hyoid bone, mandible, teeth, and lips, all of which are important in endotracheal intubation (12). Any structural alterations to the vocal tract can lead to changes in the acoustic characteristics of the voice. Formant frequencies and bandwidths, the most frequently discussed voice features in the literature, describe the resonance of the vocal tract and are associated with the internal structures of the upper airway, including its compliance, shape, and dimensions (13). Considering the anatomical landmarks which are known to cause difficult intubation including limited opening of the mouth, bucked teeth, a receding chin, a large tongue and a narrow shape of palate (2), we hypothesized alterations on the corresponding structures may also affect acoustic parameters of patients with difficult intubation. However, there is dearth of studies investigating the potential role of acoustic features in evaluating a difficult airway. de Carvalho et al. reported that vowel formants exhibited a significant association with difficult laryngoscopy (14) and difficult facemask ventilation (15). Therefore, formant frequencies and bandwidths during phonation may provide anatomical and functional information about the superior airway and hold a promising role in the prediction of difficult airway.

In the present study, we set out to investigate whether changes in acoustic features can serve as a reliable measure for predicting the ease or difficulty of laryngoscopy during general anaesthesia in orthognathic surgery.

We present the following article in accordance with the STROBE reporting checklist (available at https://dx.doi.org/10.21037/atm-21-4359).


Methods

Patients

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This cross sectional study was approved by the Ethics Committee of Shanghai Ninth People’s Hospital (approval No.: SH9H-2020-T386-1) and is registered in ClinicalTrials.gov (trial registration No.: NCT 04458220). Between December 2020 and April 2021, 235 patients from Shanghai Ninth People’s Hospital were recruited into the study. Informed consent was obtained from each patient before their inclusion.

The inclusion criteria for the study were as follows: (I) candidates for orthognathic surgery under general anaesthesia; (II) ASA physical status class I–II; (III) aged 18 years and above; (IV) native Mandarin speakers. Participants with a previous history of speech disorders, vocal cord diseases, cleft palate, craniofacial syndromes, craniofacial trauma, previous oral and maxillofacial surgery, hearing or perception abnormalities, mental or central nervous system diseases, or patients participated in other relevant clinical investigation in the past 3 months were excluded from the study. Patients who underwent fibreoptic or video laryngoscopic intubation on the first attempt were excluded from the final analysis.

Preoperative airway assessment

During preoperative visits, data on the patients’ demographics and known bedside examination tests for difficult airway prediction were collected, including age, sex, body mass index (BMI), MMT, IIG, TMD, ULBT, horizontal length of the mandible (HLM), and cervical perimeter (CP). To prevent interobserver variability, all assessments were performed by the same anaesthesiologist.

The visibility of the oropharyngeal structures was assessed using the modified Mallampati test. The patient was asked to sit down and open their mouth as wide as possible, and then instructed to protrude their tongue without phonation. The results were classified as follows: class 1: soft palate, fauces, uvula, and pillars; class 2: soft palate, fauces, and uvula; class 3: soft palate and base of the uvula; and class 4, soft palate not visible at all (16). The IIG refers to the maximal distance between the upper and lower incisors.For the ULBT, the range of mandibular movement is assessed by asking patients to bite their upper lip with their lower incisors (10). The results of this test are presented in the form of the following 3-point grading system: class 1: the lower incisors extend beyond the vermilion border of the upper lip; class 2: the lower incisors can bite the lip but cannot be extended beyond the vermilion border; and class 3: the lower incisors cannot bite the upper lip at all. The TMD refers to the distance between the uppermost border of the thyroid cartilage and the mentum, and is measured with the neck extended and the mouth closed (11). The SMD refers to the distance between the upper border of the sternum and the tip of the jaw, and is measured with the neck fully extended (7). The HLM is measured from the angle of the mandible to the mentum (11). The CP was measured at the level of the cricothyroid membrane.

Acoustic data and analysis

Recording

All the participants were Chinese, so we choose the Chinese syllables as our recording samples, Chinese syllables are numerous and complex, both vowels and consonants were selected for experiments, which is expected to produce excellent results. All the participants were asked to phonate the Chinese vowels {[a], [o], [e], [i], [u], and [ü]}, consonants {[ci], [qi], [chi], [le], and [ke]}, and nasal vowel [en] (based on the anteroposterior position of the tongue and the location of air friction distributed along the vocal tract). All recordings were performed with the patient sat in a quiet room in comfortable conditions. The participants’ speech was recorded using a 16-bit handheld recorder with a sampling frequency of 44.1 kHz. The recorder was kept at a distance of 5 cm from the mouth for each recording. The duration of each sound and the interval between sounds lasted for approximately 1 second.

Acoustic feature abstraction

The speech samples were first identified and aligned using a Kaldi chain (17) model trained on the AISHELL-2 (18) dataset, which enabled the exact position of pinyin in the speech samples to be determined. Subsequently, clips were extracted from the audio recordings according to the location of the pinyin and imported into the Praat (19) software. The following features were extracted: the first formant (f1), the second formant (f2), the third formant (f3), the fourth formant (f4), and their bandwidths (bw1-bw4). For all the above features, the mean value along with the time of the clip where the pinyin was located was taken as the final result. This acoustic analysis was conducted by a specialist in speech technology who was blinded to the airway evaluation and Cormack-Lehane scores.

Induction of anaesthesia and tracheal intubation

General anaesthesia was administered according to the standard protocol. Patients were routinely monitored throughout the procedure using electrocardiography, oxygen saturation, non-invasive blood pressure measurement, and end-tidal carbon dioxide tension. After adequate pre-oxygenation, midazolam 0.05 mg·kg−1, fentanyl 2 to 4 μg·kg−1, propofol 2 to 2.5 mg·kg−1, and the neuromuscular blocker rocuronium 0.6 mg·kg−1 were administered to induce anaesthesia. After adequate relaxation had been achieved, tracheal intubation was performed by an anaesthesiologist with more than 3 years of experience using conventional direct laryngoscopy with a Macintosh blade number 3 or 4, and the Cormack-Lehane grade was evaluated (grade 1: full view of the glottis; grade 2: partial view of the glottis or arytenoids; grade 3: only the epiglottis visible, and grade 4: epiglottis not visible) with the patient’s head in the sniffing position. Direct laryngoscopy was defined as difficult based on a Cormack-Lehane score of 3–4.

Statistical analysis

Continuous variables with normal distribution were reported as mean ± standard deviation. Non-normal continuous variables were reported as median (interquartile range). Categorical variables were reported as frequency (percentage). The hypothesis was tested using one-way analysis of variance (ANOVA), the Mann-Whitney U test, and Fisher’s exact probability method. Univariate and multivariate logistic regression models were constructed using the general linear model in R 4.0.4. Covariables for multivariate regression included age (continuous variable), sex, and diagnosis. Stepwise logistic models were constructed with SPSS 24.0 (IBM, USA). The correlation between acoustic features and other clinical variables was explored by Spearman correlation analysis. Receiver operating characteristic (ROC) curves were drawn using the pROC package in R 4.0.4. The dataset was randomly split into the training and testing sets at a ratio of 8:2, and the random seed was 2021. The confidence interval (CI) of the area under the curve (AUC) was obtained by applying the bootstrap method.


Results

Baseline characteristics

A total of 235 patients initially met the criteria for inclusion in this cross sectional study. After the exclusion of those without acoustic data and those who could not be intubated by direct laryngoscopy, 225 patients were included in the final analysis (Figure 1). The baseline characteristics of the study participants are shown in Table 1. Of the 225 participants, 59 had a Cormack-Lehane grade of 3 or 4. According to whether they had difficult laryngoscopy, the differences of IIG, MMT, ULBT, TMD, SMD, HLM and the diagnosis between the two groups were statistically significant, while no difference were observed in age, sex, height, weight, BMI and CP.

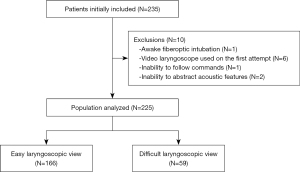

Figure 1 Patient enrollment flow diagram.

Table 1

Baseline demographic characteristics and preoperative airway assessment variables of patients undergoing orthognathic surgery

Variable Overall (N=225) Easy laryngoscopy (N=166) Difficult laryngoscopy (N=59) P
Age [mean (SD)] 25.42 (4.50) 25.07 (4.35) 26.41 (4.81) 0.050
Sex (%)
   Female 159 (70.7) 118 (71.1) 41 (69.5) 0.868
   Male 66 (29.3) 48 (28.9) 18 (30.5)
Height [mean (SD)] 1.67 (0.08) 1.67 (0.09) 1.66 (0.08) 0.403
Weight [mean (SD)] 58.84 (11.95) 59.25 (12.29) 57.67 (10.94) 0.384
BMI [mean (SD)] 20.96 (2.99) 21.02 (2.95) 20.81 (3.10) 0.634
Diagnosis (%) <0.001
   1 36 (16.0) 29 (17.5) 7 (11.9)
   2 76 (33.8) 35 (21.1) 41 (69.5)
   3 113 (50.2) 102 (61.4) 11 (18.6)
CL grade (%) <0.001
   1 55 (24.4) 55 (33.1) 0 (0.0)
   2 111 (49.3) 111 (66.9) 0 (0.0)
   3 51 (22.7) 0 (0.0) 51 (86.4)
   4 8 (3.6) 0 (0.0) 8 (13.6)
MMT (%) 0.003
   1 90 (40.2) 74 (44.6) 16 (27.6)
   2 53 (23.7) 41 (24.7) 12 (20.7)
   3 65 (29.0) 45 (27.1) 20 (34.5)
   4 16 (7.1) 6 (3.6) 10 (17.2)
ULBT (%) <0.001
   1 134 (59.8) 114 (69.1) 20 (33.9)
   2 61 (27.2) 38 (23.0) 23 (39.0)
   3 29 (12.9) 13 (7.9) 16 (27.1)
CP [mean (SD)] 33.20 (3.33) 33.22 (3.38) 33.16 (3.20) 0.905
IIP [mean (SD)] 4.35 (0.78) 4.49 (0.71) 3.99 (0.85) <0.001
TMD [mean (SD)] 9.30 (1.42) 9.60 (1.27) 8.44 (1.49) <0.001
SMD [mean (SD)] 17.62 (2.08) 18.04 (1.77) 16.43 (2.41) <0.001
HLM [mean (SD)] 9.95 (1.51) 10.16 (1.42) 9.39 (1.63) 0.001

, diagnosis 1: lateral mandibular deviation; diagnosis 2: class II skeletal malocclusion; diagnosis 3: class III skeletal malocclusion. SD, standard deviation; BMI, body mass index; CL, Cormack-Lehane; MMT, modified Mallampati test; ULBT, upper lip bite test; CP, cervical perimeter; IIG; inter-incisor gap; TMD, thyromental distance; SMD, sternomental distance; HLM, horizontal length of the mandible.

Univariate and multivariate logistic regression

Univariate and multivariate logistic regression models were applied to evaluate the relationship between voice features and Cormack-Lehane grade. Univariate logistic regression analysis revealed 14 acoustic features to differ significantly between the difficult group and non-difficult group, with P values of <0.1 (Table 2). Also, after adjusting for sex (male, female), age (as a continuous variable), and diagnosis, the P values of en_f2, a_f1, and o_bw4 were all less than 0.05.

Table 2

Unadjusted and adjusted logistic regression of Cormack-Lehane grade and acoustic features in patients undergoing orthognathic surgery

Acoustic features Unadjusted model Adjusted model
OR 95% CI P OR 95% CI P
en_f2 0.996 0.994–0.998 0.001 0.999 0.994–0.999 0.011*
ci_bw4 0.997 0.994–0.999 0.010 1.000 0.995–1.000 0.103
qi_bw4 0.997 0.994–0.999 0.015 1.001 0.995–1.001 0.174
a_f1 0.997 0.995–1.000 0.031 1.000 0.993–1.000 0.029*
o_bw1 1.003 1.000–1.005 0.035 1.005 0.999–1.005 0.164
le_f3 0.998 0.996–1.000 0.041 1.000 0.995–1.000 0.065
o_bw4 1.001 1.000–1.002 0.056 1.003 1.000–1.003 0.032*
ü_f2 0.998 0.996–1.000 0.068 1.001 0.996–1.001 0.157
chi_f4 1.002 1.000–1.004 0.068 1.004 0.999–1.004 0.316
u_f2 0.999 0.997–1.000 0.079 1.001 0.997–1.001 0.226
i_bw2 0.999 0.998–1.000 0.079 1.000 0.998–1.000 0.134
ü_bw3 1.001 1.000–1.003 0.085 1.003 1.000–1.003 0.107
a_bw4 0.999 0.998–1.000 0.086 1.000 0.998–1.000 0.119
en_f4 0.998 0.996–1.000 0.088 1.001 0.996–1.001 0.178

, adjusted for sex, age, and diagnosis; *, P<0.05. OR, odds ratio; CI, confidence interval.

Correlation analysis

The results of correlation analysis between clinical predictors (IIG, TMD, SMD, CP, ULBT, HLM, ULBT, MMT) and the eight voice parameters which were used to construct the prediction model (Table 3) was visualized in Figure 2. The highest Spearman correlation coefficient was between CP and le_f3 (−0.37, P<0.01).

Table 3

Stepwise logistic regression of Cormack-Lehane grade and acoustic features in patients undergoing orthognathic surgery

Model Acoustic features OR 95% CI P
Forward stepwise model en_f2 0.996 0.994–0.999 0.002
qi_bw4 0.996 0.993–0.999 0.003
a_f1 0.997 0.995–1.000 0.038
o_bw4 1.001 1.000–1.002 0.024
Backward stepwise model en_f2 0.996 0.994–0.999 0.006
ci_bw4 0.997 0.995–1.000 0.057
qi_bw4 0.996 0.993–0.999 0.017
le_f3 0.998 0.996–1.000 0.079
o_bw4 1.001 1.000–1.003 0.014
chi_f4 1.003 1.000–1.005 0.041
a_bw4 0.999 0.998–1.000 0.078

OR, odds ratio; CI, confidence interval.

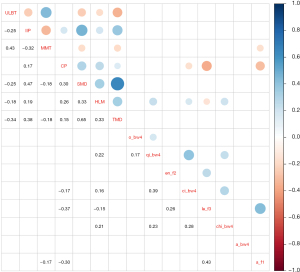

Figure 2 Correlation analysis of the baseline characteristics and voice variables.

Establishment of the assessment model

We used stepwise logistic regression for the whole sample to further screen the voice characteristics with P<0.1 in the univariate logistic regression. Table 3 showed the eight voice features (en_f2, qi_bw4, a_f1, o_bw4, ci_bw4, le_f3, chi_f4, a_bw4) selected to construct a model for difficult airway evaluation. A receiver operating characteristic (ROC) curve was constructed to evaluate the performance of the model for the prediction of DL. The AUC of the forward stepwise model attained a value of 0.716 and 0.702 in the training set and test set, respectively (Figure 3). In the testing set, the model had a sensitivity and specificity of 80.0% and 64.3%, respectively (Table 4). The backward stepwise model attained an AUC value of 0.761 in the training set, but a value of only 0.709 in the test set (Figure 4). The highest point of the Youden index was designated as the threshold, which revealed the sensitivity and specificity of the model in the testing set to be 86.7% and 63.0%, respectively (Table 4). To prove the stability of the model, 100 random splits were performed and the AUC was calculated after 100 different random splits (with the CI obtained using the average of 100 times AUC). The mean value of the AUC was similar compared to that of our special set seed, which indicated that random splitting had little effect on our results.

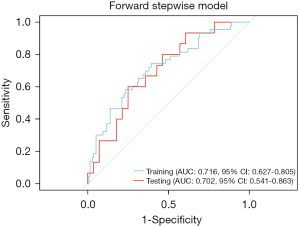

Figure 3 Receiver operating characteristic curve analysis of the forward stepwise model.

Table 4

The predictive value of the model including formants and bandwidths

Variable AUC (95% CI) AUC100 (95% CI) Accuracy (%) Specificity (%) Sensitivity (%)
Forward model
   Training 0.716 (0.627–0.805) 0.723 (0.719–0.726) 71.1 72.3 67.4
   Testing 0.702 (0.541–0.863) 0.695 (0.679–0.711) 69.8 64.3 80.0
Backward model
   Training 0.761 (0.678–0.844) 0.761 (0.757–0.765) 71.3 68.4 76.2
   Testing 0.709 (0.550–0.867) 0.696 (0.679–0.712) 71.4 63.0 86.7

AUC, area under the receiver operating characteristic curve; CI, confidence interval.

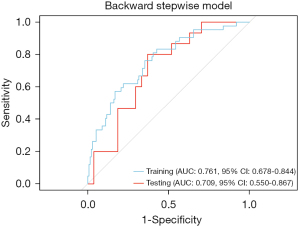

Figure 4 Receiver operating characteristic curve analysis of the backward stepwise model.

The performance of rational clinical examinations in the prediction of non-difficult or difficult laryngoscopy are shown in Table 5 and Figure 5. For the MMT model, the AUC value was 0.634, and the sensitivity and specificity were 51.7% and 69.3%, respectively. For the TMD model, the AUC value was 0.741, and the sensitivity and specificity were 76.3% and 66.9%, respectively.

Table 5

The predictive value of clinical airway assessment tests

Variable AUC (95% CI) Accuracy (%) Specificity (%) Sensitivity (%)
MMT 0.634 (0.552–0.717) 64.7 69.3 51.7
ULBT 0.691 (0.618–0.766) 68.3 69.1 66.1
SMD 0.708 (0.622–0.793) 78.7 88.0 54.2
TMD 0.741 (0.667–0.815) 69.3 66.9 76.3

AUC, area under the receiver operating characteristic curve; CI, confidence interval; MMT, modified Mallampati test; ULBT, upper lip bite test; SMD, sternomental distance; TMD, thyromental distance.

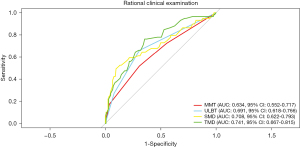

Figure 5 Receiver operating characteristic curve analysis of airway assessment tests and their areas under curve for predicting difficult laryngoscopy.

Discussion

To the best of our knowledge, our study is the first to determine the association between acoustic characteristics and patients with difficult laryngoscopy in Chinese population. This study found that patients with difficult laryngoscopy during orthognathic surgery have distinct phonetic characteristics, confirming that acoustic features can allow for accurate prediction of difficult laryngoscopy.

We found that Chinese vowels {[a] and [o]}, nasal vowel {[en]}, and consonants {[ci], [chi], [qi], and [le]} can make a significant contribution to the correct classification of the laryngoscopic view in orthognathic surgery. Studies have speculated that the pronunciation of the vowels [a], [o], and [en], which are uttered without obvious tongue movement (20), is closely related to the shape of the oral cavity, whereas the consonants interdentals [ci], post-alveolar [chi], alveolar [le], alveo-palatals [qi], velars [ke] are determined by the manner and site of articulation (21).

Our investigation of formant frequencies revealed that four formants (a_f1, en_f2, le_f3, and chi_f4) were significantly correlated with the laryngoscopic view. The f1 formant is related to tongue height and the mandibular opening; f2 is correlated with forward and backward movements of the tongue during speech production; f3 is correlated with the anterior region of the vocal tract (i.e., the space between the tongue and the mandibular incisors); and f4 is likely related to the length of the laryngeal tube (22), which provides a plausible rationale for our results.

Aside from formant frequency, formant bandwidth is the other important acoustic characteristic of speech (23). Bandwidth is inversely related to amplitude: the wider the bandwidth, the smaller the amplitude, and the lower the energy of the formant. Interestingly, only bw4 (a_bw4, o_bw4, qi_bw4, and ci_bw4) was correlated with the laryngoscopic view in this study.

It is known that acoustic features are intimately related to the size and configuration of the vocal tract (12,13). In the correlation analysis in our study, the neck circumference and the length of the mandible were shown relationship to formant frequencies and bandwidths for the evaluated phonemes. The association can be explained as follows: both the neck circumference and the length of the mandible play an important role in the length, internal diameter, and internal area of the vocal tract, which affect voice production and resonance and contribute to abnormal voice features (22).

We used the MMT, ULBT, TMD, and SMD to evaluate the airway risk of patients. Similar to other studies, we found that none of the rational clinical examinations had high sensitivity or specificity, which suggests that a single factor is unlikely to be successful in predicting a difficult airway (8). However, the predictive model including acoustic features performed better than the Mallampati classification. Some studies have proposed that analysis of voice parameters reflects not only the morphology but also the functional traits of the airway, which may explain its efficacy.

Our study differs from previous studies that used voice analysis for airway evaluation (14). First, our study sample comprised patients with lateral mandibular deviation and class II and class III skeletal abnormalities. The shape of the oral cavity, movement of the tongue and length of the mandible are known to vary between the different types of malocclusion, and these structural differences may affect patients’ voices (24,25). Previous studies have reported that individuals with class III malocclusions often encounter difficulty in producing labiodental and lingual-alveolar consonants (26). Therefore, we adjusted for diagnosis in the multivariate regression. Table 2 shows that after minimisation of the possible effect of diagnosis, a significant difference only remained for a_f1, o_bw4, and en_f2, but the differences for the consonants ci_bw4, qi_bw4, and le_f3 disappears. Notably, only a_f1, o_bw4, and en_f2 were correlated with difficult laryngoscopy. Furthermore, to eliminate the effect of additional confounding factors, patients with a history of cleft palate, craniofacial syndromes, or craniofacial trauma were excluded from our study, as well as those who had previously undergone oral and maxillofacial surgeries. Second, different speech features have been reported to be correlated with age, sex, height, and weight, and have also been linked to anatomical and physiological changes in the speech production system (27-29). Most patients in our study were young and healthy adults who wished to improve their facial appearance via orthognathic surgery. The mean age of the study population was 25.4 years, which is substantially lower than the mean age of 44.4 years in Carvalho et al.’s study. Also, none of our patients had a BMI above 30. The differences in our findings may be attributable to the above-mentioned differences in baseline characteristics, which can influence voice production and articulation. Finally, the speech samples used in our study consisted of Chinese syllables, hence, differences in pronunciation between languages may have also influenced the results.

Limitations

Our study has several limitations. One limitation of the study is the relatively small sample size. Larger patient populations are needed to explore the further applications of acoustic parameters in patients with difficult intubation. Moreover, our study was limited to Chinese participants undergoing orthognathic surgery, which may limit the generalisability of our results to the global population. Furthermore, considering the limited accuracy of the measurement of formant frequencies and bandwidths, future work should combine acoustic parameters and speech technology, such as speaker recognition, to enhance the effectiveness of the predictive model.

In summary, the use of acoustic parameters may be a feasible method for predicting difficult laryngoscopy in patients undergoing orthognathic surgery. Compared to other assess methods, acoustic features-based methods are very attractive as they are nonintrusive and provide objective information automatically, only requiring a few minutes to evaluate several voice parameters, which could even be recorded just before the interview with a physician. Thus could have an promising role in facilitating intelligent and telematic airway evaluation. Future studies based on a large and diverse population are essential to fully realize the applicability of acoustic model in the assessment of difficult airway.


Acknowledgments

Funding: This study was supported by the Interdisciplinary Program of Shanghai Jiao Tong University (No. ZH2018ZDA14), the Science & Technology Innovation fund of Shanghai Ninth People’s Hospital, Shanghai Jiao Tong University School of Medicine (No. CK2019008) and the Health Industry Clinical Research Specialized Project of Shanghai Municipal Health Commission (No. 202140410).


Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://dx.doi.org/10.21037/atm-21-4359

Data Sharing Statement: Available at https://dx.doi.org/10.21037/atm-21-4359

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/atm-21-4359). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This cross sectional study was approved by the Ethics Committee of Shanghai Ninth People’s Hospital (approval No.: SH9H-2020-T386-1). Informed consent was obtained from each patient before their inclusion.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
