Astragaloside IV protects cardiomyocytes against hypoxia injury via HIF-1α and the JAK2/STAT3 pathway

Introduction

Cardiovascular disease (CVD) is a public health crisis that accounts for >30% of all deaths globally (1). Cardiovascular conditions induced by hypoxia, such as myocardial infarction, peripheral vascular disease, stroke, and renal ischemia, contribute to high mortality and disability rates (2). In particular, apoptosis and death of cardiomyocytes are common in many forms of CVD (3). COVID-19 is an ongoing pandemic caused by severe acute respiratory syndrome coronavirus-2 (SARS-CoV-2) infection (4,5). Myocardial injury has been described in many patients with COVID-19 (6,7). Hypoxia itself is one of the main mechanisms of COVID-19-related myocardial injury (8). Thus, experimental and clinical research is urgently needed to determine the molecular basis of hypoxia-induced cardiomyocyte injury and to identify effective treatments.

Astragaloside IV (AS-IV), 3-O-beta-d-xylopyranosyl-6-O-beta-d-glucopyranosyl-cycloastragenol (C₁₄H₆₈O₁₄), is extracted from the dried roots of Astragalus membranaceus (9) and was approved by the Chinese Pharmacopeia 2010 (10). Previous studies have shown that AS-IV has anti-inflammatory (11), anti-viral (12), and anti-oxidative effects (13). In a rat aortic banding model, AS-IV prevented hypertrophy by increasing autophagy and inhibiting inflammation (14). In neonatal rat cardiomyocytes, AS-IV protected against hypoxia/reoxygenation (H/R)-induced injury by enhancing protein kinase A (PKA) and Ser(16) phosphorylated phospholamban [Ser(16)-PLN] expression (15). AS-IV pretreatment also attenuated anoxia/reoxygenation (A/R) injury by improving B cell lymphoma-2 (Bcl-2)-mediated mitochondrial function in both in vitro and in vivo experiments (16). Furthermore, the compatibility of tanshinone IIA and AS-IV restored H9c2 cell survival by inhibiting stress-responsive generic mitogen-activated protein kinase (MAPK) signaling and enhancing serine/threonine kinase 1 (AKT) phosphorylation (17). AS-IV might exert its treatment role via regulating calcium homeostasis and anti-apoptosis and anti-oxidation effect (18). AS-IV has calcium antagonistic role, inhibits calcium overload and restores myocardial calcium pumps activity (19). AS-IV could also promote angiogenesis via VEGF activation (20). Currently, the pathomechanism of AS-IV in hypoxia-triggered damage is not sufficiently understood.

Hypoxia-inducible factor-1 (HIF-1) comprises HIF-1α and HIF-1β that act as transcriptional mediators in response to hypoxia (21). The levels of HIF-1 increase under decreased oxygen pressure. Its upregulation enhances erythropoiesis, modulation of vascular tone, glycolysis, and angiogenesis (22). Past studies have shown a significant increase in HIF-1α in tunnel positioning areas surrounding the infarct in human ischemic heart tissues and heart failure (HF) post-acute myocardial infarction (AMI) rats (22,23). There have also been reports showing that HIF-1α activation mediated through prolyl 4-hydroxylase-2 (PHD2) gene silencing by siRNA treatment attenuates myocardial ischemia-reperfusion injury (IRI) (24). In a rabbit model of IRI, stimulation of HIF-1α upregulated heme oxygenase 1 (HO-1) levels, which attenuated proinflammatory cytokine production (25). Thus, stabilizing HIF-1α increases myocardial tissue tolerance to ischemia-induced injury.

Signal transducer and activator of transcription 3 (STAT3) is stimulated by Janus kinase 2 (JAK2)-mediated phosphorylation and modulates cell growth and differentiation. In vivo experiments indicate that STAT3 can subvert the negative effects associated with ischemia on reactive oxygen species and the electron transport chain in MLS-STAT3E mice (26). In vitro evidence has also shown that in glioma cells (U-87MG and U-138MG), HIF-1α, p-STAT3, and p-JAK are reduced by EGF, latrophilin, and seven transmembrane domain containing 1 (ELTD1) knockdown. Further co-immunoprecipitation data showed that p-STAT3 binds to HIF-1α (27). Previous studies have demonstrated that the JAK2/STAT3/HIF-1α axis is implicated in osteoclastogenesis (28), angiogenesis (29), neuroprotection (30), and anti-tumorigenesis (31).

There is limited data on the benefits of AS-IV in cardiovascular tissues and the effect on JAK2/STAT3/HIF-1α signaling in hypoxia. Here, we evaluated the impact of AS-IV on hypoxia-related damage to the rat cardiac muscle cell line H9c2, and its underlying mechanisms. We present the following article in accordance with the MDAR reporting checklist (available at https://dx.doi.org/10.21037/atm-21-4080).

Methods

Cell culture and hypoxia cell model

H9c2 cells were purchased from the National Collection of Authenticated Cell Cultures and passaged in DMEM-H medium (Gibco, New York, NY, USA) enriched with 10% FBS (Gibco), 2 mM glutamine (Gibco), 100 U/mL streptomycin (Beyotime, Shanghai, China), and 100 U/mL penicillin (Beyotime) in a humidified incubator at 37 °C, 5% CO₂. To induce injury, H9c2 cells were passaged in a hypoxic incubator with 1% O₂, 5% CO₂, and 94% N₂ for the indicated durations. Cells grown in normoxic conditions (21% O₂) were used as controls.

Cell transfection

Specific siRNAs targeting rat HIF-1α siRNA (si-HIF-1α) and negative control siRNA (si-NC) were obtained from RiboBio (Guangzhou, China) and transfected into H9c2 cells at 100 nM using Exfect transfection reagent (Vazyme, Nanjing, China) according to the manufacturer’s instructions. Briefly, H9c2 cells (2×10⁵) were grown in 6-well plates for 24 h. Exfect transfection reagent was added to serum-free media followed by incubation for 5 min at room temperature (RT). The diluted siRNA was gently mixed with medium containing Exfect transfection reagent and allowed to incubate for 15 min at RT before adding the mixture to each well containing 80% confluent cells and medium. The transfected cells were grown under 37 °C and CO₂ conditions for 24 h prior to downstream experiments.

AS-IV and AG490 treatment

AS-IV (Shyuanye, Shanghai, China) and AG490 (MedChemExpress, Shanghai, China) were diluted in DMSO. H9c2 cells were challenged with AS-IV (12.5 µM) and AG490 (5 µM) individually or in combination under normoxic/hypoxic conditions for the indicated durations.

Cell survival analysis

H9c2 cell survival was assessed using the Cell Counting Kit-8 assay (CCK-8, Dojindo, Shanghai, China). H9c2 cells (100 µL) were grown at 2×10⁴ cells/mL in 96-well plates overnight. After treatment, 100 µL of media enriched with 10% CCK-8 solution was added to the cells through media exchange modes. After 1 h of incubation, absorbance was measured at 450 nm on a microplate reader (Molecular Devices, San Jose, CA, USA). Each experiment was performed was repeated at least 6 times. The cell survival rate was expressed as a percentage of the control.

Calcein-AM/propidium iodide (PI) staining

After different treatments, the cells were rinsed twice using 1× buffer. Then, each group of cells were reconstituted in 1× assay buffer and stained with 2 µM calcein-AM (Dojindo, Shanghai, China) and 5 µM PI (Dojindo, Shanghai, China) per well and incubated at 37 °C for 30 min protected from light. Representative images were then captured on the IX73 fluorescence microscope (Olympus, Tokyo, Japan).

Immunocytochemistry analysis

For immunocytochemistry, 4% PFA (Boster, Wuhan, China) was used to fix cells at 4 °C for 30 min followed by permeabilization with 0.5% Triton X-100 (Beyotime) for 15 min. Subsequently, non-specific blocking was performed with 2% BSA (Beyotime) at 4 °C for 1 h, followed by incubation with anti-HIF-1α (ab179483, Abcam, Cambridge, UK) at 1:500 overnight at 4 °C. Next, the cells were subjected to another incubation with DyLightFluor^® 555-conjugated donkey anti-rabbit IgG secondary antibody (A0453, Beyotime) at 1:500 for 1 h at RT and counterstained with DAPI (Sigma-Aldrich, St. Louis, MO, USA) at 10 ng/mL in the dark for 15 min. Finally, imaging was performed immediately on an Olympus IX73 microscope.

Assessment of cell apoptosis

An Annexin V-FITC/PI apoptosis kit (Keygentec, Nanjing, China) was used for cell staining and flow cytometry following the manufacturer’s instructions. Briefly, cells from each group were washed twice with PBS and 2×10⁵ cells were reconstituted in 500 µL of binding buffer. Immediately after, 5 µL of Annexin V-FITC was added and mixed well. This was followed by the addition of 10 µL PI and incubation for 5 min at RT in the dark in preparation for apoptosis analysis on an Accuri C6 flow cytometer (BD Biosciences, San Jose, CA, USA).

Isolation of total RNA and real-time PCR

The TRIzol reagent (Vazyme) was utilized for RNA extraction followed by cDNA synthesis with a reverse transcription kit (Vazyme). The reverse transcription PCR (RT-PCR) assay was then performed on a CFX96 system (Bio-Rad Laboratories, Hercules, CA, USA) with the following parameters: denaturation at 95 °C for 10 min, 40 cycles of denaturation at 95 °C for 15 s, annealing at 60 °C for 20 s, and extension at 72 °C for 25 s. The 2^−ΔΔCT method was used to determine mRNA levels. The PCR was based on the indicated primers: HIF-1α (forward: 5'-atgtaccctaacaagccggg-3', reverse: 5'-acaaatcagcaccaagcacg-3'), β-actin (forward: 5'-cccatctatgagggttacgc-3', reverse: 5'-tttaatgtcacgcacgatttc-3'). All the primers were obtained from by Generay Bioengineering (Shanghai, China).

Protein extraction and western blot assay

Briefly, we used RIPA buffer (Beyotime) to lyse cells for protein extraction following the manufacturer’s instructions. After separation with 10% SDS-PAGE and transfer to PVDF membranes (Millipore, Billerica, MA, USA), the membranes were then blocked using 5% BSA (Beyotime) for 1 h and incubated with the indicated antibodies at 4 °C overnight: HIF-1α (ab179483, 1:1,000), Bcl-2 (ab196495, 1:1,000), Bax (ab32503, 1:5,000) (all from Abcam), caspase-3 (14220, 1:1,000), JAK2 (3230, 1:1,000), p-JAK2 (3776, 1:1,000), STAT3 (9139, 1:1,000), p-STAT3 (9145, 1:2,000) (all from Cell Signalling Technology, Boston, MA, USA), and β-actin (AF0003, 1:2,000, Beyotime). After washing with TBST thrice (10 min each), the membrane was probed with HRP-conjugated anti-rabbit IgG (A0208, Beyotime) or anti-mouse IgG (A0216, Beyotime) secondary antibodies at RT for 1 h and washed thrice with TBST. The signal was then developed using ECL (Beyotime) and imaged on a chemiluminescence detection system (Bio-Rad Laboratories). Band intensities were analyzed by Image J.

Statistical analysis

All the experiment were repeated three times. All data are shown as mean ± SD and were analyzed with Graphpad Prism 5.0. Comparisons between groups were assessed using Student’s t-test. P<0.05 indicated statistical significance.

Results

Hypoxia triggers injury in H9c2 cells

Cell survival, cell death, apoptosis, and western blot assays were conducted to elucidate the impact of hypoxia. Sustained hypoxia treatment significantly decreased the cell survival rate, as the survival was only 31.6%±7.1% after 72 h (Figure 1A). The representative images of calcein-AM/PI staining showed that hypoxia treatment markedly enhanced cell death in H9c2 cells (Figure 1B). Additionally, hypoxia treatment significantly induced H9c2 cell apoptosis compared with the normoxia-treated group (Figure 1C). The expression levels of apoptosis-related proteins also changed markedly, with the Bcl-2/Bax ratio reduced and cleaved caspase-3 levels elevated by hypoxia (Figure 1D). These effects of hypoxia on cells were time-dependent.

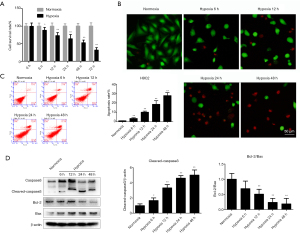

Figure 1 Hypoxia causes hypoxic injury in H9c2 cells. The effects of hypoxia on H9c2 cells were examined by assaying cell survival, apoptosis, calcein-AM/PI staining, and apoptosis-related proteins. (A) The H9c2 cell survival rate was determined after exposure to hypoxia for the indicated periods. (B) Cell death was detected using calcein-AM (green) and PI (red) staining. (C) Apoptosis was evaluated using flow cytometry. (D) Western blot analysis of the levels of the apoptotic proteins cleaved caspase-3, Bcl-2, and Bax. β-actin was used as the loading control. Results are shown as mean ± SD of three independent experiments performed in duplicate. *P<0.05 or **P<0.01 vs. normoxia group. PI, propidium iodide.

Hypoxia alters HIF-1α protein level in H9c2 cells

HIF-1α modulates responses to hypoxia (32). Compared with the normoxic group, 6 h of hypoxia treatment significantly increased HIF-1α levels. However, HIF-1α levels did not consistently increase after hypoxia treatment for 12–48 h, but gradually fell. Immunocytochemistry analysis results were consistent with the western blot findings (Figure 2A,2B).

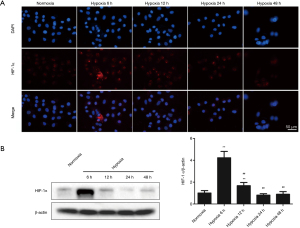

Figure 2 HIF-1α protein levels in response to hypoxia induction. (A,B) HIF-1α levels were measured using immunocytochemistry and western blot after exposure to hypoxia for the indicated periods. Results are mean ± SD of three independent experiments performed in duplicate. **P<0.01 vs. normoxia group; ^##P<0.01 vs. 12 h hypoxia group. HIF-1α, hypoxia-inducible factor 1α.

AS-IV suppresses hypoxia-induced injury and upregulates HIF-1α levels in H9c2 cells in a sustained way

Hypoxia triggers H9c2 cell injury (33). The CCK-8 assay showed that treatment with AS-IV (12.5 µM) time-dependently improved the survival rate of hypoxia-exposed H9c2 cells (Figure 3A). Next, we assessed how AS-IV affects HIF-1α expression in H9c2 cells challenged with hypoxia for 6 and 48 h. We observed that relative to normoxic controls, HIF-1α levels were sharply elevated upon 6 h of hypoxic injury and were markedly reduced after 48 h. Interestingly, after treatment of H9c2 cells subjected to hypoxia for 6 or 48 h with AS-IV (12.5 µM), HIF-1α levels remained elevated relative to the normoxic and hypoxia-only groups. Immunocytochemistry results were consistent with the western blot findings (Figure 3B,3C).

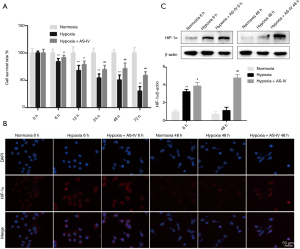

Figure 3 The effects of AS-IV treatment on hypoxic injury and HIF-1α protein expression. (A) The H9c2 cell survival rate was determined after exposure to hypoxia and AS-IV treatment for the indicated durations. (B,C) HIF-1α protein levels were determined by immunocytochemistry and western blot after exposure to hypoxia and AS-IV treatment for the indicated durations. Results are mean ± SD of three independent experiments performed in duplicate. **P<0.01, hypoxia group vs. normoxia group; ^#P<0.01 or ^##P<0.01, hypoxia + AS-IV group vs. hypoxia group. AS-IV, astragaloside IV; HIF-1α, hypoxia-inducible factor 1α.

Downregulation of HIF-1α represses AS-IV-mediated protection against hypoxic damage

To examine whether HIF-1α has an essential role in AS-IV-mediated protection of hypoxic injury, HIF-1α was inhibited using siRNA in H9c2 cells. It was confirmed that siRNA2 efficiently suppressed HIF-1α expression using quantitative RT-PCR (RT-qPCR) and western blot analyses. Thus, we chose HIF-1α siRNA2 for subsequent cytology experiments (Figure 4A,4B). At 24 h after siRNA transfection, AS-IV (12.5 µM) treatment was simultaneously performed when H9c2 cells were placed under hypoxic conditions at specified time points (6 and 48 h). Western blot and immunocytochemistry results revealed that the HIF-1α level in the NC + hypoxia + AS-IV group was significantly higher than in the si-HIF-1α + hypoxia + AS-IV group (Figure 4C,4D). Similarly, there were corresponding findings in the next series of experiments. The cell survival rate was apparently lower, while cell death and apoptosis were discernibly higher in the si-HIF-1α + hypoxia + AS-IV group compared to the NC + hypoxia + AS-IV group (Figure 4E-4G). To confirm this result, we assessed the expression levels of apoptosis-related proteins in all samples. The western blot results showed that the level of cleaved caspase-3 was visibly increased, while the ratio of Bcl-2/Bax was significantly decreased in the si-HIF-1α + hypoxia + AS-IV group compared to the NC + hypoxia + AS-IV group (Figure 4H). The results described above indicate that HIF-1α silencing blocks AS-IV-mediated protection under hypoxic conditions.

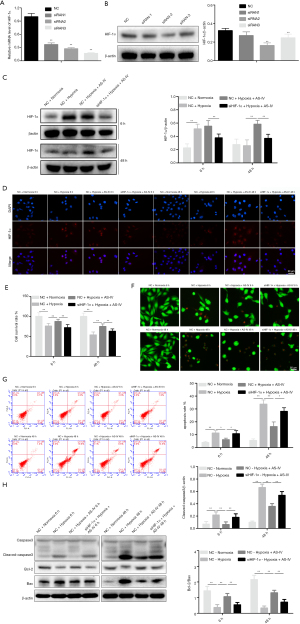

Figure 4 The protective effects of AS-IV on hypoxic injury were suppressed by HIF-1α downregulation. (A,B) RT-qPCR and western blot analysis of HIF-1α expression in H9c2 cells transfected with si-HIF-1α or control si-NC. (C,D) HIF-1α protein levels after siRNA transfection, and the effects of hypoxia and AS-IV treatment were determined by immunofluorescence and western blot analyses. (E) Cell survival was measured using the CCK-8 assay. (F) Cell death was assayed by calcein-AM/PI staining. (G) Apoptosis was assayed by flow cytometry. (H) Western blot analysis of the levels of the apoptotic proteins cleaved caspase-3, Bcl-2, and Bax. β-actin was used as the loading control. Results are mean ± SD of three independent experiments performed in duplicate. *P<0.05 or **P<0.01 vs. corresponding group. AS-IV, astragaloside IV; HIF-1α, hypoxia-inducible factor 1α; RT-qPCR, quantitative reverse transcription PCR; si-HIF-1α, HIF-1α siRNA; si-NC, negative control siRNA; CCK-8, Cell Counting Kit-8; PI, propidium iodide.

AS-IV prevents hypoxic injury of H9c2 cells by regulating JAK2/STAT3/HIF-1α signaling

JAK2 phosphorylates STAT3 and activates the JAK2/STAT3 pathway (34). To test whether JAK2/STAT3 signaling mediates hypoxia-induced injury in cardiomyocytes, the phosphorylation levels of JAK2 and STAT3 were measured. This analysis revealed that p-STAT3 and p-JAK2 levels consistently fell after hypoxia treatment for 6 and 48 h, while AS-IV (12.5 µM) restored and even increased their levels (Figure 5A). To confirm these findings, we suppressed the JAK2/STAT3 pathway using AG490 (5 µM), a JAK2 inhibitor (35), and assessed p-STAT3, STAT3, p-JAK2, JAK2, and HIF-1α expression by western blot. The western blot analysis revealed a marked reduction of p-JAK2 and p-STAT3 expression in the hypoxia + AS-IV + AG490 group relative to the hypoxia + AS-IV group (Figure 5B). Moreover, HIF-1α protein levels followed the same trend (Figure 5B). The corresponding immunocytochemistry observation of HIF-1α expression strengthened the western blot results (Figure 5C). These findings suggested that AS-IV promotes HIF-1α expression and stability by regulating upstream factors like p-JAK2 and p-STAT3. The CCK-8 assay revealed that the cell survival rate in the hypoxia + AS-IV group was obviously increased relative to the hypoxia + AS-IV + AG490 group at both 6 and 48 h (Figure 5D). The degree of cell death and apoptosis and the expression of apoptosis-related proteins in the hypoxia + AS-IV group were much lower than the hypoxia + AS-IV + AG490 group (Figure 5E-5G). Together, these data demonstrate that AG490 suppresses the benefits of AS-IV on hypoxic damage by blocking the JAK2/STAT3/HIF-1α signaling pathway.

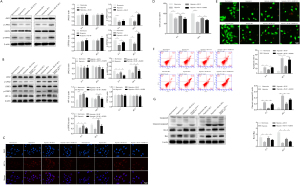

Figure 5 Influence of JAK2-STAT3 signaling on the protective effects of AS-IV against hypoxic injury. (A) Western blot analysis of JAK2/p-JAK2 and STAT3/p-STAT3 expression after exposure to hypoxia and AS-IV treatment for the indicated durations. (B) Western blot analysis of JAK2/p-JAK2, STAT3/p-STAT3, and HIF-1α expression after exposure to hypoxia, AG490, and AS-IV for the indicated durations. (C) After the corresponding treatment, HIF-1α expression changes were detected by immunocytochemistry. (D) Cell survival was evaluated using the CCK-8 assay. (E) Cell death was detected using calcein-AM/PI staining. (F) Apoptosis was evaluated by flow cytometry. (G) Western blot analysis of the apoptotic proteins cleaved caspase-3, Bcl-2, and Bax. β-actin was used as the loading control. Results are mean ± SD of three independent experiments performed in duplicate. *P<0.05 or **P<0.01 vs. corresponding group. JAK2, Janus kinase 2; STAT3, signal transducer and activator of transcription 3; AS-IV, astragaloside IV; HIF-1α, hypoxia-inducible factor 1α; CCK-8, Cell Counting Kit-8; PI, propidium iodide.

Discussion

CVD claims many lives worldwide. Oxygen is crucial to the metabolism and survival of aerobic cells. Oxygen tension influences numerous cellular processes, including proliferation, cell differentiation, glycolysis, apoptosis, angiogenesis, and gene expression. Severe hypoxia may cause apoptosis and even necrosis. Previous study found angiogenesis is critical in the recovery of myocardial ischemia. AS-IV could regulate angiogenesis and HIF-1α level in human umbilical vein endothelial cells via PI3K/Akt pathway (36). Hypoxia induces HIF-1α expression, and its expression level in the nucleus depends on the balance between its ubiquitination and small ubiquitin-related modifier (SUMO) modification (37). The expression of SUMO1 could stabilize the HIF-1α. AS-IV could promote the expression of SUMO1. Thus, the treatment of AS-IV might promote angiogenesis via promoting the level of SUMO1 and the stabilization of HIF-1α (38). Cardiomyocytes are the main functional cells in pumping blood. Cardiomyocyte injury by hypoxia is a cause of several ischemic heart disorders (39). Here, we examined how AS-IV affects hypoxia-induced damage of H9c2 cells. Our data show that AS-IV stimulated and stabilized HIF-1α expression in H9c2 cells challenged with hypoxia. HIF-1α upregulation contributed to the effects of AS-IV on enhancing viability and reducing the apoptosis of H9c2 cells under hypoxic conditions. Our data also indicate that AS-IV enhanced the activation of JAK2/STAT3 signaling, which upregulated HIF-1α in H9c2 cells.

Myocardial tissue has very limited innate regenerative capacity, and there are no myocardial tissue regeneration strategies available. Thus, myocardial injury is irreversible (40). Cardiomyocyte injury is mainly caused by cardiomyocyte apoptosis. Here, we exposed H9c2 cells to hypoxia to establish an in vitro model of myocardial injury and tested cell viability, apoptosis, and death. Our data show that hypoxia stimulates cell damage and apoptosis, and transiently upregulates HIF-1α.

As-iv is one of the main active components of Astragalus membranaceus. AS-IV can reduce the apoptosis of neurons after intracerebral hemorrhage (41) and reduce the area of myocardial infarction (42). AS-IV has been widely used to treat cardiovascular, liver, kidney, and skin diseases in China (43). AS-IV is a therapeutic agent with a variety of activities and a potential therapeutic role in myocardial protection. Besides AS-IV, there are other drugs could protect cardiomyocytes against hypoxia damage, like Dimethyl malonate (44), chloramphenicol succinate (45), mitochondrial division inhibitor-1 (46), miR-499 (47) and rapamycin (48). Astragalus membranaceus is a traditional drug that widely used in China for thousand years. AS-IV is the main component of Astragalus membranaceus. AS-IV has great treatment potential and is relatively easy to transfer to clinical application.

Past findings show that AS-IV relieves H9c2 cardiomyocyte damage under hypoxic conditions by modulating miRNAs (49), lncRNAs (50), Ca²⁺ homeostasis (51), and PI3K/AKT/HO-1 signaling (52). Evidence has also showed As-IV can exert myocardial protective role via PI3K/AKT/GSK-3β pathway (53). The angiogenesis could also be regulated by AS-IV via PTEN/PI3K/Akt pathway (54). Here, we found that HIF-1α was increased and hypoxia-induced injury were decreased hypoxia model with treatment of 12.5 µM AS-IV.

HIF-1α is a key transcription factor that controls adaptive responses to hypoxia by regulating downstream target genes (55). HIF-1α could induce the expression of iNOS. The level of iNOS is upregulated in cardiomyocytes after hypoxia treatment. INOS pathway could be activated by AS-IV induced HIF-1α activation (56). Normally, HIF-1α activity depends on the amount of HIF-1α protein, which is markedly upregulated by hypoxia. However, the HIF-1β protein is constitutively expressed in cells regardless of oxygen tension (57). HIF-1α protein levels are determined by a balance between protein synthesis and degradation. HIF-1α protects against oxygen-glucose deprivation/reperfusion (OGD/R) injury by upregulating the expression of BCL2/adenovirus E1B 19 kDa protein-interacting protein 3 (Bnip3) in H9c2 cells (58). Ubiquitin-conjugating enzyme E2S (UBE2S) protected against apoptosis after myocardial ischemia/reperfusion (MI/R) injury, which might have contributed to the activation of HIF-1α (59). In the present study, HIF-1α was shown to be upregulated in the presence of AS-IV treatment.

JAK2/STAT3 is an important signaling pathway involved in hypoxia/ischemia and oxidative stress in various tissues and organs, as well as having protective roles in hypoxic and ischemic injury (60). Past studies show that STAT3 acts upstream of HIF-1α, and elevated HIF-1α levels correspond with elevated STAT3 phosphorylation (61,62). A mouse model of myocardial ischemia revealed that myocardial cell apoptosis and the area of myocardial infarction were significantly increased by IRI after treatment with AG490. To confirm whether JAK2/STAT3/HIF-1α signaling mediated hypoxia-induced injury in cardiomyocytes, we silenced HIF-1α using siRNA and inhibited JAK2/STAT3 phosphorylation with AG490 and found that AS-IV protection was weakened in the hypoxia model.

In conclusion, our data show that HIF-1α expression is upregulated by short exposure to hypoxia. In contrast, this change was reduced by prolonged modeling time and aggravated cell injury. However, upon treatment with AS-IV under hypoxic conditions, HIF-1α expression was upregulated and stabilized. Furthermore, analysis of JAK2/STAT3 signaling activation suggested that AS-IV positively regulates HIF-1α by enhancing JAK2/STAT3 phosphorylation. In contrast, genetic silencing of HIF-1α and blocking of JAK2/STAT3 signaling by AG490 resulted in the inhibition of the protective effect of AS-IV. Together, these findings indicate that AS-IV protects H9c2 cells from hypoxic injury by modulating JAK2/STAT3/HIF-1α signaling. Our findings may provide initial theoretical support for the study of the regulatory mechanism of AS-IV in hypoxia-induced cardiomyocyte injury, and suggest innovative therapeutic strategies for the treatment of CVDs.
