Comparing the minimum local anesthetic dose of ropivacaine in real-time ultrasound-guided spinal anesthesia and traditional landmark-guided spinal anesthesia: a randomized controlled trial of knee surgery patients

Introduction

August Bier (1) administered the first spinal anesthesia (SA) using cocaine in 1898. Since then, traditional landmark-guided (LG) SA techniques have continued to advance for more than 130 years. At present, many studies have been conducted on the local anesthetic doses required for different surgeries when using traditional LG SA. More recently, the technique of ultrasound (US) scanning has been used to precisely locate the most suitable intervertebral space for needle entry and accurately measure the puncture depth required by assessing the anteroposterior complex. Compared with traditional LG SA, this technique greatly improves the accuracy of intervertebral space localization, reduces the number of punctures, and improves the safety and comfort of neuraxial anesthesia (2-5). The use of real-time ultrasound-guided (UG) neuraxial anesthesia was first reported in 2009 by Karmakar et al. (6) Since then, many successful reports have addressed how real-time UG SA can improve the needle entry point pathway (7,8), help assess the feasibility of the method in patients with predicted difficulty during spinal puncture (9,10), and assist in the needle tracking system (11). However, few studies have investigated the anesthetic dosages related to neuraxial anesthesia under real-time UG.

Ropivacaine is a long-acting pure S(-)-isomer amide local anesthetic with low toxicity to the central nervous and cardiovascular systems. It can produce the phenomenon of sensory-motor dissociation (12) and is widely used in clinical anesthesia and postoperative analgesia. Numerous dose-related studies of ropivacaine have shown that the minimum local anesthetic dose (MLAD) of ropivacaine mostly ranges from 7.6–12.8 mg when traditional LG SA is used in lower extremity surgery (13-16). These studies include Sell et al. (13), who determined that the median effective dose (ED₅₀) of ropivacaine used in hip surgery was 12.8 mg. Another study by Lee et al. (14,15) showed that the ED₅₀ of ropivacaine for lower extremity surgery was 7.6 and 8.41 mg in two different trials. Another by Xu et al. (16) identified that the ED₅₀ of ropivacaine for knee surgery was 9.71 mg. Dose-related studies with traditional LG SA have also been reported for other local anesthetic agents, such as bupivacaine. Lee et al. (15) showed that the ED₅₀ of bupivacaine was 5.5 mg when used in lower extremity surgery, while van Egmond et al. (17) reported that bupivacaine had an ED₅₀ of 3.4 mg and an ED₉₅ of 5.4 mg when used in knee surgery. Geng et al. (18) reported that the ED₅₀ of bupivacaine for cesarean delivery was 7.53 mg, and Carvalho et al. (19) determined that bupivacaine had an ED₅₀ of 9.8 mg and an ED₉₅ of 15 mg when used in cesarean delivery.

Our previous study found that in real-time UG SA, the MLAD of 0.75% and 0.5% ropivacaine was 17.176 and 20.192 mg, respectively. In addition, we noted that for punctures at L4–5, the doses were significantly different from those used in traditional LG SA. Coincidentally, in a study of real-time UG SA, Liu et al. (20) found that administering 0.5% bupivacaine at L5–S1 had an ED₉₀ of 25 mg, which was much higher than that of traditional LG SA. These studies suggest that the ED₅₀ and ED₉₀ values of local anesthetic agents required for real-time UG SA are significantly higher than those required for traditional LG SA.

Previous studies have shown that the accuracy of interlaminar space localization with US is higher than that via palpation (21). Locks Gde et al. (22) used US to verify the accuracy of palpation and found that the traditional reliance on anatomic landmarks for the localization of the L4 vertebral body or the L3–4 intervertebral space actually led to the localization of the L1–2, L2–3, L3–4, and L4–5 spaces in 4–7%, 33–47%, 49–53%, and 7% of cases, respectively. Kim et al. (23) also found that the method of vertebral level determination by palpation was inaccurate and that the L4–5 space determined by palpation led to the localization of the L2–3, L3–4, L4–5, and L5–S1 in 5%, 27%, 59%, and 9% of cases, respectively. It is also well known that superiorly positioned SA will cause elevation of the plane block. Sharrock et al. (24) administered SA at different intervertebral spaces with 15 mL of 0.75% isobaric bupivacaine and found that the mean levels were T11 when administered at L5–S1, T7 when administered at L4–5, T5 when administered at L3–4, and T3 when administered at L2–3. Taivainen et al. (25) infused different doses of 0.5% isobaric bupivacaine in the L4–5 intervertebral space and found that 3 mL of 0.5% isobaric bupivacaine was able to achieve blockade at a mean level of T12 and that 4 mL and 5 mL of 0.5% isobaric bupivacaine were able to achieve blockade at a mean level of T10. In other words, when puncture site approaches were more cephalad, a lower amount of local anesthetic was required to reach the same plane. However, such research poses further questions, such as whether there is a difference between the accuracy of palpation and US when determining the intervertebral space? And whether these differences further correlate to a difference in local anesthetic dosage.

To confirm if there is a real dosage difference between UG and LG SA (and the reason for any difference), the present study conducted a randomized controlled trial (RCT) of knee surgery patients to compare how the MLAD of ropivacaine at different concentrations differed between the two SA methods. We then determined the L4–5 intervertebral spaces by palpation and US, which was then followed by a C-arm X-ray examination to determine the actual spaces localized. Lastly, the two methods' accuracy and cephalic end positioning rate were compared to determine whether the positioning difference influenced the dosage difference. We present the following article in accordance with the CONSORT reporting checklist (available at https://dx.doi.org/10.21037/atm-21-3888).

Methods

Study design

Our clinical double-blind, randomized controlled trial (RCT) was designed as per the recommendations of the CONSORT Statement. The Ethics Committee of Fujian Provincial Hospital, Fuzhou, China approved the study protocol of on March 13, 2020 (approval No.: K2020-03-137), and the study protocol was registered on the Chinese Clinical Trial Registry website (registration No.: ChiCTR2000033158). The study was conducted as per the tenets of the Declaration of Helsinki (as revised in 2013), and the content of the study was thoroughly explained to the participants before written informed consent was obtained.

Study population

A total of 120 patients aged 18–65 years old were selected for our study. Each patient had a physical status of I–III following the American Society of Anesthesiologists (ASA) classification system and were scheduled to undergo selective knee surgery at the Fujian Provincial Hospital. Patients were excluded if they were found to have allergies to local anesthetic agents or non-steroidal anti-inflammatory drugs, any contraindications to neuraxial anesthesia, obesity [body mass index (BMI) >35 kg/m²], or a history of spinal deformity or spinal surgery. The patients were randomly divided into four groups, categorized as follows: Group I: high ropivacaine ultrasound-guided (HRUG); Group II: low ropivacaine ultrasound-guided (LRUG), Group III: high ropivacaine landmark-guided (HRLG), and Group IV: low ropivacaine landmark-guided (LRLG). The high ropivacaine groups (HRGs: I/III) and the low ropivacaine groups (LRGs: II/IV) received a 0.75% and 0.5% concentration of ropivacaine, respectively. Patients were randomly allocated into groups with a ratio of 1:1:1:1 (30 patients per group) using a computer-generated simple randomization method. This included placing the random allocation sequence numbers and group names into opaque-sealed envelopes. The envelopes were then opened according to the order the patients were recruited, and each patient was grouped according to their allocation. Study statisticians generated the random allocation sequence, and subjects were enrolled by research assistants. The patients and the orthopedist which performed the radiographic localization were blind to grouping.

Medications and procedures

After being admitted to the operating room, each patient was continuously given oxygen (3 L/min) inhalation through the nasal catheter, and their vital signs were monitored. Baseline blood pressure (BP) and heart rate (HR) were defined by the lowest BP and lowest HR recorded within 15 min. After establishing venous access, all patients were intravenously administered 10 mL/kg of sodium, potassium, magnesium, calcium, and glucose for 15 min. No medications were given before SA. All patients were then placed in the lateral decubitus position for the operation.

Real-time UG SA was administered in the ultrasound-guided groups (I/II) using a Sonosite Edge portable color US system (Sonosite Inc., WA, USA). For the first confirmation, the sacrum and then the L5–S1 space were located using sliding and tilting scanning techniques in paramedian sagittal oblique orientation with a 5–10 MHz curved array transducer. The L4–5 intervertebral space was then identified by moving the transducer cephalad, and this point was marked on the skin. During the second confirmation, the T12 vertebra was confirmed at its joint with the 12th rib. The transducer was then moved caudad to identify each consecutive intervertebral space descending to L4–5. The L4–5 space was reconfirmed, and another mark was made on the skin. The transducer was rotated 90°, parallel to the desired intervertebral space, and the distance from the skin to the anterior complex was measured by electronic calipers of the US machine to confirm the required depth for the insertion of the needle. After the surgical field was sterilized and towels were laid down for surgery, the probe was wrapped in a sterile protective sheath, and a local anesthetic infiltrated the puncture site. Taking a similar approach to our previous studies, the short-axis in-plane US technique (Figure 1A,1B), which was introduced by Liu et al. (7), was used to guide a 26-gauge spinal needle puncture to the subarachnoid space, and the effectiveness was assessed by cerebrospinal fluid (CSF) outflow. After confirming a free-moving CSF outflow, the preordained dose of local anesthetic was diluted with the CSF to achieve the desired concentration of 0.75% or 0.5%. The tip of the needle was then pointed in the cephalic direction, and a local anesthetic was injected at a rate of 0.4 mL/s. After the injection, the needle was removed, and the puncture point was covered with an aseptic dressing before returning the patient to the supine position.

Figure 1 Real-time ultrasound-guided spinal anesthesia. (A) The short-axis in-plane US technique of anesthesia; (B) the schematic diagram of spinal canal transection and needle entry line.

In the traditional LG groups (III/IV), patients were positioned laterally, with their head and knees flexed, hands holding knees, and the shoulder line/intercristal line drawn parallel to each other and perpendicular to the floor. The L4–5 interspace was determined using Tuffier’s line (an intercristal line drawn between the tops of both iliac crests) and marked on the skin. The local anesthesia site was punctured with a 26-gauge SA needle, and the CSF outflow was used to assess if the puncture needle had effectively reached the subarachnoid space. After confirming the free flow of CSF, the same procedure was administered to the UG groups (I/II).

Another physician judged and recorded the actual intervertebral space at the marked site using a C-arm X-ray after marking. The anesthesiologist administering the SA would only be informed if the intervertebral space was higher than the L2–3 space. Patients among whom the localization was higher than L2–3 underwent repositioning to the L4–5 space using the C-arm X-ray and traditional LG SA. These patients were excluded from the experimental group. The actual level of the L4–5 space determined by palpation and US was recorded (verified by C-arm X-ray), and the rate of malposition was also recorded.

Dixon’s up-and-down sequential method (26) was used to determine the subarachnoid level of medication. Based on previous clinical experience (8) and a previous study, the initial doses administered to the groups were 16 mg (I), 18 mg (II), 12 mg (III), and 14 mg (IV) [standard deviation (SD): 3.1]. A 1.5-mg dosage interval was used to meet the criteria that the dosage should be 0.5–2 times the anticipated SD. The blockade was considered successful if the sensory block reached the T10 plane within 20 min of the subarachnoid space injection and lasted for more than 60 min. If this was not the case, the dosage was considered ‘ineffective’ and the dose was increased for the next patient. In contrast to this, if a dose was found to be ‘effective’, the next patient received a lower dose.

If a patient’s BP decreased by either >25% (compared to the preanesthetic status) or <90 mmHg, intravenous ephedrine was administered. If the HR was under 55 bpm in the perioperative period, 0.5 mg of atropine was administered intravenously. For patients who experienced inadequate analgesia within 30 min of the injection, general anesthesia was administered.

Assessment and evaluation

A trained research assistant collected the baseline measurements, which included assessing sensory/motor blocks and their related data from the four groups during the perioperative period. The same anesthesiologist administered both types of SA and performed all assessments during SA and surgery.

The systolic blood pressure (SBP), diastolic blood pressure (DBP), respiratory rate (RR), HR, and oxygen saturation (SpO₂) were each recorded at the following time points: before anesthesia (T1), 5 min after injection (T2), 10 min after injection (T3), 15 min after injection (T4), and 20 min after injection (T5).

The sensory nerve block was assessed using a cold stimulation test (CST). After the subarachnoid injection, the plane of the sensory block was measured every 2 min for the first 20 min. For patients among whom the blockade was considered ‘effective’, the sensory block was evaluated every 15 min after 30 min of the subarachnoid injection unless the sensory block had completely resolved. The time required for the sensory block to reach the T10 plane and the length of time for which the sensory block plane remained above the T10 plane were recorded.

The modified Bromage scale (0–3 points) was used to assess the motor block based on the following grading system: 0 points, no motor loss; 1 point, inability to flex the hip; 2 points, inability to flex the knee; and 3 points, inability to flex the ankle. The onset time of the motor block (the time taken to reach 1 point on the Bromage scale), and the duration of the motor block (the time taken for the Bromage score to return to 0 points), were recorded.

Incidence of hypotension, nausea and vomiting, bradycardia, respiratory depression, and ephedrine and atropine use were recorded during surgery. On the first postoperative day, the resting visual analog scale (VAS) score, motoring VAS score, nausea and vomiting, headache, urinary retention, epidural hematoma, and nerve injury were recorded.

Statistical analyses

In this study, we used Dixon’s up-and-down sequential method. The standard error of the initially administered drug doses could be predicted to be σ√(2/N). With an α error of 0.05 and power of 0.8, the sample size was estimated to be 20 using the formula 2(SD/SEM)² (14). Having anticipated a 20% dropout rate, a minimum of 25 patients were required for each group. As described in the flowchart, we successfully enrolled 30 patients in each group. The dosage interval was set at 1.5 mg in our study design to meet the requirement that the dosage should be 0.5–2 times the anticipated SD.

Data with normal distributions were described as the mean and SD, and between-group comparisons were performed using a one-way analysis of variance (ANOVA). Skewed data were presented as the median (interquartile range) and compared using the Kruskal-Wallis test. MLAD values with 95% confidence intervals (CIs) were calculated using the ordinal method and validated via probability unit regression analysis before being compared using one-way ANOVA. The accuracy of L4–5 localization for both approaches, the probability of cephalad localization, and the probability of caudal localization were determined using a McNemar’s test. All statistical analyses were performed using SPSS version 20.0 software (IBM, NY, USA). Analysis items with P<0.05 were considered statistically significant.

Results

A total of 128 patients who were admitted to undergo elective knee surgery between June 2020 and January 2021 were enrolled in this study. Among them, eight patients were excluded for the following reasons: 1 was allergic to local anesthetics, 3 were obese, and 5 refused to participate. This left 120 patients to be included in the study, each of which was randomly assigned to one of four groups (I, II, III, IV: 30 patients per group). A flowchart of patient enrolment and allocation is shown in Figure 2. There were no significant differences in the baseline characteristics (age, sex, height, weight, duration of surgery, ASA status) between the four groups (P>0.05) (Table 1). The analysis of the four groups by Dixon’s up-and-down sequential method is presented in Figure 3.

Figure 2 Consolidated standards of reporting trials, summarized in a flow diagram representing participant recruitment.

Figure 3 A sequence of effective and ineffective blocks. All findings used Dixon’s up-and-down sequential method. (A) The HRUG group; (B) the LRUG group; (C) the HRLG group; (D) the LRLG group. ‘■’: effective anesthesia. ‘□’: ineffective anesthesia.

MLAD of ropivacaine in the four groups

In Group I (HRUG: 0.75%) the MLAD was determined to be 17.176 mg (95% CI, 16.276–18.124) using Dixon’s up-and-down sequential method and 17.417 mg (95% CI, 15.850–19.833) using the probit regression model (Table 2). In Group II (LRUG: 0.05%) the MLAD was determined to be 20.192 mg (95% CI, 19.256–21.174 mg) using Dixon’s up-and-down sequential method and 20.396 mg (95% CI, 19.231–21.903 mg) using the probit regression model. These results suggest the MLAD of Group II (0.05% ropivacaine) was significantly higher than that of Group I (0.75% ropivacaine) (P<0.001).

In Group III (HRLG: 0.75%) the MLAD was determined to be 13.201 mg (95% CI, 11.959–14.571) using Dixon’s up-and-down sequential method and 13.597 mg (95% CI, 12.334–14.934) using the probit regression model. In Group IV (LRLG: 0.5%) the MLAD was determined to be 14.478 mg (95% CI, 13.524–15.500) using Dixon’s up-and-down sequential method and 14.556 mg (95% CI, 13.364–15.743) using the probit regression model. These results suggest the MLAD of Group IV (0.05% ropivacaine) was significantly higher than that of Group III (0.75% ropivacaine) (P=0.047).

In the HRGs, the UG subgroup (I) had a significantly higher MLAD than the LG subgroup (III) (P<0.001). Similarly, in the LRGs, the UG subgroup (II) had a significantly higher MLAD than the LG subgroup (IV) (P<0.001).

Sensory block and motor block in the four groups

No significant difference in the sensory block was observed between the four groups (Table 3). The time taken by the sensory block plane to reach the T10 for the four groups was 18.064±1.948 min (I), 16.714±1.790 min (II), 17.308±1.888 min (III), and 17.333±2.127 min (IV). The duration for which the sensory block plane remained above the T10 level was 97.357±12.965 min (I), 90.143±13.163 min (II), 88.357±12.953 min (III), and 93.067±14.018 min (IV). The highest plane sensory block reached in the four groups was T11 (T9–T12) (I), T11 (T9–T12) (II), T11 (T8–T12) (III), and T11 (T9–T12) (IV).

The time to the onset of motor block in the four groups was 15.267±3.383 min (I), 16.400±2.894 min (II), 14.667±3.457 min (III), and 15.867±3.739 min (IV). There were no differences in the time to the onset of the motor block among the groups. The durations of motor block for the four groups were 128.000±24.197 (I), 112.833±19.693 (II), 122.000±21.838 (III), and 109.000±15.492 min (IV). There were differences in the time to the onset of motor block between the HRGs and LRGs for the same SA method (P=0.0257 for Group I vs. Group II; P=0.0290 for Group III vs. Group IV). For the same concentration of ropivacaine, there was no significant difference in the duration of the motor block when using UG SA and traditional LG SA (P=0.8366 for Group I vs. Group III; P=0.978 for Group II vs. Group IV).

The modified Bromage score for the four groups at different times is shown in Figure 4. The degree of the motor block in the HRGs was higher than that in the LRGs. However, there were no significant differences in the motor block between the HRGs and LRGs.

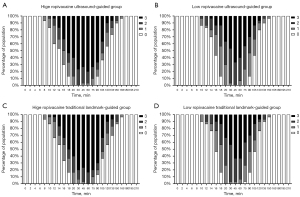

Figure 4 The modified Bromage scale for each group at different times. (A) The HRUG group; (B) the LRUG group; (C) the HRLG group; (D) the LRLG group. The degree of motor block in the HRGs was higher than that in the LRGs.

The proportion of the modified Bromage score of 3 points in the HRGs was significantly higher than that in the LRGs at 14–105 min. This difference was statistically significant at 14, 18, 30, 75, and 90 min (P<0.05). After 18 min, the proportion of the modified Bromage score of 3 points in the HRGs was more than 50% for the first time, whereas the proportion of the modified Bromage score of 3 points in the LRGs was more than 50% for the first time at 45 min. The proportion of the modified Bromage score of 3 points in the HRGs first decreased to less than 50% at 105 min, while the proportion of the modified Bromage score of 3 points in the LRGs first decreased to less than 50% at 75 min. The respective durations of the modified Bromage score of 3 points were 80.1 and 80.6 min in the HRGs compared with 36.5 and 33.6 min in the LRGs. We found that higher concentrations of ropivacaine could achieve greater degrees of motor block more quickly and maintain higher motor block levels for longer periods than lower concentrations of ropivacaine.

Vertebral level determined by US and palpation

The L4–5 space determined by US and palpation were examined by lumbar X-ray (using a C-arm X-ray) and recorded the actual intervertebral space and cephalad or caudal localization. US correctly identified L4–5 in up to 90% of cases. Among mislocalizations, the incidence rate of mistaking L3–4 for L4–5 was 6.7%, and the incidence rate of mistaking L5–S1 for L4–5 was 3.3%. Comparatively, palpation was successful in only 33.3% of cases, with a 66.7% probability of cephalad localization errors, of which L3–4 was localized in 40% of cases, L2–3 in 23.3% of cases, and L1–2 in 3.3% of cases (Tables 4,5, Figures 5-7). Ultimately, this meant the success rate of correctly identifying L4–5 by US was 90%, whereas palpation was 33.3% (P=0.011). The rate of cephalad localization by US was 6.67%, while palpation was 66.67% (P=0.002), and the rate of caudal localization by US was 3.3% and by palpation was 0% (P<0.001).

Figure 5 The actual intervertebral level when L4–5 space was determined by US and palpation. The success rates of correctly identifying L4–5 by US and palpation were 90% and 33.3%, respectively. Determining the intervertebral space by palpation was problematic and had a high error rate which can easily lead to cephalad localization. *, the intervertebral space determined by US compared to palpation P<0.05.

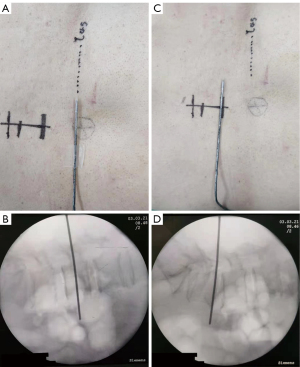

Figure 6 The L4–5 space determined by palpation with poor accuracy. (A) The metal marker put in the L4–5 space determined by palpation; (B) the corresponding X-ray image of Figure 6A showed the mental marker that was located in the middle of the L4 intervertebral; (C) the metal marker put in the L4–5 space that was determined by lumber X-ray; (D) the corresponding X-ray image of Figure 6C.

Figure 7 The ultrasonic localization of the L4–5 space was consistent with lumber X-ray. (A) The metal marker put in the L4–5 space determined by US; (B) the lumber X-ray showed the metal marker that was located in the L4–5 intervertebral space.

Changes in vital signs in the four groups

Comparisons between the values of spontaneous bacterial peritonitis (SBP) and diastolic blood pressure (DBP) in the four groups at different times are shown in Figure 8. No significant differences were observed among the four groups in the data recorded for SBP at the following time points: before anesthesia (T1), 5 min after injection (T2), 10 min after injection (T3), 15 min after injection (T4), and 20 min after injection (T5) (P=0.9496). Moreover, there were no significant differences in DBP among the four groups (P=0.8802).

Figure 8 Comparison of vital signs between the 4 patient groups at different time points. (A) SBP; (B) DBP; (C) RR; (D) HR; (E) SpO₂. There were no statistically significant differences between the four groups at any of the time points (P>0.05). SBP, systolic blood pressure; DBP, diastolic blood pressure; RR, respiratory rate; HR, heart rate; SpO₂, oxygen saturation.

The RR, HR, and SpO₂ levels of the patients in the four groups at different time points are shown in Figure 8. We found no significant differences in the RR, HR, and SpO₂ levels at the five aforementioned time points (P=0.6459 for RR, P=0.6885 for HR, and P=0.5778 for SpO₂).

Incidences of adverse reactions in the four groups

Comparisons of adverse reaction incidences during and after surgery among the four groups are shown in Table 6. During surgery, hypotension was observed among 2 patients (6.7%) in Group I, 1 in Group III (3.3%), and 1 in Group IV (3.3%). Of the entire cohort, 1 (3.3%) patient experienced bradycardia, while none of the patients experienced respiratory depression. 1 patient (3.3%) in Group I experienced nausea and vomiting. There were no significant differences in the incidences of hypotension (P=0.562), nausea and vomiting (P=0.392), bradycardia (P=1), or respiratory depression (P=1) among the four groups. None of the patients in the cohort had postoperative headaches, nerve injuries, or epidural hematoma. However, 1 patient (3.3%) in each of the HRGs experienced urinary retention, while no patient in the LRGs did; this difference was not statistically significant (P=0.569).

Discussion

Dixon’s modified sequential method is a simple and efficient way of calculating the MLAD required for SA as it considers both drug concentration or dose with the isometric arrangement of the subjects. The concentrations or doses administered to the patients in this study were determined by the results of previous patients. In this way, the data of most patients suggested a positive reaction rate of around 50%.

In a previous study, we demonstrated that for lower limb surgery the MLAD values of 0.75% and 0.5% ropivacaine were 17.176 mg (0.75%) and 20.192 mg (0.5%) when using real-time UG SA to achieve a sensory blockade at the T10 level, while for LG SA the MLAD of ropivacaine was mostly between 7.6–12.8 mg (13-16). Previous studies have also shown that the ED₅₀ of ropivacaine for reaching the T6 level of sensory block during cesarean sections under SA was 6.8–11.4 mg (27-30), and the ED₅₀ of ropivacaine required to reach the T5 level was 5.92–8.35 mg (31). Kallio et al. (32) studied inguinal hernia repair under SA and found that administering 15 mg of ropivacaine allowed 97% of patients to achieve a sensory block plane within 5–20 min of reaching above the T10 level, and also allowed them to remain above T10for 90 min. The highest plane of sensory block that could be reached was T5 (T2–9). In a study of transurethral resection of the prostate under SA, Chaudhary et al. (33) found that a level above T10 (T8–10) could be achieved in all patients with 15 mg ropivacaine. As the MLAD of ropivacaine in real-time UG SA is much higher than the dose used in LG SA, we applied Dixon’s modified sequential method to calculate the MLAD of ropivacaine at different concentrations for the two different SA methods. It is well known that the factors that influence the blockade level in SA mainly include the dose, volume, injection rate, and puncture point. Sheskey et al. (34) studied the effects of volume and dose on the blockade level and found that both factors affected the block plane, although the dose exerted a greater effect. As the drug dose is a product of the volume and concentration, the concentration was fixed for each group in this study and the dose for each patient was adjusted to the appropriate volume. For the 30 patients in the same concentration group, the volume of ropivacaine differed slightly due to their dose differences. However, the dose exerted a greater effect on the block plane and therefore we found that the volume difference caused by the dose difference could be excluded from the study. Horlocker et al. (35) investigated the effect of injection rates on the sensory level during SA and found higher levels of block with faster injection rates. However, more scholars believe that the cephalad bias of the intervertebral space might influence the elevation of the block plane. In a study of SA at L2–3 and L4–5, Tuominen et al. (36) found that the median level of sensory block when SA was administered at L2–3 was T7, while the median level of sensory block when SA was administered at L4–5 was T11. Another study by Taivainen et al. (37) examined the influence of obesity on the spread of spinal analgesia after injection of plain 0.5% bupivacaine into the L3–4 or L4–5 interspace. They found that the use of the L3–4 interspace instead of L4–5 resulted in a higher mean spread of block in both patients with high (T4 vs. T8) and normal (T9 vs. T11) body mass index (BMI). In a further study of SA at L2–3 and L4–5, Chin et al. (38) found that the median levels of sensory block when SA was administered into the L2–3 and L4–5 interspaces were T6.4 and T10.3, respectively. To verify whether the two methods of SA influenced the MLAD due to positioning errors, we set the infusion rate at 0.4 mL/s in the present study, avoiding the impact of different injection rates on our results. For the traditional LG SA groups (III, IV), the MLAD values of 0.75% and 0.5% ropivacaine were 13.201 and 14.478 mg, whereas for the UG SA groups (I, II), the respective MLAD values were 17.176 and 20.192 mg. The UG SA groups were noted to have a significantly higher MLAD than the traditional LG SA groups.

As the HRGs and LRGs received similar volumes of ropivacaine at the same rates of injection, we were left to wonder if the differences in MLAD were caused by differences in the localization of the intervertebral space. Previous studies have shown that the accuracy of intervertebral space determination by palpation to be only 30% (39), and that the localization errors were greater than or equal to two intervertebral spaces. With the development of US technology and the clarity of ultrasonic spinal anatomy, the accuracy of ultrasonic localization has already far surpassed that, reaching 70–90% (21). In addition, the margin of error never exceeded one level when using the US method. By using a plain X-ray of the lumbar spine as a reference standard, Furness et al. (39) demonstrated that US correctly identified individual interspaces 71% of the time, whereas palpation was noted to be successful only 29% of the time.

Furthermore, the intervertebral space was up to two spaces higher or lower in 27% of the cases determined by palpation, whereas the margin of error for US (as mentioned previously) was no more than one level. In a different study, Broadbent et al. (40) used magnetic resonance imaging (MRI) as a reference standard and verified that the accuracy of interspace determination by palpation was 29%. These results determined that the interspace in their study was one space higher than assumed in 51% of cases, 2 spaces higher than assumed in 15.5% of cases, 3 spaces higher than assumed in 1% of cases, 4 spaces higher than assumed in 0.5% of cases, and lower than assumed in only 3% of cases. Watson et al. (41) studied the accuracy of ultrasonic localization with MRI, and found that US accurately identified the L3–4 interspace in 76.5% of cases with a margin of error that did not exceed one level.

Several comparative studies have investigated intervertebral space localization by palpation and US. Lee et al. (42) found that the estimates of the spinal level of the intercristal line determined by palpation only agreed with US measurements 14% of the time, was 1 level higher than the US measurements 23% of the time, and 2 or more levels higher than the US measurements 25% of the time. Another study by Schlotterbeck et al. (43) found that the estimates of the spinal level determined by palpation agreed with the US measurements 36.4% of the time, while the intervertebral space was determined by palpation with 93.7% mislocalization from the L4–5 space. All instances of mislocalization were also identified as having a biased cephalad. Margarido et al. (44) also found that the L4–5 interspaces determined by palpation were all higher than the actual L4–5 level. In summary, determining the intervertebral space by palpation can be problematic as it has a high error rate and can easily lead to cephalad localization. For this reason, in the present study, we used a C-arm X-ray of the lumbar to verify the actual localization levels when L4–5 localization was attempted with the two different SA methods.

Our previous study of real-time UG SA showed that the MLAD in response to low concentrations of ropivacaine was higher than that of high concentrations of ropivacaine and that the duration of motor block was shorter with low concentrations of ropivacaine. We reconfirmed these findings in the present study. By assessing the modified Bromage scores at different time points, we found that regardless of whether US or traditional landmarks determined localization, the degree of motor block was lower in the 0.5% ropivacaine group than that of the 0.75% ropivacaine group who displayed more obvious manifestations of sensory-motor dissociation. From this, we have determined that a 0.5% concentration of ropivacaine is more suitable as a SA agent among patients who require early postoperative ambulation to promote rapid recovery. However, it is necessary to note that insufficient muscle relaxation can occur due to early regression of the motor blockade during lower extremity surgery.

Here we should also note that our study had several limitations. Firstly, although ED₅₀ is generally used to measure the potency of ropivacaine, it only represents the dose or concentration level at which 50% of the population exhibits a response. Therefore, to some extent, the ED₅₀ has limited utility in clinical practice. Secondly, patients in both the UG and LG SA groups only received single injection agents, and the time of sensory block could not be prolonged with the prolongation of operation time. Thirdly, as we administered SA into the L4–5 space, the influence of injection location on the dose should be considered when interpreting the data from this SA study regarding other injection locations.

Regarding the mechanism underlying the differences in MLAD, we only limited our study to the differences in intervertebral space location and did not study the differences in needle angle. Compared with traditional LG SA, there is an approximately 45° angle between the needle entry point and the sagittal plane of the back during UG SA. Different needle entry angles may also affect the spread of local anesthetics within the spinal canal, leading to dosage differences between the two SA methods. This phenomenon needs to be explored further in future studies.

Conclusions

Real-time UG SA requires a higher MLAD of ropivacaine at the L4-5 level than traditional LG SA. This may be due to LG SA resulting in less accurate localization, which leads to more cephalad localization. Regarding the different concentrations of ropivacaine (regardless of whether SA was UG or LG), we found that 0.5% ropivacaine results in a shorter motor blockade time and is more beneficial for early postoperative ambulation and accelerating postoperative rehabilitation.
