Integrative analysis of long non-coding RNA and messenger RNA expression in toll-like receptor 4-primed mesenchymal stem cells of ankylosing spondylitis

Introduction

Ankylosing spondylitis (AS) is a chronic inflammatory rheumatic disease characterized by inflammatory back pain and asymmetrical peripheral arthritis (1). Previous studies have shown that AS is closely related to immune dysfunction; however, the pathogenesis of AS remains largely unknown. Mesenchymal stem cells (MSCs) are a group of self-renewing cells that have a significant immunomodulatory ability, which allows them to regulate T cell proliferation and differentiation and inhibit dendritic cell (DC) maturation (2,3). According to recent studies, abnormal immunoregulation by MSCs can lead to several autoimmune diseases, such as immune thrombocytopenia and systemic lupus erythematosus (SLE) (4-6). In our previous study, we isolated MSCs from the bone marrow (BM) aspirates of AS patients by density gradient centrifugation as described in our previous study (7). We found that reduced immunoregulatory ability of MSCs in AS patients may play a significant role in the pathogenesis of this disease (8). Furthermore, our clinical trial demonstrated that intravenous infusion of MSCs from healthy donors (HDs) was a feasible, safe, and effective approach for the treatment of AS (7). Our research results indicate that it is essential to elucidate the mechanism of abnormal immunoregulatory function of AS-MSCs. However, our understanding of the immunoregulatory function of AS-MSCs is still in its infancy, and further characterization and identification of key factors regulating these properties are needed.

Toll-like receptors (TLRs), the most characterized pattern recognition receptors (PRRs), which are capable of potently activating different cell types, could be highly expressed on most immune cells, as well as other cell types including chondrocytes, endothelial cells, and fibroblasts (9). Their downstream signaling pathways lead to the production of a wide range of immune stimulatory cytokines and chemokines (10). Aberrant activation of TLRs may result in unrestricted inflammatory responses, suggesting that the TLR family may play a pivotal role in the development of autoimmune diseases (11). Additionally, TLR pathway activation can also generate autoimmunity as well as long-term inflammation (12). Emerging evidence further suggests a role for TLR in the pathogenesis of spondyloarthropathies, including AS (13). TLRs, especially TLR4, have also been demonstrated to play important roles in regulating the immunomodulatory properties of MSCs (14). Liotta et al. found that ligation of TLR4 suppressed the inhibitory effects of human BM-MSCs on T cell proliferation by downregulating Jagged-1 expression (15). Waterman et al. demonstrated that MSCs could be primed towards a pro-inflammatory phenotype after TLR4 activation (16). In contrast, Opitz et al. reported that TLR4 enhanced the immunosuppressive properties of human BM-MSCs by directly inducing indoleamine 2,3-dioxygenase 1 (IDO1) (17). The expression of TLR4 is essential for the suppressive activity of MSCs; it has been demonstrated that TLR4 deletion is associated with a diminished suppressive effect in vitro and a loss of therapeutic effect in an experimental autoimmune encephalomyelitis (EAE) model in MSCs-TLR4 knockout mice (18). Our previous study found that the expression of TLR4 in MSCs was downregulated in AS patients compared to HDs (19). Hence, the reduced inhibitory effects of AS-MSCs may be caused by the abnormal expression and function of TLR4. Unfortunately, inconsistent results have been reported in recent years, and the potential immunoregulatory mechanisms by which TLR4 controls the immunoregulatory ability of AS-MSCs remains unclear and must be addressed.

Non-coding RNAs (ncRNAs) are a class of non-protein-coding RNA and functional RNA molecules that include microRNA (miRNA), long non-coding RNAs (lncRNA), and circular RNAs (circRNA) (20). Overwhelming evidence has indicated that various ncRNAs are implicated in human disease processes. For example, miRNAs are key molecules in various diseases (21). In recent years, lncRNAs (>200 nt RNA molecules) have been found and studied to play a role in the development and evolution of disease. LncRNAs are important epigenetic regulators and thus participate in crucial roles in various cell biological behaviors (22). For example, lncRNA-PCAT1 negatively regulates miR-145-5p, which promotes TLR4 expression to stimulate osteogenic differentiation by activating the TLR signaling pathway in human adipose-derived stem cells (23). Specifically, lncRNAs are widely involved in the regulation of immune system homeostasis. LncRNA NEAT1 promotes the inflammatory response in sepsis-induced liver injury via the Let-7a/TLR4 axis (24). Lipopolysaccharide (LPS)-induced lncRNA Mirt2 can function as a checkpoint to prevent aberrant activation of inflammation and is a potential regulator of macrophage polarization (25). LncRNA MALAT1 regulates inflammatory cytokine production in LPS-stimulated human gingival fibroblasts through sponging miR-20a and activating the TLR4 pathway (26). Though several key DE mRNAs and DE lncRNAs have been identified to try to provide some information for understanding the pathogenesis of AS and developing potential biomarkers for AS (27). However, the molecular mechanism by which lncRNAs participate in the immunoregulatory function of MSCs from AS, particularly after TLR4 activation by ligands stimulation, is still unclear.

The current study presents an integrative analysis of lncRNA-messenger RNA (mRNA) expression profiles and functional networks involved in the TLR4-primed immunoregulation of AS-MSCs. These results improve our understanding of the roles of lncRNAs in the immunoregulatory ability of AS-MSCs and could provide potential targets to improve the curative effect of MSCs in AS.

We present the following article in accordance with the MDAR reporting checklist (available at https://dx.doi.org/10.21037/atm-21-5020).

Methods

AS-MSC isolation and cell culture

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The present study was approved by the ethics committee of Sun Yat-sen Memorial Hospital, Sun Yat-sen University (No. 2020-KY-083). In addition, informed consent was obtained from all patients. MSCs were isolated from BM aspirates collected from AS patients who provided informed consent through density gradient centrifugation, as described in our previous study (7). After density gradient centrifugation, MSCs were isolated through plastic adherence, and grown at 37 °C in an atmosphere of 5% CO₂ for 1 week. The MSCs were trypsinized when the cultures reached 80–90% confluence. MSCs in passages three to five were used in subsequent experiments. MSCs were identified on the basis of immunological phenotypes and the triple-lineage differentiation capability, as previously described (7). After identifying MSC immunophenotypic markers by flow cytometry, cells in passages three to five were used for subsequent experiments.

Pre-stimulation of TLR4 on AS-MSCs

To stimulate TLR4 on AS-MSCs effectively, determining the proper stimulating concentration and treatment time of the LPS (TLR4 ligand) was necessary. For the time-based stimulation test, 1.0 µg/mL LPS (Sigma-Aldrich, USA) was added to the culture medium at different times (0, 2, 4, 8, 12, and 24 hours) before a mixed lymphocyte reaction (MLR) was performed. For the concentration-based stimulation test, different concentrations (0, 0.1, 1, and 10 µg/mL) of LPS were added to cultured cells for the previously selected time. The best conditions for TLR4 activation in AS-MSCs were evaluated by assessing the level of p38 phosphorylation through western blotting. After determining the best stimulation time and concentration of LPS, MSCs were pre-primed before co-culturing with peripheral blood mononuclear cells (PBMCs) and gene analysis.

Co-culture of AS-MSCs and PBMCs for PBMC proliferation analysis

AS-MSCs were primed with 1 µg/mL LPS for 4 hours prior to co-culturing with PBMCs to activate TLR4. PBMCs were harvested from blood samples collected from HDs using the Ficoll-Paque density gradient centrifugation method and then labeled with carboxyfluorescein diacetate succinimidyl ester (CFSE; BD Bioscience, USA). PBMCs were incubated with 5 µM CFSE in phosphate-buffered saline (PBS) at 37 °C for 5 mins. Following incubation, the staining reaction was terminated by washing the PBMCs with complete medium twice. For co-culturing with AS-MSCs (effector cells), AS-MSCs at a density of 1×10⁵ cells/well seeded in six-well plates were stimulated with or without 1 µg/mL LPS for 4 hours and then subjected to Co-60 irradiation (30 Gy). CFSE-labeled PBMCs (responder cells) at a cell density of 1×10⁶ were then added to the MSC cultures. The co-cultures were stimulated with human anti-CD3/CD28 monoclonal antibodies (mAbs; CD3: 200 ng/mL; CD28: 1 µg/mL, BD Bioscience, USA) for 5 days, after which the PBMCs were harvested and stained with an anti-CD4-FITC antibody (BD Bioscience, USA). Cell proliferation was evaluated using flow cytometry. A minimum of 10,000 live cell events gated in scatter plots were analyzed for each sample.

Library construction and high-throughput sequencing

Three MSC samples from five AS patients were selected randomly and separated into two subgroups: MSCs cultured without stimulation (control group, samples C1–C3) and MSCs stimulated with 1 µg/mL LPS for 4 hours to activate TLR4 specifically (experimental group, samples T1–T3). The total RNA concentration was quantified with a NanoDrop ND-2000 (Thermo Scientific, MA, USA), and RNA integrity was assessed using an Agilent Bioanalyzer 2100 (Agilent Technologies, USA). Sample labeling, microarray hybridization, and washing were performed according to the manufacturer’s standard protocols. Briefly, total RNA was transcribed into double-stranded complementary DNA (cDNA), which was then synthesized into complementary RNA (cRNA) and labeled with Cyanine-3-CTP. The labeled cRNAs were hybridized onto the microarray. After washing, the arrays were scanned using an Agilent Scanner G2505C (Agilent Technologies, USA). The Agilent Human lncRNA Microarray 2018 (4×180 k, Design ID: 085630) was used in this experiment, and data analysis of the six samples was conducted by OE Biotechnology Co., Ltd. (Shanghai, China).

Expression analysis

Feature Extraction software (version 10.7.1.1, Agilent Technologies) was used to analyze array images to obtain raw data. GeneSpring (version 14.8, Agilent Technologies) was employed to complete the basic analysis with the raw data. First, the raw data were normalized with the quantile algorithm. Probes with at least one condition out of two conditions having flags in “Detected” were chosen for further data analysis. Differentially-expressed (DE) genes were then identified through fold change data as well as the P value calculated with a t-test. The threshold for up- and downregulated genes was set at a fold change ≥2.0 and a P value ≤0.05. Afterwards, gene ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) analyses were applied to determine the roles of these DE mRNAs. Finally, hierarchical clustering was performed to display the distinguishable gene expression patterns among samples.

Quantitative real-time PCR (qRT-PCR) validation

To validate the reliability of high-throughput RNA-sequencing (RNA-seq) and explore the expression trends of mRNAs and lncRNAs, we performed qRT-PCR for biological validation. Total RNA was isolated from AS-MSCs with or without LPS stimulation using TRIzol reagent (Thermo Scientific, MA, USA) according to the manufacturer’s protocol. cDNA was transcribed using a PrimeScript RT reagent kit (Takara, Otsu). QRT-PCR was then performed, and the data were analyzed using the 2^−ΔΔCt method. The primer sequences used in the qRT-PCR assay are provided in Table S1.

Co-expression network of lncRNAs with mRNAs

To further examine the potential roles of DE lncRNAs and mRNAs in TLR4-primed AS-MSCs, a DE lncRNA-mRNA co-expression network was constructed. First, the Pearson correlation coefficients (PCC) between the expression levels of each DE lncRNA-DE mRNA pair in the TLR4-primed AS-MSCs and unstimulated AS-MSCs were calculated. Next, the DE lncRNA-DE mRNA pairs with an absolute PCC value ≥0.85 and P<0.05 were defined as co-expressed DE lncRNA-DE mRNA pairs. The co-expressed DE lncRNA-DE mRNA pairs in which the expression level of the DE mRNA was positively correlated with the expression level of the DE lncRNA in TLR4-primed AS-MSCs were defined as positively co-expressed DE lncRNA-DE mRNA pairs. In contrast, the co-expressed DE lncRNA-DE mRNA pairs in which the expression level of the DE mRNA was negatively correlated with that of the DE lncRNA in TLR4-primed AS-MSCs were defined as negatively co-expressed DE lncRNA-DE mRNA pairs. The co-expressed DE lncRNA-DE mRNA networks were visualized using Cytoscape 3.0 software (National Institute of General Medical Sciences, USA).

Cis- and trans-regulation predictions of DE lncRNAs

It has been suggested that lncRNAs regulate gene expression through both cis- and trans-regulation. For cis-regulation prediction, we identified each paired lncRNA and mRNA using the following procedures: (I) the mRNA loci were within 100-kb windows upstream or downstream of the given lncRNA; and (II) the Pearson correlation of lncRNA-mRNA expression was significant (P≤0.05). For trans-regulation prediction, we enriched the co-expressed mRNAs with DE lncRNAs that significantly overlapped with the host genes of transcription factors (TFs). Using the threshold P<0.05, each lncRNA could be connected with one to more than a dozen TFs, and each pair of lncRNA-TF was the result of several gene enrichments based on the hypergeometric cumulative distribution function. We then constructed the lncRNA-TF-mRNA network using Cytoscape software.

Statistical analysis

Data were expressed as the mean ± standard deviation (SD) and were analyzed using the statistical software package SPSS16.0 (IBM, USA). Pearson correlation was used for lncRNA-mRNA co-expression analyses. A P value <0.05, fold enrichment >2, and log₂fold change >1 were considered statistically significant.

Results

The effect of TLR4 activation on MSCs is time- and dose-dependent

To investigate whether the activation of TLR4 in MSCs can affect the immunoregulatory ability of these cells, MSCs from AS patients were pre-stimulated with LPS before being co-cultured with PBMCs. To determine the best stimulation time and concentration for the TLR4 ligand used, the level of p38 phosphorylation was examined by western blotting. AS-MSCs were first exposed to LPS at a concentration of 1 µg/mL for the indicated times (0, 2, 4, 8, 12, and 24 hours) and then treated with three different concentrations (0, 0.1, 1, and 10 µg/mL) of stimuli for the previously selected time. The upregulation of the phospho-p38 level was highest at 4 hours with a LPS concentration of 1 µg/mL, and declined thereafter (Figure 1A).

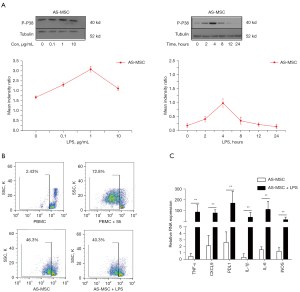

Figure 1 The immunoregulatory function of TLR4-primed AS-MSCs. (A) To determine the best duration and concentration of TLR4 ligand pre-stimulation, we examined the level of p38 phosphorylation by western blotting. AS-MSCs were exposed to LPS at four different concentrations (0, 0.1, 1, and 10 µg/mL) for 4 hours or treated at a concentration of 1 µg/mL for the indicated time (0, 2, 4, 8, 12, or 24 hours). The upregulation of the phospho-p38 level was highest at 4 hours with a concentration of 1 µg/mL LPS, and declined thereafter. (B) AS-MSCs were pre-stimulated with or without 1 µg/mL LPS for 4 hours and then co-cultured with PBMCs at a ratio of 1:10 (MSCs: PBMCs) for 5 days. All PBMCs were then collected for assessment by flow cytometry to determine the positive percentage of CFSE-diluted cells (gated) to evaluate proliferation. AS-MSCs inhibited the proliferation of PBMCs, and this effect was strengthened by the activation of TLR4. (C) The gene expression of cytokines and chemokines in AS-MSCs after LPS stimulation was detected by qRT-PCR. **, P<0.01. TLR4, toll-like receptor 4; AS, ankylosing spondylitis; MSCs, mesenchymal stem cells; LPS, lipopolysaccharide; PBMCs, peripheral blood mononuclear cells; CFSE, carboxyfluorescein diacetate succinimidyl ester.

TLR4-primed AS-MSCs demonstrate an enhanced inhibitory effect on CD4⁺ T cell proliferation

Previous reports have shown that a co-culture of unprimed MSCs with PBMCs can inhibit the proliferation and/or activation of PBMCs (28). Thus, we sought to assess the potential influence of TLR4 activation on the immunoregulatory effect of MSCs derived from AS patients. To this end, MSC-PBMC co-culturing was conducted with CFSE-labeled PBMCs (responder cells) co-cultured with unprimed or TLR4-primed MSCs (effector cells) for 5 days, after which time the proliferating responders were sorted by flow cytometry for CD4 positivity and then gated on CFSE expression. As shown in Figure 1B, 72.8% of the CD4⁺ T cells underwent proliferation when cultured without MSCs, which was reduced to 46.3% when cultured with AS-MSCs. Activation of TLR4 with 1 µg/mL LPS significantly enhanced the immunoregulatory effect of AS-MSCs, which reduced CD4⁺ T cell proliferation to 40.3% (P<0.05) (Figure 1B). qRT-PCR results suggested that the expression of several cytokines and chemokines (TNF-α, CXCL9, PDL1, IL-1β, IL-6, and iNOS) was strengthened after stimulation with LPS (Figure 1C).

Identification of DE mRNAs and lncRNAs

A total of 698 mRNAs were DE in TLR4-primed MSCs compared to unprimed MSCs from AS patients. Among these genes, 594 mRNAs were upregulated and 104 mRNAs were downregulated. The DE mRNAs are depicted using a clustergram (Figure 2A). The 20 mRNAs with the largest fold changes are shown in Table 1. Several immunoregulatory cytokines and chemokines, including CXCL10, CXCL11, IDO1, CXCL8, CXCL1, CCL20, IL-6, and SOD2, which are secreted by MSCs and play important roles in regulating immunocytes, were included in this list. A total of 147 lncRNAs, including 107 upregulated and 40 downregulated lncRNAs, were DE in TLR4-primed MSCs compared to unprimed MSCs from AS patients. The DE lncRNAs are depicted using a clustergram (Figure 2B). Both of the DE mRNA and LncRNAs are also showed by volcano plots (Figure 2C,2D). The 10 lncRNAs with the largest fold changes are shown in Table 2.

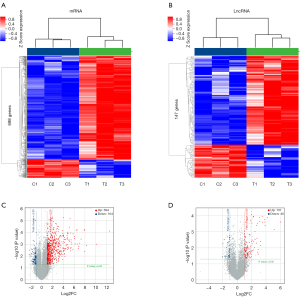

Figure 2 Identification of DE lncRNAs and mRNAs. (A) Heatmaps of DE mRNAs between TLR4-primed AS-MSCs and unstimulated AS-MSCs. (B) Heatmaps of DE lncRNAs between TLR4-primed AS-MSCs and unstimulated AS-MSCs. (C) Volcano plots of DE mRNAs between TLR4-primed AS-MSCs and unstimulated AS-MSCs. (D) Volcano plots of DE lncRNAs between TLR4-primed AS-MSCs and unstimulated AS-MSCs. DE, differentially-expressed; lncRNAs, long non-coding RNAs; mRNAs, messenger RNAs; TLR4, toll-like receptor 4; AS, ankylosing spondylitis; MSCs, mesenchymal stem cells; FC, fold change.

Validation of DE mRNA and lncRNA expression levels

To confirm the RNA-seq results, several important DE mRNAs and lncRNAs were assessed by qRT-PCR. We found that the expression of mRNAs (CXCL1, CXCL8, CXCL10, CXCL11, and CCL20) and lncRNAs (MIR3142HG, LOC105371619, LOC105374444, PACERR, and LOC105375914) was significantly upregulated in TLR4-primed AS-MSCs compared to unstimulated AS-MSCs (P<0.05) (Figure 3A,3B). All qRT-PCR results were consistent with the RNA-seq results, confirming the reliability of the sequencing data.

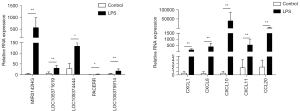

Figure 3 Validation of DE mRNAs and lncRNAs. (A) DE lncRNAs were confirmed by qRT-PCR. (B) DE mRNAs were confirmed by qRT-PCR. *, P<0.05; **, P<0.01. DE, differentially-expressed; mRNAs, messenger RNAs; lncRNAs, long non-coding RNAs; qRT-PCR, quantitative real-time PCR; LPS, lipopolysaccharide.

GO and KEGG analyses

We performed GO analysis of the DE mRNAs and lncRNAs. The top 10 GO terms related to biological processes, cellular components and molecular functions are provided in Figure 4A and Table S2. In the biological processes category, the top five GO terms associated with DE mRNAs were defense response to virus, the type I interferon signaling pathway, the interferon-gamma-mediated signaling pathway, inflammatory response, and response to virus. In the molecular function category, the top five GO terms associated with the DE mRNAs were chemokine activity, CXCR chemokine receptor binding, ubiquitin-protein transferase activity, double-stranded RNA binding and TF activity, and sequence-specific DNA binding. In the cellular component category, the top five GO terms associated with the DE mRNAs were cytoplasm, cytosol, extracellular space, nucleus, and extracellular region.

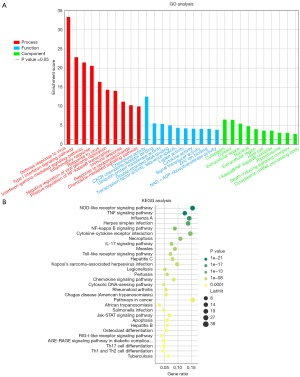

Figure 4 GO and KEGG analyses of DE mRNAs. (A) The top 10 terms identified by GO analysis of molecular functions, biological processes, and cellular components are shown. (B) DE mRNAs were clustered by KEGG analysis, and the top 30 pathways are shown. GO, gene ontology; KEGG, Kyoto Encyclopedia of Genes and Genomes; DE, differentially-expressed; mRNAs, messenger RNAs.

KEGG analysis of the DE mRNAs determined that 75 pathways were significantly altered in TLR4-primed MSCs from AS patients. The top 30 affected pathways are shown in Figure 4B. The top 10 pathways and DE mRNAs associated with these pathways are shown in Table S3. The top pathways included the NOD-like receptor (NLR) signaling pathway, the TNF signaling pathway, the NF-κB signaling pathway, cytokine-cytokine receptor interaction, the IL-17 signaling pathway, and the TLR signaling pathway, which contribute to the immunoregulatory function of AS-MSCs.

Interaction and co-expression network analyses

The interactions between proteins encoded by DE mRNAs are shown in Figure 5A. OAS2, OAS3, OAS1, OASL, STAT1, IRF9, HLA-F, IRF1, IRF2, and HERC5 were identified as key genes that interact with many other DE mRNAs in this network. Based on the expression levels of DE lncRNAs and DE mRNAs, the PCC describing the co-expression association between 147 DE lncRNAs and 698 DE mRNAs was calculated. A total of 1,072 DE lncRNA-DE mRNA co-expression pairs were obtained, with an absolute PCC value ≥0.85 and P<0.05. Among these pairs, 706 lncRNA-mRNA pairs were identified as being positively co-expressed, whereas 366 lncRNA-mRNA pairs were found to be negatively co-expressed (Figure 5B).

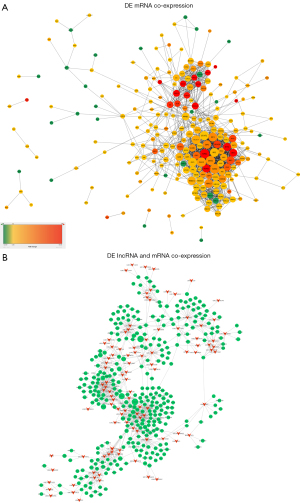

Figure 5 Advanced analyses of DE lncRNAs and mRNAs. (A) Interactions among mRNAs. Red and green represent upregulated and downregulated mRNAs, respectively. The size of the ellipse represents the fold change of DE mRNAs. (B) Co-expression network of DE lncRNAs and DE mRNAs. Triangle and ellipse represent lncRNA and mRNA, respectively. The size of the ellipse represents the fold change of DE mRNAs. DE, differentially-expressed; lncRNAs, long non-coding RNAs; mRNAs, messenger RNAs.

Cis-regulation prediction of DE lncRNAs

Cis-regulation, which regulates the transcription of nearby genes located on the same chromosome, is vital for gene expression. A total of eight lncRNA transcripts and their predicted cis-regulated protein-coding genes were identified in the top 20 cis-regulated genes (Figure 6A). LOC107986655 was predicted to cis-regulate HIVEP2; PACERR was predicted to cis-regulate PTGS2; MICB-DT was predicted to cis-regulate MICB; LOC105373925 was predicted to cis-regulate SP140L; LOC107984251 was predicted to cis-regulate IFIT5; LOC112268267 was predicted to cis-regulate GBP2; LOC101926887 was predicted to cis-regulate IFIT3; and LOC105378085 was predicted to cis-regulate SOD2. These networks may provide valuable clues about these lncRNAs and their nearby coding genes in the development of AS.

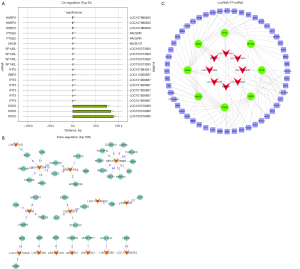

Figure 6 LncRNA-TF-mRNA network. (A) Top 20 terms for cis-regulation prediction. (B) Predicted trans-regulation of DE lncRNAs and mRNAs. The red triangle and deep green ellipse represent lncRNAs and TFs, respectively. (C) LncRNA-TF-mRNA network. The red triangle, green ellipse, and blue rectangle represent lncRNAs, mRNAs, and TFs, respectively. *, P<0.05; **, P<0.01. LncRNAs, long non-coding RNAs; TF, transcription factor; mRNAs, messenger RNAs; DE, differentially-expressed.

Trans-regulation prediction of DE lncRNAs

One of the important mechanisms through which lncRNAs function is by participating in particular pathways regulated by TFs. In this study, a top 500 lncRNA-TF network was constructed to provide key data for subsequent research, and showed that 15 lncRNAs participated in pathways regulated by TFs (Figure 6B). We then selected the abovementioned relationships among the lncRNAs and TFs and further introduced the target mRNAs to build the lncRNA-TF-mRNA network. Eight core pairs of lncRNAs and target mRNAs in the lncRNA-TF-mRNA network were obtained: PACERR-PTGS2, LOC105378085-SOD2, LOC107986655-HIVEP2, MICB-DT-MICB, LOC105373925-SP140L, LOC107984251-IFIT5, LOC112268267-GBP2, and LOC101926887-IFIT3 (Figure 6C).

Discussion

In our present research, we utilized high-throughput sequencing followed by bioinformatics analysis to investigate the mRNA and lncRNA expression profiles and functional networks of TLR4-primed AS-MSCs. These findings were then confirmed by qRT-PCR. KEGG pathway analysis indicated that some key pathways, such as the NF-κB and TLR signaling pathways, might contribute to the immunoregulatory function of TLR4-primed AS-MSCs. In addition, we obtained novel findings via bioinformatics analyses of DE transcripts, including identification of the most significantly altered GO categories, construction of a co-expression network for lncRNA function prediction, and cis- and trans-regulation predictions of lncRNAs. Our results provide a model that can be used to explore the roles of lncRNAs and mRNAs in the immunoregulatory mechanisms of TLR4-primed AS-MSCs.

MSCs are among the most important immunoregulatory cell types, and regulate the functions of many immune cells, including T cells, B cells, and DCs (29-31). Abnormal immunoregulation by MSCs can lead to several autoimmune diseases (4). MSCs from AS patients cannot maintain the balance of Th17/Treg cells and the imbalance of Th17/Treg cell subsets may contribute to inflammatory responses, suggesting that the reduced immunoregulatory ability of AS-MSCs may play a key role in the pathogenesis of AS (8,32). Accordingly, MSCs have been used to exert considerable therapeutic effects on several autoimmune diseases owing to their multilineage differentiation potential and high immunoregulatory properties (33,34). Notably, we also attempted to infuse MSCs from HDs into AS patients intravenously, since the immunoregulatory function of AS-MSCs themselves was reduced. The results of our clinical trial demonstrated that infusion of MSCs isolated from healthy individuals is a safe and efficient method for the treatment of AS (7). Unfortunately, the cause of the abnormal immunoregulatory ability of AS-MSCs remains unclear and needs to be addressed.

Accumulating evidence suggests that activation of TLRs can modulate the immunoregulatory functions of MSCs (15-17). In addition, emerging evidence further suggests a role for TLRs in the pathogenesis of spondyloarthropathies, including AS (13). Although inconsistent results of TLR4 immunoregulation in MSCs have been reported in recent years (15-17). The potential causes of this polarizing effect could be attributed to the specific stimulation protocols and culture conditions used including experimental set-ups, TLR agonist concentrations and stimulation times, sources of MSCs as effector cells, and PBMC or purified T cells as responder cell, which adds to the complexity of the situation. According to our previous study, the expression of TLR4 was downregulated in MSCs derived from AS patients, and compared with MSCs from HDs, TLR4-primed AS-MSCs possessed enhanced immunoregulatory effects limiting the proliferation of naive CD4⁺ T cells (19). TLR4 is essential for the suppressive activity of MSCs, as TLR4 deletion is associated with a diminished suppressive effect in vitro and a loss of therapeutic effect in MSCs-TLR4 knockout mice. Additionally, the immunoplasticity of MSCs through TLR4 activation is time-dependent to LPS exposure, which can lead to opposite therapeutic outcome in EAE (18). However, the precise mechanism underlying the enhanced immunoregulatory ability of TLR4-primed AS-MSCs remains unclear. Therefore, we measured the differential expression profiles of lncRNAs and mRNAs in AS-MSCs after TLR4 activation to identify the regulatory network of lncRNAs and mRNAs in these cells. The results showed that there were 698 DE mRNAs and 147 DE lncRNAs in TLR4-primed AS-MSCs compared with unstimulated cells. The top five mRNAs and lncRNAs, which may be involved in the regulatory dysfunction of AS-MSCs, were verified by qRT-PCR.

The mRNA expression profiles reflect the biological behaviors and functions of cells. In this study, KEGG pathway analysis revealed that 75 signaling pathways exhibited significant differences between TLR4-primed AS-MSCs and unstimulated AS-MSCs. Among these pathways, the NLR signaling pathway, TNF signaling pathway, NF-κB signaling pathway, cytokine-cytokine receptor interaction, and TLR signaling pathway were prominent. Recent studies have indicated that the activation of TLRs can activate the NF-κB and MAPK signaling pathways to promote the secretion of pro-inflammatory cytokines, such as IL-6, IL-12, TNF-α, and type I IFNs, which drive inflammation in AS (35). Consistent with these findings, we found that the expression of TNF-α, IL-6, and IL-1β in AS-MSCs was significantly increased after TLR4 activation, which supported the crucial roles of TLR4 in the NF-κB and MAPK signaling pathways identified by microarray analysis. In addition, as pathogen recognition receptors, both TLR and NLR activate pathways mediated by different adaptor proteins that are commonly found to activate NF-κB (36). The NF-κB-mediated activation of MSCs leads to the secretion of TNF-α and other cytokines. Elevated pro-inflammatory cytokine levels are one of the main manifestations of AS, as confirmed by previous research. Our results further confirmed the significant role of TLR4 in the pathology of AS. The selected top DE mRNAs and lncRNAs included in the NF-κB pathway might be possible upstream targets of pathological inflammation in AS.

The mRNA expression profiles are under the control of a series of epigenetic regulators, of which lncRNAs are an important component (22,37). In recent years, an increasing number of lncRNAs have been reported to perform key roles in the pathogenesis and development of AS. For example, lncRNA-AK001085 expression was found to be downregulated in AS patients, which served as a potential diagnostic indicator; thus, this lncRNA is considered a potential suppressor of AS (38). Our previous microarray study identified four lncRNAs (lnc-ZNF354A-1, lnc-LIN54-1, lnc-FRG2C-3, and lnc-USP50-2) that are involved in the abnormal osteogenic differentiation of AS-MSCs (39). However, the immunoregulatory function of AS-MSCs regulated by lncRNAs has not been explored. Our research identifies the lncRNA expression profile in an inflammatory environment based on previous studies, which provides a possible way to further explore the regulatory function of lncRNAs in AS. To the best of our knowledge, this study is the first to use microarray analyses to examine the roles of lncRNAs in TLR4-primed AS-MSCs.

In this study, several lncRNAs with the largest fold changes among DE lncRNAs were studied. For example, GBP1P1 is a lncRNA that acts as a prognostic biomarker for hepatocellular carcinoma (40). MIR3142HG can regulate the inflammatory response following IL-1β-mediated activation of human lung fibroblasts, which is a positive regulator of IL-8 and CCL2 release (41). The inflammatory response regulation by MIR3142HG indicates that it may contribute to the enhanced immunoregulatory ability of TLR4-primed AS-MSCs and the immunoregulatory dysfunction seen in AS. Unfortunately, most of the DE lncRNAs, such as LOC101926887, LOC105378410 and LOC107984251, have not yet been studied; further exploration is needed in the future.

Regulatory lncRNAs act in a cis and/or trans manner to influence or interact with nearby or distant genes (42). In our study, eight lncRNA transcripts were predicted to cis-regulate nearby protein-coding genes. In addition, we predicted the functions of trans-regulatory lncRNAs using TFs that regulate protein-coding gene expression. Fifteen lncRNAs were identified to function in a trans-regulation manner. Subsequently, eight core pairs of lncRNAs and target mRNAs in the lncRNA-TF-mRNA network were obtained: PACERR-PTGS2, LOC105378085-SOD2, LOC107986655-HIVEP2, MICB-DT-MICB, LOC105373925-SP140L, LOC107984251-IFIT5, LOC112268267-GBP2 and LOC101926887-IFIT3. Among these core pairs, PACERR (PTGS2 Antisense NFKB1 Complex-Mediated Expression Regulator RNA, also known as PACER) is a novel lncRNA that has been found to interact with NF-κB transcriptional regulators to promote the expression of prostaglandin-endoperoxide synthase 2 (PTGS2, cyclooxygenase-2, also known as COX2) (43). COX2 can produce prostaglandin E2 (PGE2) and amplify the Th17-mediated autoimmune process via the COX2-PGE2-EP2/EP4-NF-κB loop (44). Targeting COX2 activity with non-steroidal anti-inflammatory drugs (NSAIDs) or agents designed to specifically block COX-2 activity have been approved for therapeutic use (45). Notably, NSAIDs are recommended as the first-line treatment for AS patients due to their high efficiency in reducing back pain and stiffness in patients with axial spondyloarthritis (46). The pair of PACERR and PTGS2 may play a key role in the immunoregulation in TLR4-primed AS-MSCs, which maybe an important potential biomarker for diagnosis and target for drug therapy. SOD2 is a component of the antioxidant defence systems, which are crucial in defending cells against oxidative stress. SOD2-overexpressing BM-MSCs have been shown to exhibit an enhanced therapeutic effect on brain injury in traumatic brain injury mice (47). Moreover, MSCs could enhance the expression of the SOD2 antioxidant gene to adapt to the oxidative environment and exert their therapeutic effect (48). Exposure to LPS induces oxidative stress in AS-MSCs, and LOC105378085 may regulate the expression of SOD2 in AS-MSCs to defend cells against oxidative stress and to exert the immunoregulatory effects of the AS-MSCs. Finally, the above mentioned 23 DE lncRNA and eight lncRNA-target mRNA pairs identified in the present study provide novel information for understanding the biological functions of lncRNAs in AS-MSCs; however, the underlying mechanisms of how “lncRNA-TF-target gene” networks affect TLR4-induced immunoregulation needs to be clarified.

Our study has several limitations that should be noted. Firstly, RNA-seq is an important method to screen possible lncRNAs and mRNAs associated with specific diseases; however, the results of big-data analyses may include false positives. Therefore, we performed qRT-PCR to further verify the differential expression. Secondly, we predicted lncRNA functions only indirectly using bioinformatics analysis and validated several DE lncRNAs. Further functional studies on the mechanism are warranted to clarify the roles of lncRNAs.

Conclusions

TLR4 activation can enhance the immunoregulatory ability of MSCs in AS. This study described the lncRNA and mRNA expression profiles and functional networks in TLR4-primed AS-MSCs. Eight core pairs of lncRNA and target mRNA in the lncRNA-TF-mRNA network were identified in TLR4-primed AS-MSCs. These results provide insight into the pathogenesis of immunoregulatory dysfunction in AS-MSCs, which may help to elucidate possible molecular mechanisms and therapeutic targets in AS.

Acknowledgments

Funding: This work was supported by the Guangdong Natural Science Foundation (grant numbers: 2020A1515011388), the Sun Yat-sen Memorial Hospital Yat-sen Qihang Youth Project (No. YXQH202009), and the China Postdoctoral Science Foundation (2020TQ0376).

Footnote

Reporting Checklist: The authors have completed the MDAR reporting checklist. Available at https://dx.doi.org/10.21037/atm-21-5020

Data Sharing Statement: Available at https://dx.doi.org/10.21037/atm-21-5020

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/atm-21-5020). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The present study was approved by the ethics committee of Sun Yat-sen Memorial Hospital, Sun Yat-sen University (No. 2020-KY-083). In addition, informed consent was obtained from all patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
