Achyranthes bidentata polypeptide alleviates neurotoxicity of lipopolysaccharide-activated microglia via PI3K/Akt dependent NOX2/ROS pathway

Introduction

Achyranthes bidentata (A. bidentata) is a famous traditional Chinese medicine, with the effect of dissipating blood stasis, nourishing liver and kidney, and strengthening muscles and bones (1,2). A. bidentata contains a variety of bioactive components, including saponins, polysaccharides, and polypeptides. Our research team carried out a series of studies on the aqueous extract of A. bidentata and A. bidentata polypeptides (ABPP) and showed that the aqueous extract of A. bidentata could combat glutamate-induced neurotoxicity in hippocampal neurons (3), ABPP could resist excitatory toxic neuronal injury through inhibiting the N-methyl-D-aspartate (NMDA) receptors 2B subunit (4), while further purification and analysis of ABPP showed that the fraction k (ABPPk) had the best neuroprotective effect in cerebral ischemic model and Parkinson’s disease model (5-7). In addition, recent studies have shown that ABPPk could reduce the production of nitric oxide (NO), prostaglandin E2 (PGE2), tumor necrosis factor α (TNF-α), and interleukin 6 (IL-6) in lipopolysaccharide (LPS)-activated BV2 microglia (8). However, the mechanisms by which ABPPk alleviate the neurotoxicity of activated microglia remain unclear.

As innate immune cells in the brain, microglia are usually the first responders to brain injury (9). Microglia activated by injury rapidly undergo morphological changes, from ramified to amoeba-like morphology and serve a dualistic role performed by different polarization phenotypes in response to different microenvironmental cues (10). On the one hand, alternatively activated M2 microglia produce chemokines to recruit additional cells to clear pathogens and cell debris, resolve local inflammation, and release nutritional factors to promote brain recovery. On the other hand, classically activated M1 microglia produce pro-inflammatory cytokines, reactive oxygen species (ROS), excitatory amino acid and so on to magnify tissue damage and hinder central nervous system repair (11-13). Studies in cultured neurons demonstrated that most of microglia-derived inflammatory cytokines, superoxide, nitric oxide (NO), etc. can damage neurons and lead to necrosis or apoptosis through a cascade reaction. Excitatory amino acid, especially glutamate, released by activated microglia can cause excitatory neurotoxicity leading directly to neuronal death, which is thought to be the primary cause of neurotoxicity of microglia (14-18). LPS stimulation triggered oxidative stress and respiratory burst in microglia, leading to continuous release of glutamate, which may be the key to the conversion of oxidative stress into excitatory toxic stress in neuroinflammation (19,20), and active ingredients or compounds that can interfere with these events, including the regulation of glutamate release from activated microglia, may be useful in the treatment of neuroinflammatory diseases (21). We speculate that intervention with ABPPk in microglia would reduce its neurotoxicity. In this study, we investigated the effect of ABPPk on the neurotoxicity of LPS-stimulated microglia. In vitro, the toxicity of LPS-activated microglia conditioned medium (MCM) on neurons was evaluated from the aspects of cell viability, lactate dehydrogenase (LDH) release, calcium influx and mitochondrial membrane potential (MMP) changes. In vivo, the effect of ABPPk on LPS-induced neuronal death, microglial activation, and cell apoptosis was investigated, and the mechanism of ABPPk alleviating microglial neurotoxicity was explored. We present the following article in accordance with the MDAR reporting checklist (available at https://dx.doi.org/10.21037/atm-21-4027).

Methods

Reagents and antibodies

LPS (Escherichia coli O111:B4) and poly-L-lysine (PLL) were purchased from Sigma (St. Louis, USA) and CCK-8 was purchased from Dojindo (Kumamoto, Japan). Amplex^TM Red Glutamic Acid/Glutamate Oxidase Assay Kit (#A-12221) was purchased from Invitrogen (Carlsbad, USA), while 2,7-Dichlorofluorescein diacetate (DCFH-DA) kit (#S0033), 5,5',6,6'-tetrachloro-1,1',3,3'-tetraethyl-imidacarbocyanine (JC-1) kit (#C2006), lactate dehydrogenase (LDH) cytotoxicity assay kit (#C0017), TUNEL apoptosis assay kit (#C1086) as well as SC79 (#SF2730) were all purchased from Beyotime (Shanghai, China). IL-1β ELISA kit (#BE45111) was obtained from IBL International (Hamburg, Germany). LY294002 (#9901S) was purchased from Cell Signaling Technology (Danvers, USA). Dulbecco’s modified Eagle’s medium (DMEM), fetal bovine serum (FBS), Neurobasal medium, B27, penicillin, and streptomycin were all from Invitrogen (Carlsbad, USA). A protein extraction kit, BCA protein assay kit, and ECL Western Blotting Substrate were all purchased from Thermo Fisher Scientific (Waltham, USA). Antibodies specific for caspase 1 (#ab207802), NeuN (#ab104224), and NOX2 gp91phox (#ab80508) were obtained from Abcam (Cambridge, UK) and antibodies specific for NLRP3 (#15101S), phosphorylated-Akt (Ser473) (#4060S), Akt (#9272S) and β-actin (#3700S) were obtained from Cell Signaling Technology (Beverly, USA). Antibody specific for Iba1 (#019-19741) was obtained from Wako (Kyoto, Japan).

Preparation of ABPPk

The root of A. bidentata was purchased from a local Chinese medicine grocer and identified by the pharmacist. ABPPk was isolated from A. bidentata and purified by HPLC as previously described (5,22).

Primary cell culture and treatment

Primary microglia were isolated from the brain of newborn 1 d C57BL/6 mouse pups using a simple culture procedure with some modifications as reported previously (23). Briefly, the cortical and hippocampal tissues were digested with 0.125% trypsin at 37 °C for 15 min, then 1 mL FBS was added to terminate the digestion. The homogeneous cell suspension was plated in PLL-coated Corning T-75 flasks containing DMEM supplemented with 10% FBS and antibiotics. The culture medium was changed the next day to remove cell debris. Within 7 days, the astrocytes at the bottom of the flask formed a layer of fused cells, while microglia and some oligodendrocytes grew at the top of the astrocyte layer. On the 8th day of culture, microglial cells were recovered by trypsin proteolysis using 0.05% trypsin. These resulting cells were purified microglia and were seeded in PLL-coated culture plates at a proper density. To examine the effect of ABPPk on LPS-activated microglia, cells were pretreated with different concentrations of ABPPk (0.2, 1, and 5 µg/mL) for 30 min followed by LPS (1 µg/mL) stimulation for 24 h, then the subsequent experiments were performed as designed. The concentration of ABPPk was referred to our previous study (8).

Primary cultures of cortical neurons were obtained from embryonic day 16 (E16) Sprague-Dawley (SD) rats’ embryos as previously described (24). In brief, the cortical tissues were harvested and digested enzymatically into cell suspensions. Cells were then re-suspended in DMEM containing 10% FBS at a proper density and plated onto PLL-coated cell culture plates, followed by incubating in humidified atmosphere of 95% air and 5% CO₂ at 37 °C. After 4 h, and when cells had attached to the substrate, the medium was exchanged to Neurobasal medium supplemented with 2% B27 supplement, then re-incubated for 7 days for follow-up experiments.

Quantitative real-time polymerase chain reaction (qRT-PCR)

Total RNA of microglia was extracted after 24 h stimulation in the presence or absence of ABPPk pretreatment using RNeasy Mini Kit (QIAGEN, CA, USA), then cDNA was synthesized from total RNA by reverse transcription using Omniscript RT kit (QIAGEN) as per the manufacturer’s instructions. qPCR was carried out in the Stepone RT-PCR instrument (Applied Biosystems, CA, USA) using SYBR Green Supermix (Bio-Rad, CA, USA). The housekeeping gene Gapdh was served as an internal control. Primers were designed and synthesized by GENEray Biotechnology (Shanghai, China). The primer sequences were as follows: IL-1β, F: GAGAGCATCCAGCTTCAAA, R: TCATCATCCCACGAGTCA; IL-18, F: AACGAATCCCAGACCAGAC, R: AGAGGGTAGACATCCTTCCAT; Gapdh, F: CGTATTGGGCGCCTGGTCACCAG; R: GACCTTGCCCACAGCCTTGGCAGC.

Measurement of extracellular glutamate

To evaluate the effect of ABPPk on LPS-induced glutamate release, microglia were planted on 96-well plates at a density of 5×10⁵ cells/mL, then pretreated with 0.2 µg/mL, 1 µg/mL or 5 µg/mL ABPPk for 30 min before 1 µg/mL LPS stimulation. After incubation for 24 h, glutamate release was detected by Glutamate assay kit according to the instructions; add 50 µL of the Amplex Red regent to each microplate well (10 wells per group), then the cells were incubated for 30 min at 37 °C in dark, while the untreated cells served as control. Fluorescence was measured in a microplate reader using the excitation of 530 nm and emission of 590 nm, and the amount of glutamate released (µM) was calculated using the standard curve.

Microglia conditioned medium (MCM) system

MCM was prepared as previously described (25). Microglia were seeded at a density of 5×10⁵ cells/mL in a 6-well culture plate, and after the cells were pre-treated with 5 µg/mL ABPPk for 30 min, 1 µg/mL LPS were added in the culture media. After 24 h, the culture media were collected and centrifuged at 1,200 rpm for 5 min to obtain the supernatant, which served as MCM. LPS stimulation without ABPPk pretreatment made L-MCM, and LPS stimulation after ABPPk pretreatment made A+L-MCM.

Cell viability assay

Cortical neurons were seeded in a 96-well plate with a density of 1×10⁶ cells/mL for 7 d, when the medium was removed and washed once with PBS solution. The prepared MCMs were used to stimulate the neurons for 24 h (10 wells per group), then 10 µL CCK-8 was added to each well and incubated at 37 °C in a water bath in the dark for 2 h to detect the cell viability. The absorbance was determined at a wavelength of 450 nm using a microplate reader (BioTek, Vermont, USA). The data were presented as the percentage of cell viability relative to the control.

Lactate dehydrogenase (LDH) release assay

Cortical neurons were seeded in a 96-well plate with a density of 1×10⁶ cells/mL for 7 d, at which time the medium was removed and then washed with PBS once. MCMs were then added for stimulation (10 wells per group), and after cultured for 24 h, 150 µL PBS-diluted LDH release reagent was added to each well. The plate was then shaken well, incubated for a further 1 h, then centrifuged at 1,000 rpm for 5 min; 120 µL supernatant was taken from each well and transferred into a new 96-well plate for determination, where a 60 µL LDH test solution was added to each well before mixing and incubation in the dark at room temperature for 30 min. The absorbance was determined at a wavelength of 490 nm using a microplate reader (BioTek, Vermont, USA). The data were presented as the percentage of cytotoxicity relative to the control.

Measurement of intracellular Ca²⁺

Cortical neurons were planted at a density of 1×10⁶ cells/mL onto a 96-well plate for 7 d, and after stimulation with different MCMs (6 wells per group), the intracellular Ca²⁺ concentration was measured with Fluo-4/AM by scanning laser confocal microscopy (Leica TCS SP2, Wetzlar, Germany). The cells were loaded with 5 µM Fluo-4/AM in Hank's solution at 37 °C in the dark for 45 min, then washed gently to remove extracellular Fluo-4/AM dye. Prior to stimulation, the dye-loaded cells were scanned for 100 s to obtain a basal level of intracellular Ca²⁺. Fluorescence was monitored every 10 s over a total period of 900 s (excitation at 488 nm and emission at 526 nm). The intensity was quantified over randomly 30 single neurons, and the data were expressed as the relative fluorescence intensity over the control.

Detection of mitochondria membrane potential (MMP)

The MMP (ΔΨm) of cortical neurons was detected with a fluorescent probe JC-1. For fluorescence images, cortical neurons were planted at a density of 1×10⁶ cells/mL onto PLL-coated slides for 7 d, and after stimulation with MCMs (3 slides per group), cultures were incubated with 2 mM JC-1 at 37 °C for 15 min. Slides were washed and mounted, and fluorescence images were acquired with a fluorescence microscope (Leica, Wetzlar, Germany). For flow cytometry, cortical neurons were planted at a density of 1×10⁶ cells/mL onto a PLL-coated 24-well plate for 7 d, and after stimulation with MCMs (3 wells per group), cells were collected and washed in PBS. After being re-suspended and adjusted to the density of 1×10⁶ cells/mL, cells were incubated with 2 mM JC-1 at 37 °C for 15 min, then washed and analyzed by flow cytometer (BD FACSCalibur, BD Bioscience, San Jose, CA). Photomultiplier settings were adjusted to detect JC-1 aggregate red fluorescent signals on FL2 detector (585 nm) and JC-1 monomer green fluorescent signals on FL1 detector (525 nm), then the percentage of living cells and apoptotic cells were calculated, respectively.

Measurement of ROS

For ROS analysis of primary microglia, cells were seeded in 96-well plates at a density of 5×10⁵ cells/mL, and grouped according to the experimental design (10 wells per group). After washing with DMEM, the cells were stained with 10 µM DCFH-DA in DMEM for 20 min at 37 °C in the dark, then washed twice with DMEM. Fluorescence of each group was detected by fluorescence microplate reader (BioTek, Vermont, USA) with excitation at 484 nm and emission at 530 nm, and the data were expressed as the percentage of fluorescence intensity to the control.

Animal model

A total of 18 postnatal 5-day Sprague-Dawley (SD) rat male pups were supplied by the Experimental Animal Center of Nantong University. The study was approved by the Administration Committee of Experimental Animals of Nantong University. All the experimental procedures were performed according to the Chinese Guidelines for the Care and Use of Laboratory Animals. Rat pups were randomly separated into 3 groups (6 animals per group): sham operation (Sham group), LPS injection (LPS group), and ABPPk pre-administration followed by LPS injection (ABPPk group). Model of LPS-induced brain injury was referred to previously reported literatures (26-28). The rat pup was anesthetized by intraperitoneal injection of avertin (1.25% bromethol, 0.2 mL/10 g body weight) (AIBI Bio-Tech, Nanjing, China), then a volume of 2 µL LPS (1 mg/kg) was injected using a microsyringe which was inserted perpendicularly through the skull to the brain at the location of 1.0 mm posterior and 1.0 mm left to the bregma, and 2.0 mm deep in a stereotaxic apparatus (RWD 68019, RWD, Shenzhen, China). Rat pups in the ABPPk group were first administrated with 2.5 mg/kg ABPPk (total volume of 2 µL) at the same location, and then injected with 2 µL LPS (1 mg/kg) 10 min later. Rat pups in the Sham group only exposed the skulls, but no injections were given. All animals survived the intracerebral injection and no one was excluded.

Immunofluorescence staining

Six hours after LPS injection, three rat pups of each group were sacrificed by transcardiac perfusion with saline followed by 4% paraformaldehyde (PFA) for brain section preparation. The brain was removed and post-fixed overnight in 4% PFA at 4 °C, followed by gradient dehydration with sucrose solution. Coronal frozen brain sections at 10 µm of thickness were prepared in a cryostat for immunofluorescence labeling. After blocking with 0.1% Triton X-100 and 5% normal goat serum at room temperature for 1 h, the sections were then incubated with mouse anti-NeuN (diluted 1:600) and rabbit anti-Iba1 (diluted 1:300) overnight at 4 °C. After washing with PBS, the slices were incubated with Alexa Fluor 555 or 488-conjugated secondary antibodies (goat anti-mouse, diluted 1:2,000; goat anti-rabbit, diluted 1:2,000, Molecular Probes, USA) in the dark at room temperature for 1 h. The slides were coverslipped with mounting media containing DAPI (Vector, USA) then photographed under a fluorescence microscope. The number of NeuN positive and Iba1 positive cells were counted by a blind investigator.

Terminal deoxynucleoitidyl transferase-mediated dUTP Nick-end labeling (TUNEL) assay

TUNEL assay kit was used to evaluate the apoptosis of cells in the brain 6 h after LPS injection. The frozen brain sections were washed with PBS twice for 10 min each time, then incubated with 0.5% Triton X-100 at room temperature for 5 min. Add 50 µL TUNEL detection solution to each section, and incubate at 37 °C for 1 h in the dark. Cover the slices with cling film to prevent evaporation of the TUNEL detection solution. After washing with PBS, slides were coverslipped with DAPI mounting media and photographed under the fluorescence microscope. The number of apoptotic cells were counted by a blind investigator and presented as TUNEL-positive cells/mm².

Enzyme-linked immunosorbent assay (ELISA)

Six hours after LPS injection, three rat pups of each group were sacrificed and the brains were removed quickly. After washing with pre-cooled saline, the brains were dried with filter paper and weighed. Pre-cooled homogenizing medium was added at a weight/volume ratio of 1:10 (mg/µL), homogenized in ice bath for 3 min, then centrifuged at 15,000 rpm at 4 °C for 10 min. IL-1β content in the supernatant was detected using the IL-1β ELISA kit, and the absorbance was measured at 450 nm using a microplate reader (BioTek, Vermont, USA). The content of IL-1β was calculated per gram of protein (pg/g).

Western blot analysis

The whole cell lysates of microglia were extracted and collected by centrifugation (13,000 rpm, 10 min, 4 °C), and protein concentrations were determined with Pierce™ BCA protein assay. Proteins were electrophoresed on 10% SDS-polyacrylamide gel and transferred to a PVDF membrane (Millipore, Bedford, MA, USA) which were then blocked in 5% non-fat milk for 1 h at room temperature and incubated with the specific primary antibodies (NLRP3, diluted 1:1,000; caspase 1, diluted 1:1,000; p-Akt, diluted 1:2,000; Akt, diluted 1:1,000; NOX2, 1 µg/mL; and β-actin, diluted 1:1,000) overnight at 4 °C. The membranes were incubated with HRP-conjugated secondary antibody for 1 h at room temperature, and the proteins were then detected with ECL Western Blotting Substrate. Quantitative analysis of Western blot was performed by ImageJ software (NIH Image, Washington, DC, USA).

Statistical analysis

All data were presented as mean ± SD using Graph Pad Prism 8.0 (Graph Pad software, San Diego, USA). The results were analyzed by one-way ANOVA analysis followed by Tukey’s multiple comparisons test. A P value less than 0.05 was considered statistically significant.

Results

ABPPk inhibited LPS-induced microglial inflammation

Our previous study showed that ABPPk inhibited the release of pro-inflammatory factors by LPS-activated BV2 microglia, indicating the inhibitory effect of ABPPk on neuroinflammation. Inflammasomes are important components of the natural immune system and can recruit and activate the pro-inflammatory protease caspase-1. The active caspase1 cleaves the precursors of IL-1β and IL-18 to produce the corresponding mature pro-inflammatory cytokines (29,30). In this study, we found that ABPPk concentration-dependently inhibited LPS-induced primary microglial inflammasome NLRP3 protein and cleaved caspase-1 expression levels, as shown in Figure 1A, and subsequently inhibited IL-1β and IL-18 mRNA levels, as shown in Figure 1B,1C. In addition, LPS stimulation at 1 µg/mL significantly increased glutamate release from microglia, while ABPPk inhibited LPS-induced glutamate release in a concentration-dependent manner, especially with the concentration of 1 and 5 µg/mL (Figure 1D).

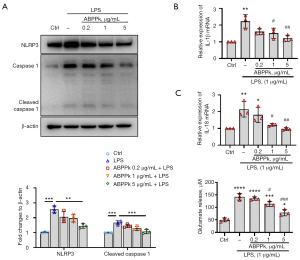

Figure 1 ABPPk inhibited LPS-induced microglial inflammation. (A) Representative Western blot image and gray analysis showing the NLRP3 and cleaved caspase 1 expressions in different treated microglia as indicated. Data are expressed as mean ± SD (n=3). **, P<0.01; ***, P<0.001. (B) Histogram showing the relative expression of IL-1β mRNA measured by qPCR. Data are expressed as mean ± SD (n=3). **, P<0.01 vs. Ctrl; ^#, P<0.05, ^##, P<0.01 vs. LPS. (C) Histogram showing the relative expression of IL-18 mRNA measured by qPCR. Data are expressed as mean ± SD (n=3). *, P<0.05, **, P<0.01 vs. Ctrl; ^#, P<0.05, ^##, P<0.01 vs. LPS. (D) Histogram showing the impact of indicated concentrations of ABPPk pretreatment on LPS-induced glutamate release from microglia. Data are expressed as mean ± SD (n=3). *, P<0.05, ***, P<0.001, ****, P<0.0001 vs. Ctrl; ^#, P<0.05, ^###, P<0.001 vs. LPS. Experiments were triplicated biologically. ABPPk, Achyranthes bidentata polypeptide fraction k; LPS, lipopolysaccharide.

ABPPk pretreatment on microglia alleviated the MCM-induced damage to cortical neurons

We stimulated cortical neurons with MCMs, then assessed the neuronal damage, and the processing procedure is shown in Figure 2A. After L-MCM stimulation for 24 h, a large number of dead cells appeared in the culture medium under the microscope, and most of the remaining neurons were wrinkled and their protrusion collapsed. Although the neurons stimulated by A+L-MCM were partially dead, the morphology of the remaining cells was relatively intact as shown in Figure 2B. CCK-8 results showed that L-MCM decreased the cell viability significantly. However, A+L-MCM showed lower neurotoxicity, and significantly reduced neuronal activity loss compared with the L-MCM stimulation (Figure 2C). LDH assay results showed that L-MCM significantly increased the release of LDH from cortical neurons. In contrast, A+L-MCM resulted in significantly decreased LDH release from neurons compared with L-MCM stimulation (Figure 2D).

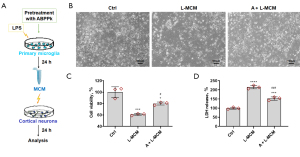

Figure 2 ABPPk alleviated the neurotoxicity of MCM to cortical neurons. (A) The procedure of collecting MCM to stimulate cortical neurons. (B) Typical images of neuron morphology under different stimulus conditions, observed under phase contrast microscope. Scale bar, 100 μm. (C) Cell viability of cortical neurons stimulated by MCM for 24 h. Data are expressed as mean ± SD (n=3). *, P<0.05, ***, P<0.001 vs. Ctrl; ^#, P<0.05 vs. L-MCM. (D) LDH release of cortical neurons stimulated by MCM for 24 h. Data are expressed as mean ± SD (n=3). ***, P<0.001, ****, P<0.0001 vs. Ctrl; ^###, P<0.001 vs. L-MCM. Experiments were triplicated biologically. ABPPk, Achyranthes bidentata polypeptide fraction k; MCM, microglia conditioned medium; LPS, lipopolysaccharide; LDH, lactate dehydrogenase.

ABPPk pretreatment on microglia reduced the MCM-induced calcium influx in neurons

The excitotoxic dose of glutamate binds to the neuronal glutamate receptors, causing the calcium channel to open, leading to calcium overload and excitotoxic injury (31). To detect whether glutamate released by LPS-activated microglia would cause calcium overload of neurons, Fluo-4/AM fluorescent dye was used to detect the calcium influx, and when different MCMs were used to stimulate cortical neurons respectively, changes in the fluorescence intensity of intracellular calcium were monitored by confocal microscope (Figure 3A-3C). Stimulation with L-MCM induced a sudden increase in fluorescence intensity, indicating an intracellular Ca²⁺ influx. The peak fluorescence intensity analysis of each group showed that L-MCM significantly increased the calcium influx in cortical neurons, while A+L-MCM significantly reduced the Ca²⁺ influx in neurons compared with L-MCM (Figure 3D).

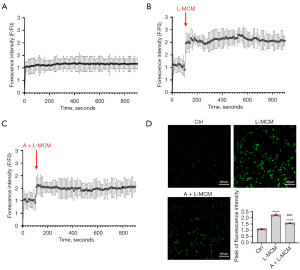

Figure 3 ABPPk pretreatment on microglia reduced the MCM-induced Ca²⁺ influx into neurons. (A) Baseline of calcium fluorescence signals from cortical neurons without stimulation. (B) Curve of calcium fluorescence amplitude of cortical neurons before and after L-MCM stimulation, with the red arrow indicating the moment of L-MCM stimulation. (C) Curve of calcium fluorescence amplitude of cortical neurons before and after A+L-MCM stimulation, with the red arrow indicating the moment of A+L-MCM stimulation. (D) Representative images of Fluo-4/AM labelled calcium influx fluorescence intensity reaching its peak in cortical neurons and the analysis of peak fluorescence intensity. Scale bar, 200 μm. Data are presented as the relative fluorescence intensity quantified over 30 single neurons over control and expressed as mean ± SD (n=3). ****, P<0.0001 vs. Ctrl; ^####, P<0.0001 vs. L-MCM. Experiment was triplicated biologically. ABPPk, Achyranthes bidentata polypeptide fraction k; MCM, microglia conditioned medium.

ABPPk pretreatment on microglia reduced the MCM-induced decrease of neuronal MMP

Mitochondria normally show high membrane potential, at which time a JC-1 fluorescence probe will form aggregates in the mitochondrial matrix, presenting red fluorescence. In the case of dysfunction, MMP would decrease, and JC-1 could not aggregate in the matrix, but would exist as monomers, presenting green fluorescence. In this study, L-MCM prevented the formation of red aggregation in neurons, and a large amount of green monomers could be seen in the culture, which meant L-MCM induced a typical drop of MMP. However, A+L-MCM reduced the decrease of MMP (Figure 4A). Flow cytometry analysis revealed L-MCM stimulated neurons showed early apoptosis and a reduced number of living cells, while A+L-MCM reduced the apoptosis cell percentage significantly (Figure 4B,4C). These results all suggested that ABPPk pretreatment on microglia alleviated the neurotoxicity of MCM.

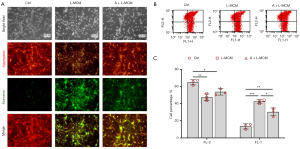

Figure 4 ABPPk pretreatment on microglia reduced the MCM-induced MMP decrease of neurons. (A) Representative images of JC-1 fluorescent probe showing the formation of red aggregates and green monomers in the mitochondria of cortical neurons under different stimuli, as well as their merge. Scale bar, 100 μm. (B) FCM analysis for JC-1 fluorescence probe. FL-2 and FL-1 channels represent the aggregates and monomers, indicating living cells and apoptotic cells, respectively. (C) Histogram showing the percentage of living cells and apoptotic cells under different stimuli. Data are expressed as mean ± SD (n=3). *, P<0.05, **, P<0.01, ***, P<0.001. Experiment was triplicated biologically. ABPPk, Achyranthes bidentata polypeptide fraction k; MCM, microglia conditioned medium; MMP, mitochondria membrane potential; FCM, flow cytometry.

ABPPk reduced neuroinflammation induced by LPS injection, protected brain neurons, and reduced cell apoptosis

At 6 h after LPS intracerebral injection, NeuN and Iba1 double immunofluorescence staining showed that LPS intracerebral injection resulted in cortical neuronal damage, characterized by the decrease in the number of neurons and the increase in the number of activated microglia, while ABPPk suppressed LPS-induced microglial activation significantly (Figure 5A-5C). Although ABPPk didn’t significantly reduce LPS-induced neuron loss as compared to LPS group in this study, possibly due to the small sample size, we can still see an improved neuronal loss in the ABPPk group than in the LPS group. ELISA result showed that LPS injection led to a significantly increased level of IL-1β in the brain, while ABPPk preadministration significantly inhibited LPS-induced IL-1β elevation (Figure 5D). TUNEL result showed that a large number of apoptotic cells appeared in the cortex and striatum 6 h after LPS injection, and ABPPk preadministration could significantly inhibit the cell apoptosis in the brain (Figure 6). These results suggested that ABPPk inhibited LPS-induced microglial activation and neuroinflammation, as well as alleviated neuronal injury induced by LPS injection in the brain.

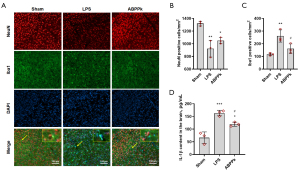

Figure 5 ABPPk alleviated LPS-induced neuronal loss and suppressed microglial activation in the brain. (A) Representative fluorescence images of neurons and microglia in the cortex after LPS intracerebral injection examined by using anti-NeuN (red), anti-Iba1 (green) antibodies and DAPI (blue) as well as their merge. Scale bar, 100 μm. The yellow box in the upper right corner of the Merge magnifies the part indicated by the arrow. (B) Histogram showing the number of NeuN positive cells per square millimeter of cortex in each group. Data are expressed as mean ± SD (n=3). *, P<0.05, **, P<0.01 vs. Sham. (C) Histogram showing the number of Iba1 positive cells per square millimeter of cortex in each group. Data are expressed as mean ± SD (n=3). **, P<0.01 vs. Sham; ^#, P<0.05 vs. LPS. (D) Histogram showing the content of IL-1β in the supernatant of brain tissue. Data are expressed as mean ± SD (n=3). *, P<0.05, ***, P<0.001 vs. Sham; ^#, P<0.05 vs. LPS. ABPPk, Achyranthes bidentata polypeptide fraction k; LPS, lipopolysaccharide.

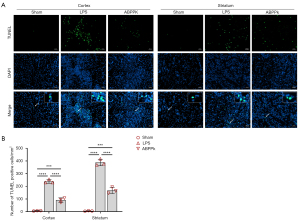

Figure 6 ABPPk prevented LPS-induced cell apoptosis in the brain. (A) Representative images of apoptotic cells in the cortex and striatum after LPS intracerebral injection examined by using TUNEL (green) kit and DAPI (blue) as well as their merge. Scale bar, 50 μm. The white box in the upper right corner of the Merge magnifies the part indicated by the arrow. (B) Histogram showing the number of TUNEL positive cells per square millimeter in the cortex and striatum, respectively. Data are expressed as mean ± SD (n=3). ***, P<0.001, ****, P<0.0001. ABPPk, Achyranthes bidentata polypeptide fraction k; LPS, lipopolysaccharide.

ABPPk suppressed LPS-induced NOX2 upregulation and ROS production in microglia

The production of ROS in activated microglia is a prerequisite for glutamate release. The main source of ROS production is NOX2 gp91phox, which is the main isoform of NADPH oxidase and abundant in microglia (19,32,33). Our result showed that 1 µg/mL LPS stimulation for 24 h significantly upregulated NOX2 expression in microglia, while ABPPk pretreatment had an inhibitory effect on NOX2 expression induced by LPS (Figure 7A). The DCFH-DA assay was used to measure the production of intracellular ROS production. The result showed that 1 µg/mL LPS stimulation for 24 h could significantly enhance ROS production in microglia, and ABPPk pretreatment could inhibit the ROS production in a concentration-dependent manner (Figure 7B).

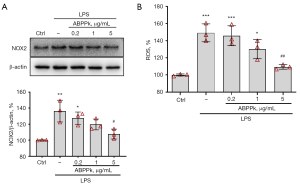

Figure 7 ABPPk inhibited LPS-induced NOX2 expression and ROS production in microglia. (A) Representative Western blot image and gray analysis showing the NOX2 expression in different treated cultures as indicated. Data are expressed as mean ± SD (n=3). *, P<0.05, **, P<0.01 vs. Ctrl; ^#, P<0.05 vs. LPS. (B) Histogram showing the ROS production measured by DCFH-DA. Data are expressed as mean ± SD (n=3). *, P<0.05, ***, P<0.001 vs. Ctrl; ^##, P<0.01 vs. LPS. Experiments were triplicated biologically. ABPPk, Achyranthes bidentata polypeptide fraction k; LPS, lipopolysaccharide; ROS, reactive oxygen species.

PI3K/Akt pathway participated in the inhibition of NOX2 by ABPPk and affected the ROS production and glutamate release of microglia

The activation of NOX2 in microglia is controlled by PI3K/Akt dependent mechanism (34). In this study, microglia were treated with different concentrations of ABPPk for 30 min, then the expression level of phosphorylated-Akt (Ser473) was detected. Western blot result showed that ABPPk promoted the phosphorylation of Akt at Ser473 concentration-dependently (Figure 8A). However, when the PI3K inhibitor LY294002 was pre-treated 1 h before 5 µg/mL ABPPk, the phosphorylation of Akt was significantly decreased in an LY294002 concentration-dependent manner, suggesting that the activation of Akt by ABPPk could be blocked by the PI3K inhibitor (Figure 8B). To further investigate whether PI3K/Akt pathway is crucial for the inhibition of NOX2 by ABPPk, microglia were pretreated with 10 µM LY294002 for 1 h, then 5 µg/mL ABPPk was added in the culture for 30 min, followed by exposure to 1 µg/mL LPS for 24 h. Western blot analysis showed that pretreatment with LY294002 eliminated the inhibition of NOX2 by ABPPk in LPS-activated microglia (Figure 8C), which resulted in the elimination of ABPPk’s inhibitory effect on ROS production and glutamate release induced by LPS (Figure 8D,8E).

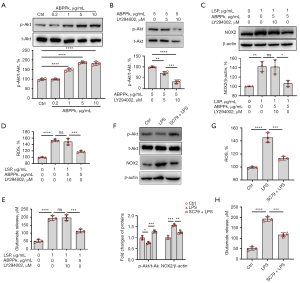

Figure 8 ABPPk inhibited LPS-induced glutamate release of microglia via PI3K/Akt dependent NOX2/ROS pathway. (A) Representative Western blot image and gray analysis showing phosphorylated Akt (p-Akt) expression levels after treatment with indicated concentrations of ABPPk for 30 min. Data are expressed as mean ± SD (n=3). ****, P<0.0001. (B) Representative Western blot image and gray analysis showing phosphorylated Akt (p-Akt) expression levels after treatment with 5 μg/mL ABPPk for 30 min with or without LY294002 pretreatment. Data are expressed as mean ± SD (n=3). **, P<0.01, ***, P<0.001, ****, P<0.0001. (C) Representative Western blot image and gray analysis showing the NOX2 expression in microglia treated as indicated. Data are expressed as mean ± SD (n=3). *, P<0.05, **, P<0.01, and ns means no significance. (D) Histogram showing the impact of indicated treatment on ROS production in activated microglia. Data are expressed as mean ± SD (n=3). ***, P<0.001, ****, P<0.0001, and ns means no significance. (E) Histogram showing the impact of indicated treatment on glutamate release in activated microglia. Data are expressed as mean ± SD (n=3). ***, P<0.001, ****, P<0.0001, and ns means no significance. (F) Representative Western blot image and gray analysis showing phosphorylated Akt (p-Akt) and NOX2 expression levels after SC79 pretreatment in LPS-activated microglia. Data are expressed as mean ± SD (n=3). *, P<0.05, **, P<0.01, ***, P<0.001. (G) Histogram showing the effect of SC79 pretreatment on ROS production in LPS-activated microglia. Data are expressed as mean ± SD (n=3). ***, P<0.001, ****, P<0.0001. (H) Histogram showing the effect of SC79 pretreatment on glutamate release in LPS-activated microglia. Data are expressed as mean ± SD (n=3). ***, P<0.001, ****, P<0.0001. Experiments were triplicated biologically. ABPPk, Achyranthes bidentata polypeptide fraction k; LPS, lipopolysaccharide; ROS, reactive oxygen species.

In order to further verify the role of PI3K/Akt in NOX2/ROS signaling pathway, microglia were pretreated with an Akt-specific activator SC79 for 30 min at a concentration of 4 µg/mL, then stimulated with LPS for 24 h. The results showed that SC79 significantly upregulated the expression level of LPS-inhibited phosphorylated Akt, inhibited LPS-induced NOX2 upregulation (Figure 8F) and ROS production (Figure 8G), thus inhibited glutamate release (Figure 8H). These results suggested that the activation of PI3K/Akt pathway by ABPPk was involved in the inhibition of NOX2 expression, ROS production, and glutamate release in LPS-activated microglia.

Discussion

In this study, we pretreated primary microglia with ABPPk, an active polypeptide isolated from traditional Chinese medicine A. bidentata, and found it markedly prevented LPS-activated microglial neurotoxicity. ABPPk pretreated MCM significantly alleviated the excitatory neurotoxicity to cortical neurons. Moreover, ABPPk reduced neuronal damage and suppressed microglial activation as well as cell apoptosis induced by LPS intracerebral injection in rat pups. ABPPk greatly activated Akt, thereby inhibiting the expression of NOX2 and reducing the production of ROS, which ultimately led to the reduced glutamate release of activated microglia. However, PI3K specific inhibitor abolished the inhibitory effects of ABPPk on NOX2 expression, ROS production and glutamate release in activated microglia, whereas Akt specific activator can play a similar role to ABPPk in inhibiting LPS-activated NOX2 expression, ROS production and glutamate release. These data suggest that ABPPk can suppress glutamate release from microglia by inhibiting the PI3K/Akt dependent NOX2/ROS pathway, thereby reduce the excitatory neurotoxicity caused by microglial activation.

A. bidentata is a commonly prescribed Chinese medicinal herb. The phytochemical and pharmacological effects of A. bidentata have been studied extensively. Saponins and polysaccharides are considered as the main active components of A. bidentata in anti-tumor, analgesia, anti-inflammatory and immune regulation. The polypeptides component extracted from A. bidentata exhibited potent neurotrophic and neuroprotective effects, including reducing excitotoxic injury by inhibiting NMDA receptor (4,22), and activating PI3K/Akt pathway to promote neuronal survival under serum deprivation conditions (35). The purified component k from A. bidentata polypeptides (ABPPk) could protect neurons against apoptosis induced by oxygen and glucose deprivation (OGD) and MMP⁺ insult (5,6). In other studies, ABPPk was reported to protect Schwann cells from oxidative stress-induced apoptosis by activating PI3K/Akt and ERK1/2 signaling pathways (36). We have found that ABPPk could inhibit the inflammatory responses of LPS-activated BV2 microglia (8), however, the specific mechanism of ABPPk’s neuroprotective effect by inhibiting neuroinflammation remains unclear.

Normally, microglia are resident brain immune cells, while activated microglia in brain pathologies are key actors of neuroinflammation. Activated microglia may protect neurons by accelerating pathogen clearance and promoting neuronal survival by releasing beneficial nutritional factors (37-39). However, continuously over-activated microglia release large amounts of superoxide, derivative oxidants, NO, TNF-α, and glutamate to damage neurons (40,41). The direct neurotoxicity of TNF-α secreted by activated microglia is relatively weak, but it can stimulate extensive glutamate release from microglia to induce direct excitotoxicity and aggravate neuronal injury (15,42). High levels of NO may promote glutamate release and activate the glutamate NMDA receptor, which amplifies the neurotoxicity of glutamate (43,44). Thus, glutamate is the key determinant inducing excitoneurotoxicity (17,18). Elevated levels of extracellular glutamate will stimulate neuronal NMDA receptors resulting in uncontrolled Ca²⁺ increases in most neurons (45-47). In fact, glutamate excitotoxicity is thought to be the ultimate common pathway for many neurological diseases, including stroke, Huntington’s disease, the acquired immunodeficiency syndrome (AIDS) dementia, and amyotrophic lateral sclerosis (ALS) (48).

Previously we have demonstrated that ABPPk pretreatment could inhibit the LPS-induced increase of TNF-α and NO in BV2 microglia, suggesting the anti-inflammatory effect of ABPPk (8). Assembly of NLRP3 inflammasome occurs in activated microglia, leading to cleavage and increased activity of caspase 1, and release of downstream IL-1β and IL-18, which are critical links in microglial inflammation (49). In this study, ABPPk pretreatment inhibited LPS-induced upregulation of NLRP3 and cleaved caspase 1 in primary microglia as well as the mRNA levels of IL-1β and IL-18 in a concentration dependent manner. The excitatory toxicity of MCM collected from ABPPk pretreated microglia was significantly lower than that of MCM without ABPPk pretreatment. In vivo results also showed that ABPPk can effectively inhibit the activation of microglia induced by LPS intracerebral injection, and reduce cell apoptosis. Notably, ABPPk pretreatment resulted in a concentration-dependent reduction in glutamate release from LPS-activated microglia. These results suggested that ABPPk can inhibit the neurotoxicity of activated microglia, and the direct inhibition of glutamate release from activate microglia may be a very important link.

Glutamate release is closely related to oxidative stress in activated microglia (50). In other words, ROS, such as lipid peroxidation products, superoxide, and derivative oxidants, are precisely the preconditions for glutamate release (19). LPS can lead to classical activation of microglia and upregulate the expression of NADPH oxidase, especially NOX2 transmembrane subunit to generate a large number of ROS, driving oxidative stress (51,52). NOX2 is the main isoform of NADPH oxidase, also known as gp91phox, which is most abundant in microglia (32,53). NOX2 directly catalyzes ROS biosynthesis, a process known as oxidative burst (54), which is accompanied by damage of redox signal transduction and mitochondrial dysfunction (55). During early inflammation, polarization to M1 phenotype microglia is dependent on NOX2 activation (56), and NOX2-derived ROS could inhibit the activation of PI3K/Akt survival pathway (57).

The activation of PI3K/Akt can promote the shift from pro-inflammatory M1 phenotype to anti-inflammatory M2 phenotype in LPS-stimulated microglia (58,59). OGD insult can induce ROS production by upregulating NOX2 via the PI3K/Akt-dependent NF-κB signaling pathway, suggesting that activation of PI3K/Akt may be beneficial to inhibit NOX2 expression and ROS production (60). The specific Akt activator, SC79, has been reported to protect neuronal cells from MPP⁺ or ischemic injury (61,62). It has also been proved that SC79 can abolish the inhibitory effect of NOX2 inhibitors on O₂^- production in hyperhomocysteinemia models, which confirmed that PI3K/Akt pathway is critically involved in the NOX2/ROS signaling transduction (63). In this present study, ABPPk pretreatment concentration-dependently inhibited LPS-induced NOX2 expression in microglia. Moreover, ABPPk significantly upregulated Akt phosphorylation in a concentration-dependent manner, and this effect could be eliminated by the PI3K specific inhibitor LY294002. Furthermore, the inhibitory effect of ABPPk on LPS-upregulated NOX2 expression was also eliminated by LY294002. Meanwhile, pretreatment with SC79 followed by LPS stimulation increased the phosphorylation of Akt and inhibited the expression of NOX2. As expected, LY294002 also abolished the inhibitory effect of ABPPk on LPS-induced ROS production and glutamate release, while SC79 played a role similar to that of ABPPk, namely inhibiting LPS-induced ROS production and glutamate release from microglia.

Taken together, ABPPk attenuates the microglia-derived excitatory neurotoxicity by inhibiting the PI3K/Akt-dependent NOX2/ROS pathway, which might provide new sight for the intervention and therapy of neuroinflammation.

There are some limitations in our study. ABPPk, as a polypeptide fraction of plant origin, is likely to be multi-target, and transcriptomic and proteomic studies may help to clarify its mechanisms in the future.

Acknowledgments

Funding: This research was supported by grants from the National Natural Science Foundation of China, No. 81501058, 82071355; the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD), No. 20KJA310011, and a grant from Science and Technology Project of Nantong City, No. JC2020001.

Footnote

Reporting Checklist: The authors have completed the MDAR reporting checklist. Available at https://dx.doi.org/10.21037/atm-21-4027

Data Sharing Statement: Available at https://dx.doi.org/10.21037/atm-21-4027

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/atm-21-4027). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was approved by the Administration Committee of Experimental Animals of Nantong University. All the experimental procedures were performed according to the Chinese Guidelines for the Care and Use of Laboratory Animals.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
