Effects and molecular mechanisms of Achyranthes bidentata polypeptide k on proliferation of Schwann cells
Introduction
The repair of peripheral never injury is both extremely common in clinic and a complicated biological process. Due to the slow regeneration of nerves, tissue adhesion and muscle atrophy, the functional recovery of damaged nerves is always limited. Current research on the regeneration of peripheral nerves mainly focuses on the promotion of axonal growth and the remodeling of neural function with the recovery of anatomical structure (1,2). As an essential glial cell in the peripheral nervous system, Schwann cells (SCs) play a crucial role in axon regeneration (3-5). After peripheral nerve injury, proliferating SCs can secrete a variety of neurotrophic factors to promote axon growth and myelin sheath formation (3,6). The promotion of SCs would greatly benefit the treatment of peripheral nerve damage and the improvement of neurological disease, and is a hot topic in research on peripheral nerve regeneration and repair.
Chinese traditional medicine is an important part of the country’s culture, with the advantages of abundant resources, affordable prices, and low side effects. Achyranthes bidentate is a significant medical plant that can promote blood circulation and strengthen muscles and bones, which has aroused widespread research interest in the medical field (7,8). In recent years, Achyranthes bidentata polypeptide k (ABPPk) purified by high-performance liquid chromatography (HPLC) from Achyranthes bidentata polypeptides (ABPP) has been shown to provide excellent protective efficiency to neurons (9), and in our previous study, we further explored whether it had a significant effect on oxidative damage to SCs. The results showed ABPPk could inhibit the apoptosis of SCs, and was closely related to the two signal pathways of PI3K/AKT and ERK1/2 (10). In view of the important role of SCs in the pathogenesis of peripheral nerve disease, their proliferation, migration, and apoptosis have been extensively studied, although current research is limited to the effects of a few genes or microRNAs (miRNAs). There are few studies on certain Chinese medicines that can promote the proliferation of SCs, and a lack of comprehensive and systematic basic research on the entire proliferation process of SCs (11,12). Therefore, exploring effective ways to activate and promote SC proliferation has important value for the repair of peripheral nerve injury, and provides new targets for its clinical treatment.
This study investigated whether ABPPk promoted SC proliferation and observed it significantly did so in vitro and in vivo, indicating significant potential for peripheral nerve regeneration and repair. To investigate the molecular mechanism of ABPPk on SCs, transcriptomic data of ABPPk treated group and nerve growth factor (NGF) treated group were analyzed by bioinformatics methods. Our work demonstrates the correlation and difference of ABPPk and NGF on SCs at the molecular regulatory, respectively. These results also contribute to a comprehensive and accurate understanding of the molecular mechanisms underlying the effect of ABPPk on SCs, which may help to explore the therapeutic targets of peripheral nerve injury. We present the following article in accordance with the ARRIVE reporting checklist (available at https://dx.doi.org/10.21037/atm-21-5181).
Methods
Ethical statement
This study was performed under a project license (No. 20190303-15) granted by the Laboratory Animal Ethics Committee of Nantong University, in compliance with Nantong University institutional guidelines for the care and use of animals.
Preparation of ABPPk
The ABPPk used in the experiment was independently isolated and extracted as described previously (13). Before use, ABPPk was diluted with Dulbecco’s Modified Eagle Medium (DMEM) for cell experiments, and with saline for in vivo experiments.
Cell treatment
SCs were obtained from the sciatic nerve of Sprague-Dawley (SD) rats 1 d after birth, and primary cultured in vitro. Rats were acquired from the Experimental Animal Center of Nantong University [license No. SCXK (Su) 2014-0001 and SYXK (Su) 2012-0031, No. 20190225-004]. The culture method used has been previously described (14). In brief, cells were cultured in DMEM medium (Corning, USA) supplemented with 10% of fetal bovine serum (FBS; Gibco, Grand Island, NY, USA), then anti-Thy1.1 antibody (Sigma, St. Louis, MO, USA) and rabbit complement (Invitrogen, Carlsbad, CA, USA) were added to remove fibroblasts. Purified SCs were identified by immunostaining and plated in 96- or 6-well plates, with the culture medium replaced by DMEM medium with 10% of FBS containing 0.5 µg/mL ABPPk or 0.1 µg/mL NGF, respectively. Multiple time points (15 min, 0.5, 1, 2, 3, 6, 12, and 24 h) were selected for detection and analysis.
Cell counting kit-8 (CCK-8) assay
Cell proliferation was monitored by the CCK-8 assay (Dojindo, Kumamoto, Japan) following the manufacturer’s protocol. Briefly, the SCs were plated at a density of 3×103 cells/well on 96-well plates and subjected to different treatments. Ten µL of CCK-8 solution was added and incubated for 2 h at 37 °C, and the absorbance was determined at 450 nm using a Microplate reader (Bio-tek Instruments, Inc.).
Cell cycle analysis
Cells were harvested and fixed in ice-cold 70% ethanol overnight at 4 °C. After washing twice with phosphate-buffered saline (PBS), they were then incubated with propidium iodide (PI; Sigma-Aldrich, St. Louis, MO, USA) in the dark for 30 min, and analyzed by flow cytometry (BD Biosciences, San Jose, CA, USA).
EdU assay
Following designated treatment, the proliferation of SCs was quantified by Cell-LightTM EdU DNA Cell Proliferation Kit (Ribobio, Guangzhou, China) according to the manufacturer’s protocol. Nuclei were counterstained using Hoechst 33342, and the percentage of EdU-positive cells was captured on a DMR fluorescence microscope (Leica Microsystems, Bensheim, Germany). The procedures above were conducted in triplicate.
Western blot analysis
Total protein was separated by 10% sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) and transferred to polyvinylidene fluoride (PVDF) membranes (Millipore, Bedford, MA, USA). The membranes were blocked with 5% nonfat milk for 2 h at 37 °C, then incubated with the primary antibodies Rabbit anti-proliferating cell nuclear antigen (PCNA; 1:1,000; Abcam) and mouse anti-GAPDH (1:5,000; Abcam) at 4 °C overnight. After washing three times, secondary antibodies were incubated for 1 h at room temperature. The Odyssey densitometry program (LI-COR, Lincoln, NE, USA) was used to detect the signals and GAPDH was used as the reference protein.
Immunofluorescence staining
Cells cultured on coverslips were fixed with 4% paraformaldehyde for 30 min at room temperature. After washing with PBS twice and blocked for 90 min, they were then stained with anti-Ki67 (1:200; Abcam) and anti-S100 (1:200; Abcam) at 4 °C overnight, followed by Goat anti-Rabbit IgG-Cy3 (1:200; Invitrogen) and Donkey anti-Mouse IgG-Alex-488 (1:200; Invitrogen). Finally, the cells were stained with Hoechst 33342 or DAPI, and analyzed with a fluorescence microscopy (AxioImager M2, Zeiss).
RNA-seq analysis
Samples at 15 min, 0.5, 1, 2, 3, 6, 12, and 24 h with three duplicates of three different groups (ABPPk, NGF and normal SCs) were collected. According to the manufacturer’s protocols, the 75 RNA samples were extracted, and RNA integrity was determined using the Agilent 2100 Bioanalyzer (Agilent Technologies, USA). Strand-specific RNA-seq libraries were constructed, and the samples were sequenced on the Illumina Hiseq X Ten sequencing platform (OEbiotech, Shanghai, China). All subsequent analyses were performed using clean reads. The sequencing data were uploaded to the sequence read archive (SRA) database (accession number: PRJNA764187).
Weighted gene co-expression network analysis (WGCNA)
To investigate co-expression gene modules across time points in SCs with ABPPk or NGF, we performed WGCNA. Power β=7 was selected to calculate an adjacency matrix, then an “unsigned” network was inferred in a manner of one-step network construction. Expression patterns of genes within given modules were visualized using a pheatmap package implemented in R, and functional enrichment of genes within a given module was conducted using the online DAVID database.
Bioinformatic analysis
In addition to the proliferation of SCs, we also analyzed the possible mechanisms of differentially expressed genes in the biological processes of SC migration, differentiation, movement, and development. Ingenuity Pathway Analysis (IPA; Ingenuity System, Redwood City, CA, USA) was used to perform bioinformatics analysis. Genes with expression changes were uploaded to the IPA software and compared and analyzed with those related to these functions obtained in IPA. Heatmap analysis data that graphically represents values in color were also used. The expression values of the differentially expressed genes were analyzed for hierarchical clustering. The Search Tool for the Retrieval of Interacting Genes (STRING; http://string.embl.de/) was used to construct a protein-protein interaction (PPI) network which was visualized by Cytoscape (http://www.cytoscape.org/) (15).
Functional enrichment analysis
The R package clusterProfiler process allows gene classification and calculation of enrichment for gene ontology (GO) terms (16), and adjusted P<0.05 was considered to indicate statistically significant enriched function annotations.
Preparation of rat sciatic nerve defect model
The Experimental Animal Center of Nantong University provided SD rats weighing 180–200 g, and which lived at 24 °C and 55%±5% humidity and cycled in light/dark for 12 h. After all animals were deeply anesthetized with ketamine/xylaxine, the sciatic nerve was dissected carefully, and a 3 mm-long-nerve section was crushed three times (10 s each time with 10 s interval) with a hemostatic forceps. The crush cite was marked with an 8-0 nylon suture, and the animals were randomly divided into three groups with six rats in each group. The rats were subjected to subepineural microinjection at the injury site with ABPPk in 0.5 mg/mL, NGF in 0.1 mg/mL, and saline respectively. The tissues of the clamped sections were taken for detection on the 1, 4, and 7 d after the operation.
Statistical analysis
Results are presented as means ± standard error of the mean (SEM) and the statistical significance was conducted by Student’s t-tests for comparing two groups or one-way analysis of variance (ANOVA) for three and more comparisons. P<0.05 was considered to indicate a statistically significant difference.
Results
Effect of ABPPk on the viability of SCs
Immunocytochemistry with anti-S100 antibody serving as SC markers provided evidence of the cell purity (Figure 1A), and the CCK-8 method was used to observe the effects of ABPPk treatment at different times on SC viability. SCs were treated with 0.5 µg/mL ABPPk and 0.1 µg/mL NGF for different periods of time, and complete medium (DMEM with 10% FBS) was used as the control group. The cell viability was tested for different culture times (15 min, 0.5, 1, 2, 3, 6, 12, and 24 h), and it was found that ABPPk and NGF treatment for different times had different degrees of effect on the viability of SCs (Figure 1B).
Effect of ABPPk on cell cycle progression of SCs

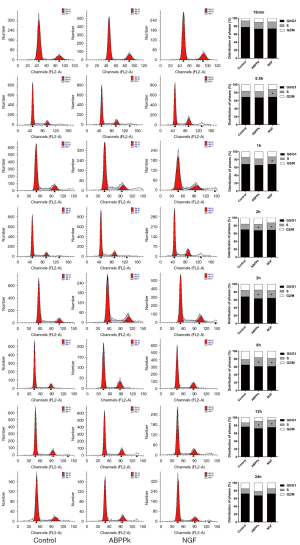

The cell cycle assay was analyzed by flow cytometry, and showed the number of cells in the G1/G0 phase was reduced, while that in the S phase was significantly increased compared to the control, and was especially obvious at 2, 3, 6, and 12 h (Figure 2).
Effect of ABPPk on Edu of SCs

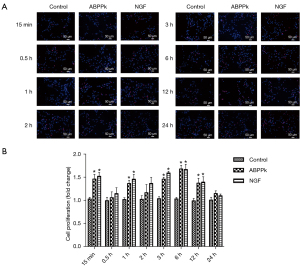

To determine whether ABPPk increased proliferation of SCs, we observed cells labeled with EdU under a fluorescence microscope. This showed ABPPk significantly increased EdU incorporation, and the cell proliferation was most obvious at 15 min, 1, 3, 6, and 12 h (P<0.05) (Figure 3).
Effect of ABPPk on the expression levels of PCNA and Ki67

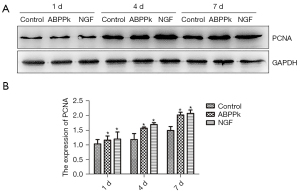

We further analyzed cell proliferation markers using Western blot and immunocytochemistry, and the results showed the expression levels of PCNA were upregulated after treatment with ABPPk (Figure 4). In addition, the Ki67 staining analysis indicated a higher Ki67 positive cell proportion at 15 min, 3, 6, and 12 h in the ABPPk group, while no significant increase was observed at 0.5, 1, 2, and 24 h (P<0.05) (Figure 5). Taken together, the results show ABPPk can promote the proliferation of SCs.
Identification of hub genes in cell proliferation related modules
To overview the expression patterns of DEGs in ABPPk and NGF groups, many modules analyzed by WGCNA were observed. In the module of positive regulation of cell proliferation in the ABPPk group, there were 116 genes, which were mainly involved in promoting cell proliferation, with the highest expression in the middle time period. Another module related to cell proliferation in the ABPPk group was the epigenetic regulation of cell proliferation, the trend of which was closer to the module of positive regulation of cell proliferation. There were also modules related to cell proliferation in the NGF group, which were the two modules of attenuation of negative regulation of cell proliferation and positive regulation of cell cycle, with the trends also relatively close (Figure 6). There were many genes involved in the four modules, and there were significant differences in the genes involved in different modules between the group of ABPPk and NGF (Figures S1-S4).
Identifying the DEGs of SCs with different functions and hub genes from the PPI network in the ABPPk group
The IPA database platform was used to search the biological processes of migration, differentiation, movement, and development of SCs. The molecular networks at different time points were further linked by heatmap to show the dynamic changes of molecular regulatory networks of different biological functions (Figure 7). The PPI networks of hub genes with high connectivity in different functions of SCs were screened (Figure S5).
Functional enrichment analysis of genes within the ABPPk group
In addition to the previously analyzed SC-related functions, we conducted an overall analysis of the biological functions of all genes at each time point, and it was found that the ABPPk group and NGF group still had significant differences in the functions involved. For the ABPPk group, the most enriched GO terms were “response to hypoxia, regulation of axon extension, vascular endothelial growth factor production, regulation of neuron migration, regulation of tissue remodeling, blood vessel lumenization” (Figure 8A), while these were not observed in the NGF group. For the NGF group, the most enriched GO term was “regulation of myelination, axon ensheathment, neurotransmitter receptor metabolic process” (Figure 8B), while commonality between the ABPPk and NGF groups was seen with “response to ATP, regeneration, negative regulation of neuron apoptotic process, and cell morphogenesis involved in neuron differentiation”.
Effect of ABPPk on the gene expression of SCs proliferation in the process of peripheral nerve injury and repair
To observe whether ABPPk had a certain promoting effect on SC proliferation during the repair of sciatic nerve injury, the proteins extracted from the clamped tissue at different time points after the operation were detected by Western blot. The results showed that the ABPPk group could increase the protein expression of PCNA at 1, 4, and especially at 7 d after surgery (Figure 9).
Discussion
The repair of peripheral nerve damage has always been a research hotspot in the field of neuroscience. After peripheral nerve injury, proliferated SCs migrate along the basement membrane to the damaged segment to form the Büngner area, and secrete nutritional factors to guide the axon to grow distally (17-19). SCs can also promote the process of myelination after peripheral nerve injury (20,21), which is very important for the timely and accurate transmission of information between the brain and body parts (22). Therefore, promoting the proliferation of SCs contributes to the repair and functional recovery of peripheral nerves.
Achyranthes bidentata is a well-known traditional Chinese medicine with many functions and effects. In this study, we found that ABPPk could significantly promote the proliferation of primary SCs cultured in vitro at different times, and to analyze this effect in vivo, we constructed a sciatic nerve injury model. Western blot analysis showed that the proliferation of SCs in the ABPPk and NGF groups was significantly increased compared with the normal saline group, which further indicated that ABPPk could promote the proliferation of SCs. In view of these findings, we suspected that the effect of ABPPk on SC proliferation was regulated by a complex mechanism and revealed this by whole-transcriptome sequencing technology combined with bioinformatics analysis of the IPA database and other methods. Compared with the NGF group, WGCNA analysis showed that ABPPk was mainly involved in the positive regulation of cell proliferation and the epigenetic regulation module of cell proliferation. The modules and genes involved in ABPPk were significantly different from those of NGF.
In addition to the advantage of promoting SCs proliferation, ABPPk also demonstrated its effect on other functions of SCs. IPA analysis and PPI found that ABPPk also differed from NGF in the biological processes of SC migration, differentiation, movement, and development in terms of action time and key genes. To further explore the effects of ABPPk and NGF on SCs, functional enrichment analysis showed that ABPPk had more participation and advantages in axonal extension and vascular system, especially in vascular regulation, which was consistent with the original Chinese medicine application and previous research results. Our research group previously conducted a deeper study on the protective effect of ABPPk on serum-deprived SCs through high-throughput sequencing technology, and found that in ABPPk protected SCs, transcription factors were activated earlier and involved in vascular related regulation for a longer time and a wider range of regulation (23). In addition, combined with the WGCNA method to analyze the ABPPk in this study, it is found that one of the modules is defense signal, and many genes in this module are closely related to hypoxia injury protection and promotion of angiogenesis.
Few new plant active peptide drugs have been used in the clinical treatment of peripheral nerve injury. According to our study, ABPPk can promote SC proliferation early and effectively, and efficiently regulate vascular and axonal extension, ultimately improve peripheral nerve regeneration and quality of life. We also focused on the correlation and difference of ABPPk and NGF to verify their different molecular mechanisms on SCs, and found that compared with existing neurotrophic factors, Achyranthes bidentata from plants has sufficient sources and pharmacological advantages (24). As for a single component, it should not fully represent the role of traditional Chinese medicine, which is still quite complicated. Our research can represent part of the effects of traditional Chinese medicine, so as to provide a target basis for the protective effect of traditional Chinese medicine on peripheral nerve injury. In the future, it will be more recommended to use Chinese herbal medicine Achyranthes bidentata or its active ingredient ABPPk to treat patients with peripheral nerve injury. In summary, our work helps to enhance the understanding of the function and mechanism of ABPPk and provides an experimental and theoretical basis for the clinical treatment of peripheral nerve injury and the discovery of new therapeutic targets.
Acknowledgments
Funding: This work was supported by grants from the National Natural Science Foundation of China (Grant No. 81901256), the Basic Research Project of the Jiangsu Education Department (Grant No. 18KJD310002, 19KJD310001), and Jiangsu Provincial Double-Innovation Doctor Program (JSSCBS20211095).
Footnote
Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at https://dx.doi.org/10.21037/atm-21-5181
Data Sharing Statement: Available at https://dx.doi.org/10.21037/atm-21-5181
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/atm-21-5181). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Experiments were performed under a project license (No. 20190303-15) granted by the Laboratory Animal Ethics Committee of Nantong University, in compliance with the Nantong University institutional guidelines for the care and use of animals.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
References
- Raza C, Riaz HA, Anjum R, et al. Repair strategies for injured peripheral nerve: Review. Life Sci 2020;243:117308 [Crossref] [PubMed]
- Zhu H, Xue C, Yao M, et al. miR-129 controls axonal regeneration via regulating insulin-like growth factor-1 in peripheral nerve injury. Cell Death Dis 2018;9:720. [Crossref] [PubMed]
- Ko KR, Lee J, Lee D, et al. Hepatocyte growth factor (HGF) promotes peripheral nerve regeneration by activating repair Schwann cells. Sci Rep 2018;8:8316. [Crossref] [PubMed]
- Reed CB, Frick LR, Weaver A, et al. Deletion of calcineurin in Schwann cells does not affect developmental myelination, but reduces autophagy and delays myelin clearance after peripheral nerve injury. J Neurosci 2020;40:6165-76. [Crossref] [PubMed]
- Poplawski G, Ishikawa T, Brifault C, et al. Schwann cells regulate sensory neuron gene expression before and after peripheral nerve injury. Glia 2018;66:1577-90. [Crossref] [PubMed]
- Chen J, Ren S, Duscher D, et al. Exosomes from human adipose-derived stem cells promote sciatic nerve regeneration via optimizing Schwann cell function. J Cell Physiol 2019;234:23097-110. [Crossref] [PubMed]
- Cheng Q, Tong F, Shen Y, et al. Achyranthes bidentata polypeptide k improves long-term neurological outcomes through reducing downstream microvascular thrombosis in experimental ischemic stroke. Brain Res 2019;1706:166-76. [Crossref] [PubMed]
- Hua S, Zhang X. Effects of Achyranthes bidentata alcohol on proliferation capacity of osteoblasts and miRNA in Runx2. Exp Ther Med 2019;18:1545-50. [Crossref] [PubMed]
- Peng S, Wang C, Ma J, et al. Achyranthes bidentata polypeptide protects dopaminergic neurons from apoptosis in Parkinson's disease models both in vitro and in vivo. Br J Pharmacol 2018;175:631-43. [Crossref] [PubMed]
- Li M, Zhu Y, Peng W, et al. Achyranthes bidentata polypeptide protects Schwann cells from apoptosis in hydrogen peroxide-induced oxidative stress. Front Neurosci 2018;12:868. [Crossref] [PubMed]
- Chen J, Li C, Liu W, et al. miRNA-155 silencing reduces sciatic nerve injury in diabetic peripheral neuropathy. J Mol Endocrinol 2019;63:227-38. [Crossref] [PubMed]
- Hu Y, Deng J, Tian K, et al. MiR-8-3p regulates hyperthermia-induced lactate secretion by targeting PPP2R5B in boar Sertoli cells. Mol Reprod Dev 2019;86:1720-30. [Crossref] [PubMed]
- Cheng Q, Jiang C, Wang C, et al. The Achyranthes bidentata polypeptide k fraction enhances neuronal growth in vitro and promotes peripheral nerve regeneration after crush injury in vivo. Neural Regen Res 2014;9:2142-50. [Crossref] [PubMed]
- Zhong J, Zhou J, Sun H, et al. Effects of Salvia miltiorrhiza injection on apoptosis of Schwann cells induced by hydrogen peroxide. Ann Palliat Med 2021;10:625-32. [Crossref] [PubMed]
- Xu Y, Geng R, Yuan F, et al. Identification of differentially expressed key genes between glioblastoma and low-grade glioma by bioinformatics analysis. PeerJ 2019;7:e6560 [PubMed]
- Yu G, Wang LG, Han Y, et al. clusterProfiler: an R package for comparing biological themes among gene clusters. OMICS 2012;16:284-7. [Crossref] [PubMed]
- Jessen KR, Mirsky R. The repair Schwann cell and its function in regenerating nerves. J Physiol 2016;594:3521-31. [Crossref] [PubMed]
- Maugeri G, D'Amico AG, Musumeci G, et al. Effects of Pacap on Schwann cells: focus on nerve injury. Int J Mol Sci 2020;21:8233. [Crossref] [PubMed]
- Panzer KV, Burrell JC, Helm KVT, et al. Tissue engineered bands of Büngner for accelerated motor and sensory axonal outgrowth. Front Bioeng Biotechnol 2020;8:580654 [Crossref] [PubMed]
- Choi SJ, Park SY, Shin YH, et al. Mesenchymal stem cells derived from Wharton's Jelly can differentiate into Schwann cell-like cells and promote peripheral nerve regeneration in acellular nerve grafts. Tissue Eng Regen Med 2021;18:467-78. [Crossref] [PubMed]
- Nocera G, Jacob C. Mechanisms of Schwann cell plasticity involved in peripheral nerve repair after injury. Cell Mol Life Sci 2020;77:3977-89. [Crossref] [PubMed]
- Cawley JL, Jordan LR, Wittenberg NJ. Detection and characterization of vesicular gangliosides binding to myelin-associated glycoprotein on supported lipid bilayers. Anal Chem 2021;93:1185-92. [Crossref] [PubMed]
- Li M, Zhu Y, Tang L, et al. Protective effects and molecular mechanisms of Achyranthes bidentata polypeptide k on Schwann cells. Ann Transl Med 2021;9:381. [Crossref] [PubMed]
- Yan C, Zhang S, Wang C, et al. A fructooligosaccharide from Achyranthes bidentata inhibits osteoporosis by stimulating bone formation. Carbohydr Polym 2019;210:110-8. [Crossref] [PubMed]
(English Language Editor: B. Draper)
