Changes in aortic collagen in β-aminopropionitrile-induced acute aortic dissection

Introduction

Acute aortic dissection (AAD) refers to rupture of the aortic intima and is a disastrous condition, but the precise mechanism is currently unknown. Although there has been great progress in dealing with AAD, the surgical mortality rate is still high (1,2).

The extracellular matrix (ECM) determines the structure of the blood vessel wall and is mainly composed of collagen and elastin. On the one hand, collagen provides anti-mechanical tension, but on the other hand, it plays an important role in maintaining the normal physiological process of blood vessels. Collagen plays different roles in the occurrence and development of aortic diseases (3). One study has shown that type I and type III collagen are significantly increased in thoracic AD in human, the authors therefore inferring that vasodilation and contraction compliance are compromised and ultimately participate in the occurrence of the dissection (4). However, another study pointed out that in ascending aortic aneurysms and dissections, collagen content is reduced, and the subsequent weakening of the blood vessel wall may be the basis of the disease (5). One research has reported that in BAPN induced AAD in mice the mRNA expression of collagen type I alpha 2 (Col1a2), collagen type IV alpha4 (Col4a4) were decreased (6).

AAD are associated with degenerative changes in the medial layer of the aortic wall. Matrix metalloproteinases (MMPs) are a family of proteolytic enzymes that degrade various components of the ECM and play an important role in vascular remodeling. Dysregulation of MMP production and activity can lead to the happening of AAD (7).

At present, the classical method of inducing an animal model of AAD is treating mice or rats with β-aminopropinitrile (BAPN) combined with angiotensin II (AngII), and the incidence of AAD is approximately 100% (8). Based on our previous experiment (9), we have refined the establishment of the animal model of BAPN-induced AAD, which we used in the current study to investigate any changes in aortic collagen content to understand the precise mechanism and role of collagen in human AAD.

We present the following article in accordance with the ARRIVE reporting checklist (available at https://dx.doi.org/10.21037/atm-21-4933).

Methods

Materials

Experimental animals

We obtained 30 healthy SPF-grade, 3-week-old male SD rats weighing 51.3±4.5 g from Shanghai Slack Laboratory Animal Co., Ltd. [Production License No. SCXK (Hu) 2017-0005]. The animals were kept at 22–25 °C with an alternating light–dark cycle (12/12 h). The rats ate and drank according to the experimental design. Experiments were performed under a project license (No. FJMU IACUC 2019-0026.) granted by Experimental Animal Care and Use Committee of Fujian Medical University, in compliance with Fujian Medical University institutional guidelines for the care and use of animals. A protocol was prepared before the study without registration.

Main drugs and reagents

BAPN was purchased from TCI (Japan); rabbit monoclonal anti-MMP9 antibody (ab76003), rabbit monoclonal anti-MMP2 antibody (ab92536), and rabbit monoclonal anti-collagen I antibody (ab260043) were purchased from Abcam (UK); rabbit anti-COL1α1 (A16891), COL1α2 (A16699), and COL3α1 (A3795) were purchased from Abclonal (China); rabbit anti-collagen III antibody (22734-1-AP) was purchased from Sanying Biotechnology (China).

Study methods

Animal model

After 3 days’ acclimatization before the experiment, the SD rats were randomly divided into two groups: 10 in the Control group and 20 in the Model group. In the Control group, the rats were fed commercial feed pellets and provided with autoclaved water for drinking throughout the study. In the Model group, BAPN at a final concentration of 0.1% was added to the drinking water (0.2 mL BAPN + 200 mL water) (10), which was protected from light to prevent the decomposition of BAPN. Body weight was measured every 2 days, and any rats that died before the end of the study period were autopsied to confirm the presence of aortic dissection, if the AAD was formed, the aorta were harvested and were defined as aorta ruptured group. At the end of 4 weeks, the surviving rats were anesthetized with 2% pentobarbital sodium by intraperitoneal injection and the ascending to descending aorta was harvested, as had been excised from the rats that died before. Unless otherwise specified, the samples used in the Model group were from aorta free of AAD (aorta unruptured group). In our previous study (9), the rats were treated with BAPN combined with AngII, a potent vasoconstrictor, and the incidence of AAD was approximately 90%. Once the AAD occurs, there is a severe stress response, the structure of the aorta is destroyed, and blood cells infiltrate the aortic wall, which affects the results of the test. In fact, most cases of AAD occurred after AngII was injected, which suggested that before AngII was injected, the aorta of the rats had already undergone pathological change, so in the present study, we treated the rats with BAPN only.

Histopathological analysis

Scanning electron microscopy (SEM)

Briefly, fresh aorta tissues were harvested, and immediately fixed with electron microscopy fixative (Servicebio, China) for 2 h at room temperature. The tissue blocks were washed three times with 0.1 M phosphate-buffered saline (PBS) (pH 7.4) for 15 min each time. The tissue blocks were then transferred into 1% OsO₄ in 0.1 M PBS (pH 7.4) for 1–2 h at room temperature. Next, the tissue blocks were again washed three times with 0.1 M PBS (pH 7.4) for 15 min each time. The samples then were dehydrated and dried by ethanol and Critical Point Dryer respectively. Specimens were attached to metallic stubs using carbon stickers and spatter-coated with gold for 30 s. Images were taken immediately with SEM (HITACHI SU8100).

Tissue staining

The aortic tissues were paraffin-embedded, cut at 5-µm thickness and stained with hematoxylin-eosin (H&E), Masson Trichrome, and elastica van Gieson (EVG). Image analysis was performed using Image-J software.

Western blot analysis

The ascending and descending aorta were frozen in liquid nitrogen and stored at −80 °C for preservation. Protein was extracted using a commercial kit. Equal amounts of protein (30 µg/lane) were separated using 4–12% SDS-PAGE electrophoresis. The blots were probed with primary antibodies, anti-GAPDH (1:1,000), anti-MMP2 (1:1,000), anti-MMP9 (1:1,000), anti-COL1α1 (1:1,000), anti-COL1α2 (1:1,000), anti-COL3α1 (1:1,000), anti-collagen I (1:1,000), and anti-collagen III (1:500) for 16 h at 4 °C, followed by HRP-conjugated secondary antibody (1:10,000) for 1 h. Immunoblotting was performed according to the manufacturer’s guidelines (Bio/Rad, Hercules, CA, USA). Densitometry analysis was performed using Image-J software.

Statistical analysis

The results from at least three independent experiments were used to calculate mean ± SD, Student’s t-test was used for statistical analysis by Prism8, and P<0.05 was considered statistically significant.

Results

General condition of rats given BAPN treatment

There was no statistical difference of body weight in each group (P>0.05) at the beginning of the experiment. The rats in the Control group were in good condition throughout the experiment, and their weight gradually increased, whereas the weight of the Model group gradually lagged behind the Control group after drinking BAPN for 3 days. The weight of the Model group was significantly lower than that of the Control group at the end of the experiment, P<0.05 (Figure 1).

Figure 1 Weight gain in the Control group and Model group during the experimental period. The average weight of the Model group was significantly lower than that of the Control group at the end of the experiment, P<0.05.

BAPN-induced AAD

In the Model group, AAD began to occur at approximately 22 days after BAPN administration (Figure 2). Ruptures were mostly located at the side of the lesser curvature of the aortic arch, and the ascending aorta was mostly involved. An intimal flap formed, dividing the blood vessel into true and false cavities (Figure 3), appearing similar to human aortic dissection. At the end of the experiment the incidence of AAD was 25% (n=5); 15 rats survived.

Figure 2 Large amounts of hemorrhage and blood clots (the red arrow) in the thoracic cavity of rats when the aorta ruptured.

Figure 3 Example of acute aortic dissection involving the ascending aorta. An intimal flap (arrow) has formed, dividing the vessel into true and false lumens.

ECM change after BAPN administration

Collagen and elastin are the major structural proteins of the aortic wall. In collagen, cross-linkages bind the collagen molecules and fibers together and are essential in providing the tensile strength and mechanical stability of the collagen fibrils and fibers (11). BAPN, a lysyloxidase (LOX) inhibitor, irreversibly inhibits the formation of cross-linkages in collagen (12).

After BAPN administration, SEM of the aorta showed that in the Control group smooth muscle cells (SMC) were evenly distributed, with normal collagen fibers of uniform thickness evenly distributed among them. The elastic membrane had normal continuous structure, uniform thickness, and parallel arrangement. In the Model group, the structure of the aortic media layer was severely damaged, and the arrangement was disordered. Fibroblast cells are unevenly distributed, with wide gaps, collagen fibers were also distributed unevenly in a disordered arrangement and their thickness was uneven. The elastic membrane disappeared over a large area (Figure 4).

Figure 4 Scanning electron microscopy of the aorta. Compared with the Control group, the structure of the aortic media layer in the Model group is severely damaged. Fib cells show a disorder distribution with wide gaps. The distribution and thickness of CF is uneven, and their arrangement is disordered. The EF has disappeared over a large area. CF, collagen fibers; EF, elastic film; Fib, fibroblast cells; SMC, smooth muscle cell.

Histopathological staining

HE staining shown that in the Control group, the structure of the blood vessel wall was complete, with even distribution of SMCs. In the Model group, the vascular wall was thickened (Figure 5). EVG staining shown the elastin fibers were thinning, disappeared and arranged irregularly, while Masson trichrome staining shown the collagen fibers were significantly increased and thickened (Figure 6).

Figure 5 HE staining of the aorta. In the Control group, the structure of the blood vessel wall is complete, the smooth muscle cells are evenly distributed, the cells are neatly arranged, and no morphological changes of tissues can be seen. The vascular wall in the Model group is thickened. Scale bar: 200 μm.

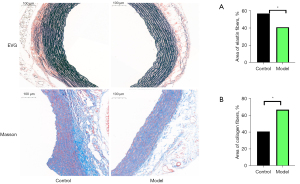

Figure 6 Pathologic evaluation of the extracellular matrix of the aorta. Elastin fibers were detected by EVG staining, collagen fibers were detected by Masson trichrome staining. Elastin fibers in the Model group were thinning, disappeared, and arranged irregularly. Collagen fibers were significantly increased and thickened. (A) Percent area of elastin fibers, (B) percent area of collagen fibers. *, P<0.05. Scale bar: 100 μm. EVG, elastica van Gieson.

Western blot test and expression of MMPs

Compared with the Control group, the expression of collagen type I, type III and their subunits were upregulated in the Model group (P<0.05) (Figure 7). The expression of MMP9 and MMP2 in the aorta was downregulated in the Model group when the aorta was free of dissection (P<0.05), while in the dissection formed aorta the expression was significantly higher than in the Control and aorta intact group (P<0.01) (Figure 8).

Figure 7 Collagen type I, and its subunits 1α1, 1α2, type III and its subunit, 3α1 were examined by western blot (A). The relative expression is shown in (B). *, P<0.05. **, P<0.01. ***, P<0.005. MMP, matrix metalloproteinase.

Figure 8 Expressions of MMP9 and MMP2 were downregulated in the aorta unruptured group of the Model group, but were significantly higher in the aorta ruptured group than the Control and aorta unruptured groups (A). The relative expression is shown in (B). *, P<0.05; **, P<0.01; ***, P<0.005. MMP, matrix metalloproteinase.

Discussion

As one of the major components of the aortic wall, collagen plays a significant role in the blood vessel’s function and mechanical properties, such as tensile strength and stiffness. Collagen molecule were composed of three polypeptide segments, namely alpha chains (3,13,14) and the main types of collagen found in the aorta are types I and III. As a LOX inhibitor, BAPN irreversibly inhibits the formation of cross-links (12), is known to induce aortic dissection in animals, and also can leads to a decrease in collagen synthesis (15). However, in this study when BAPN was given to rats, we found the protein concentrations of collagen types I and III and their subunits were increased in the thoracic aorta. The increased levels of collagen types I and III may be due to a compensatory increase of their subunits. Increased collagen content can lead to aortic stiffness, increasing the likelihood of rupture (16,17), and may be the mechanism of BAPN-induced AAD.

The SEM images showed severe damage to the structure of the aortic media layer. The distribution and thickness of the collagen fibers was uneven, and their arrangement was disordered, findings that are consistent with aging- and hypertension-induced changes in the human aorta (18); 80% of AD patients have hypertension (19). As AAD risk factors (20), aging, hypertension and smoking commonly lead to collagen deposition, increasing the stiffness of the aorta (21-23). During strenuous activities, such as weightlifting, there is a high risk of AAD, suggesting that rapid blood pressure fluctuation over a short period of time may induce AAD on the basis of already existing vascular pathological changes (24). This is similar to our observations from the AAD model in our previous study. When rats were treated with BAPN only, the incidence of AAD was low, but when given BAPN combined with AngII injection, the incidence of AAD significantly increased.

The relationship between the MMP family of enzymes that degrade collagen and aortic diseases has been widely studied (25). Generally, the expression of MMP2 and MMP9 is considered to be increased in AAD (26). In our present study, the concentrations of MMP2 and MMP9 in the unruptured aorta were decreased, but were increased in ruptured aorta. This contradictory phenomenon may be explained by the fact that once the aorta ruptures, a large number of blood cells infiltrate the aortic wall, and both MMP9 and MMP2 are secreted by macrophages and neutrophils. In view of the high incidence of AAD in the animal model, it infers that in the BAPN-induced AAD model, the expression of MMP2 and MMP9 in the aorta was downregulated, and matrix degradation may not participate in the occurrence of AAD, while the upregulation of expression in ruptured aorta was most likely associated with the blood cells.

A limitation of our study is that the BAPN-induced AAD model does not completely mimic the process of human AD. In addition, the other types of collagen in the aorta were not tested in this study. Future studies are needed to fully explore the changes of collagen in the aorta.

In conclusion, as a disastrous disease, the precise cause of the AAD is currently unknown. In this study, we demonstrated that collagen types I, III and subunits were increased in a BAPN-induced AAD model. The distribution and thickness of collagen fibers in the aortic media layer was uneven and their arrangement was disordered, which may increase the stiffness of the aorta, and predispose it to rupture. At the same time, the expressions of MMP2 and MMP9 in aorta were decreased, which may also contribute to collagen deposition in the aorta.

Acknowledgments

Funding: This work was supported by the National Natural Science Foundation of China (U2005202), the Fujian Province Major Science and Technology Program (2018Yz0001), the Natural Science Foundation of Fujian Province (2020J01998, 2020J02056), and the Fujian Provincial Health Technology Project (2019-ZQN-50).

Footnote

Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at https://dx.doi.org/10.21037/atm-21-4933

Data Sharing Statement: Available at https://dx.doi.org/10.21037/atm-21-4933

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/atm-21-4933). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Experiments were performed under a project license (No. FJMU IACUC 2019-0026.) granted by Experimental Animal Care and Use Committee of Fujian Medical University, in compliance with Fujian Medical University institutional guidelines for the care and use of animals.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
