Clinical significance of the diverse interlobar veins hidden in the upper oblique fissure

Introduction

The upper oblique fissure (UOF) potentially separates the posterior segment of the right upper lobe (RUL) and the superior segment of the right lower lobe (RLL) (1). Existing reports reveal that approximately 70% of UOFs are not fully developed (2), and 39% of patients with an incomplete UOF have venous variation (3). Since most right pulmonary operations involve the fissure crest, where the horizontal fissure meets the oblique fissure, and where the interlobar veins are embedded, cursory disposal of this region inevitably causes accidental injury during surgery. However, the distribution of right top pulmonary veins (RTPVs) hidden in the UOF has not been studied thoroughly; to the best of our knowledge, there are no reports on the classification of interlobar veins in the UOF.

Preoperative three-dimensional computed tomography bronchography and angiography (3D-CTBA) allows visualization of anatomical structures and is becoming an indispensable tool in thoracic surgery (4,5). In this study, 3D-CTBA was used to analyze the subtypes of interlobar veins hidden in the UOF. The clinical data of patients who underwent surgery in our center were collected to investigate the relationship between interlobar vein subtypes and accidental injury. We present the following article in accordance with the STROBE reporting checklist (available at https://atm.amegroups.com/article/view/10.21037/atm-21-4913/rc).

Methods

Study design and patient collection

This retrospective cohort study was carried out following the Declaration of Helsinki (as revised in 2013). The study protocol was approved by the Ethics Committee of The First Affiliated Hospital of Nanjing Medical University (2021-SR-164), and informed consent was obtained from each patient. Patients who underwent thoracoscopic surgery from January 2019 to June 2020 in the Department of Thoracic Surgery were enrolled. The inclusion criteria were as follows: (I) age ≥18 years old; (II) diagnosis of lung cancer; and (III) a right UOF requiring management during thoracoscopic surgery. Records with incomplete imaging data or lesions blurring the identification of interlobar veins were excluded. Records with incomplete videos of the operation with failure to show the upper right oblique fissure were excluded from the surgical data analysis. The flow diagram is shown in Figure 1.

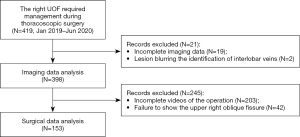

Figure 1 Flow diagram of participation. UOF, upper oblique fissure.

Types of interlobar veins

According to the venous origin, the interlobar veins hidden in the UOF of the right lung could be classified as oblique fissure-type interlobar veins (OFIVs) and mediastinal-type interlobar veins (MIVs). The OFIVs originated from the central vein (Central. V) or V²c, ran between the RUL and the RLL, and entered the UOF (Figure 2A,2B). The diameter of the OFIV was measured at the origin in the lung window on contrast-enhanced computed tomography (CT) (Figure 2C). The MIVs originated from the inferior pulmonary vein, V⁶, or the left atrium and entered the UOF posterior to the bronchus intermedius (BI) (Figure 2D,2E). The diameter of the MIV was measured in the same way as OFIV (Figure 2F). The branches of the interlobar veins were named after the corresponding pulmonary segment where the vein drained. For instance, if the intrasegmental vein (S¹a) [Intra.V (S¹a)], the Intra.V (S²a), and S² terminal vein (V²t) drained to the interlobar vein, the subtype was named V²t + Intra.V (S¹a) + Intra.V (S⁶a). Subtype modeling was based on the data of all branch types.

Figure 2 Trajectories of OFIV and MIV. (A) The OFIV trajectory is shown before the incision of the UOF. The OFIV originates from the V²c, travels between the right upper and lower lobes, and enters the UOF, producing the inferior lobe branch Intra.V (S⁶a) along its course. (B) Corresponding 3D-CTBA images of the surgical patient show the anatomical structure around the OFIV. The OFIV originates from the V²c segment and produces an Intra.V (S⁶a) branch on the surface of the IAT. (C) The blue dot indicates the measurement site of the OFIV in the CT lung window, which is where the OFIV originates from the V²c. (D) The posterior mediastinal pleura was dissected during the operation to expose the MIV. The MIV originates from the inferior pulmonary vein and gradually enters the UOF posterior to the BI. (E) Corresponding 3D-CTBA images of the same patient show the anatomical structure around the MIV. (F) The blue dot indicates the measurement site of the MIV in the CT lung window, which is where the interlobar vein branches into V⁶. OFIV, oblique fissure-type interlobar vein; MIV, mediastinal-type interlobar vein; UOF, upper oblique fissure; Intra.V, intrasegmental vein; 3D-CTBA, three-dimensional computed tomography bronchography and angiography; IAT, intermedial arterial trunk; CT, computed tomography; RUL, right upper lobe; RLL, right lower lobe; BI, bronchus intermedius; Asc.A², ascending A².

Definition of fissure development

Fissure development was estimated according to Craig and Walker’s criteria, which combine the degree of completeness of the fissures and the location of the pulmonary artery at the base of the oblique fissure (6). A complete UOF is formed by the intact interlobar pleura separating the RUL and RLL. An incomplete UOF refers to the partial fusion of the RUL with the RLL, which requires dissection of the interlobar pleura to expose the intermedial arterial trunk (IAT) or interlobar vein. Fissure agenesis refers to the total absence of the interlobar pleura, which leads to extreme difficulty in exposing the IAT or interlobar vein at the location of the crest.

Analysis of interlobar vein injuries

The above interlobar vein subtypes were further analyzed regarding accidental injury correlated with surgery. In patients with a clear display of interlobar vein branches in a complete UOF, when the branches distributed at the nontarget surgical region were mistransected, accidental injury was recorded. In patients with incomplete or absent interlobar fissures, the distribution of interlobar veins on 3D-CTBA images and the scope of surgical resection were combined to comprehensively determine interlobar vein injury.

Statistical analysis

Statistical analyses were performed using the SPSS (version 23.0; SPSS Inc., Chicago, IL, USA) and GraphPad Prism (version 6.0; GraphPad Software Inc., La Jolla, CA, USA). Quantitative data are expressed as the mean ± standard deviation, and qualitative data are expressed as the number of cases (percentage). A receiver operating characteristic (ROC) curve was used to predict the possibility of single- or multibranched interlobar veins. A P value less than 0.05 was considered indicative of a significant difference.

Results

The clinical data of 419 consecutive patients who underwent thoracoscopic surgery from January 1^st, 2019, to June 30^th, 2020, were collected. Finally, 21 patients were excluded due to incomplete imaging data or lesions blurring the identification of interlobar veins, and 398 patients were enrolled. Among these patients, 237 received contrast-enhanced CT scans, and 161 received plain CT scans. 3D-CTBA images were reconstructed with Deepinsight software (Key Laboratory of Intelligent Computing in Medical Image, Ministry of Education, Northeastern University, Shenyang, China). Then, the morphology and distribution of the interlobar vein in the UOF were independently analyzed by 2 thoracic surgeons. Two experienced radiologists measured the diameters of the interlobar veins in the lung windows of the contrast-enhanced CT images of 237 patients (window width =1,400 HU, window position =−500 HU). The images of 161 patients with noncontrast CT scans were analyzed only to determine interlobar vein subtypes. Furthermore, 153 patients with complete videos of the operation, including details of the UOF, were included for surgical data analysis. Participation at each stage is shown in the flow diagram (Figure 1).

Interlobar vein subtypes

The results of the 3D-CTBA image analysis of 398 patients showed diversity in the interlobar vein subtypes (Table 1). An OFIV was the most frequent type, accounting for 85.9% (342/398) of cases, and vastly outnumbered the MIV type (13.8%, 55/398). Interlobar vein absence was observed in 0.3% of cases (1/398). Various main types could be further subdivided into 30 distribution manifestations. A total of 73.6% (293/398) of patients had branches distributed bilaterally into the upper and lower lobes, and 26.1% (104/398) had branches distributed only into the upper lobe. Additionally, 69.6% (238/342) of OFIVs had Intra.V (S⁶a) branches distributed into the lower lobe. All MIV types contained branches distributed into the RUL (55/55), originating from S² or S¹ veins.

The subtype analysis in Table 1 shows that 83.6% (286/342) of OFIVs had multiple branches. Single-branched OFIVs with only a V²t branch accounted for 16.4% (56/342) of all OFIV cases. Branches of the interlobar vein included S²-related Intra.V (S²a), V²a, V²a2, V²b, V²b2, and V²t, S¹ related Intra.V (S¹a), V¹a, and S⁶ related Intra.V (S⁶a). A total of 56.4% (31/55) of MIV cases had multiple branches, 43.6% (24/55) of which were single-branched only with V²t.

Figure 3 presents the common distribution of the interlobar veins. OFIVs ran in the UOF, branched into Intra.V (S⁶a) and V²t branches, and then ran in the RUL and branched into V²b, V²b2, V²a, V²a2, ectopic V1a, or Intra.V (S¹a) branches in some patients (Figure 3A). The MIV originated from V⁶, coursed over the BI, extended upward along the posterior mediastinum, and branched into a V²t branch in the UOF. The distribution of other MIV branches in the RUL was similar to that of the OFIV except for an ectopic V1a (Figure 3B).

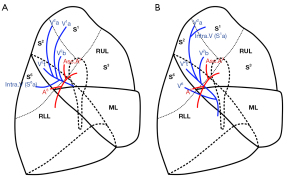

Figure 3 Schematic of the interlobar veins within the UOFs (lateral view of the right lung). The blue line represents the vein, and the red lines represent the IAT, A⁶, and Asc.A². (A) The OFIV runs in the UOF, branches into the V²t and Intra.V (S⁶a), and then branches into the V²b or V²a branches in the upper right lung or the V¹a branch in a few cases. (B) The MIV originates from the posterior mediastinum in the inferior pulmonary vein. After producing the V⁶ branch, the vessel continues ascending along the posterior BI and then enters the UOF and produces the V²t and Intra.V (S¹a) branches in a few cases. UOF, upper oblique fissure; IAT, intermedial arterial trunk; Asc.A², ascending A²; OFIV, oblique fissure-type interlobar vein; Intra.V, intrasegmental vein; MIV, mediastinal-type interlobar vein; BI, bronchus intermedius; ML, middle lobe; RUL, right upper lobe; RLL, right lower lobe.

Analysis of interlobar vein injuries

As shown in Table 2, accidental injuries of the interlobar veins occurred in 19.1% (9/47) of patients with a complete UOF, 35.3% (6/17) of patients without a UOF, and 50.6% (45/89) of patients with an incomplete UOF. The incidence of interlobar vein injury was significantly higher in patients with an incomplete UOF (χ²=12.856, P=0.02). In total, Intra.V (S⁶a) injury accounted for 91.7% (44/48) of OFIV injuries, and single-branched V²t injury accounted for 75% (9/12) of MIV injuries.

In the complete fissure group, of the 44 patients with OFIVs, 5 patients suffered from injury of Intra.V (S⁶a) during right upper lobectomy, including 1 with V²a2 injury and 1 with Intra.V (S⁶a) injury during S² resection, 1 with V²a2 injury during S² + S³a resection, and 2 with Intra.V (S²a) injury during S²b resection. No MIV branches were injured in patients with complete fissures.

In the fissure absence group, of the 14 patients with OFIVs, 4 patients suffered from injury of the Intra.V (S⁶a) branch of the OFIV during right upper lobectomy. Of the 3 patients with MIVs, 2 patients suffered from V²t and Intra.V (S²a) injury during right lower lobectomy.

In the incomplete fissure group, of the 70 patients with OFIVs, 28 patients suffered from Intra.V (S⁶a) injury during right upper lobectomy, and 6 suffered from Intra.V (S⁶a) injury during S² resection. Of the 19 patients with MIVs, 10 patients suffered from injuries, including 4 with V²t injury and 1 with V²t + V²a2 injury during right lower lobectomy, 1 with V²t injury during right lower and middle lobectomy, and 3 with V²t and 1 with V²t + Intra.V (S²a) injury during S⁶ resection.

ROC curve of single- and multibranched interlobar veins

Table 2 shows that Intra.V (S⁶a) injury accounted for 91.7% of OFIV injuries, and single-branched V²t injury accounted for 75% of MIV injuries. As evidenced from the interlobar vein subtypes (Table 1), the Intra.V (S⁶a) type was present in OFIVs with multiple branches. MIV injury mainly occurred in the single-branched V²t of the upper lobe. Therefore, we measured the diameters of single- and multibranched interlobar veins in the lung window on contrast-enhanced CT images in 237 of 398 patients (Table 3). In 206 patients with OFIVs, the diameter of the multibranched interlobar vein was 3.84±1.26 mm. In 31 patients with MIVs, the diameter of the single-branched V²t was 1.81±0.42 mm.

As shown in Figure 4, a ROC curve was applied to analyze the predictive value of interlobar vein diameter for multibranched interlobar veins. The results showed that an OFIV diameter greater than 2.4 mm was a predictor of multibranched interlobar veins. The area under the ROC curve (AUC) was 94.3%, with a sensitivity of 88.9% and a specificity of 92.3% (P<0.001). A MIV diameter less than 2 mm indicated that the interlobar vein was a single-branched V²t. The AUC was 96.6%, with a sensitivity of 100% and a specificity of 84.6% (P<0.001).

Figure 4 ROC curve of single- and multibranched interlobar veins based on diameter. (A) ROC curve of the oblique fissure-type interlobular vein. A diameter of the OFIV greater than 2.4 mm indicates a multibranched interlobar vein (AUC: 94.3%). (B) ROC curve of the mediastinal-type interlobular vein. A MIV diameter less than 2 mm indicates a single-branched interlobar V²t vein (AUC: 96.6%). ROC, receiver operating characteristic; OFIV, oblique fissure-type interlobar vein; AUC, area under the ROC curve; MIV, mediastinal-type interlobar vein.

Discussion

Intersegmental veins play a vital role in maintaining the ventilation/perfusion ratio of the pulmonary segment. The interlobar veins in the UOF involve multiple intersegmental veins. With the development of precise lung segment surgery, an increasing number of clinicians have paid attention to the diversity of interlobar veins. Our results also revealed 2 major types of interlobar veins, which contained up to 30 distribution patterns. The degree of completeness of the pulmonary fissure and the distribution of the interlobar vein were determinants correlated with the risk of intraoperative interlobar vein injury. The diameter of the interlobar veins on two-dimensional CT images can predict the branching mode of interlobar veins, which provides auxiliary support for the general classification in 3D-CTBA images.

Intersegmental veins were reported in a study by Yamashita (7), in which the emphasis was the central vein, and the branches of the interlobar veins were not analyzed separately. Although Yamashita defined the terminal branch of V² as V²t (7), the study showed that V²t could accept drainage from other branches. We propose that V²t should be considered an independent branch that is only distributed in S². Our results showed that only 16.4% of OFIVs were composed of the V²t branch alone, while 83.6% of interlobar veins had multiple branches, with Intra.V (S⁶a) of the interlobar vein accounting for the highest proportion (69.6%). In addition, the interlobar veins could also produce other branches, such as the rare ectopic V¹a and Intra.V (S¹a) branches, accounting for 0.6% of all branches.

Some scholars consider a MIV as a RTPV that accepts drainage from V² and V3, with an incidence of approximately 0.3–9.3% (8-10). In this study, the proportion of MIVs was 13.8%, which was higher than that reported in previous studies. A possible reason is that the RTPV could be more easily identified in 3D-CTBA images.

Interlobar vein injuries were most common in Intra.V (S⁶a) branches of a multibranched OFIV and V²t of a single-branched MIV. The ROC curve revealed a close correlation between the diameter of the interlobar vein and the branching mode. An OFIV diameter larger than 2.4 mm often indicates multiple branches of the interlobar vein, and increased caution should be taken to prevent accidental injuries. A MIV diameter less than 2 mm often indicates a high risk of single-branched V²t injury.

In addition to the diameter and distribution pattern of the interlobar veins, the completeness of the UOF was also a risk factor for interlobar vein injury. Among 89 patients with an incomplete UOF, interlobar vein injury was common (50.6%). For patients with incomplete or absent UOFs, the right superior pulmonary vein or inferior pulmonary vein was the primary anatomical structure to be divided when using the fissureless technique (11), which can easily cause interlobar vein injury (Figure 3). We suggest disassociating the anterior mediastinal vein branch (V¹) of the right superior pulmonary vein first when using the fissureless technique in an upper lobectomy, which helps preserve the interlobar veins. Other techniques include transecting the incomplete UOF above the OFIV in upper lobe surgery and carefully identifying the MIV in the posterior mediastinum in lower lobe surgery.

There are some limitations to this study. First, this was a retrospective study performed at a single institution, and there was a possibility of inherent bias. However, to overcome this limitation, we aimed to include as many patients as possible using logical selection. Second, further analysis of the clinical complications caused by interlobular vein injury was not carried out. We are planning to implement this in the future by collecting more high-quality data.

Conclusions

Diverse interlobar veins could be classified into the OFIV and MIV subtypes according to the distribution pattern. The diversity of the interlobar veins and the completeness of the UOF were noteworthy risk factors in surgery involving dissection of the UOF. The vein diameter on two-dimensional CT images and vein classification on 3D-CTBA images could provide supporting information to avoid accidental injury of interlobar veins.
