Importance of bitewing radiographs for the early detection of interproximal carious lesions and the impact on healthcare expenditure in Japan

Introduction

Dental caries is a costly disease to treat, consuming 5–10% of healthcare budgets in industrialized countries. It is one of the 10 most frequent global causes of death, and is among the most prevalent causes of hospitalization of children in some high-income countries (1,2). In 2015–2016, the prevalence of caries (untreated and treated) in American children and adolescents aged 2–19 years was 45.8%, while the prevalence of untreated caries in the same population was 13.0% (3). Caries prevalence was lowest in youth aged 2–5 years compared with those aged 6–11 and 12–19 for total caries experience (21.4%, 50.5%, 53.8%) as well as untreated caries (8.8%, 15.3%, 13.4%) (3). Untreated caries prevalence increased from 2011–2012 (16.1%) to 2013–2014 (18.0%), and then decreased in 2015–2016 (13.0%). Understanding the economic burden of oral diseases is also important to improve the societal approach towards preventing and addressing oral diseases. The World Health Organization, in 2010, indicated that direct treatment costs due to dental diseases worldwide were $298B, corresponding to 4.6% of global health expenditure ($6.5 trillion in 2010) (2,4). Although largely preventable, dental caries is the most common chronic disease in the US: 91% of Americans over 20 have experienced caries at some point in their lives (5).

Although there have been many developments in the methods of caries detection, including transillumination (6,7), quantitative light fluorescence (8), and laser fluorescence (9-11), radiographs are still the primary diagnostic tool for the detection of interproximal dental caries (12). Accurate reading of radiographs is paramount for caries detection (13). Bitewing radiographs (BWR) have been shown to be superior to periapical or panoramic radiographs for diagnosing interproximal carious lesions, particularly in the early stages of caries formation (14). The care model for dental caries management is moving toward non-operative/preventive care (15). The World Dental Federation made a statement in support of using Minimal Intervention Dentistry (MID) as the contemporary way to manage caries (16). In order to make minimally invasive treatment possible, dental caries needs to be diagnosed in the earliest stages (17). Higher sensitivity is required for early detection of dental caries, such as in enamel. BWR show significantly better sensitivity than periapical radiographs for all levels of caries progression (BWR: 94.5 for dentin caries, 90.43–82.7 for enamel caries, periapical: 69.7 for dentin caries, 39.01–56.2 for enamel caries), although there was no significant difference on specificity (18).

MID is a viable treatment option for enamel caries, in that false positives (caries misdiagnosed as being present when it is actually not) would not lead to treatments that irreversibly cause tooth structure to be removed from a healthy tooth (18). Previous studies have shown that BWR offer a significant advantage over periapical radiographs in the diagnosis of early stages of interproximal caries (IC) (18). BWR serve as an important tool in the accurate diagnosis of early stage lesions and is thus one of the most essential services that need be included in preventative and early interventional dental care plans (19).

In the United States, BWR is the standard of care for diagnosing interproximal carious lesions and is taught in all dental schools (12). However, the implementation and insurance coverage of BWR varies among countries; for instance, the Japanese universal health care system does not cover BWR for diagnostic purposes, likewise in other nations with universal healthcare coverage (20).

In this retrospective observational study, we investigated the effect of not taking BWR on the potential underdiagnosis of IC and calculated the potential economic impact. The Japanese universal healthcare system was selected because medical and dental care are recorded together. For dentistry, insurance covers most dental services except for preventative care, aesthetic restorations, dental implants, and orthodontics, among others. In 2011, the Japanese Ministry of Health, Labor and Welfare established that third parties can access the UHCS database under ¹government guidelines. First, the approximate number of teeth in which IC was left undiagnosed when BWR are not taken was calculated. Second, the potential cost of dental treatments that would have been performed if BWR are taken was determined. Last, the excess financial burden due to allowing lesions to progress rather than intervene with early diagnosis and treatment was calculated. It is hypothesized that there is a large cost associated with not treating these undiagnosed carious lesions, missed by not taking BWR, in addition to the potential missed opportunities to treat or monitor caries in their incipient or dentinal phases, allowing progression to larger, more complicated lesions. We present the following article in accordance with the STROBE reporting checklist (available at https://dx.doi.org/10.21037/atm-21-2197).

Methods

Access to the national dataset of medical and dental reimbursements from 2013 to 2017 from the Japanese universal healthcare system (UHCS) was obtained. This study was approved by Japan’s Ministry of Health, Labor and Welfare (JMHLW) in 2018 and the Institutional Review Board of Iwate Medical University Japan (IMU_01301) and conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Frequency of BWR

The number of BWR per practice monthly (BWRPPM) in each of 47 states was assessed and the trends were graphed. The frequency of BWR was also compared to panoramic and periapical radiography using the public annual report by JMHLW.

Statistical analysis

One-way ANOVA analyses were performed to identify significant differences on the numbers of BWR per practice between years. The association between BWRPPM and monthly dental cost per person per month (DCPP) was analyzed using Spearman’s correlation coefficient.

The number of teeth in which interproximal caries (IC) is left undiagnosed by not taking BWR

The formula to estimate the number of teeth in which IC remains undiagnosed due to not implementing BWR was created (Figure 1). Undiagnosed IC was defined as the difference between the estimated number of affected and treated teeth with IC. The estimated IC was calculated by multiplying the total number of patients by the average number of carious teeth per patient and by the percentage of those located in the interproximal posterior areas. White’s estimation of carious teeth as well as the percentage of posterior caries was applied (21). The average number of patients visiting the dental practice monthly was calculated from the database of JMHLW between 2013 and 2017 (22).

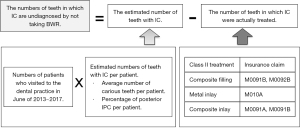

Figure 1 The formula to calculate the numbers of teeth in which interproximal caries (IC) remain undiagnosed by not taking bitewing radiographs (BWR).

To evaluate the cost of treatment, the expected depth of the caries treated was investigated, which determines the type of treatment needed. The depths of carious lesions were classified per White’s article as Outer Enamel (14%), Inner Enamel (27%), Shallow Dentin (24%), Deep Dentin (19%), and Recurrent (19%). The number of teeth undiagnosed was then divided into subgroups based on these proportions (21). Treatment modalities were then identified: lesions in enamel would be treated by fluoride varnish, and lesions into dentin would be treated with composite fillings or metal inlays. In the case that caries into dentin remained undiagnosed and progressed into a larger lesion, recommended treatment would be a full coverage restoration with or without root canal treatment (RCT). The cost of these treatments was extrapolated from the national registry (22).

The number of teeth with caries treated was calculated as the sum of the number of class II restorations billed, such as, composite fillings, metal inlays, and composite inlays, denoted by codes M0091B, M0092B, M0101A, M0091A, and M0091B from the JMHLW data (22). The difference between these two values was the estimated number of undiagnosed carious teeth in the Japanese healthcare system.

The projected extra expenditure of treatments required for the undiagnosed and progressed IC lesions

The formula to calculate the projected extra expenditure of treatments required for the IC was created (Figure 2), and incorporates the varying recommended treatments indicated for different extents of IC. Recommended treatments of caries diagnosed via BWR are preventive care (fluoride varnish, promotion of oral hygiene) for caries only within enamel and class II restorations (composite fillings, metal inlays, and composite inlays) for caries extending into dentin (23). Undiagnosed lesions that are not treated may progress, eventually requiring extensive class II restorations, root canal treatments (after extension into the pulp), and full coverage restorations (when there is extensive tooth structure loss). White’s method was utilized to calculate the number of teeth which could have IC in each of the extension level of lesions: outer enamel, inner enamel, shallow dentin, deep dentin, and recurrent caries (21). The aggregate cost of these treatments was then calculated based on Japan’s government healthcare system fees. The difference in the cost of treating extended lesions due to undiagnosed IC (extended Class II restorations, root canal treatments, and crowns) and treating initial IC lesions was calculated.

Figure 2 The formula to calculate the projected extra expenditure of treatments required for the undiagnosed IC after caries progression. E1: The expenditure of preventive care recommended. E2 and D1: The expenditure of class II restorations recommended. D2: The expenditure of extensive treatment recommended.

Results

Radiograph frequency

From June 2013 through 2018, there were 4,029,234 total periapical radiographs and 1,347,665 total panoramic radiographs (Figure 3). In comparison there were only 48,882 BWR acquired (Figure 3). There was an inconsistent number of radiographs taken across states with the highest states taking 110.3 BWR per month per practice (state 42), and the lowest taking 8.7 BWR (state 44) (Figure 4).

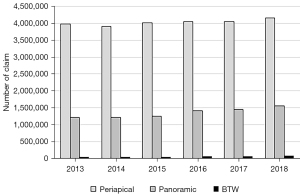

Figure 3 The total number of 3 types of radiographs taken in June 2013–2018 (published data by Japan’s Ministry of Health, Labor and Welfare: JMHLW).

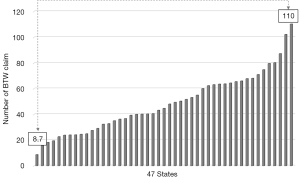

Figure 4 The average number of bitewing radiographs (BWR) taken per practice per month in each of 47 states in year 2017.

The average of number of monthly BWR per office over the period evaluated ranged from 4.27–50.3 among the 47 states. There was no significant difference among the 6 years evaluated. Spearman’s correlation coefficient between average number of BWRPPM and monthly DCPP from 2012–2017 was 0.337 with no significance (P=0.0203).

Number of IC that could be missed by not taking BWR

Utilizing the report by JMHLW, the average number of patients who visited a dental practice in the months of June between 2013 and 2017 was 4,044,173 (22). According to White et al., the average number of carious teeth per patient was 3.21, and 79.7% of those teeth would be posterior interproximal caries (IC). Thus, there should be an estimated 2.5 carious posterior teeth per patient (21). Extrapolating this value, an estimated 10,344,994 carious teeth were expected to be observed and treated in those patients. However, using the national report, the total number of teeth treated (composite fillings, metal inlays, and composite inlays) was only 3.9M teeth (Table 1) (22). The difference in estimated and observed equals 6.4M teeth, indicating the untreated IC lesions. This equals 93.5 (±7.5) IC left undiagnosed per clinic per month.

Based on the estimated number of carious lesions left undiagnosed in the outer and inner enamel (861,507+1,748,730), treatment with fluoride varnish would cost $ 308,216 per year by self-pay as insurance doesn’t cover preventive care. In the case that caries remained undiagnosed, and then progressed to requiring a class II restoration, the cost would be $57M–$58M for class II composite restorations and $191M–$218M 191,568,334–$218,122,361 for metallic inlays (Figure 5). For the total estimated undiagnosed shallow dentin caries (1,562,285), the average cost of class II restorations would be $82M ($42M if with a composite filling and $122M if with a metallic inlay). In the case that these undiagnosed carious lesions progressed and necessitated a full-coverage restoration, the calculated treatment costs would be $233M with a metal crown, or $400M with a CAD/CAM crown. These figures would increase to $358M and $525M respectively, if the tooth required a RCT (Figure 5). If caries was diagnosed and treated with a class II restoration, $150M–$443M expenditure would be saved.

Figure 5 Average projected extra expenditure of treatments required for undiagnosed interproximal caries (IC). (A) Enamel caries, (B) Shallow dentin caries.

Discussion

These data represent a significant number of interproximal lesions, approximately 6,429,155 teeth per month, that have potentially gone undiagnosed due to a lack of BWR being taken. Because interproximal lesions are often not clinically visible, radiographs are required to detect these lesions (24). BWR are far more sensitive to caries detection of posterior interproximal lesions than panoramic radiographs (14). Lesions that can be seen on BWRs include both cavitated and non-cavitated lesions into the enamel and dentin (25). In Japan, the extra cost of treatment incurred by not diagnosing these lesions amounts to approximately $47M–$1B per year. Through early detection and prevention, more extensive and expensive treatments can be avoided (26). Simply calculating, if BWR were taken for all patients once a year, the cost of BWR (4 bitewings) would be $14M (1.5E+07), which is significantly less than the expected cost of progressed undiagnosed caries. It is, therefore, beneficial to the patient, the provider, and the national health care system to use BWRs to diagnose and prevent the progression of IC lesions.

Outside of Japan, BWRs are commonly used to diagnose interproximal lesions (12). The data indicated a large difference between the number of BWRs taken and periapical and panoramic radiographs. The potential reasons could be (I) Japanese UHCS don’t cover BWRs for diagnostic purposes. (II) Panoramic radiographs are covered. The most common pattern for a new patient visit is taking a panoramic first and then taking a periapical for specific teeth that have problems diagnosed using a panoramic film and a clinical examination. (III) Taking BWRs in addition to the panoramic and periapical radiographs takes too much time and dentists prefer not to do so. (IV) Patients do not want to have BWRs that are not covered by insurance for diagnostic purposes. This article could help change this unique culture to make both dentists and patients understand the benefits of BWRs. By using strict criteria for defining the presence of lesions, despite a relatively high presence of false-negatives, there is much higher degree of specificity (24). The false-negative risk can be mitigated by taking BWRs with sufficient frequency to avoid missing lesions. In a high caries risk patient, it is recommended that bitewings be taken every 6–12 months, whereas in a low caries risk patient, every 2–3 years appears to be sufficient (27). The additional diagnostic yield of radiographs for IC is 204–336%, indicating much higher effectiveness than just clinical examination (19). It is crucial to teach clinicians how to read bitewings. Developing a combination of clinical judgment as well as analytic prowess leads to increased diagnostic accuracy for students-in-training (28). Individuals who have been trained in systems without using BWRs as a diagnostic tool may need further education in order to be competent in reading radiographs. Although, transillumination may be an effective method of detecting carious lesions, this technology is not currently as widely used (7).

Once lesions are diagnosed, it is important to assign the proper treatment modality, based on lesion depth. In the enamel, lesions can be remineralized using fluoride to control disease progression (29). MID can protect teeth from secondary caries and fractures (17). Once the lesion extends into dentin, treatment with a restoration is recommended (23). Over the last 150 years, amalgam fillings were the primary modality for treating caries of the dentin, but in many countries, this has shifted to resin composite fillings due to aesthetics and the potential environmental impact of mercury (30). Generally, failure of a direct composite restoration occurs most frequently due to recurrent caries or restoration fracture (31). There is no significant difference observed between direct and indirect treatment modalities for posterior restorations, though further clinical research is recommended (32).

Limitations of this retrospective observational study include a dependence on estimates of existing carious lesions. Further, the estimated distribution of the extent of the lesions in this study ²uses prevalence data obtained from the United States and there may be differences in caries prevalence, location, or distribution between Japan and the US. The four recent studies reported following: (I) The prevalence of dental caries among adults aged 20–64 years (2011–2016) was 90%, which is a slight decrease from 92% during 1999–2004. Among adults with caries, mean DFT was 7.4, lower than the estimate of 8.2 during 1999–2004. Mean DFT and FT both decreased by about one tooth overall (33), (II) The untreated caries decreased 12% that is reflecting one tooth decrease (8.2 to 7.4) in DFT (34), (III) Population DFT scores decreased over time in all countries examined (UK, USA and Sweden), except Japan (35), (IV) The Japanese Ministry of Health, Labor and Welfare report indicated that DFT in Japanese adults (age 25–65) is 12.0 in 2011–2016 and 12.9 in 1999–2004 (36), these numbers are greater than the US data. In case of 4–12% decrease of caries prevalence, estimated expenditures would be 88–96% of present numbers calculated in Figure 5. Although the results still could be over or under-estimated due to the accuracy of the formula used, the results of this study could provide an important message to nations not using BWRs for routine examinations. Furthermore, progression of lesions in the enamel and false positives are concerns, for this reason, dentists should use BWR to monitor interproximal caries.

In addition, limitations also exist in predicting which treatment modality a dentist would select, the decision to treat or not to treat a lesion lies at the basis of clinical judgement and each dentist has a unique methodology for creating treatment plans. It is these differences that lead to the wide range of expenses possible to treat carious lesions.

Further research should focus on the additional diagnostic value of BWRs, such as quantifying bone loss and other periodontal diseases. One should study the costs of taking BWRs, to understand the differential between true cost of preventing disease and the sequelae of further disease. Furthermore, a prospective observational clinical study should be performed to monitor undiagnosed IC over time. Policy changes should be made to include diagnostic BWRs within national dental insurance in countries that currently do not include them, and to further increase the acceptance of BWRs. In addition, educating and incentivizing providers to use BWRs to diagnose and to prevent progression of IC will be crucial in preventing more compromised outcomes.

Conclusions

By not taking BWR, dentists may fail to diagnose many carious lesions. Not diagnosing these lesions precludes the opportunity to prevent caries progression and leads to significant subsequent expenditures for larger required invasive treatments. The oral health of the Japanese population may be compromised because of undiagnosed disease.
