Identification of solute carrier family genes related to the prognosis and tumor-infiltrating immune cells of pancreatic ductal adenocarcinoma

Introduction

Pancreatic cancer (PC) is the fourth and the sixth leading cause of cancer-related death in the US and China, respectively (1,2). In 2018, there were approximately 458 million new cases and 432 million deaths due to PC (3). The above statistics indicate that PC is a highly malignant neoplasm with a similar morbidity and mortality; and the 5-year survival rate remains low, at 6% (4). Pancreatic ductal adenocarcinoma (PDAC) is the predominant pathological type of PC (5). Patients with PDAC are typically first diagnosed at an advanced stage, and thus, have surpassed the opportunity for surgical treatment. This is because patients do not exhibit classic symptoms at an early stage and there is an absence of powerful detective biomarkers (6). Some patients are lucky and undergo radical resection; however, the 5-year survival rate is only as high as 25% (7). Thus, new biomarkers are required to improve outcomes.

The solute carrier (SLC) gene superfamily is the second largest family of membrane proteins after G protein-coupled receptors, including over 400 proteins in 65 subfamilies based on sequence similarities (8). Amino acids, sugars, fatty acids, inorganic ions, essential metals, and drugs are transported over the cell membrane by the SLCs, which function as passive transporters, ion transporters, and exchangers (9). Since SLCs are responsible for transporting essential substances throughout the human body, SLC mutations have been linked to human genetic disorders and the level of SLC expression is changed in a variety of tumors, including congenital chloride diarrhea, glucose galactose malabsorption, and familial renal glucosuria (10-12). A study showed that SLC5A8 could suppress colon cancer and was silenced by methylation (13). In a mouse model, reducing polyamine was effective for prolonging prognosis and preventing tumor progression, and a knockdown of SLC3A2 in neuroblastoma cells reduced the uptake of polyamine (14). Moreover, SLCs have been extensively studied in pharmacokinetics, chemotherapy resistance, and as therapeutic targets (15). Nucleoside transporters encoded by the SLC28 and SLC29 subfamilies have been shown to mediate the uptake of gemcitabine and 5-fluorouracil. In addition, some of the SLC22A subfamily is related to the transport of platinum compounds (16,17). Mutations of SLC affect the synthesis of transporters, finally resulting in an insufficient intake of chemotherapeutic drugs which will inevitably lead to decreased sensitivity to chemotherapy. Although a previous study found that SLC2A1 may be a prognostic biomarker for PDAC, the SLC family played an important role in biological processes such as metabolism, and the comprehensive analysis of the SLC family in PDAC was still unknown (18). As well as, the potential mechanism of most members of the SLC family in PDAC and the relationship between genes and the prognosis of PDAC remains unclear.

The tumor microenvironment (TME) consists of multiple cell types (e.g., endothelial cells, immune cells, and so on) and extracellular components. Tumor cells can alter the TME through immune escape and immunosuppression; thus, the TME plays a critical role in the occurrence, progression, and treatment of tumors (19,20). In addition, immune cells are an essential cell type involved in TME and targeting immune cells is a promising therapy in PC (21). The effect of PD1 or PD-L1 checkpoint inhibitor immunotherapy has improved the clinical outcomes in a variety of tumors, including advanced melanoma, Hodgkin’s lymphoma, and advanced gastric or gastro-esophageal junction cancer (22-24). However, targeting immune checkpoints has not benefited all patients in a variety of tumors, including PDAC (25). Researching the differences in tumor-infiltrating immune cells (TIICs), the relationship with molecular expression and interactive features in individual tumors, and therefore, the identification of new immunotherapeutic targets, is critical for improving patient prognosis. Studies shown that the tumor microenvironment of PDAC was highly heterogeneous, and PD-1+ cells, and Foxp3+ T cells could evaluate the prognosis of patients with PDAC after surgery (26,27). A study shown that SLC1A5, SLC7A5, SLC3A2 were associated with the expression of PD1 and PD-L1, and might be associated with subtypes of immune cell infiltration. Therefore, we speculated that the SLC family could play a role in the TME of PDAC, especially TIICs (28).

In this study, we collected data from The Cancer Genome Atlas (TCGA) and Gene Expression Omnibus (GEO) databases, using bioinformatics tools to explore the relationship between SLC family genes and prognosis of PDAC patients, the underlying molecular mechanisms, and the density of numerous TIICs associated with clinicopathological characteristics. These results are promising for providing a new perspective on the TME and identifying potential biomarkers to achieve better clinical outcomes of PDAC.

We present the following article in accordance with the TRIPOD reporting checklist (available at https://atm.amegroups.com/article/view/10.21037/atm-21-6341/rc).

Methods

Data collection

We downloaded RNA-Seq expression profiles and clinical data from the publicly available TCGA (https://cancergenome.nih.gov/) and the University of California, Santa Cruz Xena (UCSC Xena: https://xena.ucsc.edu/) databases, respectively (29). The raw expression profiles were normalized using DESeq package in R (29). The following inclusion criteria were previously published by our research team: (I) complete survival data available; (II) histology type was PDAC; (III) pathologic stage I or II; and (IV) patients underwent pancreaticoduodenectomy. Any PDAC patients with pathologic stage III or IV disease who underwent other types of surgery were excluded (30). To investigate whether there are differences in gene expression in the peripheral blood (PB) and peripheral blood mononuclear cells (PBMCs), GSE49641 and GSE74629 were downloaded from the GEO database. If there were multiple expression values for the same gene name, the average value and expression profiles were normalized using the limma package in R (https://bioconductor.org/packages/release/bioc/html/limma.html). The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Survival analysis

A Kaplan-Meier analysis was used to assess prognosis-related clinical factors. Patients were divided into low- and high-expression groups according to the median gene expression value. We used Kaplan-Meier analysis to preliminarily screen for the genes related to prognosis. Next, a least absolute shrinkage and selection operator (LASSO) algorithm was used to select the strongest prognostic-related genes. Prognostic-related genes were finally defined by a Cox proportional risk regression model that was adjusted by prognostic-related clinical factors.

Bioinformatics analysis

The Gene Expression Profiling Interactive Analysis (GEPIA; https://gepia.cancer-pku.cn/index.html) website was used to evaluate differences in gene expression in both the tumor and non-tumor tissues (31). The protein-protein interaction (PPI) network, Gene Ontology (GO), and Kyoto Encyclopedia of Genes and Genomes (KEGG) analysis was obtained from the Search Tool for the Retrieval of Interacting Genes/Proteins (STRING; https://string-db.org/, version 11) (32). The results of the LASSO analysis of SLCs were entered into the website, and further obtained after setting Homo sapiens and an interaction score >0.150. The KEGG results were visualized using R. We then used GeneMANIA (https://genemania.org/) to acquire details of gene-gene interactions (33). A Pearson’s correlation coefficient between the SLC genes was calculated, and the corrplot package in R (https://cran.r-project.org/web/packages/corrplot/index.html) was used to visualize the results. The differences in SLC expression between PDAC and healthy controls in PB and PBMCs were analyzed and plotted using the ggplot2 package in R (https://cran.r-project.org/web/packages/ggplot2/index.html).

Joint-effect analysis and prognostic signature construction

To increase the applicability of the results, we used the prognostic-related genes to establish a joint-effect analysis with a Kaplan-Meier analysis. Nomograms were constructed using clinical variables and prognostic-related genes were used to predict the overall survival (OS) for PDAC using the rms package (https://cran.r-project.org/web/packages/rms/index.html). A prognostic risk model was constructed using prognostic-related genes. SLC19A3, SLC25A39, and SLC39A11 were included in nomogram because only they satisfied prognosis-related genes and differential expression in both the tumor and normal tissues. Regression coefficients were obtained from the results of the multivariate Cox proportional hazards regression analysis. The calculation formula for the risk score was as follows (30):

Risk score = expression of gene₁ × β₁ + expression of gene₂ × β₂+… expression of Gene_n × β_n.

The participants were divided into high- and low-risk groups based on their risk score. Receiver operating characteristic (ROC) curves were constructed to assess the accuracy of the prognostic signature using prognostic-related genes and risk score. A forest plot was constructed to assess whether the risk model was combined with other clinical factors, which has an impact on the prognosis.

CIBERSORT estimation

To investigate the TIIC landscape in the PDAC tissue between the high- and low-risk groups, the Cell-type Identification by Estimating Relative Subsets of RNA Transcripts (CIBERSORT) algorithm (https://cibersort.stanford.edu) was used to calculate the absolute proportions of 22 types of TIICs (34). CIBERSORT, which contained 547 genes, could accurately differentiate 22 individual immune cell types from the tumor is a deconvolution algorithm and is the most widely used method to date (35). A normalized PDAC dataset was input as a mixture file, 22 immune cell types (LM22) were set as the signature gene file, and an analysis was performed at 1,000 permutations. The samples which resulted in P<0.05 were considered statistically significant. We used the corrplot package in R to visualize the Pearson’s correlation coefficient between different immune cells. A bar graph was constructed using barplot packages to demonstrate a landscape of TIICs for statistically significant cases. The differences in TIICs between high- and low-risk groups were shown in a violin plot.

Gene set enrichment analysis (GSEA)

GSEA is an algorithm that can use known gene expression to calculate the potential mechanisms of differential gene expression, affecting the prognosis of patients (36). High- and low-group files determined by prognostic-related genes and genome-wide expression profile were uploaded to the GSEA. We included C2 and C5 of the Molecular Signatures Database (MSigDB) in the enrichment analysis (37). Meeting both the false discovery rate (FDR) <0.25 and P<0.05 was considered statistically significant evidence (38).

Statistical analysis

The statistical analyses were conducted using SPSS software version 22.0 (IBM Corp., Armonk, NY, USA) and R-project version 3.6.3 (https://cran.r-project.org/bin/windows/base/old/3.6.3/). The Kaplans://cr method was used to calculate the median survival time and log-rank P value. Hazard ratios (HRs) and 95% confidence intervals (CI) were calculated using the univariate and multivariate Cox proportional hazards regression model. A P value <0.05 was considered statistically significant.

Results

Data collection

A total of 183 pancreatic adenocarcinoma (PAAD) cases were downloaded, and after applying the inclusion and exclusion criteria, 112 PDAC cases were finally included in the follow-up research in TCGA. In total, 36 and 50 PDAC and non-tumor patients, respectively, were included from GSE49641 and GSE74629 in the subsequent analyses.

Survival analysis

Prognosis-related clinical variables are shown in Table S1, and the histologic grade, targeted molecular therapy, radiation therapy, and residual resection were shown to significantly affect the patient’s prognosis. The results of the prognostic differences from the low- and high-expression groups of each SLC are presented in Table S2. In addition, 32 SLC genes were significantly associated with the OS. The genes SLC19A3, SLC22A23, SLC22A4, SLC25A11, SLC25A39, SLC26A10, SLC35B4, SLC35E2, SLC39A11, SLC46A2, SLC47A1, and SLC52A1 were the results of the LASSO analysis (Figure 1A,1B and Figure S1). After calculation using a Cox proportional risk regression model, SLC19A3 (adjusted P=0.007), SLC22A23 (adjusted P=0.035), SLC25A39 (adjusted P=0.027), SLC39A11 (adjusted P=0.043), and SLC47A1 (adjusted P=0.024) were significantly correlated with the prognosis (Table 1).

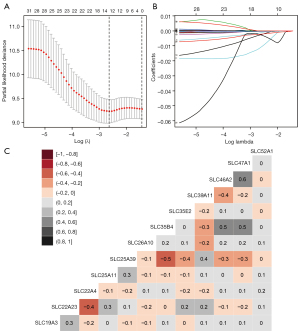

Figure 1 Matrix graphs of Pearson’s correlation analysis of SLC genes. (A) LASSO regression analysis was used to screen 32 prognosis-related solute carrier family genes. Cross-validated error curve used to select optimal λ value according to partial likelihood deviance. Dotted vertical lines were produced at the optimal values according to the minimum criteria; (B) Coefficient profile plot of 33 parameters was drawn against the log (λ) sequence; (C) Matrix graphs of Pearson’s correlation analysis of SLC family genes, the number in the matrix is the correlation coefficient between genes. LASSO, least absolute shrinkage and selection operator; SLC, solute carrier.

Bioinformatics analysis

The Pearson’s correlation coefficient from the 12 genes selected from LASSO analysis are presented in Figure 1C. The genes SLC47A1 and SLC46A2, SLC35B4 and SLC47A1, and SLC46A2 were moderately positive in relation to each other (coefficient >0.5), whereas SLC35B4 was moderately negative in relation to SLC25A39 (coefficient <−0.5). The gene-gene interactions displayed in Figure 2A show a strong co-expression relationship between these genes. The PPI is presented in Figure 2B and shows interactions in expression, experiment, text-mining, and co-expression. The GO and KEGG pathway enrichment analyses were mainly enriched in acids, inorganic ions, and essential metal transmembrane transporter activity (Figure 2C). The distribution in SLC expression between PAAD tumor and normal tissues from GEPIA suggested that the expression of SLC39A11, SLC25A39, SLC22A4, SLC35B4, SLC25A11, and SLC19A3 were significantly higher in the tumor tissue (Figure 3). In PB, the level of SLC22A4, SLC25A11, and SLC46A2 expression in PDAC patients was higher than that in the control samples (Figure S2). In PBMCs, only SLC35E2 exhibited significantly higher expression in PDAC patients (Figure S3).

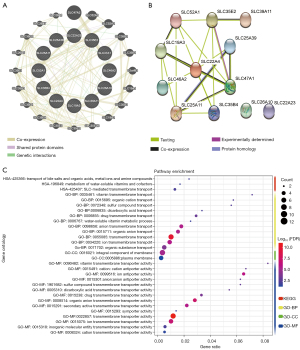

Figure 2 Interaction, KEGG pathway and GO term analysis of solute carrier family genes. (A) The gene-gene interaction networks of SLC genes from STRING; (B) the protein-protein interaction networks of SLC genes from GeneMANIA; (C) KEGG pathway and GO term analysis of SLC genes. KEGG, Kyoto Encyclopedia of Genes and Genomes; SLC, solute carrier; STRING, Search Tool for the Retrieval of Interacting Genes/proteins; GO, Gene Ontology.

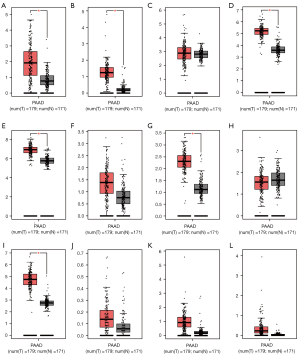

Figure 3 Gene expression level distribution of SLC genes in PAAD tissue and normal tissue. (A) SLC19A3; (B) SLC22A4; (C) SLC22A3; (D) SLC25A11; (E) SLC25A39; (F) SLC26A10; (G) SLC35B4; (H) SLC35E2; (I) SLC39A11; (J) SLC46A2; (K) SLC47A1; (L) SLC52A1. *, P<0.05. SLC, solute carrier; PAAD, pancreatic adenocarcinoma.

Joint-effect analysis and prognostic signature construction

According to the above study, we found that only SLC19A3, SLC25A39, and SLC39A11 satisfied prognosis-related genes and differential expression in both the tumor and normal tissues. Thus, a joint-effect analysis and prognostic signature were comprised of SLC19A3, SLC25A39, and SLC39A11. In the joint-effect analysis, compared with Group A, Group III and Group 4 had the best prognosis in their large group (Table 2). We constructed a nomogram using clinical factors and the 3 SLC genes mentioned above which can be used to predict the 1-, 2-, and 3-year OS of PDAC patients (Figure 4A). The forest plot indicated that patients in the low-risk group had a significantly better prognosis than the high-risk group under the following conditions: young patients (young patients condit alcohol history, high histologic grade (G3 + G4), no radical resection, no radiation therapy, and those who received targeted macular therapy (Figure 4B).

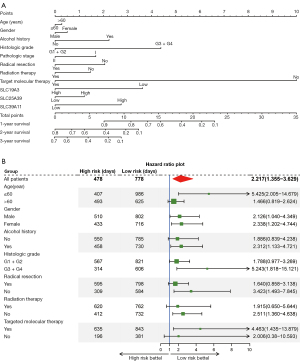

Figure 4 Prognosis nomogram for predicting overall survival and forest-plot for subgroup analysis. (A) Nomogram for PDAC patient 1-, 2-, and 3-year OS prediction; (B) Forest plot for demonstrating the relationship between subgroups of prognostic signatures and clinical factors. PDAC, pancreatic ductal adenocarcinoma; OS, overall survival.

The prognostic signature model, which included SLC19A3, SLC25A39, and SLC39A11 for OS is shown in Figure 5A. The prognosis of the high-risk group was significantly worse than that of the low-risk group (778 vs. 478 days; P=0.001). The risk score, survival status, and heatmap are presented from top to bottom. The ROC curves for predicting the OS of PDAC patients according to SLCs and risk score showed diagnostic value. The area under the curve (AUC) of SLC19A3 for predicting the 1-, 2-, and 3-year survival was 62.2%, 73.3%, and 74.1%, respectively, which was the highest among the genes (Figure 5B).

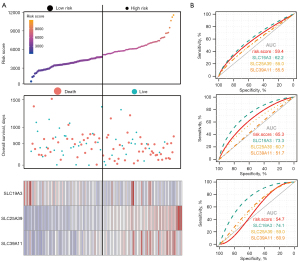

Figure 5 Expression model constructed using risk score, SLC19A3, SLC25A39, and SLC39A11 expression in early‑stage PDAC. (A) From top to bottom; risk score plot, survival status scatter plot and heat map of the expression levels of SLC19A3, SLC25A39, and SLC39A11 in low‑ and high‑risk groups; (B) from top to bottom: ROC curve for predicting 1‑year survival in patients with early‑stage PDAC by SLC19A3, SLC25A39, SLC39A11 and risk score; ROC curve for predicting 2‑year survival in patients with early‑stage PDAC by SLC19A3, SLC25A39, SLC39A11 and risk score; ROC curve for predicting 3‑year survival in patients with early‑stage PDAC by SLC19A3, SLC25A39, SLC39A11 and risk score. PDAC, pancreatic ductal adenocarcinoma; ROC, receiver operating characteristic.

The situation of immune infiltration

After CIBERSORT calculations, 63 out of 112 PDAC samples with P values <0.05 were included in the subsequent analyses. Since the percentage of eosinophils and gamma delta T cells could not be counted, 20 types of immune cells in 63 PDAC samples were analyzed. The proportion of 20 types of immune cells in each sample and a heat map of the immune cells are presented in Figure 6A,6B. Naïve B cells and M2 macrophages were moderately negatively correlated. The proportion of memory B cells (P=0.004), naive B cells (P=0.007), CD8 T cells (P=0.003), activated memory CD4 T cells (P=0.004), and activated NK cells (P=0.019) were significantly higher in the low-risk group compared to that of the high-risk group. In contrast, the proportion of follicular helper T cells (P<0.001), regulatory T cells (Tregs) (P=0.005), M0 macrophages (P<0.001), and M2 macrophages (P=0.017) were higher in the high-risk group (Figure 6C). The Pearson’s correlation coefficient was presented in the matrix box of the correlation graph, and activated natural killer (NK) cells and regulatory T cells (Tregs), naïve CD4 T cells, and memory B cells constituted the median and were moderately positively correlated (Figure 7).

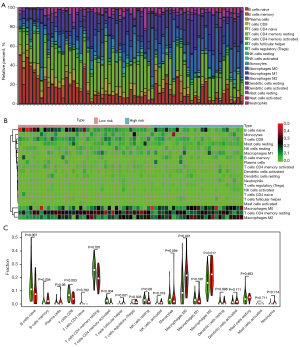

Figure 6 The landscape of tumor-infiltrating immune cells for 112 early-stage PDAC cases. (A) Histogram showing 20 types of TIILs in each case; (B) Heat map for infraction of 20 types of TIILs in each case and different groups; (C) comparison of the immune cell fractions between tumor tissues of the high-risk group and low-risk groups. PDAC, pancreatic ductal adenocarcinoma; TIILs, tumor-infiltrating immune cells.

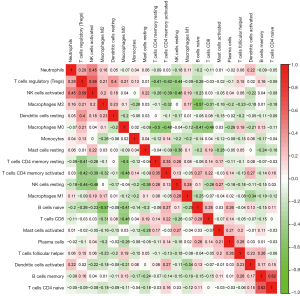

Figure 7 Matrix graphs of Pearson’s correlation analysis of 20 types of immune cells.

GSEA

In the ROC curves, SLC19A3 was the most eye-catching gene with a high AUC. Therefore, the potential mechanisms associated with the level of SLC19A3 expression on the prognosis of patients with pancreatic cancer were explored in GSEA. In the c2 gene set, the low SLC19A3 expression group was enriched for genes in the cell cycle, base excision repair, DNA replication, MYC active pathway, WNT signaling pathway, and p53 signaling pathway (Figure 8A). The c5 gene set results suggested that base excision repair, cell cycle checkpoint, damaged DNA binding, DNA replication, DNA damage checkpoint, and DNA integrity checkpoint were the main associated functions (Figure 8B).

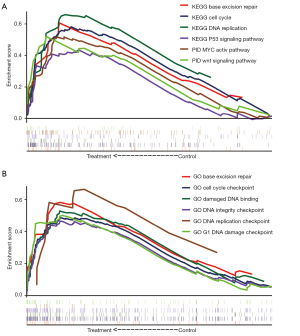

Figure 8 GSEA results for SLC19A3 in patients with PDAC. (A) GSEA results of C2 gene sets for SLC19A3; (B) GSEA results of C5 gene sets for SLC19A3. GSEA, gene set enrichment analysis; PDAC, pancreatic ductal adenocarcinoma; KEGG, Kyoto Encyclopedia of Genes and Genomes; GO, Gene Ontology.

Discussion

In this study, we performed both a survival and bioinformatic analysis using high-throughput RNA-sequencing data obtained from TCGA. In the survival analysis, the expression of SLC19A3, SLC25A39, and SLC39A11 was found to have the ability to significantly affect the prognosis of PDAC patients; however, the expression of SLC19A3 was completely opposite to that of SLC25A39 and SLC39A11, and overexpression led to a better patient prognosis. This finding is also consistent with previous research. In particular, SLC5A8 also acted as a tumor suppressor gene, and SLC7A11 inhibited pancreatic carcinoma via the PI3K/Akt signaling pathway (39,40). However high SLC28A1 expression indicated a worse prognosis, and SLC22A3 and SLC29A3 affected the therapeutic effect of nucleoside drugs in PC (41). Due to the substantial heterogeneity of both tumors and individuals, a single gene often cannot reflect the effect of the level of gene expression on the prognosis of PDAC. Hence, we constructed a prognostic signature and genetic risk score model to assess the prognosis. In addition, the forest plot showed some differences in clinical factors and patient sensitivity to certain treatment modalities. For example, in the context that radiotherapy can indeed prolong the OS of patients, patients in the low-risk group did not receive radiotherapy, and the OS was similar to those who received radiotherapy. Therefore, we believe that our prognostic signature could predict the prognosis and also provide some evidence for clinical decision-making. In our ROC curves and nomogram, all 3 genes showed excellent efficacy for predicting the prognosis, of which SLC19A3 was the most remarkable. Therefore, we inferred that the 3 genes were independent prognostic factors for PDAC patients.

In most of the previous research, variation of SLC19A3 lead to a thiamine deficiency and resulted in certain genetic disorders, including biotin thiamine responsive basal ganglia disease (BTRBGD), Leigh syndrome, and mitochondrial disorders (42,43). Thiamine transporter-2 (ThTR-2, encoded by SLC19A3) is a specific transporter that plays a role in small intestinal absorption and cellular uptake when thiamine is a critical cofactor for nucleic acid synthesis (44,45). These conclusions are also consistent with our GSEA findings that SLC19A3 participates in the cell cycle, DNA replication, and DNA damage checkpoints. In addition, diabetes is a proven risk factor for PC, and metformin is an effective oral medicine. A study conducted by Liang et al. reported that metformin was a substrate of thiamine transporters and that inhibiting ThTR-2 could reduce the uptake of metformin (5,46). Similarly, cigarette smoking is also a well-known risk factor. Srinivasan et al. reported that chronic nicotine exposure inhibited the uptake of thiamin, as well as the level of ThTR-2 and SLC19A3 expression in pancreatic acinar cells (47). Furthermore, a breast cancer (BC) study performed by Liu et al. reported that the down-regulation of gene expression contributes to the resistance of tumor cells to apoptosis (48). The above results indicate that the level of SLC19A3 expression can affect prognosis and is also associated with the risk factors of PC. Thus, SLC19A3 could act as a new tumor suppressor in PDAC.

We also investigated the potential mechanism of SLC19A3 on PC by GSEA. The results showed that the expression of SLC19A3 was associated with cell cycle, DNA replication, DNA damage, and integrity checkpoints. These findings indicate that SLC19A3 may be involved in the transportation of substances during DNA synthesis and replication to ensure normal gene replication. In addition, the low expression of SLC19A3 is enriched in the MYC and p53 signaling pathways, which are considered the key mutation signaling pathways in PC (49,50).

Mutation of p53 is one of the most common genetic mutations in tumors, and it has been reported that p53 is missing or mutated in approximately 75% of PDAC patients (51). In a mouse model of PDAC, the presence of KRAS and the loss of p53 resulted in a loss in autophagy that did not stop tumor progression but actually accelerated tumor progression (52). Therefore, a lack of SLC19A3 was associated with the p53 signaling pathway, and finally resulted in the loss of autophagy and progression of PDAC.

Some researchers have demonstrated that transcriptomic analysis can be used to explore the immune infiltration microenvironment (53). Tumor-recruited M2 macrophages promote gastric and breast cancer metastasis via M2 macrophage secreted CHI3L1 protein, and it was one the mechanism of M2 macrophages leading to poor prognosis (54). CD8 T cells, CD4 T cells, and NK cells could inhibit tumor progression and metastasis through cytotoxic effects (55). Different types of immune cells also have different effects on tumor progression. For example, cytotoxic CD8 T cells and CD4 helper T cells can inhibit tumor progression, and a high level of activated CD8 T cells can prolong the prognosis of patients (56). In contrast, macrophages, mast cells, and neutrophils can promote tumor progression and are not conducive to the patient’s prognosis (56). We analyzed the situation of TIICS in both high- and low-risk groups using CIBERSORT and found that the TICCs favorable to prognosis (e.g., CD8 T cells, CD4 T cells, and NK cells) were significantly higher in the low-risk group. Simultaneously, M0 and M2 macrophages, which have been found to be less favorable for prognosis were significantly higher in the high-risk group. Immunotherapy including immune checkpoint blockade is not effective in PDAC (57). Therefore, there is an urgent need for new immunotherapy targets to improve the prognosis of patients in PDAC. A recent report demonstrated that the selective targeting of MHC-I molecules for degradation could enhance autophagy and leads to an improved therapeutic strategy (58). It is known that autophagy and apoptosis are indispensable steps in immunotherapy, as well as the suppression of tumorigenesis and progression. Moreover, some SLCs have been shown to participate in glucose uptake and lactate release, as well as the promotion phagocyte engulfment of apoptotic cells (59). In addition, SLC genes can modify dendritic cells and induce an anti-gastric cancer immune response (60). Therefore, SLCs may be a potential target of PDAC immunotherapy, which can promote patient prognosis in the high-risk patient group.

Previous studies on SLCs have suggested that the level of SLC expression is related to the prognosis of certain tumors. For example, SLC39A7, SLC39A11, and SLC39A14 have been associated with the prognosis in GC, and the co-expression of SLC1A5, SLC7A5, and SLC3A2 has been shown to affect aggressive BC which is driven by c-MYC (61,62). However, we first pointed out that SLC19A3, SLC25A39, and SLC39A11 were significantly associated with the prognosis of PDAC, and the potential mechanisms were explored. A prognostic signature was proposed when immunotherapy did not have a good effect on PDAC, and it was calculated that TIICS differed between the high- and low-risk groups. These findings are promising for providing new targets for treatment and biomarkers for predicting the prognosis of PDAC patients.

This study had several limitations. First, the analysis involved publicly available data, and thus, information for some patients was missing (e.g., the patient’s medication, and immune-related medical history), which prevented us from performing further research on these patients. Second, although we established strict inclusion and exclusion criteria, our research was based on a bioinformatics analysis. Therefore, the obtained results still require further experimental verification. Third, due to the difficulty in obtaining PDAC tumor tissue, the level of messenger (mRNA) expression for some SLCs was derived from a single cohort, and a verification cohort was lacking. Fourth, in order to enhance the credibility of these results, we established strict standards, which also led to a small number of samples. A larger sample size is required to minimize bias in future studies.

Despite these limitations, this was the first study to report that SLC19A3, SLC25A35, and SLC39A11 and the prognosis of PDAC patients are significantly correlated. The mechanism by which SLC19A3 expression affects PDAC and the differences in tumor infiltrating cells within the tumor were explored using GSEA and CIBERSORT, respectively. Upon future confirmation of these conclusions, SLC19A3 may represent a new PDAC tumor suppressor that can contribute to the management and treatment of PDAC patients.

Conclusions

The SLC19A3, SLC25A35, and SLC39A11 genes are significantly associated with the prognosis of PDAC patients and may act as a potential biomarker for predicting the prognosis of PDAC following a pancreaticoduodenectomy. The SLC19A3 gene may represent a tumor suppressor in PDAC and affect tumor development and progression through the MYC and p53 signaling pathways and changes in immune cell infiltration. However, these findings should be verified through future functional experiments.
