The effects of the oral administration of graphene oxide on the gut microbiota and ultrastructure of the colon of mice

Introduction

Graphene oxide (GO) is a honeycomb lattice-like 2-dimensional sheet composed of sp2 hybrid carbon atoms, with many oxygen-containing active groups on the surface, such as the carbonyl, hydroxyl, carboxyl, and epoxy groups (1). The lamellar structure and abundant oxygen-containing groups of GO determine its high specific surface area, good hydrophilicity, and easy modification (2-4). GO and its derivatives have been widely applied in many aspects of the biomedical field, such as the delivery of chemotherapy drugs (5-7), the preparation of antibacterial materials (8,9), biological imaging in vivo (10,11), dental pulp repair (12), and the photothermal treatment of tumors (13,14). And they have great potential to be applied in clinical practice. With the further application of GO, its biotoxicity and safety have become the focus of research. A study reported that nano-scale GO has a dose-dependent toxic effect on zebrafish embryonic development (15). Some scholars had found that the oral administration of GO nanoparticles causes various behavioral and developmental defects in the offspring of drosophila (16). A study based on human embryonic kidney cells also showed that GO has a significant dose-dependent cytotoxic effect on human embryonic kidney cells (17). Studies have found that the toxicity of GO and its derivatives are related to its surface coating, dose, particle size, and administration route, among which the administration route is the most critical, and oral administration has the highest safety (18,19). Additionally, a study on occupational exposure risk showed that the oral cavity is one of the main exposure routes of graphene-based materials (20). However, currently, very few studies have been conducted on the biological toxicity of oral GO, and its effects on the intestinal flora.

This study sought to examine the gastrointestinal toxicity of orally administrated GO, and its effects on gut microbiota. We present the following article in accordance with the ARRIVE reporting checklist (available at https://atm.amegroups.com/article/view/10.21037/atm-22-922/rc).

Methods

Preparation of GO by the modified-Hummers method

The modified-Hummers method was used to prepare the GO. The steps were as follows: graphite (4 g, 500 mesh) and concentrated sulfuric acid (25 mL) were mixed in a 500 mL beaker, and magnetically stirred for 1 h. Next, 2 g of sodium nitrate was added and stirred at 0 ℃ for 1 h, and 12 g of potassium permanganate was added slowly in batches; the temperature was kept below 5 ℃ during this process. The temperature was then increased to 35 ℃, and the stirring continued for 2 h. A total of 180 mL of deionized water was slowly added and stirred at 95 ℃ for 15 min. Hydrogen peroxide (20 mL, 30%) was slowly added, and washed with 1 mol/L hydrochloric acid dilute solution 3 times. Finally, dialysis was performed with an 8,000–12,000 D dialysis band for a week to obtain GO.

Animals and treatment

Animal experiments were carried out at the Experimental Animal Center of East China Normal University. In total, 20 C57BL/6 male mice (5 weeks old, 22–26 g) were purchased from the JSJ Laboratory Animal Technology Co., Ltd. (Shanghai, China). The mice were placed in a humidity-controlled room and subjected to a 12-h/12-h light-dark cycle, with free access to food and water. The mice were randomly divided into the following 4 groups (n=5): the control group, the GO30 group, the GO60 group, and the GO120 group. Every 3 days, the GO sample solution was administered by gavage at doses of 30, 60, or 120 mg/kg. The dose of GO is based on a previous report and our preliminary studies (18). The control group was given an equal volume of distilled water. The body weight of the mice was weighed and recorded every 3 days. Stool was collected on the 16th day, quickly frozen in liquid nitrogen, and then stored in a –80 ℃ refrigerator for subsequent analysis. Experiments were performed under a project license (No. m20210805) granted by Experimental Animal Welfare Ethics Committee of East China Normal University, in compliance with East China Normal University guidelines for the care and use of animals. A protocol was prepared before the study without registration.

Histological analysis

The mice were dissected for their organs 16 days later, and their colon, heart, liver, and kidney specimens were removed, fixed in 4% formaldehyde, embedded in paraffin, and sectioned at a thickness of about 4 µm. The sections were stained with hematoxylin-eosin (H&E) to observe the histological changes.

Transmission electron microscopy (TEM)

After the mice were dissected, the colon tissues of the mice were fixed with electron microscope fixative (Servicebio). Each sample size was about 1 mm³. Next the sample was fixed with 1% osmium acid prepared by 0.1 M phosphate buffer (PB; pH 7.4) in the dark, at room temperature for 2 h, and rinsed 3 times with 0.1 M PB for 15 min each time. After the sample became dehydrated, EMBed 812 was used for resin penetration and embedding. The embedded resin sample was sliced and polymerized for 48 h in a 60 ℃ oven. Next, it was stained in a 2% uranium acetate saturated alcohol solution in the dark for 8 min, and in a 2.6% lead citrate without carbon dioxide for 8 min. After the sample dried, the images were observed and collected by TEM.

16S ribosomal ribonucleic acid (rRNA) gene sequencing

The16S rRNA gene sequencing was carried out by OE biotech Co., Ltd. (Shanghai, China). Fecal deoxyribonucleic acid (DNA) was extracted using the FastDNA^® Stool rotation kit (MP Biomedical, SantaAna, USA), and amplified by V3-V4 variable region of the 16S rRNA gene. The polymerase chain reaction (PCR) was as follows: 5 min at 95 ℃, followed by 30 cycles at 95 ℃ for 30 s, 55 ℃ for 30 s, 72 ℃ for 30 s, and finally another 5 min at 72 ℃. The amplicon was frozen and purified using the QiaQuick PCR purification kit (Qiagen, Valencia, USA). The mixed PCR products were sequenced on the Illumina Miseq platform (SanDiego Illumina, USA) in accordance with the manufacturer’s instructions.

Statistical analysis

The data are expressed as the mean ± standard deviation. R studio software was used for the statistical analysis. A one-way analysis of variance was conducted to analyze the differences among the 4 groups. A P value <0.05 was considered statistically different.

Results

Preparation of GO

Scanning electron microscopy (SEM) was used to observe the prepared GO. The GO was in the form of flakes with a diameter of 2 to 6 µm (see Figure 1A). The Raman spectrum (see Figure 1B) showed that the characteristic absorption peaks of GO at 1,345 and 1,601 cm^–1 corresponded to peak D and peak G, respectively, and the ratio of peak D to peak G was 0.75. The infrared spectrum results showed that the prepared GO contained many oxygen-containing functional groups on the surface, such as carboxyl (-COOH), hydroxyl (-OH), and carbonyl (-CO) (see Figure 1C). The GO used in this study is from the same batch as that used in Shao et al. (21), and Figure 1B,1C was adapted from Shao et al. (21) with permission.

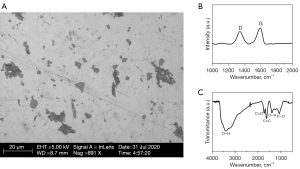

Figure 1 Characterization of GO. (A) SEM images. (B) GO Raman spectrum. (C) GO infrared spectrum. (B,C) were adapted from Shao et al. (21) with permission. D, D peak; G, G peak; GO, graphene oxide; SEM, scanning electron microscopy; EHT, extra high tension; WD, work distance.

GO altered the ultrastructure of the colon in mice

As Figure 2A shows, the average weight of the mice in the GO120 group was significantly lower than that of the other groups. The difference between the other 3 groups was not statistically significant, but this suggested that the high dose of GO gavage reduced the weight of the mice. After the mice were dissected, the colon length of the GO120 group was found to be slightly shorter than that of the other 3 groups; however, the difference was not statistically significant (see Figures 2B,2C). The results of the H&E staining indicated that the hearts, livers, and kidneys of the mice in the 4 groups did not accumulate GO, or show any obvious damage (see Figure 2D).

Figure 2 GO affects the body weight of mice, but has no obvious toxic effects on the heart, liver and kidney. (A) Body weight of mouse. (B) Gross specimen of mouse colon. (C) Length of colon. (D) H&E staining results of a mouse heart, liver, and kidney. GO30, group with GO of dose 30 mg/kg; GO60, group with GO of dose 60 mg/kg; GO120, group with GO of dose 120 mg/kg; GO, graphene oxide; H&E, hematoxylin-eosin.

The results of the H&E staining revealed no clear changes in the intestinal structure among the 4 groups, and no obvious colitis (see Figure 3A). However, the TEM results showed that there was damage to the ultrastructure of the mouse colon in the GO group (see Figure 3B). Notably, the injury was relatively serious in the GO120 group. Some cells had a tendency of apoptosis, but the cell membrane remained intact. The microvilli were arranged unevenly, sparsely, and shrunk locally. The epithelial cells showed obvious pyknosis, the organelles were swollen and aggregated, and the stroma showed pyknosis. The nucleus was irregularly shrunk, and the nuclear membrane expanded. The perinuclear space was widened, and the chromatin agglomerated. The mitochondria were abundant, and obviously swollen and enlarged. The local matrix was dissolved, and the cristae were fractured and decreased. Tight junctions were observed between the cells. The intercellular junctions were widened. The desmosomes decreased, and intercellular spaces were widened locally. The rough endoplasmic reticulum was obviously dilated, degranulated, and vacuolated.

Figure 3 Ultrastructure of mouse colon damaged by GO. (A) H&E staining of a mouse colon. (B) TEM images of a mouse colon. Arrow: Widened intercellular space. GO30, group with GO of dose 30 mg/kg; GO60, group with GO of dose 60 mg/kg; GO120, group with GO of dose 120 mg/kg; GO, graphene oxide; ASS, autolysosome; De, desmosome; Go, Golgi apparatus; M, mitochondrion; Mv, microvillus; N, nucleus; Nu, nucleolus; RER, rough endoplasmic reticulum; TJ, tight junction; ZA, zonula adherens; TEM, transmission electron microscope.

GO shifted the structure of the gut microbiota

As Figure 4A shows, there was no significant difference in α diversity among the 4 groups, indicating that the degree of diversity in the 4 groups was similar. Next, a principal coordinate analysis (PcoA) map was constructed, and a Bray-Curtis distance analysis was performed to evaluate β diversity. The results showed that there were significant differences in β diversity (R²=0.43874, P=0.017) among the 4 groups (see Figure 4B,4C). Next, the structural changes of the flora were analyzed at the phylum level and the genus level. At the phylum level, the structure of the flora among the 4 groups was very similar, but the content of GO120 firmicutes was significantly reduced (see Figure 4D). At the genus level, the structure of the flora among the 4 groups was also similar in general, but the composition of some of the flora was quite different, such as Prevotellaceae_UCG-001 and Alistipes (see Figure 4E).

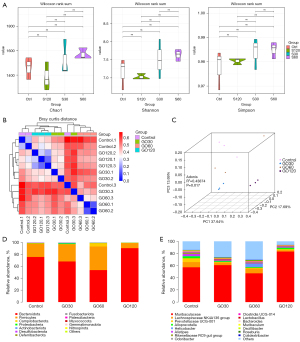

Figure 4 GO affects the diversity of the intestinal flora of mice. (A) α diversity of the 4 groups for gut microbes (the chao1 index, Shannon index, and Simpson index). (B) Bray-Curtis distance analysis. (C) β diversity index based on PCoA. (D,E) Relative intestinal microbial abundance at the phylum level and genus level. GO30, group with GO of dose 30 mg/kg; GO60, group with GO of dose 60 mg/kg; GO120, group with GO of dose 120 mg/kg; GO, graphene oxide; PCoA, principal coordinate analysis; ns, no significant difference.

Next, a t-test and the Lefse method [linear discriminant analysis (LDA) score >3] were used to evaluate the specific differences in community structure; the results are displayed in heat maps and bifurcations (see Figure 5A,5B). At the genus level, compared to the control group, GO significantly reduced Xanthobacteraceae (P<0.05), Enterobacteriaceae (P<0.05), Eubacterium siraeum (P<0.05), Enterobacterales (P<0.05) and the abundance of Alistipes (P<0.05) (see Figure 5C). To explore altered gut bacteria and their interaction, correlation network based on Spearman correlation analysis was constructed. The results showed that there were significant correlations among the bacteria from bacteroidota and firmicutes (see Figure 6A). The Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analysis suggested that changes in gut microbiota caused by GO may affect the functions of cell movement, lipid metabolism, signal transduction, etc., but the difference was not statistically significant (see Figure 6B).

Figure 5 GO caused differences in microbial abundance between groups. (A) Heat maps of differential microorganisms at the genus level. (B) Score map of differential species. (C) Relative abundance of Alistipes, Enterobacterales, Eubacterium siraeum, Enterobacteriaceae, Xanthobacteraceae, and Xanthobacter. GO30, group with GO of dose 30 mg/kg; GO60, group with GO of dose 60 mg/kg; GO120, group with GO of dose 120 mg/kg; GO, graphene oxide; LDA, linear discriminant analysis.

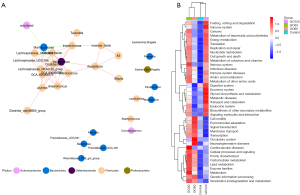

Figure 6 Prediction of GO’s effects on the function of gut microbiota. (A) Correlation network analysis. (B) KEGG difference results on a clustering heatmap. GO30, group with GO of dose 30 mg/kg; GO60, group with GO of dose 60 mg/kg; GO120, group with GO of dose 120 mg/kg; GO, graphene oxide; KEGG, Kyoto Encyclopedia of Genes and Genomes.

Discussion

GO is a novel nanomaterial with the advantages of a large specific surface area, hydrophilicity, and easy modification. It has been the focus of research since its discovery, and it has great potential in the field of biomedicine. GO was first introduced into the biomedical field as a chemotherapeutic drug carrier, and has been widely used in a variety of drug delivery systems (5-7). Additionally, it has also been applied in disease diagnosis (22), tumor photothermal treatment (13,14), tissue engineering (23), the preparation of antibacterial materials (8,9), and many other areas. Oral administration is one of the main routes of drug administration. As a drug carrier or dental restoration material, GO is inevitably taken into the body. However, very few studies have evaluated the toxicity of oral GO on the gastrointestinal tract, and its effects on the gut microbiota. Thus, this study explored the effects of GO on the gastrointestinal tract, and its effects on gut microbiota.

The results of the study showed that the body weight of the mice in the GO120 group was lower than that of mice in the other groups after the oral administration of GO, but the difference was not statistically significant. After the mice were dissected, it was found that the colon length of the GO120 group was slightly shorter than that of the mice in the other groups, but again, the difference was not statistically significant. The results of the H&E staining showed that there was no obvious GO absorption in the intestinal tissues of the mice, no obvious inflammatory responses in colon, and no obvious toxic effects in the hearts, livers, and kidneys of the mice, which indicated that the adsorption of GO in the intestines of mice was very limited. The results of this study are similar to those of Yang et al. (18).

The intestinal barrier is a barrier composed of a layer of closely connected intestinal mucosal epithelial cells and basement membrane. The main function of the intestinal barrier is to absorb water and nutrients, and act as a barrier to prevent harmful substances and microorganisms from migrating to other parts of the body. The disturbance of the intestinal barrier function is related to various diseases, such as ulcerative colitis and Crohn’s disease. The damage of the intestinal ultrastructure directly destroys the integrity of the intestinal barrier. To further examine the changes of intestinal ultrastructure in mice induced by GO, TEM photographs were taken. The results showed that the intestinal ultrastructure of the 4 groups differed. In the control group, the intestinal barrier structure was complete, the connecting complex structure was present, and while the intercellular space was narrow, the epithelial organelles were not significantly swollen. In the GO30 and GO60 groups, the intestinal ultrastructure was slightly damaged, the connective complex structure remained, the local intercellular space was widened, and the epithelial cells showed slight edema. In the GO120 group, the intestinal ultrastructure was seriously damaged, the epithelial cell space was widened, and some cells showed a tendency of apoptosis. These results indicate that GO can damage the intestinal ultrastructure and intestinal barrier. And this damage is positively correlated with increasing concentrations. This damage to the intestinal ultrastructure and the intestinal barrier poses a challenge to the safety of long-term oral preparations containing GO; thus, further modifications of GO are needed to weaken the damage to the intestinal barrier.

Gut microbiota is an important part of the human body, which is closely related to human health. The destruction and disturbance of the gut microbiota structure are relevant to many diseases, such as colitis and colon cancer. The results of this study showed that there was no significant difference in α diversity among the 4 groups. Conversely, the β diversity analysis showed significant differences, indicating that GO affected the diversity of flora among the groups. At the phylum level, we did not observe significant changes in the bacterial community structure. However, at the genus level, Prevotellaceae_UCG-001, Alistipes, and Bacteroides decreased in the GO group. And these decreases were positive correlated with increasing GO concentrations. Additionally, we also observed a decrease in the relative abundance of Enterobacteriaceae and Eubacterium in the GO group.

Alistipes is a relatively new genus in the phylum Bacteroides. It occupies a low proportion of the gut microbiota, but it is highly related to many diseases. Studies have shown that Alistipes is related to the pathogenesis of colorectal cancer, and is a potential pathogen (24,25). Moschen et al. showed that Alistipes promotes the occurrence of right colorectal cancer via the interleukin 6/signal transducer and activator of transcription 3 pathway (26). GO can reduce the level of Alipipes, indicating that oral administration of a certain dose of GO has potential benefits in preventing colorectal cancer.

The expansion of Enterobacteriaceae is closely related to gastrointestinal inflammation (27). Many Enterobacteriaceae are facultative anaerobic bacteria, which consume oxygen to create an anaerobic environment conducive to the strict colonization of anaerobic bacteria (28), and lead to flora imbalance and inflammation. Several studies have observed a gut microbiota imbalance in inflammatory bowel disease (IBD) mouse models, and a greatly increased relative abundance of Enterobacteriaceae (29,30). Additionally, studies have also reported that Enterobacteriaceae is highly correlated with ulcerative colitis and Crohn’s disease (31,32). GO reduces the level of Enterobacteriaceae in the gut microbiota of mice, which indicates that GO may have a preventive effect on the occurrence of IBD. However, previous study has also reported that the oral administration of GO can aggravate dextran sulfate sodium-induced colitis in mice (33). This may be related to the dose of GO and the intestinal state of mice, and further research needs to be conducted to clarify this issue.

Previous study has examined the gut microbiota of IBD patients, and found that the colonization of Eubacterium is reduced (34). Eubacterium can produce anti-cancer short-chain fatty acids. Thus, Eubacterium has always been considered to have a positive effect on the homeostasis of the intestine (35,36). However, Wang et al. showed that Eubacterium endotoxin can activate the transcription factor nuclear factor kappa-light-chain-enhancer of activated B cells, thereby promoting the occurrence of colitis, and leading to colon cancer (37). This study found contradicting results on the effects of Eubacterium on IBD and colorectal cancer that required further discussion.

Conclusions

In general, the study shows that oral GO had no obvious toxic effects on the hearts, livers, and kidneys of the mice, but affected the ultrastructure of the intestine and the structure of gut microbiota at higher concentrations of GO. As these effects may have some long-term negative consequences, the safety of oral GO administration needs to be further investigated.

Acknowledgments

Funding: This research was funded by the Natural Science Foundation of Minhang, Shanghai (No. 2021MHZ090) and the Medical System of Shanghai Minhang District (No. 2021MWDXK01).

Footnote

Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at https://atm.amegroups.com/article/view/10.21037/atm-22-922/rc

Data Sharing Statement: Available at https://atm.amegroups.com/article/view/10.21037/atm-22-922/dss

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://atm.amegroups.com/article/view/10.21037/atm-22-922/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Experiments were performed under a project license (No. m20210805) granted by Experimental Animal Welfare Ethics Committee of East China Normal University, in compliance with East China Normal University guidelines for the care and use of animals.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
