Original Article

Integrative analysis of key microRNA-mRNA complexes and pathways in aortic aneurysm

Yufei Fu1, Yingying Mao2, Ruoshi Chen3, Anfeng Yu3, Yifei Yin1, Xi Wang1, Liang Ma3, Xin Chen3

1Key Laboratory of Digestive Pathophysiology of Zhejiang Province, The First Affiliated Hospital of Zhejiang Chinese Medical University, Zhejiang Chinese Medical University, Hangzhou, China; 2Department of Epidemiology and Biostatistics, Zhejiang Chinese Medical University, Hangzhou, China; 3Department of Cardiovascular Surgery, The First Affiliated Hospital of Zhejiang University, Medical School of Zhejiang University, Hangzhou, China

Contributions: (I) Conception and design: Y Fu, X Chen; (II) Administrative support: L Ma; (III) Provision of study materials or patients: X Chen, L Ma; (IV) Collection and assembly of data: R Chen, A Yu, Y Yin, X Wang; (V) Data analysis and interpretation: Y Fu, Y Mao; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Xin Chen; Liang Ma. Department of Cardiovascular Surgery, The First Affiliated Hospital of Zhejiang University, Medical School of Zhejiang University, Hangzhou 310003, China. Email: chenxin0131@zju.edu.cn; ml1402@zju.edu.cn; Yufei Fu. Key Laboratory of Digestive Pathophysiology of Zhejiang Province, The First Affiliated Hospital of Zhejiang Chinese Medical University, Zhejiang Chinese Medical University, Hangzhou 310053, China. Email: fuyufei@zju.edu.cn.

Background: This study investigated the therapeutic targets of aortic aneurysm (AA) and provided insights into the pathogenesis and molecular mechanisms of AA.

Methods: The messenger RNA (mRNA) datasets, GSE9106 (blood samples) and GSE7084 (tissue samples), and the microRNA (miRNA) datasets, GSE92427 (blood samples) and GSE110527 (tissue samples), were obtained from the Gene Expression Omnibus (GEO) database. Differentially expressed genes (DEGs) and differentially expressed miRNAs (DE-miRNAs) were analyzed by limma. Based on the co-DEGs and co-DE-miRNAs between the AA blood and tissue datasets, the miRNA-mRNA regulatory pairs were predicted. Functional enrichment analyses and gene set enrichment analysis (GSEA) were performed and the protein-protein interaction (PPI) network was generated to further analyze the related genes and their functions. Reverse transcription-quantitative polymerase chain reaction (RT-qPCR) and tyramide signal amplification (TSA)-in situ hybridization (ISH) assays were performed to detect the expression of co-DE-miRNAs in AA clinical tissue samples and normal aorta samples.

Results: There were 19 upregulated and 5 downregulated co-differential mRNAs. MiR-4306 was the upregulated co-differential miRNA, and miR-3198 was the downregulated co-differential miRNA by blood-tissue co-analysis. Based on the co-DEGs and co-DE-miRNAs, 4 miRNA-mRNA regulatory pairs were predicted. PPI networks were constructed of co-DEGs with 6 relationship pairs. RT-qPCR and TSA-ISH assays showed the upregulation of miR-4306 and the downregulation of miR-3198 in AA tissue samples.

Conclusions: This study provided evidence regarding the differential regulatory miRNA-mRNA networks in AA blood and tissue samples and identified key genes and signaling pathways related to AA, which provided insights into potential targets and mechanisms of AA pathogenesis and progression.

Keywords: Aortic aneurysm (AA); microRNA-messenger RNA complex (miRNA-mRNA complex); integrated analysis; gene set enrichment analysis (GSEA); tyramide signal amplification-in situ hybridization assay (TSA-ISH assay)

Submitted Jan 07, 2022. Accepted for publication Mar 18, 2022.

doi: 10.21037/atm-22-514

Introduction

Aortic aneurysm (AA) is a permanent and fatal dilation of the aorta resulting from degeneration of the arterial wall. AAs are usually subdivided into thoracic aortic aneurysm (TAA) and abdominal aortic aneurysm (AAA) (1). It is well known that though TAA and AAA have different incidence rates, distribution, and inheritance, they share similar pathological and histological features, such as the breakdown of the extracellular matrix (ECM) and reductions in smooth muscle cells (SMCs) and inflammatory cell infiltration (2). Previous studies found that aberrant proteases, including metalloproteinase family, cathepsins, and granzymes, along with abnormal TGF-β signaling were associated with the initiation and development of TAA and AAA (3,4). AA can lead to irreversible progression and rupture, which are closely related to morbidity and mortality. Surgery can effectively prevent the development and rupture of AA (5). However, the features of the suddenness of AA and the aneurysmal diameters of most patients do not meet the surgical guidelines, resulting in no preventive treatment of AA (6). Therefore, it is vital to have an intensive understanding of the pathogenesis and molecular mechanisms of AA to improve early diagnosis, predict prognosis, and find new therapeutic targets.

MicroRNAs (miRNAs) are small non-coding RNA molecules which negatively regulate gene expression by binding to the 3' untranslated region of messenger RNAs (mRNAs) (7). It has been reported that miRNAs are important in the control of gene expression since up to 2/3 of human genes are modulated by miRNAs. MiRNAs play vital roles in the physiological and pathophysiological processes of cardiovascular diseases and heart dysfunction (8). However, the roles of miRNAs and the miRNA-mRNA complex in AA remain to be fully elucidated.

In the present study, we collected miRNA and mRNA datasets of AA tissue samples and AA blood samples from the Gene Expression Omnibus (GEO) database. We performed differential expression analyses and constructed miRNA-mRNA differential co-expression networks and a protein-protein interaction (PPI) network. Functional enrichment analysis was also performed, including Kyoto Encyclopedia of Genes and Genomes (KEGG) and Gene Ontology (GO) analyses and gene set enrichment analysis (GSEA). We also collected clinical tissue samples of TAA and normal aortas from heart transplantation recipients to further verify theco-differentially expressed miRNAs (theco-DE-miRNAs) by reverse transcription-quantitative polymerase chain reaction (RT-qPCR) and the tyramide signal amplification-in situ hybridization assay (TSA-ISH assay) (Figure 1). In this study, the differential regulatory 4 miRNA-mRNA networks were identified in AA blood and tissue samples revealed key genes and signaling pathways related to AA, and verified the upregulation of miR-4306 and the downregulation of miR-3198 in AA tissue samples. This study may provide novel clues for understanding the mechanism of the pathogenesis of AA and may lead to uncovering potential therapeutic targets of AA. We present the following article in accordance with the STREGA reporting checklist (available at https://atm.amegroups.com/article/view/10.21037/atm-22-514/rc).

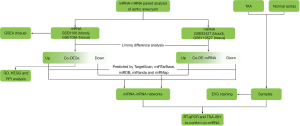

Figure 1 Schematic overview of the study design. GSEA, gene set enrichment analysis; GO, Gene Ontology; KEGG, Kyoto Encyclopedia of Genes and Genomes; PPI, protein-protein interaction; miRNA, microRNA; mRNA, messenger RNA; DEGs, differentially expressed genes; DE-miRNA, differentially expressed miRNA; TAA, thoracic aortic aneurysm; EVG, Verhoeff Van Gieson; RT-qPCR, reverse transcription-quantitative PCR; TSA-ISH, tyramide signal amplification-in situ hybridization.

Methods

Microarray data

The microarray datasets were downloaded from the GEO database (https://www.ncbi.nlm.nih.gov/geo/). GSE9106 (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc= GSE9106) is an mRNA dataset based on the ABI Human Genome Survey Microarray Version 2 platform, which contains 59 TAA blood samples and 34 control blood samples. GSE7084 (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc= GSE7084) is an mRNA dataset based on the Sentrix Human-6 Expression BeadChip, which contains 6 AAA tissue samples and 7 control tissue samples. GSE92427 (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc= GSE92427) is a miRNA dataset, which contains 8 AA blood samples and 8 healthy blood samples. GSE110527 (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc= GSE110527) is a miRNA dataset based on the Agilent-070156 Human miRNA platform, which contains 19 TAA tissue samples and 19 control tissue samples.

Analyses of differentially expressed mRNAs and miRNAs

The expression matrices of mRNA datasets GSE9106 and GSE7084 were analyzed by limma (9) to identify the differentially expressed genes (DEGs) between the AA samples and the control samples. The differentially expressed mRNAs were defined by P value <0.05 and |fold change (FC)| >1.5 (|log2FC| >0.585), and then the intersection was compared to select DEGs.

The expression matrices of miRNA datasets GSE92427 and GSE110527 were analyzed by limma (9) to analyze the DE-miRNAs between the AA samples and the control samples. The significance threshold was P value <0.05 and FC >1.2 or FC <−1.2 (|log2FC| >0.263), and then the intersection was obtained to select the DE-miRNAs.

Prediction of miRNA-mRNA relationship and network construction

Based on the co-DEGs and co-DE-miRNAs, the miRNA-mRNA regulatory pairs were predicted by searching in TargetScan (10), miRTarBase (11), miRDB (12), miRanda (13), and miRMap (14). Cytoscape software (15) was further used to construct the miRNA-mRNA regulatory network.

Functional enrichment analysis

Based on the GO database (16) and the KEGG pathway database (17), the DEGs in blood samples and tissue samples were analyzed for functional enrichment. Based on Fisher’s exact test, P<0.05 was considered to be statistically significant.

PPI network construction

The Search Tool for the Retrieval of Interacting Genes/Proteins (STRING) (https://string-db.org/) is a public database that provides information about protein interactions (18). In our study, the STRING tool was used to generate PPIs among the DEGs in AA, with the threshold of combined score >0.4.

GSEA

GSEA was performed by the program downloaded from https://software.broadinstitute.org/gsea/index.jsp using MSigDB C2 CP: canonical pathways gene set collection. GSEA is a method of analyzing genome-wide expression profile chip data to compare genes with predefined gene sets. By analyzing the gene expression profile datasets, we can understand how they are expressed in a specific set of functional genes and whether there is statistical significance in this expression status. In this study, according to the functional enrichment analysis of DEGs, mRNA datasets of AAA tissue samples were selected for GSEA of the expression matrix. The nominal P value and normalized enrichment score (NES) were used to sort the pathways enriched in each group.

Sample collection and RT-qPCR assay

Eight TAA samples and 8 normal aortas of heart transplant recipients were collected from The First Affiliated Hospital of Zhejiang University (Hangzhou, China). Written informed consent for the use of the collected samples was obtained from all participants or their legal guardians. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of The First Affiliated Hospital of Zhejiang University (No. 2021IIT592). The basic information and the related medical records were collected in Table S1.

Total RNA was extracted from cells using TRIzol (Thermo Fisher Scientific, USA). Reverse transcription was performed using the RevertAid First Strand cDNA Synthesis Kit (Thermo Fisher, USA) and specific reverse transcription primers. FastStart Universal SYBR Green Master (Roche, Switzerland) was used for quantitative miRNA detection according to the manufacturer’s protocol. The miRNA PCR primers were purchased from Tsingke Biotechnology (Tsingke, China). The primer sequences can be found in Table S2. Cycle threshold (Ct) values were calculated, and the relative miRNA levels were analyzed using the 2−ΔΔCt method.

Verhoeff Van Gieson (EVG) staining assay

EVG staining was conducted with the EVG staining kit (Abcam, ab150667) according to the manufacturer’s instructions. The representative images were captured by a digital pathology camera (3DHISTECH, Hungary).

TSA-ISH assay

TSA-ISH was performed using the Paraffin-DIG-TSA-ISH Kit (Servicebio Technology Company, Wuhan, China) following the manufacturer’s instructions. Oligos 5'Digoxin-TCTCCATTCCCCAGGACTCCAC and 5'Digoxin-TACTGCCTTTCTCTCCA were used as ISH probes for miR-3198 and miR-4306, respectively. The representative images of ISH were captured under a fluorescence digital pathology camera (3DHISTECH, Hungary).

Statistical analysis

Statistical analyses were conducted with GraphPad Prism (v8.0). Data were presented as the means ± SEM. Student’s t-test was applied to compare the variance between two groups. P<0.05 was considered as statistically significant.

Results

Differential expression analyses

The overview of differentially expressed mRNAs and miRNAs, including the numbers of upregulated and downregulated genes and the numbers of co-differentially expressed mRNAs and miRNAs in the datasets, is shown in Table 1. A volcano plot showed the DEGs with log2FC scores and −log10 P values. The volcano plot of DEGs in the AA blood and tissue samples is shown in Figure 2A, in which the red dots represented the upregulated genes, and the blue dots represented the downregulated genes. The top 5 upregulated and downregulated genes were labeled genes. The heatmaps showed the DEGs clustered between AA and normal blood or tissue samples (Figure 2B).

Table 1

Overview of differential expression analyses

Dataset Platform Upregulated number Downregulated number
Blood mRNA: GSE9106 ABI Human Genome Survey Microarray Version 2 platform 667 95
Tissue mRNA: GSE7084 Sentrix Human-6 Expression BeadChip 1,303 1,362
Co_diff_mRNA – 19 5
Blood miRNA: GSE92427 Agilent-031181 Unrestricted Human miRNA V16.0 Microarray 8 5
Tissue miRNA: GSE110527 Agilent-070156 Human miRNA (miRNA version) platform 394 294
Co_diff_miRNA – 1 1

MiRNA, microRNA; mRNA, messenger RNA.

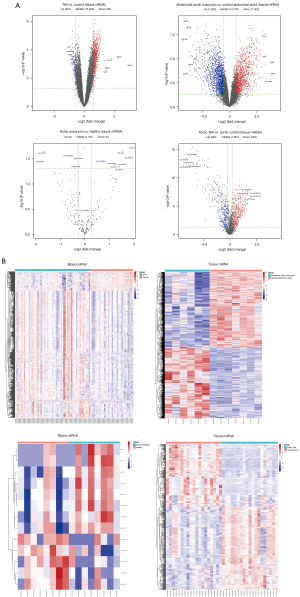

Figure 2 Identification of DEGs. (A) Volcano plots of DEGs in the AA blood and tissue samples. Blue dots represent the downregulated genes and the red ones represent the upregulated genes, with P value <0.05 and |FC| >1.5. (B) The heatmaps of DEGs. Red represents upregulation and blue represents downregulation. TAA, thoracic aortic aneurysm; miRNA, microRNA; mRNA, messenger RNA; DEGs, differentially expressed genes; AA, aortic aneurysm; FC, fold change.

Prediction of miRNA-mRNA regulatory relationship and construction of miRNA-mRNA networks

Based on the co-DEGs and co-DE-miRNAs, the miRNA-mRNA regulatory pairs were predicted. By searching several databases, we found the pairs of the downregulated miR-3198 and the corresponding upregulated genes (SDS, NR2F1, and CLEC2D) and the pair of upregulated miR-4306 and the corresponding downregulated gene TPM2 (Figure 3).

Figure 3 The significant miRNA-mRNA regulatory pairs of co-DEGs from AA blood and tissue samples determined by integrated analysis. (A) MiR-3198 regulatory pairs and (B) the miR-4306 regulatory pair were shown by relational graphs. Red represents upregulation and blue represents downregulation in AA. Rhombus represents miRNA and circle represents mRNA. MiRNA, microRNA; mRNA, messenger RNA; DEGs, differentially expressed genes; AA, aortic aneurysm.

GO and KEGG enrichment analysis

GO functional enrichment analysis and KEGG pathway enrichment analysis were performed on DEGs in blood samples and tissue samples (Figure 4 and Figure S1). To investigate the biological roles of the DEGs in AA, we performed categorized GO annotation analyses including biological processes (BP), cellular components (CC), and molecular functions (MF). As shown in Table 2, multicellular organism development (P=1.81×10−9), G protein coupled receptor (GPCR) signaling pathway (P=1.82×10−8), and response to organic cyclic compound (P=4.35×10−7) were the most significantly enriched BPs in AA blood samples. Hsa04080 neuroactive ligand receptor interaction (P=1.60×10−4), hsa00260 glycine serine and threonine metabolism (P=1.92×10−3), and hsa04020 calcium signaling pathway (P=1.95×10−3) were the most significantly enriched pathways in the KEGG analysis of AA blood samples, as shown in Table 2. In AA tissue sample analysis as shown in Table 3, leukocyte activation (P=6.85×10−44), cell surface receptor signaling pathway (P=3.21×10−38), and myeloid leukocyte activation (P=8.99×10−34) were the most significantly enriched BPs in AA. Hsa04640 hematopoietic cell lineage (P=2.42×10−15), hsa04062 chemokine signaling pathway (P=1.05×10−12), and hsa04061 viral protein interaction with cytokine and cytokine receptor (P=2.49×10−12) were the most significantly enriched pathways in the KEGG analysis of AA.

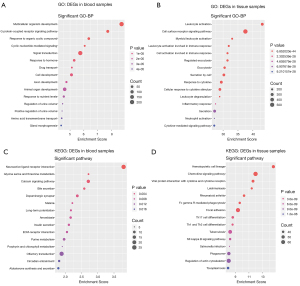

Figure 4 GO and KEGG enrichment analyses. GO annotation analyses of BP in AA blood (A) and tissue (B) samples. KEGG enrichment analyses in blood (C) and tissue (D) samples. GO, Gene Ontology; DEGs, differentially expressed genes; BP, biological processes; KEGG, Kyoto Encyclopedia of Genes and Genomes; AA, aortic aneurysm.

Table 2

GO and KEGG enrichment analyses in blood samples (top 10)

Category Description Count P value
BP GO:0007275~multicellular_organism_development 211 1.81×10−9
BP GO:0007186~G_protein-coupled_receptor_signaling_pathway 76 1.82×10−8
BP GO:0014070~response_to_organic_cyclic_compound 55 4.35×10−7
BP GO:0019935~cyclic-nucleotide-mediated_signaling 19 8.62×10−7
BP GO:0007165~signal_transduction 199 1.81×10−6
BP GO:0009725~response_to_hormone 52 5.03×10−6
BP GO:0015893~drug_transport 16 7.41×10−6
BP GO:0048468~cell_development 79 7.91×10−6
BP GO:0061564~axon_development 29 1.84×10−5
BP GO:0048513~animal_organ_development 131 2.47×10−5
KEGG Hsa04080~neuroactive_ligand-receptor_interaction 25 1.60×10−4
KEGG Hsa00260~glycine_serine_and_threonine_metabolism 6 1.92×10−3
KEGG Hsa04020~calcium_signaling_pathway 15 1.95×10−3
KEGG Hsa04976~bile_secretion 8 2.60×10−3
KEGG Hsa04728~dopaminergic_synapse 11 4.25×10−3
KEGG Hsa05144~malaria 6 6.03×10−3
KEGG Hsa04720~long-term_potentiation 7 6.69×10−3
KEGG Hsa05146~amoebiasis 9 6.82×10−3
KEGG Hsa04911~insulin_secretion 8 7.72×10−3
KEGG Hsa04512~ECM-receptor_interaction 8 8.84×10−3

GO, Gene Ontology; KEGG, Kyoto Encyclopedia of Genes and Genomes; BP, biological processes; ECM, extracellular matrix.

Table 3

GO and KEGG enrichment analyses in tissue samples (top 10)

Category Description Count P value
BP GO:0045321~leukocyte_activation 282 6.85×10−44
BP GO:0007166~cell_surface_receptor_signaling_pathway 546 3.21×10−38
BP GO:0002274~myeloid_leukocyte_activation 191 8.99×10−34
BP GO:0002366~leukocyte_activation_involved_in_immune_response 197 1.24×10−32
BP GO:0002263~cell_activation_involved_in_immune_response 197 3.31×10−32
BP GO:0045055~regulated_exocytosis 212 3.32×10−32
BP GO:0006887~exocytosis 228 3.10×10−31
BP GO:0032940~secretion_by_cell 269 5.39×10−31
BP GO:0034097~response_to_cytokine 285 3.95×10−30
BP GO:0071345~cellular_response_to_cytokine_stimulus 267 1.18×10−29
KEGG Hsa04640~hematopoietic_cell_lineage 49 2.42×10−15
KEGG Hsa04062~chemokine_signaling_pathway 69 1.05×10−12
KEGG Hsa04061~viral_protein_interaction_with_cytokine_and_cytokine_receptor 45 2.49×10−12
KEGG Hsa05140~leishmaniasis 38 3.84×10−12
KEGG Hsa05323~rheumatoid_arthritis 41 5.28×10−11
KEGG Hsa04666~Fc_gamma_R-mediated_phagocytosis 40 2.29×10−10
KEGG Hsa04510~focal_adhesion 66 4.19×10−10
KEGG Hsa04659~Th17_cell_differentiation 42 2.46×10−9
KEGG Hsa04658~Th1_and_Th2_cell_differentiation 38 2.62×10−9
KEGG Hsa05152~tuberculosis 59 5.95×10−9

GO, Gene Ontology; KEGG, Kyoto Encyclopedia of Genes and Genomes; BP, biological processes.

PPI network construction

Co-DEGs were submitted to the STRING database to analyze the PPI relationship of the co-DEGs, and a total of 6 pairs were obtained, including ARRB2-MAPK8IP3, TK1-NT5E, NT5E-IL10, IL10-IL27RA, IL10-APOE, and APOE-PTK2B (Figure 5).

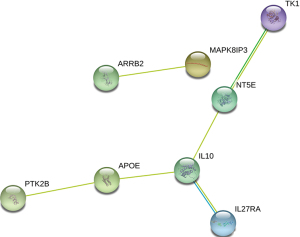

Figure 5 Co-DEGs in the PPI network from AA blood and tissue samples. DEGs, differentially expressed genes; PPI, protein-protein interaction; AA, aortic aneurysm.

GSEA identifies AA-related signaling pathways

To identify key pathways that were differentially activated in AA, we conducted GSEA between patients with AA and healthy controls and selected the most significantly enriched signaling pathways (top 5) based on their NES (Figure 6, Table 4). The most significantly enriched pathways were related to natural killer (NK) cell mediated cytotoxicity, staphylococcus aureus infection, B cell receptor signaling pathway, toll-like receptor signaling pathway, and osteoclast differentiation.

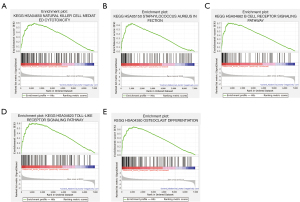

Figure 6 Enrichment plots from GSEA. GSEA results showing that (A) NK cell mediated cytotoxicity, (B) staphylococcus aureus infection, (C) B cell receptor signaling pathway, (D) toll-like receptor signaling pathway, and (E) osteoclast differentiation were differentially enriched in AAA tissues compared with controls. GSEA, gene set enrichment analysis; NK, natural killer; AAA, abdominal aortic aneurysm.

Table 4

GSEA and KEGG analysis in the GSE7084 dataset (AAA vs. control top 5)

Name Size NES P value
KEGG_hsa04650_natural_killer_cell_mediated_cytotoxicity 126 2.265 <0.001
KEGG_hsa05150_staphylococcus_aureus_infection 89 2.237 <0.001
KEGG_hsa04662_B_cell_receptor_signaling_pathway 79 2.187 <0.001
KEGG_hsa04620_toll-like_receptor_signaling_pathway 100 2.181 0.004
KEGG_hsa04380_osteoclast_differentiation 126 2.178 <0.001

GSEA, gene set enrichment analysis; KEGG, Kyoto Encyclopedia of Genes and Genomes; AAA, abdominal aortic aneurysm; NES, normalized enrichment score.

RT-qPCR and TSA-ISH staining predicts the expression of miR-3198 and miR-4306 in TAA patients

RT-qPCR assays showed that miR-3198 was downregulated (*P<0.05) and miR-4306 was upregulated (*P<0.05) in AA samples compared with the normal control tissues (Figure 7A).

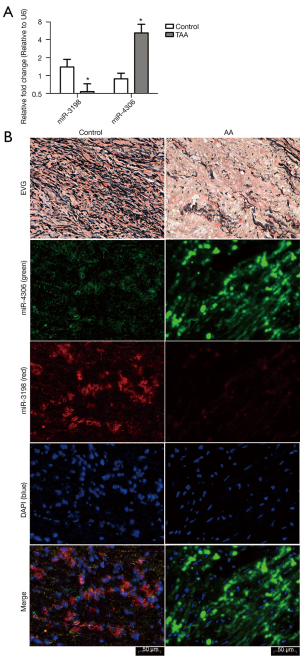

Figure 7 The detection of miR-3198 and miR-4306 expression in tissue samples. (A) MiR-3198 and miR-4306 were measured in AA and control tissue samples by RT-qPCR assays (*P<0.05). (B) Disrupted elastic fibers in the aortas of AA patients and control tissues by EVG staining. MiR-4306 (green), miR-3198 (red) and DAPI (blue) were detected by TSA-ISH staining; and the merge of miR-4306, miR-3198, DAPI were also shown (Merge). TAA, thoracic aortic aneurysm; AA, aortic aneurysm; EVG, Verhoeff Van Gieson; DAPI, 4',6-diamidino-2-phenylindole; RT-qPCR, reverse transcription-quantitative polymerase chain reaction; TSA-ISH, tyramide signal amplification-in situ hybridization.

EVG staining showed disrupted elastic fibers in the aorta of AA patients. ISH was performed to investigate the role of miR-3198 and miR-4306 in clinical tissue samples. Compared with normal aorta samples from heart transplant recipients, the expression of miR-3198 (red) was significantly lower in AA samples, while miR-4306 (green) expression was significantly higher in AA samples (Figure 7B).

Discussion

AA is a focal dilation of the aorta, with high morbidity and mortality. Recently, several studies have reported that non-coding RNAs, such as long non-coding RNA (lncRNA), circular RNA (circRNA), and miRNA, play an important regulated role in the development of AA (19-21). LncRNAs/circRNAs act as competitive endogenous RNA (ceRNA)-miRNA-mRNA interaction played a key mechanism in the pathogenesis of AA and involved the occurrence and development of AA, including the proliferation, apoptosis and migration of vascular SMCs, and biomarkers (22,23). However, the molecular mechanisms of AA formation remain to be elucidated. It has been reported that miRNAs play important roles in various BP. Interestingly, miRNAs can be easily detected in peripheral blood and can serve as biomarkers for diseases, including AA. There is already a study aimed at targeting miRNAs and exploiting them as potential therapeutic targets for AA (24). This study identified candidate miRNAs, targeted genes, and BP closely associated with AA formation using bioinformatics methods.

Based on co-DEGs and co-DE-miRNAs in AA patients’ blood and tissue samples, 4 miRNA-mRNA regulatory pairs were predicted. It was reported that miR-3198 downregulates osteoprotegerin (OPG) expression in response to mechanical stress (25) and osteopontin (OPN) may be a driver of AAA formation (26). Therefore, miR-3198 might downregulate and upregulate its target genes in AA by inhibiting OPN signaling. One of the target genes of miR-3198, CLEC2D, directly binds to histones released upon necrotic cell death and thus contributes to inflammation and tissue damage (27). It is also uncovered that CLEC2D modulates the release of interferon-gamma and activates NK cells (28). NR2F1, a target gene of miR-3198, is a member of the steroid/thyroid hormone nuclear receptor superfamily, which participates in a wide range of BP, including cancer progression, cell differentiation, and neurogenesis (29). SDS, another target gene of miR-3198, encodes the enzymes that are involved in metabolizing serine and glycine, and is found predominantly in the liver (30). MiR-4306 was reported as a potential diagnostic biomarker for acute aortic dissection (31). In our study, we found that miR-4306 was upregulated and the corresponding target gene TPM2 was downregulated in AA blood and tissue samples. TPM2, a target gene of miR-4306, showed lower expression levels in an atherosclerosis model in a previous study (32), but was upregulated in aortic dissection (33). Considering their relationship with vascular disease, cell death, and inflammation, these 4 miRNA-mRNA regulatory pairs might play a role in AA formation.

In this study, the GO and KEGG analyses showed that the top 10 enriched GO and KEGG terms were related to development, inflammation, and immune response. The enriched signaling pathways were the GPCR signaling pathway, the calcium signaling pathway, ECM receptor interaction, cytokine induced signaling, and the chemokine signaling pathway. Studies revealed that GPCRs including angiotensin II (AngII) receptor type 1 (AT1) signaling and the regulator of G-protein signaling-1 (RGS1)-controlled signaling pathways in the vasculature control blood pressure homeostasis, vascular homeostasis, and injury (34,35). Active vascular calcification is known to be linked with high-risk atherosclerotic plaque and AAA formation (36). AA formation is characterized by ECM fragmentation and inflammation. The calcium signaling and cytokine/chemokine-induced signaling may be involved in the crosstalk between cells and the ECM (37-39).

According to the related pairs of the PPI network from the DEGs, interleukin-10 (IL-10) was the key factor. IL-10 is an immune-regulatory cytokine with a suppressive role in inflammatory processes. It was reported that increased systemic IL-10 levels could mitigate AAA progression (40). NT5E, also known as CD73, has cardioprotective effects during myocardial infarction and heart failure. NT5E deficiency leads to arterial calcifications (41). IL-27R was shown to suppress T cell activation in atherosclerosis, and IL27RA deficient mice developed significantly more atherosclerosis (42). A previous report also showed that IL-27R protects mice from AAA development (43). APOE knockout mice with an AngII releasing pump are used as an AAA formation model. PTK2B, also known as Pyk2, was related to contractile differentiation in arterial smooth muscle (44). However, the relationship between APOE and PTK2B remains unclear.

In this study, we found that signaling pathways including NK cell mediated cytotoxicity, staphylococcus aureus infection, B cell receptor signaling pathway, toll-like receptor signaling pathway, and osteoclast differentiation was related to AAA. Studies have also revealed that toll-like receptor 3 and 4 may be promising biomarkers in AA (45-47). RANKL, a mediator of osteoclast differentiation, is considered as one of the key factors in the pathogenesis of aortic dilatation (48). It has also been found that atherosclerosis was associated with an increase in NK cells in plaques (49). The staphylococcus aureus infection pathway and the immune/inflammatory responses regulated by B cells were linked to atherosclerotic plaque progression (50-52). However, this study is the first to report the association of AA formation with NK cells, staphylococcus aureus infection, and B cell receptor signaling, and further mechanisms need to be discovered. In future research, we will further analyze the lncRNA-miRNA-mRNA-ceRNA network in AA. Meanwhile, we further explore the functional studies of key miRNAs in AA.

Furthermore, AA tissue samples and normal aorta samples from heart transplant recipients were collected for miRNA RT-qPCR and TSA-ISH staining. The results showed that the expression levels of miR-3198 and miR-4306 in clinical samples matched those from the database analyses. Although the sample size was not large enough, this study was the first to explore miRNA-mRNA regulatory pairs in both blood and tissue samples from AA patients by integrated analysis.

Conclusions

In conclusion, integrated informatics analysis could identify regulatory networks and significant BP related to AA. Furthermore, the RT-qPCR and TSA-ISH assays determined that miR-3198 and miR-4306 may play significant roles in AA progression. These findings provide insights into the mechanisms of AA formation and progression, which may be used as potential diagnostic and therapeutic targets for AA.

Acknowledgments

Funding: This work was supported by Zhejiang Provincial Natural Science Foundation of China (No. LY22H290005), National Natural Science Foundation of China (Nos. 81802887, 81603340) and Natural Science Exploration Program of the Zhejiang Chinese Medical University (No. 2021JKZKTS039B).

Footnote

Reporting Checklist: The authors have completed the STREGA reporting checklist. Available at https://atm.amegroups.com/article/view/10.21037/atm-22-514/rc

Data Sharing Statement: Available at https://atm.amegroups.com/article/view/10.21037/atm-22-514/dss

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://atm.amegroups.com/article/view/10.21037/atm-22-514/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of The First Affiliated Hospital of Zhejiang University (No. 2021IIT592) and written informed consent for the use of the collected samples was obtained from all participants or their legal guardians.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
