The efficacy of Endostar combined with platinum pleural infusion for malignant pleural effusion in tumor patients is significantly better than that of monotherapy, but the economy is lower: a systematic review, network meta-analysis and cost-effectiveness analysis
Original Article

The efficacy of Endostar combined with platinum pleural infusion for malignant pleural effusion in tumor patients is significantly better than that of monotherapy, but the economy is lower: a systematic review, network meta-analysis and cost-effectiveness analysis

Yimiao Xia1,2, Pingping Fang1,3, Xudong Zhang4, Guangquan Su4, Aizong Shen1,3

1School of Pharmacy Anhui Medical University, Hefei, China; 2Department of Pharmacy, Lu’an Hospital Affiliated to Anhui Medical University (Lu’an People’s Hospital), Lu’an, China; 3Department of Pharmacy, the First Affiliated Hospital of University of Science and Technology of China (Anhui Provincial Hospital), Hefei, China; 4Anhui University of Chinese Medicine, Hefei, China

Contributions: (I) Conception and design: A Shen; (II) Administrative support: A Shen; (III) Provision of study materials or patients: Y Xia; (IV) Collection and assembly of data: Y Xia, P Fang, X Zhang; (V) Data analysis and interpretation: Y Xia, G Su; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Aizong Shen. Department of Pharmacy, the First Affiliated Hospital of University of Science and Technology of China (Anhui Provincial Hospital), School of Pharmacy Anhui Medical University, Hefei, China. Email: 1649441800@qq.com.

Background: Endostar and platinum were widely used in the treatment of malignant pleural effusion (MPE), but there was no unified conclusion on which scheme is the best. The aim of this study was to systematically evaluate the efficacy and cost-effectiveness of Endostar, cisplatin, lobaplatin, Endostar combined with cisplatin, and Endostar combined with lobaplatin in the treatment of MPE so as to provide a reference for clinical treatment.

Methods: A comprehensive literature search was performed of sources on PubMed, Web of Science, and other databases published up to and including November 23, 2021, and screened out randomized controlled trial (RCT) concerning the efficacy of 5 interventions of pleural perfusion for MPE. The Cochrane Collaboration tool was used for assessing the risk of bias, and a network meta-analysis was performed with Addis software based on the Bayesian framework. A decision tree model was used to complete a cost-effectiveness analysis that was based on the direct medical costs and the probabilities were determined from the network meta-analysis. The one-way sensitivity analysis was presented with a tornado chart. In the probabilistic sensitivity analysis, the cost-effectiveness acceptability curve was obtained after Monte Carlo simulation.

Results: A total of 55 studies were included, comprising 3,379 total patients, excluding the unclear part, we evaluated as low risk of bias. According to the network meta-analysis, Endostar combined with lobaplatin had the highest effectiveness, followed by Endostar combined with cisplatin, Endostar, cisplatin, and lobaplatin. In the incremental cost-effectiveness ratio (ICER) analysis, lobaplatin and Endostar were excluded as inferior schemes. With cisplatin as the comparison, the ICER of Endostar combined with cisplatin was yuan renminbi ¥22,648.31. With Endostar combined with cisplatin as the comparison, the ICER of Endostar combined with lobaplatin was ¥236,502.67. The results of sensitivity analysis and cost-effectiveness analysis were basically consistent.

Conclusions: Endostar combined with lobaplatin had the highest effectiveness, but its ICER was relatively too high to be acceptable. Therefore, cisplatin alone and Endostar combined with cisplatin were more cost-effective, and clinicians can choose the optimal treatment scheme based on the willingness to pay (WTP) of different patients with comprehensive consideration of effectiveness and economy.

Keywords: Malignant pleural effusion (MPE); Endostar; cisplatin; lobaplatin; decision tree model


Submitted Apr 01, 2022. Accepted for publication May 19, 2022.

doi: 10.21037/atm-22-2091


Introduction

Malignant pleural effusion (MPE) is one of the typical complications of advanced malignant tumors; most commonly occurring in lung cancer (37%), breast cancer (16%), and hematologic malignancies (10%) (1,2), MPE is associated with a worse prognosis (3). Current guidelines do not indicate a strictly preferred treatment method for MPE (4). Pleural infusion after adequate drainage of pleural effusion is one of the feasible treatment methods presently available. Commonly used infusion drugs include Endostar, platinum, and other chemotherapy drugs, as well as multidrug combination therapy.

There had been several studies on the efficacy of pleural infusion of drugs in the treatment of MPE (5), but comparisons between multiple schemes were lacking and the results were inconsistent. Qin et al. reported an efficacy outcome of intra-pleural injection of Endostar and/or cisplatin in treatment of malignant hydrothorax and ascites, the objective response rate (ORR) of Endostar was similar to that of cisplatin (48.51% vs. 46.39%, P>0. 05), and there was no statistical significance difference in efficacy, while the combination of Endostar and cisplatin significantly improved the ORR (63.00%, P=0.0189) (6). However, other studies found that there was no statistical significant difference in the ORR between the single drug group and the combined group in the treatment of malignant hydrothorax and ascites (7,8). The differences between studies may be related to the small sample size. Studies had reported that pleural infusion medicine had achieved good efficacy in the treatment of MPE (9-11). However, most of them were direct comparisons, there was no evidence-based medicine for direct and indirect comparisons between different types of platinum and Endostar. In this study, we used a network meta-analysis through direct and indirect comparisons, the clinical efficacy, and safety of different schemes for the treatment of MPE were compared.

Lots of patients have financial burdens associated with cancer treatment (12). In a cross-sectional survey, 45% of study participants were nonadherent to medications as a result of cost (13). While another study found that cancer-related financial burden was associated with lower health-related quality of life (14). So, patients will also consider their financial factors when choosing treatment schemes. We compared different schemes’ cost-effectiveness through a decision tree model so as to provide a health economics reference for the selection of schemes for MPE in patients with tumor. We present the following article in accordance with the CHEERS and PRISMA NMA reporting checklists (available at https://atm.amegroups.com/article/view/10.21037/atm-22-2091/rc).


Methods

Network meta-analysis

This meta-analysis was performed according to Preferred Reporting Items for Systematic Reviews and Meta-Analysis (PRISMA) as well as the PRISMA extension statement for network meta-analysis.

Search strategy

PubMed, Web of Science, Embase, Wanfang, and Chinese National Knowledge Infrastructure (CNKI) were systematically searched from inception to November 23, 2021, using a combination of the main search terms “recombinant human endostatin”, “rh-Endostatin”, “Endostar”, “cisplatin”, “lobaplatin”, and “pleural effusion”.

Inclusion and exclusion criteria

The inclusion criteria applied for the literature were as follows: (I) the study participants were adult patients who had a clear histopathological and imaging diagnosis of malignant tumor with pleural effusion; (II) study participants in the experimental group or the control group received pleural perfusion of Endostar, cisplatin, lobaplatin, or the combination of the 2 drugs; and (III) the study design was a randomized controlled trial (RCT).

The following literature was excluded: (I) nonrandomized trials or trials with a faulty randomization method, (II) literature reviews, (III) duplicate publications, (IV) case reports, and (V) animal research papers.

Outcome indicators

Based on the change of pleural effusion, this study was evaluated in accordance with the response evaluation criteria in solid tumours (RECIST) (15) in the following fashion: complete response (CR), defined as the effusion completely disappearing lasting more than 4 weeks after completion of treatment; partial response (PR), defined as the effusion decreasing by more than 50% lasting more than 4 weeks after completion of treatment; stable disease (SD), defined as the effusion decreasing by less than 50% after treatment or increasing by less than 25%; progressive disease (PD), defined as the effusion increasing by more than 25% after treatment; and unknown, defined as the disease progression not being recorded.

The primary outcome was the ORR, which was calculated as follows: ORR = CR + PR; meanwhile, no response (NR) was calculated as follows: NR = SD + PD.

Data extraction and quality assessment

Two researchers screen the selected literature separately according to the above-mentioned inclusion and exclusion criteria. If the 2 researchers disagreed on whether the selected literature should be included, they arrived at a consensus via discussion. If the disagreement could not be resolved through discussion, a third researcher was invited to discuss and mediate an agreement. The data extracted from the included trials included the first author’s name, year of publication, sample size, interventions, primary outcome, and, for safety profiles, counts of each specific adverse event.

The quality of the included studies was assessed using the Cochrane Collaboration tool for assessing the risk of bias. Two researchers assessed the risk of bias independently and in duplicate, and any disagreements were resolved via consultation with the third researcher.

Cost-effectiveness analysis

Modeling approach

In order to evaluate the short-term efficacy and economic feasibility, a decision tree model was used to complete a cost-effectiveness analysis of the 5 schemes. As there is no standard scheme or course of treatment of MPE, we assumed that the model course of treatment was 2 weeks according to the commonly used course of treatment and dose in the included literature; furthermore, each drug was administered twice a week with the following dosages: Endostar 45 mg, cisplatin 60 mg, and lobaplatin 50 mg.

Cost estimates

Pharmacoeconomic cost includes direct cost, indirect cost, and hidden cost. In this study, only direct medical costs were calculated from the perspective of the hospital, and mainly included drug costs, examination costs, hospitalization costs, and the cost of managing adverse events.

Pharmaceutical prices refer to the quotation of the medical institution where the author works. The price of Endostar (Shandong Xiandao Bio-pharmaceutical Co., Ltd.; specification: 15 mg per bottle) is yuan renminbi ¥490.00, cisplatin (Qilu Pharmaceutical Co., Ltd.; specification: 20 mg per bottle) is ¥13.17, and lobaplatin (Hainan Changan International Pharmaceutical Co., Ltd.; specification: 50 mg per bottle) is ¥1,812.21. For other relevant fee data, we referred to the institution’s 2021 fee standard. Due to the short treatment period, discounting was not performed. All costs are expressed in the 2021 values of Chinese yuan (¥). The costs were translated to US dollars at the rate of $1= ¥6.4512 (as of 2021).

Effectiveness estimates

The events examined in the decision tree model were the ORR of MPE within the model cycle. The probabilities used in the decision tree model were determined from the network meta-analysis of efficacy and safety. As the simple cost-effectiveness ratio could not fully reflect the economy of the 5 schemes, we added the incremental cost-effectiveness ratio (ICER) to evaluate it.

Statistical analysis

The statistical analyses of the network meta-analysis were performed using Addis software (version 1.16.6) based on the Bayesian framework. The parameters for the Addis software were as follows: number of chains, 4; tuning iterations, 20,000; simulation iterations, 50,000; thinning interval, 10; inference samples, 10,000; and variance scaling factor, 2.5. As only dichotomous outcomes were involved, odds ratios (ORs) and 95% CIs were calculated based on a random effects model. The convergence of the model was determined by the potential scale reduction factor (PSRF). If PSRF was in the range of 1 to 1.05, meanwhile inconsistency factors closed to 0 and 95% CI contained the neutral value (0), these indicated good convergence and that the consistency model could be used to calculate the pooled effect size; otherwise, the nonconsistency model was used.

Based on the results of the network meta-analysis, TreeAge Pro 2011 software was used to establish and analyze the decision tree model, and the cost-effectiveness ratio and ICER were calculated. In the one-way sensitivity analyses, the influence of different indicators on the results was visualized by a tornado chart. In the probabilistic sensitivity analysis, the cost-effectiveness acceptability curve was obtained after Monte Carlo simulation by assuming efficiency and cost distribution.


Results

The results of the network meta-analysis

Study selection

A total of 717 relevant studies were initially retrieved using our established search strategy, and 572 were excluded as duplicate records or unrelated records. We subjected 145 studies to full-text screening, and 90 studies were excluded. Finally, a total of 55 studies met the eligibility criteria and were included for the meta-analysis. A schematic representation of the article searches and study selection process is presented in Figure 1.

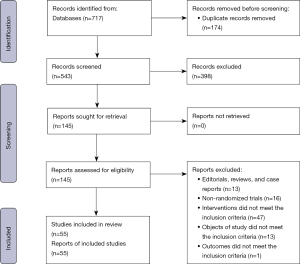

Figure 1 Screening process of the studies.

Characteristics of the included studies

Among the 55 included studies, 3 were 3-arm studies and the remainder were 2-arm studies, with a total of 3,379 patients included. Table 1 shows the summary of the basic characteristic information of the included studies while Figure 2 presents the network diagrams drawn using RStudio software.

Table 1

Basic information of the included studies

Author (year) N (T/C) Age (mean/mean ± SD, year) Interventions (T/C) Course
Huang 2010 (9) 18/18 48 Endostar + cisplatin/cisplatin 3 weeks
Liu 2010 (10) 32/32/32 55 Endostar + cisplatin/Endostar/cisplatin 3 weeks
Mao 2011 (16) 45/45 51 Endostar + cisplatin/cisplatin 2 weeks
Li 2011 (17) 21/21 49±8.3 Endostar + cisplatin/cisplatin 3 weeks
Jia 2011 (18) 18/14 Endostar + cisplatin/cisplatin 1–2 weeks
Cao 2012 (11) 32/31 53.92±5.93/53.44±7.76 Endostar + lobaplatin/Endostar + cisplatin 2 weeks
Yang 2013 (19) 21/21 41.5±7.6 Endostar + cisplatin/cisplatin 3 weeks
Zheng 2013 (20) 60/60 53 Endostar + cisplatin/cisplatin 3–12 weeks
Han 2013 (21) 20/20 62 Endostar + cisplatin/cisplatin 1–3 weeks
Kang 2013 (22) 30/30 60.5±9.9 Endostar + cisplatin/cisplatin 24 days
Huang 2014 (23) 25/25 41.5±7.6 Endostar + cisplatin/cisplatin 2 weeks
Yue 2014 (24) 43/43 60.42±16.93 Endostar + cisplatin/cisplatin 2–3 weeks
Tu 2014 (25) 45/45 46.5±11.5/47.5±10.5 Endostar + cisplatin/cisplatin 3 weeks
Zhao 2015 (26) 18/18/18 Endostar + cisplatin/Endostar/cisplatin 42 days
Duan 2015 (27) 19/19 61.4 Endostar + cisplatin/Endostar 4 weeks
Pang 2015 (28) 21/25 61.2±5.3 Endostar + cisplatin/cisplatin 1–2 weeks
Chen 2015 (29) 21/24 56.7±5.7/55.1±4.9 Endostar + cisplatin/cisplatin 4 weeks
Zheng 2015 (30) 23/23 49.2/49.6 Endostar + cisplatin/cisplatin 6 weeks
Hu 2015 (31) 43/41 59/57 Endostar + cisplatin/cisplatin 1–2 weeks
Zhang 2015 (32) 24/22 61 Endostar + cisplatin/cisplatin 1–2 weeks
Shi 2016 (33) 21/21 42.3±5.6 Endostar + lobaplatin/lobaplatin 3 weeks
He 2016 (34) 27/25 60.28±6.17/61.31±6.05 Endostar + cisplatin/cisplatin 3 weeks
Dong 2016 (35) 23/23 48.5±4.3 Endostar + cisplatin/cisplatin 2 weeks
Bayalige 2016 (36) 16/20 55 Endostar + cisplatin/cisplatin 3 weeks
Zou 2016 (37) 36/36 56.8±5.9/57.3±6.2 Endostar + cisplatin/cisplatin 1 weeks
Qin 2016 (38) 21/21 59.6 Endostar + cisplatin/cisplatin 3 weeks
Lu 2016 (39) 30/30/30 63.2/65.1/62.6 Endostar + cisplatin/Endostar/cisplatin 5–11 days
Wang 2016 (40) 20/20 45.0±6.2/40.0±5.4 Endostar + cisplatin/Endostar
Zhang 2016 (41) 26/25 47 Endostar + cisplatin/cisplatin
Zheng 2016 (42) 46/46 60.35±2.18 Endostar + cisplatin/cisplatin 1–2 weeks
Li 2016 (43) 50/50 64.58±2.49/64.82±2.44 Endostar + lobaplatin/lobaplatin 3 weeks
Chen 2017 (44) 32/32 46.3±6.4/40.2±5.1 Endostar + cisplatin/cisplatin 2 weeks
Feng 2017 (45) 27/27 59.15±10.26/58.71±10.04 Endostar + cisplatin/cisplatin 3 weeks
Ruan 2017 (46) 45/45 58.53±4.26 Endostar + cisplatin/cisplatin 3 weeks
Zhao 2017 (47) 34/34 52.87±4.93/53.16±5.08 Endostar + cisplatin/cisplatin 4 weeks
Li 2017 (48) 25/21 Endostar/cisplatin 2 weeks
Jia 2017 (49) 22/18 62 Endostar + cisplatin/cisplatin 1–4 weeks
Wu 2017 (50) 35/20 54 Endostar + cisplatin/cisplatin 2–3 weeks
Deng 2018 (51) 53/53 65.08±3.08/66.10±3.10 Endostar + cisplatin/cisplatin 2 weeks
Sun 2018 (52) 18/22 Endostar + cisplatin/cisplatin
Wen 2018 (53) 30/30 52 Endostar + lobaplatin/Endostar + cisplatin 2–4 weeks
Qin 2018 (54) 42/42 56.84±7.03/57.19±8.25 Endostar + cisplatin/Endostar 4 weeks
Wang 2018 (55) 42/42 62.34±7.47/60.75±8.06 Endostar + cisplatin/cisplatin 1–3 weeks
Qing 2018 (56) 28/23 68.2±4.6 Endostar + cisplatin/cisplatin 3 weeks
Liu 2018 (57) 26/26 Endostar + cisplatin/cisplatin 2–3 weeks
Zheng 2019 (58) 24/24 53.2±2.5/52.3±2.4 Endostar + cisplatin/cisplatin 2 weeks
Jiang 2019 (59) 50/50 51.5±6.7/52.5±6.9 Endostar + cisplatin/Endostar 4 weeks
Li 2019 (60) 15/15 44.6±2/45.2±2 Endostar + cisplatin/cisplatin 42 days
Ji 2020 (61) 30/30 60.84±4.56/61.54±5.29 Endostar+lobaplatin/lobaplatin 4–8 weeks
Han 2020 (62) 30/30 58.95±10.45/59.46±10.37 Endostar + cisplatin/cisplatin 2 weeks
Xu 2020 (63) 20/20 66 Endostar + cisplatin/cisplatin 2 courses, 3–4 weeks between 2 courses
Su 2021 (64) 30/30 61.43±6.45/62.05±6.29 Endostar + cisplatin/cisplatin 2 courses, 3–4 weeks between 2 courses
Liu 2021 (65) 39/39 57.2±4.8/56.8±4.6 Endostar + cisplatin/cisplatin 3 weeks
Chen 2021 (66) 30/30 50.31±4.27/50.16±4.35 Endostar + lobaplatin/lobaplatin 4 weeks
Zhang 2021 (67) 40/40 55.36±3.25/55.84±3.16 Endostar + lobaplatin/lobaplatin 42 days

T, treatment group; C, control group; –, none reported.

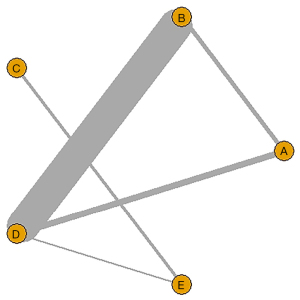

Figure 2 Network relationship among the different interventions of the included studies. A, Endostar; B, cisplatin; C, lobaplatin; D, Endostar combined with cisplatin; E, Endostar combined with lobaplatin.

Quality assessment of the included studies

There were 26 RCTs among the 55 studies in the lowest categories of risk of bias for random sequence generation. None of the studies reported blindness, and the risk of bias was unclear. Outcome data of all studies were complete, and no other sources of bias were reported. The risk of bias assessment was summarized in Figure 3.

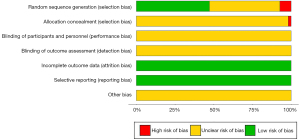

Figure 3 Percentages of included studies that produced risks of bias.

Effectiveness comparison of the different schemes

All of the PSRFs were less than 1.05, indicating good convergence with stable results. During the software calculation results, the inconsistency factors (median 0.33, 95% CI: −0.14 to 0.88) closed to 0, and 95% CI: contained the neutral value (0). Thus, the network meta-analyses were performed based on the concordance model. Network meta-analysis showed that Endostar combined with lobaplatin (OR 5.70, 95% CI: 2.40–14.49), and Endostar combined with cisplatin (OR 3.84, 95% CI: 3.28–4.61) were significantly more effective than cisplatin. Nevertheless, Endostar (OR 1.27, 95% CI: 0.85–1.85), and lobaplatin (OR 1.16, 95% CI: 0.43–3.24) had no significant difference in effectiveness compared with cisplatin. The effectiveness was divided into five ranks from Rank 1 to Rank 5, Rank 1 is the best and Rank 5 is the worst. The probability of schemes ranking in each rank was calculated (Figure 4). Endostar combined with lobaplatin had the highest probability in Rank 1, so this scheme had the best effectiveness, followed by Endostar combined with cisplatin, Endostar, cisplatin, and lobaplatin.

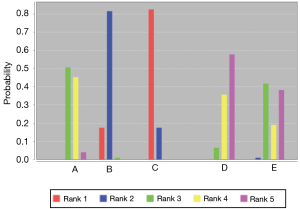

Figure 4 Ranking for the effectiveness of the different schemes. A, Endostar; B, Endostar combined with cisplatin; C, Endostar combined with lobaplatin; D, cisplatin; E, lobaplatin.

Adverse drug reactions (ADRs)

There were 36 studies that detailed the specific occurrence and incidence of ADRs, with the common ADRs including nausea, vomiting, chest pain, and bone marrow suppression. There was no statistical significance between each treatment concerning the incidence of ADR (P>0.05) that were consistent with the results of ADR in the meta-analysis conducted by Liang et al. (68). Therefore, the follow-up pharmacoeconomic evaluation only included the treatment cost of the ADR with the highest incidence to nausea and vomiting. Ondansetron was selected as the treatment for the ADR, and 1 box (12 tablets) per course of treatment cost ¥107.

Pharmacoeconomic evaluation

The decision tree model parameters

The effective index of each scheme was obtained from the included studies in the network meta-analysis, parameters were assigned, and the decision tree model was established (Figure 5), with a fluctuation within 20% being used as the variation range of parameters (Table 2).

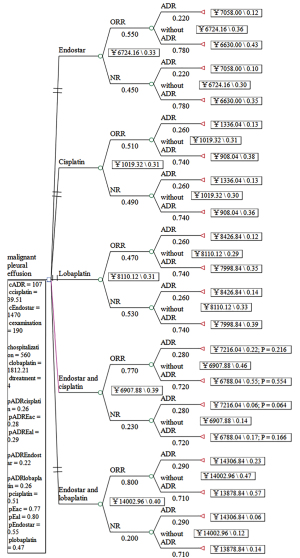

Figure 5 Decision tree model of the 5 schemes. ORR, objective response rate; ADR, adverse drug reactions; cADR, cost of ADR; ccisplatin, cost of cisplatin; cEndostar, cost of Endostar; cexamination, cost of examination; chospitalization, cost of hospitalization; clobaplatin, cost of lobaplatin; dtreatment, treatment times; pADRcisplatin, incidence of ADR to cisplatin; pADREac, incidence of ADR to Endostar combined with cisplatin; pADREal, incidence of ADR to Endostar combined with lobaplatin; pADREndostar, incidence of ADR to Endostar; pADRlobaplatin, incidence of ADR to lobaplatin; pcisplatin, ORR of cisplatin; pEac, ORR of Endostar combined with cisplatin; pEal, ORR of Endostar combined with lobaplatin; pEndostar, ORR of Endostar; plobaplatin, ORR of lobaplatin; NR, no response.

Table 2

The decision tree model parameters

Model parameter Value Range Distribution
Lower Upper
Cost, renminbi yuan
   Endostar 45 mg 1,470 1,176 1,764 Gamma
   Cisplatin 60 mg 39.51 31.61 47.41 Gamma
   Lobaplatin 50 mg 1,812.21 1,449.77 2,174.65 Gamma
   ADR 107 85.6 128.4 Gamma
   Examination 190 152 228 Gamma
   Hospitalization 560 448 672 Gamma
Efficacy, %
   Endostar 55.02 44.02 66.02 Beta
   Cisplatin 50.66 40.53 60.79 Beta
   Lobaplatin 47.33 37.86 56.80 Beta
   Endostar and cisplatin 77.15 61.72 92.58 Beta
   Endostar and lobaplatin 79.79 63.83 95.75 Beta
Incidence of ADR (nausea and vomiting), %
   Endostar 21.70 17.36 26.04 Beta
   Cisplatin 26.00 20.8 31.2 Beta
   Lobaplatin 25.80 20.64 30.96 Beta
   Endostar and cisplatin 27.90 22.32 33.48 Beta
   Endostar and lobaplatin 28.70 22.96 34.44 Beta
Other
   Treatment times 4 3 5 Triangular

ADR, adverse drug reactions.

Cost-effectiveness analysis

The cost-effectiveness analysis of the 5 schemes is shown in Table 3. In the ICER analysis, the scheme of lobaplatin was excluded as an absolutely inferior scheme due to its high cost and low effective rate, while the Endostar scheme was also excluded because of its higher ICER. Among the other 3 schemes, the ICER of Endostar and cisplatin combined, with the cisplatin alone scheme as the comparison, was ¥22,648.31, while the ICER of Endostar and lobaplatin combined, with the combined cisplatin scheme as comparison, was ¥236,502.67.

Table 3

Cost-effectiveness analysis results

Scheme Effectiveness Incremental effectiveness Cost, yuan renminbi Incremental cost, yuan renminbi Cost-effectiveness ratio ICER
Cisplatin 0.51 1,019.32 1,998.67
Lobaplatin 0.47 –0.04 8,110.12 7,090.80 17,255.57 –177,270.00
Endostar 0.55 0.04 6,724.16 5,704.84 12,225.75 142,621.00
Endostar and cisplatin 0.77 0.26 6,907.88 5,888.56 8,971.27 22,648.31
Endostar and lobaplatin 0.80 0.03 14,002.96 7,095.08 17,503.70 236,502.67

ICER, incremental cost-effectiveness ratio.

Different optimal schemes may exist according to the willingness to pay (WTP). When the WTP was <¥22,648.31, the optimal scheme was the cisplatin alone scheme. When the WTP was between ¥22,648.31 to ¥236,502.67, the optimal scheme was Endostar combined with cisplatin. When the WTP was >¥236,502.67, the optimal scheme was Endostar combined with lobaplatin.

Sensitivity analysis

Based on the upper and lower limits of model parameters in Table 1, the one-way sensitivity analysis was conducted for the ORR and the associated costs of the 5 schemes. As shown in Figure 6, the 5 most influential parameters were ORR of Endostar combined with cisplatin (pEac), ORR of Endostar combined with lobaplatin (pEal), treatment times (dTreatment), cost of Endostar (cEndostar), and hospitalization cost (chospitalization).

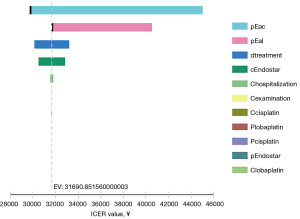

Figure 6 Tornado chart of sensitivity analysis. pEac, ORR of Endostar combined with cisplatin; ORR, objective response rate; pEal, ORR of Endostar combined with lobaplatin; dtreatment, treatment times; cEndostar, cost of Endostar; chospitalization, hospitalization cost; cexamination, cost of examination; ccisplatin, cost of cisplatin; plobaplatin, ORR of lobaplatin; pcisplatin, ORR of cisplatin; pEndostar, ORR of Endostar; clobaplatin, cost of lobaplatin; EV, expected value; ICER, incremental cost-effectiveness ratio; ¥, yuan renminbi.

It was assumed that the change of ORR of the 5 schemes followed Beta distribution, the change of cost followed Gamma distribution, and the change of treatment times followed triangular distribution. The cost-effectiveness probabilistic sensitivity analysis of each parameter was conducted by Monte-Carlo simulation using TreeAge Pro 2011 software, and a cost-effectiveness acceptability curve based on 1,000 Monte-Carlo simulations was drawn (Figure 7).

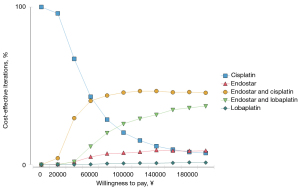

Figure 7 Cost-effectiveness acceptability curve. ¥, yuan renminbi.

According to the cost-effectiveness acceptability curve (Figure 7), when the WTP was 0, the probability of cisplatin alone scheme being the optimal solution was 100%. With the increase of WTP, the probability of cisplatin alone scheme being the optimal solution decreased continuously. With the change of WTP, the probability of Endostar both combined with cisplatin and combined with lobaplatin being the optimal scheme increased, while the other 2 schemes showed little change and were excluded as the inferior scheme.


Discussion

The occurrence of MPE is due to tumor metastasis to the pleura/pleural space either by direct invasion, hematogenous, or lymphangitic spread (69), which often leads to uncomfortable symptoms such as dyspnea and seriously affects the quality of life of tumor patients. Several studies have proven that the pleural infusion of drugs after adequate drainage of pleural effusion can effectively control effusion regeneration (70,71). Clinically common pleural infusion drugs, such as Endostar, lobaplatin, and cisplatin, are still controversial in terms of efficacy, safety, and economic viability.

A total of 55 RCTs were included in this study, and a network meta-analysis was applied to evaluate the efficacy and safety of 5 different schemes for MPE, with the included literature having a high evidence-based level and reliable results. Through a comparison of the efficiency of the 5 schemes, the probability and cost of all possible treatment events were determined, and a decision tree model was constructed for pharmacoeconomic evaluation, allowing for a more comprehensive and objective evaluation of possible treatment plans.

In the cost-effectiveness analysis, ICER was used to ascertain whether an advantage was present between a comparison of 2 schemes. A cost-effectiveness acceptability curve indicated that, cisplatin, Endostar combined with cisplatin, and Endostar combined with lobaplatin were the optimal schemes according to the level of WTP.

Currently, there is no uniform standard of WTP for the treatment of MPE. The efficacy of Endostar combined with lobaplatin is superior but may have low acceptability among Chinese patients due to its high cost. Moreover, the ICER of this scheme is relatively high according to the current per capita income of China. The cisplatin alone and cisplatin combined with Endostar schemes are more economical, and thus clinicians should make treatment choices based on patients’ actual WTP.

Limitations

Although strict inclusion and exclusion criteria were established in this study and the model is robust, a few limitations should be noted. The effective rates of different schemes in this study were obtained from a meta-analysis while the included studies were all Chinese literature and may be of low quality; thus, a statistical bias might have been introduced into the effective rates. In addition, the pharmacoeconomic evaluation only analyzed the direct cost of treatment, while the indirect cost and hidden cost were not included and thus should be considered in future studies.


Acknowledgments

Funding: None.


Footnote

Reporting Checklist: The authors have completed the CHEERS and PRISMA NMA reporting checklists. Available at https://atm.amegroups.com/article/view/10.21037/atm-22-2091/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://atm.amegroups.com/article/view/10.21037/atm-22-2091/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.


References

  1. Porcel JM, Esquerda A, Vives M, et al. Etiology of pleural effusions: analysis of more than 3,000 consecutive thoracenteses. Arch Bronconeumol 2014;50:161-5. [Crossref] [PubMed]
  2. Molina S, Martinez-Zayas G, Sainz PV, et al. Breast and Lung Effusion Survival Score Models: Improving Survival Prediction in Patients With Malignant Pleural Effusion and Metastasis. Chest 2021;160:1075-94. [Crossref] [PubMed]
  3. Porcel JM, Gasol A, Bielsa S, et al. Clinical features and survival of lung cancer patients with pleural effusions. Respirology 2015;20:654-9. [Crossref] [PubMed]
  4. Hajnikova Z, Michalek P, Votruba J, et al. Interventional management of recurrent malignant pleural effusion: state of the art in 2021. Bratisl Lek Listy 2022;123:50-4. [PubMed]
  5. Xiao Z, Jiang Y, Chen XF, et al. Intrathoracic infusion therapy with Lentinan and chemical irritants for malignant pleural effusion: a systematic review and meta-analysis of 65 randomized controlled trials. Phytomedicine 2020; Epub ahead of print. [Crossref] [PubMed]
  6. Qin SK, Yang LQ, Liang J, et al. Intra-pleural injection of recombinant human endostatin and/or cisplatin in treatment of malignant hydrothorax and ascites: A multicenter randomized controlled trial. Chinese Clinical Oncology 2017;22:193-202.
  7. Gao WB, Wang WL, Wang RY, et al. Observation of the efficacy of recombinant human endostatin on malignant hydrothorax and ascites. Chinese Journal of Practical Medicine 2009;36:46-7.
  8. Guo JY, Fang LJ, Guo JY. Clinical observation of cavity infusion Endostar combined with cisplatin in the treatment of malignant cavity effusion. Medical Innovation of China 2016;13:68-71.
  9. Huang J. Clinical effect of intrapleural infusion with Endostar combined with cisplatin on malignant pleura effusion. Journal of Clinical Medicine in Practice 2010;14:63-4.
  10. Liu W, Ha MW, Yin NC, et al. The effect of intracavitary injection of Endostar combined with cisplatin on malignant pleural effusion of non-small cell lung cancer. Shandong Medical Journal 2010;50:79-80.
  11. Cao Y, Zhao GQ, Huang YC. Clinical study of intrapleural injection of lobaplatin combined with recombinant human endostatin (Endostar) in treatment of lung cancer with malignant pleural effusion. Journal of Dali University 2012;11:41-3.
  12. Smith GL, Lopez-Olivo MA, Advani PG, et al. Financial Burdens of Cancer Treatment: A Systematic Review of Risk Factors and Outcomes. J Natl Compr Canc Netw 2019;17:1184-92. [Crossref] [PubMed]
  13. Zullig LL, Peppercorn JM, Schrag D, et al. Financial Distress, Use of Cost-Coping Strategies, and Adherence to Prescription Medication Among Patients With Cancer. J Oncol Pract 2013;9:60s-3s. [Crossref] [PubMed]
  14. Kale HP, Carroll NV. Self-reported financial burden of cancer care and its effect on physical and mental health-related quality of life among US cancer survivors. Cancer 2016;122:283-9. [Crossref] [PubMed]
  15. Eisenhauer EA, Therasse P, Bogaerts J, et al. New response evaluation criteria in solid tumours: revised RECIST guideline (version 1.1). Eur J Cancer 2009;45:228-47. [Crossref] [PubMed]
  16. Mao LW, Liao GQ, Wang HM, et al. Observation of clinical of Endostar combined with DDP on malignant bloody pleural effusion. Medical Journal of National Defending Forces in Southwest China 2011;21:723-5.
  17. Li WY. Clinical observation of the efficacy of intracavitary injection of Endostar on malignant pleural effusion. Journal of Medical Forum 2011;32:170-1.
  18. Jia QQ, Sun CJ. Clinical observation of Endostar in the treatment of malignant pleural effusion. China Prac Med 2011;6:32-3.
  19. Yang Y, Lin RY, Cao GM. Shoet-term and long-term efficacy of Endostar combined with cis-diamminedichloroplatinum in treating malignant pleural effusion of non-small cell lung cancer. China Pharmaceuticals 2013;22:21-2.
  20. Zheng QH, Hu W, Liao XF, et al. A comparison between intrapleural injection of cisplatin combined with Endostar and cisplatin alone in the treatment for malignant pleural effusion. Journal of Chinese Oncology 2013;19:386-9.
  21. Han ZC, Wang F, Liu J. The effect of rh-endostatin combined with dichlorodiamineplatinum on patients with malignant pleural effusion. Chin J Clin Pharmacol 2013;29:587-9.
  22. Kang LY, Gao LM, Cao JL, et al. Clinical observation on pleural perfusion of recombinant human Endostain combined with cisplatin on malignant pleural effusion. Clinical Focus 2013;28:1371-3.
  23. Huang L. Clinical observation of Endostar combined with cisplatin in treating malignant pleural effusion of non-small cell lung cancer. Jilin Medical Journal 2014;35:4308-9.
  24. Yue GJ, Bo YJ, Ma H, et al. Analysis of efficacy and security cisplatin Endostar in the treatment of non-small cell lung cancer bloody pleural effusion. Mod Diagn Treat 2014;25:2478-80.
  25. Tu JR, Huang SJ, Wang MJ. Clinical efficacy of pleural perfusion with recombinant human endostatin combined with cisdiammi dichloride platinum for advanced non-small cell lung cancer patients with malignant pleural effusion. The Practical Journal of Cancer 2014;29:1592-4.
  26. Zhao WF, Sun CP, Ma XY, et al. Clinical study of Endostar on malignant cavity effusion. Journal of Taishan Medical College 2015;36:1089-92.
  27. Duan CX, Liang XG, Zhang ZQ. Analysis of efficacy of Endostar combined with cisplatin in treating malignant pleural effusion of non-small cell lung cancer. Journal of Baotou Medical College 2015;31:45-6.
  28. Pang ZX, Sun X. The clinical observation and safety of intrapleural injection of Endostar combined with cisplatin in treatment of malignant pleural effusion. China Medicine and Pharmacy 2015;5:176-8.
  29. Chen DZ, Ji RJ, Guan K, et al. Clinical effects of pleural infusion of cisplatin combined with Endostar for treating pulmonary carcinoma complicating malignant pleural effusion ang its influence on VEGF. Laboratory Medicine and Clinic 2015;12:3044-5+3047.
  30. Zheng JQ, Zhan Y, Liao XY. Clinical observation of Endostar combined with cisplatin (DDP) in treatment of malignant thoracic and celiac serous effusion. China Modern Doctor 2015;53:19-21.
  31. Hu XS, Wang HY, Zhang CG, et al. Clinical study on intra-thoracic chemotherapy with recombinant human Endostain combined with cisplatin in treatment of patients with malignant pleural effusion. Clinical Medication Journal 2015;13:23-7.
  32. Zhang WB, Xie TF. Clinical observation of the efficacy of intracavitary injection of Endostar combined with chemotherapy on malignant pleural effusion. Chinese Journal of Primary Medicine and Pharmacy 2015;22:1212-4.
  33. Shi L, Bo YJ, Yang WB. Observation of the efficacy of intracavitary injection of Endostar combined with lobaplatin for advanced non-small cell lung cancer patients with malignant pleural effusion. World Latest Medicine Information 2016;16:153-4.
  34. He J, Guo J, Zhai M, et al. Evaluation of curative effect of Endostar combined with cisplatin intrapleural administration in treatment of malignant pleural effusion induced by non-small cell lung cancer. International Journal of Respiration 2016;36:1127-30.
  35. Dong M, Wu XJ, Huang FM. Effects of Endostar combined with cisplatin in the treatment of malignant pleural effusion and its effect on the expression of chemokines. Chinese Journal of Clinical Rational Drug Use 2016;9:28-30.
  36. Bayalige Li H, Wang J. Endostar in the treatment of malignant pleural effusion. World Latest Medicine Information 2016;16:33-4.
  37. Zou JT, Hu ZZ, Chen YL. Clinical efficacy and adverse reactions of cisplatin combined with Endostar thoracic perfusion in the treatment of malignant pleural effusion of lung cancer. China Modern Medicine 2016;23:22-4.
  38. Qin ML. Clinical observation of cisplatin combined with Endostar infusion in the treatment of malignant pleural effusion in advanced non-small cell lung cancer. China Practical Medicine 2016;11:228-9.
  39. Lu J, Xie Q, Chen Q, et al. Clinical study of intrapleural injection of recombinant human endostatin combined with cisplatin in the treatment of lung adenocarcinoma with malignant pleural effusion. Journal of Clinical Pulmonary Medicine 2016;21:1664-7.
  40. Wang ZS, Bi Q, Tian Q, et al. Clinical effect of recombinant human endostatin combined with cisplatin in the treatment of lung cancer with malignant pleural effusion. Chinese Journal of Clinical Rational Drug Use 2016;9:49-50.
  41. Zhang P, Gong C, Zhang J, et al. Clinical effect of intrapleural infusion with recombinant human endostatin combined with cisplatin on malignant pleura effusion in breast cancer patients. Chinese Journal of Hemorheology 2016;26:32-5,49.
  42. Zheng W, Kang JB, Wen JY, et al. Influence of recombinant human endostatin combined with cisplatinum on VEGF, EGFR and tumor markers in patients with malignant pleural effusion. Journal of Clinical Medicine in Practice 2016;20:32-5.
  43. Li HL, Cai SH, Zhao GM, et al. Observation of the clinical curative effect of recombinant human endostatin injection combined with lobaplatin in the treatment of malignant pleural effusion. Chinese Journal of the Frontiers of Medical Science 2016;8:42-5. (Electronic Version).
  44. Chen ZH. Clinical effect of Endostar combined with chemotherapy in the treatment of refractory malignant pleural effusion. World Latest Medicine Information 2017;17:107+112.
  45. Feng ZY. Effects of Endostar combined with cisplatin on platelet parameters and levels of VEGF and HIF-1α in patients with non-small cell lung cancer complicated with malignant pleural effusion. Henan Medical Research 2017;26:4454-5.
  46. Ruan FF. Clinical effect of intrapleural infusion with Endostar combined with cisplatin on malignant pleura effusion in non-small cell lung cancer. World Latest Medicine Information 2017;17:85+88.
  47. Zhao QH, Ouyang XH, Li KS. Observe the curative effect in the treatment of malignant pleural effusion intrapleural injection of Endostar. Journal of Clinical Medical 2017;4:14-5.
  48. Li QL, Xiang XD, Li GF. Efficacy and safety of Endostar and cisplatin in the treatment of malignant bloody pleural effusion of lung cancer. The World Clinical Medicine 2017;11:11-2.
  49. Jia XQ, Wen ZP. Clinical observation of Endostar combined with cisplatin in treatment of patients with malignant pleural effusion. Journal of Diseases Monitor & Control 2017;11:627-8.
  50. Wu Q, Chai XF, Fang XH, et al. Clinical observation of recombinant human endostatin in the treatment of malignant pleural effusion. Journal of Basic and Clinical Oncology 2017;30:61-2.
  51. Deng J. Clinical study on local treatment of malignant pleural effusion with Endostar combined with cisplatin. Healthmust-Readmagazine 2018;33:61.
  52. Sun Y. Clinical observation of Endostar combined with cisplatin in the treatment of malignant pleural effusion. Psychological Doctor 2018;24:165-6.
  53. Wen XM. Intracavitary infusion of lobaplatin combined with Endostar in treatment of malignant pleural effusion in non-small cell lung cancer. International Journal of Respiration 2018;38:1694-7.
  54. Qin AH. Efficacy of Endostar combined with cisplatin in the treatment of non-small cell lung cancer complicated with malignant pleural effusion. Contemporary Medical Symposium 2018;16:155-6.
  55. Wang YJ, Fu Y, Dong Y, et al. Efficacy of recombinant human endostatin combined with cisplatin in the treatment of malignant pleural effusion. Journal of Chinese Physician 2018;20:756-9.
  56. Qing S, Wei M, Gong DM, et al. Efficacy of intrapleural injection of recombinant human endostatin injection combined with cisplatin on treatment of non-small cell lung cancer with bloody pleural effusion. Journal of Chengdu Medical College 2018;13:487-9+492.
  57. Liu HX, Tan W. Recombinant vascular endostatin therapy for malignant pleural effusion. Acta Academiae Medicinae Weifang 2018;40:217-9.
  58. Zheng DW, Wang LH. Clinical observation of endostar combined with cisplatin in the treatment of malignant pleural effusion. Guide of China Medicine 2019;17:104-5.
  59. Jiang YS, Xie LQ, Chen ZY. Efficacy of cisplatin combined with recombinant human endostatin for intrathoracic injection in the treatment of malignant pleural effusion in non-small cell lung cancer. Chinese Journal of Clinical Rational Drug Use 2019;12:39-40.
  60. Li XY. Clinical observation of daily infusion of recombinant human endostatin combined with cisplatin in the treatment of malignant pleural effusion. Xin Li Yue Kan 2019;14:45-6.
  61. Ji HN, Fu WW, Zhou DM, et al. Clinical effect of Endostar combined with lobaplatin on malignant pleural effusion. Electronic Journal of Practical Gynecological Endocrinology 2020;7:186+188.
  62. Han GM. Clinical observation of Endostar combined with cisplatin in the treatment of malignant pleural effusion. Diet Health 2020;7:72-3.
  63. Xu M, Chen YF, Hu JX. Clinical study of intrathoracic perfusion of Endostar combined with cisplatin in the treatment of non-small cell lung cancer complicated with massive malignant pleural effusion. Journal of Guangdong Medical University 2020;38:178-80.
  64. Su N, Fan LP, Qin LL, et al. Efficacy of ENDU combined with cisplatin intrapleural perfusion in the treatment of non-small cell lung cancer with malignant pleural effusion. Journal of Medical Information 2021;34:155-7.
  65. Liu L. Clinical effect of Endostar pleural infusion on malignant pleural effusion caused by lung cancer and its effect on serum HIF-1α and VEGF. Laboratory Medicine and Clinic 2021;18:1328-30.
  66. Chen WY. Analysis of the efficacy and adverse reactions of lobaplatin combined with Endostar pleural infusion in the treatment of non-small cell lung cancer complicated with malignant pleural effusion. Qinghai Medical Journal 2021;51:8-10.
  67. Zhang Y. Clinical observation on the treatment of malignant pleural effusion of breast cancer by cisplatin sequential Endostar therapy. Chinese Journal of Convalescent Medicine 2021;30:196-8.
  68. Liang R, Xie HY, Lin Y, et al. Intraperitoneal Perfusion Therapy of Endostar Combined with Platinum Chemotherapy for Malignant Serous Effusions: A Meta-analysis. Asian Pac J Cancer Prev 2015;16:8637-44. [Crossref] [PubMed]
  69. Kulandaisamy PC, Kulandaisamy S, Kramer D, et al. Malignant Pleural Effusions-A Review of Current Guidelines and Practices. J Clin Med 2021;10:5535. [Crossref] [PubMed]
  70. Jie Wang X, Miao K, Luo Y, et al. Randomized controlled trial of endostar combined with cisplatin/pemetrexed chemotherapy for elderly patients with advanced malignant pleural effusion of lung adenocarcinoma. J BUON 2018;23:92-7. [PubMed]
  71. Zhao WY, Chen DY, Chen JH, et al. Effects of intracavitary administration of Endostar combined with cisplatin in malignant pleural effusion and ascites. Cell Biochem Biophys 2014;70:623-8. [Crossref] [PubMed]

(English Language Editor: J. Grey)

Cite this article as: Xia Y, Fang P, Zhang X, Su G, Shen A. The efficacy of Endostar combined with platinum pleural infusion for malignant pleural effusion in tumor patients is significantly better than that of monotherapy, but the economy is lower: a systematic review, network meta-analysis and cost-effectiveness analysis. Ann Transl Med 2022;10(10):604. doi: 10.21037/atm-22-2091

Download Citation
