A narrative review of cortical visual prosthesis systems: the latest progress and significance of nanotechnology for the future

Introduction

The estimated number of people living with a visual impairment was around 285 million in 2010, and the projected number of legally blind individuals was approximately 39 million (1). Blindness and loss of vision are 2 of the most dreaded sensory impairments (2). Unfortunately, despite advances in modern medicine, millions of individuals worldwide must endure the difficulties associated with severe eyesight loss, which can have detrimental repercussions on their mental and physical health, including increased chronic disorders (3), accidents (4), social disengagement (5), depression (5,6), and death (7,8). From a socioeconomic standpoint, blindness has a detrimental effect on educational and vocational options, and carries health care expenses. Improvements in the daily lives of these individuals would not only benefit their quality of life, but could also significantly reduce their financial expenses (9). Dysfunction in the neural signal transduction connecting the retina to the visual brain is often the cause of vision loss. Vision restoration research is dedicated to assisting these individuals by developing therapies tailored to each indication, including gene therapy (10), stem cell therapy (11,12), optogenetics (13), vision restoration training, non-invasive stimulation (14), and vision prosthesis (15).

Over the last 3 decades, technology has improved to the point that electronic devices may now be implanted into the visual pathway to restore some sight. Visual neural prostheses are a technique for creating a visual experience by stimulating the visual signal directly. Once the retina is stimulated by light, visual information is translated into neural spike activity by photoreceptor cells. This activity is then conveyed to the lateral geniculate nucleus (LGN) of the thalamus via retinal ganglion cells and then to the primary visual cortex via thalamic synapses. Visual restoration is based on the premise that any section of the visual pathway may interface with a prosthesis that gathers visual field pictures through a camera, maps them properly to precise signals, and evokes the visual signal transduction accordingly. Several sites from the retina to the visual cortex are now used as targets for restoring vision (see Figure 1) (15,16).

Figure 1 The ventral view of the human brain demonstrates the visual system’s development. Light normally enters the system through the eye, concentrates on the retina, and stimulates neurons. This activity originates in the retina, travels through the optic nerve bundle, crosses across, and terminates in the thalamic LGN. The crossover enables the visual hemisphere to concurrently interpret information from both eyes (the right hemisphere enters the left LGN and vice versa). The LGN then transfers signals to the main visual cortex (V1) and higher visual regions through optical radiation. This figure was reused from (15) under the terms of the Creative Commons Attribution 4.0 International License (CC BY 4.0, http://creativecommons.org/licenses/by/4.0/). LGN, lateral geniculate nucleus.

Vision prostheses include retinal implants, optic nerve implants, LGN implants and visual cortex implants. This review will focus on visual cortex implants. Retinal prostheses are classified according to the location of the electrode array, i.e., preretinal subretinal and suprachiochoroid. The use of a retinal visual prosthesis requires an intact eyeball and functioning retinal ganglion cells and optic nerves. Therefore, any disease or injury that impairs these areas of the visual pathway will prevent the retinal approach. For patients with these conditions and severe vision loss, one option is to implant devices in other areas of the visual pathway, such as the optic nerve, LGN, or cortex. The retina and visual cortex have been the sites of choice for most visual prostheses using electrical stimulation. They are located at both extremes of the visual pathway and are more accessible surgically than deep brain structures such as the optic nerve and the LGN (17).

In people with retinitis pigmentosa or age-related macular degeneration, retinal prostheses are used to activate the inner retina, the remaining population of retinal ganglion cells, and/or bipolar cells (18). This strategy is theoretically favorable because stimulation occurs during the initial phases of visual perception, before any visual data processing by the brain (i.e., the LGN). The Second Sight Medical Product, referred to as Argus II, is the 1st retinal prosthesis to employ a retinal method in which microelectrode arrays are placed near nerve fibers on the retinal surface to activate the ganglion cells directly (19). Subjects’ performance on spatial motor tasks (20,21), motion detection (22), reading (23), and facial recognition are enhanced by Argus II.

Subretinal implants are an alternative to retinal prostheses. In subretinal implants, the electrode arrays are located on the outer surface of the retina and rely on the inner and middle layers of the retina’s normal processing. In Europe, Alpha IMS has been approved for commercial use as a subretinal implant (24). This product is capable of partially restoring light perception, which improves the daily quality of life of blind patients (25). Presently, the only commercially available visual prosthesis are retinal implants; however, such devices are only suitable for a limited proportion of the blind population (26). Some other researchers have tried the coordination of the active intraocular prosthesis with a cortical visual prosthesis (CVP) (27).

Optic nerve stimulation has also been demonstrated to induce phosphenes (28). Additionally, retinal prostheses are of little help to those who have visual loss resulting from severe retinal illness with neuronal loss, optic nerve damage, such as trauma, glaucoma, optic neuritis, or optic chiasmatic nerve injury. The LGN (29) and the visual cortex have been proven to be promising areas for electrical stimulation intervention in these individuals (30,31). However, because the LGN is a tiny region located deep in the brain, the number of electrodes and thus the number of probable phosphenes is limited. When the optic nerve is intact, it is a viable alternative to the retina, but electrode implantation is technically challenging, and visual percept resolution is not good enough (28,32). This limitation is likely due to the complexity in the axon arrangement with various regions for different visual field (33).

The stimulation of early visual cortex regions (V1, V2, and V3) produces optical illusions and is used to build cortical visual prostheses. This review seeks to shed light on the state of cortical prosthetics in vision restoration. We present a concise summary of the visual cortex anatomy and physiology, the adaptability of the blind brain, and the history of cortical visual prostheses. We then discuss the current state-of-the-art CVP systems and briefly outline recent scientific achievements in the design of devices now in development or clinical testing.

Using nano-bioelectonics, multiplexed, long-term, and deep brain recordings of neuronal activity with great spatial and temporal precision are conceivable (34). Nanostructures and nanomaterials are key components of nano-bioelectronic transistor-based sensors for monitoring, detecting, and triggering biological activity. In bioelectronic applications, nanostructures provide a number of advantages over larger structures. First, nanostructures have a high sensitivity due to their high surface-to-volume ratio. Further, the small size of nanostructures is comparable to that of biological building units, and as a result, they can merge smoothly with cells and tissues, enabling novel biological possibilities (35,36). In addition, nanoparticles have fewer metabolites, less side effects, and are not likely to cause immune rejection. Following advances in nanotechnology, it is now possible to create CVPs that are smaller, more efficient, and more biocompatible than ever before.

As a potential future research direction, the application of nanotechnology can help to increase the resolution of CVP. Due to the unique features of nanotechnology, it offers significant benefits for circumventing these constraints. We present the following article in accordance with the Narrative Review reporting checklist (available at https://atm.amegroups.com/article/view/10.21037/atm-22-2858/rc).

Methods

The literature search was extensive in the PubMed database, with “cortical visual prosthesis” as the key term. The full texts of all potentially relevant articles were obtained, and relevant information was extracted. Basic visual cortex anatomy and physiology, history, types of CVP, and nanotechnology for CVP were reviewed (Table 1).

Discussion

Basic visual cortex anatomy and physiology

Visual information is transmitted by the optic nerves, the 2nd pair of the cranial nerves. Photoreceptors (rod and cone cells) in the retina convert light to electrical impulses. After passing through the 2nd layer of bipolar cells, the signal reaches the retinal ganglion cells, the axons of which constitute the optic nerve. The ganglion cells’ axons are myelinated after leaving the back of the eyeball and exiting the orbit via the optic canal. When the optic nerve enters the middle cranial fossa, it transmits information from the left and right retinas and terminates at the optic chiasm. There, information from the nose and the retina’s temple flows through the opposing optic tract before skipping the pedunculus cerebri and terminating directly in the brain. The optic nerve does not connect to the brainstem nucleus; rather, it connects directly to the LGN (a portion of the thalamus), superior colliculus, parietal region, and hypothalamus. The geniculate nucleus transmits the majority of information from the optic tract to the visual brain. Conversely, certain neurons from optic nerve synapses are situated in regions implicated in reflex eye movements and circadian cycles. The occipital lobe is positioned near the back of the head (37) and plays a significant role in visual picture creation (38). The main task of the visual cortex is vision perception. The visual cortex is buried in the calcarine fissure on the occipital lobe’s medial surface (39-41), but it also extends into other regions, such as the lingual gyrus and the cuneus. Visual association cortices are located in the superior, middle, and inferior occipital gyri and are responsible for interpreting and adding meaning to visual data (42,43).

The Weber-Fechner laws are two related hypotheses in the field of psychophysics, known as Weber’s law and Fechner’s law. Both laws relate to human perception, more specifically the relation between the actual change in a physical stimulus and the perceived change. This includes stimuli to all senses: vision, hearing, taste, touch, and smell. Weber states that, “the minimum increase of stimulus which will produce a perceptible increase of sensation is proportional to the pre-existent stimulus”, while Fechner’s law is an inference from Weber’s law (with additional assumptions) which states that the intensity of our sensation increases as the logarithm of an increase in energy rather than as rapidly as the increase.

In previously sighted blind individuals, implantable neurostimulators that electrically activate the visual cortex create visual perceptions (44-46). Additionally, it has recently been established that visual experiences, referred to as phosphenes, may be induced in blind patients using neurostimulators licensed for long-term implantation (47,48). The electrical stimulation of the visual cortex in sighted and blind persons have demonstrated that the position and intensity of generated phosphenes could be regulated and modulated (48-50). Additionally, a recent study showed that the stimulation time could be fine-tuned to yield more complex visual experiences (47).

Individuals who have been blinded must develop new ways of life to compensate for their inability to see. As a consequence of these behavioral changes, the brain’s neurophysiology experiences a profound alteration (51). The brain’s adaptation capacity in the face of blindness is unknown. Numerous investigations have shown cross-modal plasticity in which the occipital cortex is recruited to process touch input (52). In both those born blind and those who become blind later in life, the occipital cortex is engaged during tactile tasks, such as Braille reading. The ability to read Braille is also compromised by the reversible disruption of occipital brain activity (e.g., by transcranial magnetic stimulation). Clinical trials have shown that touch processing requires occipital cortical processing. After suffering a bilateral occipital stroke, a congenitally blind patient was unable to read Braille (53,54).

Some individuals have a difficult time adjusting to being blind or visually handicapped. The occipital brains of these individuals seem to be unreconstructed or only partially repaired. This is a critical problem if the missing sensory modality may still be processed by areas of the brain that receive no sensory input. A late-blind patient reported experiencing unexpected visual hallucinations in his right visual field (55). In his left striate cortex, an arteriovenous anomaly was observed. This patient may be experiencing visual hallucinations because of the inappropriate cortical release or abnormal activation of neuronal ensembles in the regions affected by the occipital lesion. The successful development of new CVP treatments requires an understanding of the involved mechanisms for adaptive changes and the time course effect after sensory deprivation (56).

History of CVP

For several centuries, scientists have sought to restore vision to blind persons by activating the visual cortex, bypassing faulty eyes, and delivering information straight to higher visual centers (57). A French scientist named Charles Le Roy was interested in using electricity to treat ailments. To heal a blind patient, he devised a metal apparatus that he attached to the patient’s head and linked to a Leyden jar. Surprisingly, during electric shocks, the patient described seeing flashes of light (58). This was the first published demonstration of the visual cortex’s electrical excitability, and it spurred a wave of vision recovery efforts. In the early 20th century, neurosurgeons took advantage of the research opportunity provided by awake opened-skull patients to electrically stimulate their visual cortex, eliciting the impression of retinotopically arranged phosphenes (59). The electrical stimulation of the visual cortices was originally documented in 1918 in a research study, in which injured troops could perceive flashing light on the opposite half of their visual field following occipital lobe activation (60). In the 1920s and 1930s, the implantation of vision prosthesis devices in the visual cortex was developed. For example, a neurosurgeon, Foerster from Germany, stimulated the visual cortex by using electrodes, and found that the stimulated phosphenes moved when different areas were stimulated in the cortex (61).

In the late 1960s, a cortical device was developed in a baboon model by Brindley (30,44,62). This early cortical device subsequently underwent clinical trials, and the results showed that phosphenes were elicited and constant in the visual field without penetrating electrodes (62). Dobelle examined 15 sighted patients undergoing surgery for different therapeutic reasons, and in doing so, amassed valuable data on electrode placement and the influence of electrode size and stimulation settings on perceptual quality (45). They next implanted a 64-electrode array into 2 blind persons and demonstrated the ability to simultaneously activate phantom vision representations of basic patterns, such as a square and a reverse letter “L” (63). In another experiment, 2 blind individuals were implanted with electrodes (64). They were also able to construct English letters in another experiment by scattering 6 electrodes and a light phantom around the visual area. They built a “cortical Braille” that could show random letters and synthetic words by sequentially and simultaneously stimulating these 6 electrodes. One of the individuals was 85% accurate in recognizing letters and was able to read brief phrases that had multiple words that were missing or mispronounced. Additionally, they created a portable version of the gadget that could be used with a video camera (65). Dobelle has made significant advances in this field (45,65). The outcomes of this trial were encouraging, but several psychological and medical side effects were observed (66).

After Dobelle’s experience, several researchers focused on the retina for implantation rather than the visual cortex. The Argus II by Second Sight Medical Products is the most popular retinal prosthesis. The development of cortical devices requires adequate engineering solutions and neurosurgical techniques. Recently, there has been renewed interest in considering the visual cortex as an implant site. An advantage of cortical devices over retinal devices is that patients with damage to the retina or early visual pathways remain candidates for cortical implantation. Currently, several groups from the United States of America (USA), Australia, Canada, and Spain are trying to develop novel devices for stimulating the visual cortex.

Types of CVP

Illinois Intracortical Visual Prosthesis (IIVP)

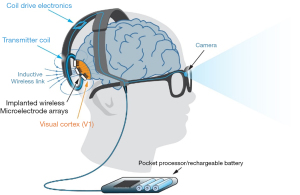

At the Illinois Institute of Technology, a device called the IIVP has been developed by the Laboratory of Neural Prosthetic Research. The team’s technical accomplishments include the development of a multichannel device (67), specialized surgical equipment (68), and ways to encode fictitious visual information input for the cortex (67). These devices will be implanted as a series of small 5-mm discs, each containing 16 electrodes, amounting to a total of 600–650 electrodes.

CORTIVIS

CORTIVIS is a European research collaboration made up of 6 university laboratories, 1 technical research organization, and 1 biomedical device company. Their headquarters are located in Alicante, Spain (17). Based on bio-inspiration, the CORTIVIS designed an artificial retina capturing the visual world that is intended to mimic the visual processing performed by the retina. The CORTIVIS study uses the Utah Electrode Array (UEA) (69), which comprises 100 electrodes measuring 1.0–1.5 mm in length. The design is implanted at the site of cortical layer 4c (the geniculate innervation target), causing the fewest possible neuronal injuries. An early study in monkeys demonstrated that electrical stimulation of implanted electrodes elicited visual perception (70), and early investigations in human epilepsy or brain tumor patients were undertaken after brain surgery. Promising results were obtained based on the safe implantation, high-quality visual cortex recordings, and induced perception of phosphenes (71). A novel technology dubbed “The High-Channel-Count Neuroprosthesis” was recently tested on monkeys with successful outcomes. In this trial, a total of 1,024 electrodes were implanted in the geniculate receiving layer of the primary visual cortex (V1) and in the ventral visual stream region V4. The monkeys implanted with these devices demonstrated the ability to distinguish basic shapes, movements, and letters (72).

Michael (ClinicalTrials.gov identifier NCT02983370) implanted a 96-electrode intracortical microelectrode array in the visual cortex of a 57-year-old man who was completely blind for 6 months (73). Single-unit recordings were achievable, and phosphene-eliciting stimulation thresholds were within acceptable limits and remained consistent throughout the trial. Simple kinds of spatially patterned electrical stimulation elicited discriminable patterned percepts, enabling the blind person to distinguish object borders and identify various letters. Researchers also observed a learning mechanism that enabled the individual to distinguish stimulus patterns over several presentations (see Figure 2). The short-term outcomes in a single patient are promising. However, further research with more people and over a longer period needs to be conducted to determine whether intracortical microelectrodes may offer a limited but functional experience of vision to the blind.

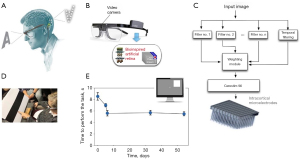

Figure 2 Bio-inspired artificial retina. (A) Schematic structure of CORTIVIS’s vision restoration idea. (B) The CORTIVIS image acquisition system. A video camera mounted to a spectacle frame captures the input visuals for later bio-inspired processing. (C) CORTIVIS signal processing module. (D) Using a bio-inspired artificial retina, a patient was able to discriminate between the boundary of the black and white bars. (E) Time needed to complete the item location job (4 potential sites) over a period of many days. This figure was reused with permission from (73).

Orion

The Orion™ cortical prosthesis is now being tested in clinical trials by Second Sight Medical Products (USA) (17). This device comprises a computer, a camera, and 60 surface electrodes that construct a subdural array that is linked to the medial occipital lobe. Once the video image has been analyzed, the information is wirelessly sent to the array. A pilot study on 1 blind individual established the device’s safety and basic operation. Additionally, 5 blind people have been recruited for ongoing research trials (ClinicalTrials.gov NCT03344848) that started in late 2017 and will last 5 years (16). Th initial findings revealed that patients were capable of seeing phosphenes (74).

Recent advances in biomedical engineering have accelerated the development of CVP devices. Individual electrode stimulation elicited phosphenes with locations consistent with the retinotopic map of the visual cortex. When many electrodes were triggered simultaneously, the degree to which the phosphenes blended into visible shapes was surprising. They often merged into larger phosphenes, making form identification difficult (75). However, due to the complexity of the brain, several researchers have examined and evaluated numerous methods for producing stimuli for visual perception. The researchers experimented with drawing shapes on the surface of the visual cortex using a dynamic series of electrode activations. In both sighted and blind patients, dynamic stimulation enabled the proper recognition of letter shapes predicted by the brain’s spatial map of the visual world. At a pace of up to 86 forms per minute, blind persons were able to recognize forms presented to them. These investigations demonstrate that a brain prosthesis may be capable of providing coherent sensations of visual shape (47).

In one study, 5 blind and 15 sighted patients were stimulated by Orion™ electrodes that had been implanted in their visual cortex. In this research, the following 2 fixation methods were employed: (I) unimanual fixation, in which a single index finger was placed on a tactile fixation point; (II) bimanual fixation, in which the right index finger on left was overlaid on the tactile point. Additionally, by comparing absolute mapping (the stimulation of a single electrode) and relative mapping (the stimulation of 3 to 5 phosphenes), researchers found that bimanual fixation related relative mapping strategies resulted in the most precise estimates of phosphene organization (76). In conclusion, the above-mentioned techniques, together with a standard logarithmic model of visual cortex, may provide a practical way to improve the implementation of a CVP.

According to eye-position recordings synced with stimulation in patients implanted with the Orion CVP system, the location of cortical stimulus-evoked perception differs depending on the eye position at the time of stimulation. Even after years of blindness, eye motions are maintained to affect the location of cerebral stimulus-evoked light illusion perception. Future CVPs may include head movements that alter the camera’s whole field of vision, and movements that alter the camera’s field of interest within the vast field of view (77).

Intracortical Visual Prosthesis (ICVP) Project

In the ICVP, using 16 parylene-insulated iridium microelectrodes, a Wireless Floating Microelectrode Array (WFMA) was constructed and placed on the visual cortex surface, an integrated circuit microprocessor, and a microcoil with wireless power and activation. A video camera installed on eyeglasses or a headband communicates with the video processing unit, which translates pictures to a pattern that can be mapped to the array of electrodes. The signal is subsequently delivered to the head-mounted telemetry controller through the stimulation modules, which wirelessly distribute signals and power to each WFMA module. Over a 9.5-month period, the researchers implanted a WFMA into each of 6 rats’ left sciatic nerves and observed that a combination of wireless communication and a low-profile neural interface permitted very steady motor recruitment thresholds and fine motor control in the hind limb. The groundwork has been laid for the development of a visual brain prosthesis in the future (78). Clinical trials in humans are now ongoing (ClinicalTrials.gov Identifier: NCT04634383). The objective is to implant wireless electrical stimulation into blind patients’ visual brains to produce artificial vision, and investigate their responses to the electrical stimulation. WFMAs will be implanted in the brains of 5 patients. Next, electrical stimulation will be created to evoke visual impressions. Weekly testing will be conducted for a period of 1 to 3 years (79).

Gennaris

The Monash Vision Group (MVG) is a joint venture involving Monash University, Grey Innovation, MiniFAB, and Alfred Health in Australia. MVG is developing the “Gennaris” bionic vision system (see Figure 3) (80), a cortical vision prosthesis (17). The Gennaris consists of a headband outfitted with a camera, a visual processing device and software, a wireless transmitter, and a set of 9 mm × 9 mm brain tiles. The camera’s video is sent to the vision processor, which analyzes it and extracts the required information. The data are wirelessly sent to the circuitry embedded inside each implanted tile. Electrical pulses are generated from the data and used to stimulate the brain through the microelectrode array. The visual pattern is created using up to 473 light dots (phosphenes), providing crucial information about interior and outdoor environments, and identifying the presence of people and objects. MVG’s wireless transmission technology is integrated with the Gennaris headgear, which transmits data to up to 10 implants, each of which may stimulate 43 areas of the human visual cortex (81). Due to its direct link to the cortex, MVG’s technology has the potential to assist most patients who are absolutely blind (82). The formation of phosphenes has been validated in safety studies on experimental animals, and a histological investigation revealed little damage to the cortex following implantation, indicating that long-term stimulation is achievable without any deleterious effects (59,82). Numerous bionic eye projects are now in their infancy. Around 1 million electrodes are necessary for normal eyesight. Implants with 240 electrodes and peripheral electrodes are now being developed to expand the visual field of a person (83).

Figure 3 The cortical vision prosthesis (Gennaris array). Images are captured by a camera implanted in a pair of glasses, which are then processed by an external pocket processor to produce stimulation protocols that are transferred to the implants via a transmitter coil. This inductive wireless connection transmits both power and data. This figure was reused with permission from (80).

The significance of nanotechnology for the future

Nanoparticles combine the characteristics of conventional solids (magnetic, optical, mechanical, and radiation) with the mobility of molecules, including the capacity to diffuse into living beings (84). This combination gives exciting possibilities for medicinal, industrial, and consumer product advancements. Nanotechnology has several uses in numerous medical sectors. First, relevant medications and viruses are first adsorbable onto nanoparticles for administration to reach the goal of precision medicine. Secondly, the creation of bioconjugated nanocrystals has accelerated the growth of medical imaging (85). Thirdly, the increased reactivity of nanoparticulate calcium-based biomaterials creates intriguing opportunities, particularly for dental and skeletal surgery. Fourth, due to the combination of molecular (mobility) and solid (e.g., reaction to electromagnetic fields) features of certain nanoparticles, magnetic nanoparticles have given birth to targeted drug delivery (magnetic accumulation of drug-loaded particles inside particular tissues). Magnetophoresis for increased uptake, cell sorting and manipulation, hyperthermia (external heating of particles within cancer tissue to destroy cells locally) and diagnostics are of significant interest (isolation of biomarkers from complex mixtures). Fifth, nanoparticulate antimicrobial agents have emerged fast and are capable of producing antibacterial effects under controlled circumstances and times (84).

Neurotechnology advancements over the last few decades have enabled a greater understanding of brain functions, such as motor control (86,87), speech processing, and synthesis (88). As a result of these discoveries, technical improvements in the field of brain-computer interfaces, such as partial mobility restoration (89) and speech decoding from cerebral activity (90) have been developed. For both neuroscientific and medicinal applications, it is crucial to integrate the coverage of large brain areas with a high sensor density (i.e., a large sensor count) (91). Nanomaterial technology may be used to enhance the amount of sensors, resulting in additional advancements in CVP. Nanostructures have several advantages over larger-scale structures in biosensing applications due to their high surface-to-volume ratio, which results in higher sensitivity, and their tiny size, which results in superior spatial resolution (single neuron resolution). The nanostructures’ modest size allows for the seamless integration of CVP with biological cells.

Unlike conventional approaches based on electrical stimulation via metal electrodes, recent advances in materials and nanoengineering have enabled novel means of neuronal interaction. Carbon nanotubes (CNTs) (92), nanocrystalline diamonds (NCDs) (93), and silicon nanowires (Si NWs) (94) have garnered attention as potential options for CVP development. Through their distinctive surface shape and charge injection methods, these materials increase the electrochemical characteristics and mechanical connection of neural electrodes. Additionally, nanomaterials have been proposed for optically activating neurons (95) and stimulating the light-insensitive retina.

CNTs

CNTs have various benefits over metal stimulating electrodes. For example, when a capacitive charge transfer mechanism is combined with a large surface area with electrochemical materials, high charge injection capacity, high specific capacitance, and low interfacial impedance are achieved (92). CNTs also act as a scaffold for neuronal development and attachment, and a mechanical process of neurite entanglement has been proposed to assist this high neuron-CNT affinity (96). To improve biocompatibility, CNTs may be simply modified with a variety of bioactive compounds (e.g., polymers, peptides, and proteins) (97). CNTs were first proposed as a substrate for neural development by Mattson et al. (98). Since then, substantial research has shown that CNTs are suitable for supporting neuronal development and neurite branching, electrically interacting with neurons, and can even be used for brain implants (92). The mechanical compatibility of flexible CNT MEAs constructed entirely of CNT embedded in different polymeric supports (e.g., parylene, medical tape, and polydimethylsiloxane) has also been investigated. David-Pur et al. used an unique manufacturing process to construct flexible CNT arrays, which involved growing loosely bonded high-density CNT patterns on a silicon dioxide substrate and then peeling them off to expose a flexible framework (92). When nitrogen or trimethyl boron is added to a NCD, it becomes electrically conductive.

NCDs

NCDs have also been suggested as a material for neuroelectrodes in recent years (99). When nitrogen or trimethyl boron is added to a NCD, it becomes electrically conductive (100). Both the biocompatibility and usability of nitrogen and boron doped diamond (BDD) coatings for neuronal stimulation are encouraging (101). Nitrogen doped ultra-NCD electrodes were electrochemically activated or coated with platinum (Pt) or electrodeposited iridium oxide film (EIROF) to increase the double layer capacitance and decrease the impedance (100). To produce comparable findings, BDD electrodes were supplemented with NCD deposition onto vertically aligned CNTs as a template interlayer (102).

Bendali et al. recently claimed that the resolution of cortical visual implants could be improved by adopting a BDD/protein electrode covering that particularly repels glial cell adherence and proliferation while facilitating neuronal connection (101). CVPs are usually in contact with the surface glial layer, which may affect the effective resolution of the device. Neuronal electrodes usually end up in contact with the surface sealed glial layer rather than with the neuron, leading to a progressive loss of function. The scientists proposed a design in which a protein-coated base stimulates glial cell proliferation, pushing them away from an uncoated penetrating electrode tip (101).

Optoelectronic Si NWs

Ha et al. are developing a hybrid optoelectrical retinal prosthesis using Si NWs as the light sensors (94). The system includes an inductive telemetry connection, a demodulator pulsed by stimulation, a series capacitor with charge-balance, and a Si NW electrode array placed under the retinal. The system requires external power, which is supplied by a single wireless inductive connection. Each NW is designed to behave as an electrode capable of penetrating the retina. The electrode array are linked to the stimulator and an adjacent ground electrode by 2 wires. When voltage bias is introduced, the device creates a current pulse that couples with the intensity transmitted by the light stimulated NWs. This hybrid optoelectronic system enables the control of spatial (incidence light) and temporal (electrical bias) stimulation, and tunable gain at lower light intensity thresholds. Compared to previous systems for electrical retinal activation, this concept has the distinct advantage of requiring virtually no extra gear to increase resolution beyond the electrode array density.

Conclusions

Restoring eyesight is a difficult but necessary objective. The increase in blind people’s quality of life would be significant, and both the physical problems and the financial constraints associated with their visual loss would be alleviated. However, there are a number of limitations to visual prosthesis that must be overcome before functional vision may be restored.

With regard to electrode placement, intracortical electrodes have advantages over subdural electrodes. Subdural electrodes need milliampere-range currents and stimulate populations of neurons over millimeters of cortex, hence limiting their resolution. In addition, the stimulation of nearby subdural electrodes may produce interference, resulting in the production of a single, big phosphene rather than multiple tiny ones. Using depth electrodes evoked phosphenes by stimulating tiny groups of neurons situated within a few hundred micrometers of the electrode tip with median stimulation currents of 23 to 50 mA. Consequently, intracortical electrodes cause smaller and more precise phosphene percepts; nevertheless, a comprehensive comparison of phosphenes produced by subdural and intracortical stimulation has not yet been conducted (72).

Each hemisphere of the human primary visual cortex measures 25 to 30 square centimeters, and future implants should cover a large enough visual field area with a sufficient density of phosphenes to produce interpretable perception. Additionally, there is a need to create high channel count wireless technologies and to develop durable, biocompatible electrodes that minimize the risk of gliosis, tissue damage, and encapsulation (103).

There are numerous advantages to stimulating the V1 area for vision restoration; however, the engineering constraints of the implants indicate that the stimulation of the V1 area is not sufficient to restore visual sense with a resolution sufficient to live a proper daily life for blind individuals. A combination of temporally and spatially coherent electrical stimulation targeting distinct areas is a promising strategy for increasing resolution. Implants in V1, V2, and V3 increase visual resolution by creating more phosphenes over the visual field, enable safe insertion distances, and ensure intracortical electrodes are targeted in foveal locations.

Presently, the surgical risks outweigh the minimal benefits of invasive prosthesis. Major neurosurgical procedures are inherently dangerous and may result in major complications, such as infection, inflammation, and neurodegeneration, and other neurological problems. Another factor limiting their use is that they are not suitable for those who have been blind from birth. Their efficacy is conditional on the presence of a fully developed visual system with an acquired visual repertoire. The amount of phosphenes can be raised in a presenting image to increase the probable resolution of an image; however even the most powerful neurotechnology-based CVP would still have resolution orders of magnitude lower than a computer display. For example, optogenetics (104), a more precise stimulation technology, may eventually replace electrical stimulation as a way of speeding progress in the future. The link between artificial neuronal activity and perception remains primitive, and we must increase our knowledge of this relationship before we can artificially generate a veridical picture of the visual world in the mind’s eye using any approach for activating neurons. At least 5 teams are actively undertaking CVP investigations worldwide, many of which are already conducting clinical trials with promising early findings.

Rapid advances in nanotechnology have significantly boosted its use in biological fields. Due to their enhanced electrochemical activity, nanostructured materials are readily applicable to energy devices, and their incorporation into scalable and human-compatible implanted brain interfaces has the potential to significantly improve the performance of clinical and research electrodes. Nanometer-sized electrodes have the potential to be used in CVPs to increase the quality of the visual signal. Nanotechnology advancements enable the development of CVPs that are smaller, more efficient, and more biocompatible than ever before.
