Morphological characteristics of the subfoveal choroid and their association with visual acuity in postoperative patients with unilateral congenital cataracts

Introduction

Congenital cataracts (CCs) are the leading cause of treatable childhood blindness and have a worldwide prevalence of 4.24/10,000 (1). Timely cataract extraction and intensive amblyopia treatment are the most effective therapies for patients with CCs. Despite this, the visual outcomes of cataractous patients vary greatly, ranging from useful visual acuity to blindness (2,3). Previous studies have suggested that cataract type (3), age at cataract extraction (4) and compliance with amblyopia therapy (5) are important determinants of visual outcomes for patients with CCs. Recently, it was also reported in unilateral CC patients’ affected eyes had greater foveal retinal thickness than their healthy fellow eyes (6,7). However, it remains unclear whether the subfoveal choroid, the primary source of nutrients for the fovea, is involved in the pathogenesis and prognosis of CCs.

With the development of spectral-domain optical coherence tomography with enhanced depth imaging (EDI-OCT) techniques (8), investigation of the choroid is not limited to choroidal thickness; rather, the components of the choroid, including blood vessels and stromal tissue (e.g., connective tissue, melanocytes, nerves and extracellular fluid), can be examined in detail (9). Through binarization of choroidal images (8), choroidal angioarchitecture can be quantified by calculating the total choroidal area (TCA), luminal area (LA), stromal area (SA) and choroidal vascularity index (CVI). The CVI is calculated by determining the ratio of the vascular LA to the TCA and has been demonstrated to provide information on pathological changes in the choroid. Ratra et al. (10) compared the choroidal structures of eyes with Stargardt disease to those of healthy eyes and observed that the former had comparable subfoveal choroidal thickness (SFCT) but a significantly lower CVI, which indicated a decrease in blood vessels despite the compensatory increase in stromal tissue. Gupta et al. (11) observed a thinner choroidal thickness but a higher CVI in highly myopic patients than in emmetropic controls, suggesting a relatively greater reduction in stromal tissue than in blood vessels. To date, few studies (12,13) have investigated the morphological characteristics of the subfoveal choroid in eyes after CC surgery. In this study, we aimed to analyze the structures of the subfoveal choroid in terms of several choroidal parameters (SFCT, TCA, LA, SA and CVI) and further explore their association with best-corrected visual acuity (BCVA) in postoperative patients with unilateral CCs. We present the following article in accordance with the STROBE reporting checklist (available at https://atm.amegroups.com/article/view/10.21037/atm-22-1155/rc).

Methods

This was a cross-sectional study conducted from October 1, 2020, to February 28, 2021, at the Zhongshan Ophthalmic Center. Due to the occlusion of cataracts, capturing optimal choroidal images of the cataractous eyes preoperatively was challenging; therefore, patients aged 3 years and older, preoperatively diagnosed with unilateral CCs and underwent cataract extraction with intraocular lens (IOLs) implantation were included. Patients with a history of premature birth, a preoperative diagnosis of noncongenital cataracts or other ocular diseases, or poor cooperation in the ophthalmic evaluation were excluded. Preoperatively, CCs were generally subgrouped into total CCs and partial CCs based on cataract morphology. Briefly, CCs were defined as total CCs when the whole fundus was completely invisible because of lens opacity; otherwise, CCs were defined as partial CCs. Postoperatively, all patients were prescribed spectacles and an adhesive occlusive patch to wear over the contralateral healthy eye for one-half of their waking hours starting one week after cataract surgery. The spectacles were changed if the refractive power changed more than 1 diopter during every 3-month routine screening period. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the Institutional Ethics Committee of the Zhongshan Ophthalmic Center, Sun Yat-sen University (No. 2020KYPJ149), and informed consent was taken from all the Children’s parents.

Routine ophthalmic examinations

The demographic characteristics, including age, sex and laterality of the pseudophakic eyes, of the included patients were collected. To avoid the effects of postoperative inflammation on the measurements of choroidal parameters, all ophthalmic examinations were performed on each patient at least 3 months after surgery. Axial length was measured using IOL Master (Carl Zeiss Meditec, Oberkochen, Germany). Intraocular pressure (IOP) was assessed by using a noncontact tonometer (Topcon CT80A Computerized Tonometer, Topcon, Tokyo, Japan). A slit-lamp (BX900; HAAG-STREIT AG, Bern, Switzerland) examination was performed to evaluate the IOL position and the postoperative conditions. Fundus examination was carried out by EDI-OCT (Cirrus 5000, Zeiss Meditec, California, USA). Visual acuity was tested by a qualified ophthalmologist by using an E optotype (NIDEK SC-1600P, Japan). “E” cards were used to familiarize the younger patients with the material before the visual examination. Then, the test began with both eyes open at Line 0.1 to determine whether the children understood the “rules”. If they were not able to complete the test, more teaching time was allotted until the patients had learned the rules. Then, the visual acuity was converted to logMAR for statistical analysis.

Measurements of choroidal structures

To minimize any potential impacts of diurnal variation, all patients were examined by EDI-OCT between 9 and 11 AM. A horizontal, high-definition, 21-line foveal scan was acquired for each eye and images with signal strength ≥7/10 were included. SFCT was measured by two independent observers (YZ and JHW) as the thickness between the outer border of the retinal pigment epithelium (RPE) and the choroid-scleral interface centered at the base of the fovea. The average of the two measurements from each observer was included for analysis. For intraobserver reproducibility, these two measurements for each patient from each observer were compared. For interobserver reproducibility, the measurements from observers were compared. The reproducibility was assessed by an intraclass correlation coefficient (ICC).

ImageJ (version 1.53a; http://imagej.nih.gov/ij/) was selected to perform image binarization according to the protocol proposed by Sonoda et al. (8). Representative results are shown in Figure 1. Briefly, a subfoveal choroidal region measuring 1,500 µm in diameter and centered on the foveola was selected as the region of interest. Then, the average luminance of three choroidal vessels with lumens larger than 100 µm was set as the minimum value to minimize the noise in the choroidal image. The image was then downgraded to 8 bits and adjusted to a binary image. The binarized image was then converted to an RGB image and LA was determined. After the set scale parameters were adjusted, TCA and LA were automatically calculated. SA was obtained by subtracting LA from TCA and CVI was obtained by dividing LA by TCA.

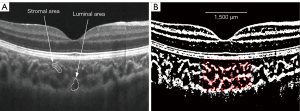

Figure 1 Binarization analysis of an EDI-OCT image. (A) Original EDI-OCT image. (B) Segmented EDI-OCT image by using the image binarization approach. The subfoveal choroidal area with a width of 1,500 µm centered on the foveola was analyzed. EDI-OCT, optical coherence tomography with enhanced depth imaging.

Statistical analysis

Sample size was estimated considering a study power of 0.9 at a significance level of 0.05. Based on our preresearch results, at least 48 pairs of eyes would be required to detect a significant difference in SFCT of at least 39.70 µm with a standard deviation (SD) of 84.91 µm between pseudophakic and contralateral healthy eyes.

Continuous variables are presented as the mean ± SD and categorical variables are expressed as frequencies and percentages. Continuous variables were tested for normality by using Shapiro-Wilk tests and histograms. Differences in choroidal parameters between pseudophakic and contralateral healthy eyes were assessed by using a paired t test and a generalized estimating equation was then used to adjust for axial length. For pseudophakic eyes, BCVA was categorized as “good” (BCVA ≤0.3 logMAR) or “poor” (BCVA >0.3 logMAR) visual acuity according to the driving standards of the United States (14). Then, the choroidal parameters between pseudophakic eyes with a poor BCVA and those with a good BCVA were compared by using an independent t-test, and a generalized estimating equation was performed to adjust for age, axial length and preoperative types of CCs. To identify the discriminatory performance of choroidal parameters as indicators of postoperative BCVA, receiver operating characteristic (ROC) curve analysis was performed to calculate the area under the curve (AUC) and find an optimal cutoff point by using the Youden index. AUCs in the ranges of 0.6–0.7, 0.7–0.8, 0.8–0.9 and 0.9–1.0 were considered poor, acceptable, good and excellent discrimination, respectively (15). The discriminatory performance of different choroidal parameters was compared by using the DeLong test. Pseudophakic eyes were dichotomized based on the optimal cutoff points of the choroidal parameters. A logistic regression model was performed to assess the association between choroidal parameters and postoperative BCVA.

Statistical analysis was performed by using SPSS statistical software (version 24.0; SPSS, Inc., Chicago, IL, USA). A two-sided P value less than 0.05 was considered statistically significant.

Results

A total of 55 postoperative patients with unilateral CCs, including 34 total CC patients and 21 partial CC patients, were included in the final analysis. The mean patient age was 6.67±2.64 years. Table 1 shows the demographic characteristics of all patients and the clinical characteristics of all pseudophakic and contralateral healthy eyes. The mean BCVA of pseudophakic eyes was 0.73±0.66 logMAR, which was worse than that of the contralateral healthy eyes (0.04±0.05, P<0.001). The axial length of pseudophakic eyes (23.06±1.64 mm) was significantly longer than that of the contralateral healthy eyes (22.67±1.26 mm) (P=0.013).

Choroidal parameters of pseudophakic eyes versus contralateral healthy eyes

For SFCT measurements, the interobserver ICC was 0.954 [95% confidence interval (CI): 0.934, 0.968; P<0.001] and the intraobserver ICC was 0.985 (95% CI: 0.951, 0.989; P<0.001). As shown in Table 2, the SFCT of pseudophakic eyes was thinner than that of the contralateral healthy eyes (300.78±78.25 vs. 338.44±50.66 µm; P=0.001). Similarly, TCA (0.651±0.179 vs. 0.735±0.115 mm², P=0.004), LA (0.433±0.121 vs. 0.499±0.084 mm², P=0.002), SA (0.217±0.060 vs. 0.236±0.036 mm², P=0.035) and CVI (66.61±1.97 vs. 67.76±2.20, P=0.003) were found to be smaller in pseudophakic eyes than in the contralateral healthy eyes. These differences remained although they were marginally significant in SA after adjustment for axial length. In addition, in patients with preoperative total CCs, significant differences in SFCT, TCA, LA, SA and CVI between pseudophakic eyes and contralateral healthy eyes were found (Table S1). In contrast, no difference was found in patients with preoperative partial CCs (Table S2).

Comparisons of choroidal parameters between pseudophakic eyes with a poor BCVA and those with a good BCVA

As shown in Table 3, the pseudophakic eyes with a poor BCVA had a marginally thinner SFCT than those with a good BCVA (283.77±90.16 vs. 322.75±53.60 µm; P=0.052). In addition, TCA (0.583±0.186 vs. 0.739±0.125 mm², P=0.001), LA (0.387±0.124 vs. 0.494±0.087 mm², P<0.001) and SA (0.196±0.063 vs. 0.245±0.044 mm², P=0.001) were found to be significantly smaller in pseudophakic eyes with a poor BCVA. These differences persisted after adjustment for age, axial length and preoperative types of CCs.

Associations between choroidal parameters and postoperative BCVA in pseudophakic eyes

The AUCs of SFCT and CVI, at 0.63 (95% CI: 0.48, 0.77) and 0.55 (0.40, 0.71), respectively, indicated poor discrimination. Thus, the cutoff values for SFCT and CVI were not calculated. The AUCs of other variables were acceptable: 0.75 (0.62, 0.88) with a cutoff value of 0.594 mm² for TCA, 0.74 (0.61, 0.87) with a cutoff value of 0.402 mm² for LA and 0.74 (0.60, 0.87) with a cutoff value of 0.218 mm² for SA. In addition, TCA, LA and SA had greater AUCs than SFCT (all P<0.05), whereas the AUCs of TCA, LA and SA were comparable (all P>0.05).

As shown in Table 4, compared to pseudophakic eyes with TCA >0.594 mm², those with TCA ≤0.594 mm² had a higher risk of a poor BCVA [odds ratio (OR), 8.90; 95% CI: 1.99, 39.94; P=0.004]. Similarly, compared to pseudophakic eyes with LA >0.402 mm² or SA >0.218 mm², those with LA ≤0.402 mm² (OR 8.90; 95% CI: 1.99, 39.94; P=0.004) or SA ≤0.218 mm (OR, 6.53; 95% CI: 1.69, 25.27; P=0.007) also had a higher risk of a poor BCVA.

Discussion

In this study, reduced SFCT, TCA, LA, SA and CVI were observed in postoperative patients with unilateral CCs. In addition, we reported for the first time that pseudophakic eyes with smaller TCA, LA and SA tended to have worse visual acuity. Our findings may be helpful in understanding the morphological characteristics of the subfoveal choroid in postoperative patients with unilateral CCs, as well as their possible association with visual acuity.

The choroid, as a vascular structure supplying the outer retina, is of paramount importance to the visual function. To date, previous studies (16-18) have reported significant choroidal thickness alterations in strabismic/anisometropic eyes after adjustment for axial length and these changes partially regress after amblyopia treatment (16); however, studies on choroidal changes in eyes with CCs, the most common reason for form-deprivation amblyopia, have been rarely reported. Daniel et al. (13) found reduced SFCT in pseudophakic eyes, which was similar to our findings. However, they included patients after both bilateral and unilateral CC surgery, as well as those with concomitant secondary glaucoma. These patients may be complicated with choroidal abnormalities (19,20). In the current study, only postoperative patients with unilateral CCs without any other ocular diseases were included, eliminating the effects of age (21), systolic blood pressure (22) and concomitant diseases. Daniel et al. did not report measurements of axial length, which was previously demonstrated to be an important factor affecting choroidal thickness (23,24). In the current study, even a longer axial length in pseudophakic eyes than in contralateral healthy eyes was observed, and the interocular choroidal differences were persistent after adjusting for axial length. Although some associations between refractive error and choroidal structures may exist, the postoperative refractive data of the patients were not included due to the retrospective design of this study. However, in our patients, spectacles were prescribed in a timely manner, accompanied by timely supervision and guidance for wearing spectacles after surgery, to correct the residual refractive error after IOL implantation. These measures may minimize the effects of refractive error on choroidal parameters. In addition, we also roughly grouped CCs into total CCs and partial CCs based on the preoperative morphology of cataracts and found that the types of CCs may be somewhat associated with choroidal abnormalities. Furthermore, except for identifying the changes in choroidal thickness, we provided more details on the choroidal changes, which may be helpful in exploring the pathological changes of the pseudophakic eyes; however, given the cross-sectional design of the current study, we could not conclude whether the choroidal changes occurred before or after the cataract surgery. Further studies are still needed to resolve these issues.

Previous studies have reported associations between thinner choroids and a poor BCVA in patients with/without major ocular diseases (e.g., myopia, age-related macular degeneration) (25,26). In our study, we observed that the pseudophakic eyes with a poor BCVA had thinner SFCT and smaller TCA, LA and SA than the ones with a good BCVA. To evaluate the discriminatory ability of choroidal parameters on BCVA in postoperative patients with unilateral CCs, we performed a ROC analysis to measure AUCs and identify cutoff values that appeared to be associated with a poor visual acuity. According to the AUCs obtained, TCA, LA and SA exhibited a better discriminatory ability than SFCT. This outcome may be due to the different calculation methods for these choroidal parameters. Choroidal thickness, as defined in this study, reflects the thickness of the subfoveal choroid only at a certain measurement site and may vary greatly depending on the selected measurement site, whereas TCA, LA and SA represent specific components of the whole subfoveal choroid. Notably, TCA, LA and SA had limited performance in postoperative visual assessments. This might be partly due to other factors influencing the visual prognosis. Nonetheless, we found that pseudophakic eyes with smaller TCA, LA and SA were more likely to have a poor visual acuity. These findings indicated that the poor visual prognosis of postoperative patients with unilateral CCs may be associated with compromised choroidal circulation. Pediatric ophthalmologists may take the choroidal status of the pseudophakic eyes into consideration when evaluating their visual prognosis and implement personalized treatments for those with a high risk of a poor visual prognosis (e.g., more intensive amblyopia training and follow-up).

When interpreting the results of this study, one must consider the following drawbacks. First, due to the cross-sectional design, the time when the choroidal abnormalities occurred and how they dynamically changed remains unclear. Accordingly, longitudinal postsurgery studies evaluating the choroidal parameters at different time points are urgently needed. Regardless, our study may lay the foundation for further study of the subfoveal choroid in CCs. Second, the OCT operating software did not provide automatic measurements of choroidal parameters. Subjective manual measurement may lead to bias; however, this study may have mitigated that risk to some extent through repeated measurements by two independent observers. Third, the study was performed in postoperative patients with unilateral CCs, and caution should be taken when generalizing the findings to other cataract patients. Fourth, we did not evaluate the association between postoperative amblyopic treatments and choroidal parameters because of the cross-sectional design. We plan to undertake further studies to answer these questions.

In conclusion, in postoperative patients with unilateral CCs, pseudophakic eyes had thinner SFCT and smaller TCA, LA, SA and CVI than the contralateral healthy eyes. In addition, smaller TCA, LA and SA values may be associated with worse visual acuity in pseudophakic eyes.

Acknowledgments

We thank Qiuping Zhong, Xiaoshan Lin and Weiling Hu in the Childhood Cataract Program of the Chinese Ministry of Health of Zhongshan Ophthalmic Center for their assistance in recruiting subjects. Additionally, we are grateful to the patients and their parents for participating in this research study.

Funding: This study was funded by the National Key R&D Program of China (No. 2020YFC2008202), the National Natural Science Foundation of China (No. 82000946) and the Natural Science Foundation of Guangdong Province (Nos. 2021A1515012238, 2020A1515010987).

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://atm.amegroups.com/article/view/10.21037/atm-22-1155/rc

Data Sharing Statement: Available at https://atm.amegroups.com/article/view/10.21037/atm-22-1155/dss

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://atm.amegroups.com/article/view/10.21037/atm-22-1155/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the Institutional Ethics Committee of the Zhongshan Ophthalmic Center, Sun Yat-sen University (No. 2020KYPJ149), and informed consent was taken from all the Children’s parents.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.

References

1. Wu X, Long E, Lin H, et al. Prevalence and epidemiological characteristics of congenital cataract: a systematic review and meta-analysis. Sci Rep 2016;6:28564. [Crossref] [PubMed]
2. Allen RJ, Speedwell L, Russell-Eggitt I. Long-term visual outcome after extraction of unilateral congenital cataracts. Eye (Lond) 2010;24:1263-7. [Crossref] [PubMed]
3. Rong X, Ji Y, Fang Y, et al. Long-Term Visual Outcomes of Secondary Intraocular Lens Implantation in Children with Congenital Cataracts. PLoS One 2015;10:e0134864. [Crossref] [PubMed]
4. Bremond-Gignac D, Daruich A, Robert MP, et al. Recent developments in the management of congenital cataract. Ann Transl Med 2020;8:1545. [Crossref] [PubMed]
5. Li L, Wang Y, Xue C. Effect of Timing of Initial Cataract Surgery, Compliance to Amblyopia Therapy on Outcomes of Secondary Intraocular Lens Implantation in Chinese Children: A Retrospective Case Series. J Ophthalmol 2018;2018:2909024. [Crossref] [PubMed]
6. Bansal P, Ram J, Sukhija J, et al. Retinal Nerve Fiber Layer and Macular Thickness Measurements in Children After Cataract Surgery Compared With Age-Matched Controls. Am J Ophthalmol 2016;166:126-32. [Crossref] [PubMed]
7. Wang J, Smith HA, Donaldson DL, et al. Macular structural characteristics in children with congenital and developmental cataracts. J AAPOS 2014;18:417-22. [Crossref] [PubMed]
8. Sonoda S, Sakamoto T, Yamashita T, et al. Choroidal structure in normal eyes and after photodynamic therapy determined by binarization of optical coherence tomographic images. Invest Ophthalmol Vis Sci 2014;55:3893-9. [Crossref] [PubMed]
9. Nickla DL, Wallman J. The multifunctional choroid. Prog Retin Eye Res 2010;29:144-68. [Crossref] [PubMed]
10. Ratra D, Tan R, Jaishankar D, et al. Choroidal structural changes and vascularity index in Stargardt disease on swept source optical coherence tomography. Retina 2018;38:2395-400. [Crossref] [PubMed]
11. Gupta P, Thakku SG, Saw SM, et al. Characterization of Choroidal Morphologic and Vascular Features in Young Men With High Myopia Using Spectral-Domain Optical Coherence Tomography. Am J Ophthalmol 2017;177:27-33. [Crossref] [PubMed]
12. Kruglova TB, Katargina LA, Egiyan NS, et al. Long-term functional outcomes after congenital cataract extraction with intraocular lens implantation in children of the first year of life. Vestn Oftalmol 2020;136:142-6. [Crossref] [PubMed]
13. Daniel MC, Dubis AM, MacPhee B, et al. Optical Coherence Tomography Findings After Childhood Lensectomy. Invest Ophthalmol Vis Sci 2019;60:4388-96. [Crossref] [PubMed]
14. Johnson CA, Wilkinson ME. Vision and driving: the United States. J Neuroophthalmol 2010;30:170-6. [Crossref] [PubMed]
15. Jones M, Hruby G, Coolens C, et al. A prospective, multi-centre trial of multi-parametric MRI as a biomarker in anal carcinoma. Radiother Oncol 2020;144:7-12. [Crossref] [PubMed]
16. Aslan Bayhan S, Bayhan HA. Effect of Amblyopia Treatment on Choroidal Thickness in Children with Hyperopic Anisometropic Amblyopia. Curr Eye Res 2017;42:1254-9. [Crossref] [PubMed]
17. Zha Y, Zhuang J, Feng W, et al. Evaluation of choroidal thickness in amblyopia using optical coherence tomography. Eur J Ophthalmol 2020;30:629-34. [Crossref] [PubMed]
18. Guler Alis M, Alis A. Features of the Choroidal Structure in Children With Anisometropic Amblyopia. J Pediatr Ophthalmol Strabismus 2022; Epub ahead of print. [Crossref] [PubMed]
19. Li F, Shang Q, Tang G, et al. Analysis of Peripapillary and Macular Choroidal Thickness in Eyes with Pseudoexfoliative Glaucoma and Fellow Eyes. J Ophthalmol 2020;2020:9634543. [Crossref] [PubMed]
20. Sacconi R, Deotto N, Merz T, et al. SD-OCT Choroidal Thickness in Advanced Primary Open-Angle Glaucoma. J Glaucoma 2017;26:523-7. [Crossref] [PubMed]
21. He X, Jin P, Zou H, et al. Choroidal thickness in healthy Chinese children aged 6 to 12: The Shanghai Children Eye Study. Retina 2017;37:368-75. [Crossref] [PubMed]
22. Sharudin SN, Saaid R, Samsudin A, et al. Subfoveal Choroidal Thickness in Pre-eclampsia. Optom Vis Sci 2020;97:81-5. [Crossref] [PubMed]
23. Zhang JM, Wu JF, Chen JH, et al. Macular Choroidal Thickness in Children: The Shandong Children Eye Study. Invest Ophthalmol Vis Sci 2015;56:7646-52. [Crossref] [PubMed]
24. Bhayana AA, Kumar V, Tayade A, et al. Choroidal thickness in normal Indian eyes using swept-source optical coherence tomography. Indian J Ophthalmol 2019;67:252-5. [Crossref] [PubMed]
25. Lee SSY, Lingham G, Alonso-Caneiro D, et al. Choroidal Thickness in Young Adults and its Association with Visual Acuity. Am J Ophthalmol 2020;214:40-51. [Crossref] [PubMed]
26. Shao L, Xu L, Wei WB, et al. Visual acuity and subfoveal choroidal thickness: the Beijing Eye Study. Am J Ophthalmol 2014;158:702-709.e1. [Crossref] [PubMed]
