Changes in patient peripheral blood cell microRNAs after total body irradiation during hematopoietic stem cell transplantation

Juan-Juan Li1#^, Lei Xu2#, Cheng-Long Wang3, Jing-Wen Niu2, Xuan Zou3, Xuan-Qi Feng4, Rong-Jian Lu3

1Laboratory of Tissue Regeneration and Immunology and Department of Periodontics, Beijing Key Laboratory of Tooth Regeneration and Function Reconstruction, Capital Medical University School of Stomatology, Beijing, China; 2Department of Hematopoietic Stem Cell Transplantation, Fifth Medical Center, Chinese PLA General Hospital, Beijing, China; 3Department of Stomatology, Fifth Medical Center, Chinese PLA General Hospital, Beijing, China; 4Medical School of Chinese PLA, Beijing, China

Contributions: (I) Conception and design: JJ Li; (II) Administrative support: RJ Lu; (III) Provision of study materials or patients: L Xu; (IV) Collection and assembly of data: CL Wang; (V) Data analysis and interpretation: JW Niu, XQ Feng; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

^ORCID: 0000-0003-1175-3991.

Correspondence to: Rong-Jian Lu. Department of Stomatology, Fifth Medical Center, Chinese PLA General Hospital, No. 8 of Dongda Street, Fengtai District, Beijing 100071, China. Email: 13426301158@163.com.

Background: Ionizing radiation exposure is a great threat to human health. MicroRNAs (miRNAs) have been shown to play an important role in radiation-induced biological effects. Here, we investigated plasma miRNA expression changes and differentially expressed miRNAs in radiotherapy patients exposed to cobalt-60 (60Co) gamma rays to provide an experimental basis for human plasma miRNAs as an estimation indicator for ionizing radiation injury.

Methods: Six patients with acute lymphoblastic leukemia (ALL) received continuous 5 gray (Gy) total body irradiation (TBI) twice. At 12 hours after irradiation, miRNA microarray was applied to screen for differentially expressed miRNAs, with some miRNAs confirmed by real-time polymerase chain reaction (RT-PCR) assay. Bioinformatic analysis was carried out to identify the relevant target genes and biological function of the differentially expressed miRNAs.

Results: After radiotherapy patients were exposed to 5 Gy gamma radiation, the expression of 9 plasma miRNAs was significantly upregulated, and the expression of 2 miRNAs was downregulated. After irradiation with 10 Gy gamma radiation, the blood plasma of radiotherapy patients contained 18 differentially expressed miRNAs, of which 17 were upregulated and 1 was downregulated (P<0.05). The expression of miR-4532, miR-4634, miR-4655-5p, miR-4763-3p, miR-4785, miR-6087, miR-6850-5p, and miR-6869-5p were significantly upregulated in both the 5-Gy and 10-Gy dose groups, showing a certain dose-response relationship. The RT-PCR results were consistent with the findings of high-throughput sequencing. In addition, the target genes of the differentially expressed miRNAs were mainly involved in RNA transcription and DNA damage. Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analysis revealed that these miRNAs participated in phosphoinositide 3-kinase/protein kinase B (PI3K/AKT), Ras, mitogen-activated protein kinase (MAPK), and other signaling pathways.

Conclusions: The expression of differential plasma miRNAs of radiotherapy patients was associated with irradiation injury and showed a certain dose-effect relationship. These differentially coexpressed plasma miRNAs could be used as an early indicator for estimating radiation injury.

Keywords: Ionizing radiation; microRNA; total body irradiation (TBI); hematopoietic stem cell transplantation (HSCT)


Submitted May 17, 2022. Accepted for publication Aug 15, 2022.

doi: 10.21037/atm-22-3411


Introduction

With the wide application of nuclear technology to processes such as radiation sterilization, medical diagnosis, radiotherapy, and nuclear weapons, among others. the potential risk of ionizing radiation exposure in humans is increasing (1,2). Ionizing radiation can directly or indirectly cause severe biological effects by inducing the organism to produce large numbers of free radicals, leading to cell apoptosis, gene mutation, chromosome aberration, DNA damage, and micronucleus formation, which seriously endangers human health and safety (3-5). The prevention and treatment of ionizing radiation injury is currently attracting considerable attention and has become an important research topic in the field of radiation biology.

Rapid and accurate determination of the dose of radiation exposure in individuals is key to successful treatment and is important for improving therapeutic effect and rescue efficiency (6). However, traditional methods for estimating radiation dosage have shortcomings, such as the inclusion of cumbersome steps, the amount of time required, and narrow detection range, rendering them unable to satisfy the demand for large-scale sample detection in a nuclear event (7). Thus, the identification of new biomarkers and detection methods for early-stage ionizing radiation injury has become a focus of research at home and abroad.

As an important molecule in the regulatory network of gene expression, microRNA (miRNA) has high sensitivity and specificity for diagnosis, treatment, and prognostic evaluation of diseases (8-11). Recent studies have shown that the expression level of blood miRNAs is related to radiation dose (12,13). However, current research has been confined to cell- or animal-based experiments, and there are few reports on plasma miRNAs in humans exposed to radiation (14,15).

As it is not possible to obtain healthy people for radiation exposure research, the present study involved acute lymphoblastic leukemia (ALL) patients undergoing whole-body irradiation as subjects. Total body irradiation (TBI) is a commonly used conditioning regimen for hematopoietic stem cell transplantation (HSCT). The success rate of hematopoietic stem cell transplantation can be increased with the use of total body radiation therapy in the pretreatment phase and the recurrence rate drops (16,17). TBI results in multiple organ injury, and it can damage the gastrointestinal (GI), cerebrovascular, hematopoietic, or central nervous systems depending on the total dose of radiation received (18). With the improvements in TBI delivery, dose fractionation, reduction in lung doses and better supportive care measures, the incidence is dropping now. And it is important that patients are closely monitored and counselled on ways to minimize their risk of developing a secondary malignancy, including the role of diet, exercise, alcohol consumption, and abstinence from smoking (19).

Through microarray screening of plasma miRNAs in response to different doses of cobalt-60 (60Co) gamma radiation, validation of real-time quantitative polymerase chain reaction (RT-PCR), and biofunctional analysis, plasma miRNAs with potential as radiation biomarkers were identified to promote the exploration of new methods for radiation injury estimation. We present the following article in accordance with the MDAR reporting checklist (available at https://atm.amegroups.com/article/view/10.21037/atm-22-3411/rc).


Methods

Patient information and plasma preparation

Between June 2018 and August 2019, 6 acute leukemia patients (3 males and 3 females) undergoing total body irradiation (TBI) at the Hematopoietic Stem Cell Transplantation Department of Fifth Medical Center, Chinese PLA General Hospital were recruited for this study (Table 1). The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). All experiments were approved by the research ethics committee of Fifth Medical Center, Chinese PLA General Hospital (No. ky-2018-4-26). All patients voluntarily participated in this study and provided informed consent, and for the patient under age 18 years old, informed consent was also obtained from the legal guardians.

Table 1

Patient information

Patient No. Sex Age, years Group A Group B Group C
1 Male 17 8:00 Jun 11, 2018 20:00 Jun 11, 2018 20:00 Jun 12, 2018
2 Female 43 8:00 Dec 11, 2018 20:00 Dec 11, 2018 20:00 Dec 12, 2018
3 Male 38 8:00 Dec 17, 2018 20:00 Dec 17, 2018 20:00 Dec 18, 2018
4 Female 38 8:00 Jan 7, 2019 20:00 Jan 7, 2019 20:00 Jan 8, 2019
5 Male 38 8:00 Aug 17, 2019 20:00 Aug 17, 2019 20:00 Aug 18, 2019
6 Female 40 8:00 Aug 28, 2019 20:00 Aug 28, 2019 20:00 Aug 29, 2019

Group A, before irradiation; Group B, 12 hours after irradiation with the first 5 Gy; Group C, 12 hours after irradiation with the second 5 Gy.

The inclusion criteria were:

  • ALL patients who had finished chemotherapy 1 month earlier;
  • Aged 17–50 years old; and
  • Prepared for hematopoietic stem cell transplantation and pretreatment regimens including TBI.

The exclusion criteria were:

  • Patients suffering from other systemic malignancy;
  • Reception of blood transfusion within 2 days of irradiation; and
  • Other serious cases that would likely hinder this clinical study.

Patients received TBI with 5 gray (Gy) 60Co gamma rays at a dose rate of 5 centigray (cGy)/minute, 2 days in a row. A 4 mL peripheral blood sample from each patient was collected before and after irradiation. Based on cumulative irradiation dose, blood samples were divided into 3 groups: before irradiation (Group A), 12 hours after irradiation with the first 5 Gy (Group B), and 12 hours after irradiation with the second 5 Gy (Group C). The blood samples were centrifuged at 3,000 rpm for 10 minutes at 4 ℃, and the supernatant was transferred to an RNA-free centrifuge tube. The plasma was then separated from the supernatant by centrifugation for 15 minutes at a speed of 10,000 rpm. All plasma samples were stored at −80 ℃ prior to any experimentation.

RNA isolation

Chloroform was added to the plasma samples, which were then centrifuged at 12,000 rpm for 5 minutes. Th supernatant was transferred to a new tube, followed by the addition of isopropanol and then centrifuged at 12,000 rpm for 30 seconds. After the supernatant was removed, the pellet was dissolved in RNase-free water, and miRNA was isolated using mirVana™ PARIS™ Kit (Thermo Fisher Scientific, Waltham, MA, USA) following the manufacturer’s protocol. Total RNA was quantified by NanoDrop ND-2000 (Thermo Fisher Scientific) and RNA integrity was assessed using the Agilent Bioanalyzer (Agilent Technologies, Santa Clara, CA, USA). The optical density (OD) 260/280 value of the sample RNA was measured with RNase-free water as the control, and a ratio of 1.8–2.0 was deemed acceptable.

Hybridization, washing, and scanning of miRNA microarrays

Total RNA was dephosphorylated, denatured, and labeled with Cyanine-3-CTP following the procedure of the miRNA Complete Labeling and Hybridization Kit (Agilent Technologies). After purification, the labeled RNAs were hybridized onto the Human miRNA Microarray (Agilent Technologies). After washing, the arrays were scanned with a microarray scanner (Agilent Technologies). Feature Extraction Software (Agilent Technologies) was then used to analyze array images to obtain raw data, and GeneSpring software (Agilent Technologies) was employed to normalize the raw data by quantile algorithm and analyze the differences between groups.

Differential miRNA screening and bioinformatic analysis

The probes that at least 100% of samples in any 1 condition out of 2 conditions had flags in “Detected” were chosen for further analysis. To identify differentially expressed miRNAs, the threshold set for regulated genes was a fold change ≥2.0 and t-test P value ≤0.05. Predicted target genes of differentially expressed miRNAs were obtained through the miRDB and miRWalk databases. Gene Ontology (GO) analysis and Kyoto Encyclopedia of Genes and Genomes (KEGG) analysis were applied to determine the biofunctions and regulated pathways of target genes.

Determination of differential miRNA with quantitative PCR

RT-PCR primer kit (RIBOBIO, Guangzhou, China) was used to determine miRNA expression with quantitative PCR. After mature miRNAs were reverse transcribed, the product was diluted 10 times for PCR. The PCR system included: TaqMan MicroRNA Assay 20×1.0 µL, 2 µL reverse-transcription reaction product (minimum 1:10 dilution), TaqMan 2× Universal PCR Master Mix (10 µL), and nuclease-free water (7 µL). After denaturation at 95 ℃ for 15 seconds, annealing was performed at 60 ℃ for 20 seconds, with the cycle repeated 40 times. The results of the dissolution curve were drawn at 70–95 ℃, taking 5S ribosomal RNA (5S rRNA) as the reference gene. The expression differences among different groups were calculated by 2−ΔΔCT, ΔCt = CtmiRNA-CtU6, ΔΔCt = ΔCtM − ΔCtNM.

Statistical analysis

All data were analyzed using SPSS 22.0 software. Measurement data were expressed as (x¯±s), with t-test used to make comparisons between 2 groups. Chi-square test was used to compare categorical variables. P<0.05 indicated a statistical difference between the 2 groups.


Results

Patient characteristics

Eligible patients were 17 to 50 years of age, had acute myeloid leukemia (AML) or ALL, and were candidates for allo-hematopoietic cell transplantation with TBI-based myeloablative conditioning. To minimize bias, consecutive patients referred to our program from October 2018 through August 2019 who were deemed to be suitable candidates for TBI-based myeloablative conditioning were approached about participating in this study and screened if they gave written consent.

Patients were in complete remission at the start of radiotherapy and had blood cell counts within normal limits. None of the patients had been treated with radiation before. The total dose delivered to patients was 10 Gy in daily fractions of 5 Gy for 2 days, with a 24-hour interval between the 2 fractions of irradiation. Peripheral blood samples were collected and investigated from 6 patients at 3 stages: before TBI and 12 hours after each fraction of TBI.

Differentially expressed miRNAs screening

To identify miRNA profile changes after irradiation, microarray analysis containing 2,570 probes for mature miRNAs was conducted for all 18 samples. The average detection rate was 18.84%, and the average coefficient of variation was 7.9527%, which was under the minimum requirement of 15%. Principal component analysis revealed that the miRNA expression profiles of samples derived from the same patient were close to each other, while those from different patients were relatively discrete. This result suggested that peripheral blood cells from different patients had heterogeneity, and their miRNA profiles after irradiation were quite different.

Twelve differentially expressed plasma miRNAs were detected at 12 hours after irradiation with 5 Gy gamma rays compared with samples before irradiation (Figure 1, Table 2). Compared with miRNA expression level before irradiation, there were 18 differentially expressed miRNAs at 12 hours after irradiation with 10 Gy, including 17 that were upregulated and 1 that was downregulated (Figure 1, Table 3). The difference in expression of these plasma miRNAs was statistically significant compared with pre-irradiation (P<0.05). Among them, there were 8 differentially expressed plasma miRNAs in both dosage groups, and all expression levels rose with the accumulation of exposure dosage.

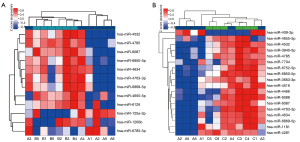

Figure 1 Clustering map of differentially expressed miRNAs between pre-irradiation and different dose irradiation. (A) Clustering map of miRNAs between pre-irradiation and exposure to 5 Gy 60Co. (B) Clustering map of miRNAs between pre-irradiation and exposure to 10 Gy 60Co. The clustering map displays sample name on the X-axes and microRNAs on Y-axes; high expression of miRNAs is presented in red and low is presented in green.

Table 2

Differentially expressed plasma miRNAs after exposure to 5 Gy 60Co

MiRNAs Sequence Fold change Regulated P value
miR-125a-3p acaggugagguucuugggagcc −5.0506 Down 0.0202
miR-1260b aucccaccacugccaccau −2.5266 Down 0.0407
miR-4532 ccccggggagcccggcg 8.9484 Up 0.0040
miR-4634 cggcgcgaccggcccgggg 6.1508 Up 0.0443
miR-4655-5p caccggggauggcagagggucg 2.9456 Up 0.0233
miR-4763-3p cgccugcccagcccuccugcu 1.6114 Up 0.0255
miR-4785 agagucggcgacgccgccagc 4.9985 Up 0.0385
miR-6087 ugaggcgggggggcgagc 3.1869 Up 0.0064
miR-6126 gugaaggcccggcggaga 6.1444 Up 0.0314
miR-6785-5p ugggagggcguggaugauggug −1.9420 Down 0.0153
miR-6850-5p gugcggaacgcuggccggggcg 1.8832 Up 0.0372
miR-6869-5p gugaguaguggcgcgcggcggc 1.5485 Up 0.0407

miRNAs, microRNAs; 60Co, cobalt-60.

Table 3

Differentially expressed plasma miRNAs after exposure to 10 Gy 60Co

MiRNAs Sequence Fold change Regulated P value
miR-409-3p gaauguugcucggugaaccccu −5.9508 Down 0.0196
miR-1181 ccgucgccgccacccgagccg 4.5528 Up 0.0324
miR-4281 gggucccggggagggggg 2.5011 Up 0.0468
miR-3663-3p ugagcaccacacaggccgggcgc 3.0284 Up 0.0326
miR-4466 gggugcgggccggcgggg 1.5505 Up 0.0034
miR-4516 gggagaagggucggggc 2.4185 Up 0.0413
miR-4532 ccccggggagcccggcg 11.7802 Up 0.0043
miR-3940-5p guggguuggggcgggcucug 3.6202 Up 0.0491
miR-4634 cggcgcgaccggcccgggg 6.5470 Up 0.0446
miR-4655-5p caccggggauggcagagggucg 3.7706 Up 0.0460
miR-4763-3p aggcaggggcuggugcugggcggg 1.9162 Up 0.0376
miR-4785 agagucggcgacgccgccagc 7.7024 Up 0.0071
miR-6087 ugaggcgggggggcgagc 4.1883 Up 0.0055
miR-6088 agagaugaagcgggggggcg 1.6867 Up 0.0179
miR-6752-5p gggggguguggagccagggggc 1.6162 Up 0.0346
miR-6850-5p gugcggaacgcuggccggggcg 2.3780 Up 0.0366
miR-6869-5p gugaguaguggcgcgcggcggc 1.8093 Up 0.0293
miR-7704 cggggucggcggcgacgug 1.6180 Up 0.0116

miRNAs, microRNAs; 60Co, cobalt-60.

The scatter and volcano plots show the fold change, variation, and distribution of the differentially expressed miRNAs (Figure 2). There were 8 differentially coexpressed plasma miRNAs in the 2 dose groups: miR-4532, miR-4634, miR-4655-5p, miR-4763-3p, miR-4785, miR-6087, miR-6850-5p, and miR-6869-5p.

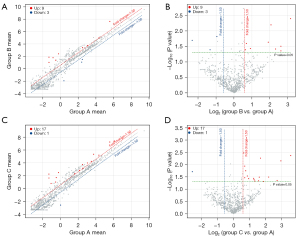

Figure 2 Scatter and volcano plots of differentially expressed miRNAs between pre-irradiation and different dose irradiation. (A) Scatter plot of miRNAs between pre-irradiation and exposure to 5 Gy 60Co. (B) Volcano plot of miRNAs between pre-irradiation and exposure to 5 Gy 60Co. (C) Scatter plot of miRNAs between pre-irradiation and exposure to 10 Gy 60Co. (D) Volcano plot of miRNAs between pre-irradiation and exposure to 10 Gy 60Co. Group A, before irradiation; Group B, 12 hours after irradiation with the first 5 Gy; Group C, 12 hours after irradiation with the second 5 Gy. Grey dots, no differentially expressed miRNAs. miRNAs, MicroRNAs; 60Co, cobalt-60.

Target genes of differentially expressed miRNAs

The potential target genes of the 7 miRNAs shown in Table 4 were predicted by the miRWalk and miRDB public databases (Figure 3). The top 10 predicted target genes of each miRNA are listed in Table 4. These differentially coexpressed miRNAs are mainly involved in the regulation of signal transduction, cell apoptosis, and inflammatory and immune response.

Table 4

Partial target genes of coexpressed differentially expressed miRNAs

miRNAs Partial target genes
miR-4532 RUNX1, CDC25A, CDKL2, E2F3, MAPK10, HIF3A, CDC25A, AKT1S1, RAD52, MAPKAP1
miR-4634 ATM, CDKN2A, GSKIP, AKT1, VEGFA, TGFBR3, ATF5, TNFSF13, EIF2AK2, COLCA2
miR-4655-5p TP53, TNF, IGF2, GTPBP10, PPARD, VEGFB, IER5, FDXR, BRCA1, MAPKBP1
miR-4785 SMAD2, MEF2C, MAPK14, RAD18, TNFSF15, E2F2, EIF4G3, HLA-G, GAPDH, ATXN1
miR-6087 CDKN2C, FOXF1, WNT9A, MYCT1, RPAP3, TOP3A, SEC62, CDKL3, MMP2, BBC3
miR-6850-5p RUNX1, COL1A1, TNF, NFKB, SMAD2, MAPK10, RAF1, AP2B1, OGDH, CSF1
miR-6869-5p MAPK8, IGF1, BCL2L15, MMP2, EIF4E, PARP9, SAMD9, SEMA4A, MMP2, RAD17

miRNAs, microRNAs.

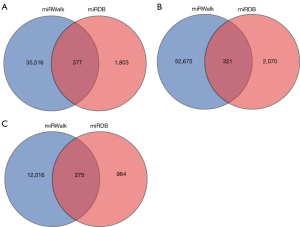

Figure 3 The intersection of target genes in miRDB and miRWalk databases after different dose irradiation. (A) Pre-irradiation versus after irradiation with 5 Gy. (B) Pre-irradiation versus after irradiation with 10 Gy. (C) After irradiation with 5 versus 10 Gy.

GO analysis showed that the function of the differentially expressed miRNAs on these target genes included protein binding, RNA polymerase II regulatory sequence-specific DNA binding, Rab protein transduction, and regulation of T-cell differentiation, among others (Figure 4). KEGG analysis (Figure 5, Table 5) found that the phosphoinositide 3-kinase/protein kinase B (PI3K/AKT), Ras, and mRNA surveillance signal pathways were activated by target genes in the high-dose group. These pathways were regulated by miR-6850-5p or miR-6869-5p. In the low-dose group, the mitogen-activated protein kinase (MAPK), Ras, and phospholipase D signaling pathways were activated by miR-6869-5p, miR-4655-5p, and miR-4763-3p.

Figure 4 GO analysis on target genes of differentially expressed miRNAs. (A) GO enrichment analysis of target genes between pre-irradiation and exposure to 5 Gy 60Co. (B) GO enrichment analysis of target genes between pre-irradiation and exposure to 10 Gy 60Co. This figure displays the process, function, and component of target genes on Y-axes and degree of enrichment on X-axes. The larger the dot, the more genes involved in the process, function, and component. The greener the color, the higher the significance of enrichment. NADP, nicotinamide adenine dinucleotide phosphate; MAP, mitogen-activated protein; GO, Gene Ontology; miRNAs, microRNAs; 60Co, cobalt-60.
Figure 5 KEGG analysis on target genes of differentially expressed miRNAs. (A) KEGG enrichment of target genes between pre-irradiation and exposure to 5 Gy 60Co. (B) KEGG enrichment of target genes between pre-irradiation and exposure to 10 Gy 60Co. This figure displays signaling pathways on Y-axes and degree of enrichment on X-axes. The larger the dot, the more genes involved in this pathway. The greener the color, the higher the significance of enrichment. KEGG, Kyoto Encyclopedia of Genes and Genomes; miRNAs, microRNAs; 60Co, cobalt-60.

Table 5

Partial KEGG pathways of differentially expressed miRNA regulatory target genes

Pathway ID Pathway name Corrected P value Target gene number Target gene
hsa04151 PI3K-Akt signaling pathway 0.0265 351 PPP2R5E; IL2RA; CREB1; IGF2; EFNA5; PHLPP2; RXRA; EIF4E
hsa04010 MAPK signaling pathway 0.0366 294 PLA2G4E; RPS6KA2; TGFBR1; ELK1; DUSP4; PRKCA; CSF1; TAOK1
hsa04014 Ras signaling pathway 0.0113 236 PLA2G4E; RASSF5; ELK1; GAB2; PRKCA; BCL2L1; CSF1; RAB5B
hsa04072 Phospholipase D signaling pathway 0.0409 146 PLA2G4E; AGPAT1; GAB2; PRKCA; GRM4
hsa03015 mRNA surveillance pathway 0.0139 91 PPP2R5E; MSI2; HBS1L; SMG7

KEGG, Kyoto Encyclopedia of Genes and Genomes; miRNAs, microRNAs.

Differential expression validation of miR-4532 and miR-6087

To confirm the differential expression of miR-4532 and miR-6087 pre- and post-irradiation, real-time PCR was performed with 5S rRNA as the reference. The amplification curve displayed a single band and was consistent with the design length, and the melting curve exhibited a single peak, indicating a normal amplification result (Figure 6). After ionizing radiation, the expression of miR-4532 and miR-6087 obviously increased with statistical significance, regardless of the irradiation dosage (Figure 7). Moreover, the expression level of miR-4532 and miR-6087 in the high-dose group was higher than that in the low-dose group, which was consistent with the microarray determination results.

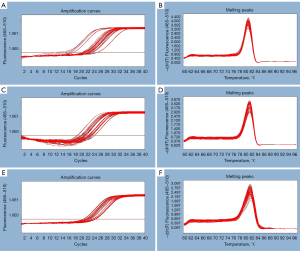

Figure 6 Amplification curve and melting curve for miR-4532, miR-6087, and 5S rRNA. (A) Amplification curve for 5S rRNA; (B) melting curve for 5S rRNA; (C) amplification curve for miR-4532; (D) melting curve for miR-4532; (E) amplification curve for miR-6087; (F) melting curve for miR-6087.
Figure 7 RT-PCR validation of differentially expressed miRNAs. (A) The relative expression of miRNAs between pre-irradiation and the low-dose group. (B) The relative expression of miRNAs between pre-irradiation and the high-dose group. (C) The relative expression of miRNAs in different dose groups. Group A, before irradiation; Group B, 12 hours after irradiation with the first 5 Gy; Group C, 12 hours after irradiation with the second 5 Gy. *, P≤0.05 (unpaired Student’s t-test). RT-PCR, real-time polymerase chain reaction; miRNAs, microRNAs.

Discussion

In the case of a large-scale nuclear event, rapid and accurate estimation of exposure dose is essential for the optimal use of medical resources and remedy efficiency (20). Radiobiological effect is the terminal reaction of radiation on the human body, which is in proportion to the exposure dose but free from environmental impact (21). One generally accepted method for estimating the radiation dose of exposed individuals involves taking advantage of biological effect indicators.

Chromosome aberration analysis is most commonly used and regarded as the “gold standard” for estimating radiation dose (22). It is highly reliable and sensitive, but it requires specialized laboratories and is unsuitable for batch detection in an accident scene. Its longer reaction time of at least 48–72 hours fails to satisfy the demands of rapid detection (23). Although lymphocyte micronucleus analysis is simple to operate and requires minimal personnel skill, the rapid decline of the lymphocytes greatly affect the accuracy of detection results (24). In addition, single-cell gel electrophoresis analysis based on DNA damage and DNA repair-related protein dosimeters also have some disadvantages, including low sensitivity and numerous interfering factors (25,26). Therefore, it is of great scientific value and practical significance to identify rapid, sensitive, and accurate radiobiological indicators and estimation methods.

MicroRNA is a type of endogenous noncoding small molecule RNA in eukaryotes that plays an important role in biological development, cell apoptosis, gene regulation, and tumor development (27). Ionizing radiation has been shown to induce miRNA expression change, and miRNAs may be a key regulator in radiation stress response. Anastasov et al. (28) found the expression of miRNA-21 in breast cancer cells was upregulated at 8 hours post-irradiation with 5 Gy, but after 24 hours, the expression level was equal to that at pre-irradiation. A number of studies have also shown that ionizing radiation could cause miRNA expression changes in skin, lung, and spleen tissues (29-31).

Peripheral blood has stable physical properties and is convenient for collection and rapid detection. The detection of specific markers in peripheral blood has become a research focus in disease diagnosis and prognostic evaluation (32). In recent years, study results have indicated that the expression level of miRNAs in blood is associated with radiation dose (33). Acharya et al. found that circulating miR-187-3p, miR-150, and miR-342-3 expression in mice exposed to gamma rays had a close relationship to the radiation dose (12). Wei et al. discovered radiosensitivity changes with different radiation doses in circulating miRNAs of mice (34). It has been reported that the expression of blood miRNAs in mice exhibited a dose and time-dependent relationship with X-ray radiation (35). Fendler et al. also confirmed the reliability of plasma miRNA of primates as indicators of the biological effects of ionizing radiation (36).

In accordance with medical research ethics, previous studies have focused on cell- or animal-based irradiation experiments, and the results have certain limitations. In this study, subjects were leukemia patients pretreated with total body radiotherapy, which could better simulate the actual radiation condition and ensure radiation effects were free from the influence of different exposure sites and exposure areas. Further, patients did not receive radiotherapy until they had been in remission for 1 month after chemotherapy, and with a small tumor load, the detection results were less susceptible to the effects of other malignancies. For these reasons, these results are more likely to be applied and popularized.

Our results found that several plasma miRNAs of leukemia patients were differentially expressed after exposure to 60Co radiation with different doses, and the difference was statistically significant (P<0.05). Remarkably, there were 8 plasma miRNAs exhibiting differential expression in both dose groups (miR-4532, miR-4634, miR-4655-5p, miR-4763-3p, miR-4785, miR-6087, miR-6850-5p, and miR-6869-5p) that all showed upregulation compared to pre-irradiation levels. More importantly, the expression level obviously increased as cumulative exposure doses rose from 5 Gy to 10 Gy. However, unlike previous findings (37), the difference in candidate miRNAs between dose groups was not statistically significant, which may have been due to the smaller sample size and large individual differences of patients.

To date, there are few reports on the ionizing radiosensitivity of differentially coexpressed miRNAs. One recent study (38) showed that miR-4532 could regulate immune reactivity and oxidative stress injury of epithelial cells induced by ultraviolet radiation by stimulating free radical generation to cause cell damage, which is similar to the mechanism of ionizing radiation. MiR-4532 has also been reported to affect the biofunction of hematopoietic stem cells through the signal transducer and activator of transcription 3 (STAT3) signaling pathway, which is closely associated with tumor radiation sensitivity (39,40). Guo et al. have reported that miR-125a controls hematopoietic stem cell number by regulating hematopoietic stem/progenitor cell (HSPC) apoptosis, which suggests that microRNA-based cell modification may be a means to achieve stem cell-specific therapeutics (41). MiR-6087 has been shown to play an important role in the p53-mediated competing endogenous RNA (ceRNA) network (42). P53 plays a key role in cell DNA damage stress response, and its related genes or proteins are strongly correlated with radiation (43). Another previous study suggested that the expression of miR-4655 was significantly upregulated in apoptosis and oxidative stress induced by nonionizing radiation (44). In our study, we found that the expression of miR-4532 was significantly upregulated in both the 5-Gy and 10-Gy dose groups, showing a certain dose-response relationship. We also found miR-125a was significantly downregulated in the 5-Gy dose group. In addition, real-time PCR confirmed the expression level of candidate miRNAs in patients were significantly higher than before radiation. Taken together, it can be concluded that differentially coexpressed plasma miRNAs may have played a certain role in the damaging effect of ionizing radiation.

A wide range of target genes are related to miRNAs involved in regulating ionizing radiation injury. To determine the biological functions of the differentially expressed miRNAs, we performed GO function and KEGG pathway enrichment analysis of the target genes. Bioinformatics analysis revealed that candidate miRNAs mainly regulated the biological processes of transcription, apoptosis, DNA damage, and activation of MAPK, and they largely activated signaling pathways, including PI3K/AKT, MAPK, and Ras, among others, which are involved in radiation oxidative stress and repair of DNA damage. With further research, the function and mechanism of these radiosensitive miRNAs will gradually be clearer.


Conclusions

In summary, using microarrays, this study found numerous radiosensitive plasma miRNAs that were associated with immune system and stress responses induced by ionizing radiation. Eight differentially coexpressed plasma miRNAs showed certain dose-dependent changes, and they have the potential to be early biomarkers for estimating radiation. However, the biological function of the candidate miRNAs still needs to be further investigated with large-sample studies.


Acknowledgments

Funding: This study was financially supported by the Military Medical Science and Technology Youth Training Program (No. 18QNP038), Academy of Military Medical Sciences innovation fund (No. 2017CXJJ14), and the Open Project Program of the State Key Laboratory of Proteomics (No. SKLP-O202006).


Footnote

Reporting Checklist: The authors have completed the MDAR reporting checklist. Available at https://atm.amegroups.com/article/view/10.21037/atm-22-3411/rc

Data Sharing Statement: Available at https://atm.amegroups.com/article/view/10.21037/atm-22-3411/dss

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://atm.amegroups.com/article/view/10.21037/atm-22-3411/coif). All authors report that this study was financially supported by the Military Medical Science and Technology Youth Training Program (No. 18QNP038), Academy of Military Medical Sciences innovation fund (No. 2017CXJJ14) and the Open Project Program of the State Key Laboratory of Proteomics (No. SKLP-O202006). The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). All experiments were approved by the research ethics committee of Fifth Medical Center, Chinese PLA General Hospital (No. ky-2018-4-26). All patients voluntarily participated in this study and provided informed consent, and for the patient under age 18 years old, informed consent was also obtained from the legal guardians.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
