Spatial heterogeneity in epithelial to mesenchymal transition properties of circulating tumor cells associated with distant recurrence in pancreatic cancer patients
Introduction
Pancreatic cancer (PC) is among the most lethal malignances worldwide, highlighted by the almost same rates of disease incidence and cancer-related mortality (1,2). Currently, curative strategy for PC patients is still radical surgery (3), but only 10–20% of patients have tumors that are regarded as resectable at initial diagnosis (4). Furthermore, even after a potential radical resection, most patients will ultimately experience recurrence, especially liver metastasis (5,6), with approximately 20% recurrence within the first six months (termed early recurrence) (6,7). Therefore, there is an urgent need to identify appropriate biomarkers to better stratify PC patients for surgery.
Circulating tumor cells (CTCs) are cells shed from primary tumors that migrate into the circulation and are considered key to the development of distant metastases (8,9). Previous studies have shown that epithelial to mesenchymal transition (EMT) contributes to this dissemination process, and EMT is associated with phenotypic conversion that results in the downregulation of epithelial characteristics and the upregulation of mesenchymal features in CTCs (8,10-12). CTCs can be classified into three subgroups: epithelial (E-CTC), mesenchymal (M-CTC), and epithelial/mesenchymal hybrids (E/M-CTC). It is hypothesized that each subpopulation of CTCs that reaches the circulation might have distinct properties (12-14).
The quantification and subtyping of CTCs in the peripheral blood could be a potential real-time and noninvasive approach to predict tumor recurrence and prognosis (14,15). Because CTCs in PC patients have initial access to the portal circulation, where they can directly reach the liver, comparative analysis of CTCs both in the portal and systemic circulation could help better understand the role of CTCs in metastases and predict prognosis (16). Tien et al. compared CTC counts between portal vein (PoV) and peripheral vein (PV) blood samples collected during pancreaticoduodenectomy in 41 patients, and found that CTCs were detected in 58.5% of portal and 39% of PV samples from patients, and a high CTC count in portal blood was a significant predictor for early postoperative liver metastases (17). However, the majority of such studies focused on CTC counts only, without examining the EMT status of CTCs.
Many different methods of CTC isolation have been developed based on the physical properties, such as size exclusion (18) of tumor cells, the positive selection of tumor cell surface markers (19), or the negative removal of white blood cells (20). However, there has not been any unified method so far due to the complexity of CTCs (21). To analyze the distinct EMT status of CTCs, density gradient centrifugation for blood sample pretreatment and CD45+ white blood cell depletion for CTC negative enrichment were applied in our study.
Therefore, in this study, we aimed to identify CTCs in PoV and PV samples from 39 PC patients and explore possible dynamic changes in CTCs in circulation. Furthermore, we analyzed the relationship between CTC characteristics in PoV samples and the clinicopathologic data of PC patients, particularly those parameters indicating early recurrence in patients who had undergone resection.
Methods
Patients and characteristics
This study was carried out with the approval of the Institutional Review Board at the Peking University First Hospital (ID: 2018 keyan-15), and in compliance with the guidelines of the Declaration of Helsinki.
A total of 39 consecutive PC patients who were treated with curative surgical resection combined with adjuvant therapy at the Peking University First Hospital between March 2018 and April 2019 were recruited, and informed consent was obtained from all the patients. PV blood (at least 6 mL) was collected prior to the surgery, and PoV blood (also at least 6 mL) was then obtained by direct intraoperative venipuncture before manipulating the tumor during pancreaticoduodenectomy or distal pancreatectomy.
Patients were followed with standard postoperative visits every 3 months to monitor tumor recurrence. Follow-up was terminated on October 30, 2019, and recurrence-free survival (RFS) was defined as the time interval between the date of operation and the date of recurrence or the endpoint of follow-up.
Isolation and identification of CTCs
CTCs were isolated by the CD45 negative enrichment method. First, peripheral or portal blood mononuclear cells were collected by density gradient centrifugation using Histopaque-1077 (Sigma-Aldrich, St. Louis, MO, USA). Next, mononuclear cells were mixed with microbeads (Miltenyi Biotec, Bergisch Gladbach, Germany) conjugated to monoclonal anti-human CD45 antibodies and incubated for 15 min at 4 °C. Subsequently, the cells and microbeads were loaded onto a LS column for magnetic separation (Miltenyi Biotec). The suspensions of unlabeled CD45− cells were collected and spread on a glass slide for immunofluorescence staining. In brief, cells were fixed and then incubated with anti-CK-FITC (Miltenyi Biotec, catalog: 130-080-101) (1:100 diluted in 2% BSA), anti-Vimentin-Alexa Fluor 647 (Cell Signaling Technology, Danvers, MA, USA) (1:200 diluted in 2% BSA) or anti-CD45-PE (Miltenyi Biotec) (1:300 diluted in 2% BSA) antibodies for 1 h at room temperature. The slide was washed three times with PBS. Cells were mounted with the nuclear dye 4',6-diamidino-2-phenylindole (DAPI) (Sigma-Aldrich) and ProLong Gold antifade mountant (Invitrogen, Carlsbad, California, USA). CTC slides were loaded on a Leica SP8 laser scanning confocal microscope (Leica Microsystems, Heidelberg, Baden-Wurttemberg, Germany), and cells were observed to acquire the entire fluorescence signal of each multicolor channel. The areas with cells on the slides were marked and subjected to automated full X-Y-Z scanning. Then, we counted CTCs manually via scanned multiple fluorescent images. The formula to calculate the CTC number of each sample was the CTC count of each slide divided by the volume of blood sample. The identification criteria for positive CTCs in this study were DAPI+/CD45–/CK+ and/or Vimentin+ cells.
Statistical analysis
All statistical analyses were performed using SPSS 25.0 (IBM Corp., Armonk, NY, USA) and Prism 7.0 (GraphPad, La Jolla, CA, USA), and a two-tailed P value ≤0.05 was considered significant. Data are presented as frequencies and percentages for categorical variables and as the mean values with ranges for continuous variables. The Mann-Whitney U test was used to compare the data not normally distributed. Differences in RFS between patient groups were tested using the log-rank test, and hazard ratios were estimated from Cox proportional hazards models that adjusted for age and sex. A receiver operating characteristic (ROC) curve was established to determine the best cut-off value and evaluate the prognostic value of CTCs.
Results
CTCs exhibit profound dynamic changes during dissemination
CTCs and a few residual CD45+ white blood cells were observed in the multiple fluorescent images (Figure S1). CTCs were divided into three subtypes based on staining: (I) epithelial CTCs (E-CTCs), CK+/Vimentin−/CD45−/DAPI+; (II) epithelial/ mesenchymal hybrid CTCs (E/M-CTCs), CK+/Vimentin+/CD45−/DAPI+; and (III) mesenchymal CTCs (M-CTCs), CK−/Vimentin+/CD45−/DAPI+ (Figure 1A). Among all 39 patients, 36 patients (92%) had detectable CTCs in portal blood, while 29 patients (74%) presented positive CTCs in peripheral blood. The CTC total count in portal blood was significantly higher than that in peripheral blood {median CTC total count, 10 [6–16] in PoV vs. 5 [1–7] in PV per mL, P<0.0001} (Figure 1B). Furthermore, we analyzed CTC subgroups and found that only the percentage of M-CTCs but not that of E-CTCs or E/M-CTCs was significantly different between portal blood and peripheral blood [median M-CTC percentage, 0.33 (0.13–0.52) in PoV vs. 0.2 (0–0.4) in PV, P=0.0211] (Figure 1C). These results suggest profound dynamic changes in the enumeration and EMT status of CTCs from the PoV to the peripheral circulation.
Correlation between clinical parameters and CTC count or M-CTC percentage in portal blood

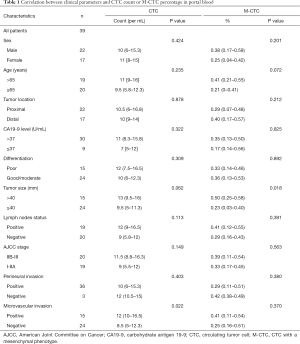

The CTC count in portal blood was positively correlated with the tumor microvascular invasion state (P=0.022), but not with other clinicopathological features. Meanwhile, the percentage of M-CTCs in portal blood was only significantly correlated with tumor size (P=0.018), but not with other clinicopathological features (Table 1).
Full table
CTC count and M-CTC percentage in portal blood as prognostic biomarkers in PC patients
After a median follow-up of 41 weeks, 17 patients experienced recurrence and all of them had distant metastases to the liver or lung. The optimal cut-off values of CTCs in both portal and peripheral blood for estimating survival were explored by ROC analysis. We found that both CTC total count and M-CTC percentage in portal blood had good performance, with a cut-off value of 10/mL for count (sensitivity =0.941, specificity =0.682, P<0.001) and 0.405 for M-CTC percentage (sensitivity =0.765, specificity =0.909, P<0.001), respectively.

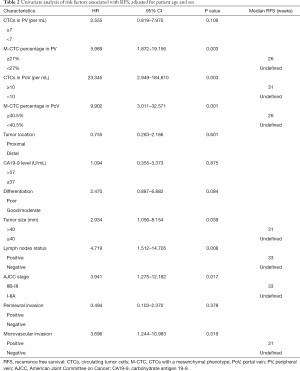

Based on the cut-off values, univariate analysis adjusting for age and sex showed that the prognostic indicators included tumor size (P=0.039), lymph node status (P=0.008), AJCC stage (P=0.017), microvascular invasion (P=0.019), CTC total count in PoV (P=0.003) and M-CTC percentage (P=0.001 in PoV and P=0.003 in PV) (Table 2). Kaplan-Meier analysis showed that CTC total count (31 weeks vs. undefined, HR =18.95, 95% CI: 7.297–49.19, log-rank test P<0.0001) and M-CTC ratio (26 weeks vs. undefined, HR =8.576, 95% CI: 2.957–24.87, log-rank test P<0.0001) in portal blood were significantly associated with tumor recurrence (Figure 2).
Full table
Moreover, 7 patients (18%) had early recurrence (within 6 months), and all of them had intrahepatic metastasis within six months. As CTCs in the PoV may potentially be the direct cause of liver micrometastases, we performed ROC analysis and found that both the CTC total count and M-CTC percentage in portal blood had good performance in distinguishing patients with early distant recurrence, with optimal cut-off values of 14/mL (AUROC =0.893, sensitivity =0.857, specificity =0.813, P=0.001) and 0.545 (AUROC =0.795, sensitivity =0.714, specificity =0.906, P=0.016), respectively.
Discussion
Given the poor outcome among PC patients who have undergone resection, current studies have focused on reliable biomarkers that can aid in stratifying a patient’s risk for distant recurrence (22). CTCs are deemed precursors of metastasis, and previous studies have revealed that the transport of tumor cells across the bloodstream is involved in metastases (23). Theoretically, tracking and analyzing CTCs in the circulation from the PoV to the PV could help monitor cancer metastasis and allow better risk stratification of cancer patients for appropriate therapies (16,23).
To our knowledge, this is the first comprehensive study to characterize the EMT features of CTCs across the spreading route in localized PC patients and evaluate the potential clinical significance of CTCs. We found that CTC total count and the mesenchymal subphenotype of CTCs in portal blood could be high risk factors for postoperative distant metastases, especially early recurrence (within 6 months).
Pairwise analysis of CTC counts between portal and peripheral blood samples showed that the CTC total count in portal blood was significantly higher than that in peripheral blood, consistent with the results of previous studies (17,24,25). This may be due to the potential filtration effect of liver-lung compartments that could enhance the retention of CTCs and prevent the release of CTCs into peripheral circulation (25). In addition, portal venous circulation constitutes an immunosuppressive microenvironment that could favor CTC survival and spread to the liver (26). However, one patient in our cohort had the opposite result, with a higher CTC count in peripheral blood (14/mL in PoV vs. 15/mL in PV). The underlying reason might be that CTCs in the periphery are released not only from the primary tumor but also from tumors with distant metastasis in the liver or lung. This speculation was confirmed by the follow-up in this patient, who had a significantly decreased DFS (liver metastasis within 2 months) after surgery.
In agreement with previous studies (8,27), our results showed that CTCs could undergo EMT to disseminate from primary tumors and migrate into blood circulation. Rhim et al. found that circulating epithelial PC cells could exhibit mesenchymal phenotypes with invasive and tumor-initiating properties during natural evolution in vivo (8). The presence of M-CTCs has been linked to aggressive tumors, and patients with malignant characteristics such as advanced AJCC stage or distant metastases had a much higher ratio of M-CTCs than patients with more benign characteristics for example early AJCC stage (13-15). The dynamic changes in the EMT status of CTCs from the portal blood to the peripheral blood suggest that the acquisition of mesenchymal characteristics by CTCs may facilitate liver-lung tissue retention in liver cancer (28). Consistent with this speculation, our present study showed that the percentage of M-CTCs in peripheral blood was significantly lower than that in portal blood. Moreover, we found s correlation between a higher M-CTC percentage in portal blood and significantly decreased RFS in PC patients who had undergone resection.
In particular, PC patients have diverse patterns and timing of recurrence, with some presenting with liver metastases alone, and others coupled with liver and lung metastases synchronously or heterochronously (5,29). Moreover, the spatial phenotypic disparities and characteristics of CTCs could determine the preferential site of metastasis. While hybrid CTCs (E/M-CTCs) might be a critical factor for intrahepatic metastasis, M-CTCs may predict extrahepatic metastasis. In addition, smaller CTCs might have the capability to pass through the liver compartments to the systemic circulation, but the larger CTCs tend to be detained in liver tissue in hepatocellular carcinoma patients (28,30). These findings pave the way for understanding diverse PC metastatic patterns by analyzing CTCs from the different locations along their migration route.
Next, we explored the potential factors associated with the M-CTC percentage. Cells that have undergone EMT have enhanced capacities to survive and maintain aggressive properties (10,12). We found that only the tumor size had a significant impact on the M-CTC percentage. Thus, we speculated that tumor size may reflect tumor aggressiveness due to the higher M-CTC percentage in portal blood because increased tumor size is associated with poor prognosis.
The limitations of this study are the small cohort size, short follow-up time, and data from a single center. Moreover, although we showed spatial heterogeneity of CTCs during their spreading, the potential molecular mechanism is still unclear. However, with the aid of single-cell sequencing of CTCs, we may be able to determine the underlying mechanisms and facilitate the prediction of distant metastasis patterns (31).
Conclusions
The EMT properties of CTCs showed significant changes during circulation from the PoV to the PV in PC patients. Multivascular detection and subphenotyping of CTCs could help establish novel biomarkers for disseminated metastasis and poor prognosis, while further large multicenter studies are needed to confirm our conclusions.
Acknowledgments
The authors thank Yan Zhuang, Zhengfei Zhou, Hongqiao Gao, Xuehai Xie, Yiran Chen, Shouge Zang and Jing Zhu from Peking University First Hospital for the collection and preparation of the samples.
Funding: This work was supported by grants from the National Key R & D Program of China (No. 2018YFC1313101, 2017ZX10203205-003-001 and 2016YGC0901403 to Xiaohang Zhao), the National Natural Science Foundation of China (No. 81872033 and 81871954 to XZ and YY), CAMS Innovation Fund for Medical Sciences (No. 2019-I2M-1-003, 2016-I2M-1-001 and 2017-I2M-3-005 to XZ and YS) and the Youth Clinical Research Project of Peking University First Hospital (No. 2019CR18 to YM).
Footnote
Peer Review File: Available at http://dx.doi.org/10.21037/atm-20-782
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-782). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was carried out with the approval of the Institutional Review Board at the Peking University First Hospital (ID: 2018 keyan-15) and in compliance with the guidelines of the Declaration of Helsinki. Written informed consent was obtained from all participants.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
