Comparative study of Pauwels type III femoral neck fractures managed by short dynamic hip screw with fibula bone graft or cannulated screws in young adults

Introduction

It is estimated that the incidence of hip fractures worldwide increases to 2.6 million in 2025 (1). Femoral neck fracture is one of the most common clinical fractures, accounting for 50% of hip fractures (2). The occurrence of femoral neck fracture in young adults is usually caused by high-energy injuries such as traffic injury, fall injury and so on (3,4). The Pauwels classification (5) is commonly used for femoral neck fractures in young patients.

The surgical treatment of femoral neck fracture has been developed continuously, which are often fixed with cannulated screws (CS), sliding hip screw (SHS), total arthroplasty (THA), dynamic hip screw (DHS) with or without antirotation screw, DHS with blade instead of screw (DHS-blade) or similar implants (6,7). However, there has been no consensus for the optimal therapeutic regimen available in the literature due to the high rates of postoperative complications. Currently, DHS combined with CS is mainly used in the treatment of Pauwels type III femoral neck fracture in young adults, but 8% of patients still suffer from nonunion of bone and necrosis of femoral head (8-10).

Fibula bone graft has been recommended for the treatment of previous femoral neck fractures and has achieved good clinical results in the treatment of femoral neck fractures with nonunion and avascular necrosis of the femoral head (11). However, there are few reports on the application of fibular transplantation for the fracture of femoral neck in young adults. In this study, we introduce a novel treatment of femoral neck fracture that patients treated with DHS combined with fibular graft. Furthermore, the clinical effect of DHS combined with fibular graft in the treatment of Pauwels type III femoral neck fracture in young adults was investigated. The main objective of this study was to compare the clinical effect of short DHS combined with fibula bone graft and short DHS combined with CS on the treatment of femoral neck fracture in young adults. We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/atm-19-3344).

Methods

Patients

Thirty-five adult patients with Pauwels type III femoral neck fracture in Third Hospital of Hebei Medical University who met the inclusion criteria from January 2014 to May 2019 were retrospectively studied in this study. According to the therapeutic regimes, 18 cases were treated with DHS combined with fibula bone graft and thus defined as the group A, while 17 cases were treated with DHS combined with CS and thus defined as the group B. The surgical options were determined by the treating physician. Seven cases were caused by a fall injures and 11 cases were caused by traffic accident injuries in group A. Ten cases were caused by fall injuries and 7 cases were caused by traffic accident injuries in group B. The diagnosis and classification were assisted by the clinical examination of the injured body, the lateral X-ray of the affected hip joint, CT and the three-dimensional reconstruction. This study was approved by the Medicine Human Experimental ethic committee of Qinghai University School and all patients signed the written informed consent.

Inclusion criteria were patients (I) with fresh closed femoral neck fracture; (II) who were aged 16–65 years; (III) with Pauwels III type femoral neck fracture (Pauwels angle >50°) (the Pauwels angle refer to the angle between fracture line and the iliac spine line) (12); (IV) the patient had good hip movement before injury; (V) complete the follow-up. Exclusion criteria were patients (I) with ipsilateral femoral fracture; (II) with pathological fracture of femoral neck; (III) with old femoral neck fracture; (IV) open fracture; (V) disorders of consciousness, new cerebral infarction and previous hip disease.

All the patients voluntarily underwent short DHS combined with fibula bone graft or DHS combined with CS internal fixation. DHS was provided by Tianjin Zhengtian (Tianjin, China), CS was provided by Stryker (Stryker, USA), and fibula strips were all autogenous.

Preoperative preparation

After admission, routine examination and laboratory tests were performed, and relevant departments were invited to consult and treat related diseases. Preoperative imaging examination of the affected side of the hip was performed to timely understand the displacement of the fracture end. No traction was performed on the affected limb before operation. Preoperative routine preventive measurements of infection and deep venous thrombosis of lower limbs was administered. Preoperative routine drugs for pain, swelling and other symptomatic treatment was performed. There were no donor site complications including donor site fractures, skin infections, non-healing, and necrosis.

Operation methods

Both operations were performed by Professor Lianxin Song. Patients in both groups were given continuous epidural anesthesia or general anesthesia and lay on the traction bed after satisfactory anesthesia. Under the C-arm X-ray fluoroscopy, the method of Leadbetter (13) or McElvenny (14) is adopted for closed reduction. Three-dimensional interactive reduction of femoral neck can be used when the reduction was difficult (15). Garden’s classification was used and the combination of anteroposterior (AP) and lateral methods were used to reset and restore the femoral anteversion and neck-shaft angle. The traction of the affected limb was continued. The area of routine iodine alcohol disinfection was covered with sterile towel. An approximate 8cm longitudinal incision was made on the affected hip joint. The skin, subcutaneous, fascia, and lateral femoral muscle were cut layer by layer, then subtrochanteric cortex was exposed.

Under the C-arm fluoroscopy, two guide pins were drilled parallel to1 cm above the femoral neck near the calcar femorale to fix the fracture of the acetabulum. After depth sounding, a step drill was used to drill holes. After tapping, a DHS of appropriate length was inserted into the subcortical femoral head for 5–10 mm. A 2-hole dynamic hip plate was placed at the distal end of the fracture and made to adhere to the bone cortex on the lateral side of the femur. Two screws were then drilled.

For group A, an incision was made in the posterolateral part of the middle and upper part of the lower leg of the ipsilateral side. The incision was separated between the gastrocnemius muscle and the peroneus brevis muscle to expose the fibula. The guide pin was drilled successively along the top with different types of hollow drills with a diameter of 14 mm. The guide pin was pulled out and fibula strips were inserted along the bone hole. For group B, after depth sounding, a hollow nail was inserted along the upper guide pin and the guide pin was then pulled out.

When the fracture end alignment was good and the position and length of the internal fixation had no deviation under C-arm fluoroscopy, the incision should be closed after washing with normal saline.

Postoperative management

Antibiotics were routinely applied for 1 day after surgery to prevent infection. Quadriceps exercises and active plantar flexion and back extension exercises of the ankle were performed 1–2 days after surgery. Hip and knee loosening training was conducted on the 3–5 days, and hip and knee flexion >90° before discharge. Weight-bearing activities were not allowed within 4 weeks after surgery, then rehabilitation guidance of the affected limb was given to the patient according to the results of outpatient review.

Follow up and outcome evaluation

Operative time, intraoperative blood loss and fracture healing time of two groups were recorded. Fracture healing was defined as the X-ray showing that the bone callus at the fracture breaking end of the fracture became smaller in size, dense, clear in edges, the fracture line disappeared, and trabecular bone passed across the broken ends. At the last follow-up, the Harris hip function scale was used to score hip function. Preoperative and postoperative visual analogue scale (VAS) score were recorded.

The incidence of complications in the two groups was observed and recorded during follow-up, including nail withdrawal rate, fracture nonunion and femoral head necrosis rate. Nonunion of fracture was defined as the results of reexamination indicating that there was little callus at the fracture end, a gap between the bone ends to form a pseudojoint, and no trabecular formation. The two broken ends were atrophic and smooth, and the bone marrow cavity was filled with dense bone and occluded. A vascular necrosis of the femoral head presents on imaging as subchondral sclerosis or segmental collapse.

Statistical analysis

Statistical analyses were conducted using SPSS, version 23.0 (SPSS, Inc., Chicago, IL, USA). The nail withdrawal rate, fracture nonunion rate, femoral head necrosis rate and other count data were expressed as percentage (%) and were analyzed by Chi-square test. Operation time, intraoperative blood loss, fracture healing time, preoperative Harris score and postoperative VAS score were expressed as means and standard deviation, and were analyzed by paired samples t-test. A P<0.05 was considered statistically significant.

Results

Baseline characteristics

There were no significant differences in the baseline information between the two groups including age, gender, injury mechanism, side, Garden type, Pauwels angle and time from injury to surgery (Table 1).

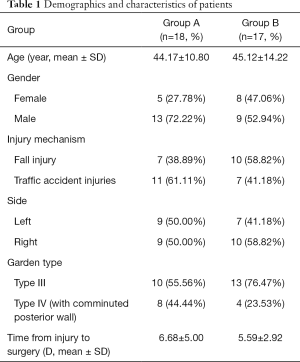

Table 1 Demographics and characteristics of patients
Full table

Surgical outcomes

All postoperative incision of two groups got stage I healing. Operation time and intraoperative blood loss in two groups were not statistically significant (P=0.848; P=0.887). Fracture healing time of group A was significantly shorter than group B (P<0.01). VAS scores of the two groups before and after surgery between two groups showed no statistical significance (P=0.424; P=0.713) (Table 2).

Table 2 Comparison of general condition in two groups (mean ± SD)
Full table

Follow-up outcomes and complications

The follow-up time of group A were 20±5.1 months and the follow-up time of group B were 26±6.6 months. The main complications in this study were fracture nonunion, femoral head necrosis and nail withdrawal rate. The rate of fracture nonunion, femoral head necrosis and nail withdrawal rate in group A was significant lower than that in group B (P=0.029; P=0.029; P=0.006) (Table 3). At the last follow-up, the Harris scores of group A was significant higher than group B (P<0.05) (Table 2). Typical cases are shown in Figures 1 and 2.

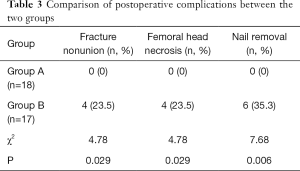

Table 3 Comparison of postoperative complications between the two groups
Full table

Figure 1 A 40-year-old female patient with right femoral neck fracture was treated with DHS combined with fibula bone grafting. (A,B) Preoperative positive and lateral X-ray of the hip joint showed a fracture of the right femoral neck; (C,D) postoperative positive and lateral X-ray of the hip joint showed the internal fixator was present and well positioned; (E,F) 4 months after the operation, positive and lateral X-ray of the hip joint showed that the fracture had healed and the internal fixation was good; (G,H,I,J,K) 8 months after the operation, positive, lateral X-ray and CT of the hip joint showed that the fracture has healed and the internal fixation is good; (L,M) 15 months after the operation, positive and lateral X-ray of the hip joint showed that the fracture has healed and the internal fixation is good.

Figure 2 A 40-year-old male patient with left femoral neck fracture was treated with DHS combined with fibula bone grafting. (A,B) Preoperative positive and lateral X-ray of the hip joint showed a fracture of the left femoral neck; (C,D) postoperative positive and lateral X-ray of the hip joint showed the internal fixator was present; (E,F) 6 months after the operation, positive and lateral X-ray of the hip joint showed that the fracture had healed and the internal fixation was present and good; (G,H) 14 months after the operation, positive and lateral X-ray of the hip joint showed that the fracture had healed and the internal fixation was present and good; (I,J) 14 months after the operation, positive and lateral X-ray of the hip joint showed that the fracture had healed and the internal fixation was removed. Then the fibula implant is in a good position and does not break; (K,L,M) the general image before removal of the internal fixator showed no shortening of the affected limb and no obstruction of squat.

Discussion

In this study, DHS combined with fibula graft in young adults Pauwels type III femoral neck fracture had a high Harris function score, better bone healing and lower complications of femoral head necrosis with good the hip joint function outcomes compared to patients treated with the DHS combined with CS.

Femoral neck fractures occur most often in the elderly and are generally caused by low energy injuries, while femoral neck fractures in young adults are usually caused by high energy injuries (16). Young adults with Pauwels type III fractures are caused by severe soft tissue injury due to high-energy violence, poor biological environment and serious damage to blood supply of femoral head, resulting in a bone nonunion rate and necrosis rate up to 33% (17,18).

In clinical practice, DHS is often used for the treatment of young Pauwels type III fractures, which is designed in accordance with the anatomical and biomechanical principles of proximal femur (19). In order to obtain stronger fixation and anti-rotation, most experts suggest adding a CS to increase the rotation-resistance of the main dynamic hip nail, thus reducing the incidence of nail withdrawal rate and cutting-out of the internal fixation instruments (20). Li et al. had reported that CS with deep circumflex iliac artery bone grafting is a feasible and effective method in the treatment of young adult patients with femoral neck (21). Although deep circumflex iliac artery bone grafting can achieve good treatment results in most cases, however it is highly technical and requires microsurgical facilities and experience which limits its clinical application. In addition, it is mostly used in treating old femoral neck fractures. Makki et al. found that compared with the pure use of DHS, DHS combined with CS in a certain extent can provide further fixation, but it does not help to promote fracture healing and reduce the incidence of femoral head necrosis (22). Furthermore, although the fractures were fixed by internal fixation, the fractures are still prone to redisplace due to the defect in the posterior lateral wall (22,23). Banks et al. found that the nonunion rate in comminuted posterior lateral femoral neck was as high as 60% (24). After long-term follow-up of 61 patients with Pauwels type III femoral neck fracture, van Embden et al. found that the nonunion rate of DHS fixation was about 8% (10). In this study, the nonunion rate and femoral head necrosis rate of group B were 23.5% and 23.5%, which were consistent with the literature report that the combination of DHS and CS would cause serious complications.

Mechanical stability and good biological environment are equally important in the healing process of femoral neck fractures (25). Inclan et al. reported that ischemic femoral head underwent revascularization after allograft, and various bone grafts were applied to achieve fracture healing and femoral head revascularization (26). Currently, common bone grafts include ilium graft, muscle-pedicle graft and vascularized bone flap graft (27-29). Previous literatures had reported that free fibula bone graft has achieved good results in the treatment of fresh femoral neck fractures (23,30). In this study, free fibula bone was used to replace CS. In this study, the nonunion rate of femoral head in group A were both 0%, which were lower than previous studies, reporting that CS combined with fibular graft for the treatment of femur neck fracture in young adults (31,32).

As biodegradable grafts, the free fibula ends up fusing with the neck of the femur rather than absorbing, so it does not loosen (33). Fibula graft retained the advantages of DHS combined with CS, the donor site morbidity will be minimized as long as enough attention was given. The implant technique is easy to operate and does not require professional microsurgical knowledge (34). In this study, the rate of nail withdrawal rate, fracture nonunion and femoral head necrosis for DHS with fibula graft was significantly lower than that of DHS with CS. The possible reasons were the implanted fibula compensates for the defect in the posterior wall, enhances the stability of fracture ends, provides a good healing environment, and reduces the rate of nonunion and necrosis. As a cortical bone, fibula can not only provide mechanical strength and supports for internal fixation, but also compensate for the defect in the posterior wall and further increase the stability of fracture end. Furthermore, the three-sided shape of fibula can increase anti-rotation stability, providing a good foundation for the femoral head revascularization (34-36).

The limitation of this study was that reduction was difficult due to fracture dislocation in some patients. Even closed reduction cannot reach the ideal state and head and neck stem interactive reduction or limited incision reduction was required. In addition, some patients underwent displacement again during closed reduction, which further increased the operation time. Therefore, we will emphasize that two Kirschner wires should be used to fix the acetabulum to stabilize the fracture after the closed reduction in our further work.

In conclusion, compared to patients treated with the DHS combined with CS, DHS combined with fibula graft in young adults Pauwels type III femoral neck fracture has a high Harris function score, better bone healing and lower complications of femoral head necrosis with good the hip joint function outcomes. Further studies are warranted.
