High expression of PYCARD is an independent predictor of unfavorable prognosis and chemotherapy resistance in glioma

Introduction

Glioma is among the most common human central nervous malignancy; the clinical prognosis is extremely poor due to acquired resistance to temozolomide (TMZ) chemotherapy, and is usually partitioned into low-grade glioma (LGG) and high-grade glioma (HGG) by pathological grades (1,2). Unfortunately, most LGG cases inevitably progress to HGG. Glioblastomas/glioblastoma multiforme (GBMs) are mostly HGG, and patients with GBM demonstrate a short survival time and poor prognosis(3). Currently, surgery and chemotherapy are the primary therapeutic methods for glioma treatment. Gliomas demonstrate multiple modes of resistance and temozolomide (TMZ) resistance one of the most influential contributing factors to limit the efficacy of chemotherapy in glioma patients (4-7). Furthermore, because chemoresistance of glioma cells may significantly influence the curative effect of glioma patients, a more extensive clarification of the etiology inherent in glioma development and chemosensitivity is critical.

The TMZ resistance of glioma is a complex process. Multiple studies have shown that TMZ chemoresistance is related to various biological processes, including apoptosis, proliferation, migration, and invasion (8). Several studies have revealed that O6-methylguanine-DNA methyltransferase (MGMT) and DNA repair protein are related to drug resistance (9-12). Similarly, TMZ regulates cellular processes, such as proliferation, apoptosis, migration, and invasion through various signaling pathways, including EGFR/AKT/PTEN signaling pathway, protein kinase C signaling pathway, P53 signaling pathway, retinoblastoma signaling pathway, vascular endothelial growth factors, integrin signaling pathway, and protein transporter (13). However, the underlying molecular mechanism of TMZ chemoresistance is unclear. Molecular mechanisms of TMZ chemoresistance are essential to improve therapeutic strategies for malignant gliomas.

In this study, we used bioinformatics analysis to examined resistance cells (HS683R, LNZ308R, U87R, and LN229R) and compared them with the parental cells (HS683, LNZ308, U87, and LN229): we found that PYD and CARD domain containing (PYCARD) was upregulated only in resistant cells (HS683R, LNZ308R, and LN229R). PYCARD is a protein-coding gene that mediates the assembly of large signaling complexes in the inflammatory and apoptotic signaling pathways via the activation of caspase (14,15). The mRNA and protein expression levels of ASC/TMS1 (PYCARD) in gastric cancer tissues were lower than those in normal gastric mucosal tissues and associated with poor prognosis of patients with gastric cancer(16). Remarkably, we found that PYCARD was upregulated in TMZ-resistant cell lines and glioma tissue, correlated with poor prognosis, and promoted glioma cell proliferation and migration. However, the specific mechanism of PYCARD remains elusive.

Over the past decade, research has demonstrated that immune factors are associated with increased glioma risk and immune defects (17). Treatment with immune checkpoint inhibitors, including programmed death-ligand (PD-L1), has improved glioma patient outcomes (18,19). In the glioma microenvironment, infiltrating immune cells have been demonstrated to benefit tumor progression (20). For example, cluster of differentiation (CD)30 ligand deficiency accelerates glioma progression by promoting the formation of tumor immune microenvironment (21). However, the association between the expression of PYCARD and the immune microenvironment has yet to be determined.

Long non-coding RNA (lncRNA) is a non-coding RNA longer than 200 nucleotides and has no protein-coding function. Abundant studies have indicated that lncRNAs carry out many biological functions in glioma, including cell proliferation, invasion, migration, TMZ chemoresistance, metastasis, and apoptosis, by altering the expression of target genes (22-24). However, no reports concerning the relationships between PYCARD and lncRNAs gene expression have yet been published.

Herein, we clarify the specific mechanism of PYCARD in TMZ resistance and the association between the expression of PYCARD, immune microenvironment, and lncRNAs. We present the following article in accordance with the REMARK reporting checklist (available at https://dx.doi.org/10.21037/atm-21-2346).

Methods

Clinical specimen collection

All 114 human glioma tissue samples and patient clinical information were obtained from the Department of Neurosurgery at Jiangxi Provincial People’s Hospital Affiliated to Nanchang University, China. Fifty normal brain tissues samples and glioma tissues specimens, representing 62 grade IV GBM, 30 grade III, and 22 grade II cases, were classified by 2 neurosurgeons according to the 2010 World Health Organization (WHO) criteria for glioma. Samples were frozen in liquid nitrogen immediately after surgical resection of the patient’s tumor. The enrolled patients were followed up by telephone. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). The present study was approved by the Ethics Committee of the Jiangxi Provincial People’s Hospital Affiliated to Nanchang University and informed consent was taken from all the patients.

Bioinformatic analysis

The expression profiles obtained from the Gene Expression Omnibus (GEO) data set (GSE53014 and GSE113510) (https://www.ncbi.nlm.nih.gov/geo/) were analyzed with the “limma” and “RobustRankAggreg” package in R (version 4.0.2, R Foundation for Statistical Computing). Next, we performed survival analyses based on the expression of PYCARD in The Cancer Genome Atlas (TCGA) (https://cancergenome.nih.gov/). We used the Chinese Glioma Genome Atlas (CGGA) (http://www.cgga.org.cn/) data base to further validate the expression of PYCARD and the survival rate in glioma.

PYCARD-related lncRNA was found by using Spearman correlation analysis (R >0.3 and P value <0.05). Univariate Cox and Kaplan-Meier analyses were used to identify those lncRNAs with clinical prognostic value. Then, Multivariate analysis was conducted by cox-regression analysis these lncRNAs to build a risk prediction model. The prognostic gene signature was determined according to the following formula: risk score = (Coefficient lncRNA₁ × expression of lncRNA₁) + (Coefficient lncRNA₂ × expression of lncRNA₂) + … + (Coefficient lncRNAn × expression lncRNA). The “survival” package was used to determine the optimal cutoff value and assign patients to high and low risk groups based on risk scores.

Correlation was analyzed to explore the relation of PYCARD genes with immune cell infiltration by using “ggplot2”, “ggpubr”, “ggExtra”, “limma”, “estimate”, “preprocessCore”, and “CIBERSORT” packages.

The correlation between of PYCARD genes and tumor mutation burden (TMB) was analyzed using the TCGA TMB database, while the correlation between PYCARD genes and microsatellite instability (MSI) was analyzed by using the “fmsb” package.

Gene set enrichment analysis (GSEA)

GSEA was performed though the GSEA software (GSEA version 4.0.2). Gene sets with a standard P value <0.05 were considered to be significantly enriched.

Cell culture

We acquired Human U-251MG (U251) and LN-229 (LN229) glioma cell lines from the Cell Repository, Chinese Academy of Sciences (Shanghai, China). Glioma cells were cultured in Dulbecco’s Modified Eagle’s Medium (DMEM; Corning, VA, USA) complemented with 10% fetal bovine serum (FBS; Corning, VA, USA). TMZ-resistant cell lines, U251R and LN229R, were generated through chronic TMZ exposure (48 hours every 2 weeks) as previously described (25-27). To maintain the LN229R and U251R resistance phenotype, cells were regularly exposed to TMZ (50 µg/mL; Sigma-Aldrich, San Francisco, CA, USA) during routine culturing. All cells were cultured in a humidified incubator with 5% carbon dioxide (CO₂) and 95% air at 37 °C.

Cell lentiviral transduction

Stable cell lines were generated by lentiviral transduction. The plasmid construction and lentivirus package were performed commercially (Genechem Co. Ltd., Shanghai, China). We plated glioma cells in a 6-well plate with a density greater than 40–50%. Cell transfection was performed according to the GeneChem (Shanghai, China) manufacturers’ instruction. The target sequences of short hairpin RNAs (shRNAs) are listed in Table S1. Gene transfection efficiency was evaluated by quantitative real-time polymerase chain (qRT-PCR) or western blotting.

Quantitative real-time polymerase PCR

From the glioma tissue samples and cells, total RNA was extracted with TRIzol according to the manufacturer’s instructions (Takara Bio, Shiga, Japan). First-strand complement DNA (cDNA) for genes was generated by using the First Strand cDNA Synthesis Kit (Takara Bio, Shiga, Japan). The determination of messenger RNA (mRNA) levels was determined by using SYBR Green Master Mix (Takara Bio, Shiga, Japan) and performed on a 7500 Fast Real-time PCR System (Applied Biosystem, Foster City, CA, USA). GAPDH was used as the endogenous control. The quantitative PCR primers are listed in Table S2. The relative expression was calculated through relative quantification (2^−∆∆Ct), and the data were presented as the mean ± SD of at least 3 independent experiments.

Western blotting and antibodies

Western blotting assay was executed according to according to standard protocols. Antibody supply information was as follows: PYCARD, Vimentin, N-cadherin, E-cadherin, Ki67, and Actin (Cell Signaling Technology, MA, USA). Subsequently, Membranes were washed for 0.5 h and incubated for 2 h with the appropriate secondary antibodies (Cell Signaling Technology, MA, USA). Membranes were then detected and visualized by chemiluminescence. The antibody information is listed in Table S3.

Cell viability and cell migration assays

Cell viability was evaluated by MTT assay. Glioma cells were treated with 50 µg/ml TMZ for 1–5 days (26). Glioma cell growth was monitored by measuring the absorbance at 450 after 1-h incubation in 10% cell counting kit-8 (CCK-8) (Beyotime, China) solution according to the manufacturer’s instructions.

In the migration assays, cells were incubated in 6-well plates with an 8-mm pore size polycarbonate membrane for 48 h. The cells at the bottom of the chamber were wiped with a cotton swab, and the cells on the surface of the lower membrane were fixed with methanol for 0.5 h, and then stained with 0.1% crystal violet.

Immunofluorescence staining

Glioma cells were seeded overnight on a glass cover glass (0.17 mm thick and 14 mm diameter) in a 6-well plate. The cells were washed with phosphate-buffered saline (PBS), fixed with 4% paraformaldehyde for 0.5 min, permeated with 0.1%Triton X-100 for 10 min, and sealed with 2% bovine serum albumin for 1 h. The cells were then cultured overnight with PYCARD antibody at 4 °C. After 3 rinses with PBS, appropriate fluorescent secondary antibodies were added to the cell samples and cultured at room temperature for 2 h. The nucleus was counterstained by DAPI. Finally, sections were detected under a Carl Zeiss LSM 700 confocal microscope (Zeiss, Jena, Germany).

Statistical analysis

All bioinformatics and statistical analyses were performed using R statistical software. For cell quantification, an unpaired Student’s t-test was used in GraphPad Prism 8 software. The standard error of the mean (SEM) was applied to calculate the error bars. P<0.05 is considered as statistically significant.

Results

PYCARD was highly expressed in TMZ-resistant cell lines and glioma tissue and correlated with poor prognosis

The potential involvement of the gene in the regulation of TMZ chemoresistance in glioma was determined. Next, we analyzed resistance cells (HS683R, LNZ308R, U87R, and LN229R) and compared them with parental cells (HS683, LNZ308, U87, and LN229) using data derived from the GEO database (GSE53014 and GSE113510; https://www.ncbi.nlm.nih.gov/geo/). Using bioinformatics analysis, we found that PYCARD was upregulated only in resistance cells (HS683R, LNZ308R, and LN229R; Figure 1A). Next, we further attempted to study the function of PYCARD expression in glioma patient survival. Survival analysis from TCGA database showed that an elevated level of PYCARD was associated with unfavorable prognosis in GBM and LGG (Figure 1B). A similar result was observed in all the WHO grade (primary glioma) and grades III–IV glioma based on CGGA database analysis (Figure 1C-E). We further analyzed the expression of PYCARD in correlation with patient survival times based on the first surgical procedure performed in our center for each patient in our clinical cohorts using the Kaplan-Meier method (Figure 1F). Further analysis of TCGA data showed that compared with normal brain tissue, PYCARD was highly expressed in GBM and LGG (Figure 1G). Likewise, CGGA data revealed that the mRNA level of PYCARD was significantly increased in HGG compared to LGG (Figure 1H). To confirm the increased expression of PYCARD in glioma tissues, we measured the expression of PYCARD using qRT-PCR in clinical glioma specimens (Figure 1I). Similar results were also obtained from immunohistochemical staining. PYCARD was highly expressed in HGG compared to LGG, and PYCARD expression was more highly expressed in recurrent gliomas than in primary gliomas (Figure 1J). Overall, these results indicated PYCARD to be upregulated in TMZ-resistant cell lines and glioma tissue and to be correlated with poor prognosis.

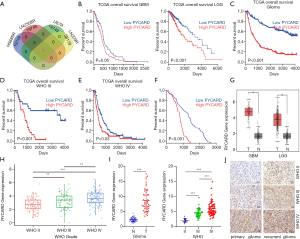

Figure 1 PYCARD was upregulated in TMZ-resistant cell lines and glioma tissue, and was correlated with poor prognosis. (A) A Venn diagram showing the overlaps of 2 mRNA list. PYCARD expression was compared between parental cells (HS683, LNZ308, U87, and LN229) and TMZ-resistant cells (HS683R, LNZ308R, U87R, and LN229R). All data were from the GEO (GSE53014 and GSE113510). (B) PYCARD survival analysis using the TCGA GBM and LGG data. (C,D,E) Correlation between PYCARD expression and glioma patient survival in the CGGA cohort. (F) Kaplan-Meier analysis for PYCARD expression in glioma patient samples based on the first surgical procedure performed at Jiangxi Provincial People’s Hospital Affiliated to Nanchang University for each patient. (G) mRNA expression levels of PYCARD using TCGA data. *P<0.05. (H) mRNA expression levels of PYCARD using CGGA cohort. **P<0.01, ***P<0.001. (I) RT-PCR analysis of mRNA expression levels of PYCARD using glioma patient samples. ***P<0.001. (J) Immunohistochemical analysis of PYCARD expression in primary gliomas and paired recurrent gliomas. PYCARD, PYD and CARD domain-containing; TMZ, temozolomide; GEO, Gene Expression Omnibus; TGCA, The Cancer Genome Atlas; LGG, low-grade glioma; CGGA, Chinese Glioma Genome Atlas.

PYCARD promoted glioma cell proliferation and migration

As PYCARD was overexpressed in glioma and related to poor prognosis, we next conducted functional experiments to investigate the potential biological function of PYCARD. First, western blotting was applied to verify the high expression of PYCARD in resistance cells (U251R and LN229R) compared with the parental cells (U251 and LN229) (Figure 2A). PYCARD protein expression levels were significantly elevated with increased concentration of TMZ (0, 25, 50, and 100 µg/mL) in both parental cell lines (Figure 2B). GSEA results showed that proliferation, metastasis, and immunity were closely correlated with high expression levels of PYCARD (Figure 2C). U251R or LN229R cells were transfected with PYCARD shRNA lentiviral vectors (sh-PYCARD) or Control shRNA lentiviral vectors (sh-NC), lentiviral vectors to knockdown PYCARD expression, and U251 or LN229 cells were transfected with Control lentiviral activation vectors (LV-NC) or PYCARD lentiviral activation vectors (LV-PYCARD), lentiviral vectors to generate stable PYCARD-overexpressed cells to assess the role of PYCARD in glioma cell proliferation and migration, respectively. Transfection efficiency was measured by immunofluorescence (Figure 2D). CCK-8 results showed that PYCARD overexpression significantly increased the activity of cells after TMZ treatment (50 µg/mL). Conversely, the loss of PYCARD decreased cell viability (Figure 2E). Cell migration assays results showed that overexpression of PYCARD significantly elevated cell migration ability after TMZ treatment, while the loss of PYCARD decreased cell migration ability (Figure 2F). We then examined proliferation-related proteins and metastasis-related proteins using western blotting (Figure 2G,H). Overall, these data demonstrate that PYCARD promotes glioma cell proliferation and migration.

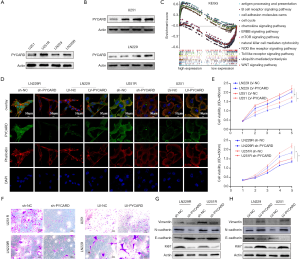

Figure 2 PYCARD promotes glioma cell proliferation and invasion. (A) Western blotting analysis of PYCARD protein in parental cells and paired TMZ-resistant cells. (B) Expression of PYCARD in cell samples with different concentrations of TMZ (0, 25, 50, and 100 µg/mL) using western blotting assays. (C) Gene set enrichment analysis. (D) Expression and distribution of PYCARD as analyzed by immunofluorescence. (E) Cell viability of LN229 and U251 after LV-PYCARD transfection cells were treated with TMZ (50 µg/mL) for 1–5 days; *P<0.05 compared with LV-NC group cells. Cell viability of LN229R and U251R after sh-PYCARD transfection cells were treated with TMZ (50 µg/mL) for 1–5 days; *P<0.05 compared with sh-NC group cells. (F) Transwell invasion assays were used to detect the invasion ability of LN229R and U251R cells after sh-PYCARD transfection as compared with sh-NC group cells and the invasion ability of LN229 and U251 cells after LV-PYCARD transfection as compared with LV-NC group cells. (G,H) Differential expression of epithelial-mesenchymal transition (EMT)-associated protein expression (Vimentin, N-cadherin, E-cadherin) and proliferation-associated protein expression (Ki67) was determined by western blotting analysis. PYCARD, PYD and CARD domain-containing; TMZ, temozolomide; LV-PYCARD, PYCARD lentiviral activation vectors.

Association of PYCARD expression with the tumor microenvironment

We determined whether PYCARD expression was correlated with tumor microenvironment (TME) in GBM and LGG by calculating the coefficient of PYCARD expression and TME. The outcome revealed that PYCARD expression had a significant correlation with stromal and immune cells in GBM and LGG (Figure 3A,B). Furthermore, PYCARD expression showed a significantly positive correlation with gamma delta T cells but a negative correlation with M2 macrophages in GBM (Figure 3C). Similarly, PYCARD expression demonstrated a significantly positive association with the monocytes but a negative correlation with activated mast cells in LGG (Figure 3D). These findings strongly indicated that PYCARD affects patient survival through interacting with TME in GBM and LGG.

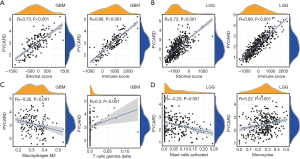

Figure 3 Association of PYCARD expression with immune microenvironment and immune cells in glioma. (A) PYCARD expression was correlated with stromal cells and immune cells in GBM. (B) PYCARD expression was correlated with stromal cells and immune cells in LGG. (C) PYCARD expression was correlated with M2 macrophages and gamma delta T cells in GBM. (D) PYCARD expression was correlated with activated mast cells and monocytes in LGG. PYCARD, PYD and CARD domain-containing; GBM, glioblastoma multiforme; LGG, low-grade glioma.

PYCARD-related lncRNA signature for glioma

Although PYCARD is involved in glioma cell proliferation and migration, the exact regulatory mechanism has yet to be elucidated. Thus, the relationship between PYCARD and lncRNAs from TCGA dataset was analyzed. First, the construction of a coexpression network for PYCARD-lncRNAs was extracted from TCGA dataset (R>0.3; P<0.001). Univariate Cox regression analysis was applied using 14,142 PYCARD-associated lncRNAs in GBM (P<0.05) and 14,142 PYCARD-associated lncRNAs in LGG (P<0.001; Table S4 and Table S5). After initial univariate Cox regression analysis to screen prognostic lncRNAs, multivariate Cox regression analysis was applied based on 8 PYCARD-associated lncRNAs in GBM and 11 PYCARD-associated lncRNAs in LGG (Table S6 and Table S7). Three lncRNAs in GBM and four lncRNAs in LGG had a predictive value for glioma patients (Figure 4A). To demonstrate the relationship between lncRNAs and PYCARD, we determined the expression level of lncRNAs and PYCARD using qRT-PCR in 114 glioma tissues. The Pearson coefficient was adopted to estimate the correlation between lncRNAs and PYCARD. We found that AC122129.1 and AC017104.1 gene expression was negatively correlated with PYCARD genes, while AL357992.1 gene expression was positively associated with PYCARD genes in GBM (Figure 4B,C,D). Further, we used a risk score method to develop a PYCARD-associated lncRNA signature. We divided the GBM patients into a low-risk group and a high-risk group, and differences in risk score based on AC122129.1, AC017104.1, and AL357992.1 expression were evaluated. This revealed that the high-risk GBM patients had a shorter median overall survival than did the low-risk GBM patients (Figure 4E). Subsequently, AC122129.1, AC017104.1, and AL357992.1 were considered to be independent prognostic factors for GBM patients: AC017104.1 and AL357992.1 were unfavorable factors, and AC122129.1 was a favorable factor (Figure 4F,G,H).

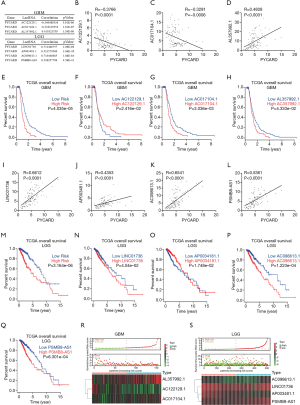

Figure 4 PYCARD-related lncRNA signature for glioma. (A) Pearson correlation analysis of lncRNAs and PYCARD genes in glioma based on TCGA GBM and LGG databases. (B,C,D) Expressions of lncRNAs and PYCARD were measured by qRT-PCR using glioma samples. Pearson correlation analysis of the lncRNAs and PYCARD genes in GBM. (E) Kaplan-Meier survival curves for PYCARD-associated lncRNA risk score for GBM in TCGA database. (F,G,H) PYCARD survival analyses using the TCGA GBM database. (I,J,K,L) Expressions of lncRNAs and PYCARD were measured by qRT-PCR using glioma samples. Pearson correlation analysis of the lncRNAs and PYCARD genes in LGG. (M) Kaplan-Meier survival curves for PYCARD-associated lncRNA risk score for LGG in the TCGA database. (N,O,P,Q) PYCARD survival analyses using the TCGA LGG database. (R,S) PYCARD-associated lncRNAs risk score analysis of GBM and LGG patients in TCGA. PYCARD, PYD and CARD domain-containing; GBM, glioblastoma multiforme; LGG, low-grade glioma; TCGA, The Cancer Genome Atlas; lncRNAs, long non-coding RNAs.

Similarly, we found that LINC01736, AP003481.1, AC098613.1, and PSMB8-AS1 gene expression positively correlated with PYCARD genes in 114 glioma tissues (Figure 4I-L). We also assessed the differences in the risk score using LINC01736, AP003481.1, AC098613.1, and PSMB8-AS1 expression. The high-risk LGG patients had a shorter median overall survival than did the low-risk LGG patients (Figure 4M). Subsequently, LINC01736, AP003481.1, AC098613.1, and PSMB8-AS1 were found to be independent prognostic factors for LGG patients: LINC01736, AC098613.1, and PSMB8-AS1 were unfavorable factors, whereas AP003481.1 was a favorable factor (Figure 4M,N,O,P,Q).

Further, these results were validated in TCGA datasets, with GBM and LGG patients being enrolled for the validation of the lncRNA signature (Figure 4R,S). These findings strongly suggest that lncRNAs may be an independent prognostic indicator for GBM and LGG patients.

GSEA analysis

Among the gene sets, several signaling pathways were highly enriched in GBM, including the EGF receptor family (ERBB) signaling pathway, glioma, inositol phosphate metabolism, and phosphatidylinositol signaling system (Figure 5A,B,C,D).

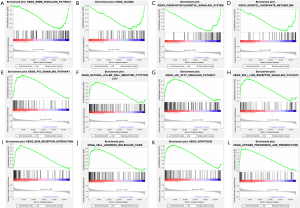

Figure 5 Gene set enrichment analysis (GSEA). (A,B,C,D) GSEA indicated significant enrichment of hallmark cancer-related pathways, including ERBB signaling pathway (A), glioma (B), phosphatidylinositol signaling system (C), and inositol phosphate metabolism (D), in the low-risk group based on the TCGA GBM database. (E,F,G,H,I,J,K,L) GSEA indicated significant enrichment of hallmark cancer-related pathways, P53 signaling pathway (E), natural killer cell-mediated (F), JAK/STAT signaling pathway (G), RIG I like receptor signaling pathway (H), ECM receptor interaction (I), cell adhesion molecules cams (J), apoptosis (K), and antigen processing and presentation (L), in the high-risk group based on TCGA LGG database. GSEA, gene set enrichment analysis; TCGA, The Cancer Genome Atlas; GBM, glioblastoma multiforme; LGG, low-grade glioma.

Likewise, GSEA indicated a significant enrichment of hallmark cancer-related pathways in the high-risk group based on the LGG database. Among the gene sets, several signaling pathways were well established in LGG, including P53 signaling pathway, natural killer cell-mediated, JAK/STAT signaling pathway, RIG I-like receptor signaling pathway, extracellular matrix (ECM) receptor interaction, cell adhesion molecules cams, apoptosis, and antigen processing and presentation (Figure 5E,F,G,H,I,J,K,L). Our data indicated that lncRNAs might play an essential role in the modulation of glioma progression.

Pan-cancer analysis of PYCARD mRNA expression and prognosis

The expression level of PYCARD mRNA in pan-carcinoma was analyzed in TCGA. The results indicated that compared with their respective normal groups, PYCARD expression was higher in cancer groups, including prostate adenocarcinoma (PRAD), stomach adenocarcinoma (STAD), thyroid carcinoma (THCA), bladder urothelial carcinoma (BLCA), breast invasive carcinoma (BRCA), cervical squamous cell carcinoma (CESC), glioblastoma multiforme (GBM), head and neck squamous cell carcinoma (HNSC), kidney chromophobe (KICH), kidney renal clear cell carcinoma (KIRC), cholangiocarcinoma (CHOL), esophageal carcinoma (ESCA), kidney renal papillary cell carcinoma (KIRP), liver hepatocellular carcinoma (LIHC), and uterine corpus endometrial carcinoma (UCEC) (Figure 6A). The expression of PYCARD in different cancer types in was compared using Kaplan-Meier survival curves. Similarly, we also found that PYCARD was an adverse prognostic factor for KIRC and Acute Myeloid Leukemia (LAML) (Figure 6B,C). PYCARD expression associated positively with worsening tumor grade in KIRC (Figure 6D).

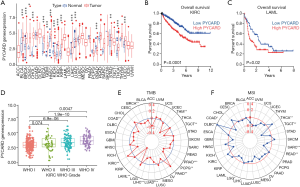

Figure 6 Pan-cancer analysis of PYCARD mRNA expression and prognosis. (A) Pan-cancer analysis of PYCARD mRNA expression in TCGA database; (B,C) PYCARD survival analyses using TCGA KIRC and LAML data (Kaplan-Meier); (D) expression of PYCARD in KIRC patients with different tumor grades based on the TCGA KIRC database; (E) expression of PYCARD versus tumor mutation burden (TMB) in each TCGA dataset; (F) relationship between PYCARD expression phenotype and microsatellite instability (MSI). *P<0.05, **P<0.01, ***P<0.001. PYCARD, PYD and CARD domain-containing; TCGA, The Cancer Genome Atlas.

TMB data downloaded from TCGA database were used to evaluate PYCARD mRNA expression levels. Using recently published MANTIS (Microsatellite Analysis for Normal-Tumor InStability) software, we analyzed whole-exome data from TCGA sources across 33 cancers. Within a subset of these cancers, we assessed the association of MSI with PYCARD expression. According to the radar plot, high TMB inhibited the expression of PYCARD in thymoma (THYM), testicular germ cell tumors (TGCT), Prostate adenocarcinoma (PRAD), pheochromocytoma and paraganglioma (PCPG), lung squamous cell carcinoma (LUSC), LIHC, LAML, colon adenocarcinoma (COAD), and BRCA as compared to (pancreatic adenocarcinoma) PAAD and KIRC. However, the regulatory relationships in other cancers were not statistically significant (Figure 6E). MSI may also enhance PYCARD. The expression of PYCARD was promoted in THCA and lymphoid neoplasm diffuse large B-cell lymphoma (DLBC) but inhibited in testicular germ cell tumors (TGCT), sarcoma (SARC), rectum adenocarcinoma (READ), LGG, COAD (Figure 6F).

Discussion

The TMZ resistance of glioma is a complex process, and multiple studies have shown that TMZ chemoresistance is related to various biological processes (2,12,13). However, the underlying molecular mechanism of TMZ chemoresistance remains unclear. Molecular mechanisms of TMZ chemoresistance are essential to improving the therapeutic strategies for malignant gliomas.

In the present study, we first analyzed resistance cells (HS683R, LNZ308R, U87R, and LN229R) and compared them with parental cells (HS683, LNZ308, U87, and LN229). Using bioinformatics analysis (GSE53014 and GSE113510), we found that PYCARD was upregulated only in resistance cells (HS683R, LNZ308R, and LN229R), but was downregulated in resistance cell U87R. PYCARD is a protein-coding gene that mediates the assembly of large signaling complexes in the inflammatory and apoptotic signaling pathways via the activation of caspase (14,15). This proapoptotic activity is mediated predominantly through the activation of caspase-9 (28,29). Methylation of PYCARD (ASC/TMS1) promoter is associated with poor prognosis of patients with gastric cancer (16). Surprisingly, proapoptotic PYCARD genes are highly expressed in the resistance cells. However, how and why this occurs is crucial information that has yet to be clarified. Therefore, we performed a functional study of PYCARD.

Recent studies have found PYCARD deficiency suppresses proliferation and prevents medulloblastoma incidence (30). We also found that overexpression of PYCARD significantly promoted cell proliferation and migration ability after TMZ treatment; conversely, the loss of PYCARD decreased cell proliferation and migration ability. However, no noticeable apoptotic and half-maximal inhibitory concentration (IC₅₀) changes were observed in our research (30-33). This is inconsistent with the previous results (32), and this discrepancy is due to cancer heterogeneity and the complex network regulating mRNA. Nonetheless, this deserves further exploration.

Survival analysis from TCGA database indicated that the higher expression of PYCARD was correlated with poor prognosis in GBM and LGG. A similar result was observed in all WHO grade (primary glioma) and WHO III–IV glioma based on CGGA database analysis. Our survival analyses revealed that PYCARD expression was significantly associated with poor clinical outcomes based on patients’ surgery at Jiangxi Provincial People’s Hospital Affiliated to Nanchang University. However, PYCARD had no predictive significance for WHO grade II glioma (n=8), which may contribute to a limited number of glioma cases.

In recent years, studies have found that immune cells in the TME can influence the survival of patients with glioma (17,20,34). Immune checkpoint proteins PD-L1, CTLA-4, TIGIT and TIM-3 are significantly upregulated with the hypomethylation of promoters. The increased levels of immune checkpoint molecules may be one of the causes of repressed activation and function of immune cells in the tumor microenvironment. Therefore, investigating the association between TME and PYCARD expression could be extremely valuable. Our findings that PYCARD expression had significant correlations with stromal and immune cells in GBM and LGG. PYCARD expression was also significantly correlated with gamma delta T cells but negatively correlated M2 macrophages in GBM. Similarly, PYCARD expression was significantly associated with monocytes but negatively correlated with activated mast cells in LGG. Thus, immunity plays an important role in the treatment resistance of TMZ chemotherapy.

Although we found that PYCARD was involved in glioma cell proliferation and migration, the actual regulatory mechanism remains unknown. LncRNA is known to figure prominently in gene expression regulation, with a single target gene being influenced by one or more lncRNAs (23,24). Thus, we attempted to investigate the complicated relationship between PYCARD and lncRNAs. Three PYCARD-associated lncRNAs in GBM and 4 PYCARD-associated lncRNAs in LGG were found to have predictive value for glioma patients. Numerous PYCARD-associated lncRNAs were identified in LGG, perhaps due to our stringent screening criteria (P<0.001). LINC01736, AP003481.1, AC098613.1, and PSMB8-AS1 were considered to be independent prognostic factors for LGG patients, whereas AC122129.1, AC017104.1, and AL357992.1 were considered to be independent prognostic factors for GBM patients. GSEA indicated that lncRNAs might play an essential role in the modulation of glioma progression. However, future studies should be conducted to verify this finding.

The expression level of PYCARD mRNA was analyzed in TCGA to determine the expression of PYCARD in various cancers. We found that PYCARD expression was higher in most of the cancer types. Perhaps due to the heterogeneity of the cancer types, PYCARD was only found to be a prognostic factor in KIRC and LAMA.

From the aspect of its mechanism of action, the following findings are worth pointing out. DNA methylation is a biological process always represses the expression of tumor-suppressive genes in many types of cancer (35). Previous studies have shown that PYCARD is inhibitor by DNA methylation in human breast tumors (36). Aberrant methylation and down-regulation of PYCARD by DNA methyltransferase 1 (Dnmt1), Dnmt3b and Dnmt1/Dnmt3a in human glioblastoma (30,37-40). However, the detailed molecular mechanism behinds the resistance remains unclear, and further research to explore this area is warranted.

Overall, our study provides evidence of the diagnostic and prognostic value of PYCARD expression in glioma patients. The expression of PYCARD plays a crucial role in the resistance to chemotherapy and immunotherapy.

Conclusions

The increased expression level of PYCARD might be a potential biomarker for the diagnosis and prognosis of glioma. Moreover, PYCARD might participate in the TMZ resistance of glioma via the proliferation and migration of the corresponding signaling pathways. Additionally, the expression level of PYCARD has close association with lncRNAs and TME. LncRNAs may be an independent prognostic indicator for glioma patients.

Acknowledgments

We are very thankful for all the participants of the present study. We also thank the reviewers for their valuable advice.

Funding: None.

Footnote

Reporting Checklist: The authors have completed the REMARK reporting checklist. Available at https://dx.doi.org/10.21037/atm-21-2346

Data Sharing Statement: Available at https://dx.doi.org/10.21037/atm-21-2346

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/atm-21-2346). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). The present study was approved by the Ethics Committee of the Jiangxi Provincial People’s Hospital Affiliated to Nanchang University and informed consent was taken from all the patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
